Foundation Design using SAFE
Aim -
1. Model the isolated footing provided in week 11 challenge on SAFE. Analyze and design it to verify the size, depth and steel provided as per calculations.
2. A column of size 600x600 carrying an unfactored gravity load (DL+LL) of 1175 KN is to be supported on pile cap, which ultimately transfers load to the piles underneath. Piles of 16 metres length and 500 mm diameter are to be used. Each pile has a load carrying capacity of 200 KN. Model, analyse and design the pile cap on SAFE to evaluate the following:
- Pile group to be used
- Depth of pile cap
- Longitudinal steel on top and bottom face in both directions
Procedure -

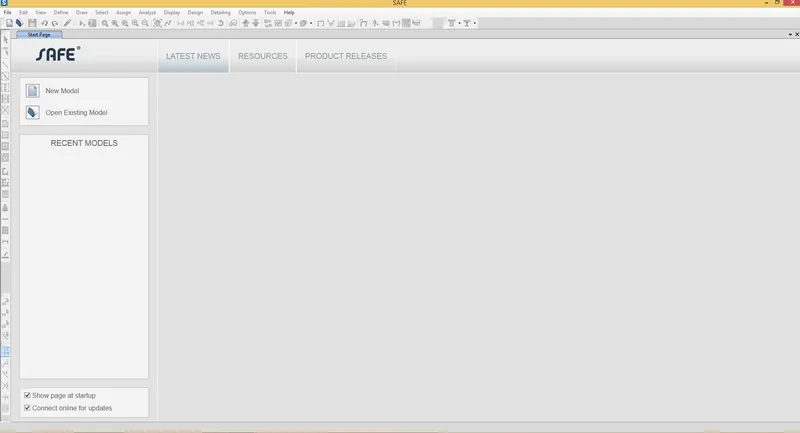

i) Open the SAFE 2020 Software .
ii) Click on New Model
Step 2)
i) Once you click on New model

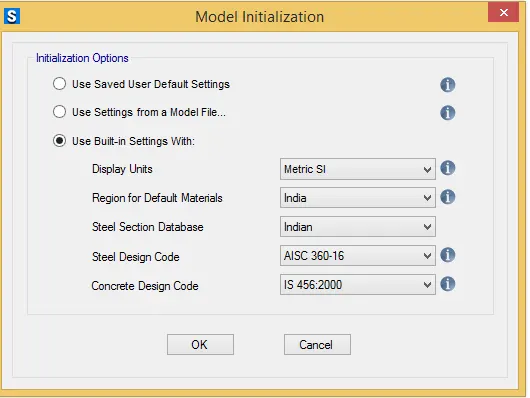

ii) A following Dialog box will open .
iii) Display Units- Metric SI
iv) Select the Region Indian
v) Select the Concrete Design Code - IS 456-200
vi) Click on Okay
i) Once you click Okay
ii) Model Quick Template box will open
iii) Click on Single Footing - As we are designing Isolated Footing .
Step 4)

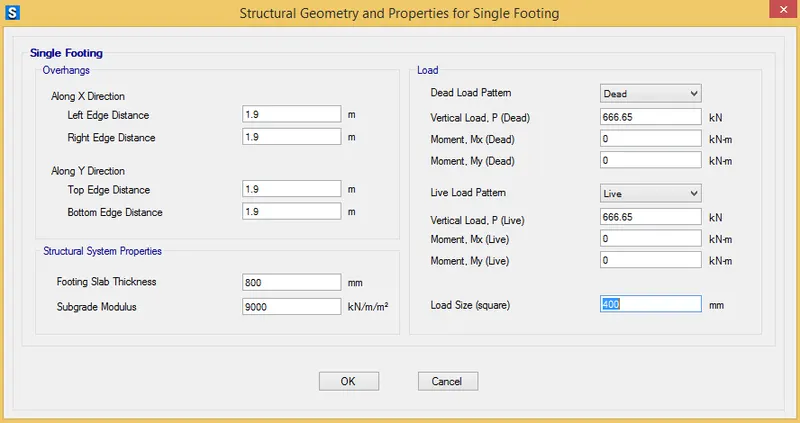

i) Enter the dimension as per calculation we have done in Week 11 challenge .
ii) As we have got Footing Size = 3.8m x 3.8m
iii) Enter the Direction Along X and Y direction as = 1.9 m
iv) Footing Slab Thicknes = 800 mm
v) For Modulus Subgrade =
we know the formula ,
Modulus of Subgrade = `(FOS X SBC )/ ( Allowab l e Set tl ement )`
i) Assume FOS = 3 as per IS 13290
ii) SBC = 150 given
iii) Allowable Settlement ( For Isolated footing ) = 0.025 m ( AS per Is 1904 )
= `(3 X 150 )/0.025`
= 9000 `(Kn )/(m^3)`

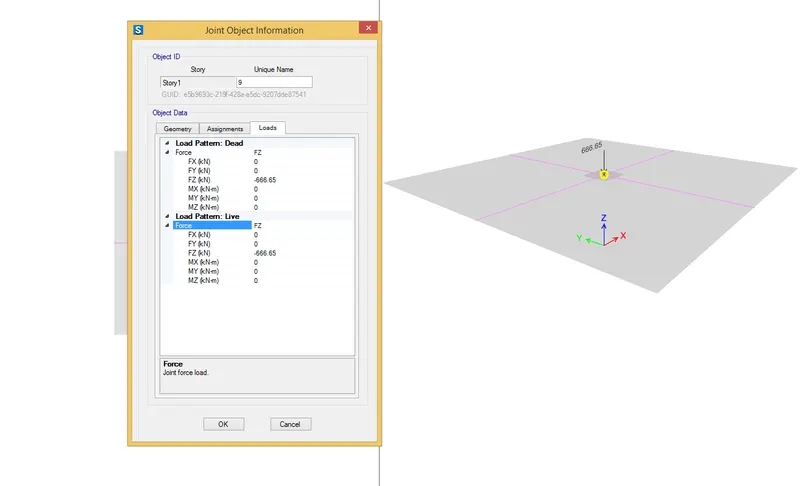

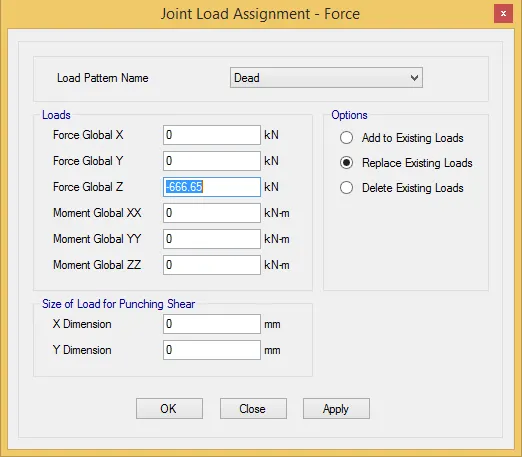

vi) Now we have to add the Load
i) For Dead load and Live load -
= (Total Unfactored load ) / 2
= `(1333.3 / 2)`
= 666.65 Kn
vi) Load Size = In that we have to enter Column Size = 400 mm
vii) Once you enter all the details Click in Okay
Step 5)
i) Once you click okay

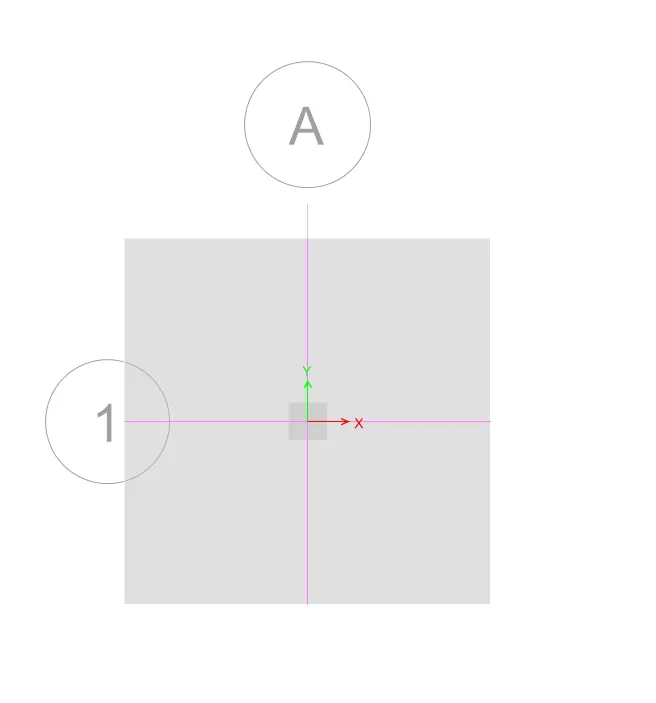

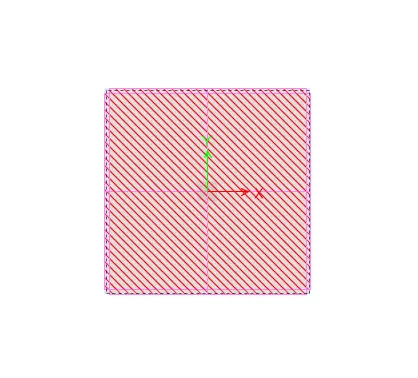

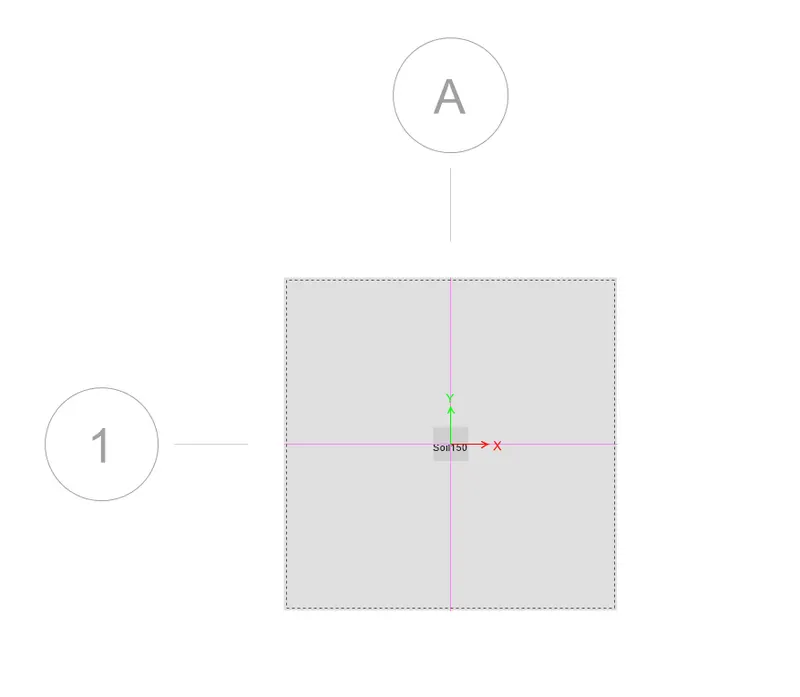

ii) You will see the geometry is created in Model space as follows
i) Now we have to add Material Properties
ii) Click on Define - Material Properties

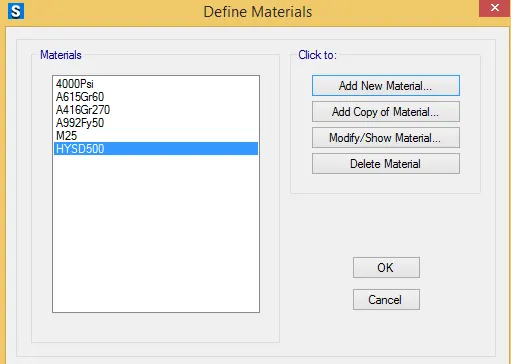

ii) Click on Add new materials

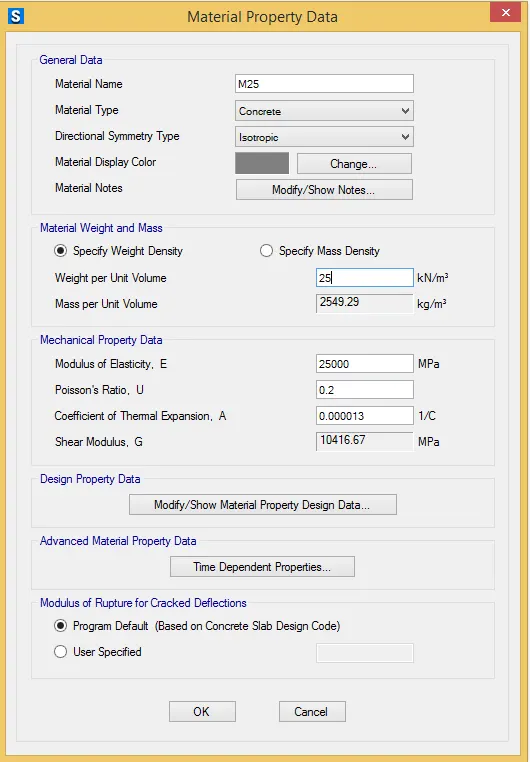

iii) Once you click Add new material add the following parameters
iv Material Type - Concrete
v) Grade - M25
vi) Click on okay .
vii) Click on Okay
viii) Properties has been Define
Step 7)

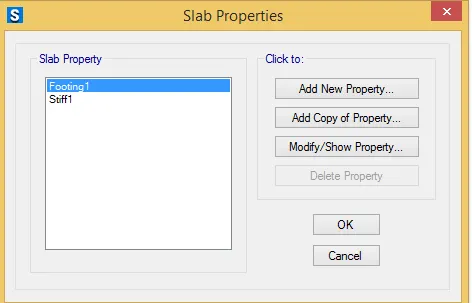

i) Now we have to define Slab properties
ii) As we already define slab properties in Grid Section
iii) Clic on Modify properties - Add

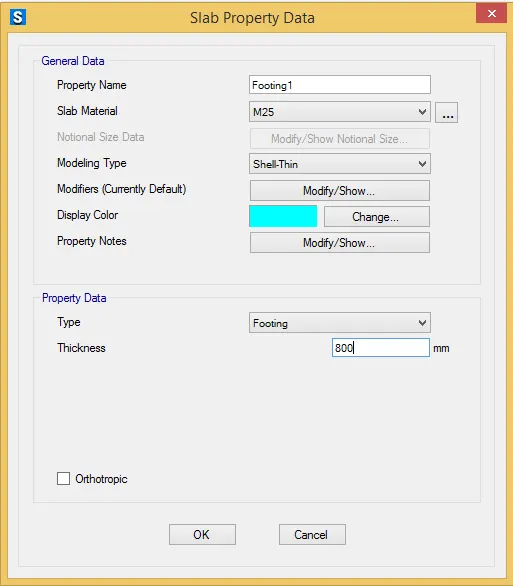

iv Select the Slab Material - M25

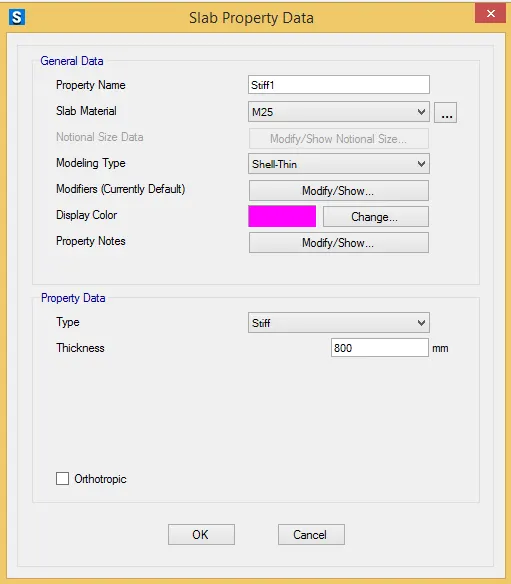

v) Assign tje thickness = 800 mm
vi) Similarly Modify the Stiff slab
Step 8)
i) Now we have to assign Soil Properties
ii) Define - Soil Properties

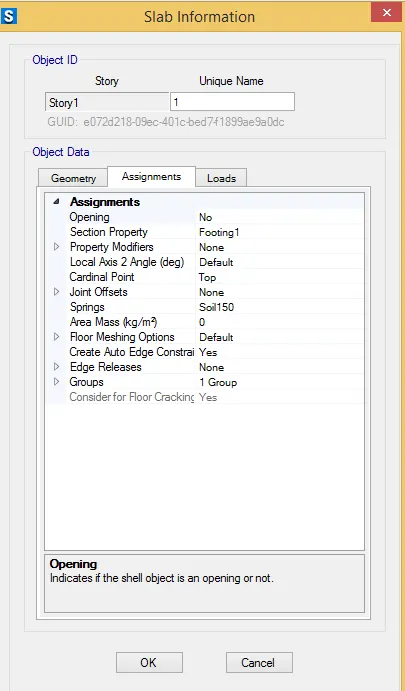

iii) Right Click on slab you will see the Soil Properties has been assigned
Step 9)
i) Now we have to check if loads are defined are not .
Step 10)

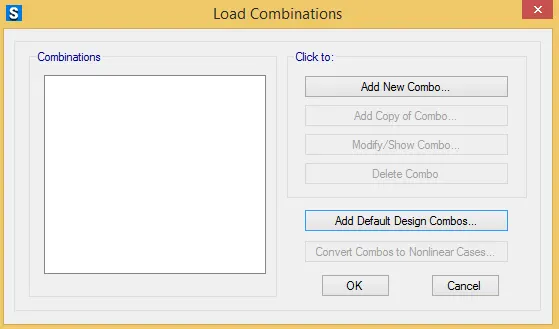

i) Now we have to define the Load Combinations
ii) For that Define - Load Combinations - Either you can Add New combo or you can Add default Combo
iii) Will Add new Combo as follows
Step 11)
i) Now we can Run the model
ii) Click on Run Analysis
iii) Save the File
iv) Now you will see the Displacements

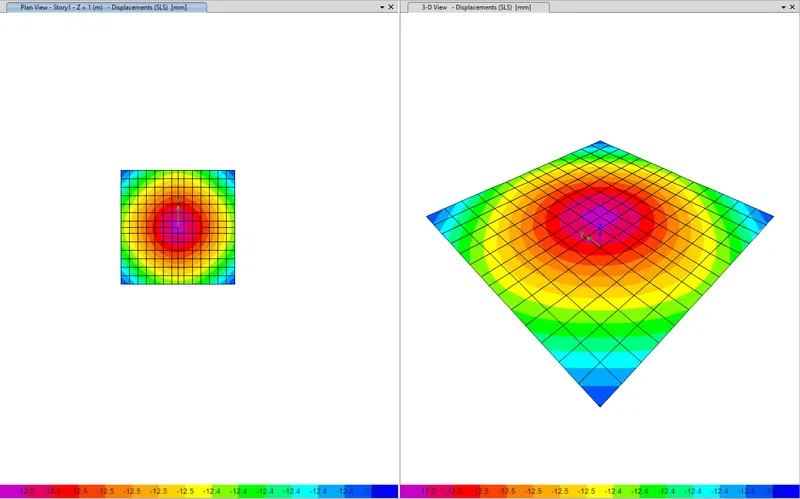

v) Click On Defotmed Shape - Select Combination as - SLS and see the displacement
vi) As displacement is -12 mm which is less than 25 mm ............Safe
2) Check for Bearing Pressure

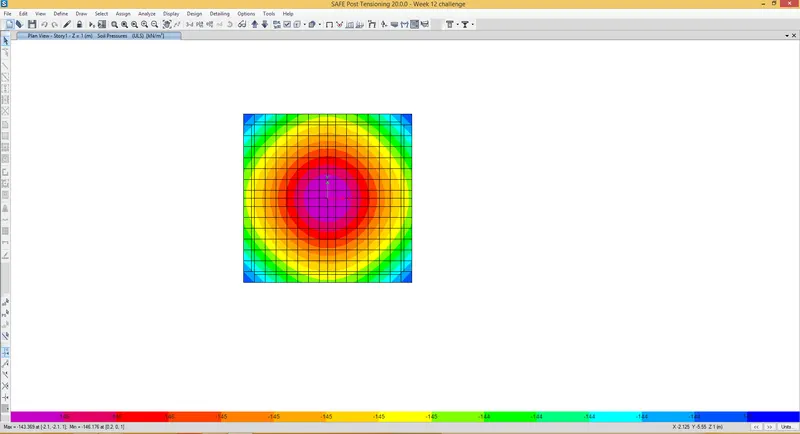

i) For that Click On Display - Soil Pressure - Select Combination as - ULS
ii) As we can see that Bearing pressure is more than SBC
i.e 169.22kn/m2 > 150 kN/m2 ..........................Unsafe
iii) We have to Increase the area to see if we can reduce the bearing pressure below the SBC
iv) Now provide the area as 4m x 4m
v) Here we can see that after increasing the area Bearing pressure is reduced
i.e -143.30 < 150 Kn/m2..............................Safe
3) Check of Punching Shear

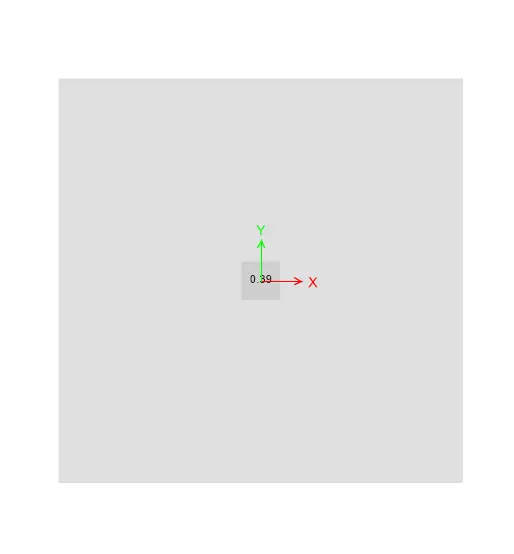

i) Click on Display - Punching Shear
ii) As we can see that Punching shear is less than 1
i.e 0.39 <1.....................................Safe
Step 12)
i) Now we have to add the Design srips
ii) Click on Edit - Add / Edit Design Strips
iii) Add the Strips in both X and Y direction
iv) Strips has assigned
v) Command Cntrl + W to see the set display option
vi) In that tick on Strip widtht to see the Strip width
Step 13
i) Now again Run the model

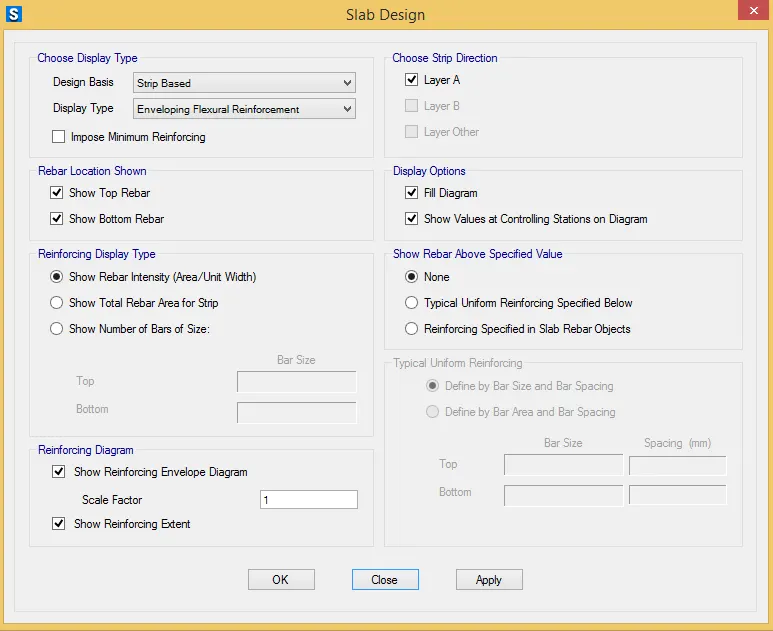

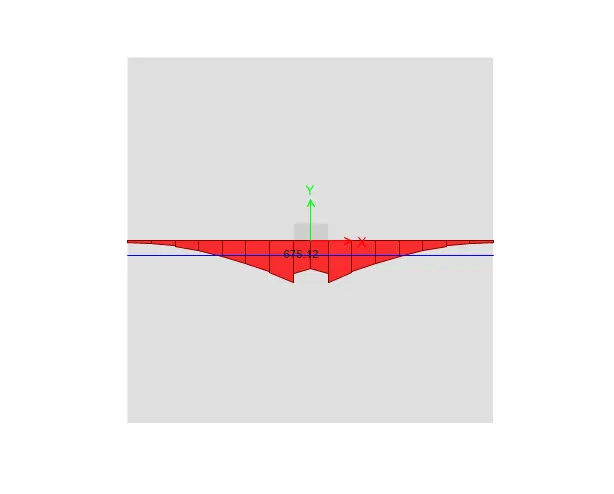

ii) Click on Slab Design
iii) Select Layer A
iv) Similarly Select layer B
Results -
i) Isolated Footing is Designed for Square column of size 400mm x 400 mm
ii) We have to Provide Footing Size as 4m x 4m
iii) Bearing soil pressure is checked and found to be safe
iv) Punching shear ratio is check and found to be safe
Q.2)
2. A column of size 600x600 carrying an unfactored gravity load (DL+LL) of 1175 KN is to be supported on pile cap, which ultimately transfers load to the piles underneath. Piles of 16 metres length and 500 mm diameter are to be used. Each pile has a load carrying capacity of 200 KN. Model, analyse and design the pile cap on SAFE to evaluate the following:
- Pile group to be used
- Depth of pile cap
- Longitudinal steel on top and bottom face in both directions
Aim - To Model, analyse and design the pile cap on SAFE
Procedure -
Step 1) Given data -
i) As per IS 2911 (part 2) the spacing between the piles is taken as 2.5 times the diameter of pile
ii) The edge spacing we have assume it as 300 mm .
Step 2)
i) Open the SAFE 2020 Software .
ii) Click on New Model
Step 3)
i) Once you click on New model
ii) A following Dialog box will open .
iii) Display Units- Metric SI
iv) Select the Region Indian
v) Select the Concrete Design Code - IS 456-200
vi) Click on Okay
Step 4)
i) Once you click Okay

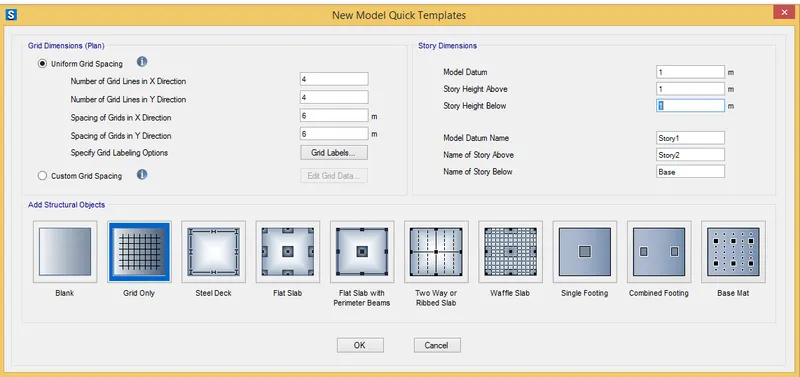

ii) Model Quick Template box will open
iii) Click on grid only

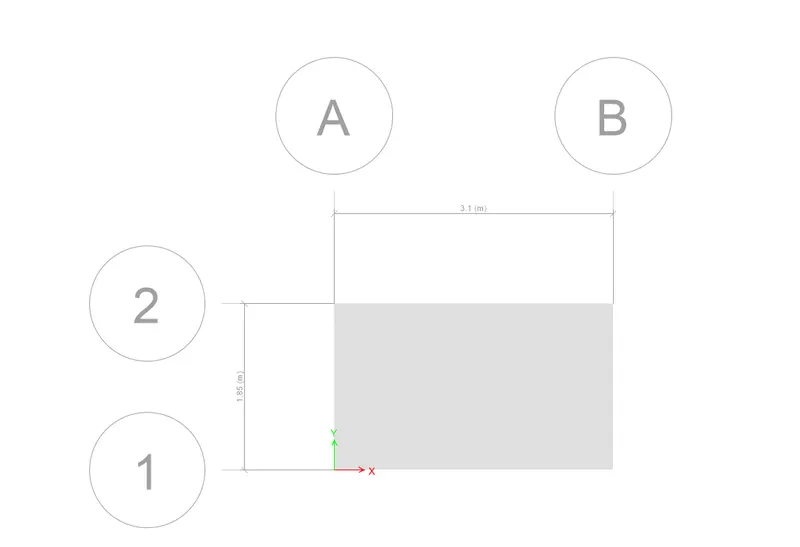

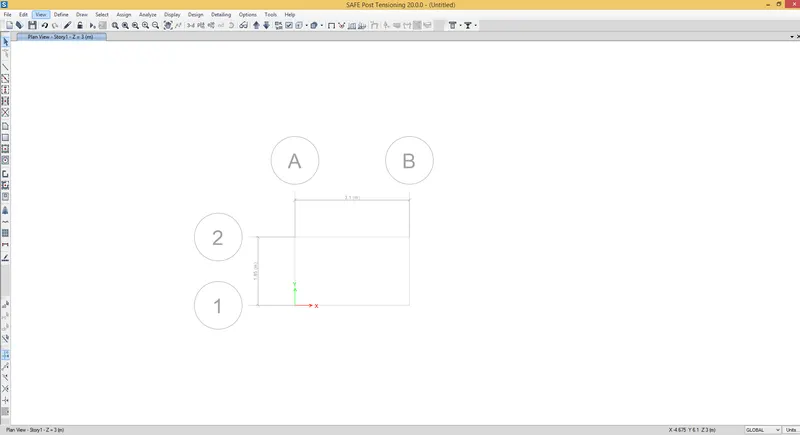

iv) Enter No of grids in X and Y = 2
v) Enter spacing in X = 3.1 m
vi) Enter Spacing in Y = 1.85 m
Step 5)
i) Now we have to assign the Material proprties

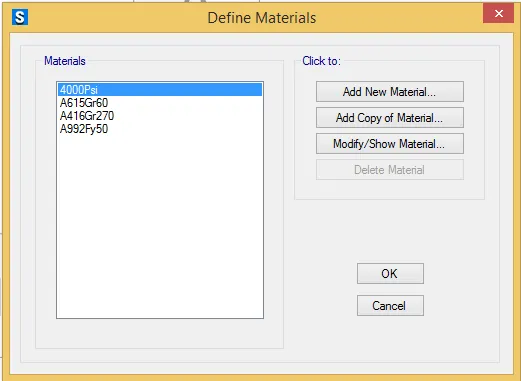

ii) Define - Material Properties
i) Click on Add new materials
iii) Once you click Add new material add the following parameters
iv Material Type - Concrete
v) Grade - M25
vi) Click on okay .

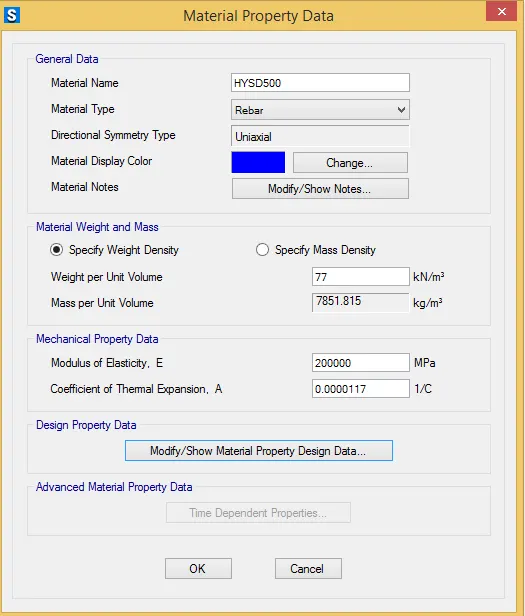

vii) Simialarly add the Rebar Properties .
viii) Click on Okay
ix) Properties has been Define
Step 6)
i) Now we have to define Slab properties

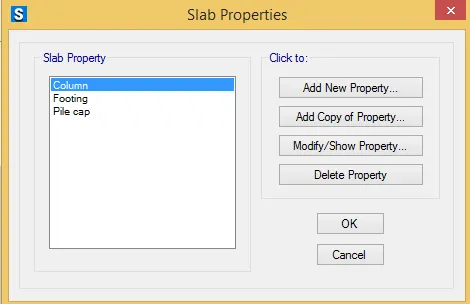

ii) In pile cap we have to define 3 slabs properties
iii) Footing
iv) For Column
v) For Pile cap
Step 7)
i) Once slab proerties are defined
ii) Now we have to start the modeling
iii) Select Quick draw slab options
iv) Draw the slab select Footing as property
Step 8)

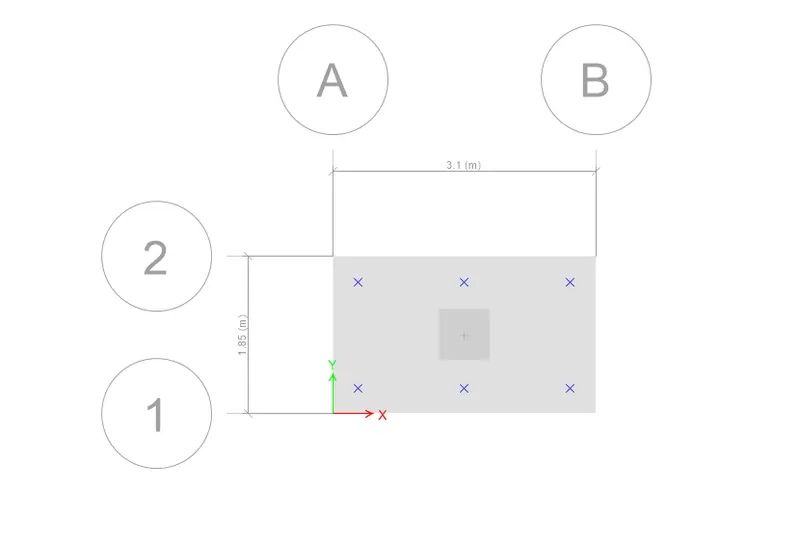

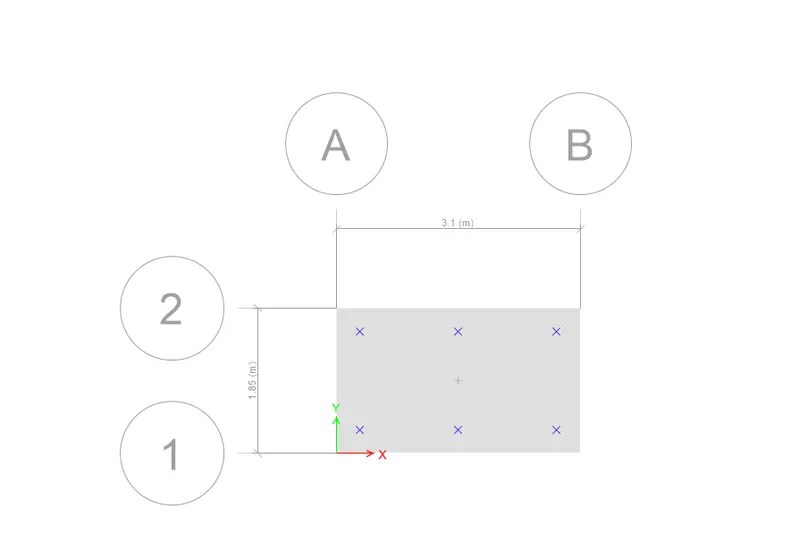

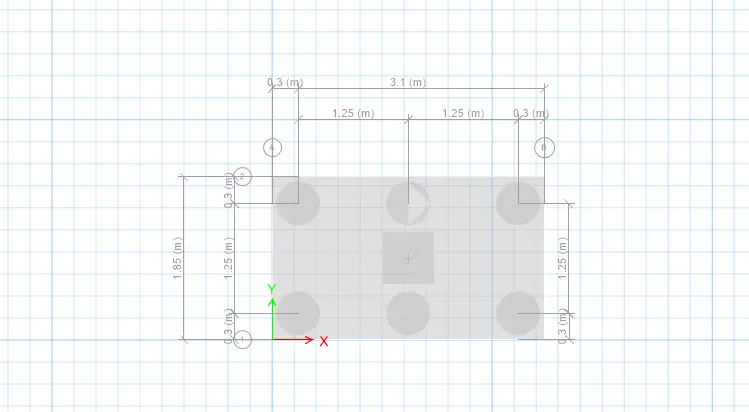

i) Now we have to mark the position of Pile cap
ii) For that we have to add the points
iii) Draw - Draw reference points
Step9)
i) Now we have to add column slab
ii) Click on Quick draw area / points
iii) Select the property
iv) and draw the columns

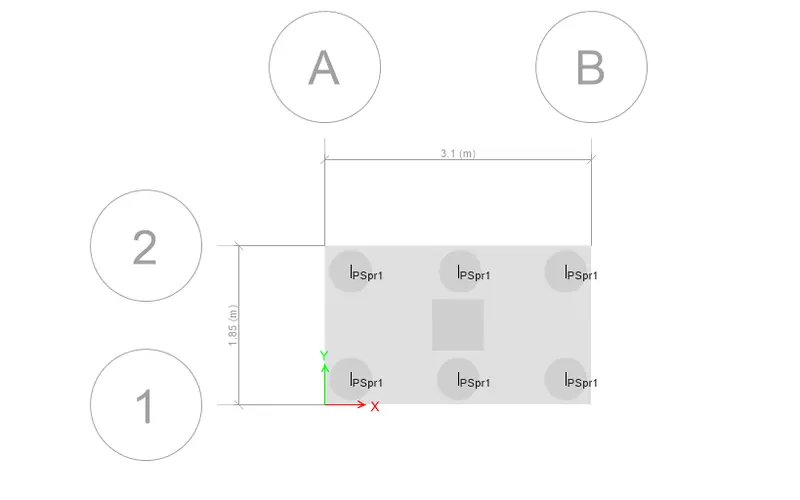

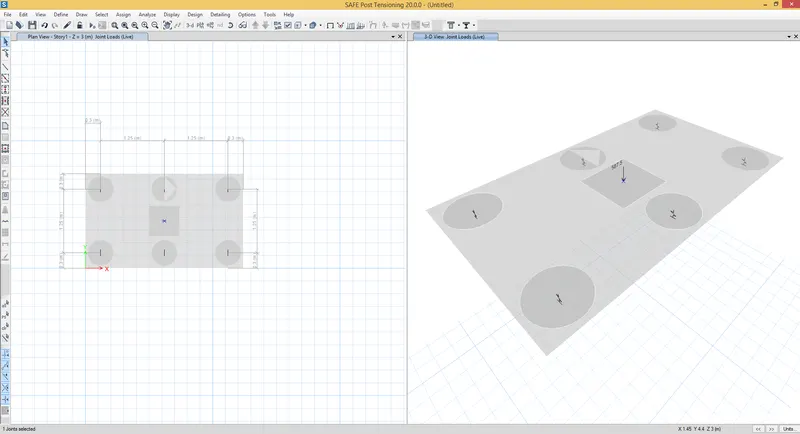

v) Similarly draw the pile caps
Step 10)

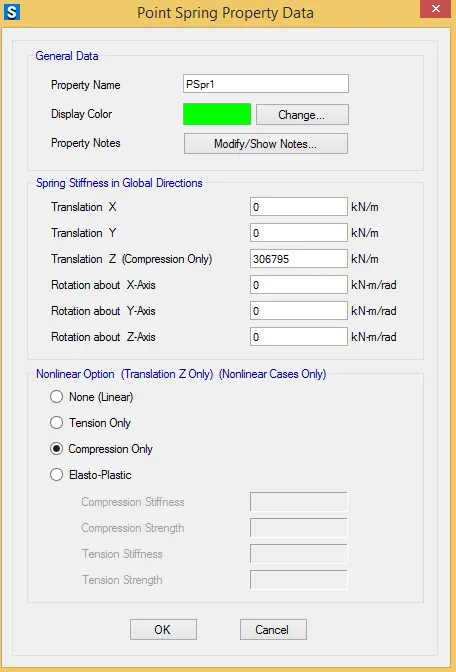

i) Now we have to add Springs to the pile because it behaves like a spring
ii) Click on Assign – Support Data – point springs

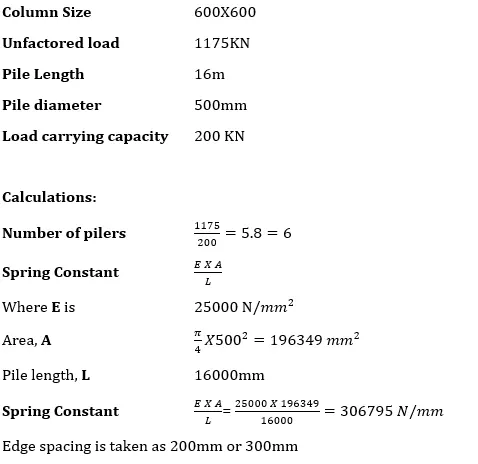

iii) Spring Constant from above calculation is taken as
iv) Add Spring Constant - 306795 Kn/m
v) Select - Compression Only
vi) Click on Okay
vii) Spring Constant has been assigned .
Step 11)
i) Now we have to add the loads

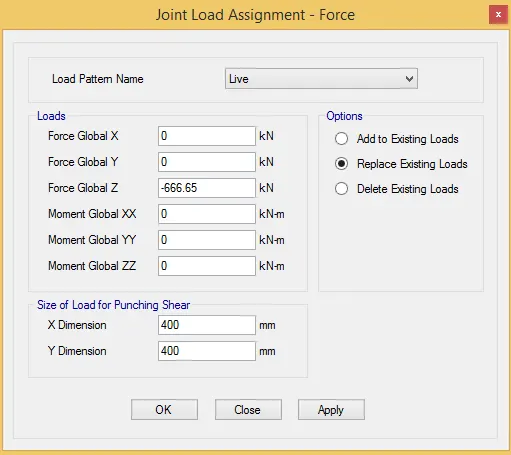

ii) Go to Assign - Joint loads - point force
iii) Assign 587.5 Kn dead load and 587.5 Kn live load
Step 12)

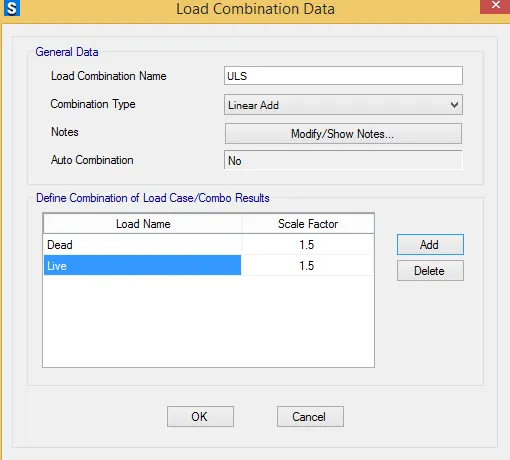

i) Now we have to add load combinations

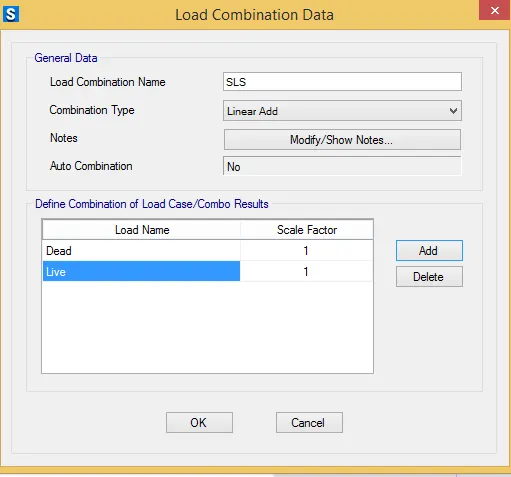

ii) Define - Load combination
iii) Define the load combination as follows
Step 13)

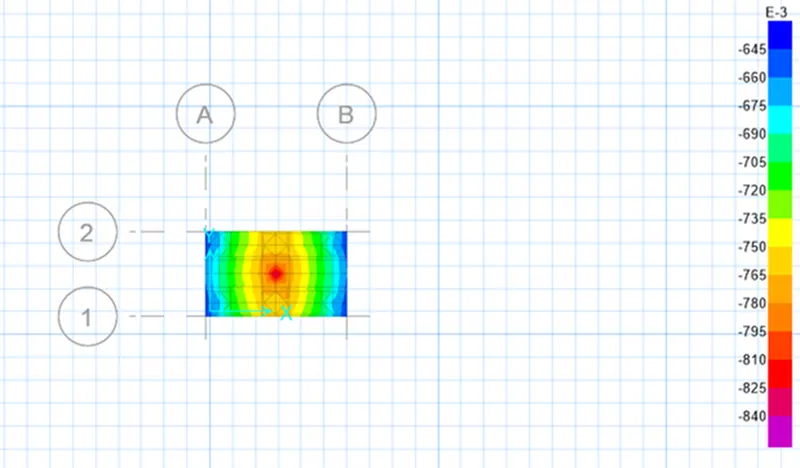

i) Now Run the model
ii) Click on Run Analysis
iii) We found that Displacement is less than allowable settlement
i.e 0.8 < 25mm
2) Check for Punching Shear -

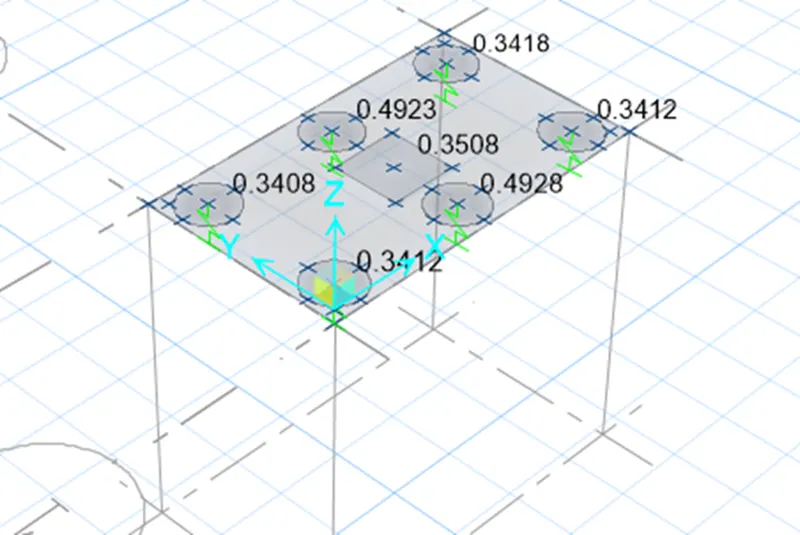

i) Click on Display - Punching Shear
ii) As we can see that Punching shear is less than 1
i.e 0.49 <1.....................................Safe

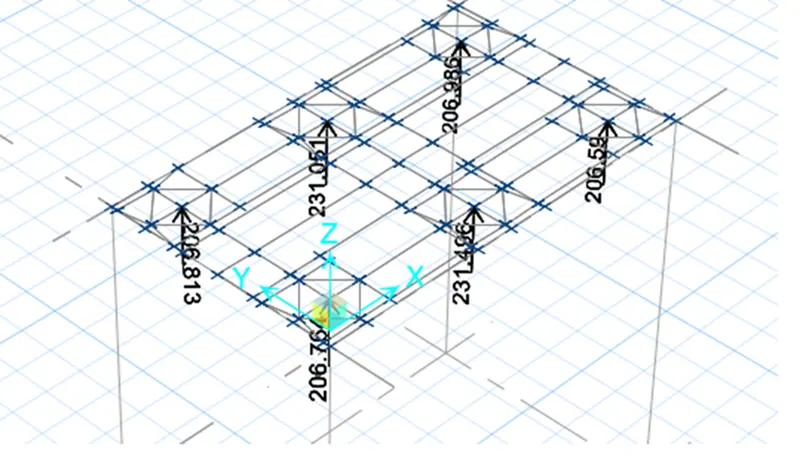

3) Joint Reaction
i) As all the reaction forces are according to the limit, Its safe
Step 14)

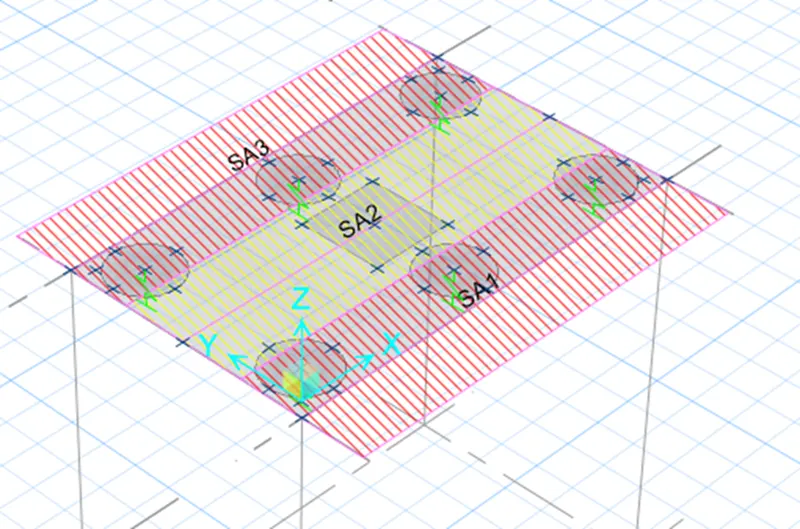

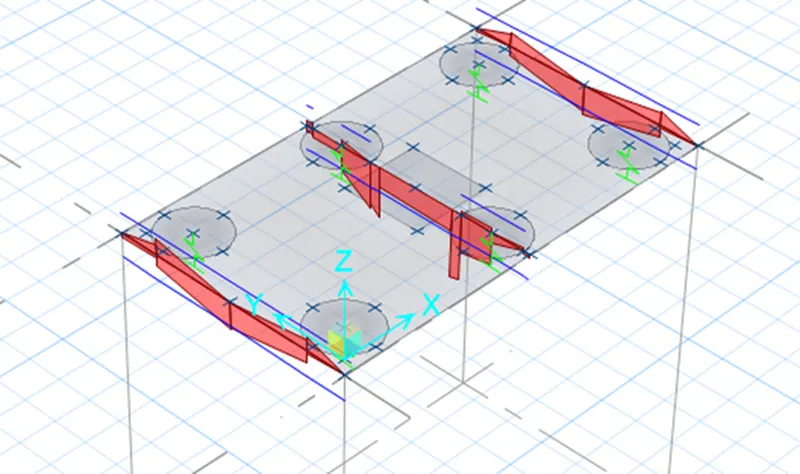

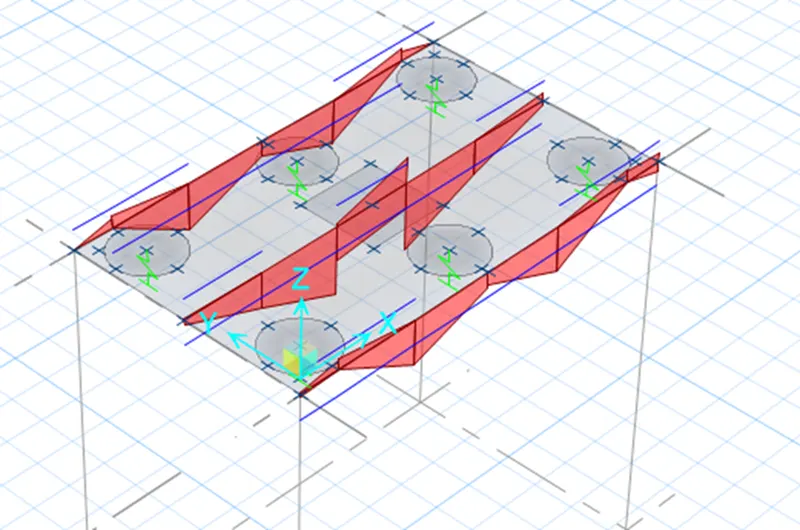

i) Now we have to add the Design srips

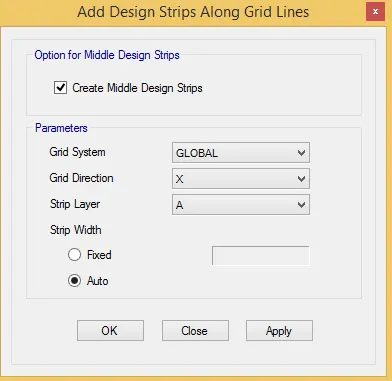

ii) Click on Edit - Add / Edit Design Strips
iii) Add the Strips in both X and Y direction
iv) Strips has assigned
v) Command Cntrl + W to see the set display option
vi) In that tick on Strip widtht to see the Strip width
Step 13)
i) Run the model
ii) Click on slab design
iii) Select the layer A to see the reinforcement
iii) Similarly in Layer B
Conclusion : Hence Challenge 13 is complete
