Foundation Design using SAFE

1.

AIM: To Analyse and model Isolated footing as per calculations by using SAFE.

Procedure:

Open safe software

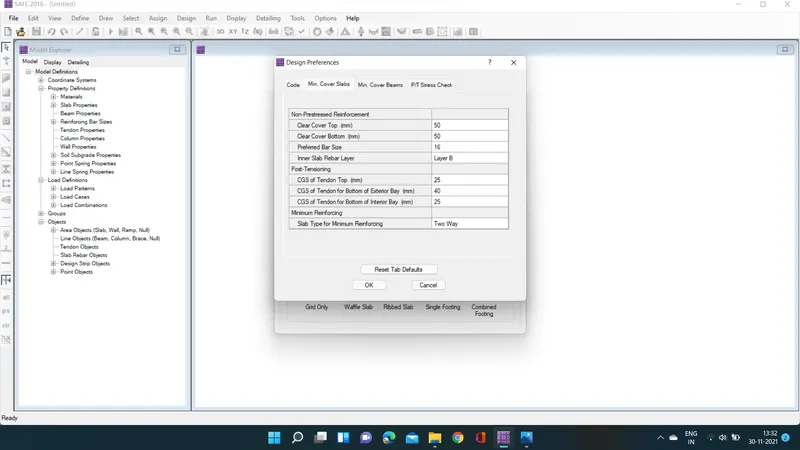

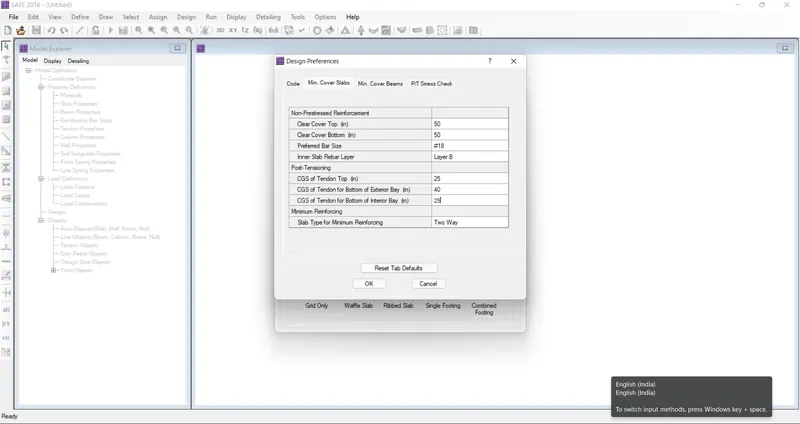

New model > input settings > metric units > IS 456-2000

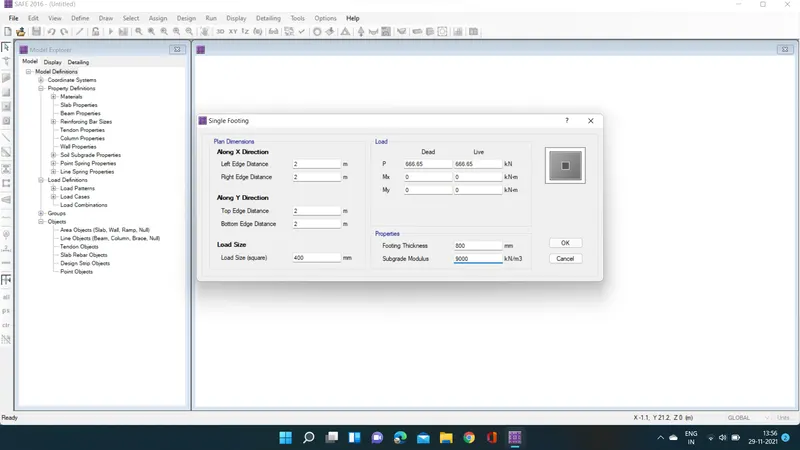

SELECT Single footing

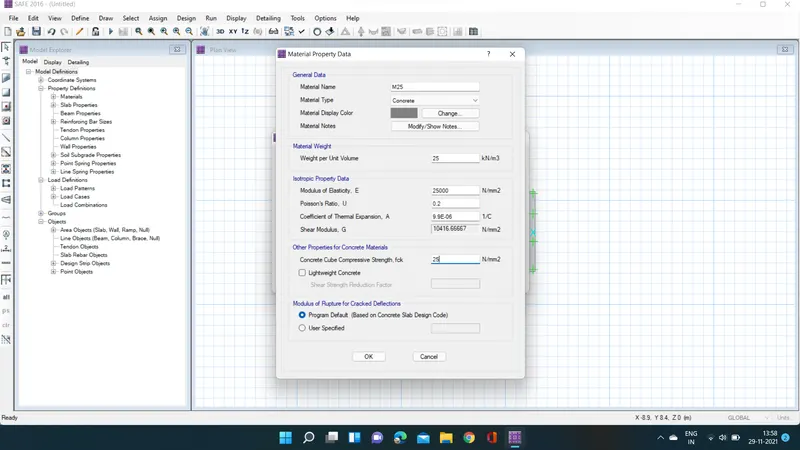

material properties

modulus of elasticity: sqrt25x5000=25000N/mm^2

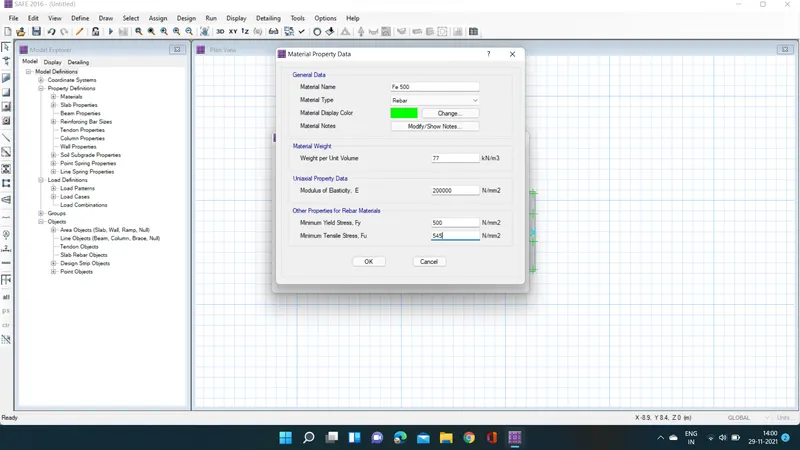

add rebar

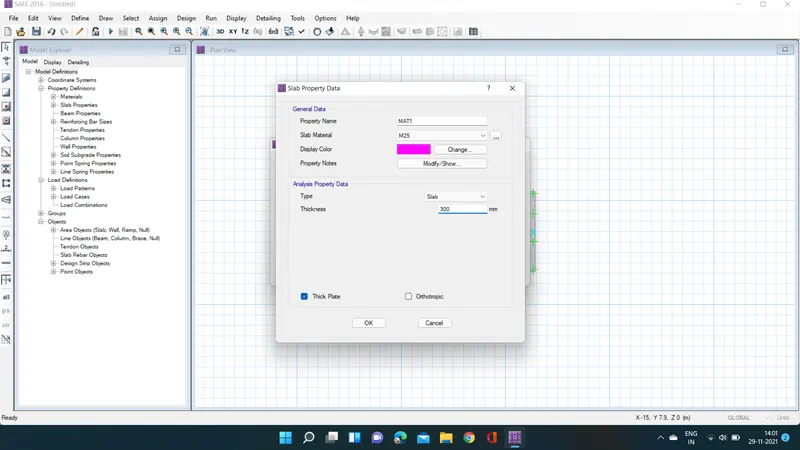

slab property

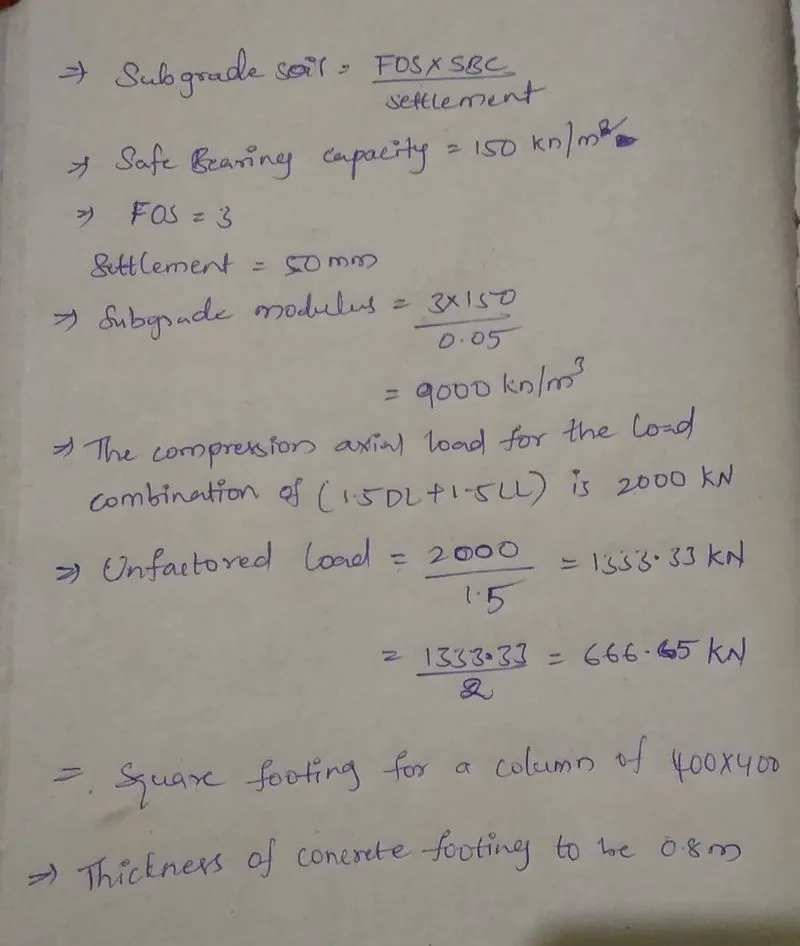

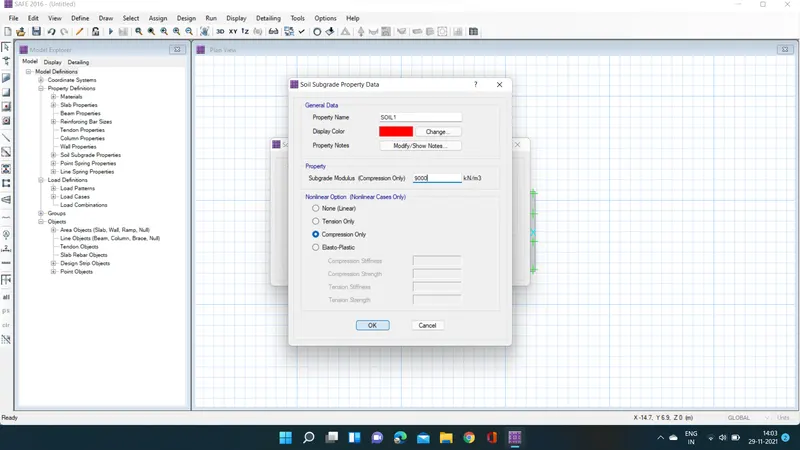

soil subgrade property

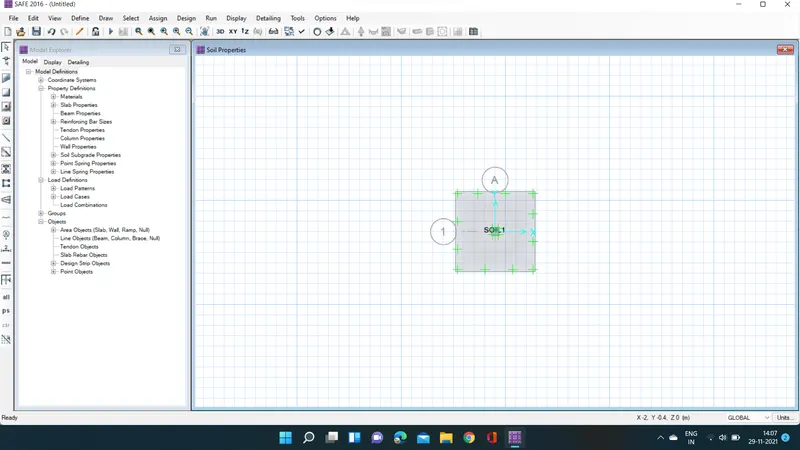

assign soil proprty

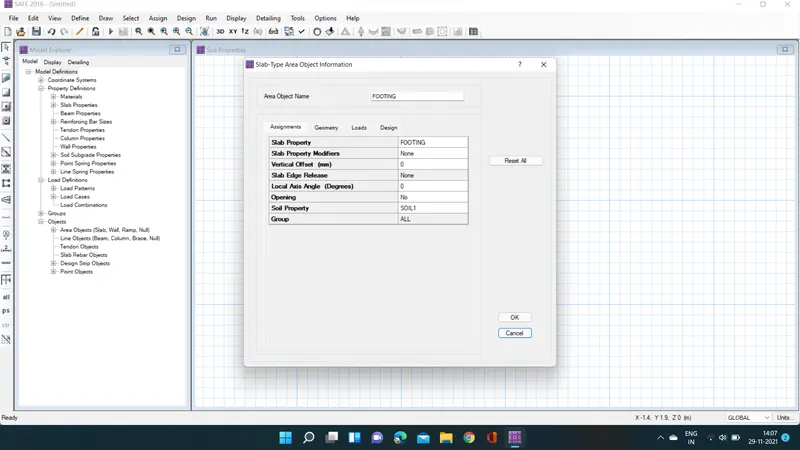

right click on footing to get the properties

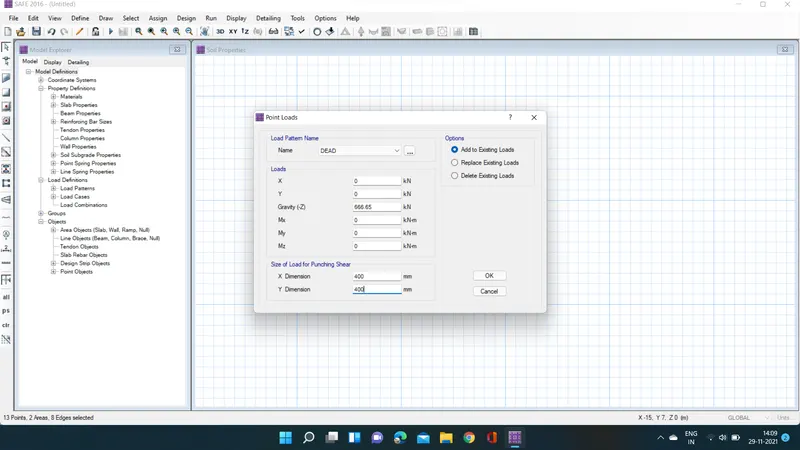

assign loads

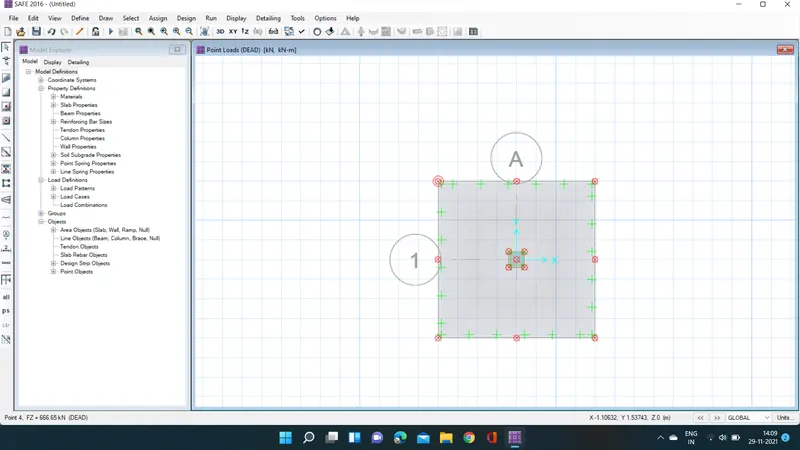

draw> draw points and then assign loads dead and live

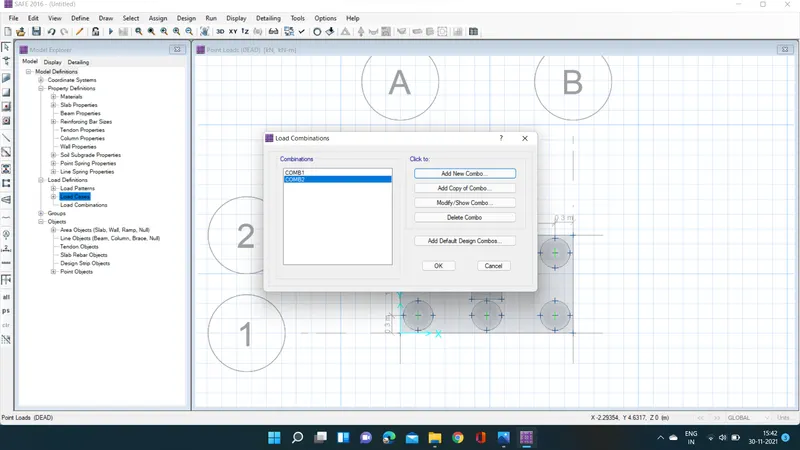

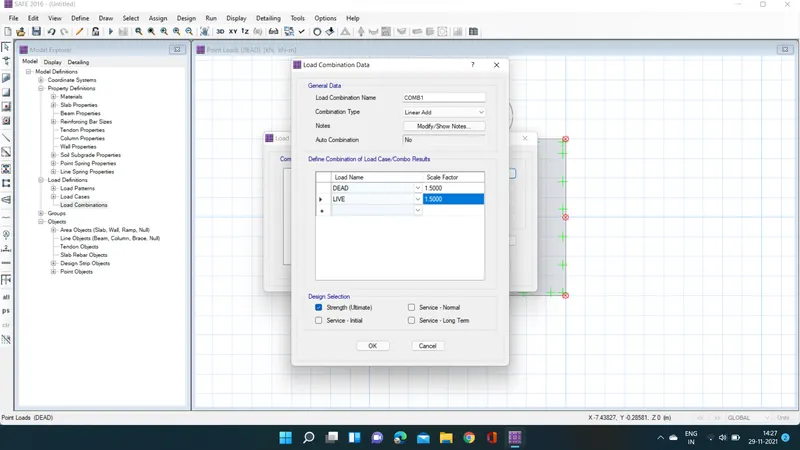

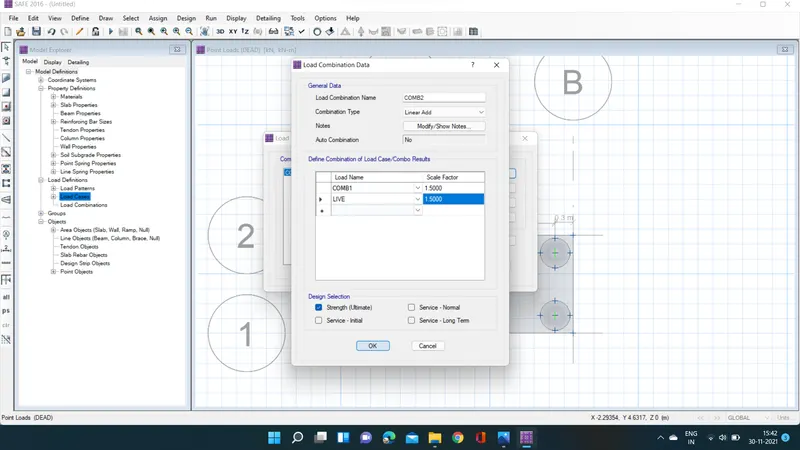

assign load combinations

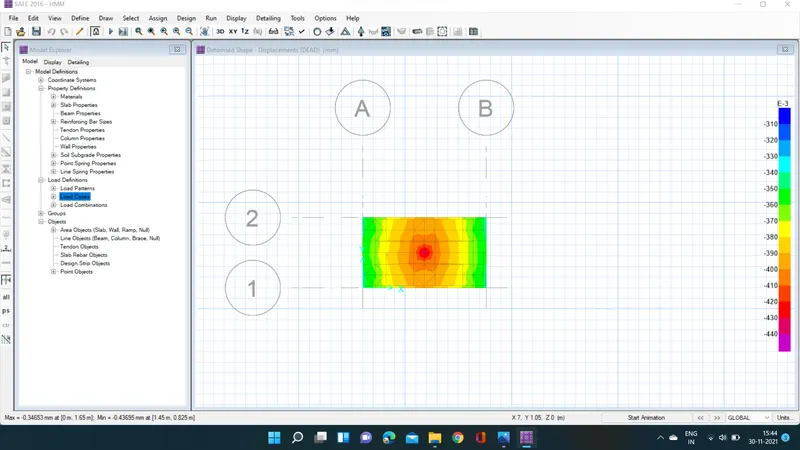

Run the analysis

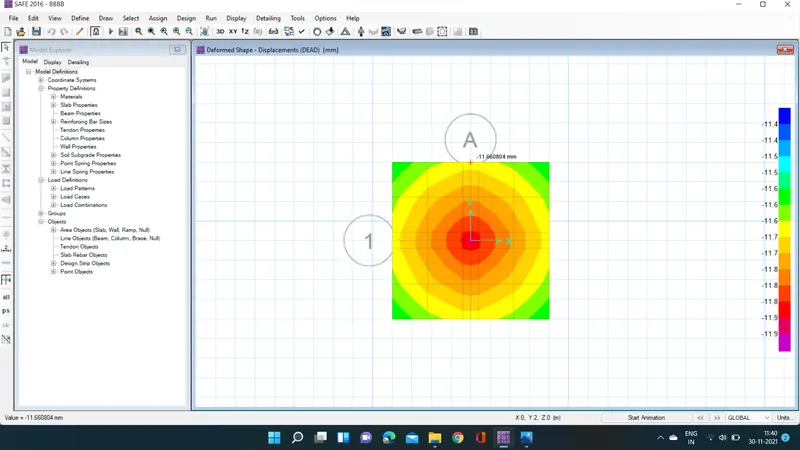

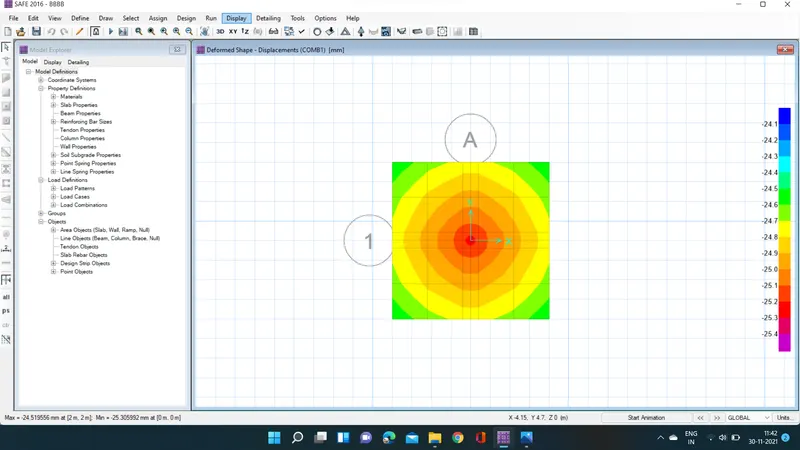

as it is less than 50mm it is expected

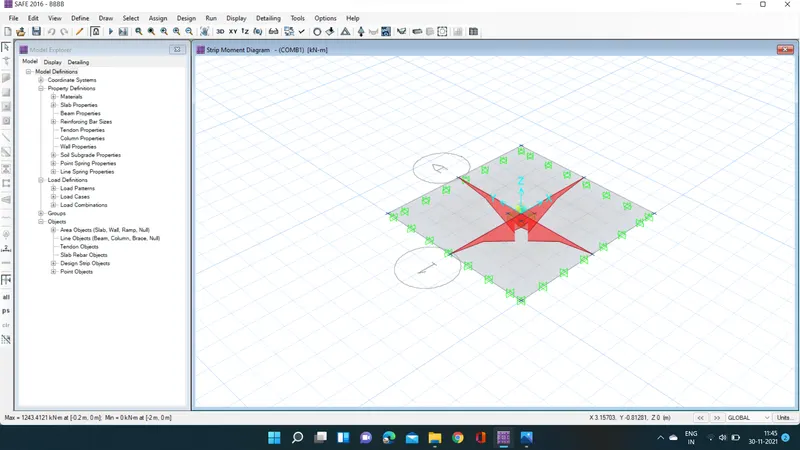

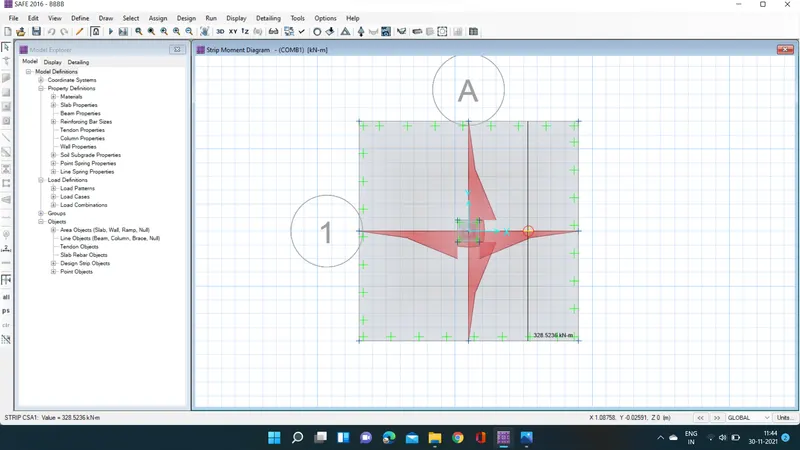

add design strips

run the analysis and show slab designs

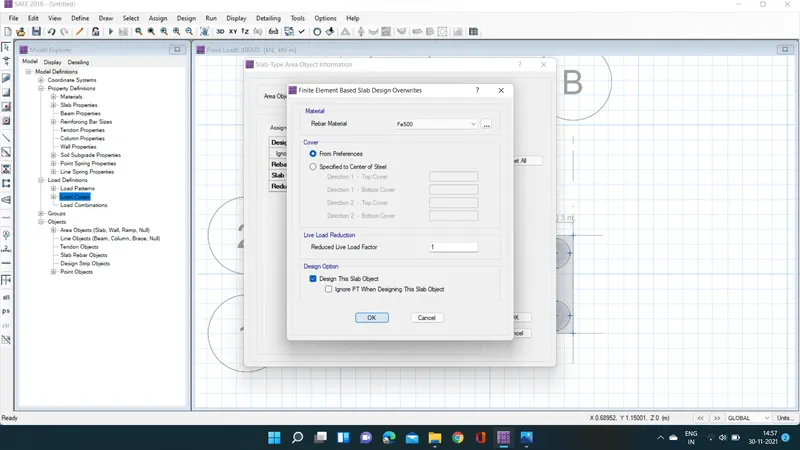

slab design

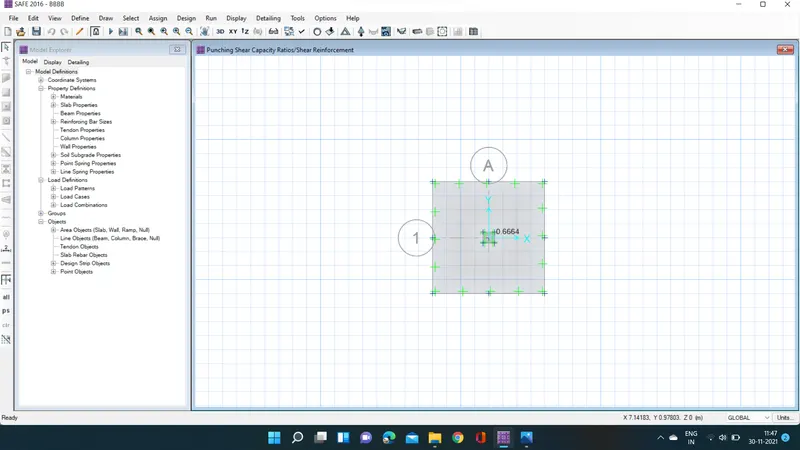

punching shear capacity

RESULT: Isolated footing is designed using SAFE.

2.

AIM:To design the pile cap on safe and to evaluate pile group to be used, depth of the pile cap, longitudinal steel on top and bottom face in both directions.

Procedure:

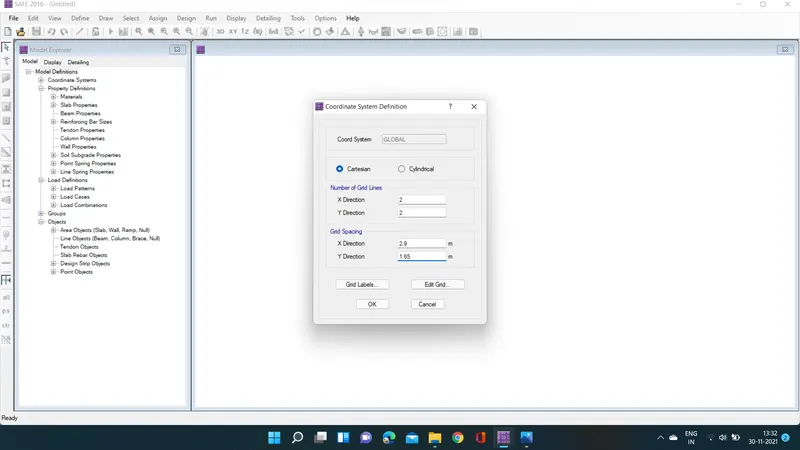

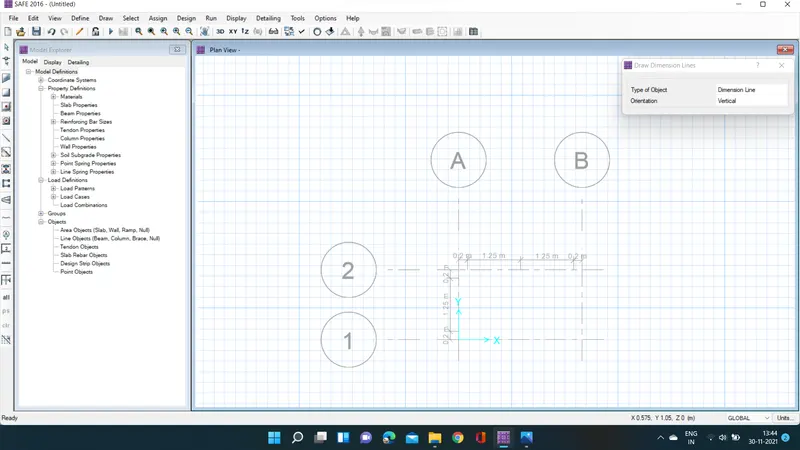

select grid option

x direction of distance 2900mm

y direction of distance 1650mm

add materials

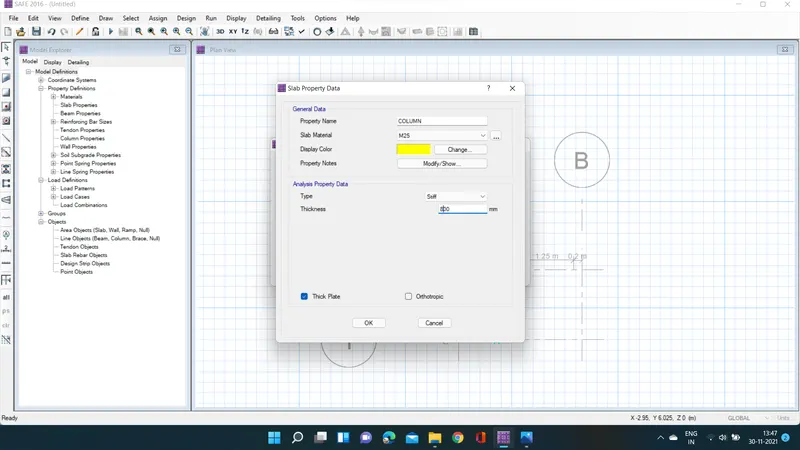

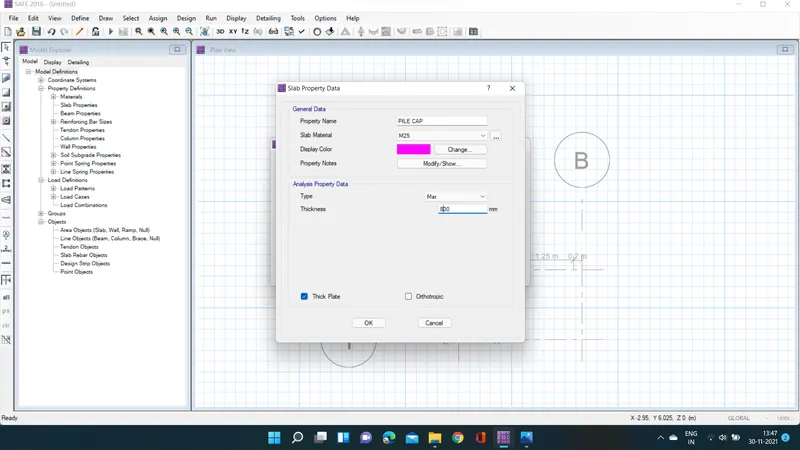

slab properties

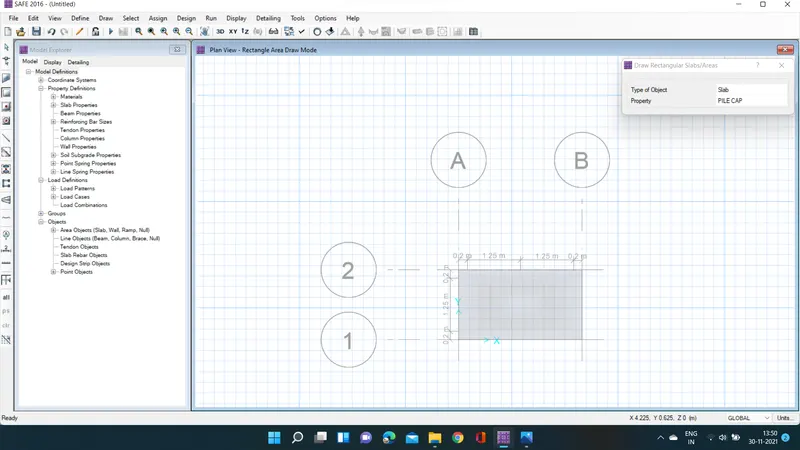

add slabs to the model

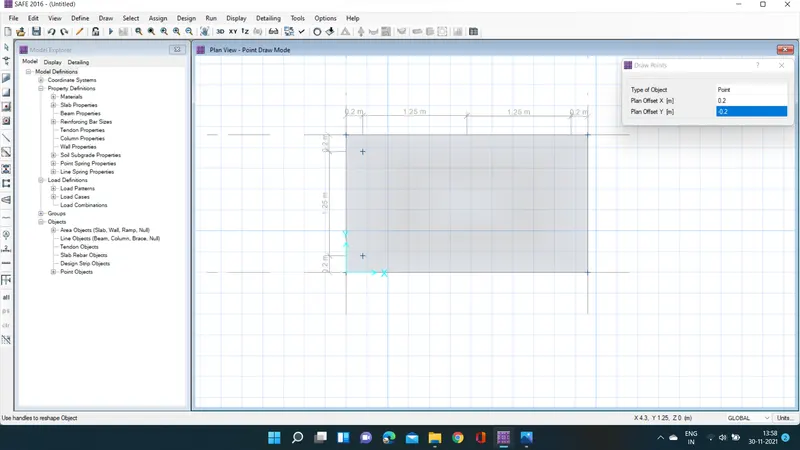

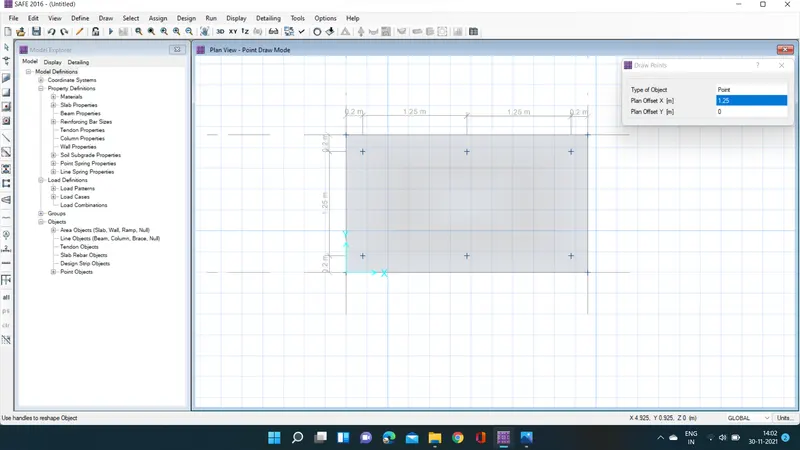

draw points

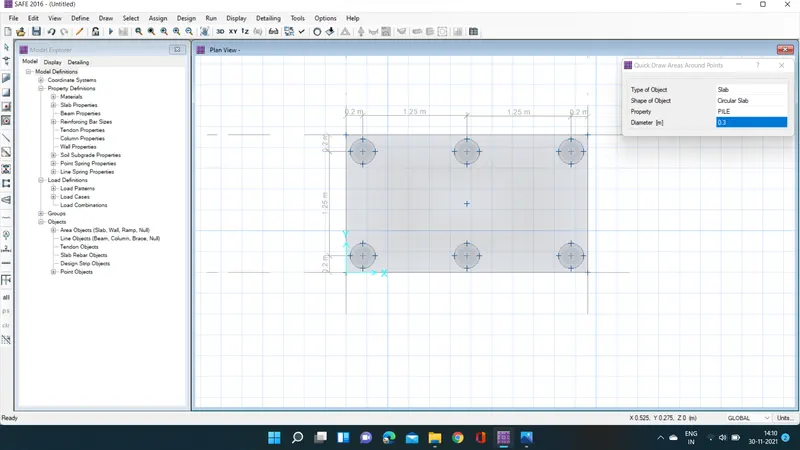

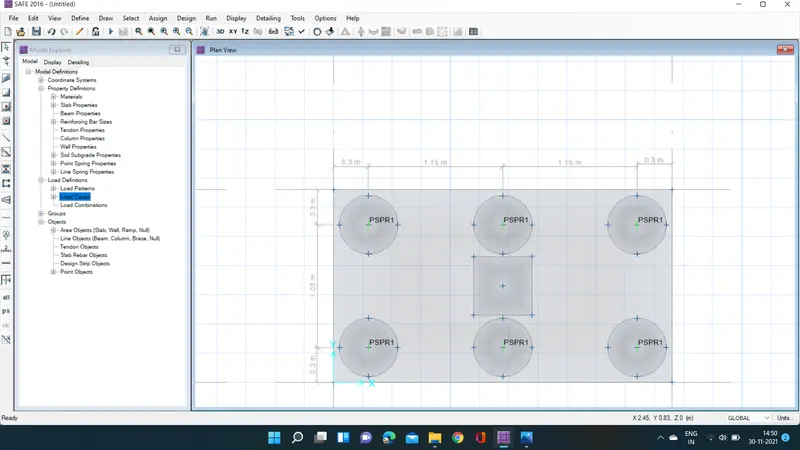

add piles

modified edge distance to 300mm as 200mm is not possible in placing piles of size 500mm

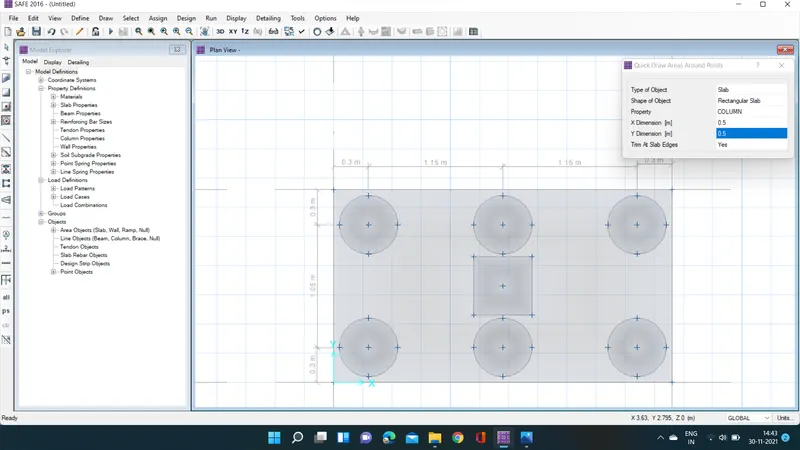

draw colounm of size 600x600 at the center

add springs

piles...> assign....>support data....> point springs

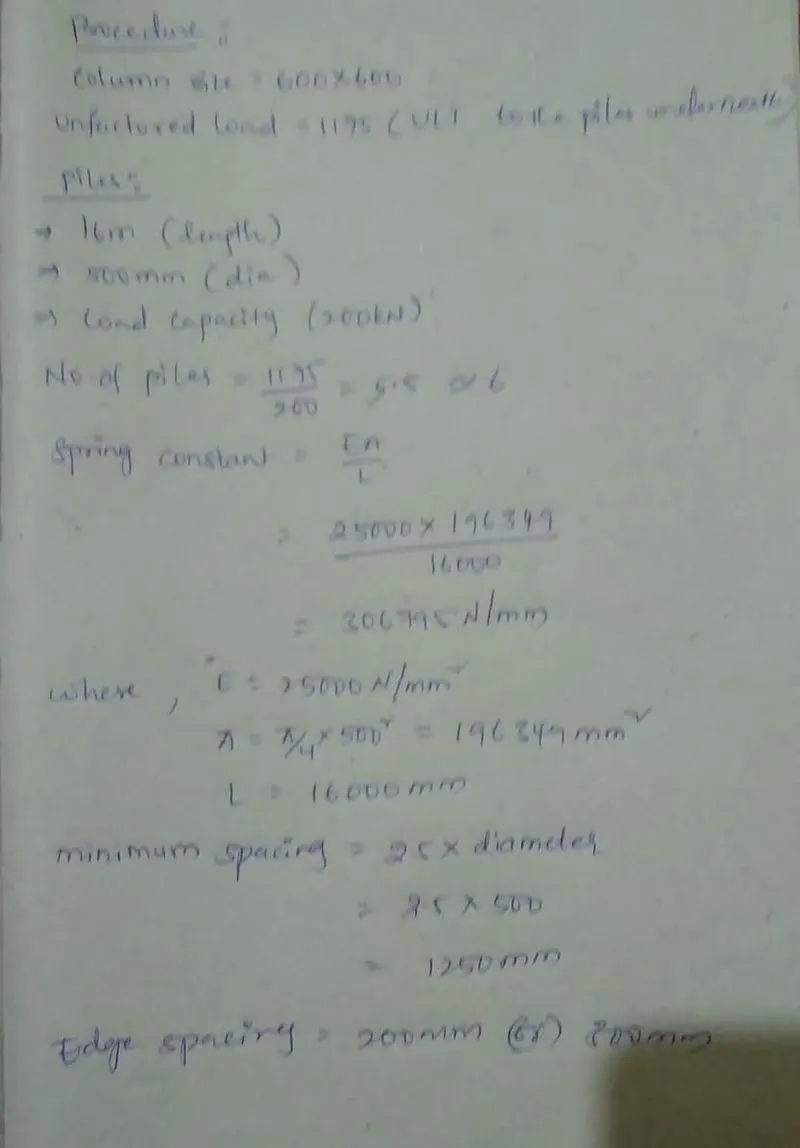

spring constant=EA/L

25000X196349/16000

=306.795KN/mm

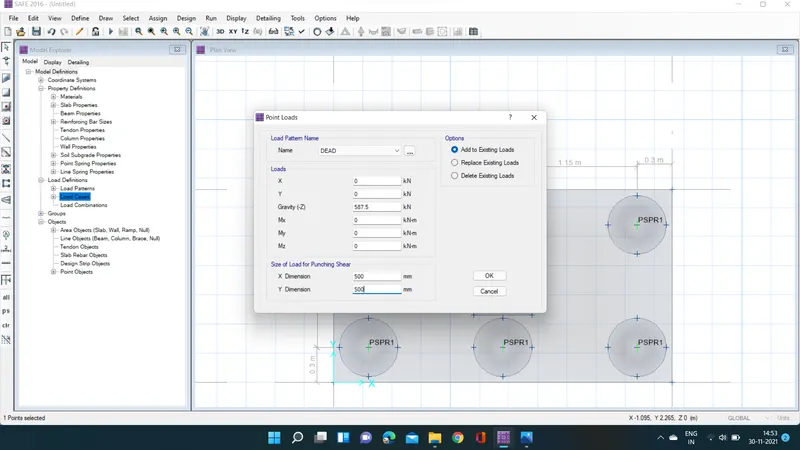

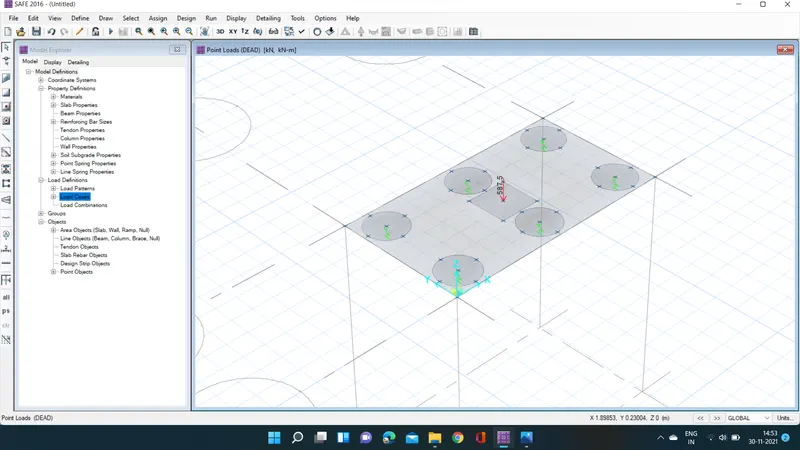

Now the load are added

dead load=587.5

live load=587.5KN

RUN THE ANALYSIS

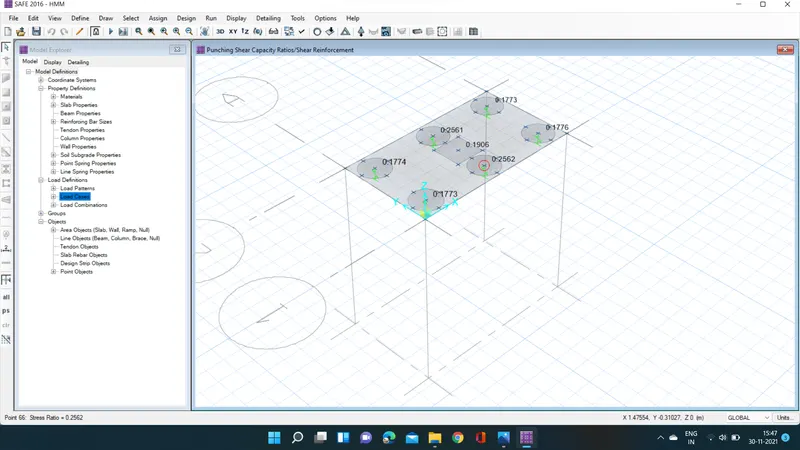

PUNCHING SHEAR CAPACITY RATIOS

incase of punching shear all values are less than 1, hence safe

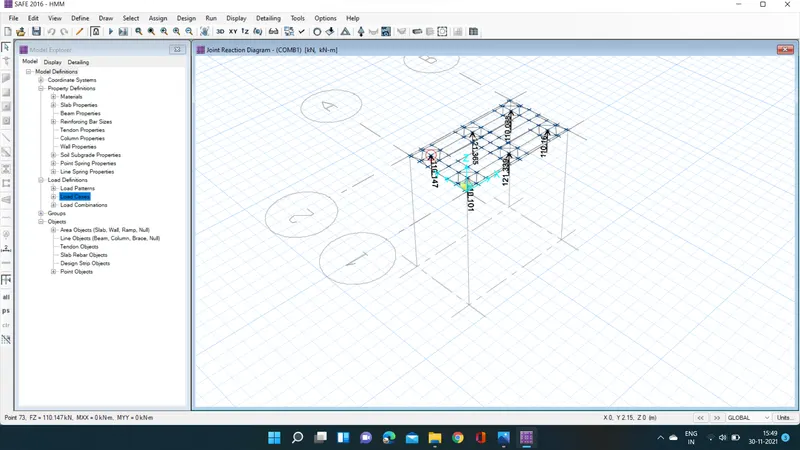

JOINT REACTION DIAGRAM

reactions forces are according to the limit hence safe

reinforement detailing is done

run the analysis once again

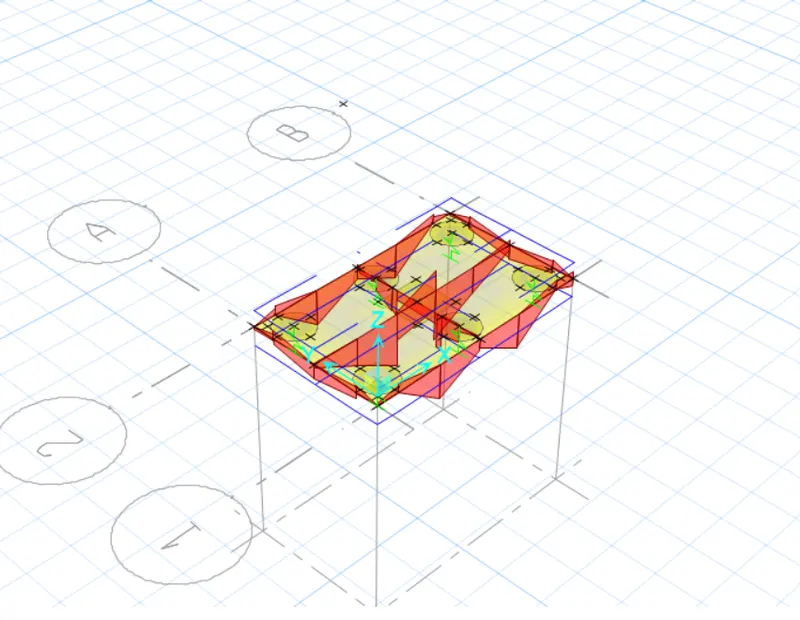

reinforcement slab design

RESULT:

Completed design of pile cap foundation using SAFE software.
