Foundation Design using SAFE

1.Ans.

AIM:

• To analyse and design the isolated footing from week 11 on SAFE
• To verify the size,depth and steel provided as per calculations.

  Procedure:

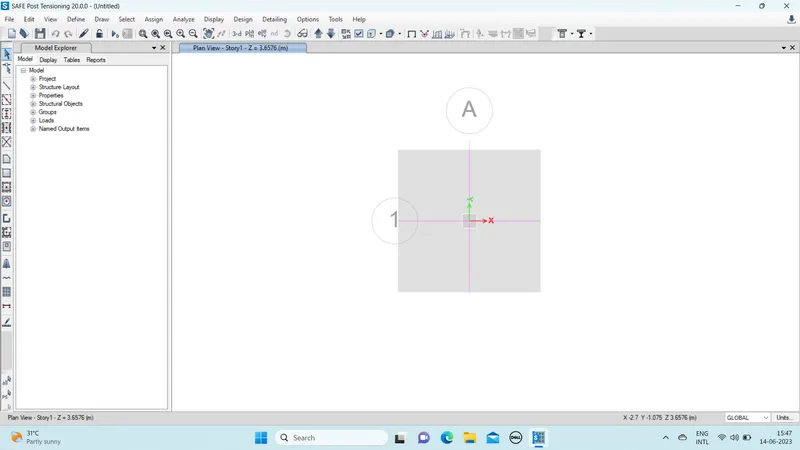

  Step1:
• Open the SAFE application.
• Select New model.

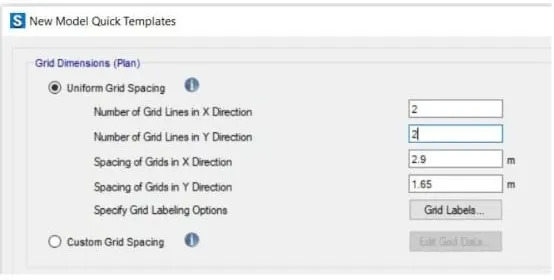

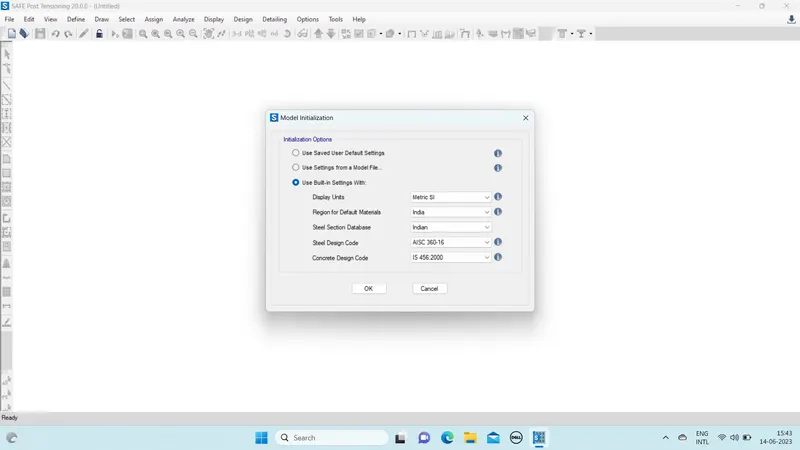

• Followed by the input settings,Units was selected as metric and code IS456:2000

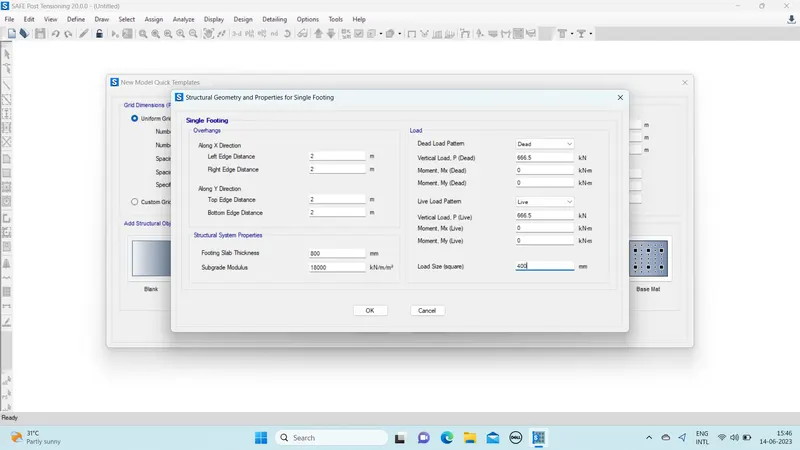

  Single footing was selected.
  subgrade modulus = F.O.S x S.B.C/max settlement
  =(3x150)/0.05
  =9000KN/m^3

  The compression axial load for the load combination (1.5DL+1.5LL) is 2000KN.
  Unfactored load = 2000/1.5 = 1333.3KN
  Dead load breakup = 1333.3/2 = 666.5KN
  Live load breakup = 1333.3/2 = 666.5KN
  Therefore, Footing thickness 800mm.



  Step2:

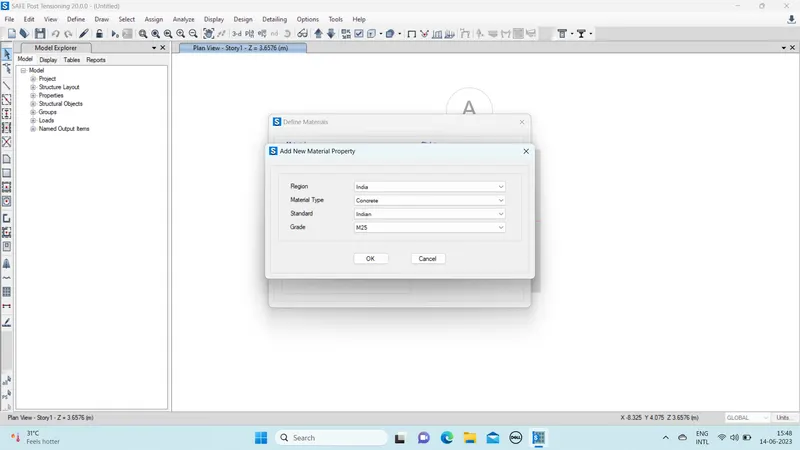

• Define materials

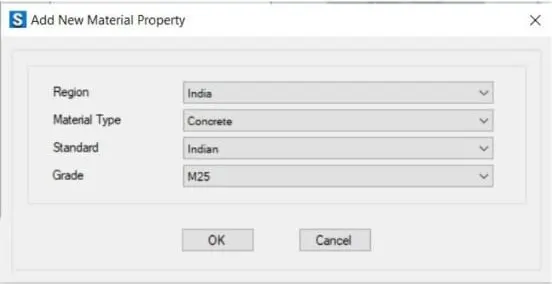

• Add new material property,M25 concrete.

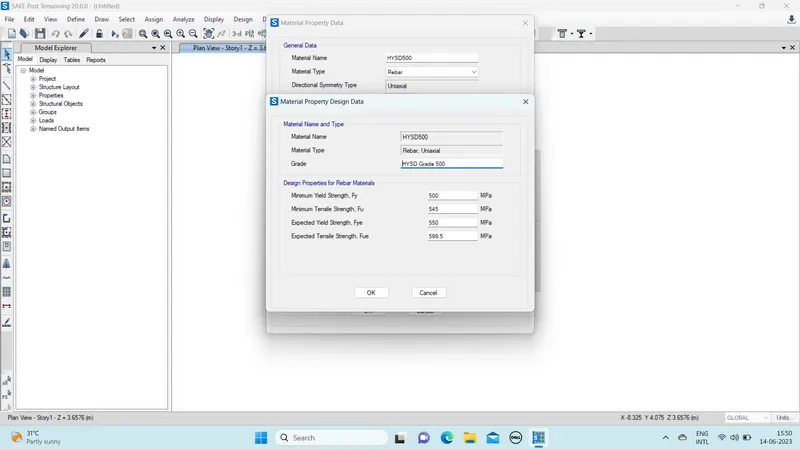

• Add rebar Fe500

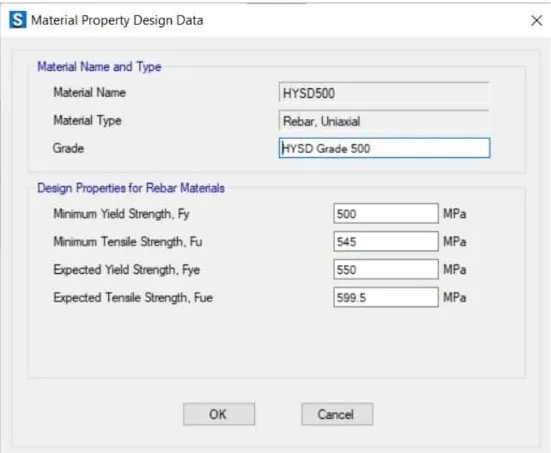

• Material property data:
  click define > material properties
  Rebar yielding strength (Fy) = 500N/mm2
  Rebar ultimate strength (Fu) = 545N/mm2
  M25 grade of concrete
  Modulus of elasticity E= 25 x 5000=25000N/mm2

  Step3:
• Define slab properties
• Define properties for footing

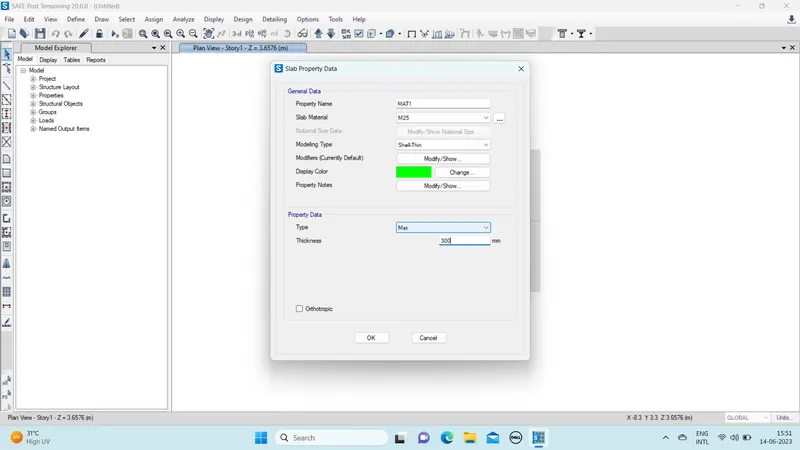

• Define properties for Mat

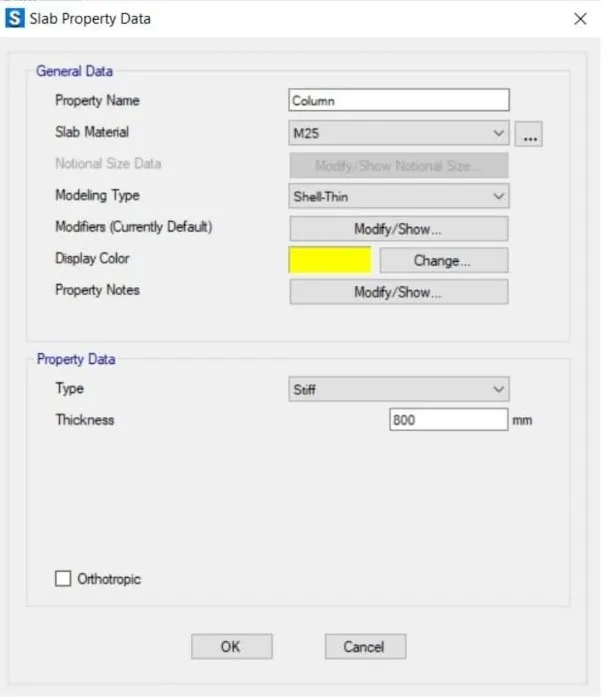

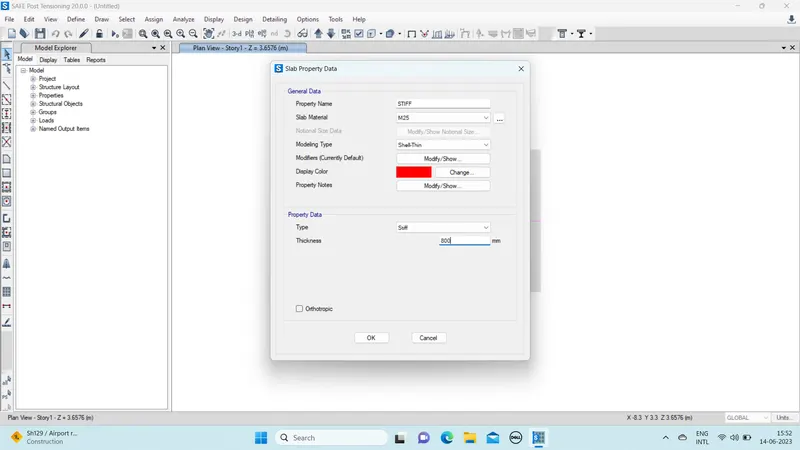

• Define properties for Stiff


  Step4:

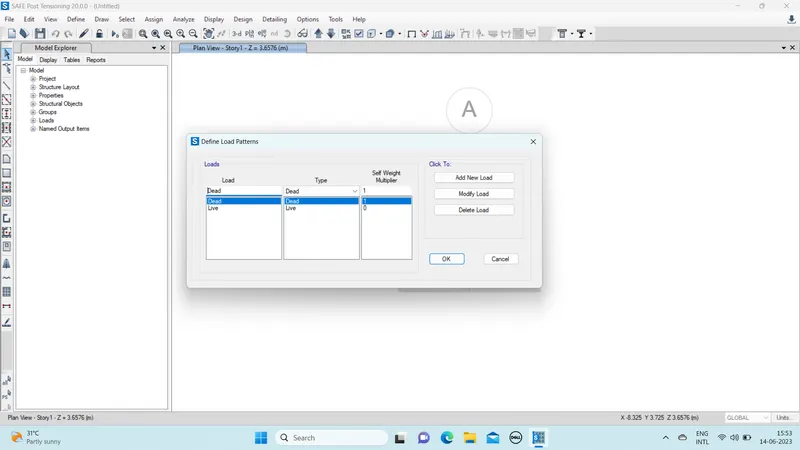

• Define load pattern


  Step5:

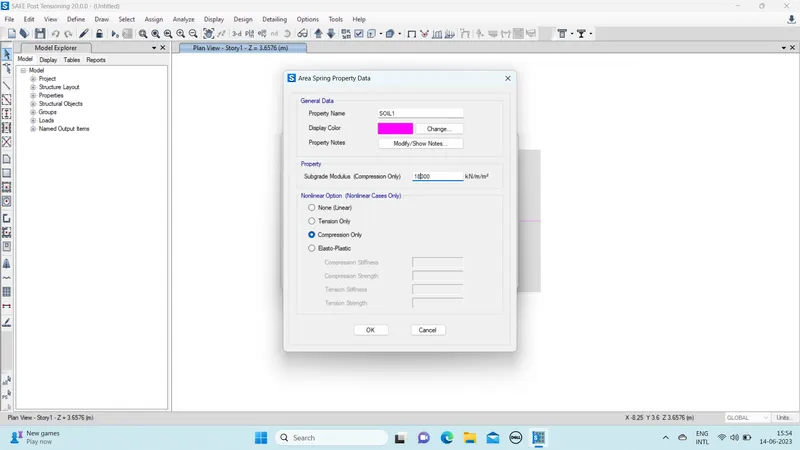

• Define soli subgrade modulus/Area spring property data

  Step6:
• Assign point load

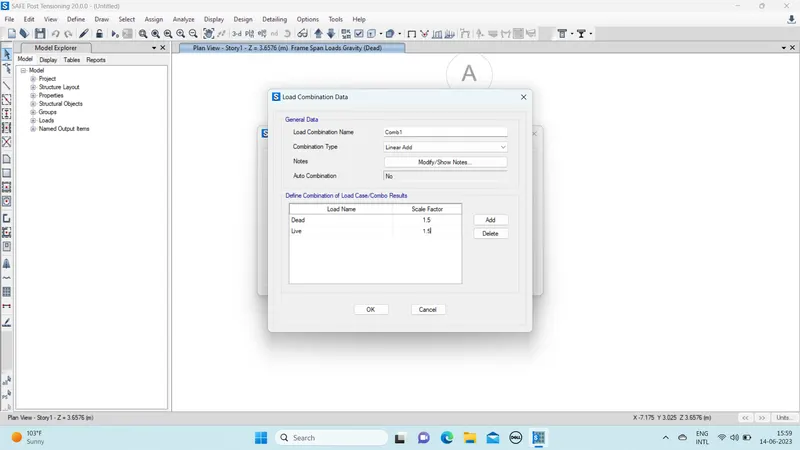

  Step7:

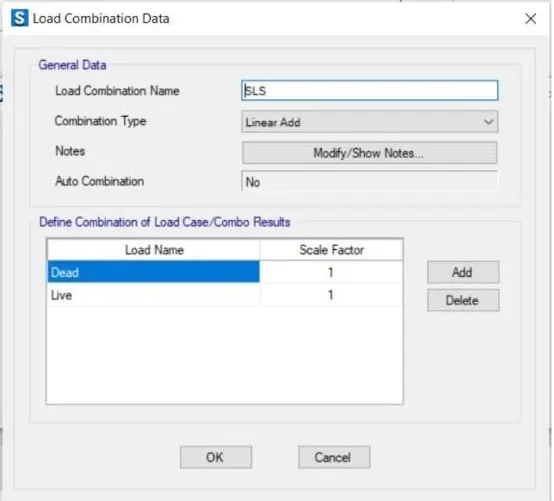

• Assign load combinations


  Step8:

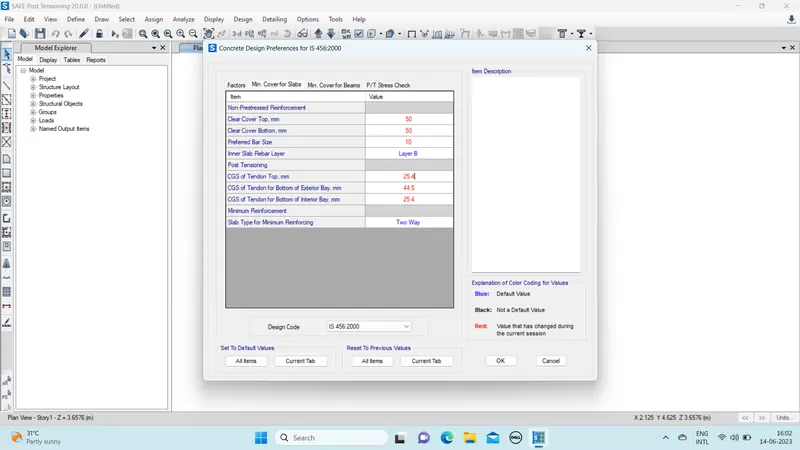

• Check design preference (min cover 50mm)

  Step9:
• Run analysis and design


  Step 10:

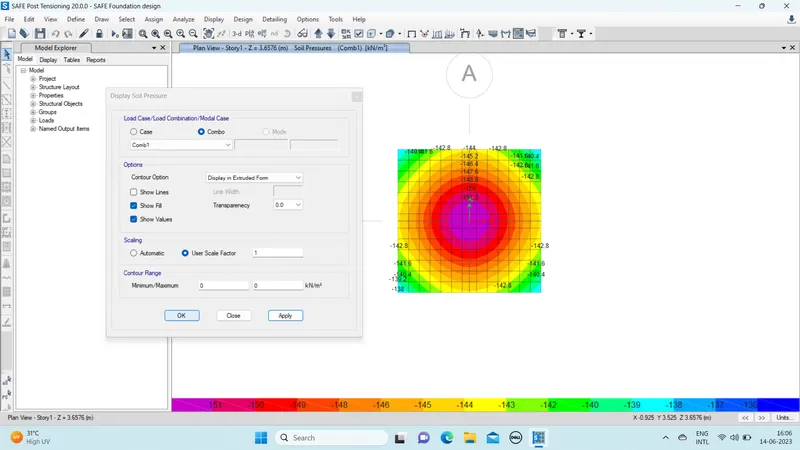

• Safe bearing capacity under service load is 152KN/m2


  Step11:

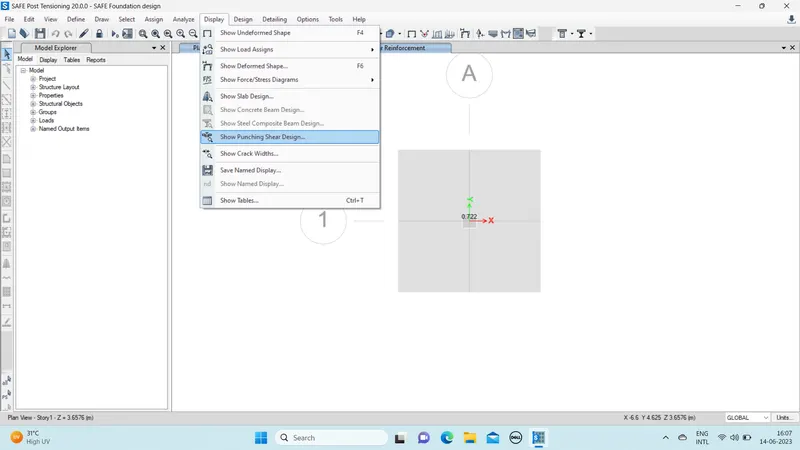

• Two way shear check

  Two-way shear is 0.719,Hence OK.

  Step12:
• Ultimate Bending moment and shear force check

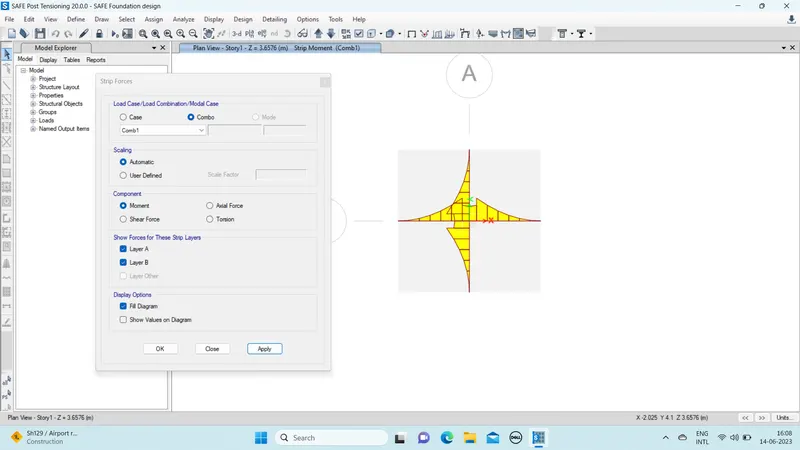

  Bending moment

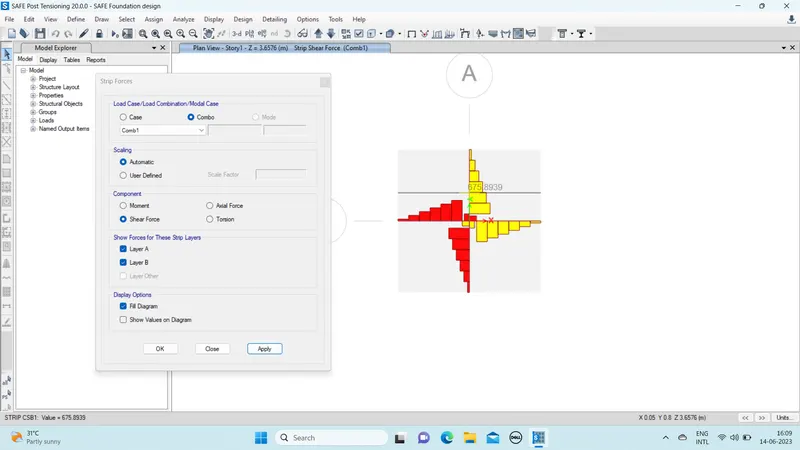

  Shear force


  Step13:

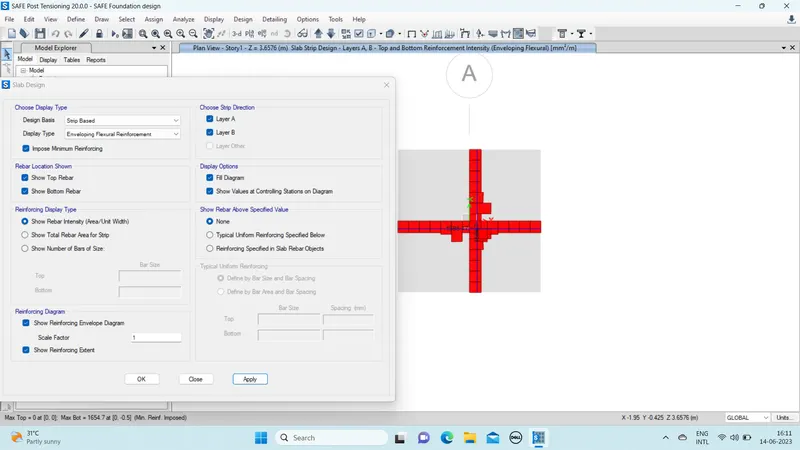

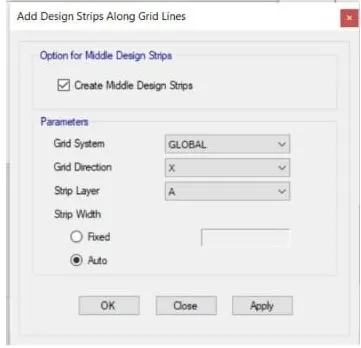

• Flexural Reinforcement design for footing slab.


  RESULT:
• The isolated footing was designed and analysed using SAFE software successfully.
• Safe bearing capacity under service load is 152KN/m2,Hence OK.
• Two-way shear is 0.79,Hence OK.
• Ultimate bending moment and shear force check done successfully.
• Flexural reinforcement design for footing slab done successfully.

  2.Ans.:

  AIM:
• To model analysis and design the pile cap on SAFE.
• To evaluate the following
• Pile group to be used
• Depth of pile cap
• Longitudinal steel on top and bottom face in both directions.

  Procedure:

  Given:
  Column size = 600 x 600mm
  Unfactored load = 1175KN
  Pile length = 16m
  Pile diameter = 500mm
  Load carrying capacity = 200KN

  Calculations:
  No.of piles=1175/200=5.6=6
  Spring constant = EXA/L
  where,E=25000N/mm2
  A=(500)^2 = 196375mm2
  L= 16000mm
  Spring constant=25000 x 196375/16000 = 306835N/mm or 306835KN/m
  Edge spacing is taken as 200 or 300mm.

  Step1:
• Open SAFE application
• Select new model
• Followed by input settings,units was selected as metric and code is 456:2000


  Step2:

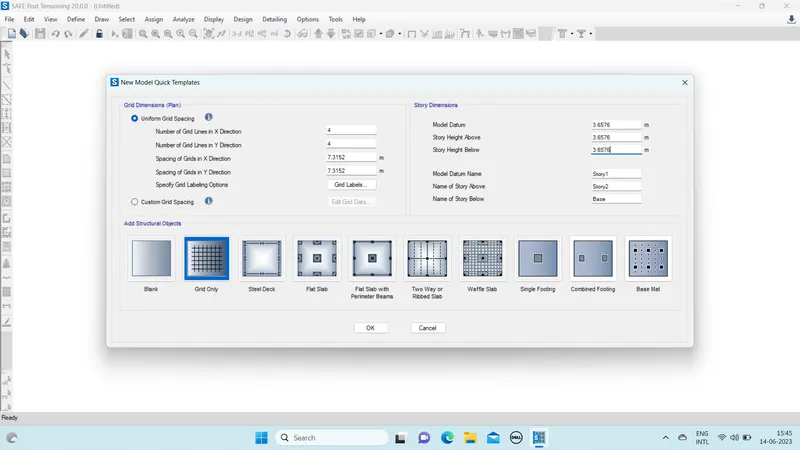

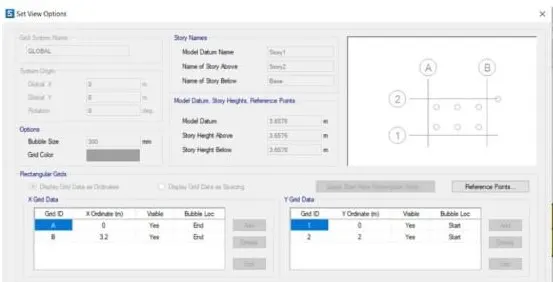

• Co-ordinates was defined next
• Grid spacing in X-direction and Y-direction was taken as 3.2m and 2m respectively,as shown below.

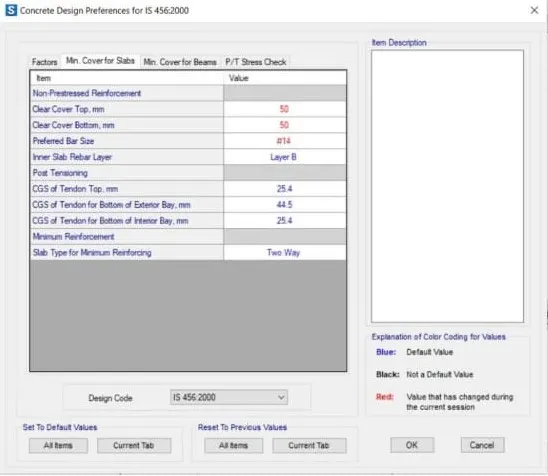

• Check design preference (min cover 50mm)
• 50mm each was provided as cover at top and bottom and bar size was defined as 14mm


  Step3:

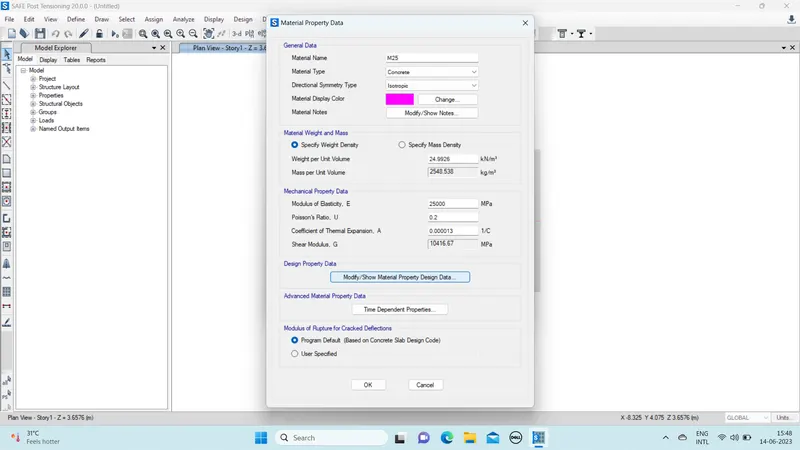

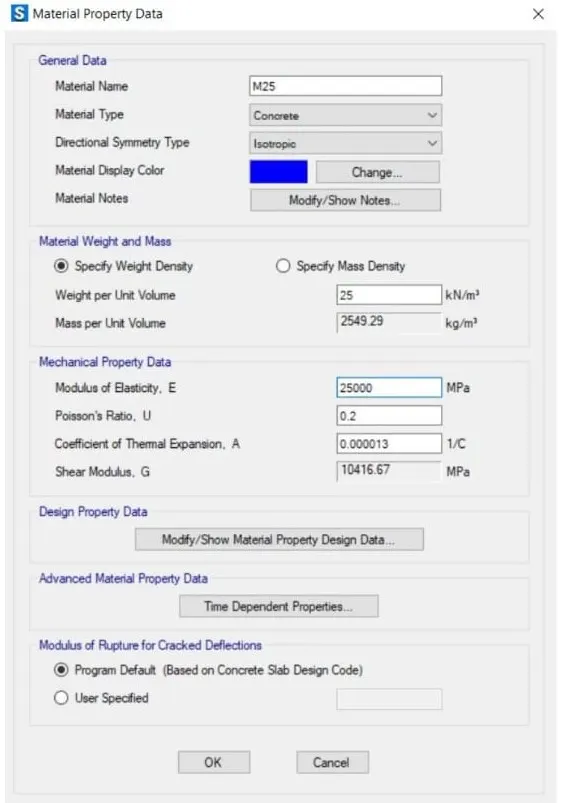

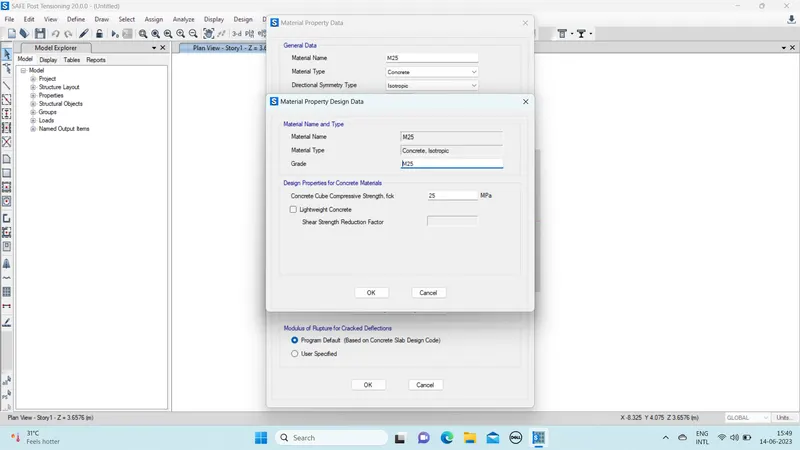

• Material property data:

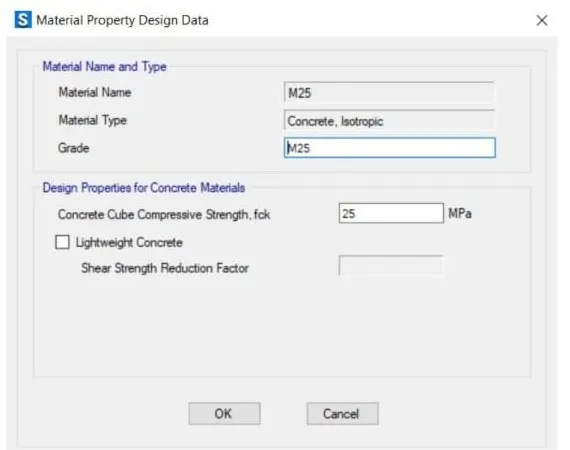

  Click define > materail properties > M25 grade of concrete
  Modulus of elasticity E =25x5000=25000N/mm2

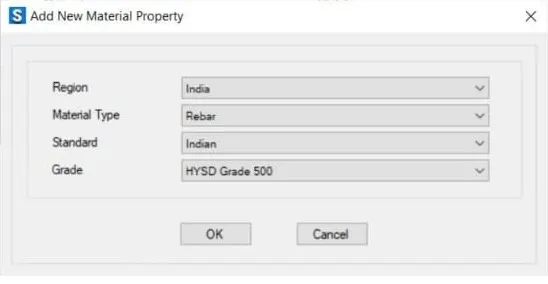

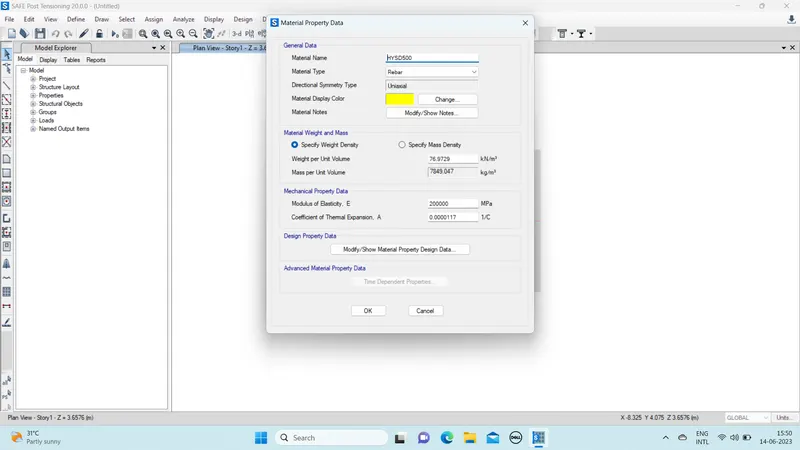

  Fe500 rebar was added next as shown below.

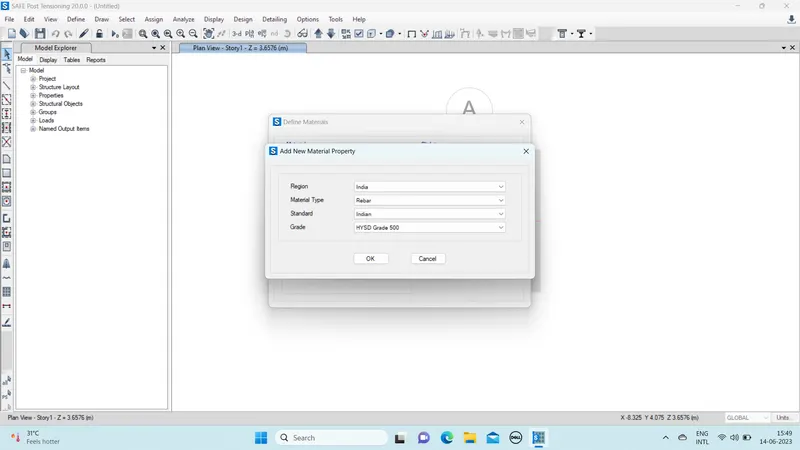

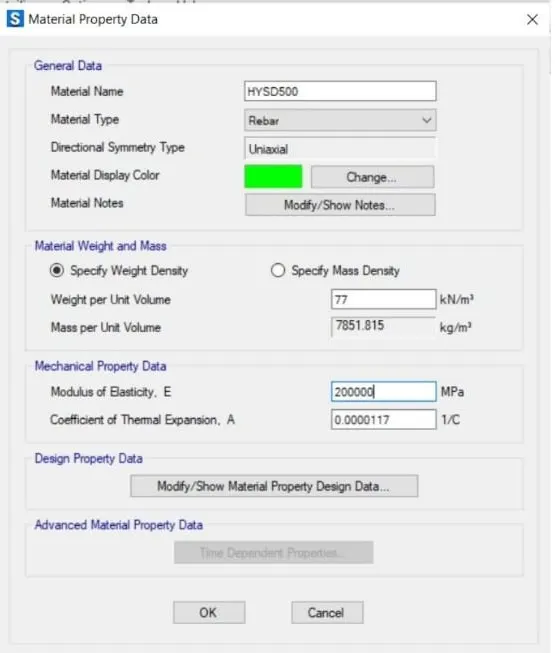

• Add Rebar Fe500




  Step4:
• Define slab properties

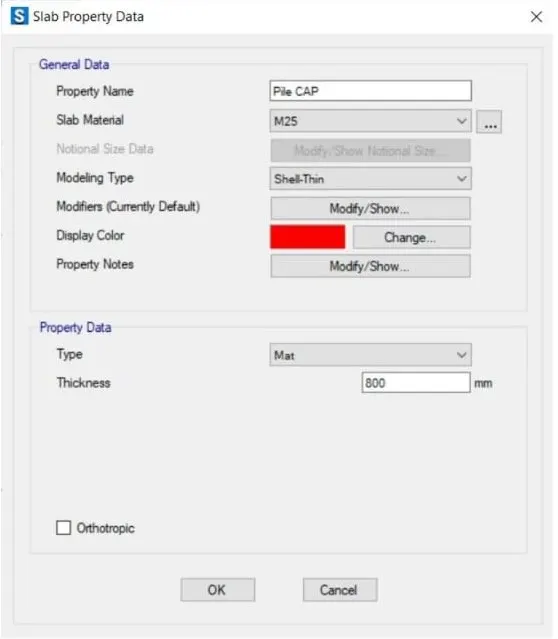

• Define pile cap



• Define column

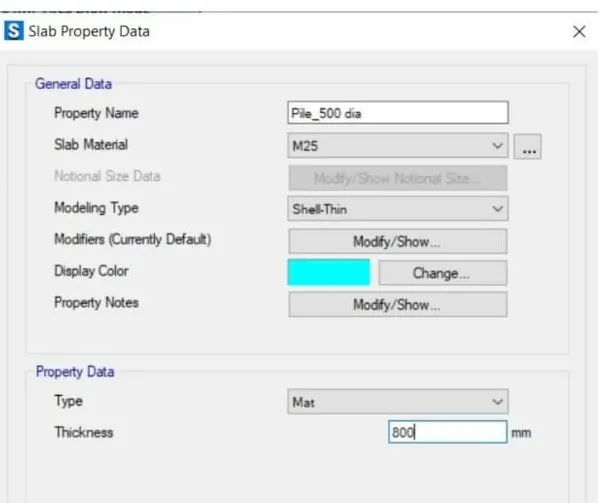

• Define pile_500 dia details


  Step5:

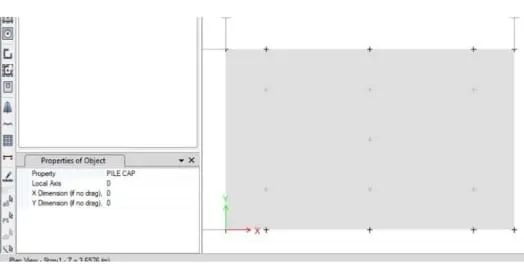

• Draw the slab by using quick draw tool > draw points


  Step6:

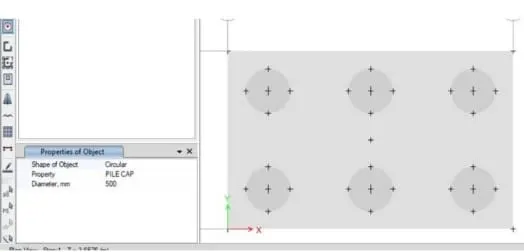

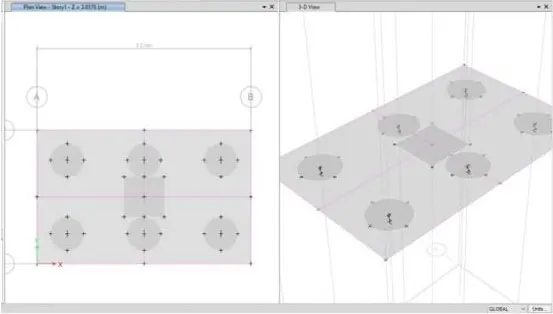

• Add piles at the point
• Modify the edge distance to 0.2m


  Step7:

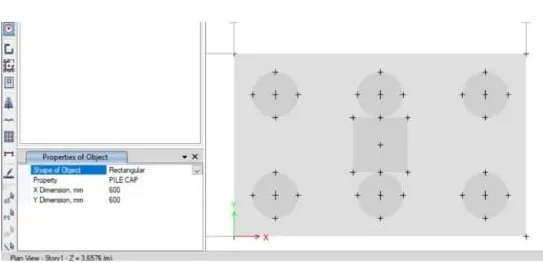

• Create a column of 600x600mm
• Draw the column in center using quick draw tool.


  Step8:
• Spring were added

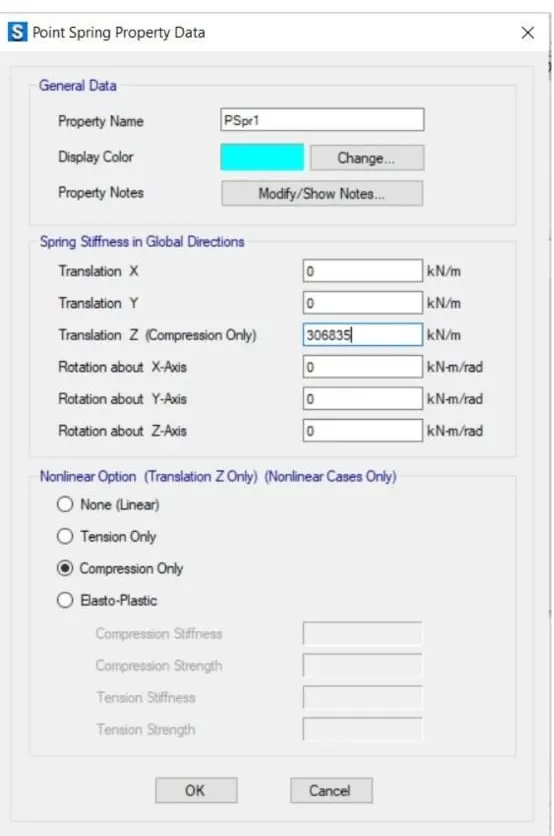

• Define spring property data,as shown below.

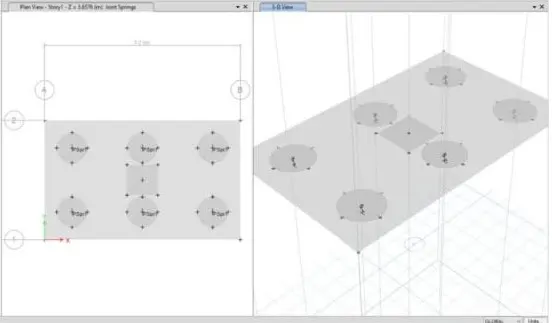

• Select pile > assign>support data > point springs



• Spring constant is taken from above calculation

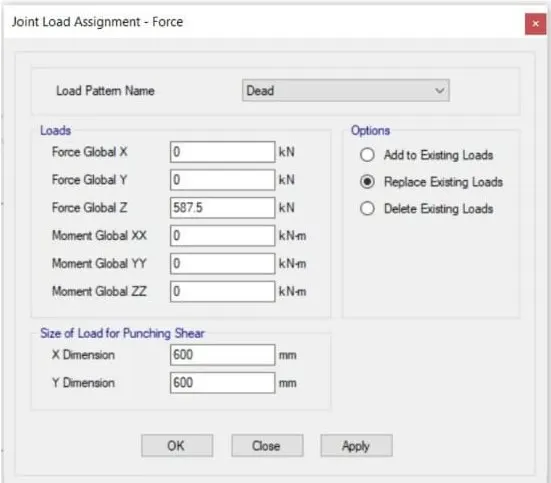

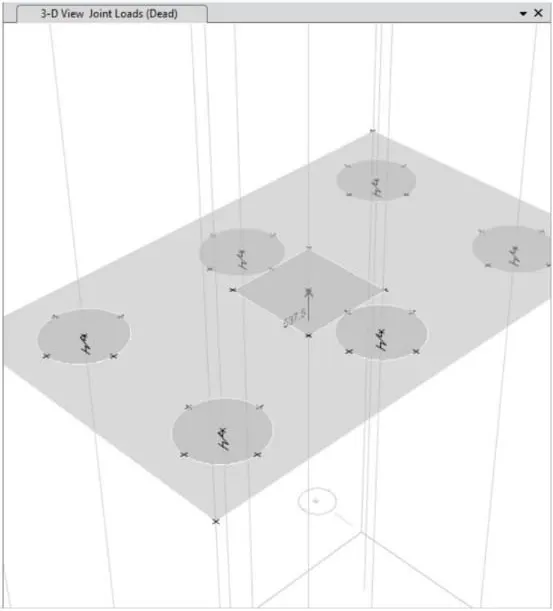

• Dead load and live load of 587.5KN are added next.



  Step9:

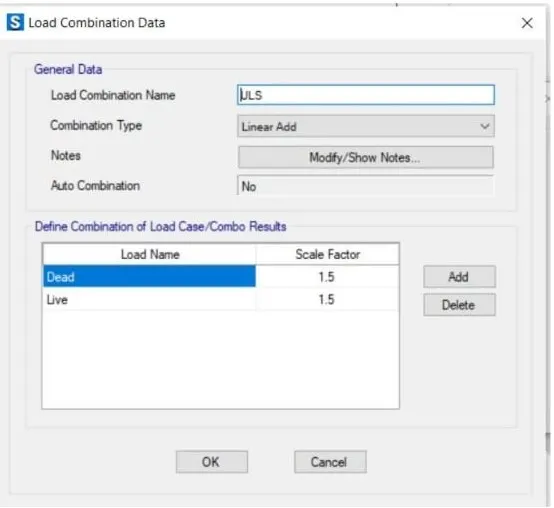

• Load case combination was define next





• After defining the load combination run the analysis.

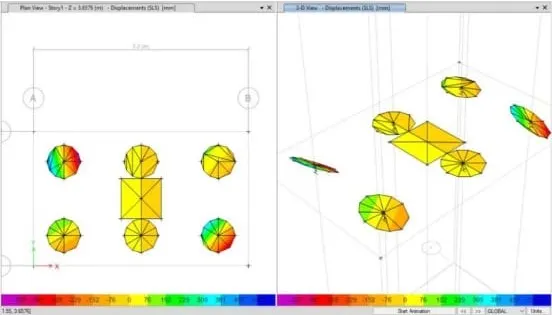

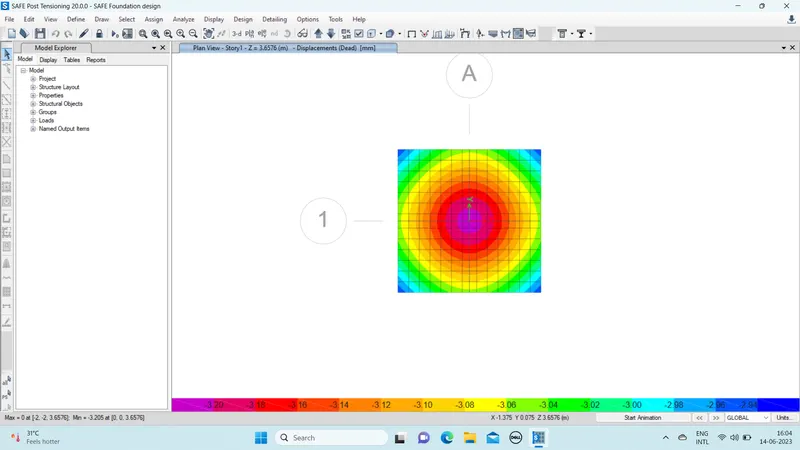

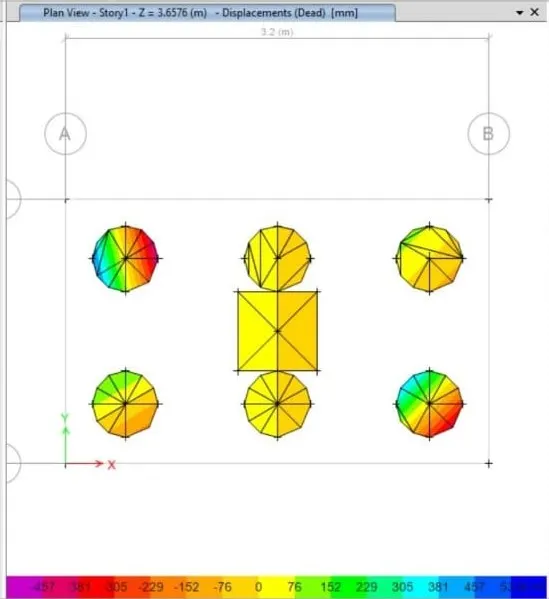

• Max displacement was found as shown,so its safe.

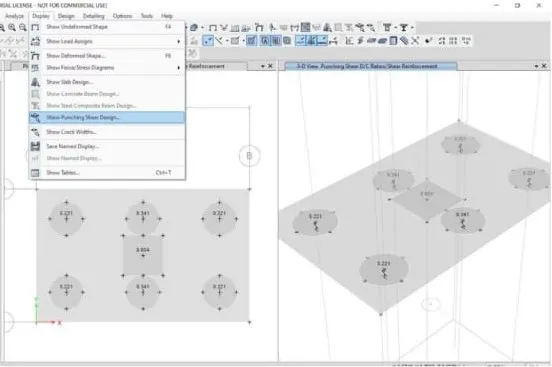

• Also,all the punching shear values are less than 1,so its safe.

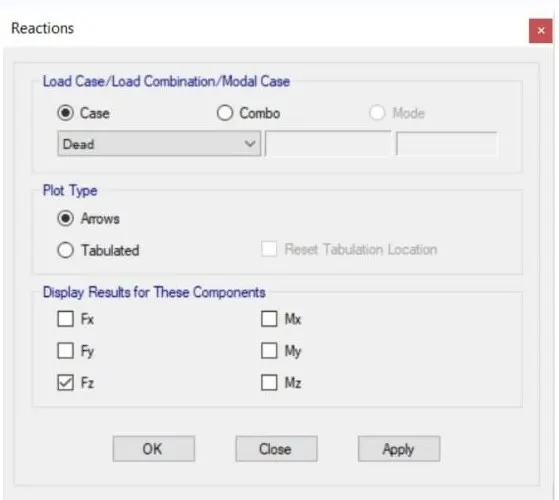

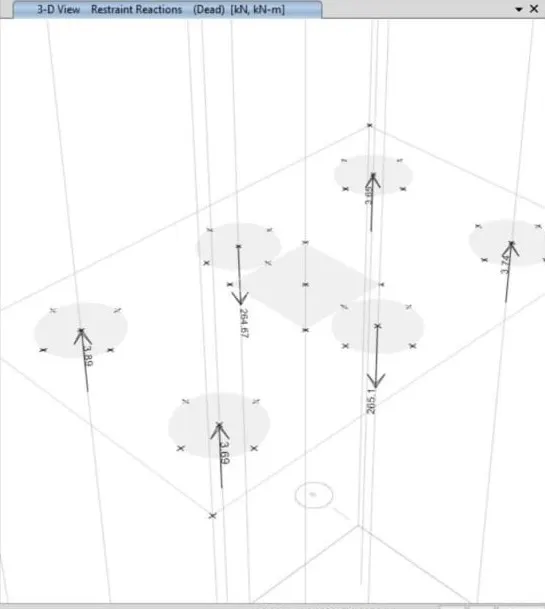

• Joint reaction diagram,as all the reaction forces are according to the limit,so its safe.

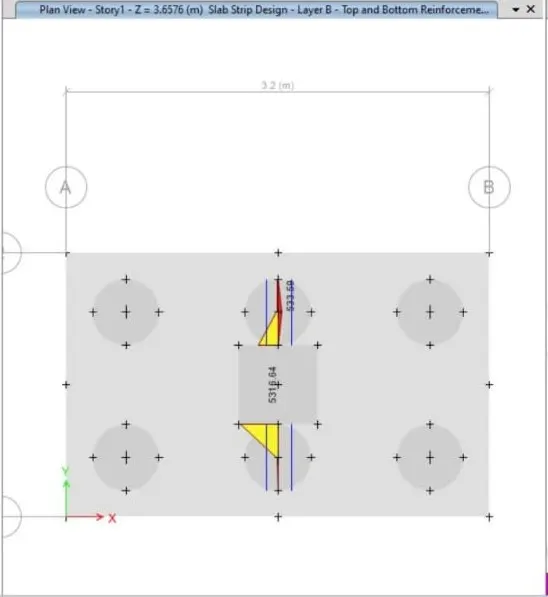

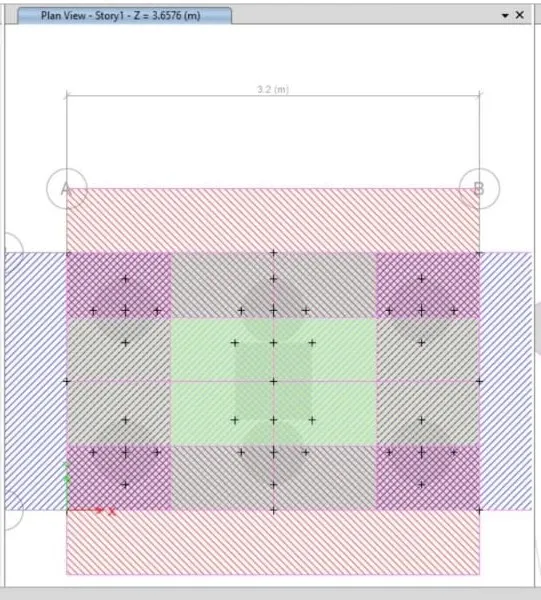

• Reinforcement details are added next as shown in both X and Y direction.






• Run the analysis again


  Step10:

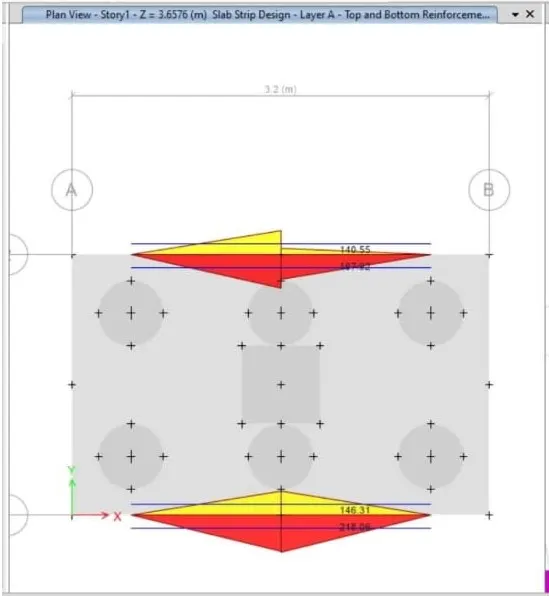

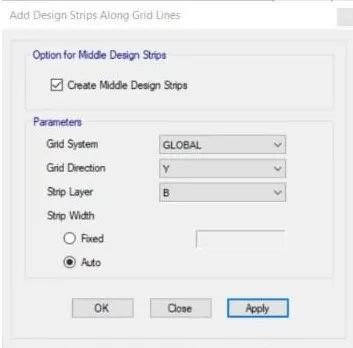

• Reinforcement slab design




• Pile cap design

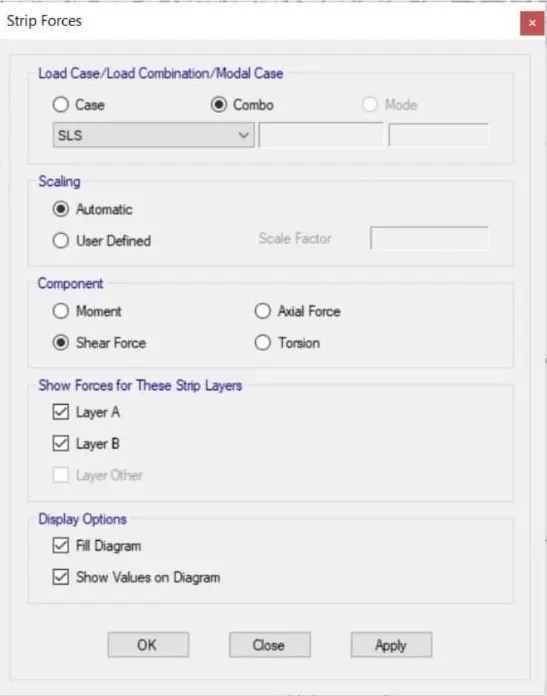

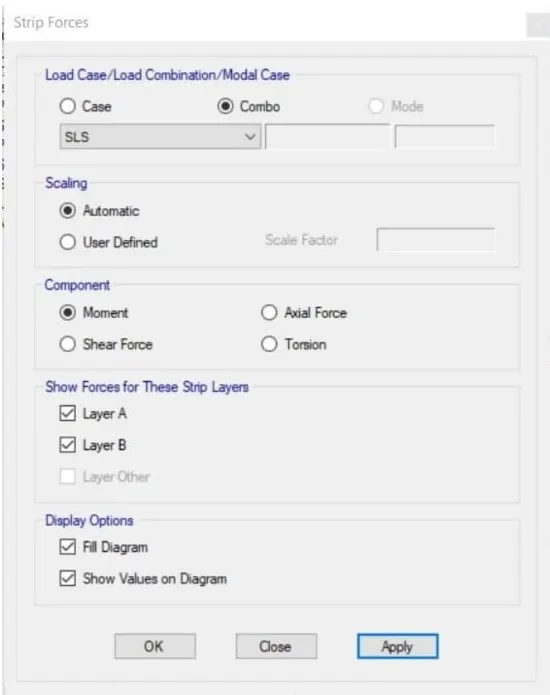

• Ultimate Bending moment and shear force check.

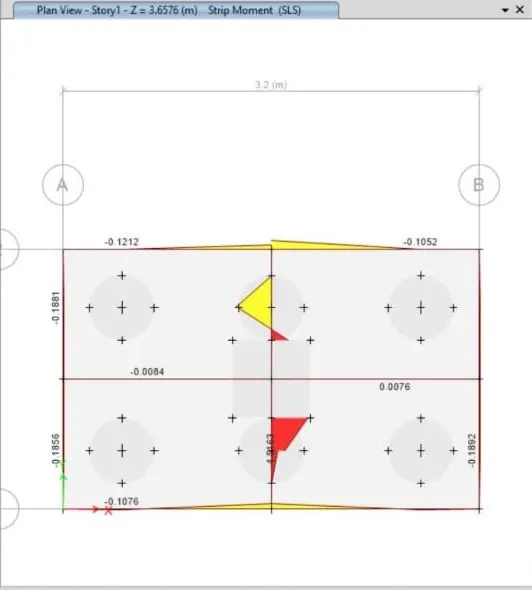

  Bending Moment

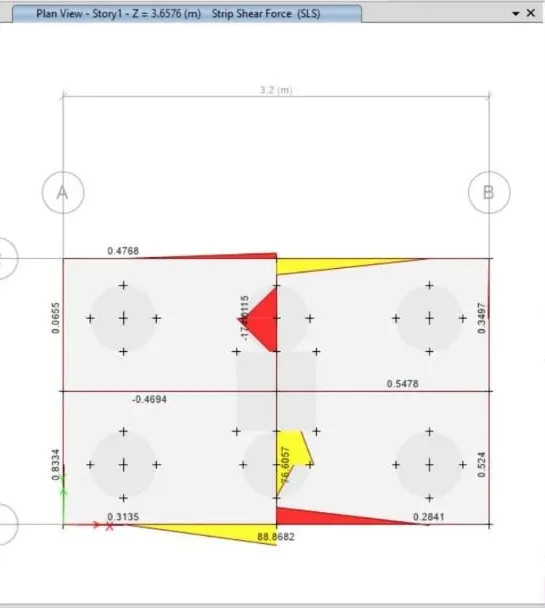

  Shear Force



  RESULT:
• Complete design of pile cap foundation using SAFE software is done successfully.
• Max displacement was found as shown,so its safe.
• All the punching shear values are less than 1,so its safe.
• Ultimate Bending moment and shear force check done successfully.
• Flexural Reinforcement design for slab done successfully.
