Foundation Design using SAFE

1. Model the isolated footing

Procedure -

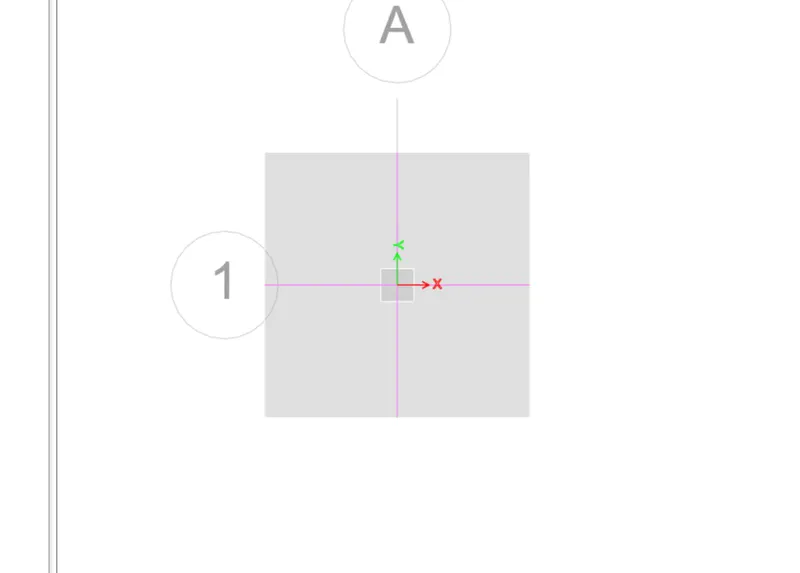

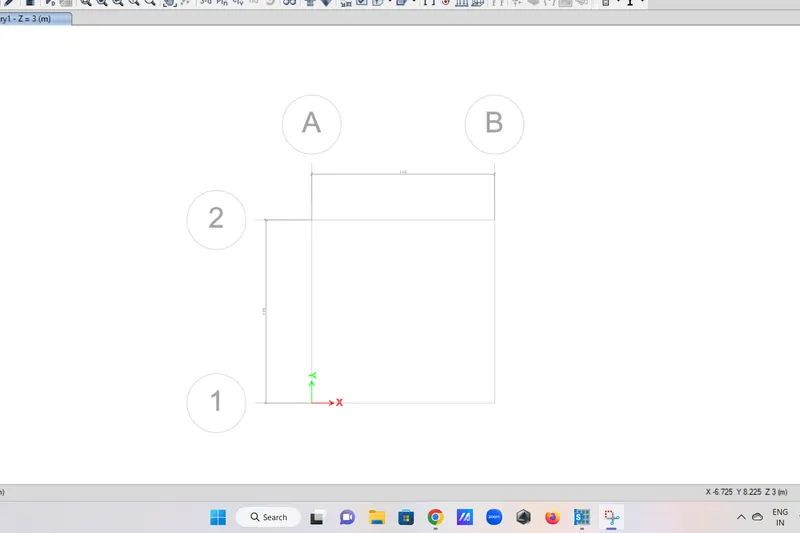

First select isolated footing in safe software then and assign the size and thk to the column in the as given below

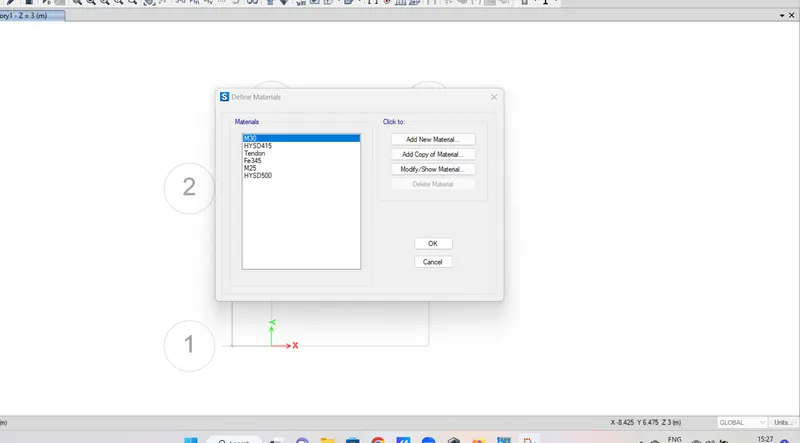

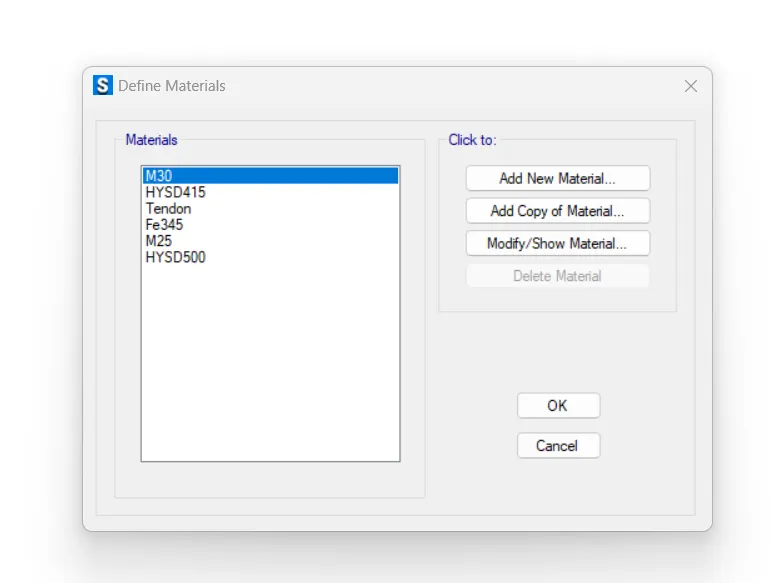

then Assign the material properties to it

then Assign Area spring 9000 kn/m2

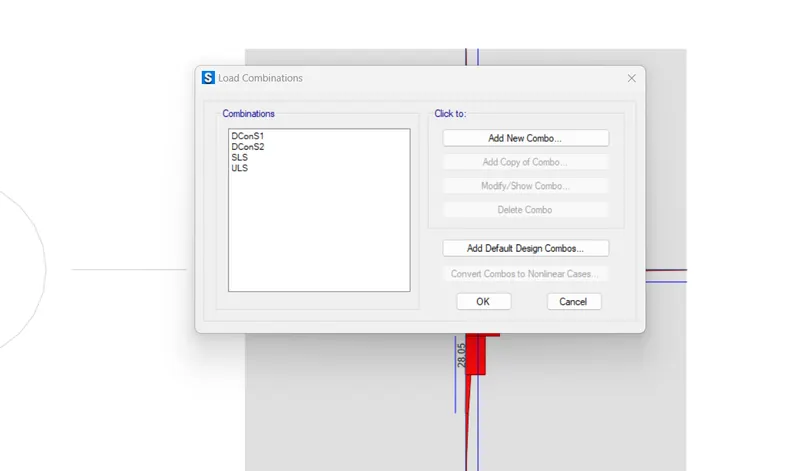

then add load combination to it SLS and ULS

then run analysis

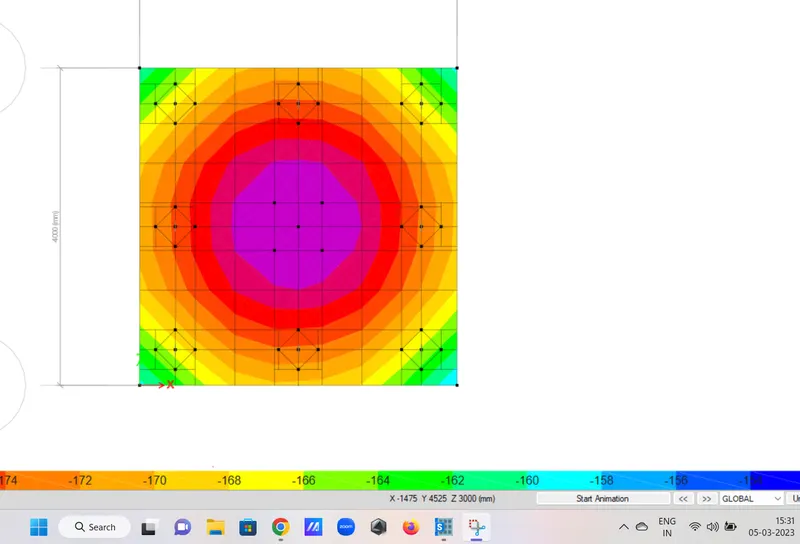

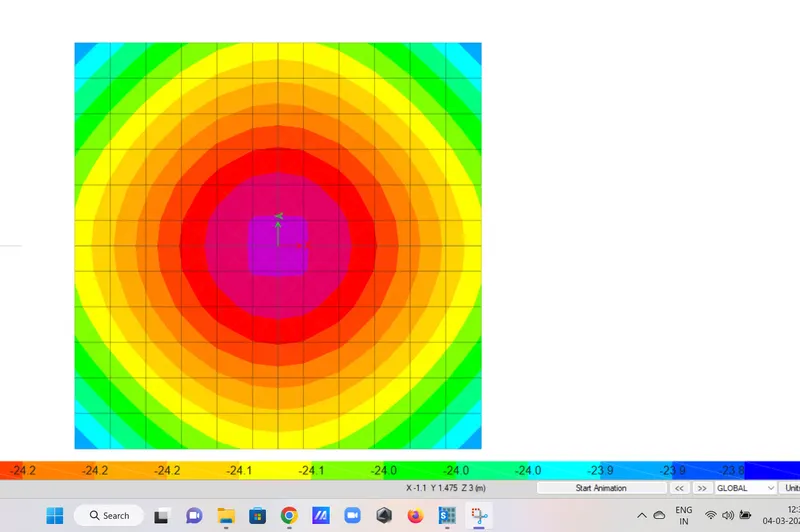

Displacement SLS-

It is within limit 40 mm

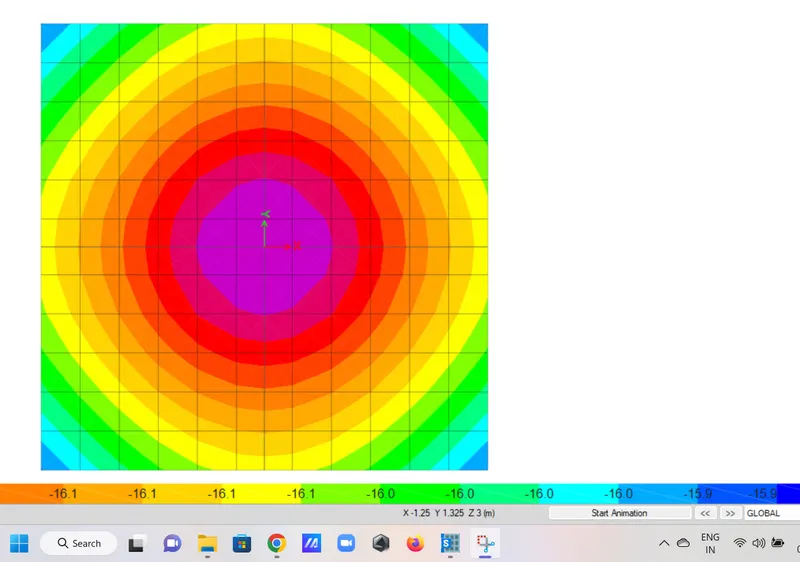

Displacement ULS

it is within ULC 150 mm

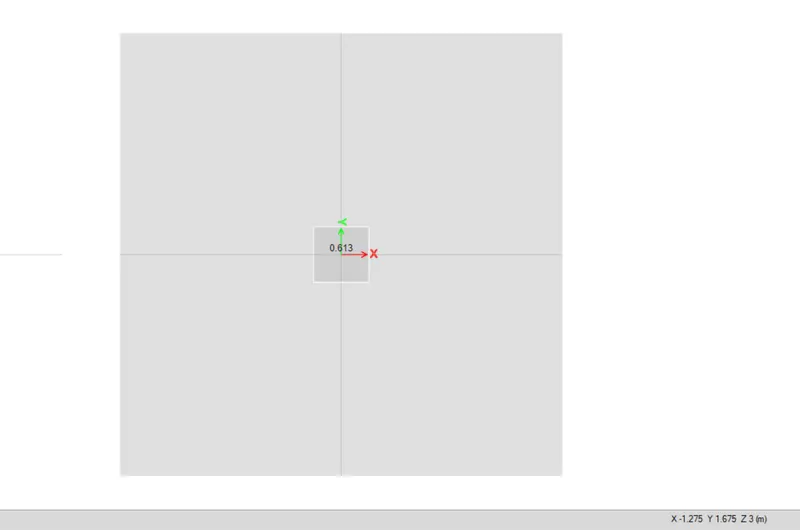

Punching shear design

It is less than 1 so safe

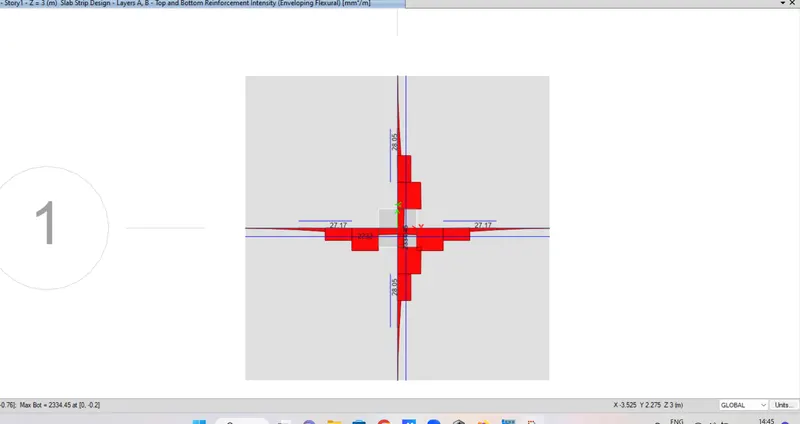

Steel reinforcement moment

its ok safe

2. PILE CAP

pROCEDURE

First select isolated footing in safe software then and assign the size and thk to the column in the as given below

Assign material to it

then draw pile cap and column in it and assign load on it

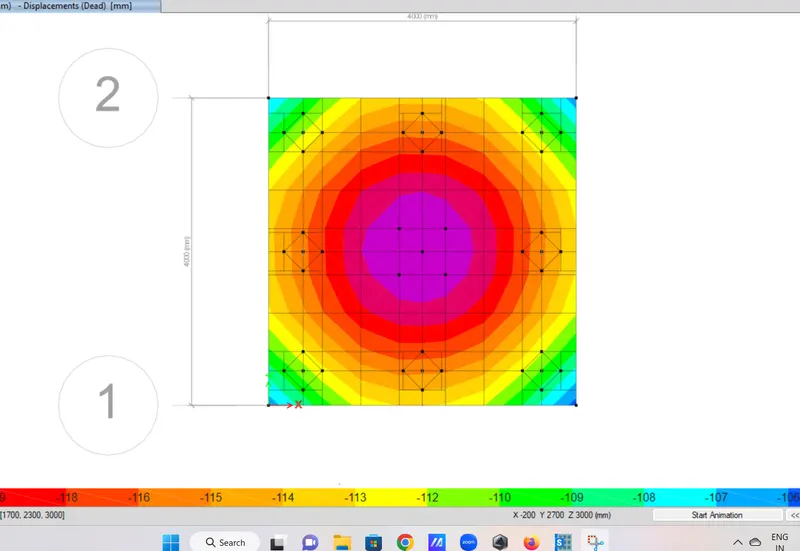

then Displacement SLS

Displacement ULS

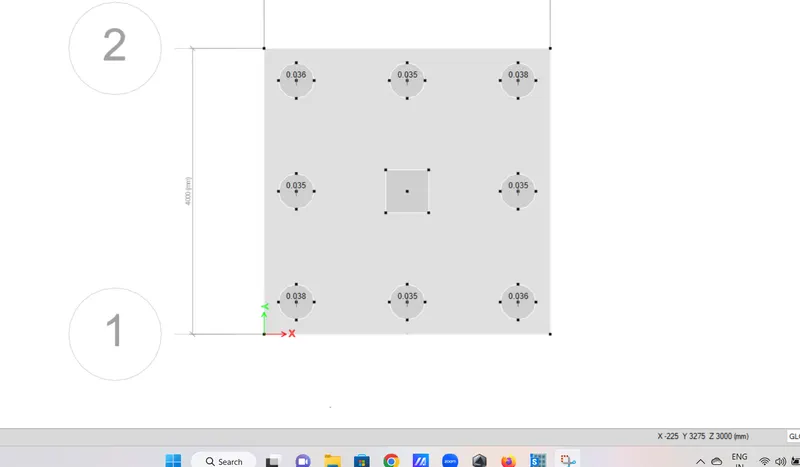

Punching Shear Ratio
