Final project - Door trim Design

REPORT:-

step1:-take catprodact and given 4 surface has take 4 catparts
step2:- surfaces to convart to solid by using surface work banch by genarative shape DG

• take part surface one offiset the surface one thik of 2.5mm creation of class b & also part surfaces 2to4 also repeat the class b
• then creat the class c by using commend of swip creating boundary creat class c repat the same process
• finally convart to solid all parts

step3:-then creat the flanges and doghouse on lower door trim BY USIN MASTER SECTIONS

step4:-finally to insert the push pin by using assmbley work bench constraints coinside of axis and touch constraints to inserts the push pin

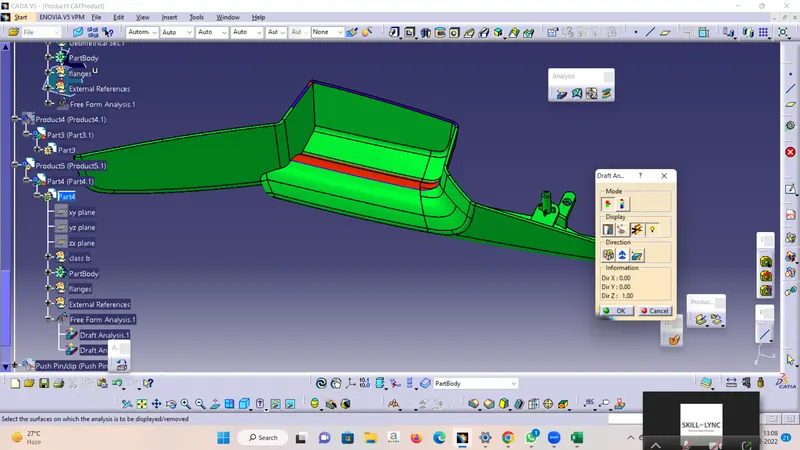

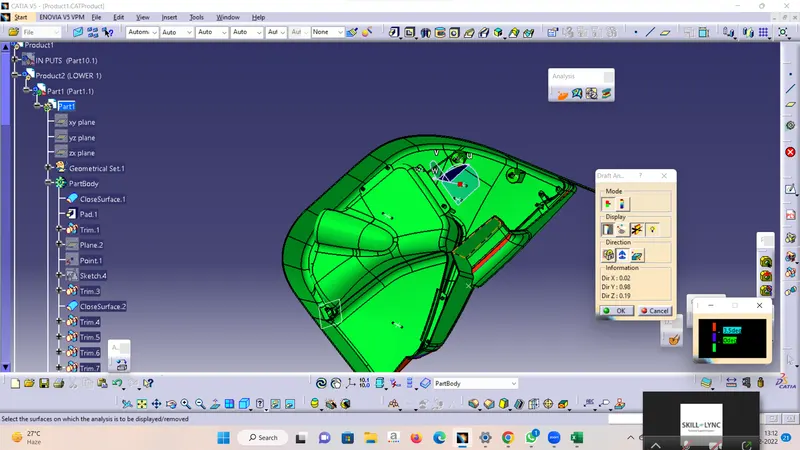

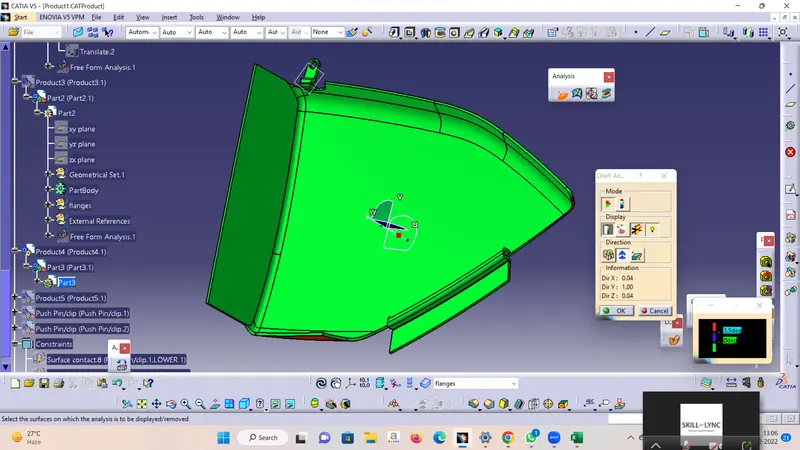

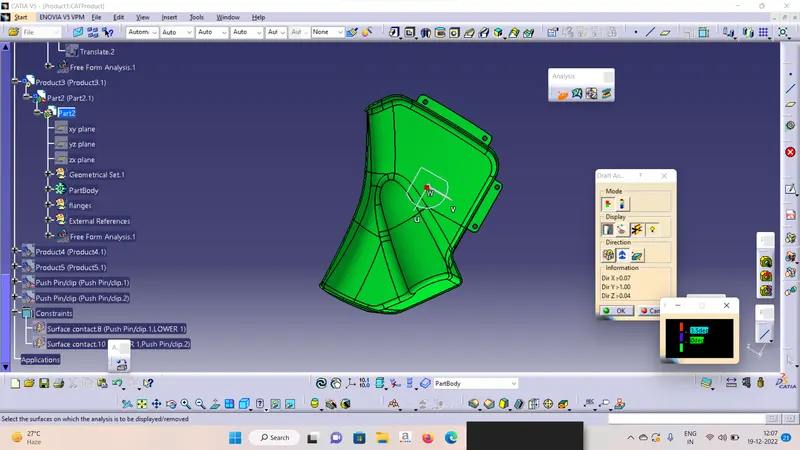

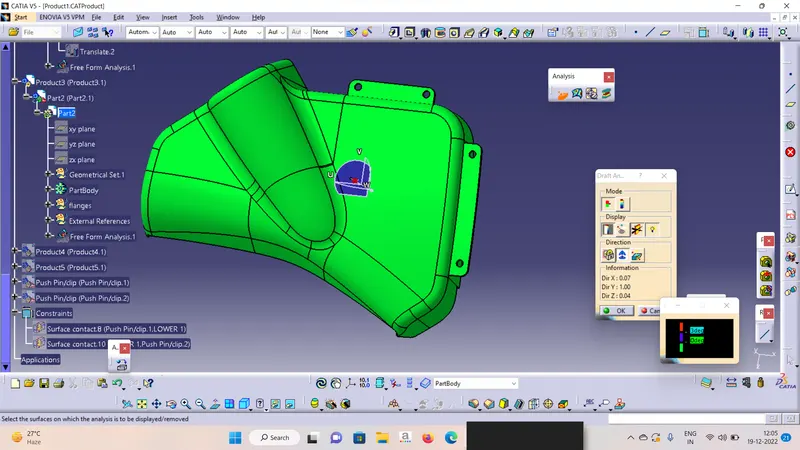

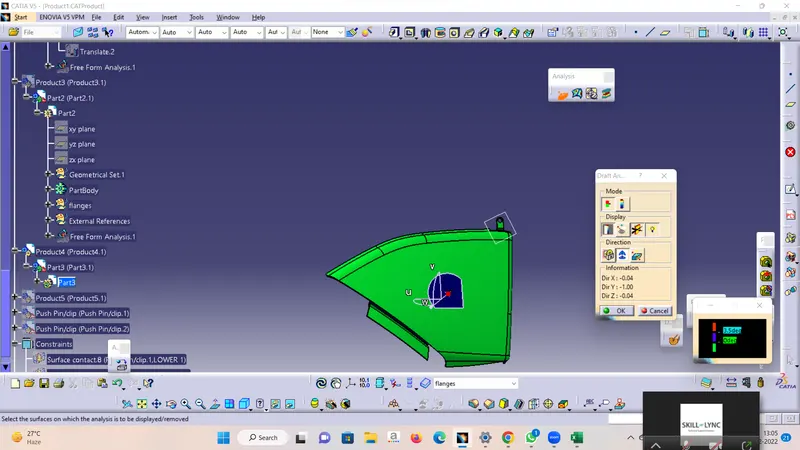

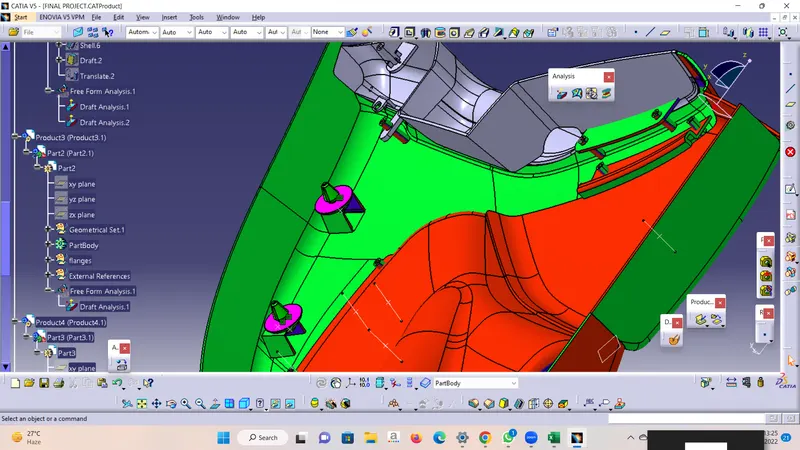

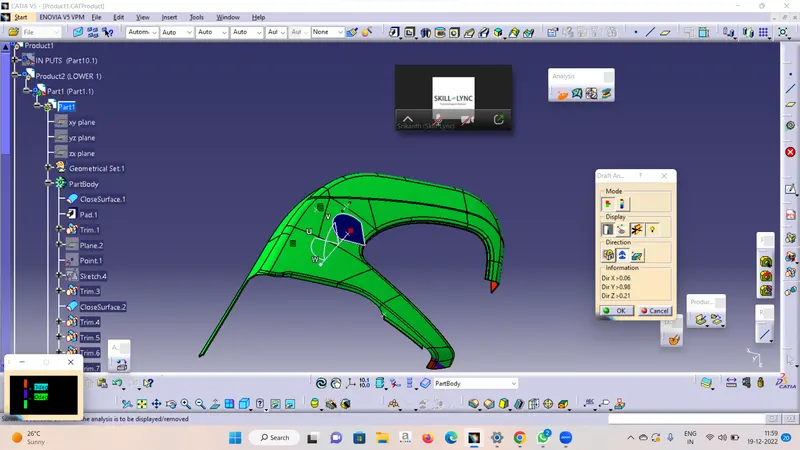

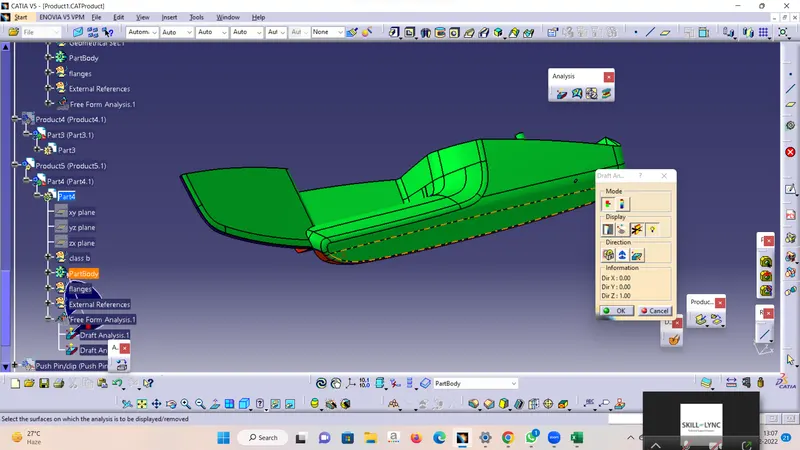

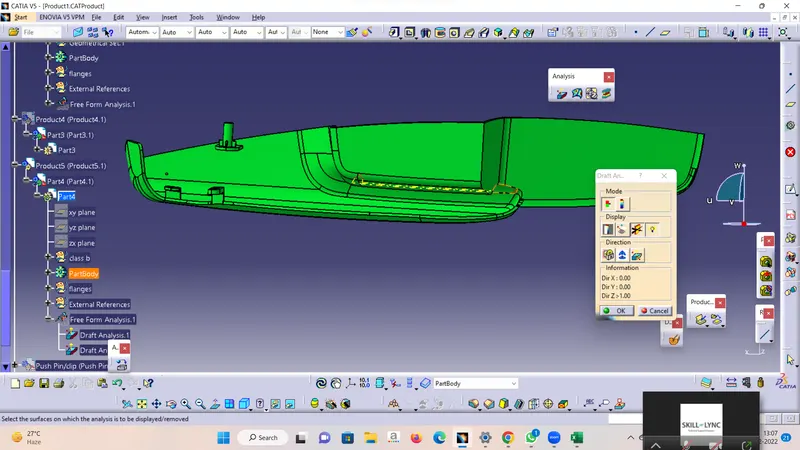

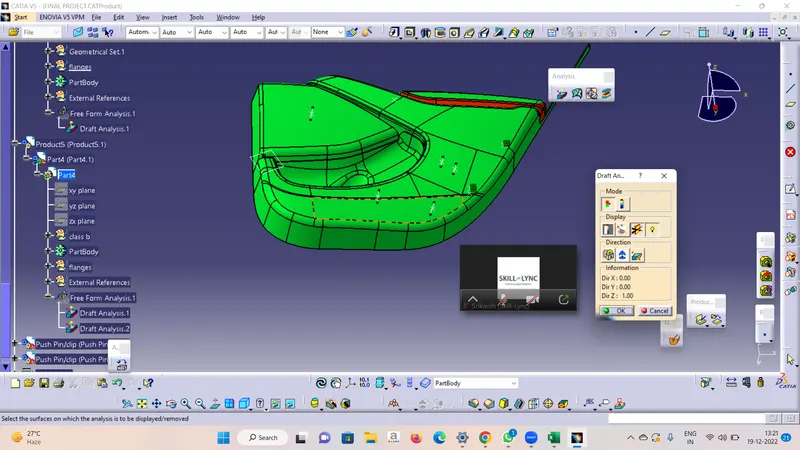

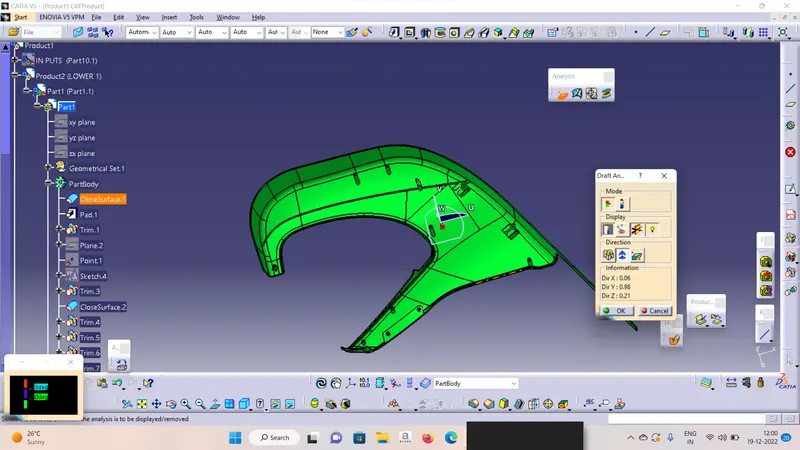

THEN CHECK THE ANALYSIS DRAFT BY 3DEG BY TOOLING AXIS SOME CORNES HAS SOME PROBLAMES
