Fender Design - Wheel Arch Challenge

FENDER WHEEL ARCH REGULATION:

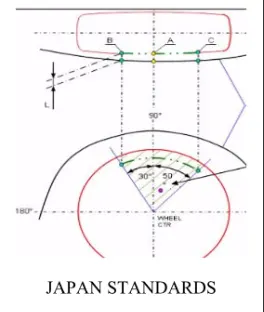

JAPAN STANDARD REQUIREMENGT:

The distance between wheel and the fender should be maintained shall be 5mm or greater at a line 30* forward and 50* rearward from the central vertical axis from the wheel.

EUROPEN STANDARD REQUIREMENT:

At all the sections the distance between wheel and the fender should be maintained shall be be 10mm or greater at a line 30* forward and 50* rearward from the central vertical axis from the wheel.

US STANDARD REQUIREMENT:

For meet US requirement need to check details on all position from -100* to +100* and make the clearance check table.

At all the sections the distance between wheel and the fender should be maintained shall be be 5mm or greater at a line 30* forward and 50* rearward from the central vertical axis from the wheel.

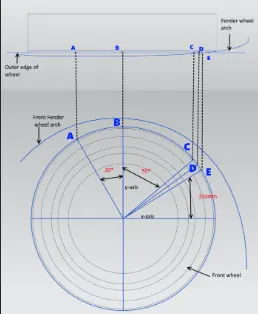

FOR THE GIVEN WHEEL ARCH WHILE CHECKING WITH STANDARD REQUIREMENT WICH IS

At all the sections the distance between wheel and the fender should be maintained shall be be 10mm or greater at a line 30* forward and 50* rearward from the central vertical axis from the wheel.

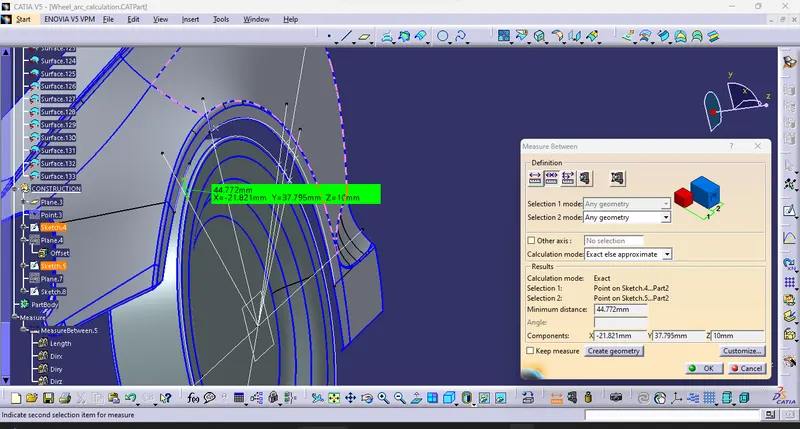

THE VALUE BETWEEN 30* = 10mm

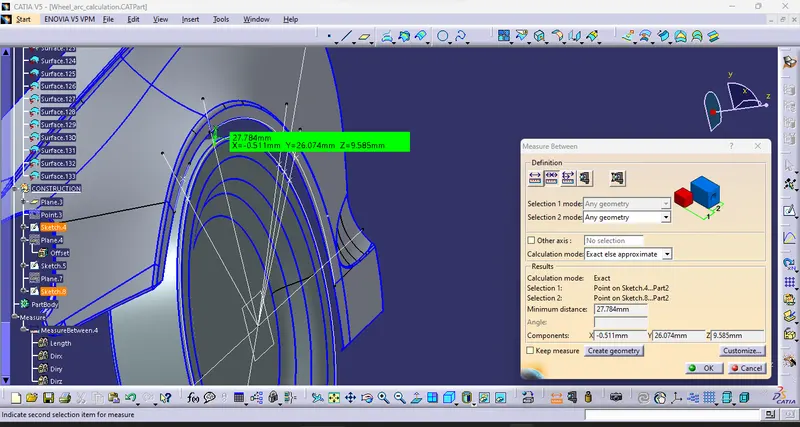

THE VALUE OF THE MID POINT = 9.585mm

THE VALUE BETWEEN 50* = 6.906mm

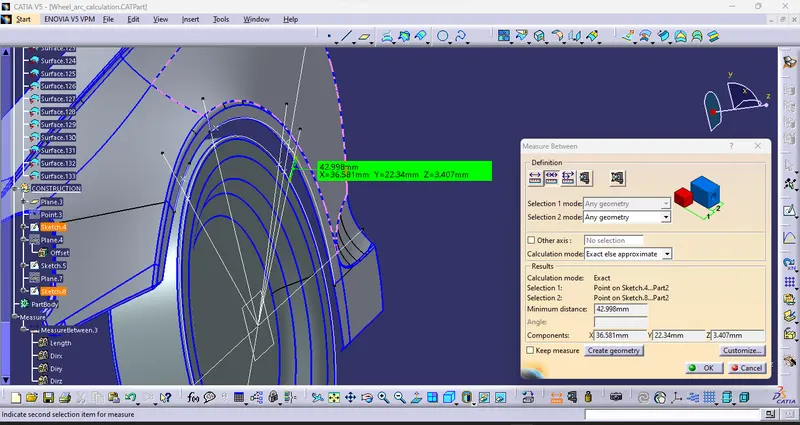

THE VALUE BETWEEN 150mm poin from centre = 3.407mm

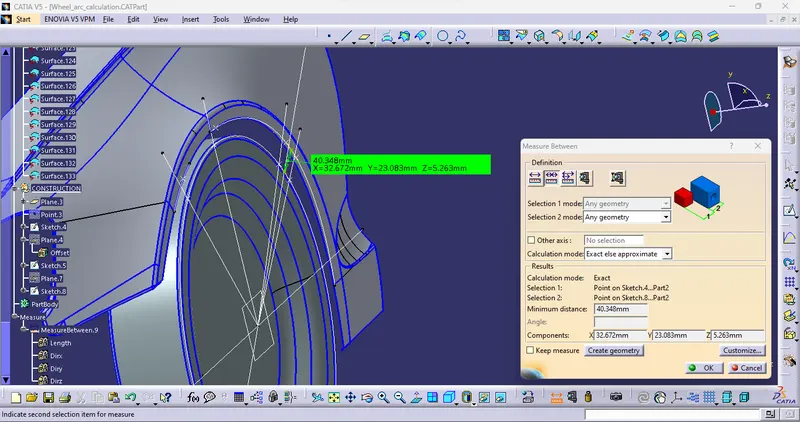

THE VALUE BETWEEN midpoint of 50* and 150mm line = 5.263mm

since the requirement of EUROPEAN REGULATIONS NOT MET. THE DESIGN FAILS.
