Challenge

Fender Design - Wheel Arch Challenge

GIVEN

Calculate the Wheel Arch gap at required points and check whether the car passes the European standard.

SOLUTION

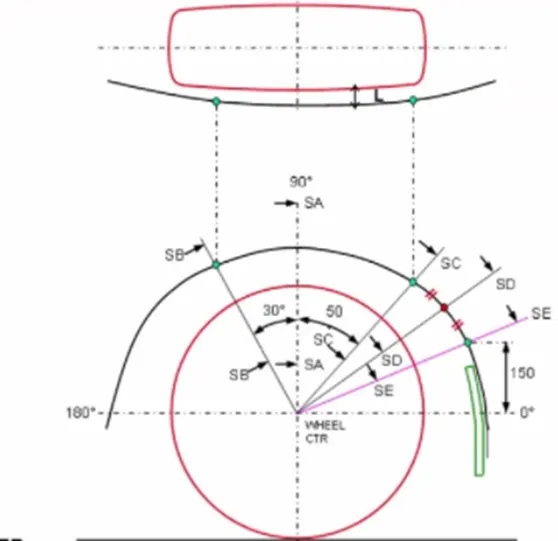

European Standard

If the above figure is the European standard,if the given wheel arch meet the standard dimension it is under safe condition.

STEPS TO BE FOLLOWED

first want to make a wheel outer circle and fender edge.
next make a lines as per dimension
then measure the horiantal and vertical direction between wheel outer and fender edge
in vertical measurement we get above 10mm means it is safe
In horizontal meansurement the value will be above 5mm means it is safe
these are criteria we want to check

CHALLENGE

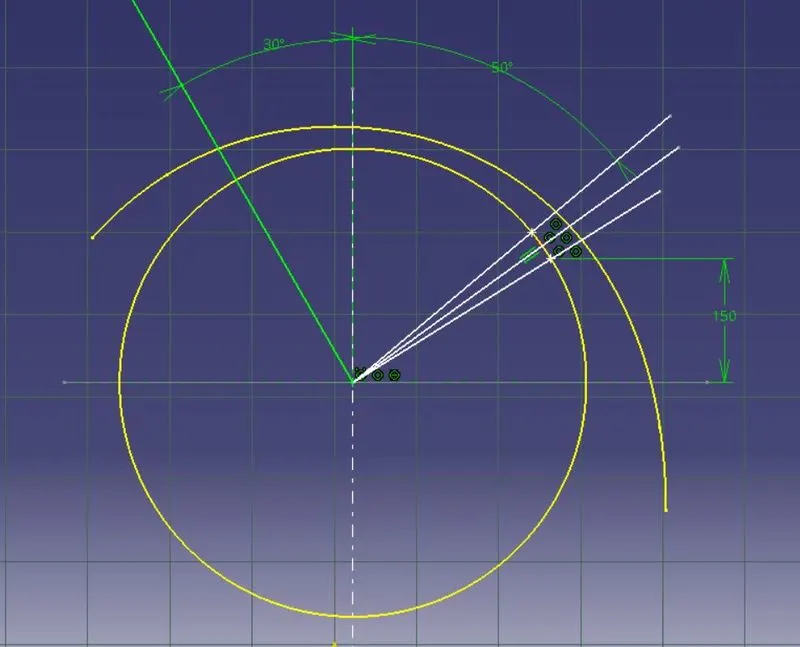

Given input is imported and the sketch is done and angular lines are drawn in it

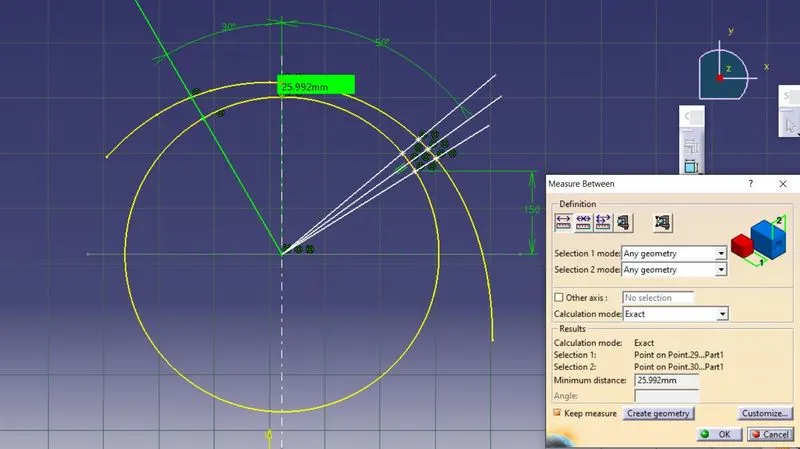

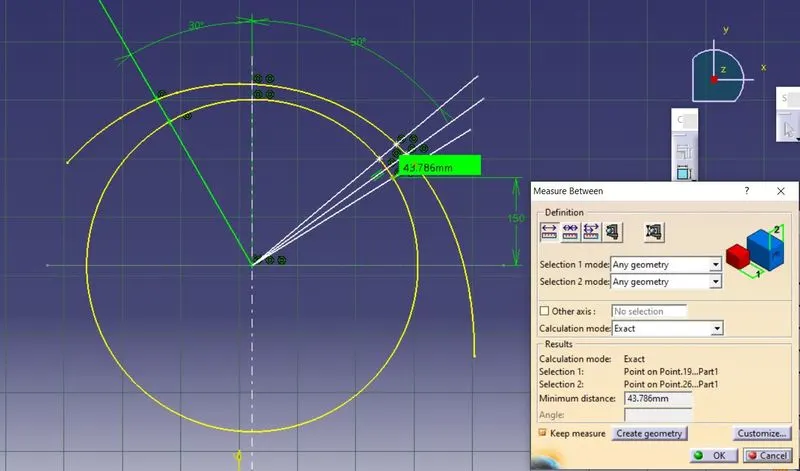

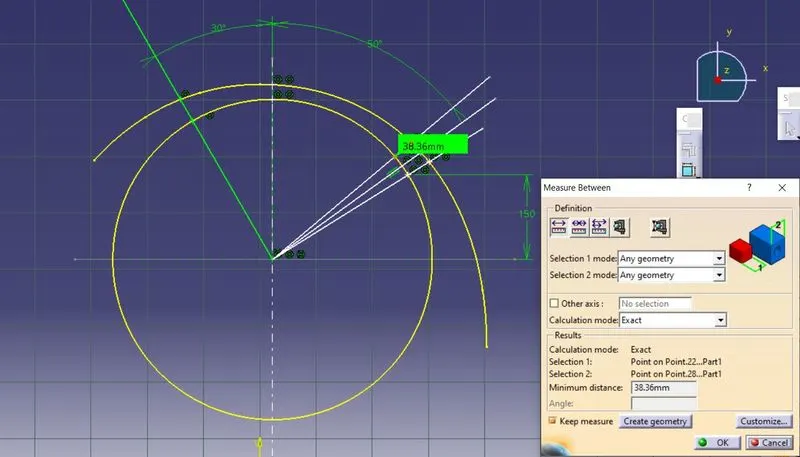

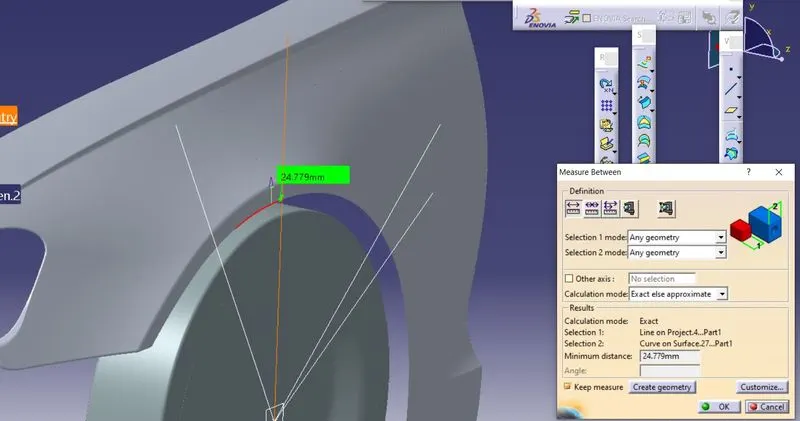

Next measure the vertical distance between wheel and fender

All the vertical measurement are taken and all are above 10mm so it is safe.so we want to take horizantal measurement.

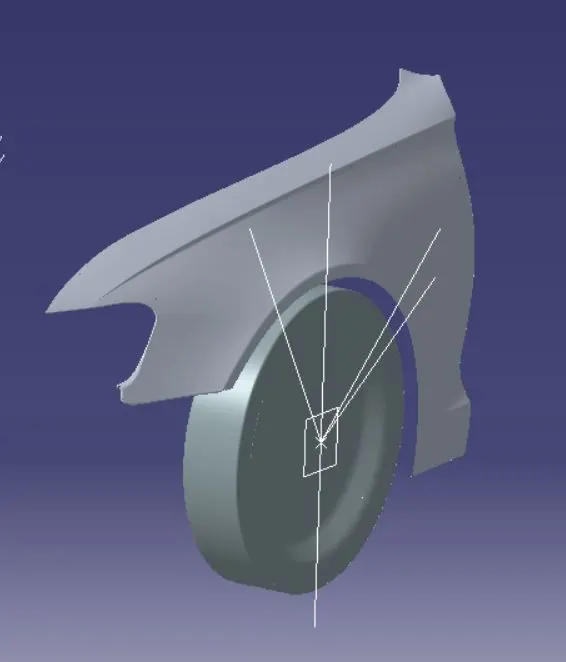

NEXT PROJECT THE SKETCH ON THE WHEEL CENTER

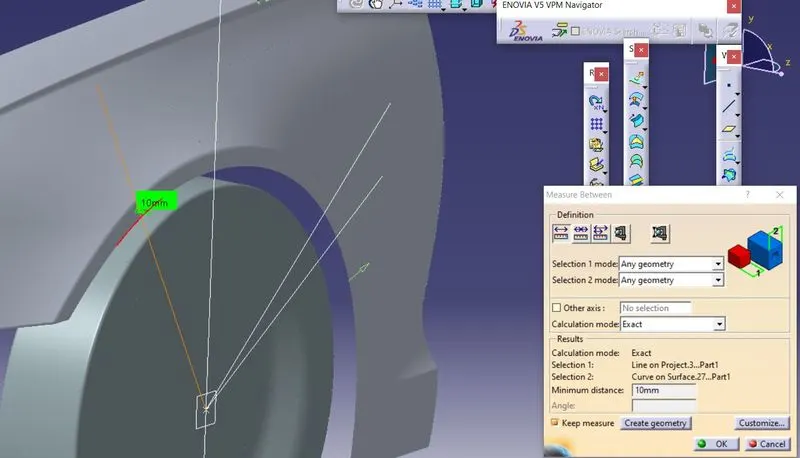

Next measure the horizontal distance between the wheel and fender.

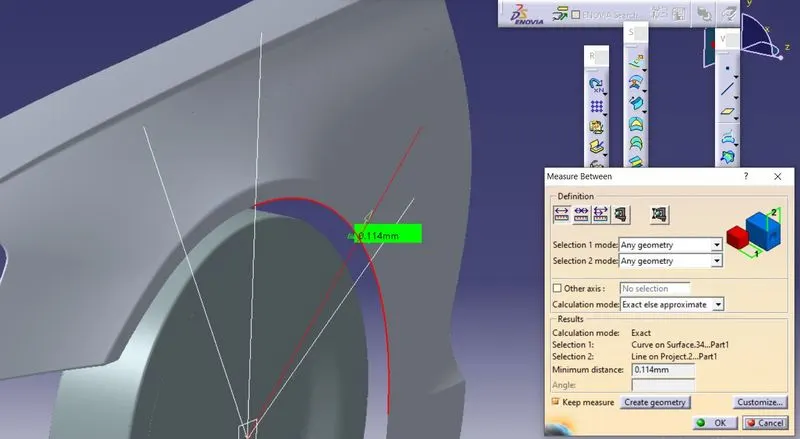

all the hortizontal measurements are taken but in that SA,SB are above 10mm but in that SC will be less than 10mm so we want talk to styling team to change that surface.

CONCLUSION

All the vertical values are safe but in horizontal SC value is under the standard value so we talk to styling team and rectify it and work.

Ship work like this
in your own course.
