Fender Design - Wheel Arch Challenge
Aim:
To calculate the Fender Wheel Arch area , to pass the European standards.
Objective:
- Create the intersection point according to given degree angle.
- Follow the European standards to prove the design is valid.
- Tabulate the result to conculde the final result.

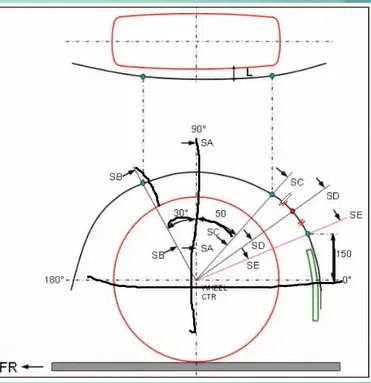

European Regulation:
Design Criteria has been followed as follows,
4
|
Section |
Clearance |
Result |
|
|

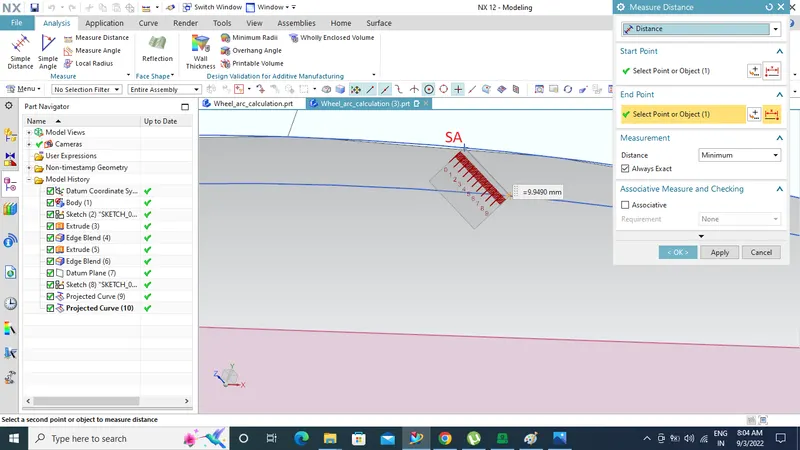

SA |
9.94 < 10 |
Fail |
|
|

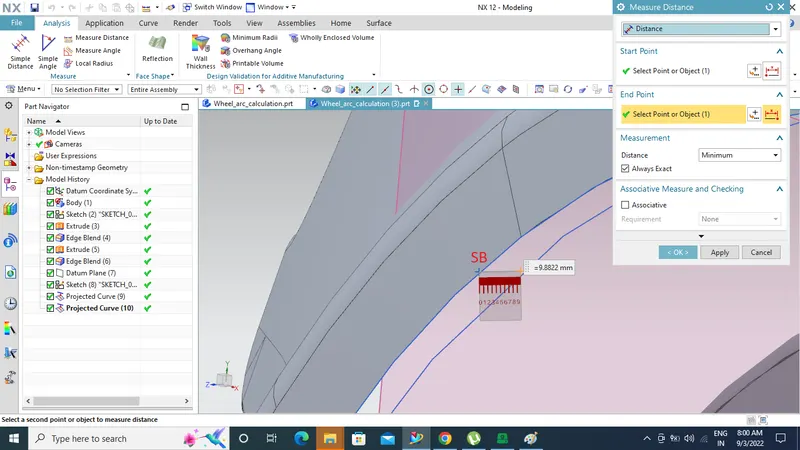

SB |
9.98 >10 |
fail |
|
|

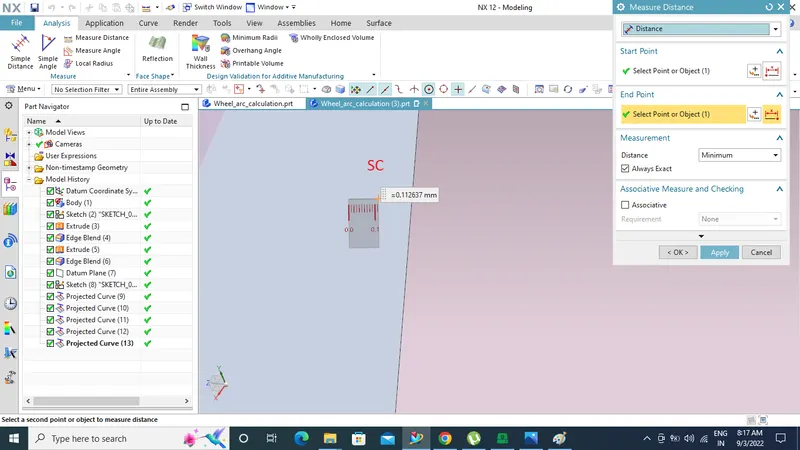

SC |
0.11 < 10 |
Fail |
|
|

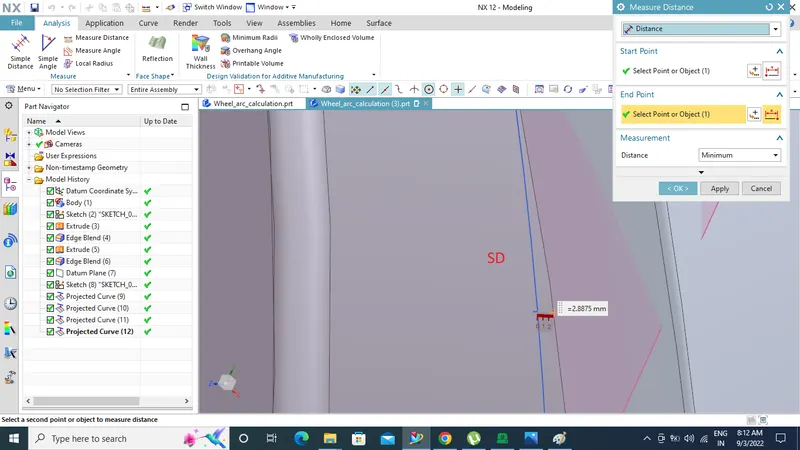

SD |
2.88 < 10 |
Fail |
|
|

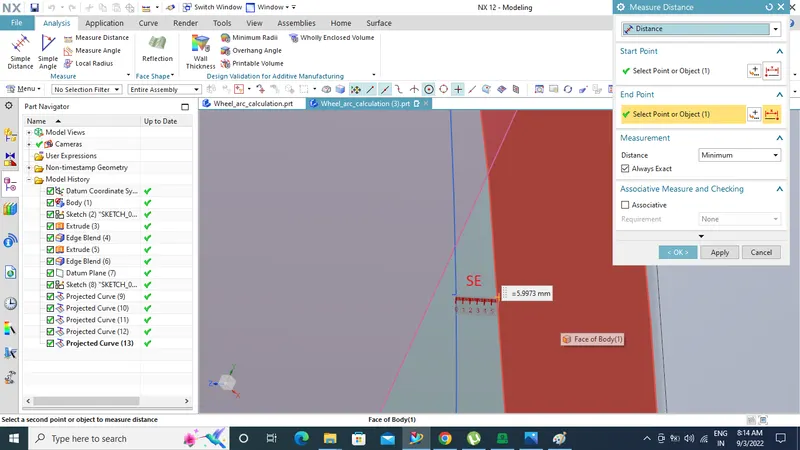

SE |
5.99< 10 |
Fail |
Conclusion:
The value of Clearance (L) is measured at all five location and tabulated. The table shows that only SB near clear criteria of regulation clearance and at remaining four section value will not have more than 10mm with the help of measure data, the given fender does not qualify the European standard for wheel arc area.
