Fender Design - Wheel Arch Challenge

Calculate the Wheel Arch gap at required points and check whether the car passes the European standard.

Objective

To calculate the wheel arc for given Fender model, by means of the European standards regulations.

Introduction

Wheel arc calculation is necessary for the fender design to pass the local regulation which are based on the local road conditions.

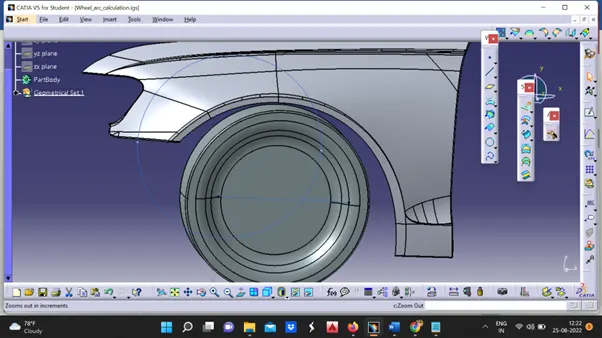

Wheel arch is a semi-circular area in fender, which houses the wheel well. It should have a sufficient clearance between tyre and wheel arch. So, that it doesn’t touch the wheel arch area during suspension. The clearance value differ from region to region, here are few regulations.

Japan Regulation Standard:

The clearance value will be more than the 5mm at 30 degree at forward and 50 degree at backward from the central vertical line.

US Regulation Standard:

Make clearance check details on all position from -10 to 180 degrees. All values must be greater than 5mm.The Clearance Value will more than 5mm at line 30 degree forward and 50 degree backward from central vertical axis.

European Regulation Standard:

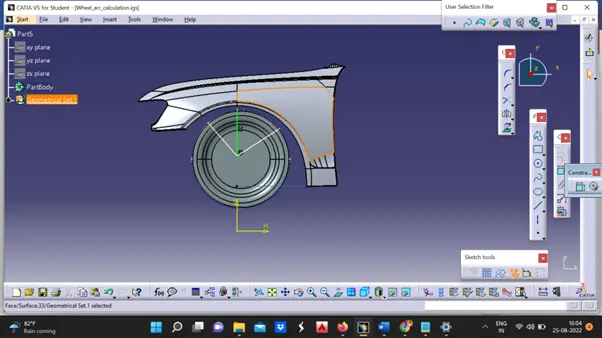

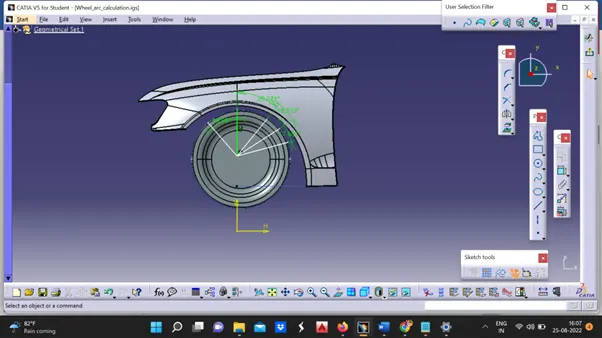

The clearance value will be more than 10mm at 30 degrees at forward and 50 degree at backward and line 150mm above X-axis and Mid-point between 50 degree and line above 150mm.

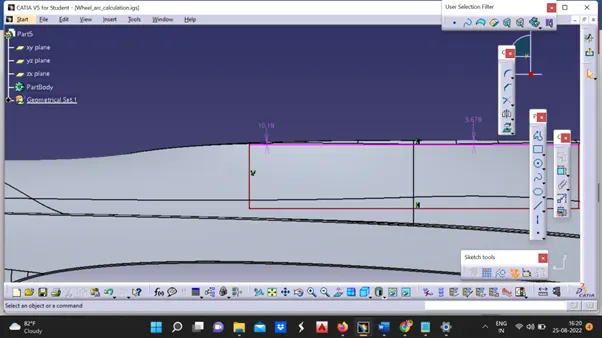

the distance between the wheel and the arch should be 10mm all around the arch at some sections it fails. The distance should be 10mm from the outer part from the outer part of fender to the outer part most part of the tier.

If it is more than 10mm it requires the safety measurement. If it is below 10mm, it does not meet the standard.

Conclusion :

To satisfy the European standard whereas the other lines does not match . Hence we have to discuss our team and redign the Fender to satisfy the European Standards.
