Fender Design - Wheel Arch Challenge

Aim:

Calculate the Wheel Arc area and prove whether the car will pass the standards or Not.

wheel arch:

Wheel arch claddings are there to stop water and dirt ingress from getting into tight spots around the wings of the car to prevent corrosion. They also protect any electrics or pipework from the water.

Types of wheel arch standards:

Japan standard

US standard

European standard

Japan standard:

US standard:

EUROPEAN STANDARD:

In india based car wheel arch is based on the european standard.

design of wheel arch

Download the file from website

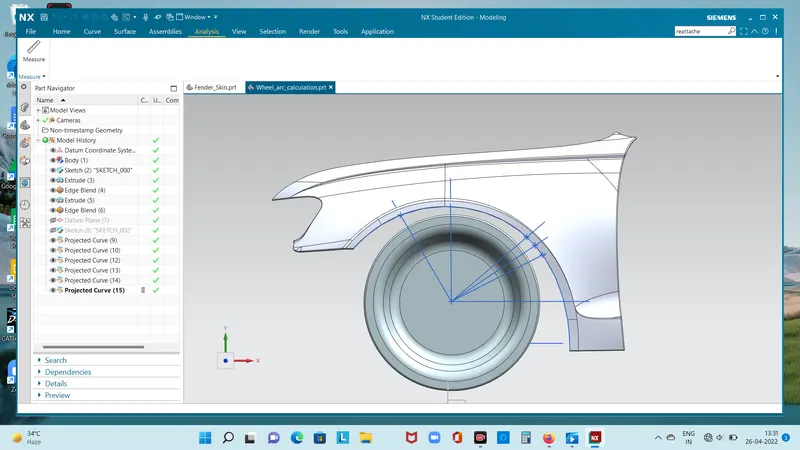

It is the fender arch model

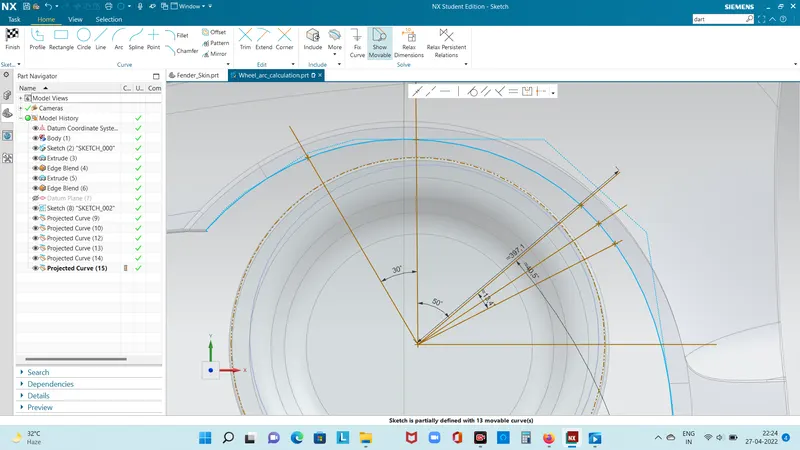

Draw the sketch:

Create sketch like th eueropean stadard pattern

draw lines with given angle

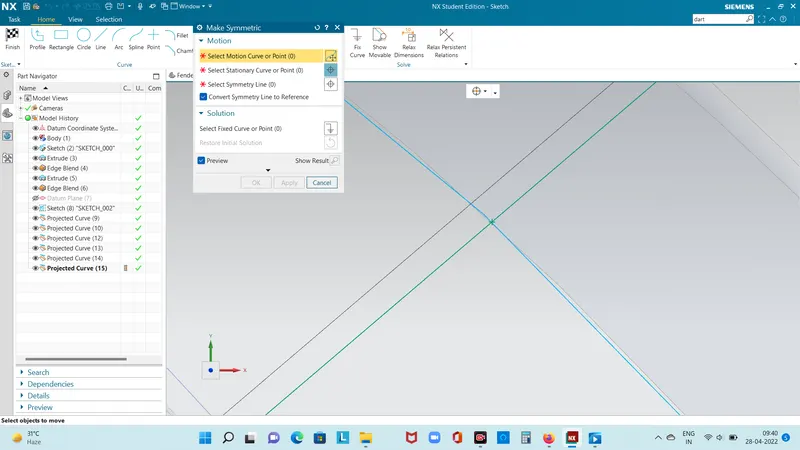

create points inter section of two lines.

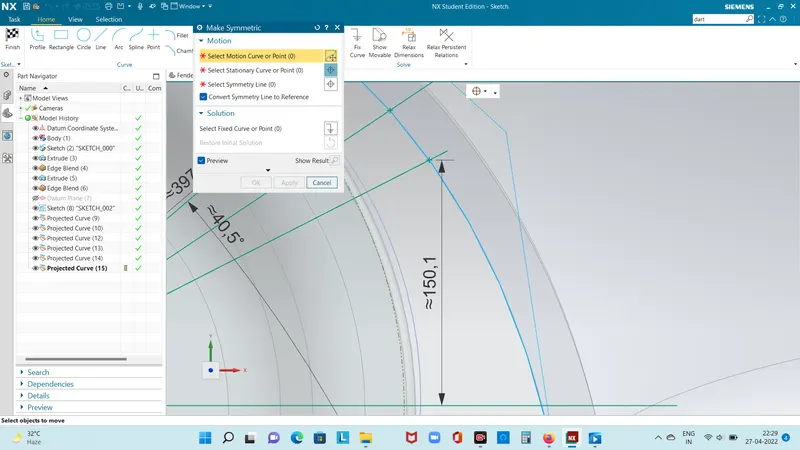

create points in inter section of the al meeting area of the two lines

then project the point on the fender

then measure the distance between the two points

the clearence should be above 10mm that is correct

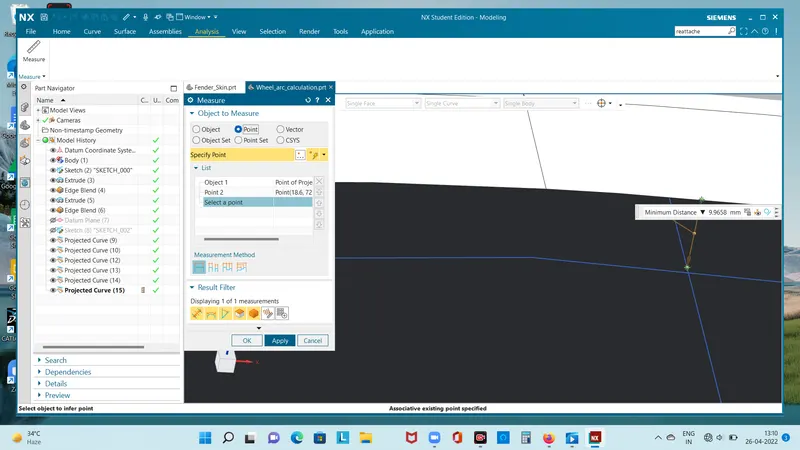

Measure A point

the clearence value A is 9.5mm,it is not pass.

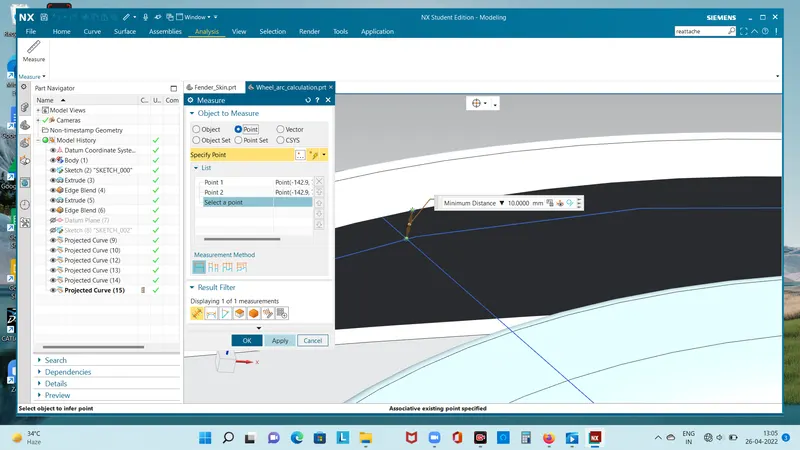

then measure the b point

The clearence value of B is 10mm,it is pass.

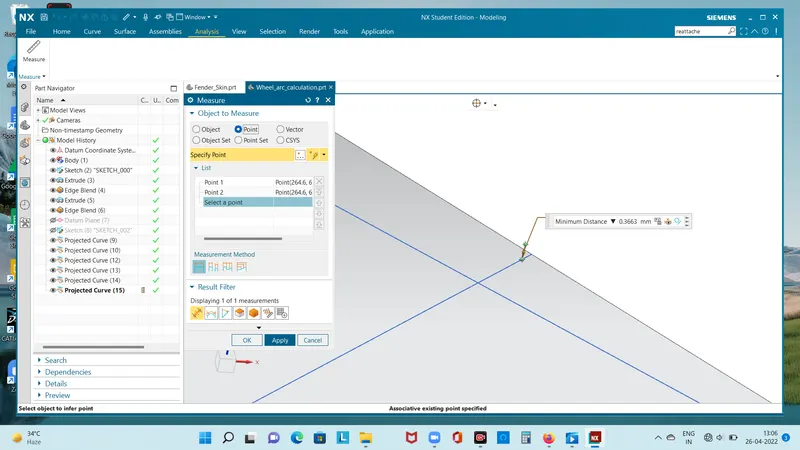

then measure the c point

the clearence value of C is 0.36mm,it is not pass

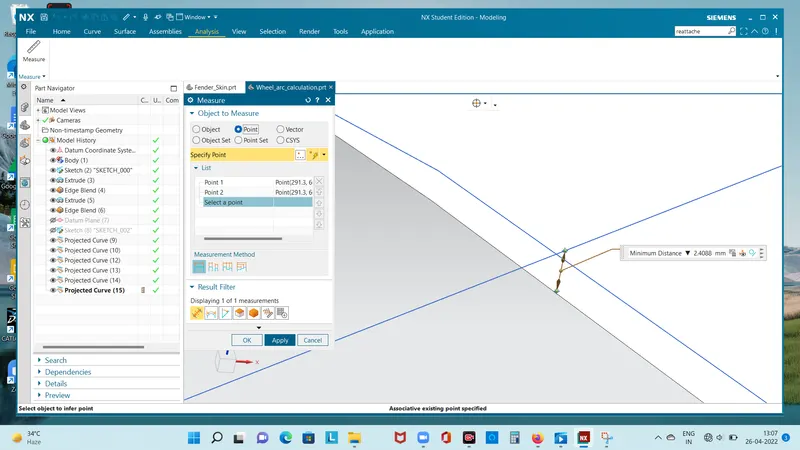

measure d point

the clearence value of D is -2 mm,it is not pass.

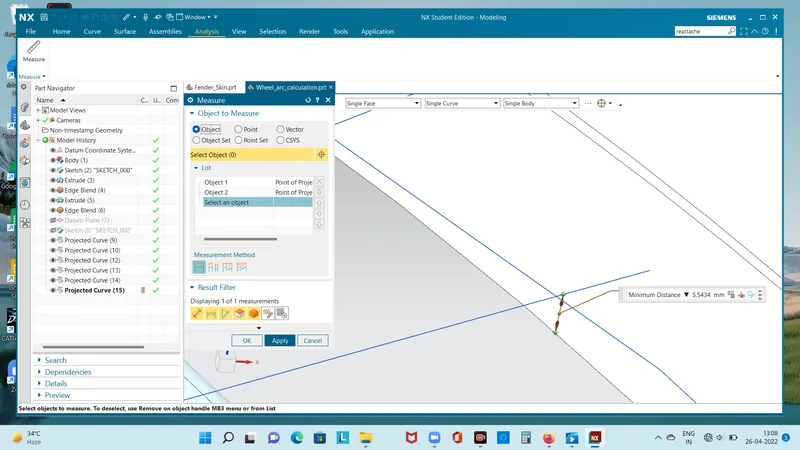

and measure e point

The clearence value of E is -5.5mm, it is not pass.

finally one point only above 10mm

point	value	result
A	9.9	Faill
B	10	pass
C	0.369	Faill
D	-2.04	Faill
E	-5.534	Faill

select the suitable point.

Result:

The point B is is satisfied european standard condition.
