Fender Design - Wheel Arch Challenge
Using the Europian Standards
Calculate the Wheel Arc area and prove whether the car will pass the standards or Not.
EUROPEAN REGULATIONS REQUIREMENT

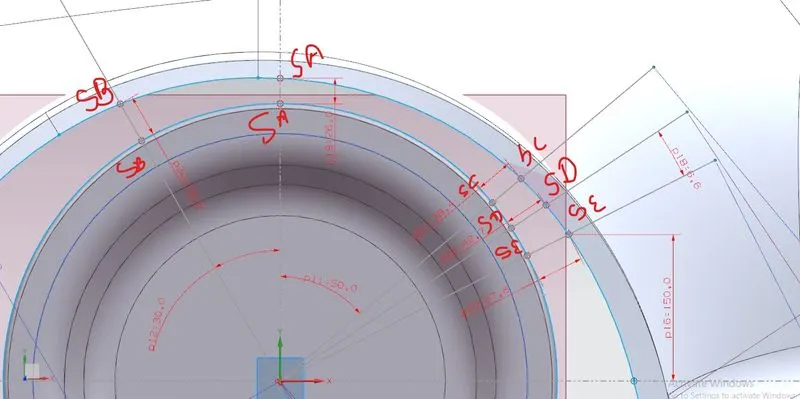

Measure CL L at sections SA-SA SB-SB SC-SC SD-SD SE-SE and produce CL check chart to validate.\

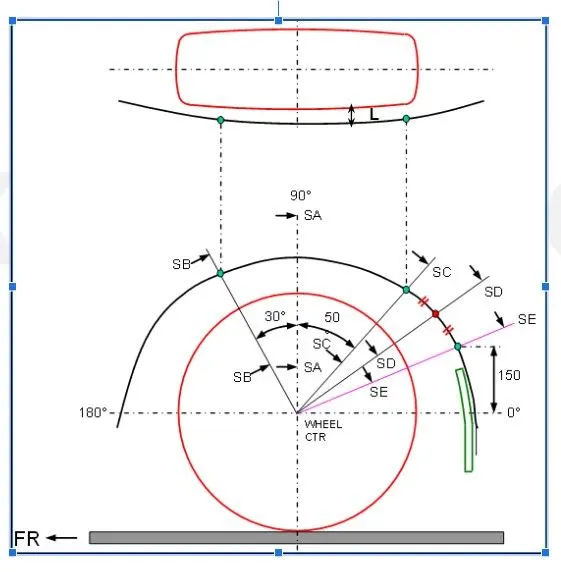

- Wheel guard reqmt: The value of ‘a’ shall be more than 5 mm at a line 30* forward and 50* rearward from the central vertical axis of axis of wheel
| DISTANCE BETWEEN | REQUIRED DISTANCE | MEASURE DISTANCE | RESULT |
| SA-SA | 5 mm | 26.0mm | PASS |
| SB-SB | 5 mm | 43.6mm | PASS |
| SC-SC | 5 mm | 38.4mm | PASS |
| SD-SD | 5 mm | 42.7mm | PASS |
| SE-SE | 5 mm | 47.6mm | PASS |
- At all five sections the CL L value should be greater than 10 mm to satisfy the European regulations.
| DISTANCE CL (L) | REQUIRED DISTANCE | MEASURE DISTANCE | RESULT |

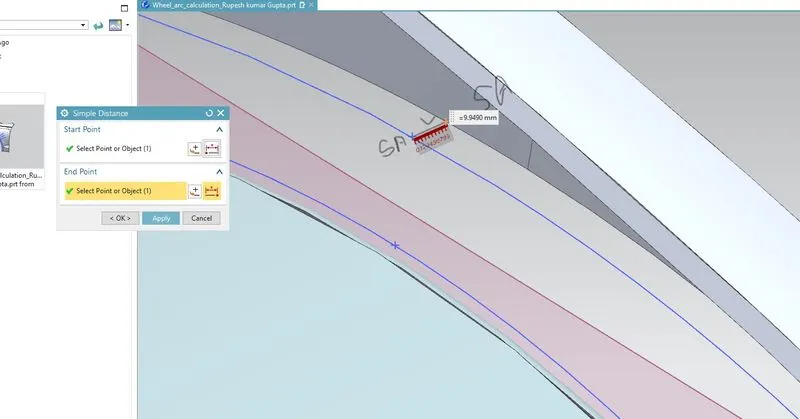

| SA-SA (L) | 10 mm | 9.949mm | FAIL |

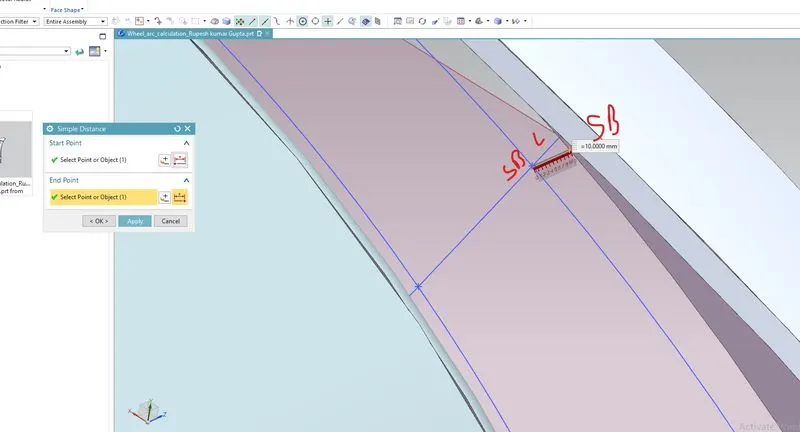

| SB-SB (L) | 10 mm | 10mm | PASS |

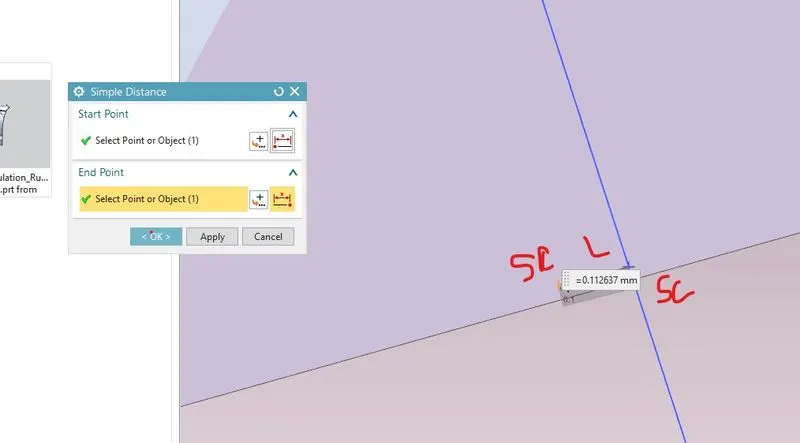

| SC-SC (L) | 10 mm | -0.1126mm | FAIL |

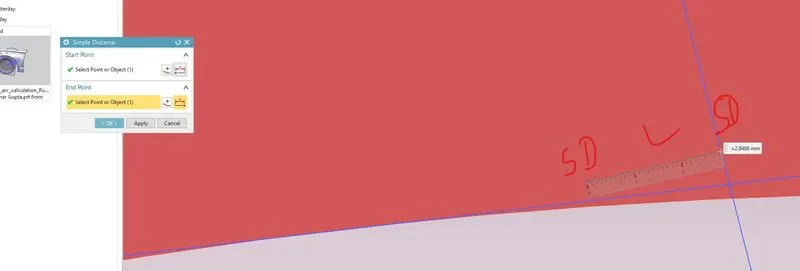

| SD-SD (L) | 10 mm | -2.8468mm | FAIL |

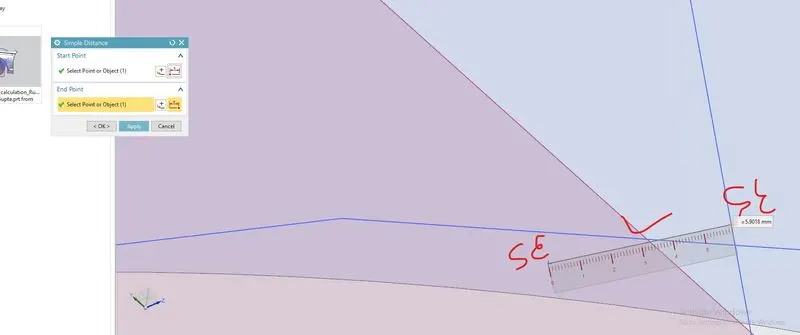

| SE-SE (L) | 10 mm | -5.9018mm | FAIL |
Conclusion
Measure CL L at sections SA-SA SC-SC SD-SD SE-SE less than 10 mm ,so the CL L value should be greater than 10 mm to satisfy the European regulations
