Fender Design - Wheel Arch Challenge
FENDER WHEEL ARC DESIGN

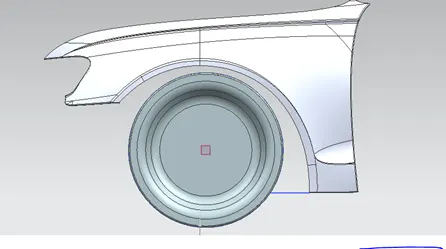

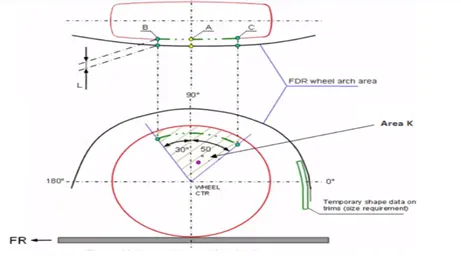

Japan Design Regulation:

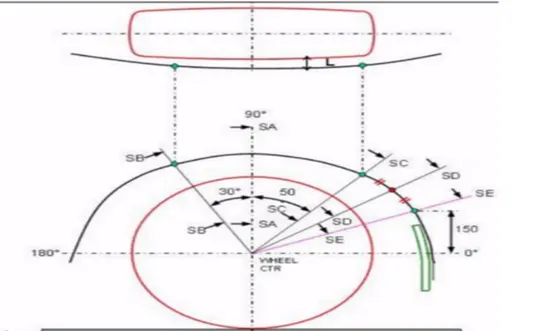

- L indicate clearance b/w fender and tyre in a predefine point and angles which is mentioned above. 30degree angle around anticlock wise and 50 degree towards clockwise direction
- L should be greater than 5 mm
European design parameter
- L indicate clearance b/w fender and tyre in a predefine point and angles which is mentioned above. 30degree angle around anticlock wise and 50 degree towards clockwise direction
- L should be greater than 10 mm

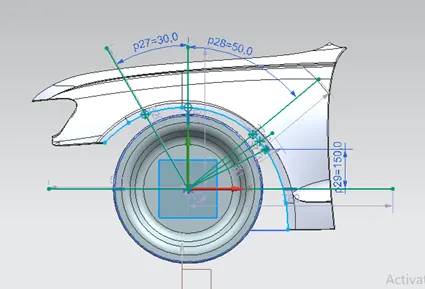

First I create a center point with reference to outer circle line option and then create a line vertical and horizontal from the center point as mentioned below

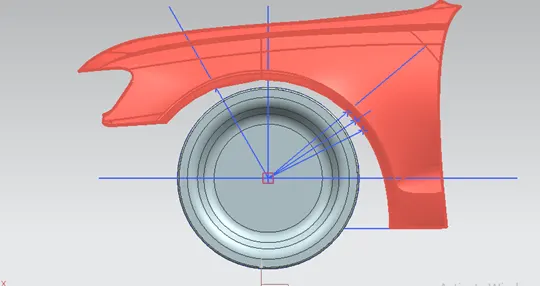

The line which I created SB which is 30 degree anticlockwise direction the line SC which 50 degree clockwise direction and make a reference line along x axis and make a vertical line which is intersect the outer line of tyre with 150 mm distance SE after that make a drive line and make intersection point SD. SA, SB, SC, SD , SE take reference point from European design sketch .
Create a intersection point from the reference point SA, SB,SC, SD , SE .

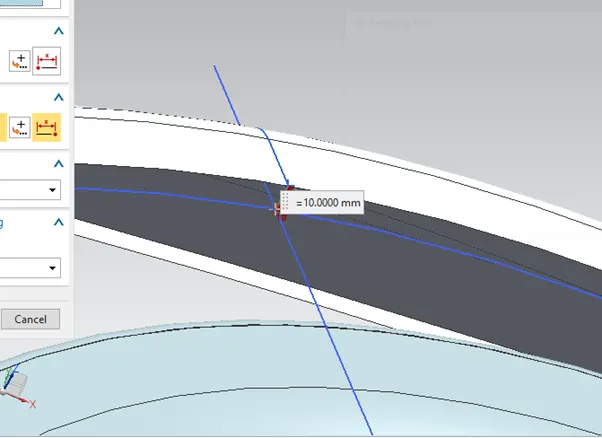

The measuring distance from SB curve is 10mm

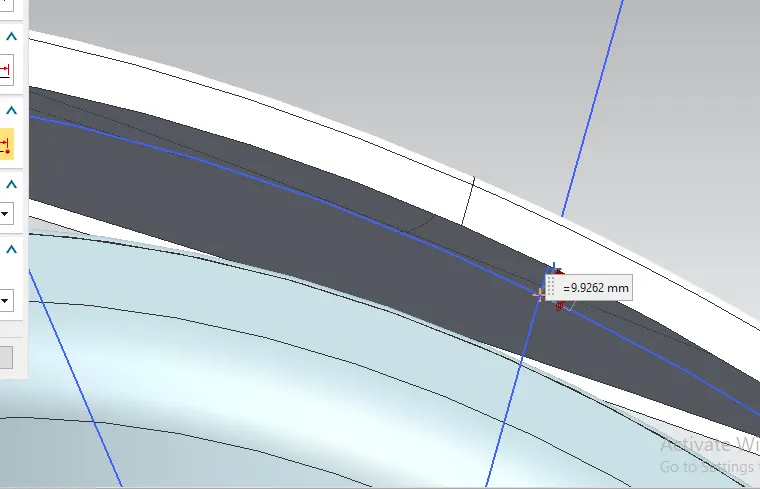

The measuring distance of SA curve is 9.962mm

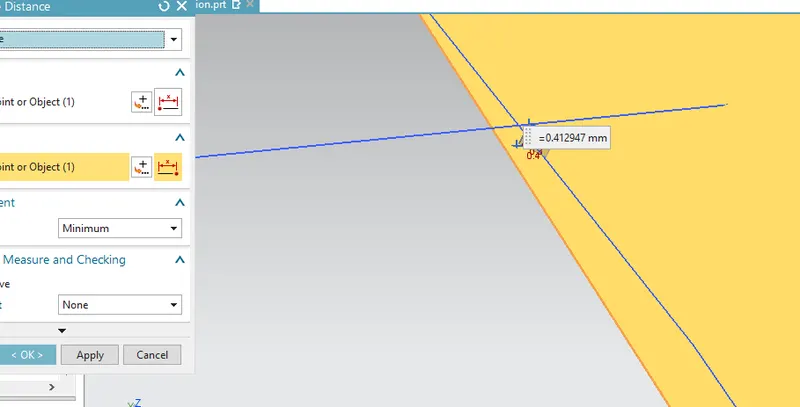

The measuring distance of curve SC -0.412MM

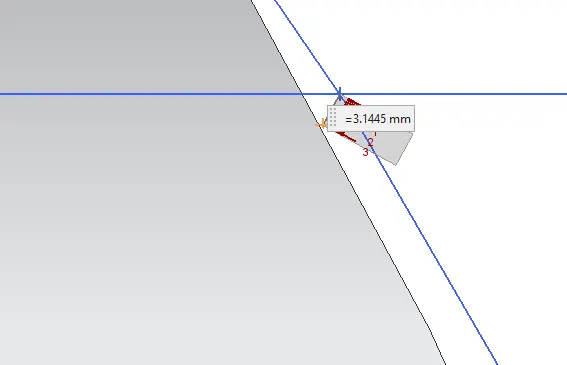

The measuring distance of SD curve is 3.144mm

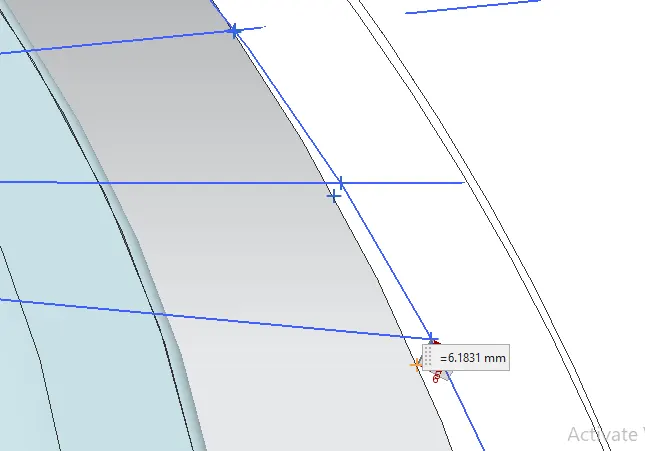

The measuring distance of SE curve is 6.18mm
|
SECTION |
DISTANCE |
|
SB |
10 mm |
|
SA |
9.962MM |
|
SC |
0.412 MM |
|
SD |
3.144MM |
|
SE |
6.18MM |
RESULT
As per the above data fender wheel arch design DATA is not satisfy the European standards
