Fender Design - Wheel Arch Challenge

sir,

Fender wheel arch area

Japan requirement.

Clearence must be greater than 5mm,The value of A should be more than 5mm at a line 30 degeree forward and 50 degeree Rearward

European Requirement.

Measure the SA,SB,SC.SD.SE at all five sections CL,L value should be greater than 10mm to satisfy the european regulations.

In this challenge we are going to follow the European challenge Requirement.

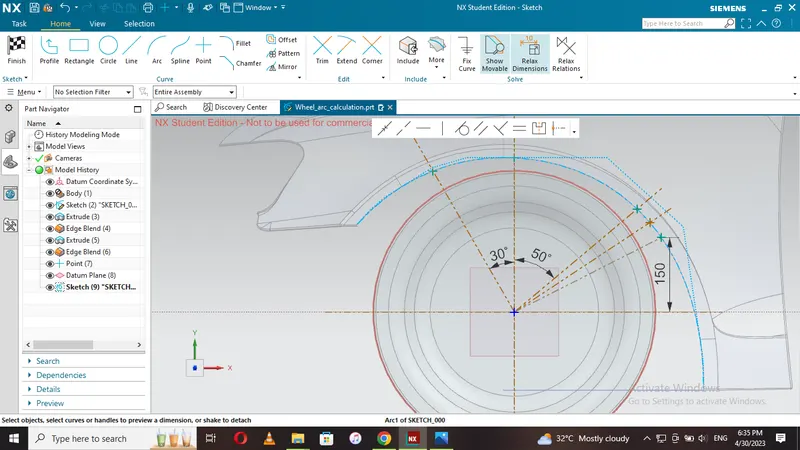

Initally after opened the File,Using Curve arc point command a center point is created at center of the tyre.

then horizontal and vertical line is drawn along the point and 30 and 50 degeree line is drawn forward and rearward.

A point is created on the curve and from horizontal 150mm is measured.

Then after projecting the curve on the fender line are make intersection and using intersection point command.5 points are created respectively,named A,B,C,D,E.

Then we have to measure the value with respecting to that point.

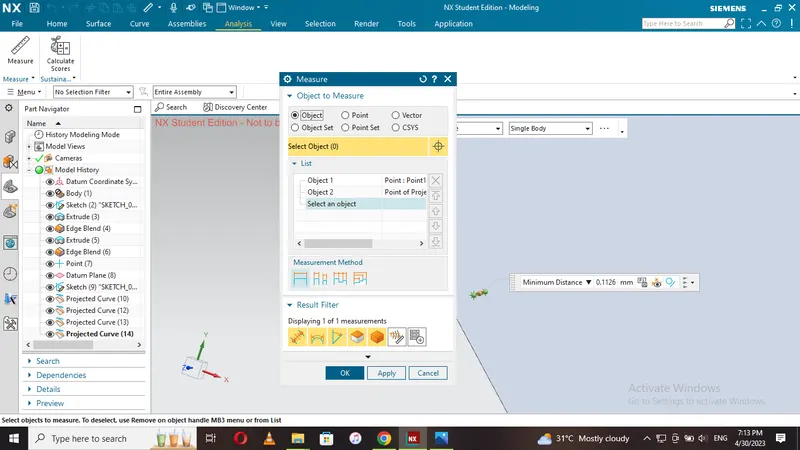

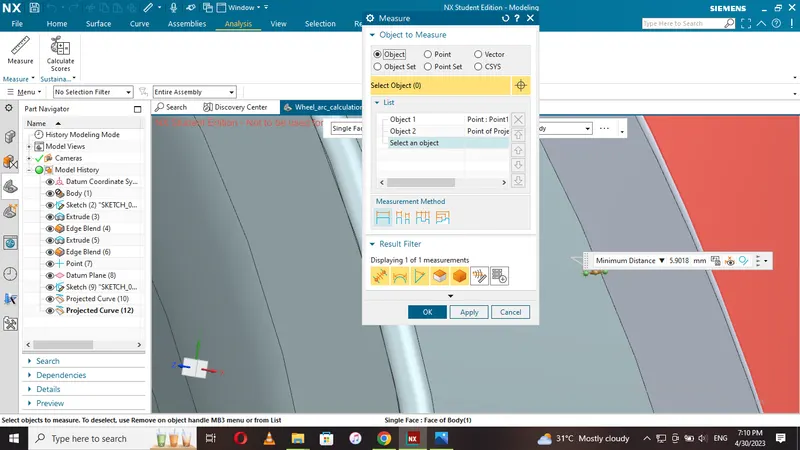

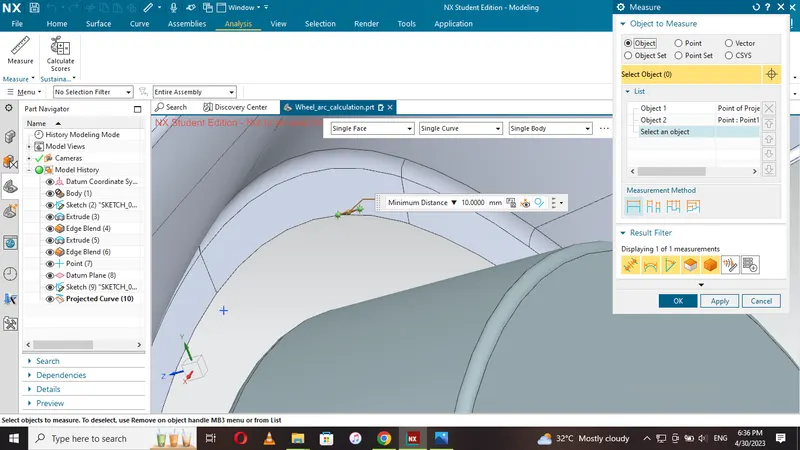

Measured images are attached respectively.

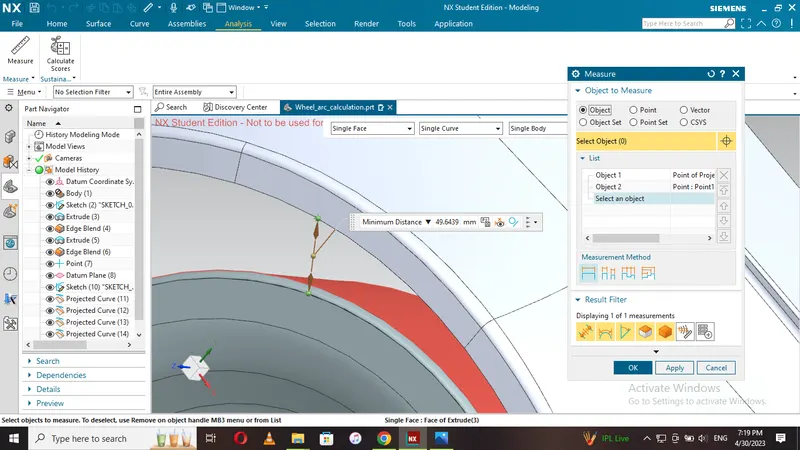

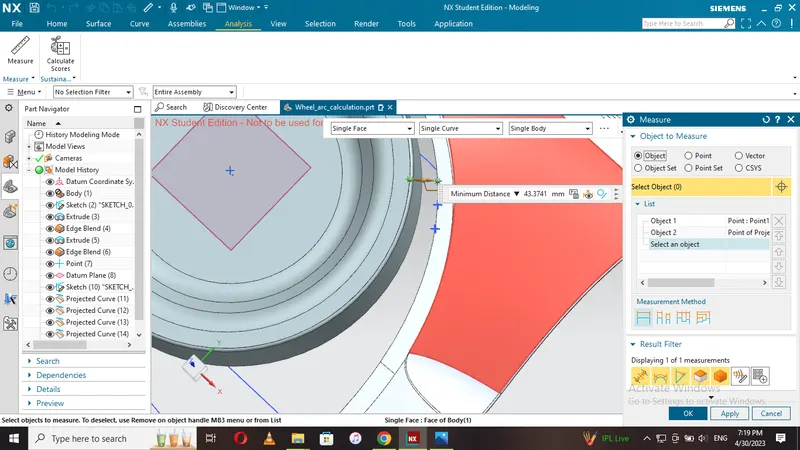

Then value at 30 and 50 degeree are measured upto the circle.

REGION	REQUIRED CELERANCE	ACTUAL CLEARANCE	RESULTS
SA	10	10	PASS
SB	10	-	FAIL
SC	10	0.1226	FAIL
SD	10	2.8	FAIL
SE	10	5.9	FAIL
