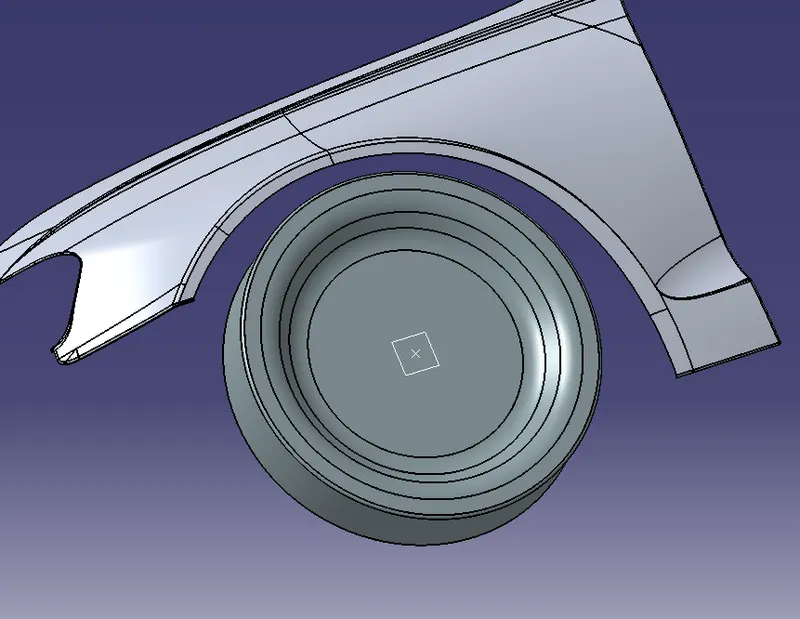

Fender Design - Wheel Arch Challenge

PROCEDURE:

1. MAKE DATUM PALNE ON THE WHEEL SURFACE. CREATE CENTER AXIS.

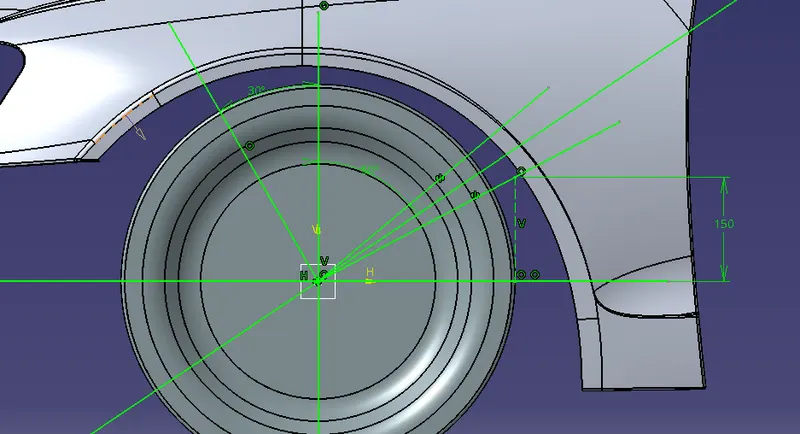

2. DRAW SKETCH IN THIS PLANE.

CREATE SECTION SA BY CREATING VERTICAL LINE AND HORIZONAL LINE IN THE CENTER.

CREATE SECTION SB BY CREATING AN INCLINED LINE WITH AN ANGLE OF 30 IN THE LEFT SIDE WITH THE REFERNCE OF LINE SA.

CREATE SECTION SC BY CREATING AN INCLINED LINE WITH AN ANGLE OF 50 IN THE RIGHT SIDE WITH THE REFERENCE OF LINE SA.

CREATE SECTION SE BY CREATING AN LINCLINED LINE AT DISTANCE OF 150 FROM THE HORIZONTAL LINE.

CREATE SECTION SD BY CREATING AN INCLINED BISECTNG LINE BETWEEN LINE SC AND SE.

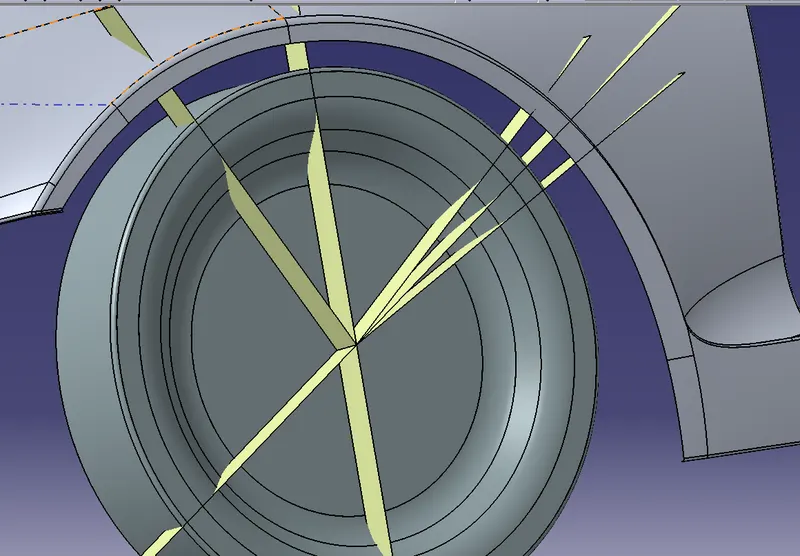

3. EXTRACT THE SKETCH AND EXTRUDE TILL TO THE WHEEL SURFACE.

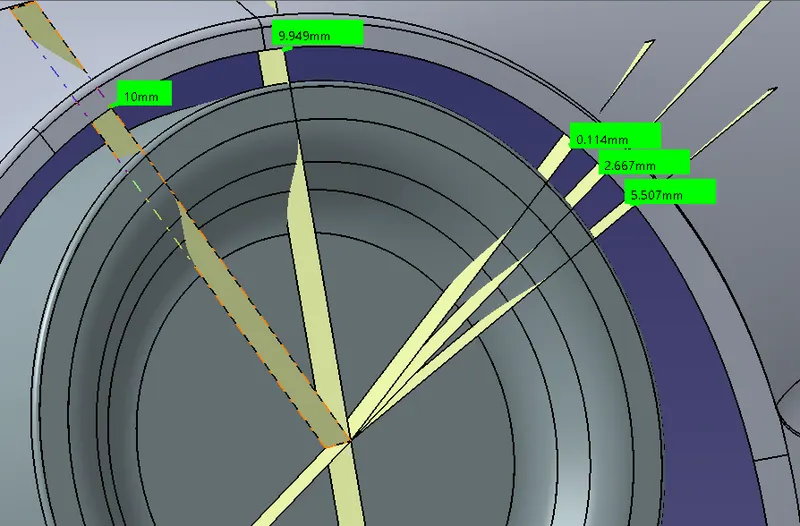

4. NOW MEASURE THE DISTANCE BETWEEN THE FENDER OUTSIDE EDGE AND EXTRUDED SURFACE EDGE.

IF THE DISTANCE IS => 10 THEN SECTION IS SATISFYING THE EUROPEAN STANDARDS.

IF THE DISTANCE IS < 10 THEN SECTION IS NOT SATISFYING THE EUROPEAN STANDARDS.

FINAL ANALYSIS

SECTION BASED ON EURO. STANDARDS.	REQUIRED CLEARANCE	ACTUAL CELARANCE	RESULT
SA	10	9.94	FAIL
SB	10	10	PASS
SC	10	0.114	FAIL
SD	10	2.667	FAIL
SE	10	5.507	FAIL

IN THE CONCLUSION THIS MODEL IS NOT PASSING THE EUROPEAN STANDARDS.
