FENDER DESIGN

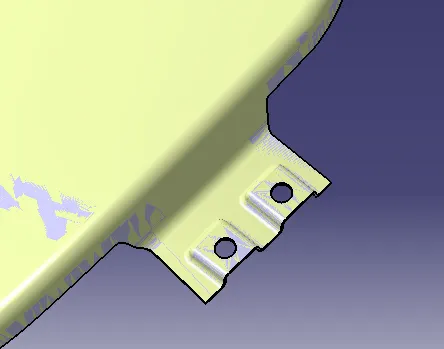

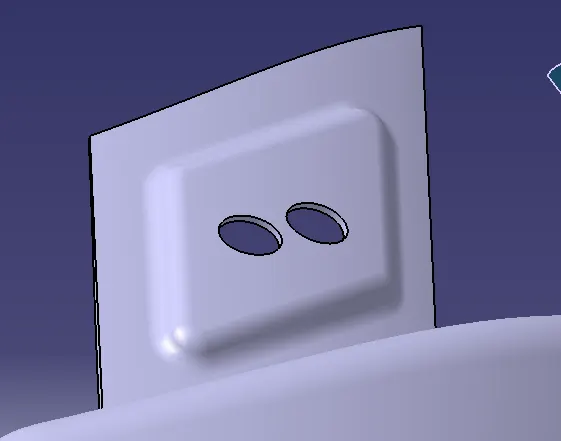

1. DRIP AREA

The height of drip area mounting should be less than 40mm so that it reduces the springback effect during n
The edge of the mounting part should be atleast 10mm away from the nearby components in the engine.
It should be distanced atleast 150mm from the front side ande 200m from the rear side .
Ribs should be provided in order to increase the strength of the mounting part.
Bead is provided at the outeredge to increase the rigidity of part

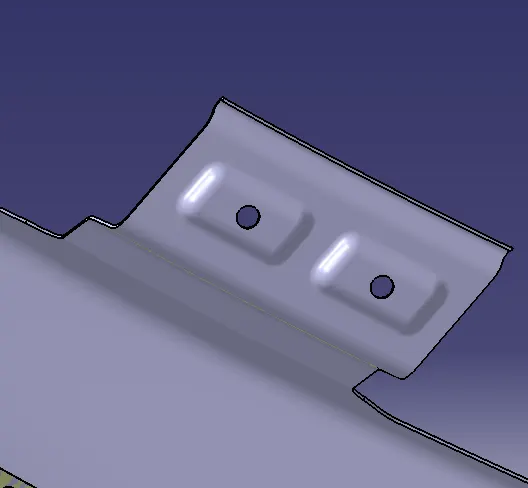

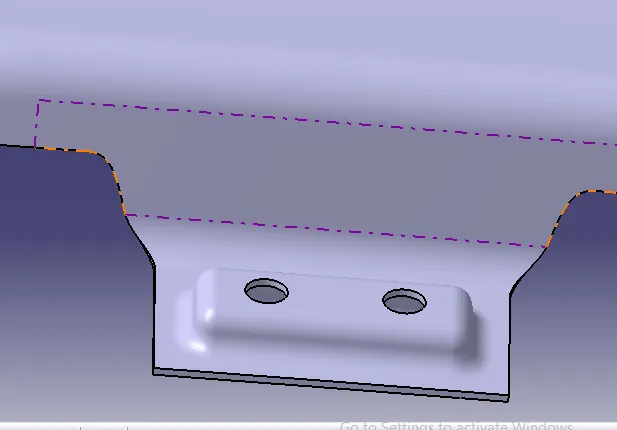

2. BUMPER MOUTINGS.

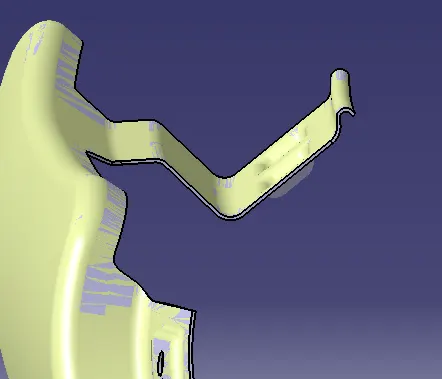

3. SILL MOUNT

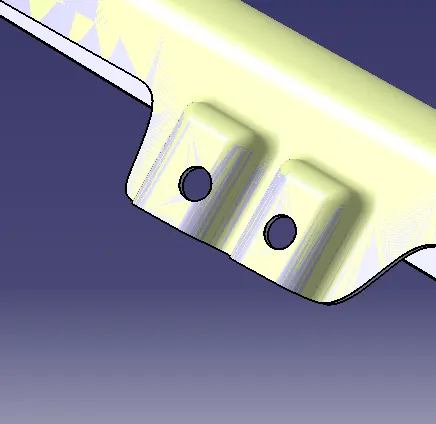

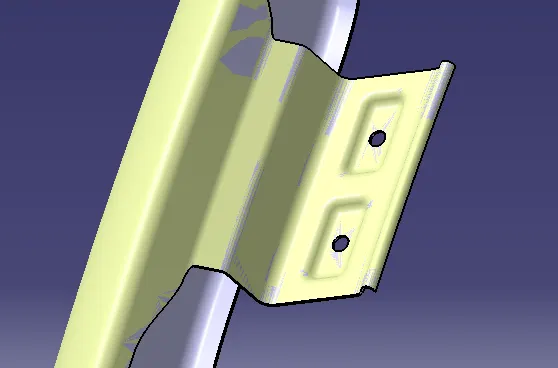

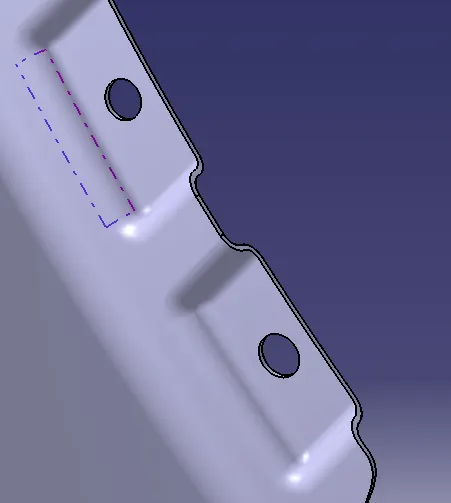

4. BODY ATTACHING AREA

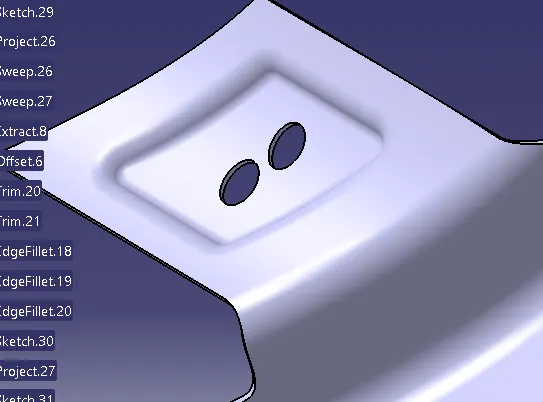

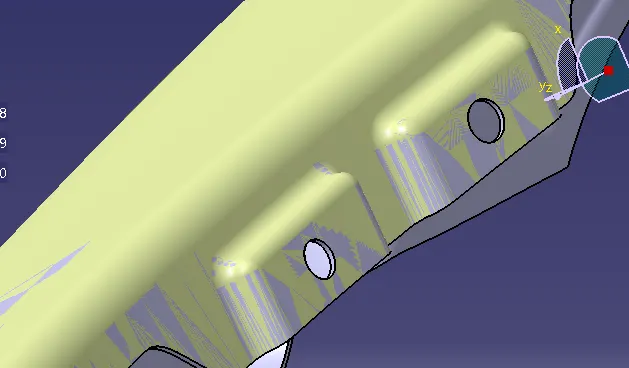

FOR MAKING ALL THESE PARTS MAKE SUITABLE POINTS ON THE BOUNDARY OF THE FENDER. THEN SPLIT IT THEN MAKE SWEEP OF THEM. THE MAKE EMBOSSED BY OFFSETTING AND TRIMING OPERATION. AND JUST GIVE PROPER FILLETS.
