DOOR TRIM LOWER WITH ENGINEERING FEATURES

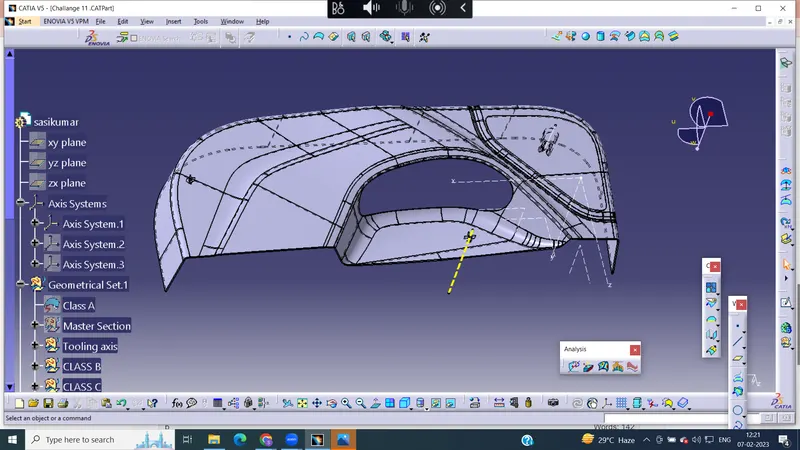

TOOLING AXIS

It is defined as the direction in which the mould/core and cavity open. Selection of the direction of the tooling axis depends on the ease at which components can be easily ejected.

CLASS A SURFACE

Class A surface is the visible region which we can touch ,see,and feel by touching it.It gives us the final outfit of the component which is the final visibility of the component.

CLASS B SURAFACE

A Grade B finish is a high quality finish with minimal imperfections. Class B finish is the most common finish for exterior surfaces. It is usually marked on highly visible surfaces such as exterior covers, panels, and parts.

CLASS C SURFACE

Class C surface is the surface which is not visible. This part is present in the inner of the body which contains several interior parts in it.

VIEWS

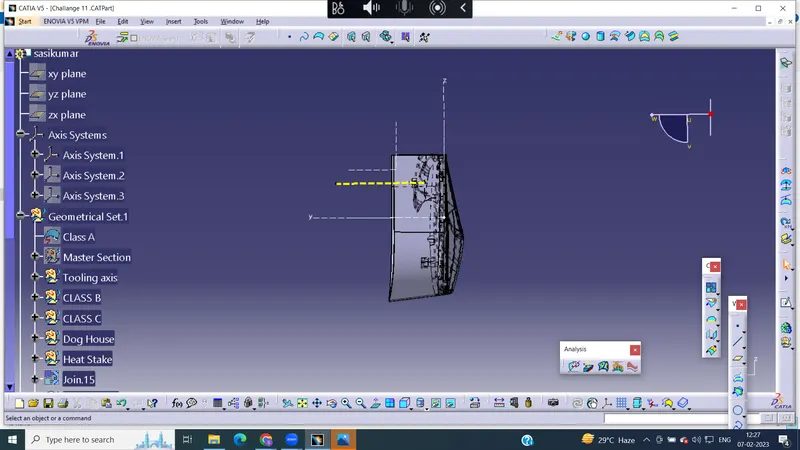

ISOMETRIC VIEW

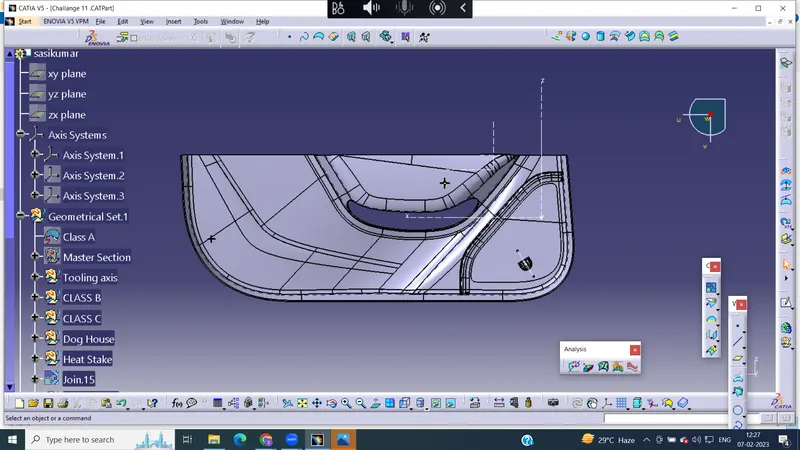

FRONT VIEW

SIDE VIEW

TOP VIEW
