Design of Shallow Foundation (Isolated Footings)

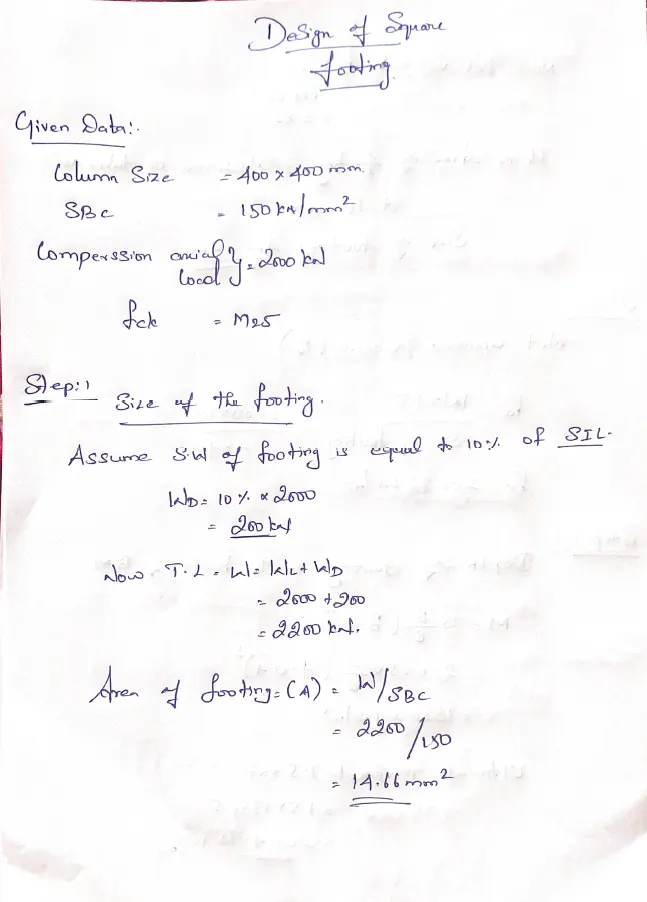

Aim:- To design the square footing using the given details.

introduction:-

Isolated footings are those that are given independently under each column.
Typically, their sections are square, rectangular, or round.

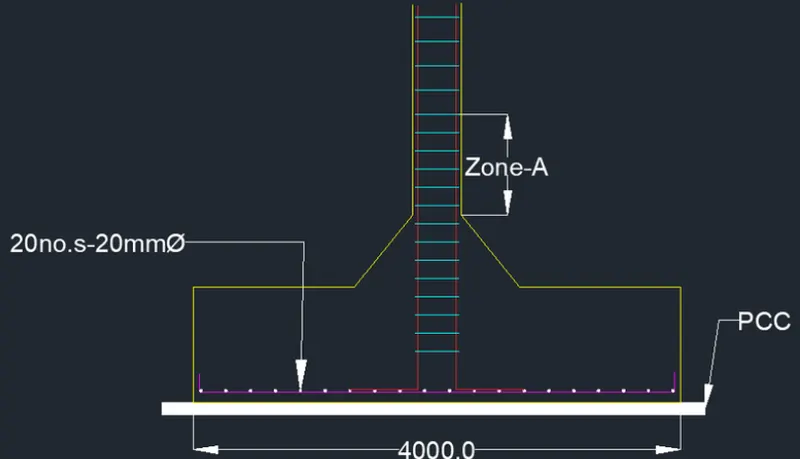

PCC is set on foot. Termite control liquid is sprayed on the top face of PCC prior to PCC installation in order to prevent termites from damaging the footing.
Where the soil bearing capacity is typically high, isolated footings are offered. They consist of a thick slab that might be flat, stepped, or inclined.
When compared to other types of footings, this type is the most cost-effective.
