Design of Shallow Foundation (Isolated Footings)

Aim:-

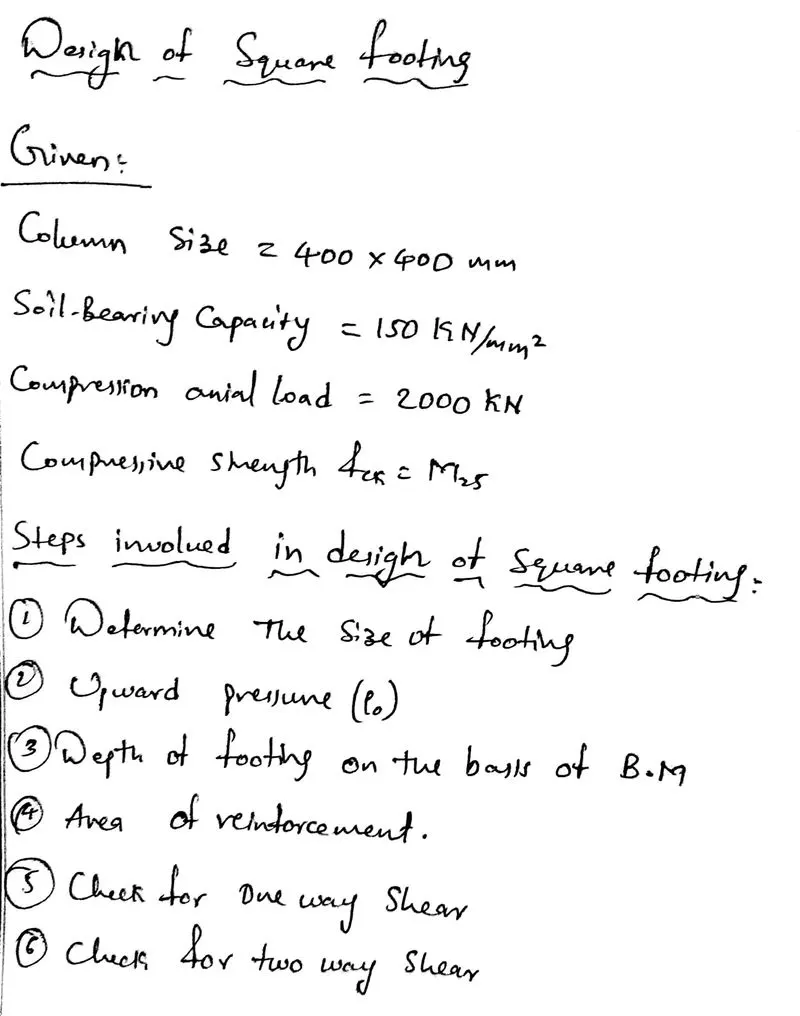

To design the square footing using the given details.

Introduction:-

• Footings which are provided under each column independently are called as Isolated footings.
• They are usually square, rectangular or circular in section.

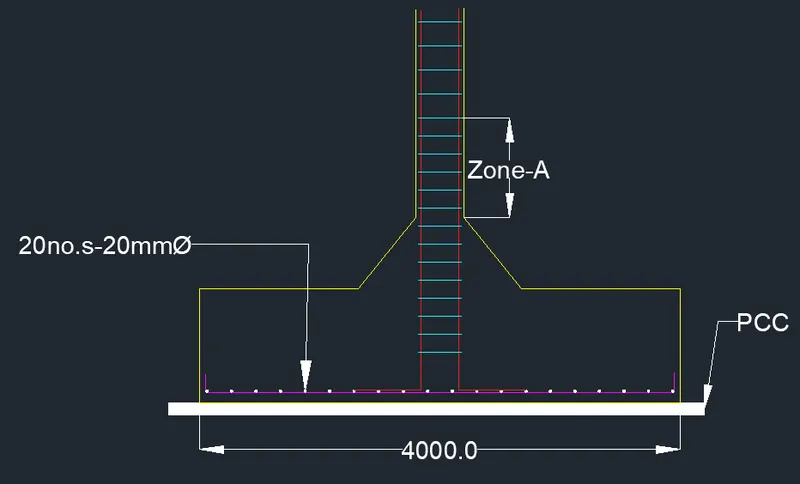

• Footing is laid on PCC. Before laying PCC, termite control liquid is sprayed on top face of PCC to restrict the termites to damage the footing.
• Isolated footings are provided where the soil bearing capacity is generally high and it comprises of a thick slab which may be flat or stepped or sloped.
• This type of footings are most economical when compared with the other kind of footings.

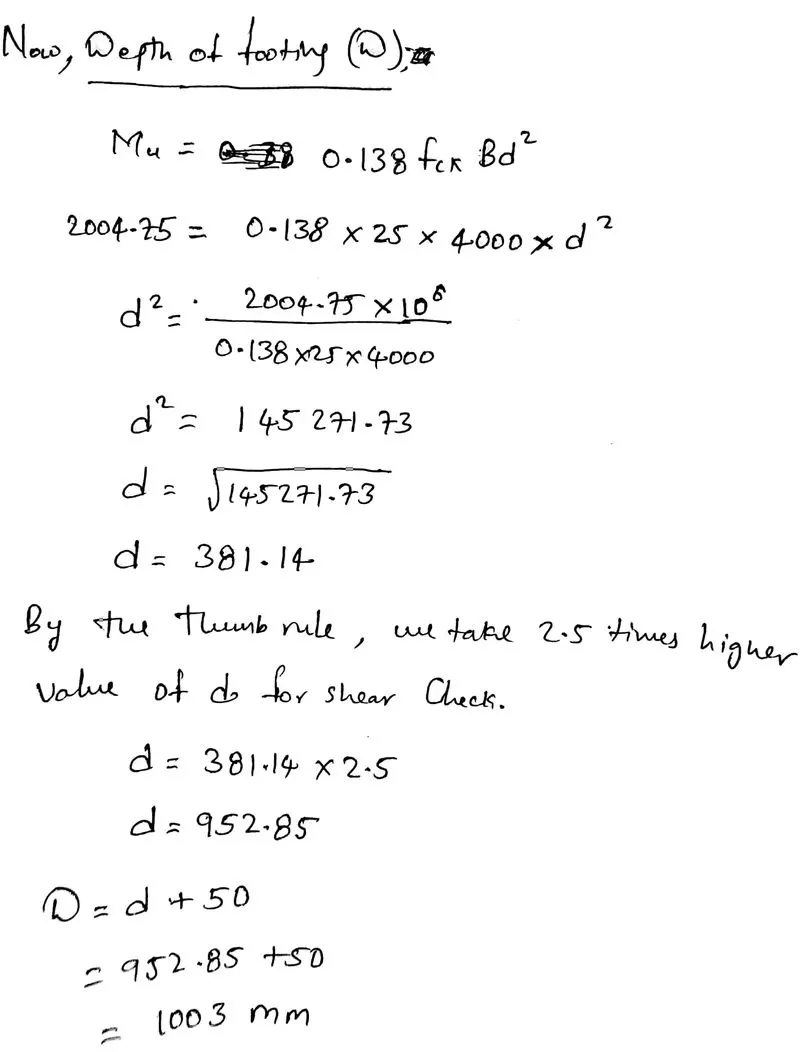

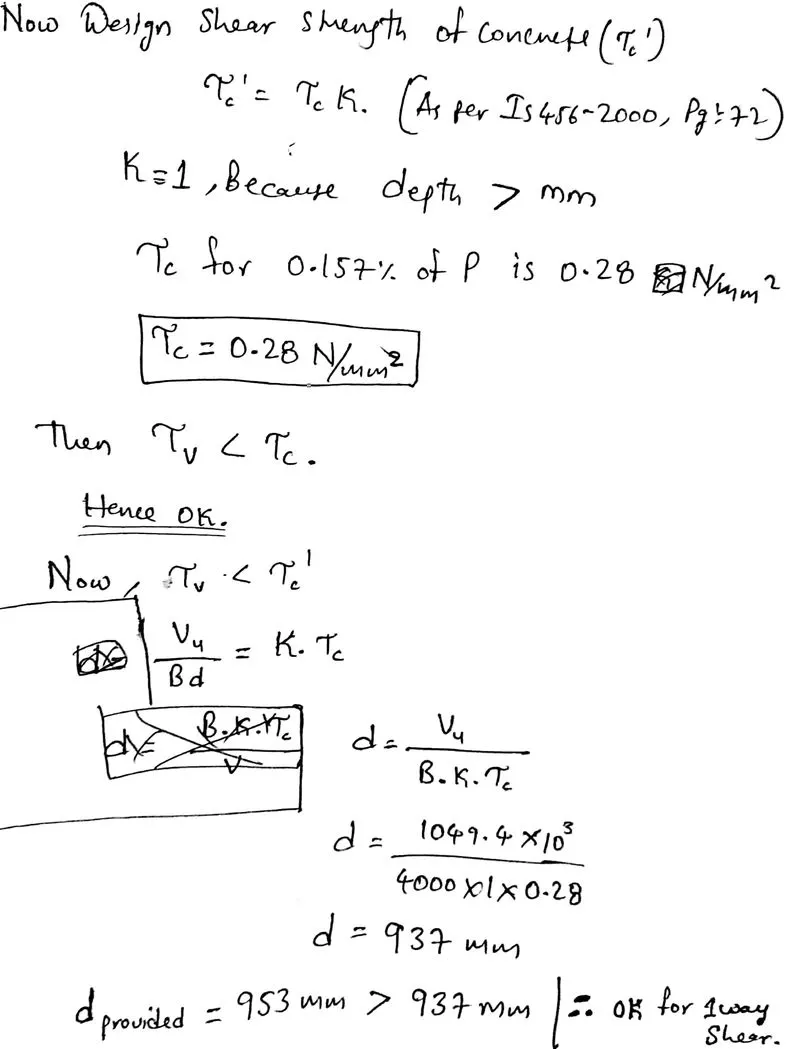

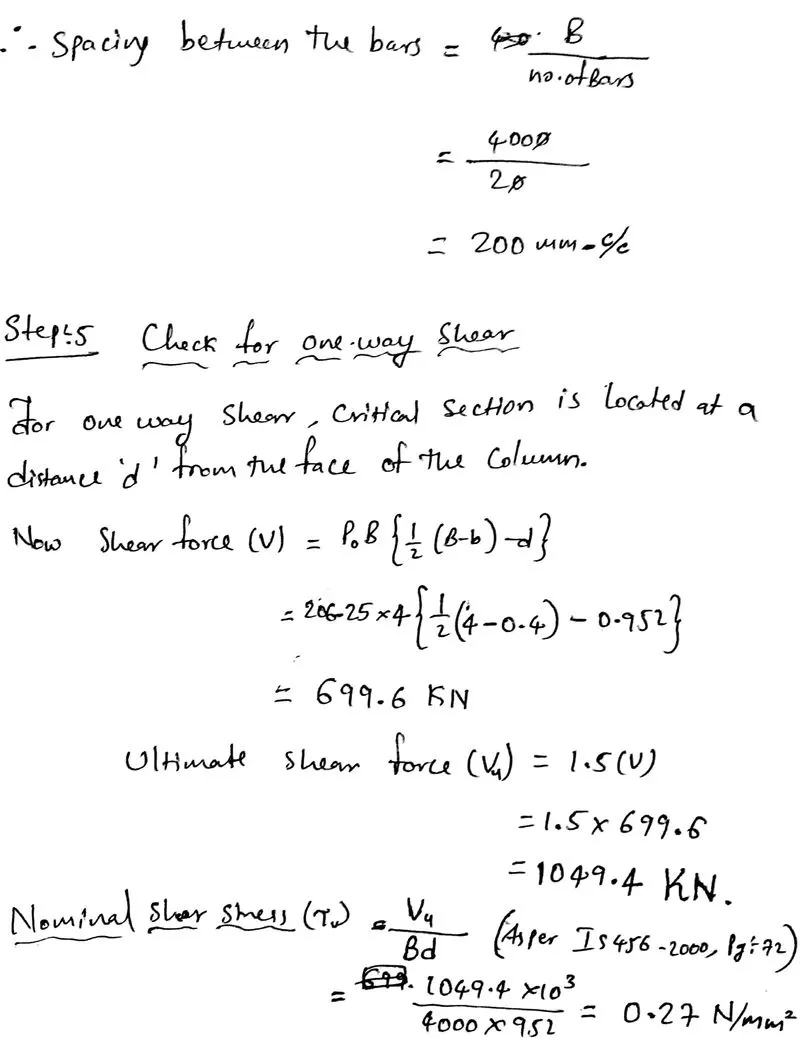

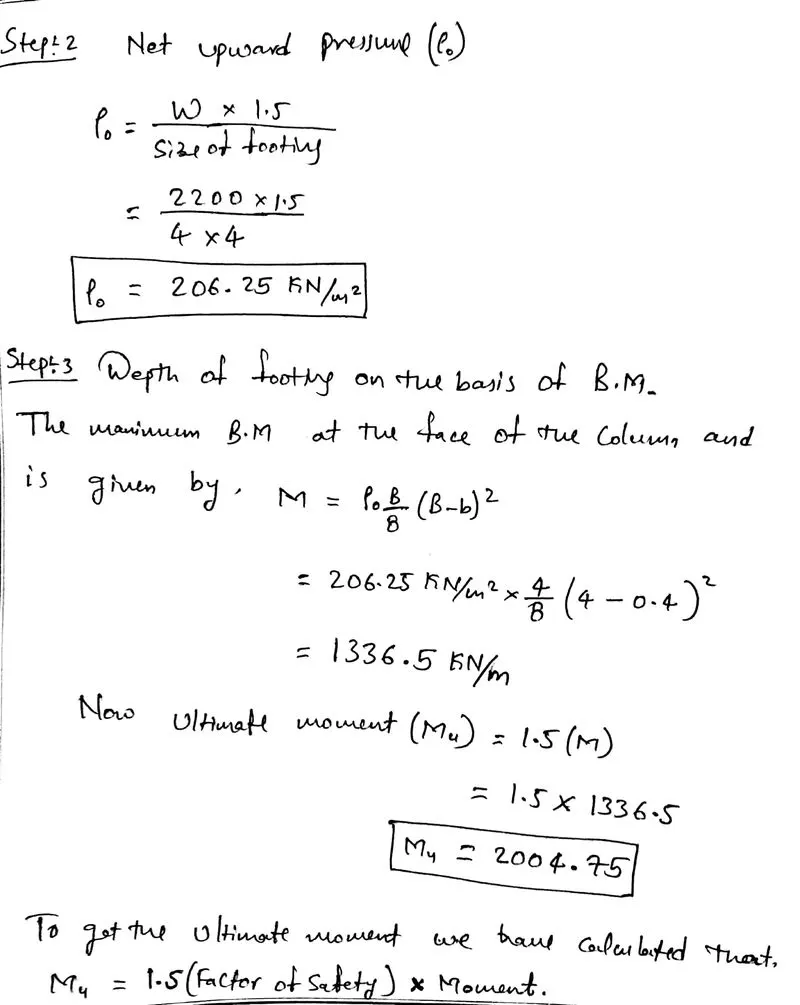

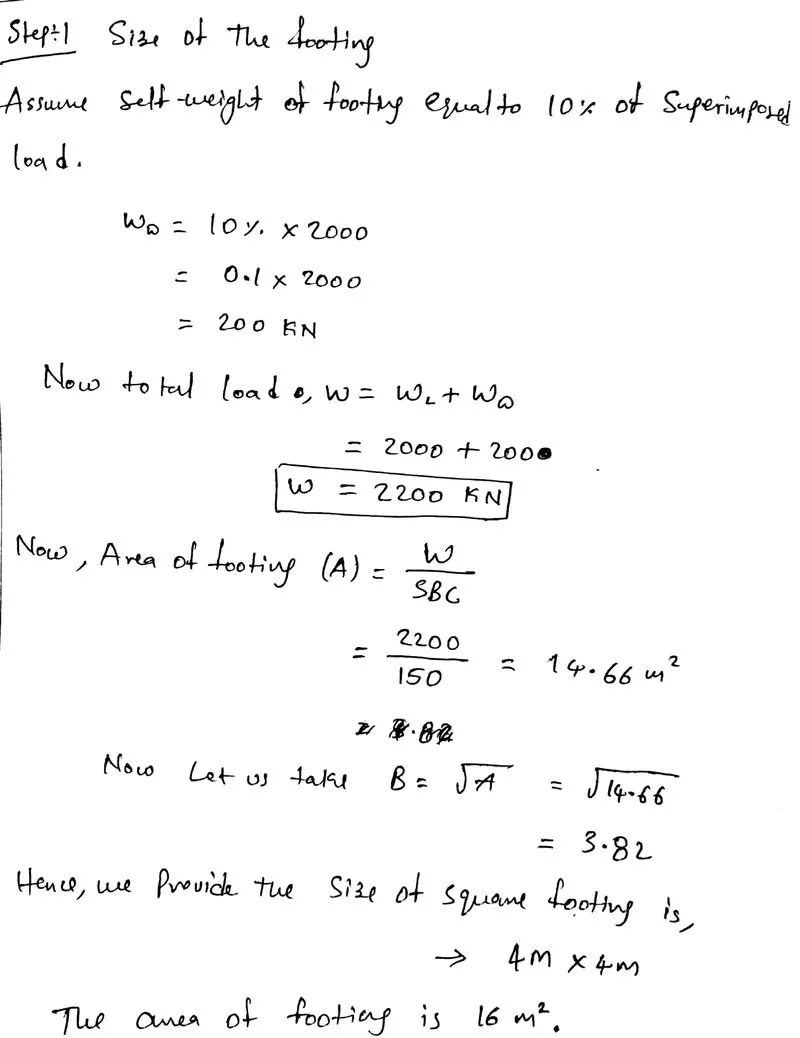

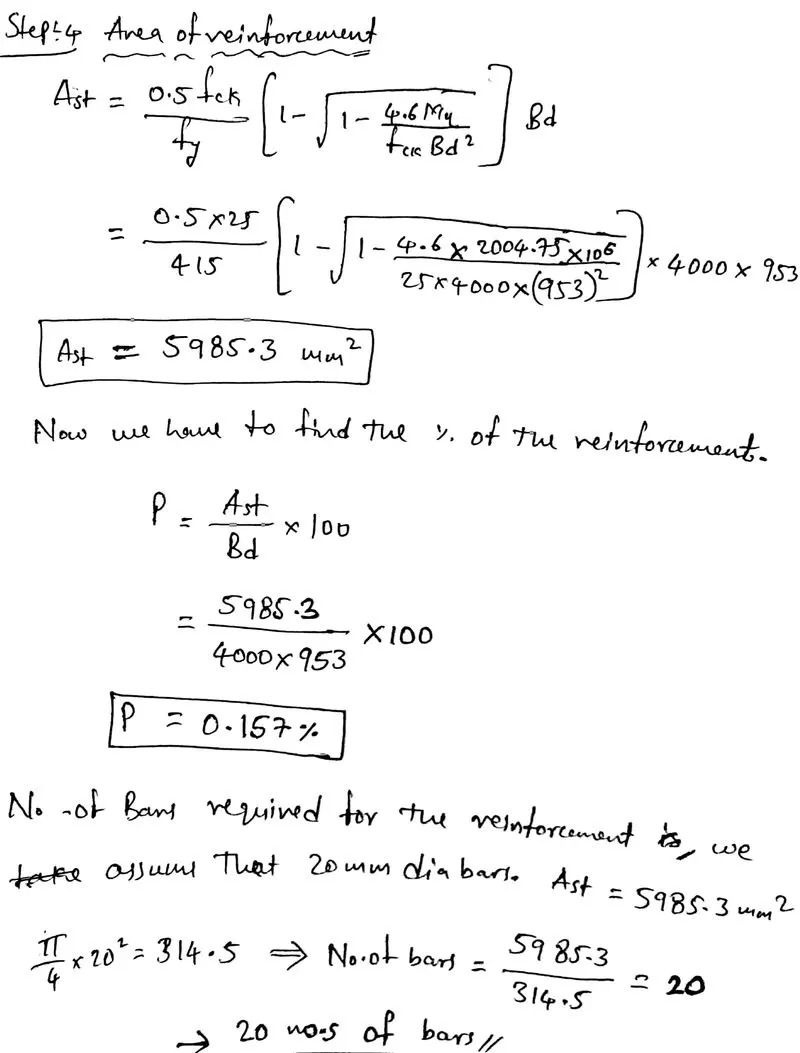

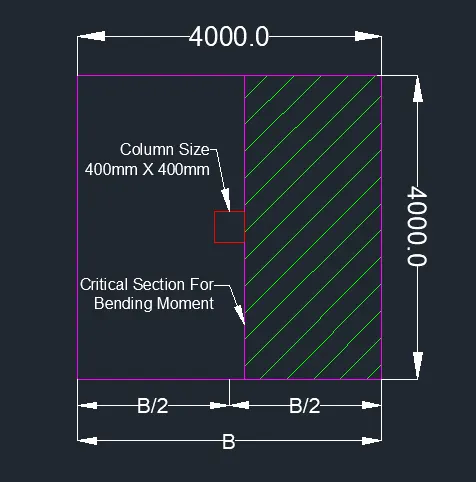

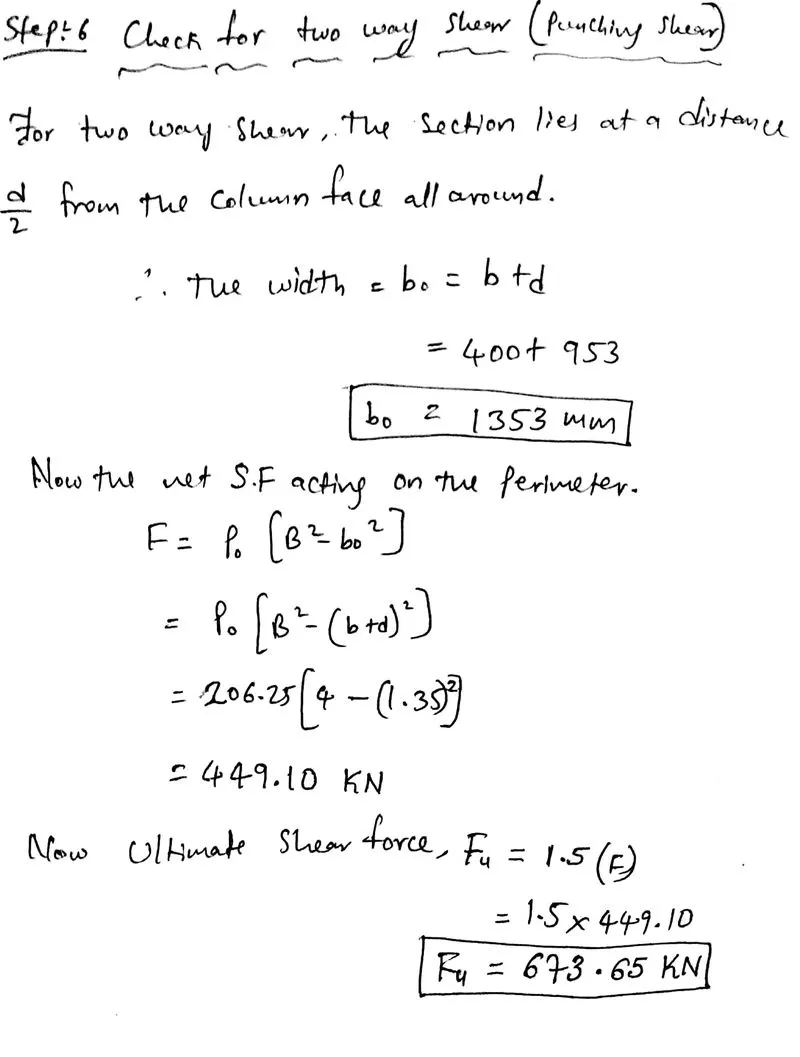

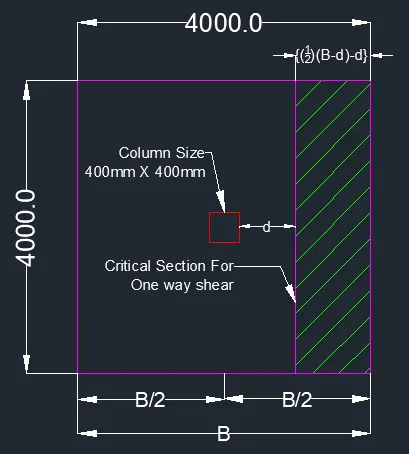

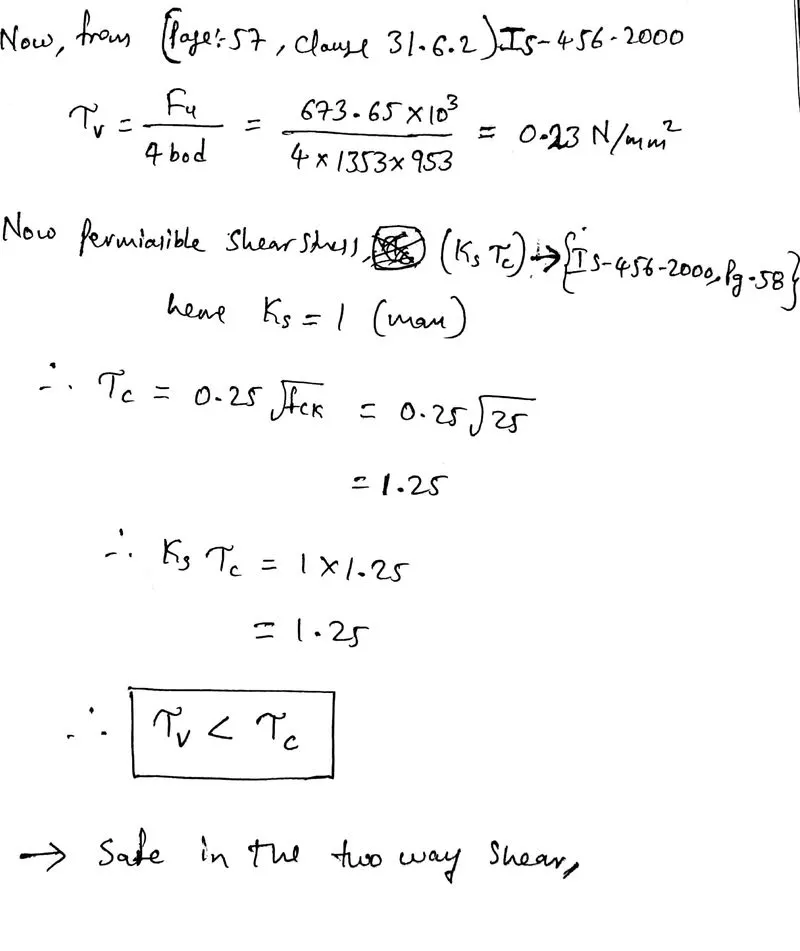

Procedure:-

RESULT:-

• Using the given details the square footing has been designed successfully.
