        An automobile back door or Tailgate is the panel that covers the boot (or trunk) of an automobile.

        It enables access to the main luggage compartment. A hinge allows the boot lid to be raised, while devices such as springs or gas cylinders hold it up in the open position The Backdoor is an assembly of many parts such as inner panel, outer panel upper, outer panel lower and Reinforcement. Inner panel is attached to the outer panel using mastic sealant.

PARTS IN BACKDOOR

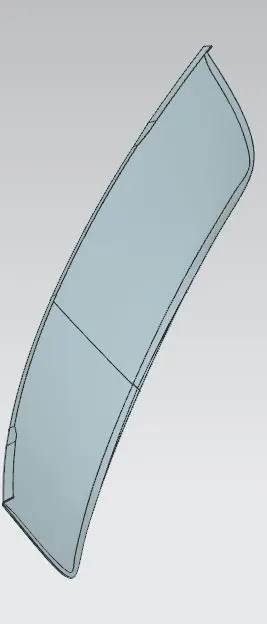

• Back door outer panel (upper)
• Back door outer panel (lower)
• Back door inner panel

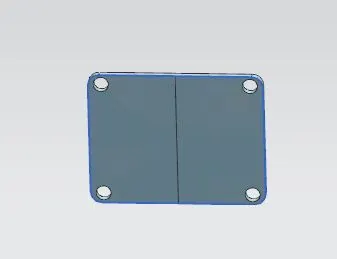

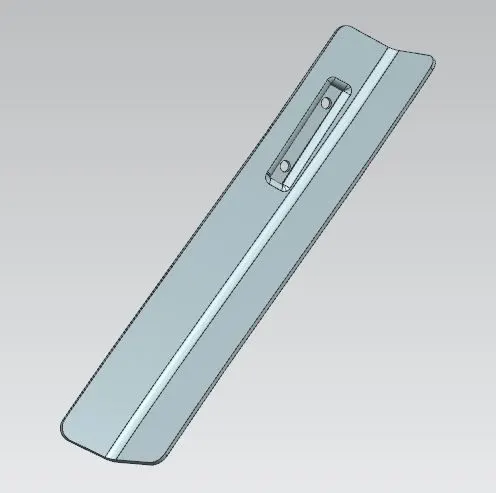

• Hinge reinforcements
• Gas stay reinforcements
• Latch and striker reinforcements
• Wiper motor reinforcements

• Back door outer panel (upper)





• Back door outer panel (lower)





• Back door inner panel





• Hinge reinforcements





• Gas stay reinforcements





• Latch and striker reinforcements





• Wiper motor reinforcements

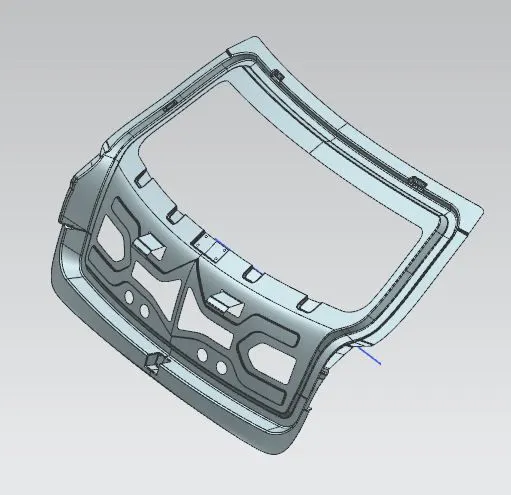

ASSEMBLY OF BACKDOOR
