Design of backdoor

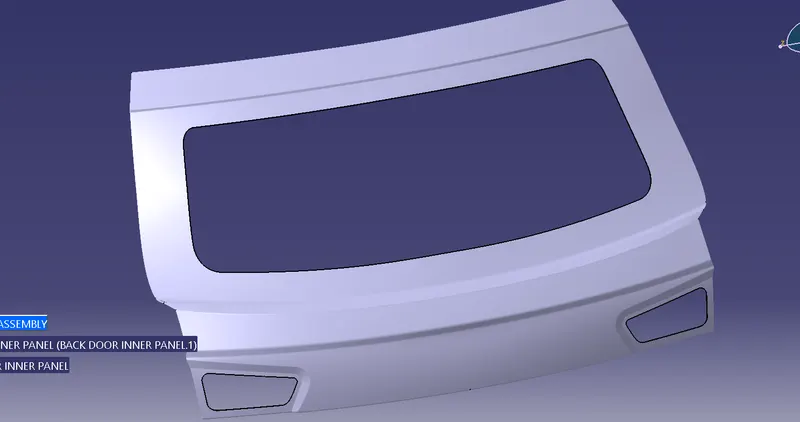

BACK DOOR

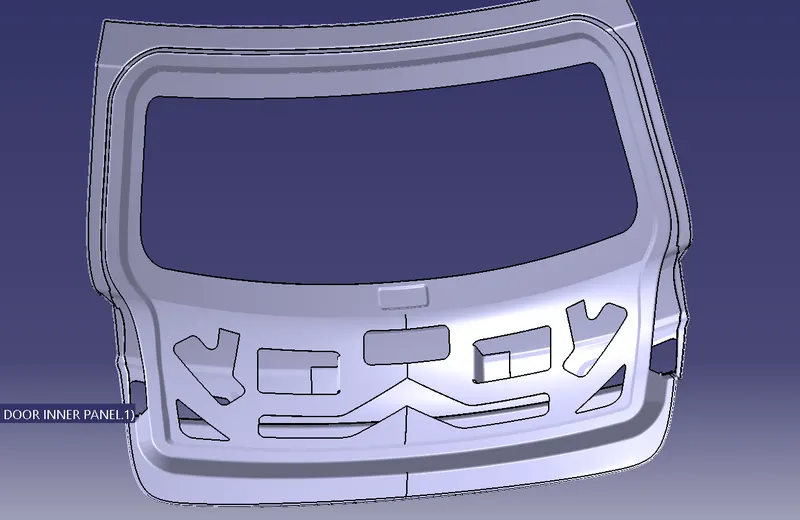

INNER PANEL

JUST OFFSET TYHE 1.7 MM DOWNWARDS THEN EXTRACT THE UPPER SURFACE AND OFFSET THAT SURAFCES AT SUITABLE DISTANCE.

MAKES PARALLEL LINES OR CURVES ON IT AND SPLIT IT.

EXTRACT THE LIGHT HOLE SURFACE UNTRIM IT. MAKE PARALLEL CURVES ON IT AND SPLIT THEM JOIN IT. SWEEP AT SUITBALE ANGLE AND DISTANCE.

TRIM WITH THE OFFSETED SURFACE AND GIVE SUITABLE FILLET. NOW EXTRCT THE WINDOW SURFACE.

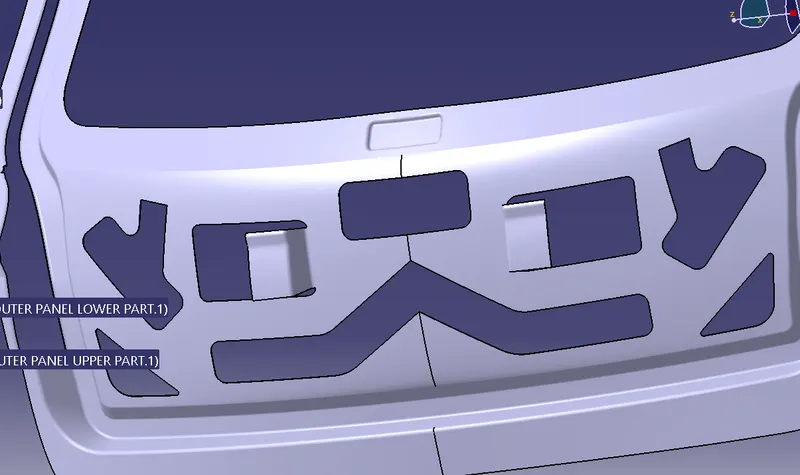

JOINT IT WITH THE OTHER SIDE SWEEP. MAKE SURFACES USING CURVES. MAKE EMBOSSES ON SURFACE WITH SKETCH.

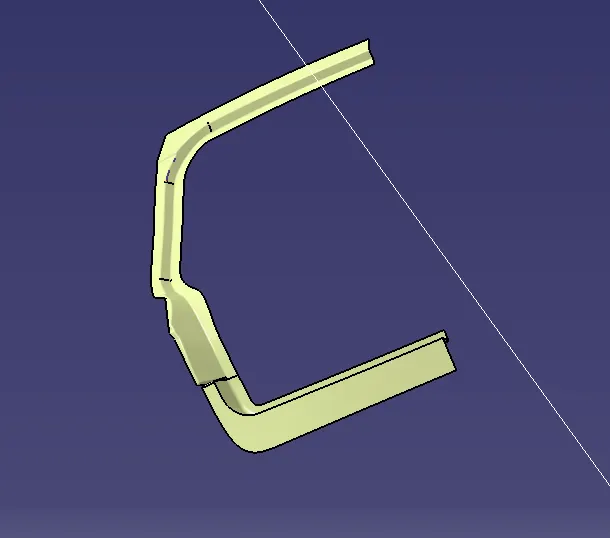

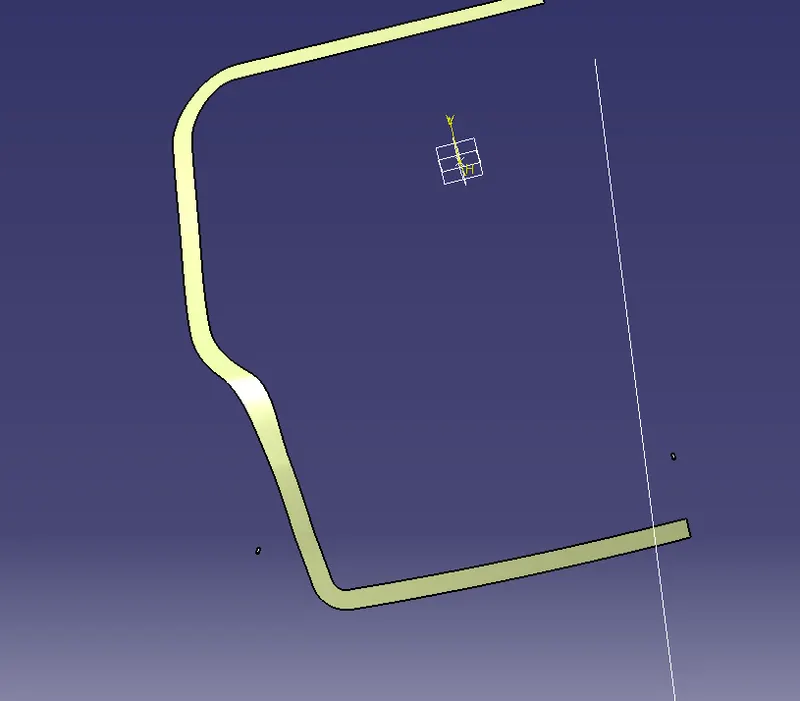

NOW MAKE ONE RECTAGULAR CUTTED PART AND ONE SIDE SWEEP IT AND AND OFFSET IT WITH THE OUTER PANEL.

NOW MIRROR IT AND JOIN AND THICKEN IT.

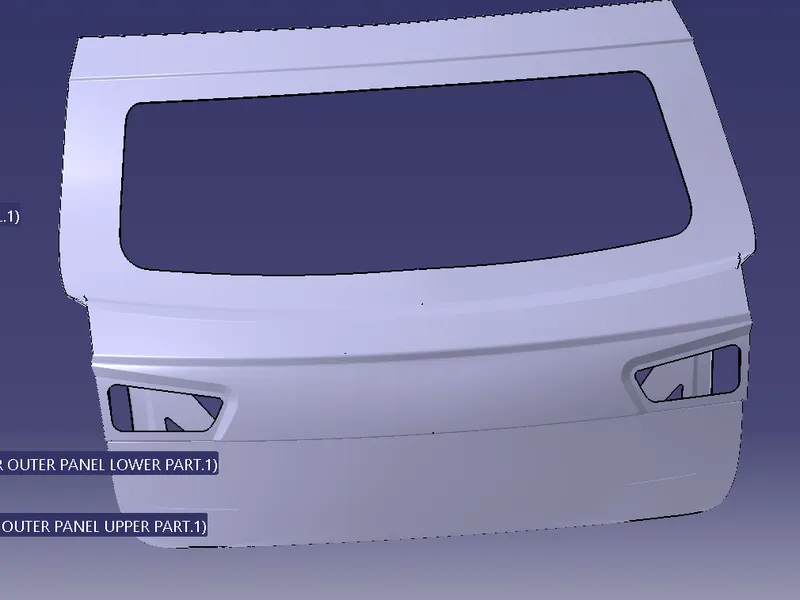

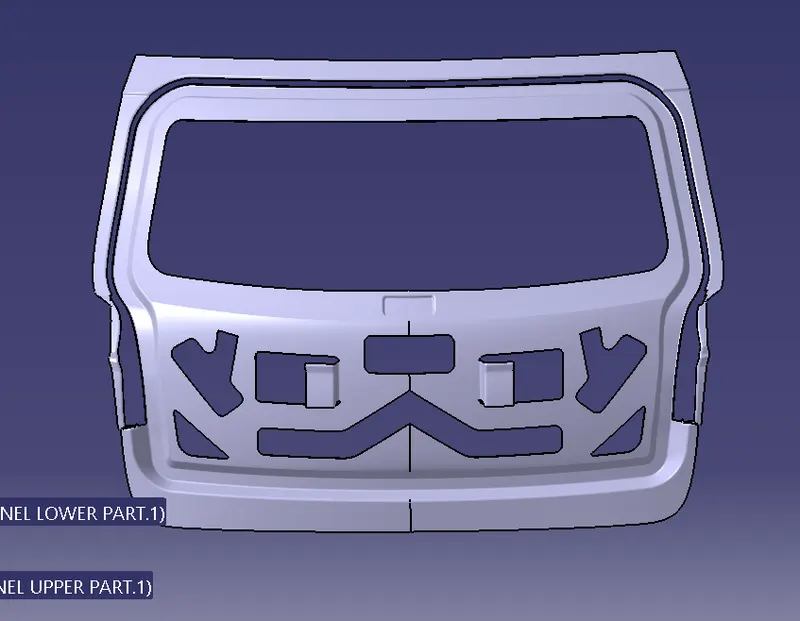

OUTER PANEL UPPER PART

JUST OFFSET TYHE 1.7 MM DOWNWARDS THEN EXTRACT THE UPPER SURFACE AND OFFSET THAT SURAFCES AT SUITABLE DISTANCE.

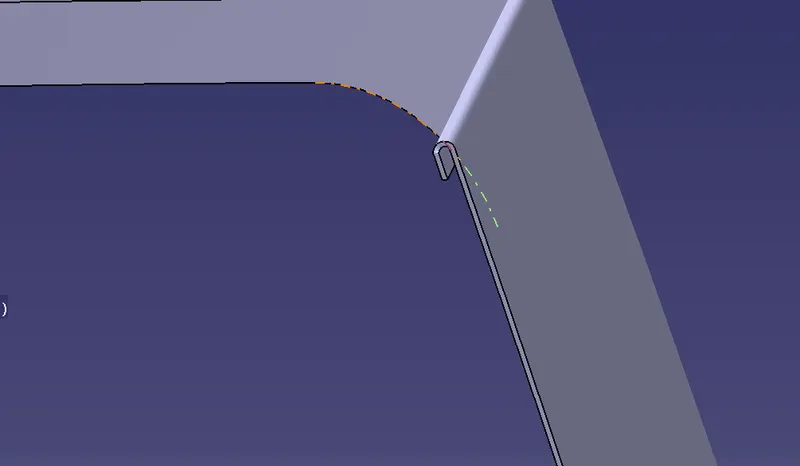

FOR HEMMING FLANGE ON THE OUTER PANEL TAKE OUT THE OUTER BOUNDARY EXTRAPOLTAE IT. NOW OFFSET THAT SRFACE AT SUTIBALE DISATANCE.

TRIM IT.

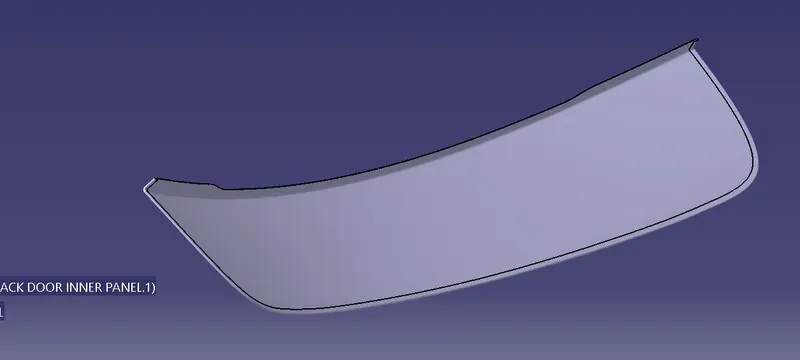

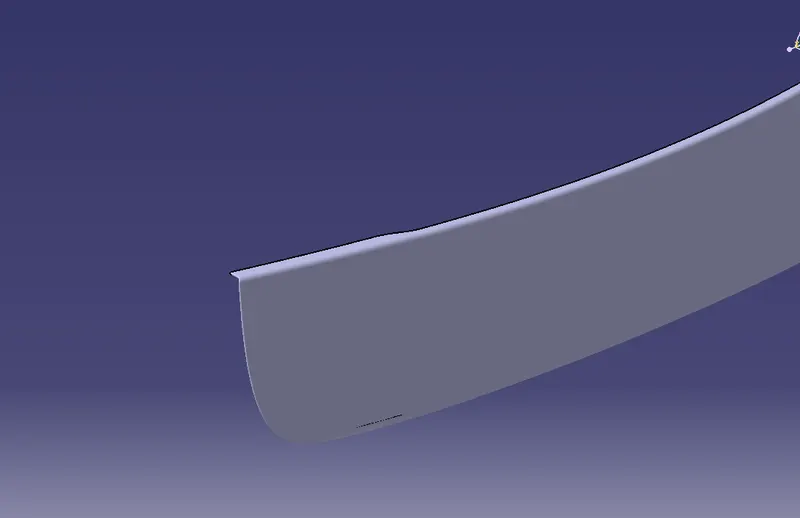

OUTER PANLE LOWER PART

JUST OFFSET TYHE 1.7 MM DOWNWARDS THEN EXTRACT THE LOWER SURFACE AND OFFSET THAT SURAFCES AT SUITABLE DISTANCE.

MAKES PARALLEL LINES OR CURVES ON IT AND SPLIT IT.

FOR HEMMING FLANGE ON THE LOWER. PANEL TAKE OUT THE OUTER BOUNDARY EXTRAPOLTAE IT. NOW OFFSET THAT SRFACE AT SUTIBALE DISATANCE.

TRIM IT. MIRROR IT JOIN IT AND THICKEN AT 0.75 MM.
