Design of American Chopper (Harley Davidson) using Solidworks.

Designed, assembled & photo realistically rendered Harley Davidson-American Chopper motorbike using Solidworks.

- Designed & assembled all the components of bike such as Transmission belt, Kickstand, Front & Rear Fender, Oil tank, Chain, Pedal, Front & Rear Wheel, Front Fork, Chassis, Engine and Gas tank using Solidworks 2019.

- The Chopper is designed using following solid & surface modelling commands such as Sketch, Offset, Extrude, Fillet, Loft, Dome, Extrude Boss, Extrude Cut, Split, Offset Entities, Trim Entities, Revolve, Revolve Extrude, Combine, Shell, Curve Driven Pattern, Linear Pattern, Chamfer, Cut revolve, Mirror, Projected Curve, Sweep, Convert Entities, Sweep Bose, Surface Sweep, Surface Loft, Surface Trim, Boundry Surface, Surface Knit and Sweep Cut.

- Parametrically designed and perfectly mated all the parts in modelling and assembly module respectively using solidworks.

- Did custom modifications in design of Rim of wheels, Front Fendor, Rear Fendor, Gas Tank and Oil tank to provide innovative look.

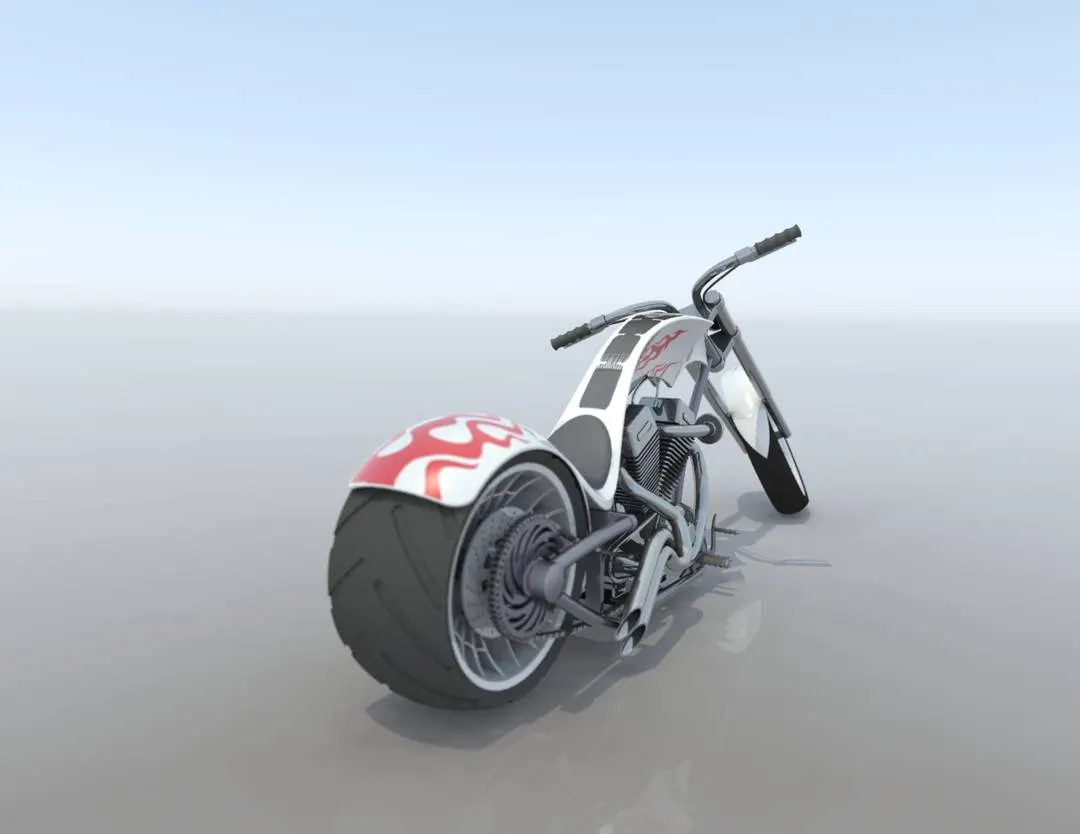

- Final assembly was rendered using Solidworks Visualize and Photo view-360 to create realistic image of Bike.

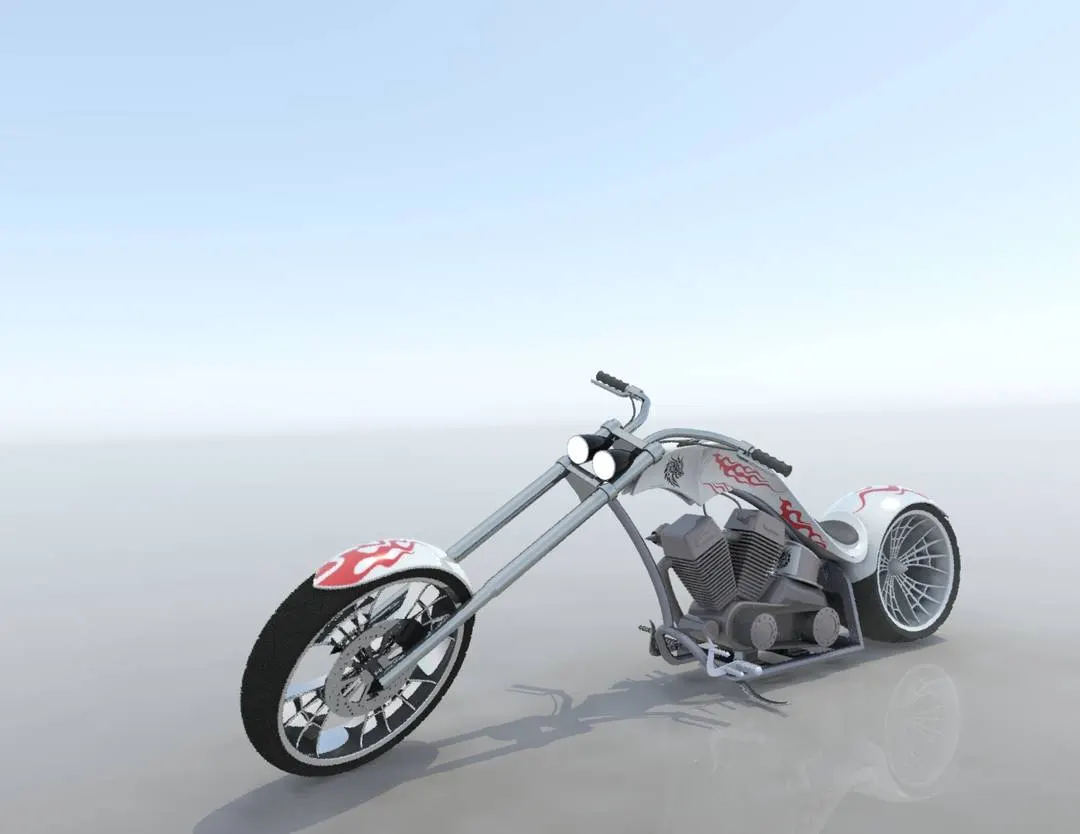

1. AMERICAN CHOPPER

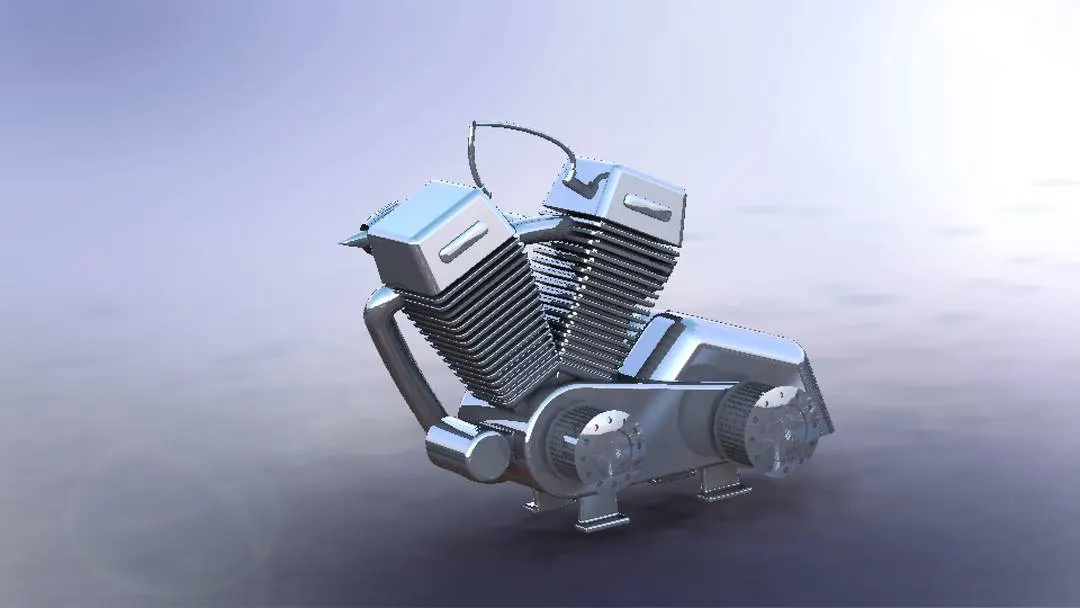

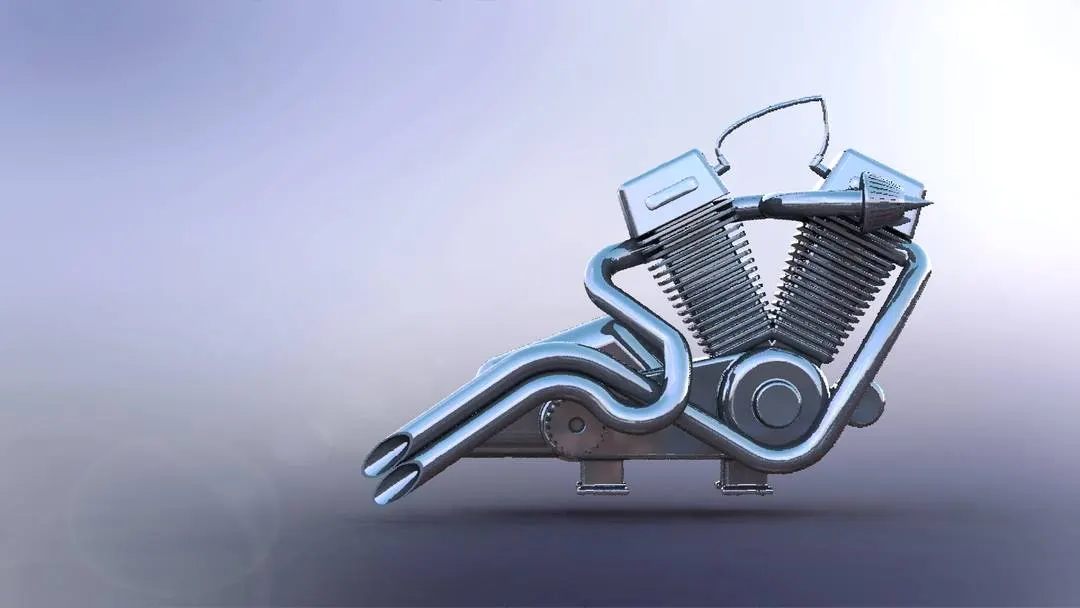

2. ENGINE

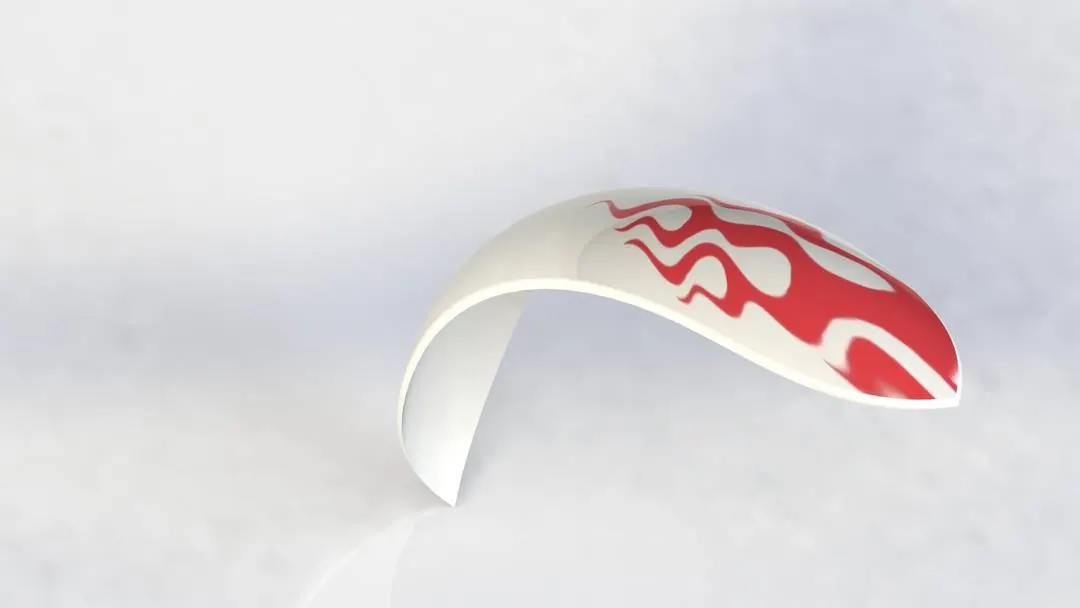

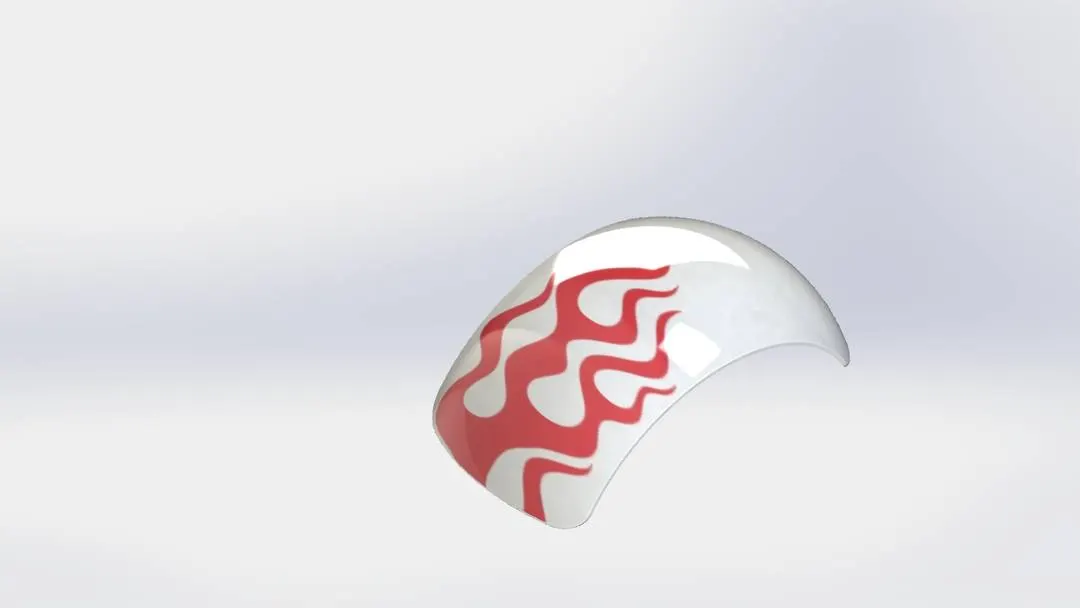

3. FRONT FENDOR

4. REAR FENDOR

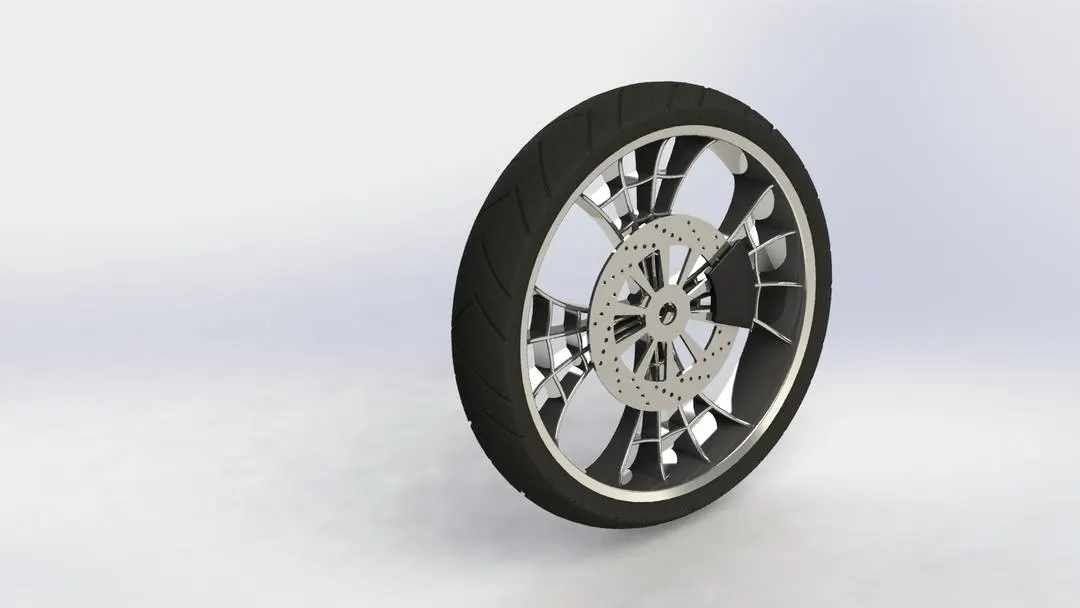

5. FRONT WHEEL

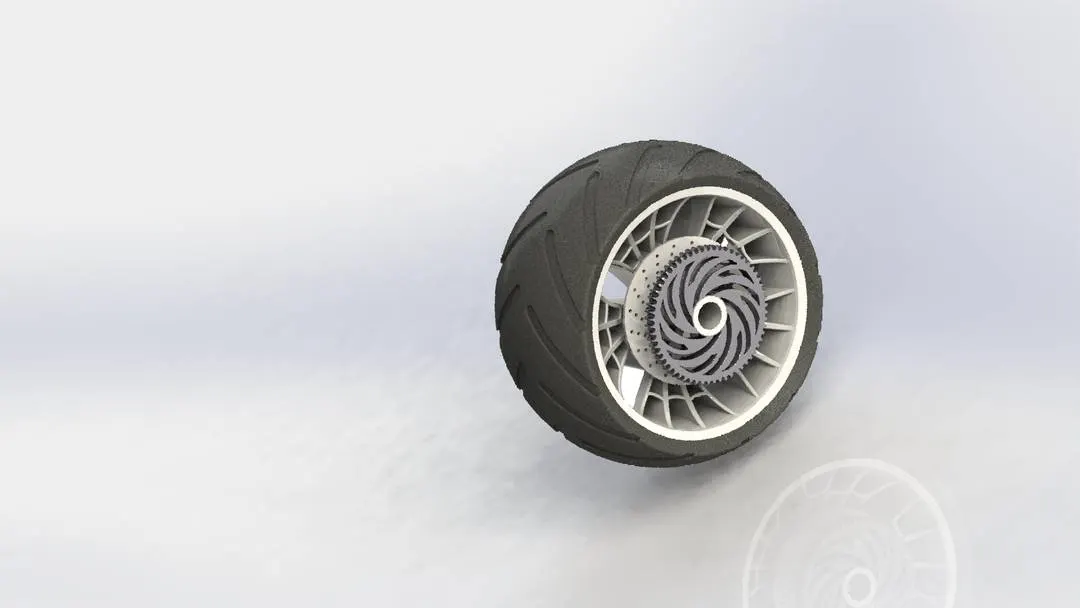

6. REAR WHEEL

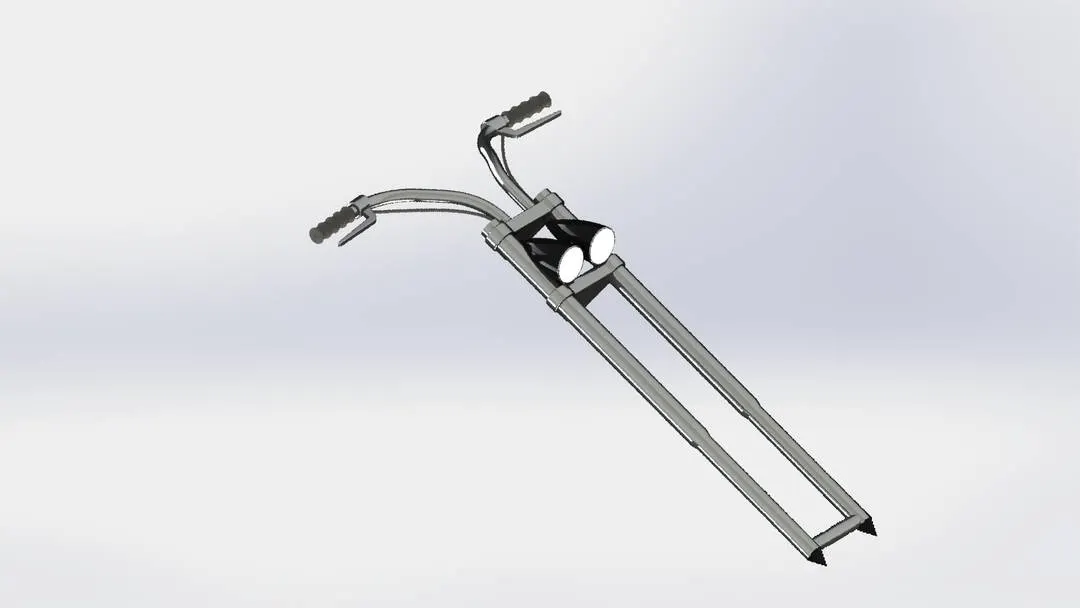

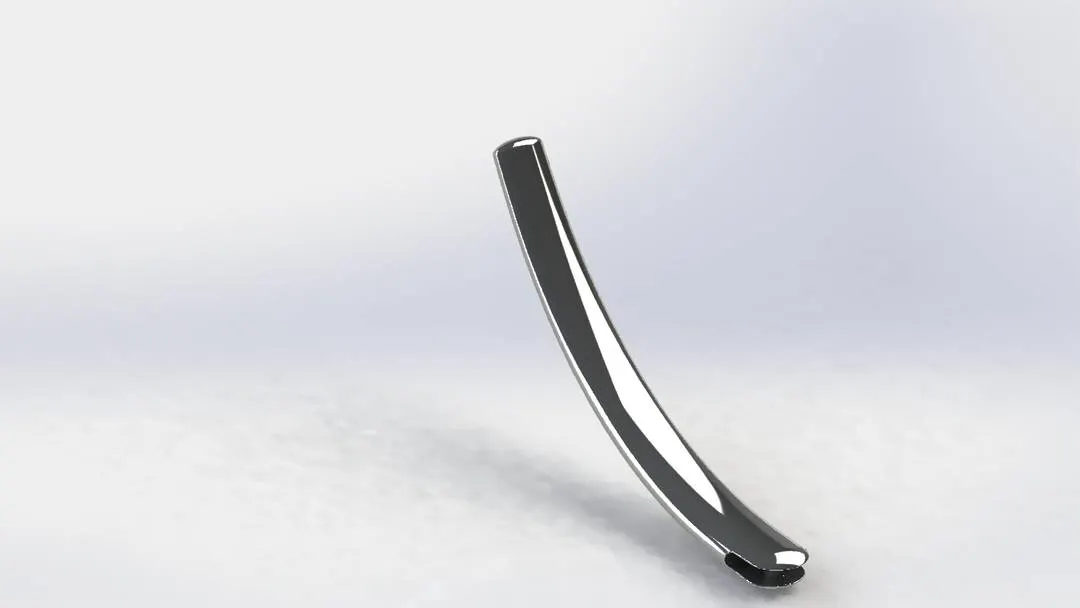

7. FRONT FORK

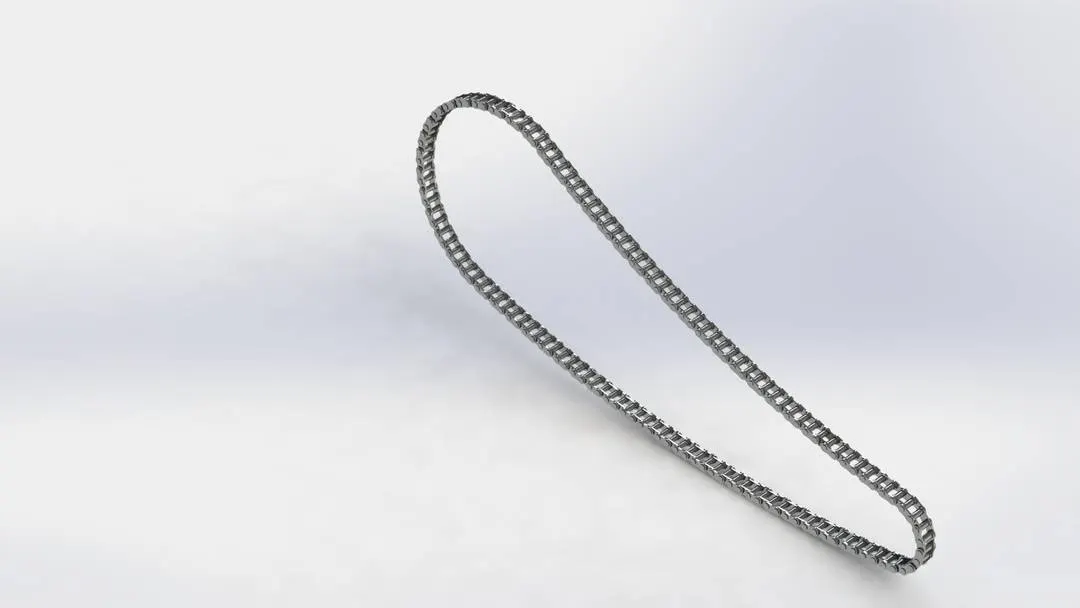

8. CHAIN

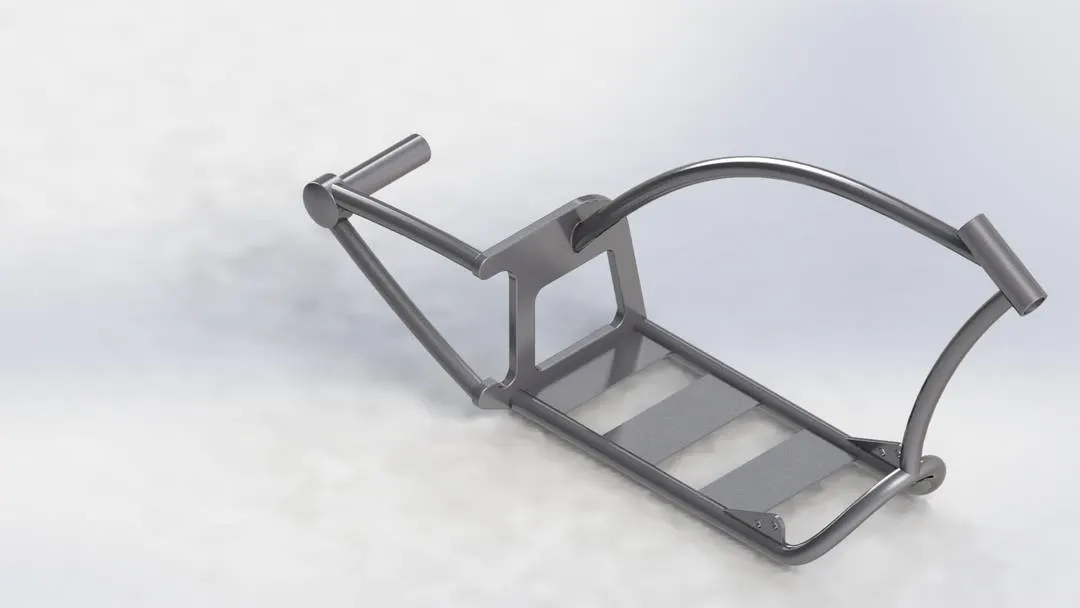

9. CHASIS

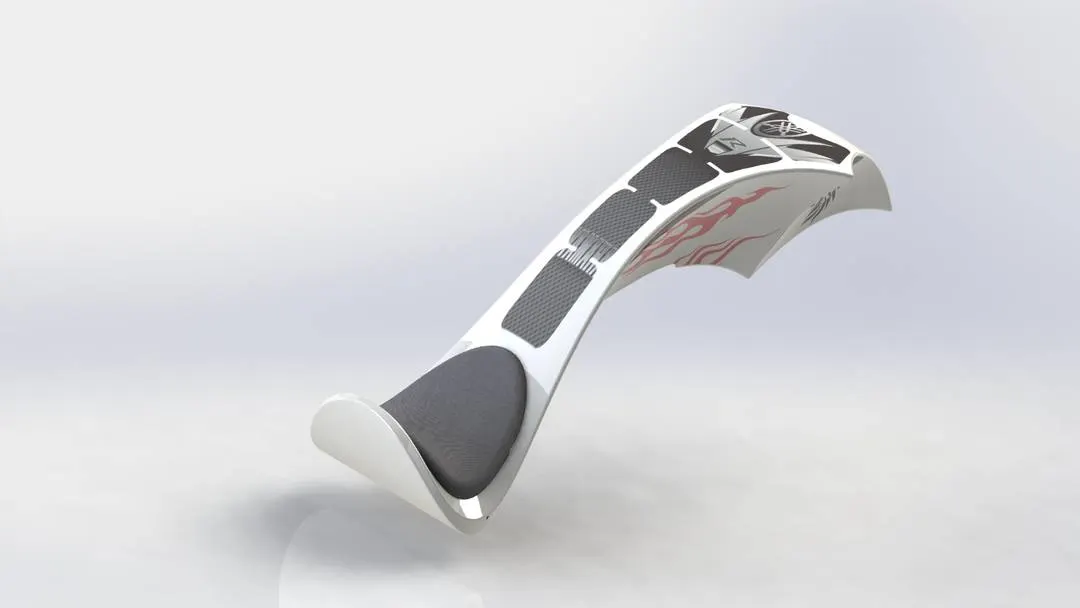

10. GAS TANK

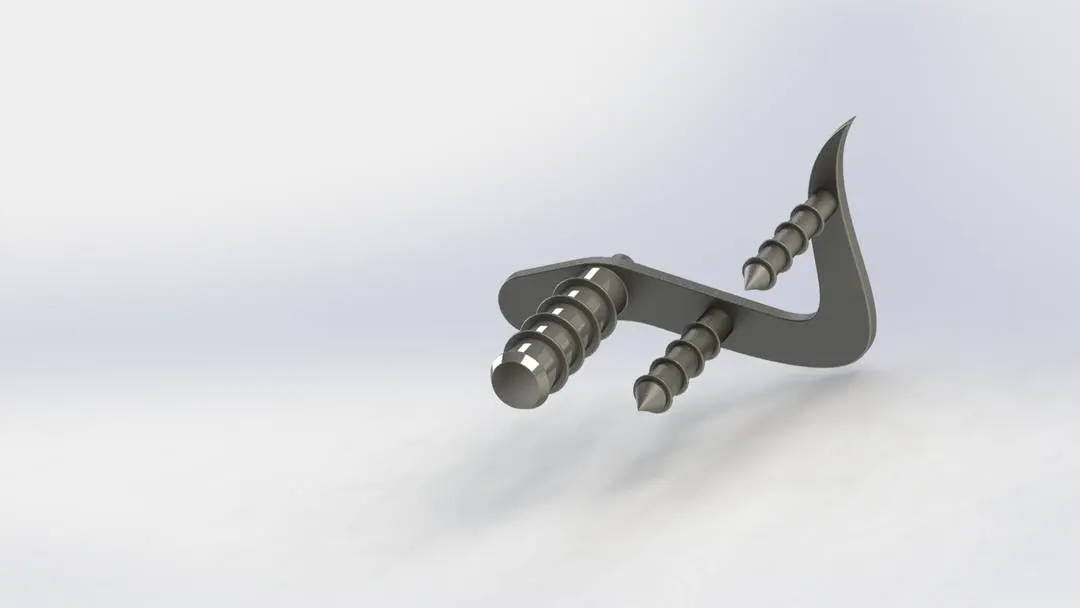

11. KICK STAND

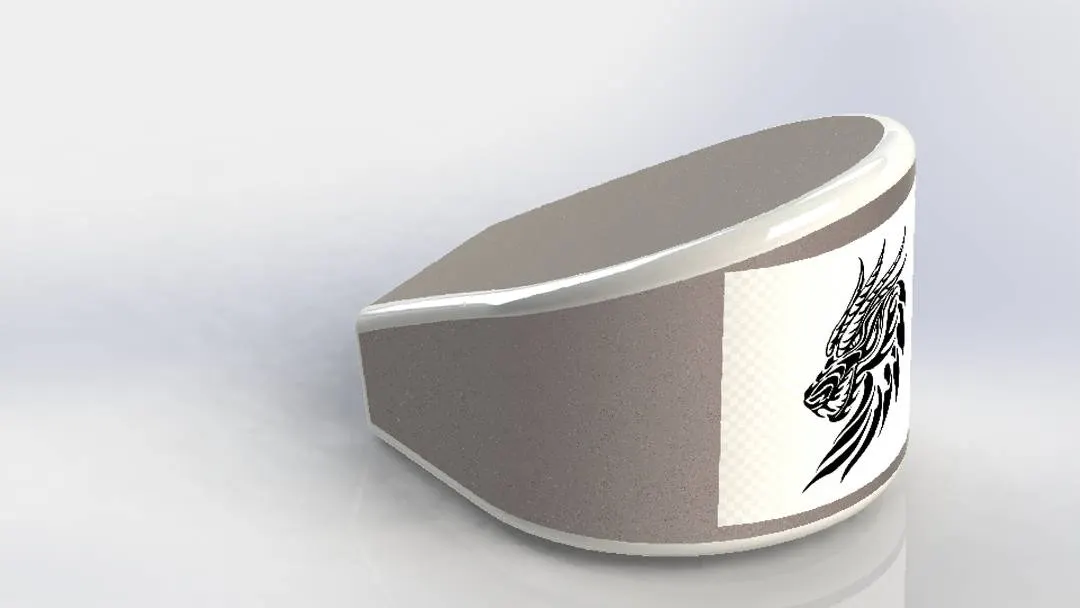

12. OIL TANK

13. PEDAL

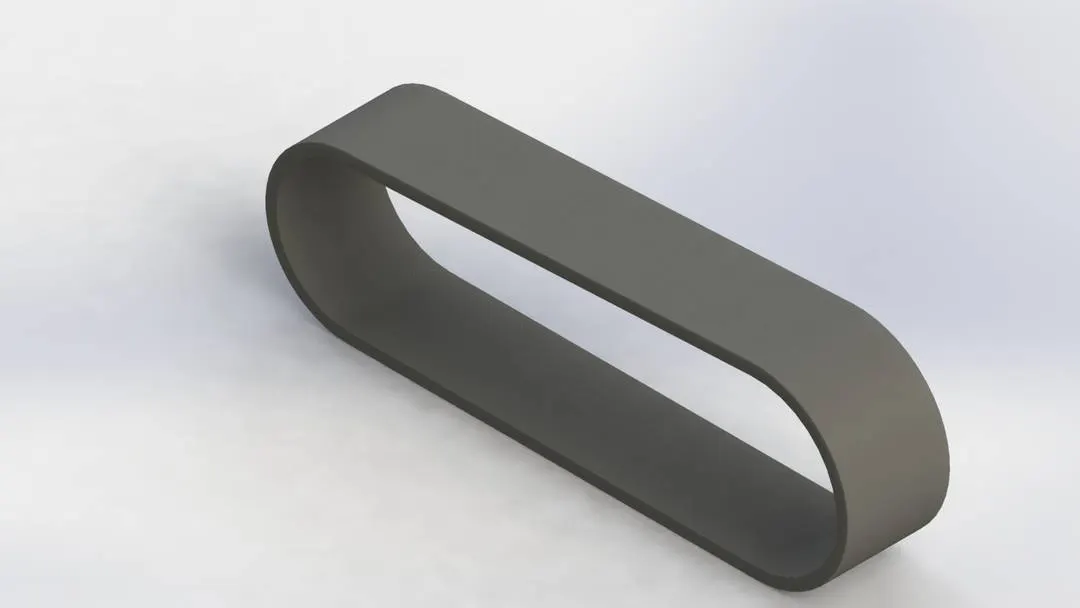

14. TRANSMISSION BELT
