Creation of Multiple viewports, Scaling the drawing and setting in Template in AutoCad

AIM:

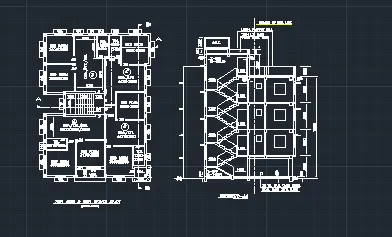

To Create a layout of the plan and section A of the project in challenges 7 .

PROCEDURE:

• In the command prompt type units > mm> decimal
• In the command prompt type limax >100,100
• In the command prompt type limits>0,0

• In the command prompt type layout > template>Tutorial arch .m

• In the command prompt type Ms to specify the centre of the plot

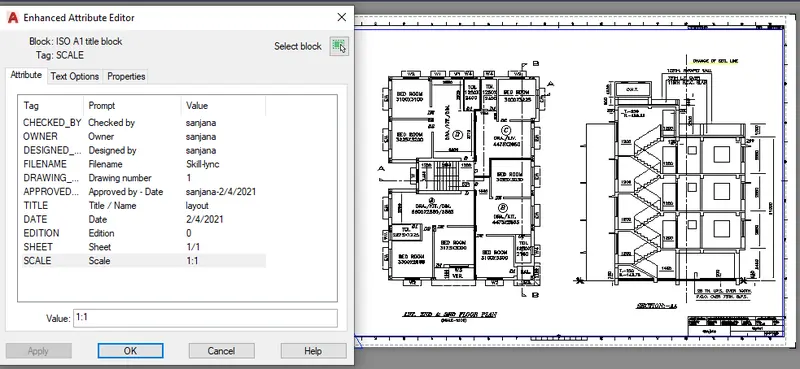

• Then click on the tittle box to edit the tiitle
• In the command prompt type Mv to add the view

• In the command prompt type ctrl +p to plot it

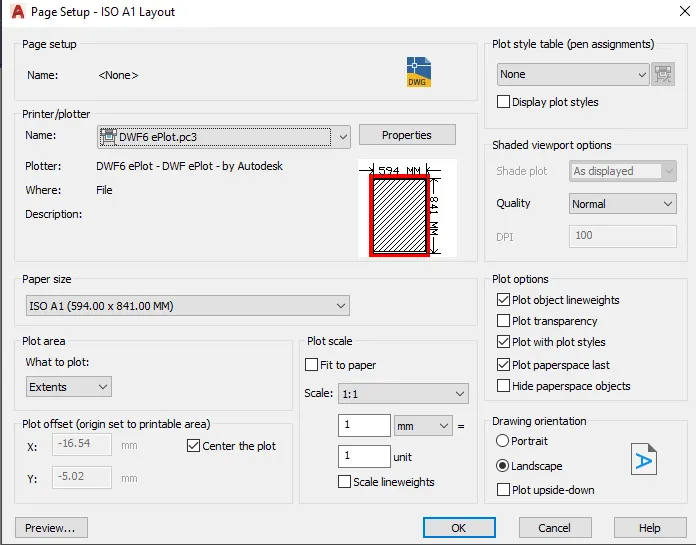

• In the command prompt type pagesetup

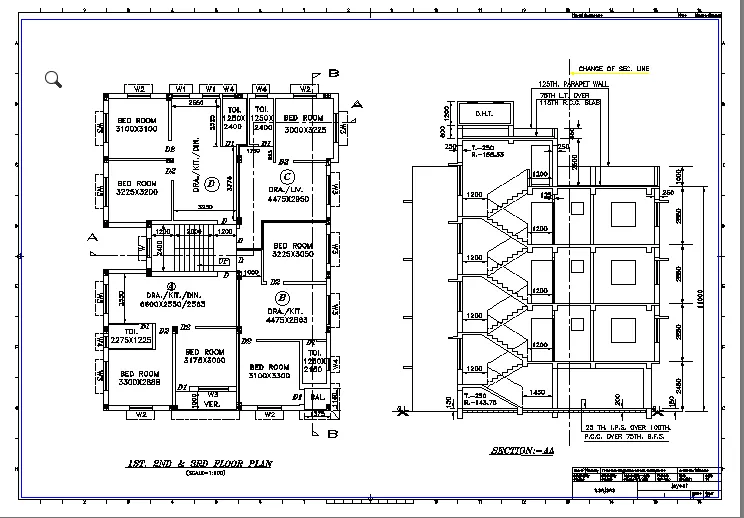

Final result :

2) Create a layout of the Kitchen drawn in Challenge 9 as shown in Figure. Use the scale as shown in the
Figure. Use A4 Size page for the layout. Take a plot.

AIM:

To create layout of the kitchen drawn in challenge 9 . Use A4 size page for the layout and take a plot

PROCEDURE:

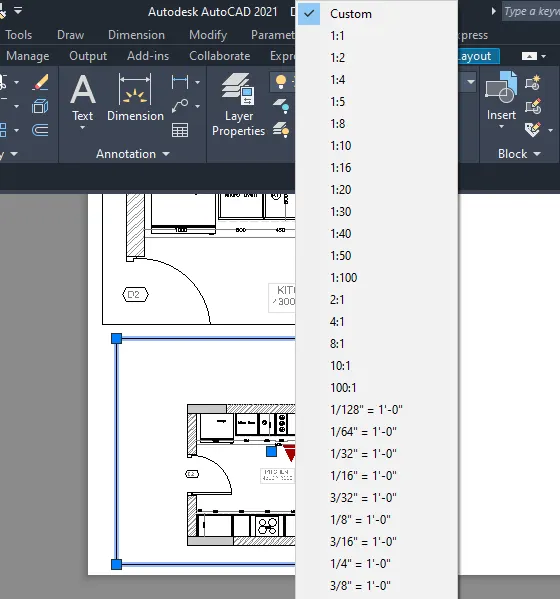

• In the command prompt type ps and ms to adjust the view

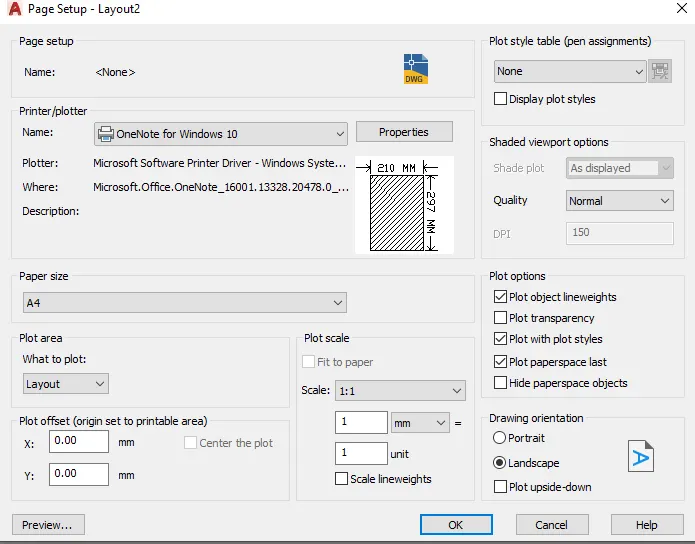

• In the command prompt type pagesetup to make the size to A4 change
• Click on the arrow mark to change the view

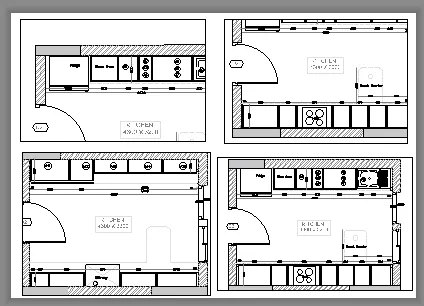

FINAL RESULT:

3. Create a layout of the section created in Challenges 9.Use scale as mentioned in the Figure. Use MV command create multiple viewports. Take a plot.

AIM:

To Create layout of the section created in challenges 9

PROCEDURE:

• Open the file in which challenge 9 is created
• go to layout in the command prompt type MV
• change the scale accordingly scale
• in the command prompt using Ms and ps adjust the view accordingly

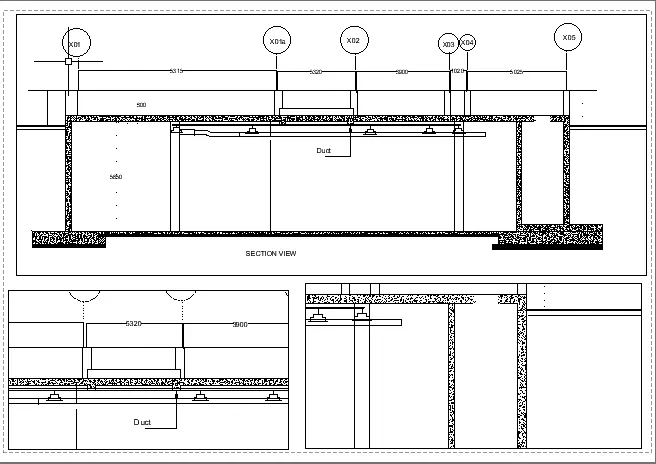

RESULT:
