Creating Bar Bending schedule, Different Door types, and Creation of standard drawing templates using AutoCad

AIM:

To Create Custom1_titleblock and Custom2_titleblock using Attributes and block command from Autocad software .

PROCEDURE:

Step 1 ( custom1_tittleblock)

• In the command prompt type L to draw the lines
• In ribbon tab > Annotate > Mtline ( to draft the text )
• go to properties tab to change the colour

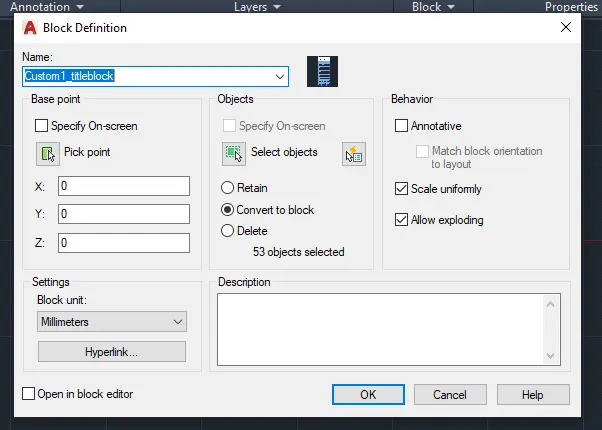

• In the riibon bar >block > create block and name it Custom1_titleblock.Therefore the block is created

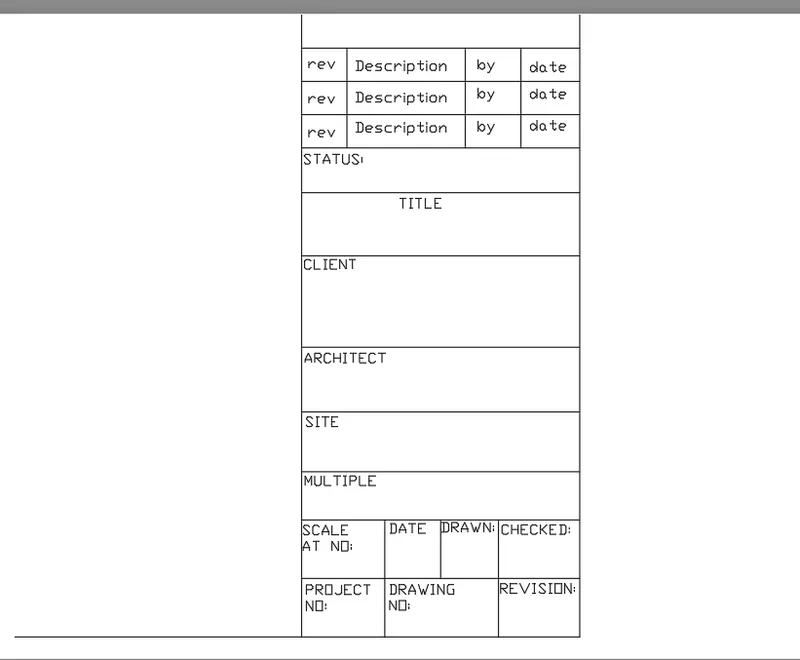

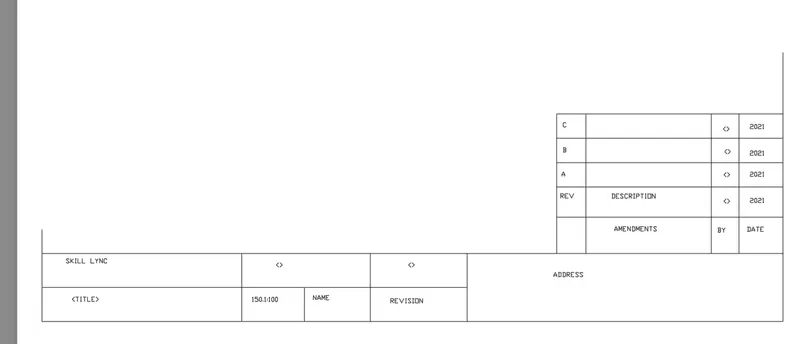

custom1_tittlebox result:

• n the riibon bar >block > create block and name it Custom1_titleblock.Therefore the block is created

STEP 2 (custom2_tittleblock)

• In the command prompt type L to draw the lines
• In ribbon tab > Annotate > Mtline ( to draft the text )
• go to properties tab to change the colour

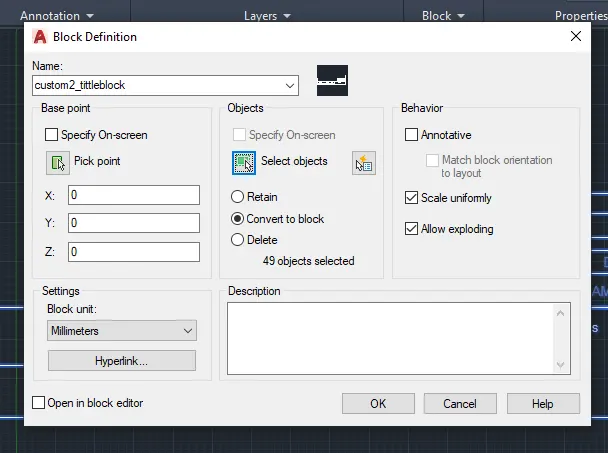

In the riibon bar >block > create block and name it Custom2_titleblock.Therefore the block is created .

custom2_tittlebox result:

AIM:

To create the doors type for warehouse and to also create the block of this door type after creating them using AutoCAD

PROCEDURE:

step 1:

• In the command prompt type the units > mm
• In the command prompt type the limax > 100,100
• In the command prompt type the limits >0,0

step 2 :

• In the command prompt type l to draft the lines
• In the command promt type rec to draft the boxes or rectangle
• In the command prompt type fillet to get the curve edges

• In the ribbon bar > dimensions ( to give the dimensions of the door )
• In the ribbon bar > annotation > text ( to give the text for the door )

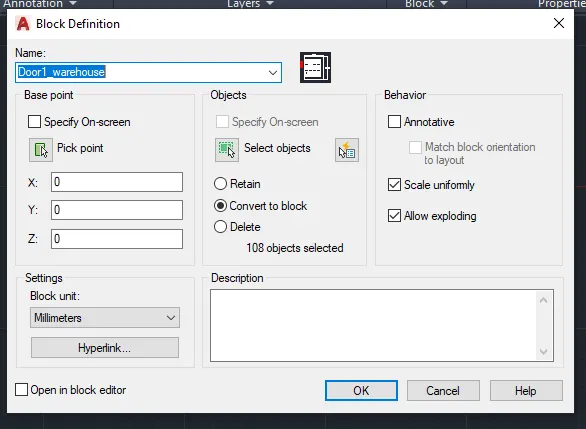

• In the ribbon bar >block >create block ( to create the door block )

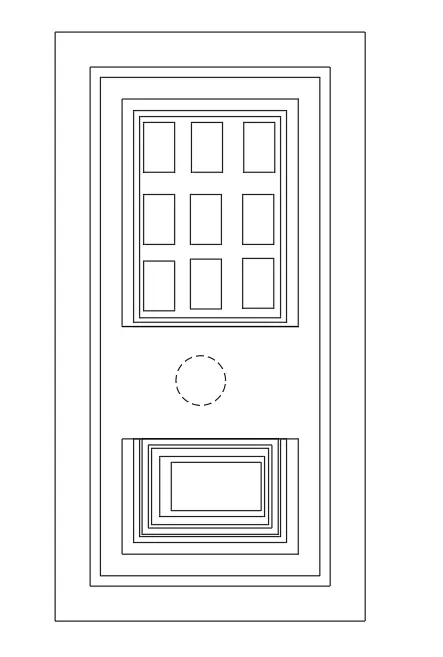

DOOR1_WAREHOUSE RESULT:

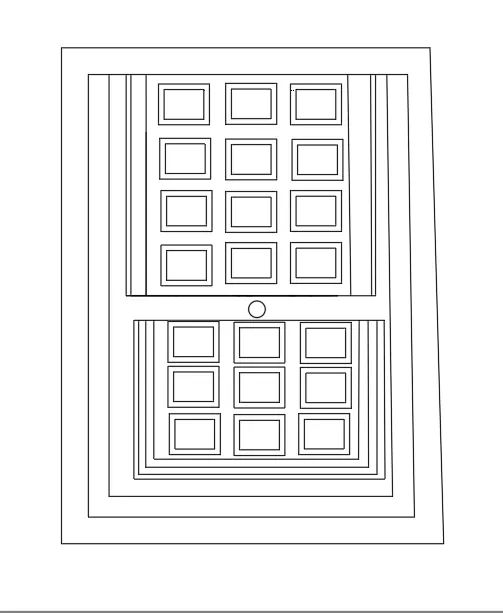

step 3 :

• In the command prompt type l to draft the lines
• In the command promt type rec to draft the boxes or rectangle
• In the command prompt type fillet to get the curve edges
• In the ribbon bar > dimensions ( to give the dimensions of the door )
• In the ribbon bar > annotation > text ( to give the text for the door

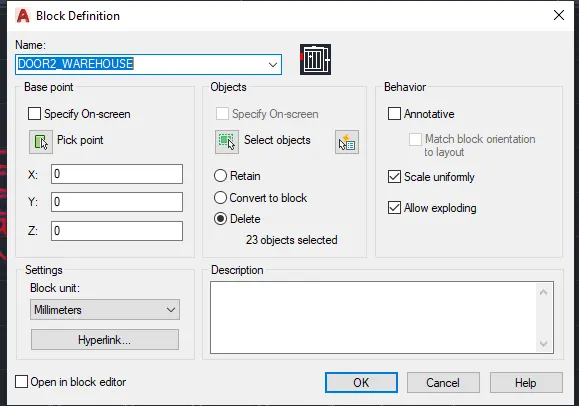

• In the ribbon bar >block >create block ( to create the door block )

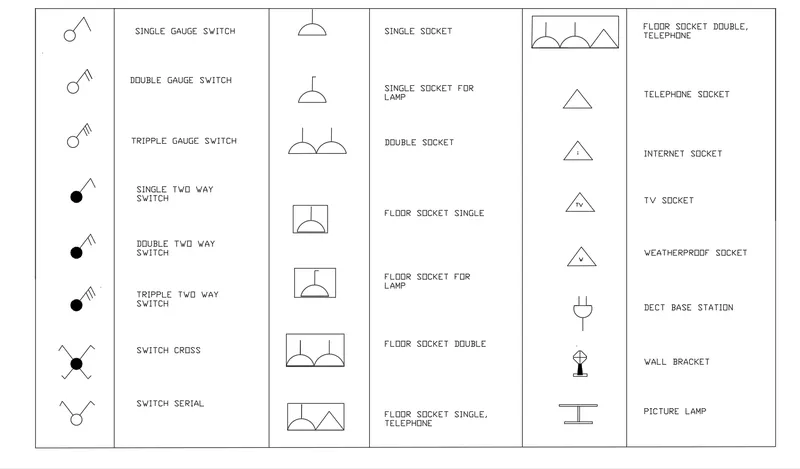

3. Create each symbol as a block with the name given in the legend. After creating the blocks arrange
them in the legend as shown in the Figure.

AIM:

To create each symbol as a block with the name and then arrange them in the legend

PROCUDER:

• In the command prompt type C to get the circle
• In the command prompt type L to get the lines

  AIM:

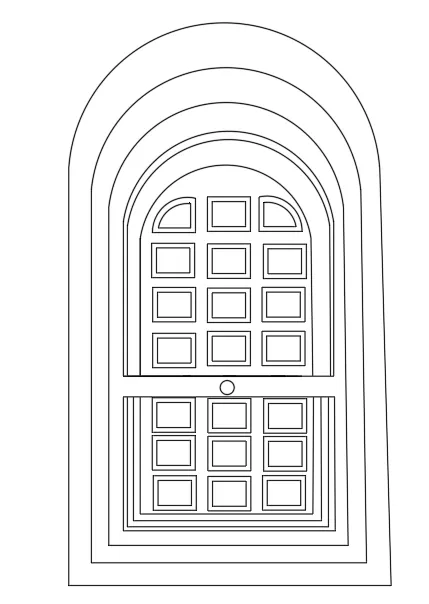

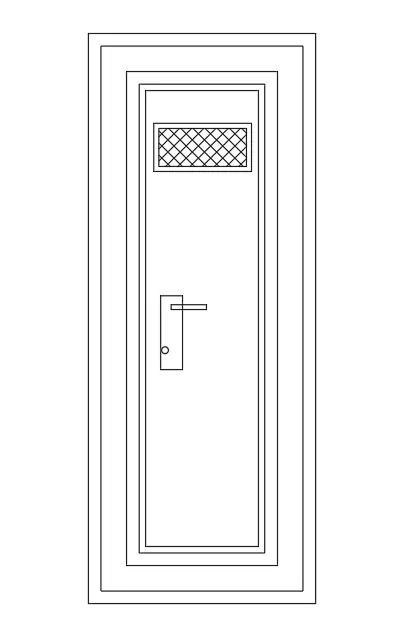

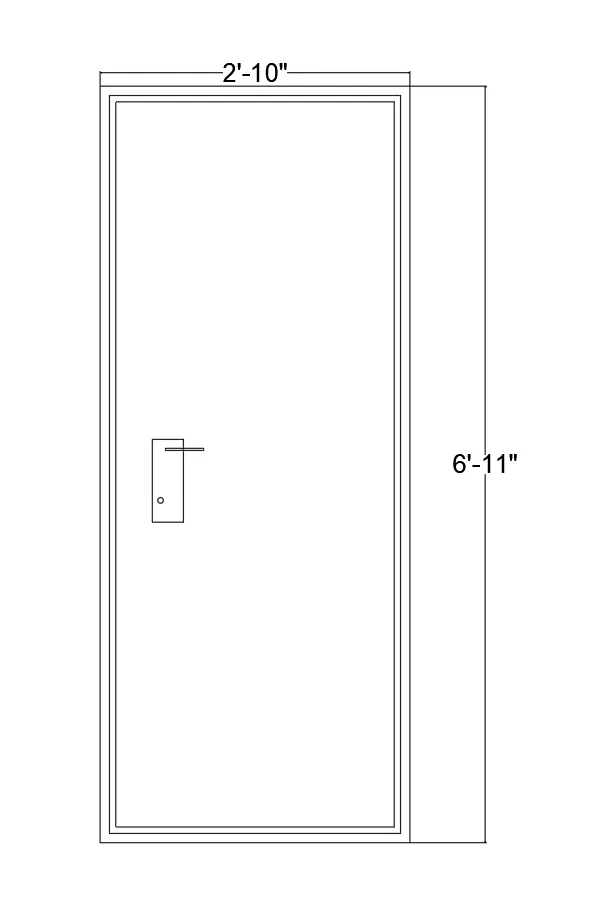

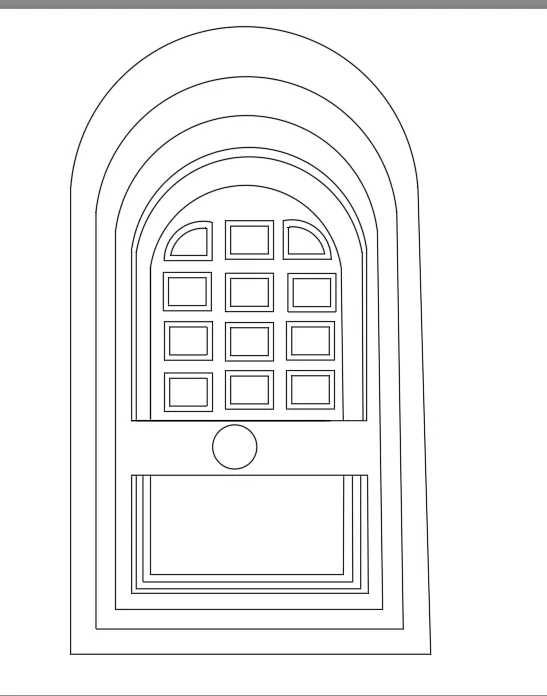

  To Create the door type for residential building as a block .

  PROCEDURE:

  step 1:

  • In the command prompt type units > engineering >inches
  • In the command prompt type limits>0,0 , limax >100,100
  • In the command prompt type zoom > a

  step 2:

  • In the command prompt type l to draw the lines
  • In the command prompt type B to create a block
•

  AIM:

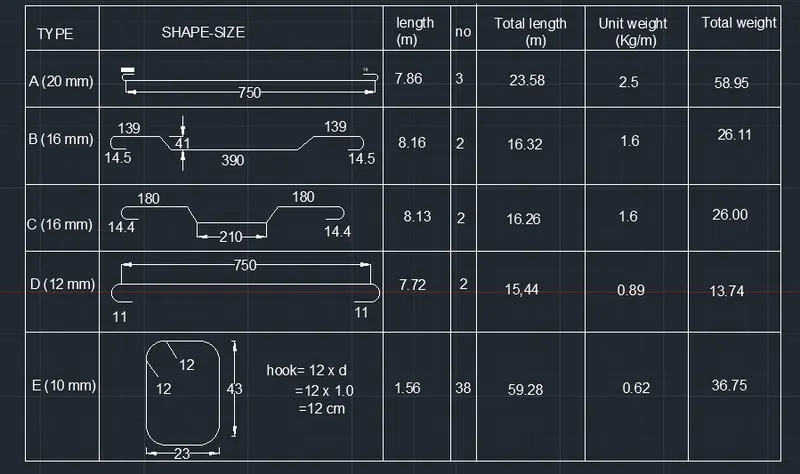

  To Create each shape as ablock and insert them on the table as given in the picture

  PROCEDURE:

  step 1:

  • In the command prompt type Unit>decimal>meters
  • In the command prompt type limits>0,0
  • In the command prompt type limax >100,100

  step 2:

  • In the command prompt type l to draw the desired lines
  • In the command prompt type pl to draw the desired arc,poly lines
  • In the command prompt type mt to give annotation and text
  • In the command promt type B to create the block
  • In the command promt type I to insert the created in the block
  • In the command prompt type table to inset the table
