Creation of Multiple viewports, Scaling the drawing and setting in Template in AutoCad

CHALLENGE 10-

PROBLEM-1.

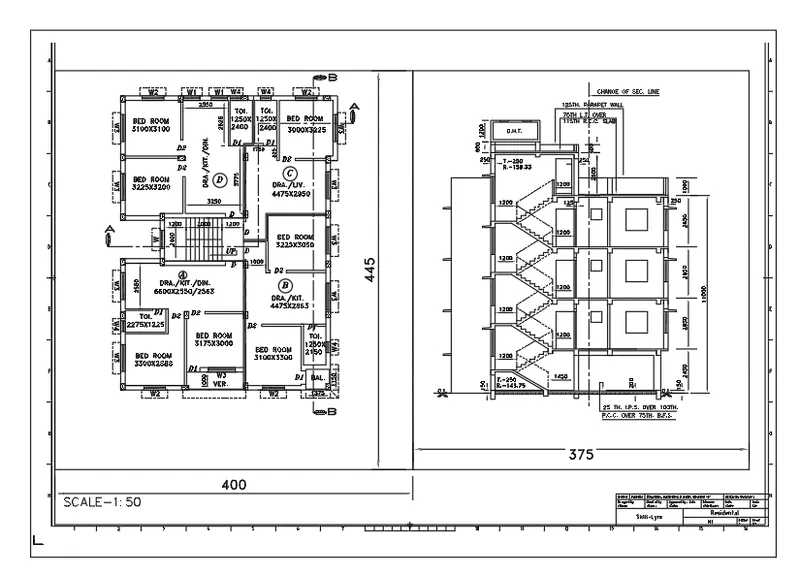

AIM- TO CRETAE LAYOUT OF PLAN AND SECTION OF THE PROJECT IN CHALLENGE 7 AND CREATE THE LAYOUT USING THE M-Arch TEMPLATE USING THE GIVEN DIMENSIONS AND PROPER SCALE.

STEPS-

• Open the drawing of plan and section which is already drawn in the challenge no 7.
• In the left corner of the auto cad there is the tab named model. In the right side of the model tab there is a tab named layout
• Left click on the layout and create new layout from the option FROM TEMPLATE.. and select M arch template select ISO A1 layout.
• Then open the new layout created.
• Rename the layout as plan and section.
• Now enter command page setup manager.
• A new window of page setup will be opened.
• Modify the layout.
• Select printer as DWG to PDF.
• Elect paper size as A1. And click OK.
• Now enter the command as MS in the command box and draw rectangles of 440 X 445 and another of 375 X 445.
• Now enter the command MV and select both the rectangles.
• Set the scale as 1:50 for the drawing.

PROBLEM-2

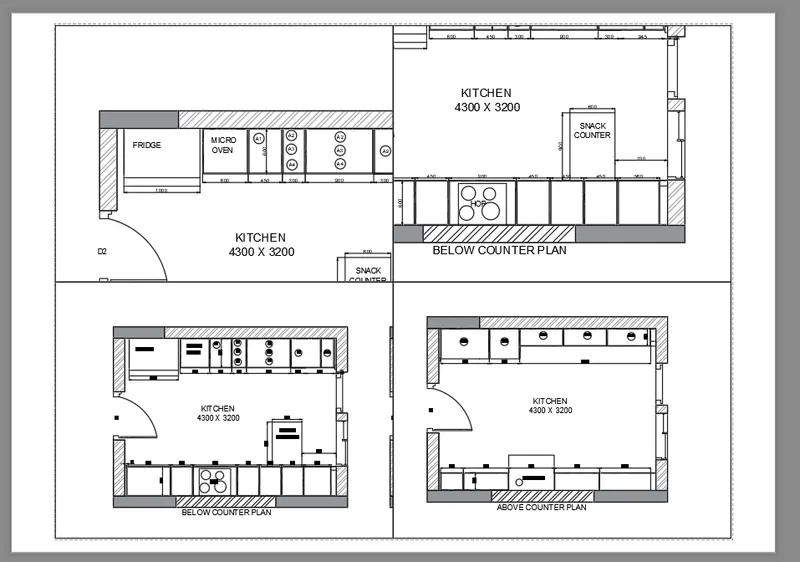

AIM- TO CREATE A KITCHEN LAYOUT DRAWN IN CHALLENGE 9.

• Open the drawing of Kitchen which is already drawn in the challenge 9.
• In the left corner of the auto cad there is the tab named model. In the right side of the model tab there is a tab named layout.
• Left click on the layout and create new layout.
• Then open the new layout created.
• Rename the layout as kitchen layout.
• Now enter command page setup manager.
• A new window of page setup will be opened.
• Modify the layout.
• Select printer as DWG to PDF.
• Elect paper size as A4. And click OK.
• Enter the command as VIEWPORTS.
• A window of view ports will be appearing on the screen.
• Select the viewport type as four equal and enter ok.
• Then specify the first corner point at the left top of the page and drag to another corner point in the right bottom of the page.
• Using the MS command zoom the views as desired of below and above counter plan.

PROBLEM-3.

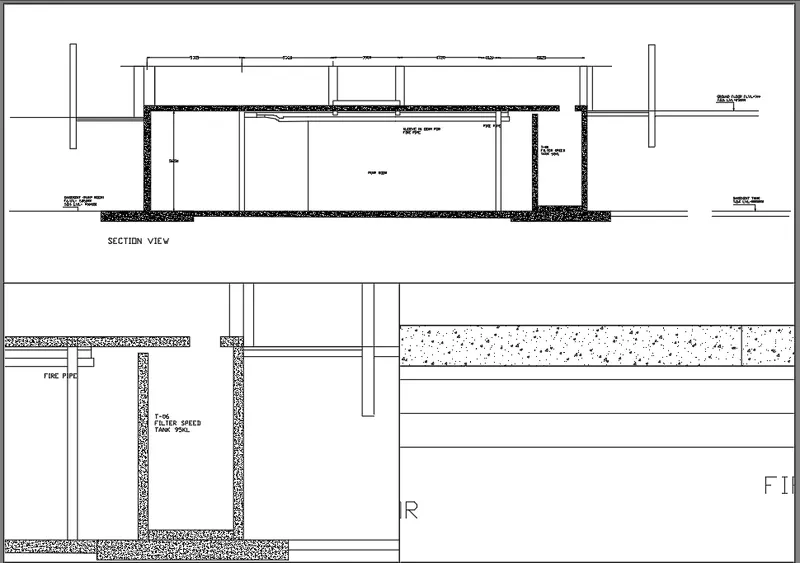

AIM- TO CREATE LAYOUT OF SECTION CREATED IN CHALLENGE 9 AND CREATING MULTIPLE VIEWPORTS.

• Open the drawing of INDUSTRIAL SECTION which is already drawn in the challenge 9.
• In the left corner of the auto cad there is the tab named model. In the right side of the model tab there is a tab named layout.
• Left click on the layout and create new layout.
• Then open the new layout created.
• Rename the layout as section layout.
• Now enter command page setup manager.
• A new window of page setup will be opened.
• Modify the layout.
• Select printer as DWG to PDF.
• Elect paper size as A4. And click OK.
• Enter the command as VIEWPORTS.
• A window of view ports will be appearing on the screen.
• Select the viewport type as THREE; ABOVE and enter ok.
• Then specify the first corner point at the left top of the page and drag to another corner point in the right bottom of the page.
• Using the MS command zoom the views as desired of the section.
