Creating Bar Bending schedule, Different Door types, and Creation of standard drawing templates using AutoCad

CHALLENGE NO 8-

PROBLEM-1

AIM- TO CREATE TEMPLATES AND SAVE THE CREATED TEMLATES AS A BLOCK USING BLOCK COMMAND.

STEPS FOR CREATING TEMPLATE 1-

• Open auto Cad and enter UN (Units command) in the command box and select type as decimal and set precision of decimal as 0
• Select X line command and draw horizontal line and vertical line.
• Trim the unwanted lines.
• Offset 1700 from vertical line and trim the unwanted lines.
• Give the following offsets in the y direction that is offset to the horizontal line.
• Offset 115.
• Offset 250.
• Offset 115 three times.
• Offset 500.
• Offset 350 two times.
• Offset 250 two times.
• Offset 200.
• Offset 220.

• Dimension- For drawing dimension using dimension tool in the ribbon.
• Text- For naming of plan use text in ribbon in that use multiline text.

• Creating layers-
• In the Layer Properties Manager, click New Layer.
• A layer name is added to the layer list.
• Enter a new layer name by typing over the highlighted layer name.
• Specify the settings and default properties of the new layer by clicking in each column
• Select color 220 for layer of table.

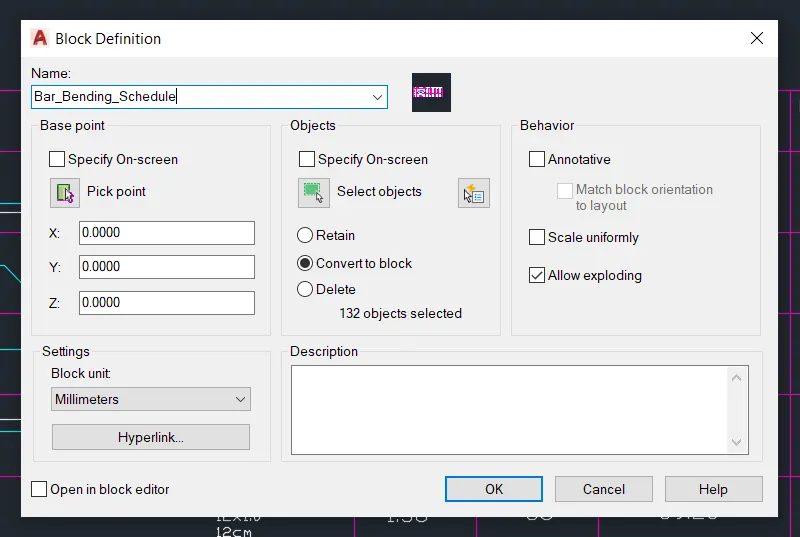

• Creating block.
• Enter B in the command box to open block panel.
• Enter a name for the block.
• Click Select Objects, and select the graphic symbol and the attributes to include in the elevation label.

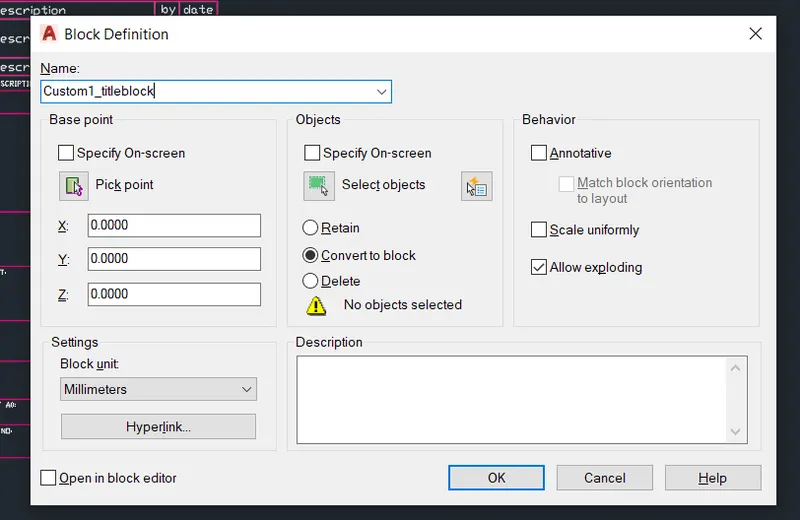

• Give block name for template as Custom1_titleblock

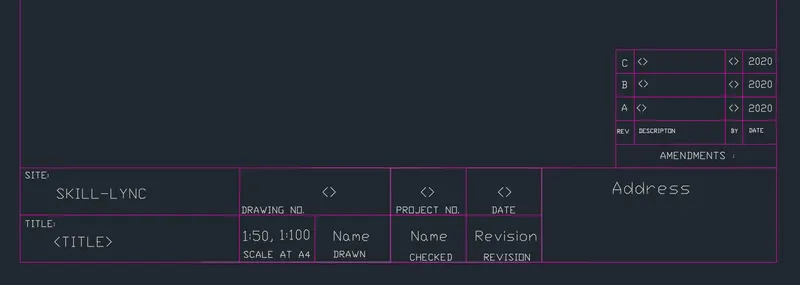

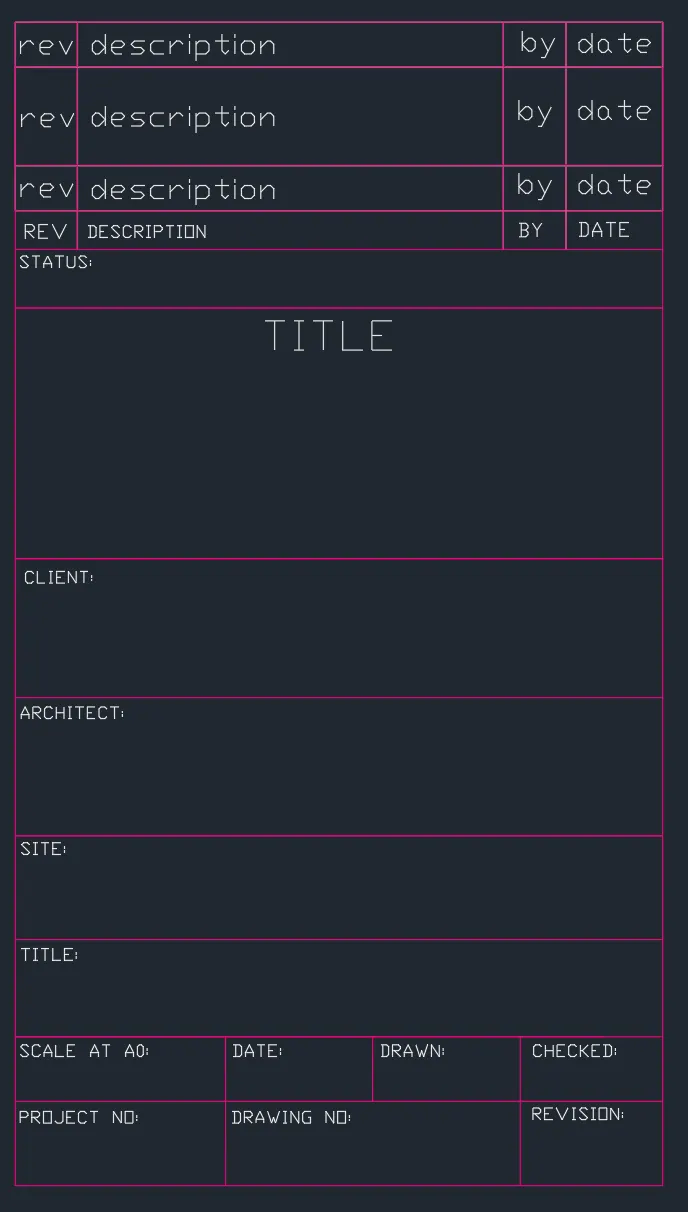

STEPS FOR CREATING TEMPLATE 2-

• Open auto Cad and enter UN (Units command) in the command box and select type as decimal and set precision of decimal as
• First create the block of amendments.
• Draw a rectangle of size 170 x 150.offset 25, 50,25 ,25 ,25 in the horizontal direction that is in the y direction.
• Create another table by sing line command.
• Draw a rectangle of 800x 100. Offset 50 in the vertical direction.
• Draw the inter blocks by assuming various dimensions.

• Dimension- For drawing dimension using dimension tool in the ribbon.
• Text- For naming of plan use text in ribbon in that use multiline text.

• Creating layers-
• In the Layer Properties Manager, click New Layer.
• A layer name is added to the layer list.
• Enter a new layer name by typing over the highlighted layer name.
• Specify the settings and default properties of the new layer by clicking in each column
• Select color 220 for layer of table.

• Creating block.
• Enter B in the command box to open block panel.
• Enter a name for the block.
• Click Select Objects, and select the graphic symbol and the attributes to include in the elevation label.

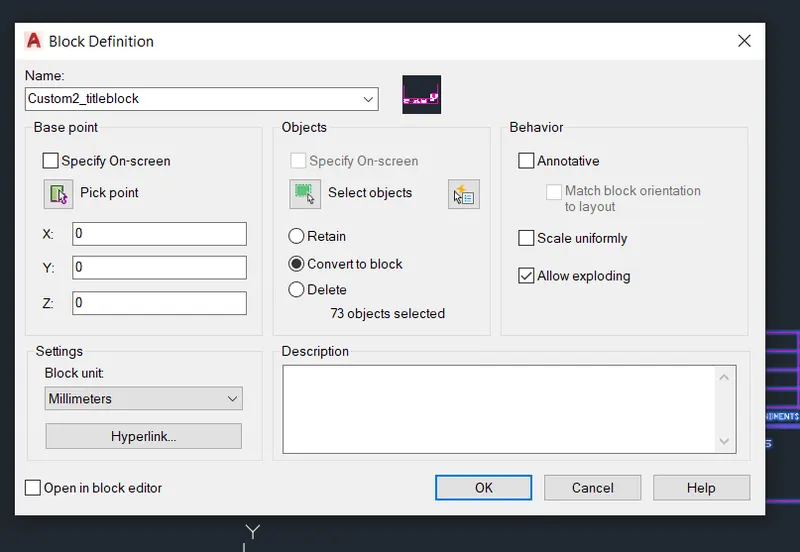

• Give block name for template as Custom2_titleblock

PROBLEM 2-

AIM- TO DRAW THE DOOR.

STEPS FOR DRAWING THE DOOR.

• Open auto Cad and enter UN (Units command) in the command box and select type as decimal and set precision of decimal as 0

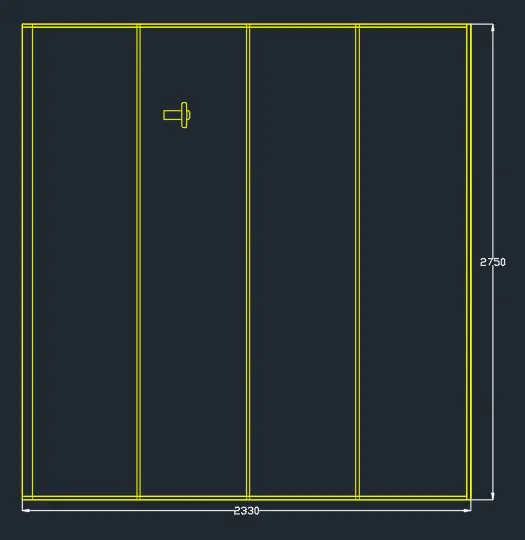

• Select line command from the ribbon and draw a line of 2330 in the horizontal direction and a line of 2750 in the vertical direction and complete the rectangle.
• Offset 583 from the vertical line of the rectangle towards he inside of the rectangle.
• Offset 583 three times.
• Again offset 5 to left and right side of each offseted line of 583 line.
• Trim the unwanted lines.

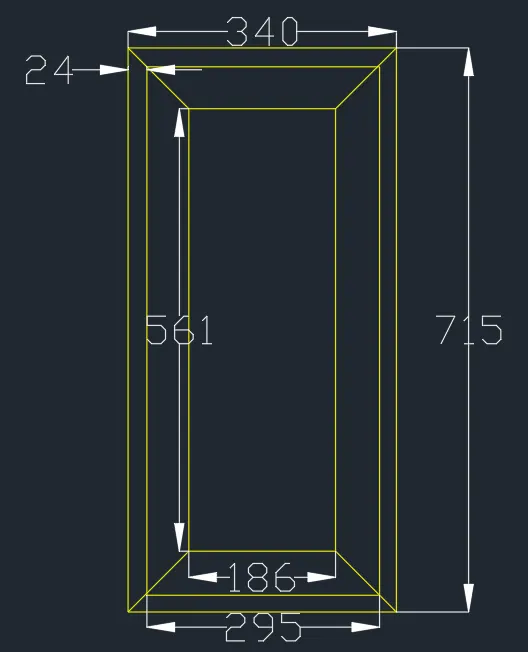

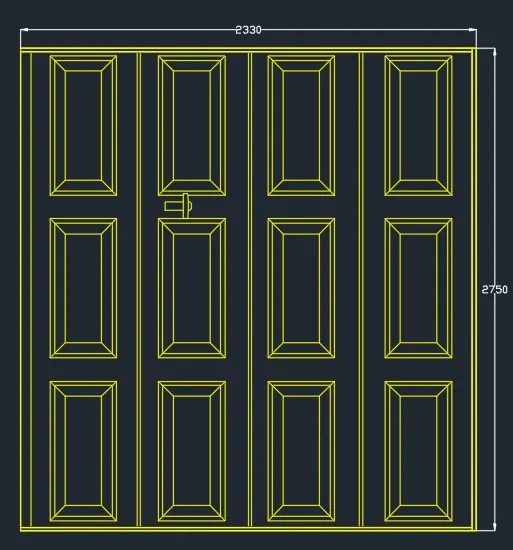

• Draw the panels as shown in the figure by taking the suitable dimensions.

• Dimension- For drawing dimension using dimension tool in the ribbon.
• Text- For naming of plan use text in ribbon in that use multiline text.

• Creating layers-
• In the Layer Properties Manager, click New Layer.
• A layer name is added to the layer list.
• Enter a new layer name by typing over the highlighted layer name.
• Specify the settings and default properties of the new layer by clicking in each column
• Select yellow colour and give the layer name as furniture.

• Creating block.
• Enter B in the command box to open block panel.
• Enter a name for the block.
• Click Select Objects, and select the graphic symbol and the attributes to include in the elevation label.
• Give block name as door_123

PROBLEM NO 3-

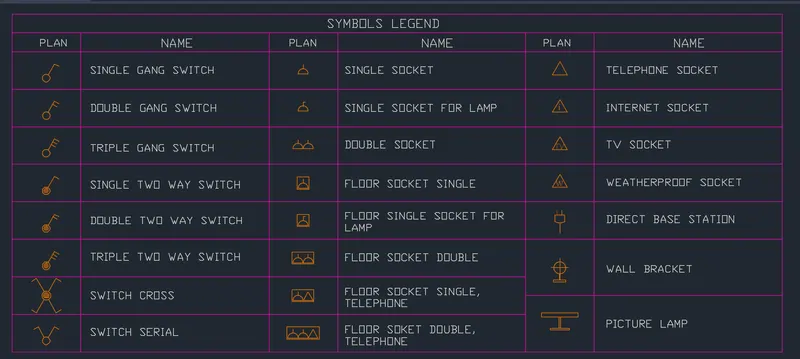

AIM- TO CREATE A SYMBOL LEGEND AND SAVE IT AS A BLOCK.

STEPS FOR DRAWING LEGEND-

• Open auto Cad and enter UN (Units command) in the command box and select type as decimal and set precision of decimal as 0
• Select line command from the ribbon and draw a line of 390 in the horizontal direction and a line of 200 in the vertical direction and complete the rectangle.
• Give offsets as follows in the X direction.
• Offset 35.
• Offset 95.
• Offset 35.
• Offset 95.
• Offset 35.
• Offset 95.
• Give the offsets as follows in the Y direction.
• Offset 10.
• Offset 10.
• Offset 20 for 8 times t complete the table.
• Draw the electrical fittings as shown in the table by using the line and various other tools.

• Dimension- For drawing dimension using dimension tool in the ribbon.
• Text- For naming of plan use text in ribbon in that use multiline text.

• Creating layers-
• In the Layer Properties Manager, click New Layer.
• A layer name is added to the layer list.
• Enter a new layer name by typing over the highlighted layer name.
• Specify the settings and default properties of the new layer by clicking in each column
• Select color 220 for table and color 30 for the electrical fittings.

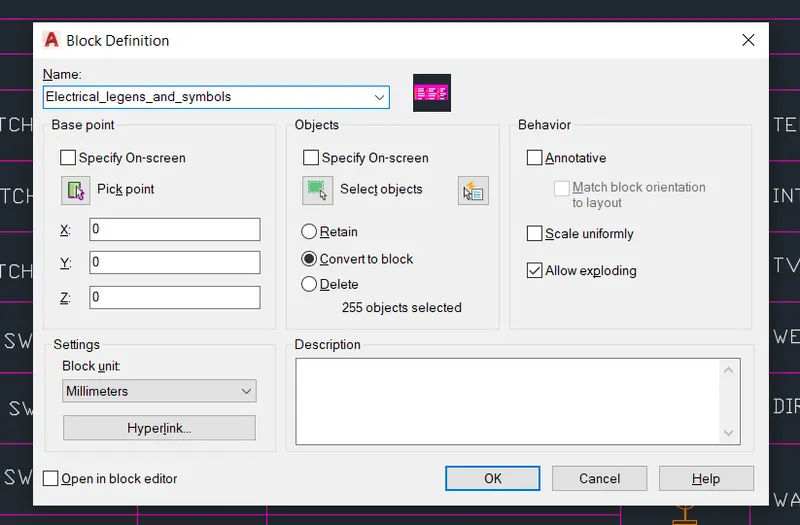

• Creating block.
• Enter B in the command box to open block panel.
• Enter a name for the block.
• Click Select Objects, and select the graphic symbol and the attributes to include in the elevation label.
• Give block name as symbol legend.

PROBLEM- 4

AIM- TO DRAW THE VARIOUS TYPES OF DOORS.

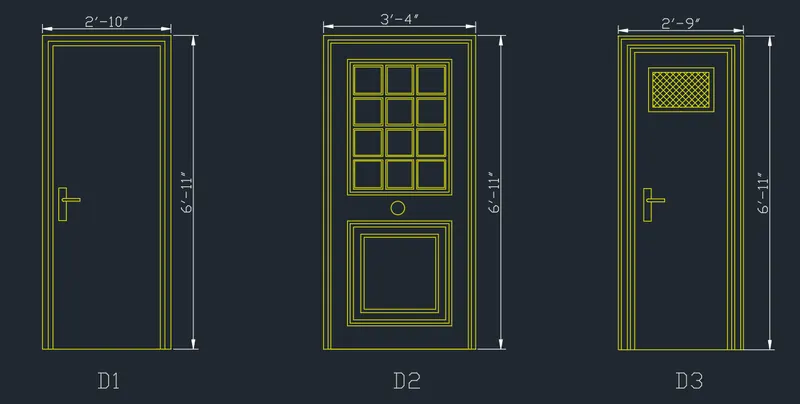

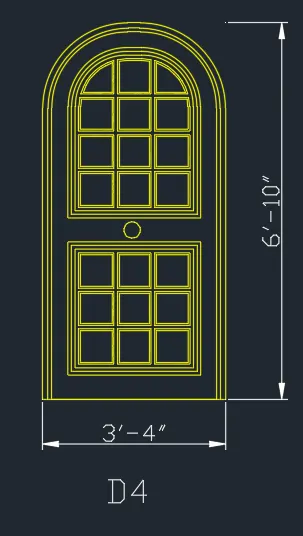

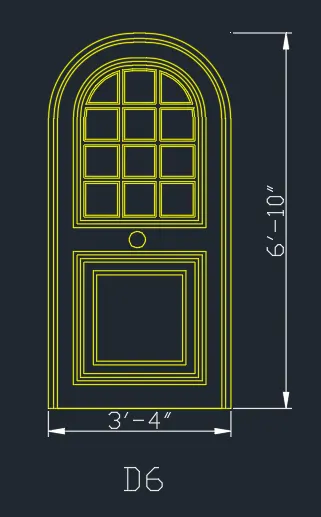

STEPS FOR DRAWING THE DOORS D1, D2, D3, D4, D5, D6.

• Line command is used fir drawing the doors of various sizes.
• Door D1, D2, D3 has same height of 6’-11’.

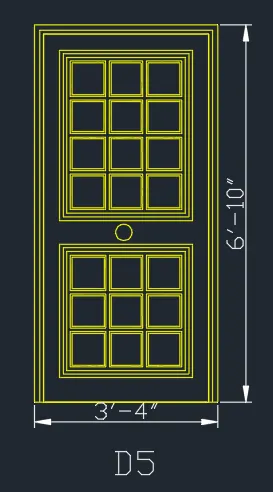

• Width of door D1 is 2’-10’’, width of door D2 is 3’-4’’, width of door D3 is 2’-9’’.
• Width and height of door D4, D5, D6 is assumed as width as 3’4’’ and height as 6’-10’’.

• Dimension- For drawing dimension using dimension tool in the ribbon.
• Text- For naming of plan use text in ribbon in that use multiline text.

• Creating layers-
• In the Layer Properties Manager, click New Layer.
• A layer name is added to the layer list.
• Enter a new layer name by typing over the highlighted layer name.
• Specify the settings and default properties of the new layer by clicking in each column
• Select yellow color for furnitre

• Creating block.
• Enter B in the command box to open block panel.
• Enter a name for the block.
• Click Select Objects, and select the graphic symbol and the attributes to include in the elevation label.
• Give block name as D1 D2 D3 D4 D5 AND D6.

PROBLEM 5-

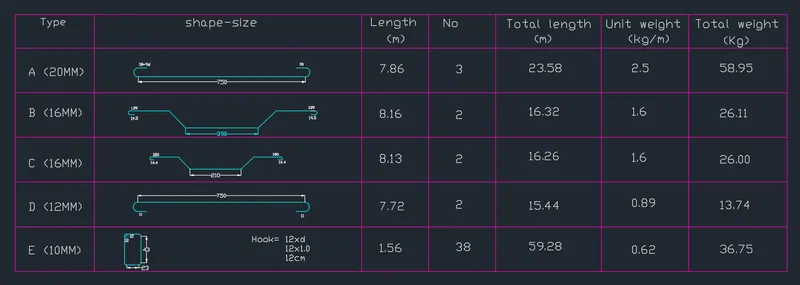

AIM- TO CREATE A BAR BENDING SCHEDULE AS SHOWN IN THE FIGURE.

STEPS FOR DRAWING THE BAR BENDING SCHEDULE.

• Open auto Cad and enter UN (Units command) in the command box and select type as decimal and set precision of decimal as 0
• Select line command from the ribbon and draw a line OF 2550 in the X direction and a line of 1100 in the Y direction.
• Give offsets as follows in the X direction.
• Offset 150
• Offset 1200
• Offset 150.
• Offset 150.
• Offset 300 for 3 times.

• Give the offsets as follows in the Y direction.
• Offset 100
• Offset 200 for 5 times and complete the table
• Trim the unwanted lines.
• Line command is used to draw the reinforcement shown in the table in the desired way.

• Dimension- For drawing dimension using dimension tool in the ribbon.
• Text- For naming of plan use text in ribbon in that use multiline text.

• Creating layers-
• In the Layer Properties Manager, click New Layer.
• A layer name is added to the layer list.
• Enter a new layer name by typing over the highlighted layer name.
• Specify the settings and default properties of the new layer by clicking in each column
• Select cyan color for reinforcement and color 220 for table

• Creating block.
• Enter B in the command box to open block panel.
• Enter a name for the block.
• Click Select Objects, and select the graphic symbol and the attributes to include in the elevation label.
• Give block name as bar bending schedule
