Creation of Multiple viewports, Scaling the drawing and setting in Template in AutoCad
1)

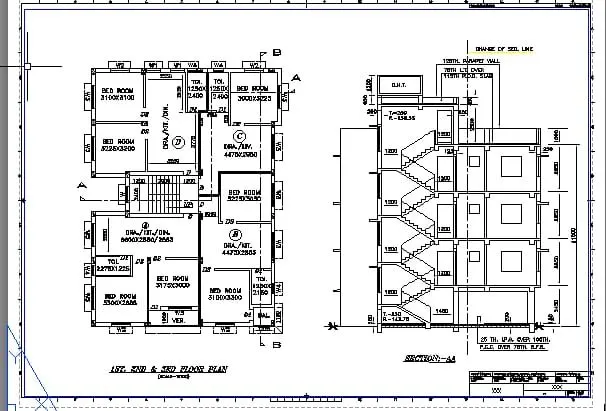

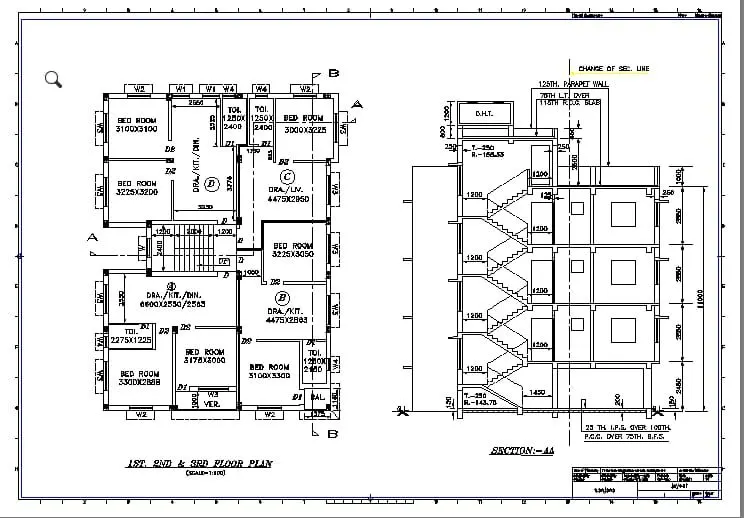

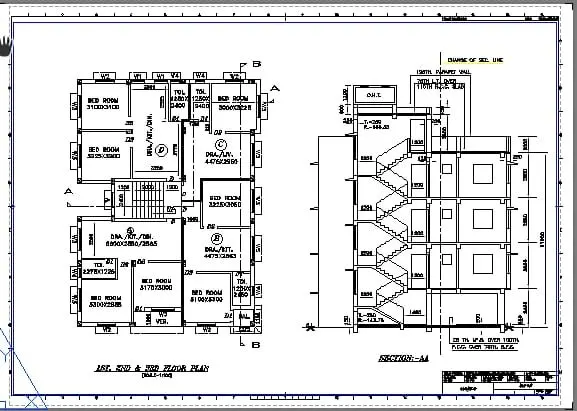

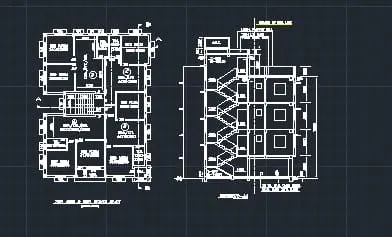

AIM: To create a layout of the plan and section A of the oroject in challaengs 7
PROCEDURE:
* in the command prompt type units > mm > decimal
* in the command prompt type limax >100,100
* in the command prompt type limits >0,0
* in the command prompt type layout > template > tutorial arch.m
* in the command prompt type Ms to specify the center of the plot.

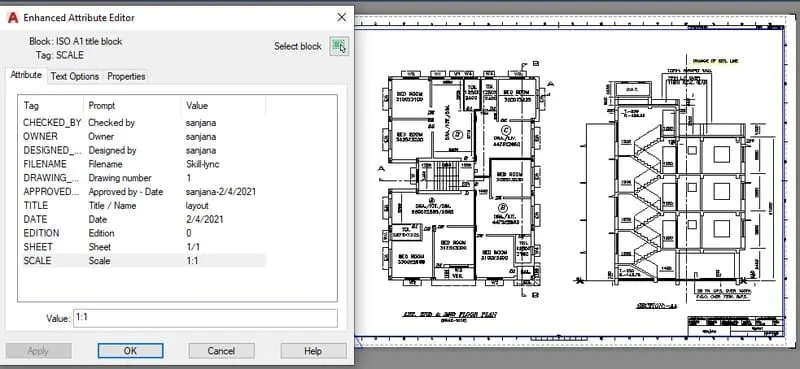

* then click on the tittle box to edit the title.
* in the command propt type Mv to add the view
* in the command prompt type ctrl+p to plot it

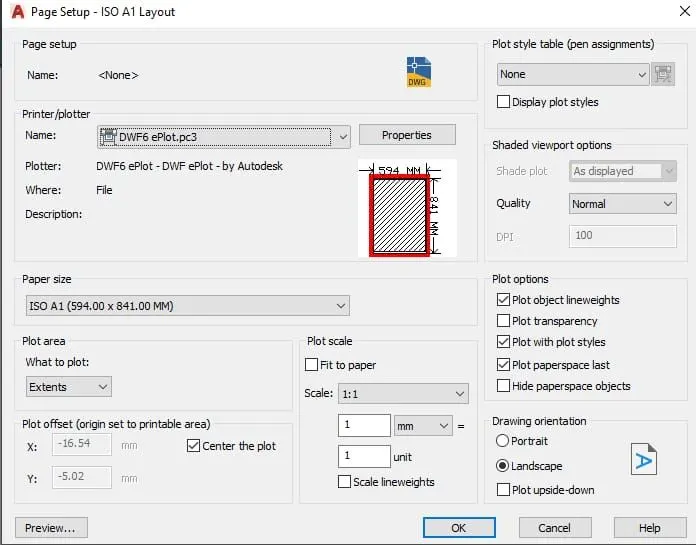

* in the command prompt type pagesetup
RESULT:
2)

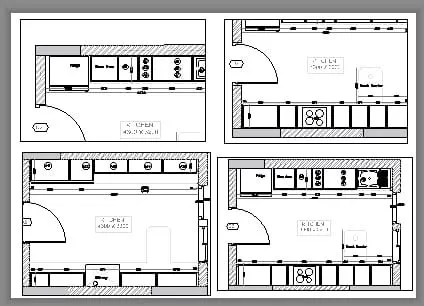

AIM: To create layout of the kitchen drawn in challenge 9. use A4 size page for the layout and take a plot
PROCEDURE:
* in the command prompt type Ps and ms to adjust the view

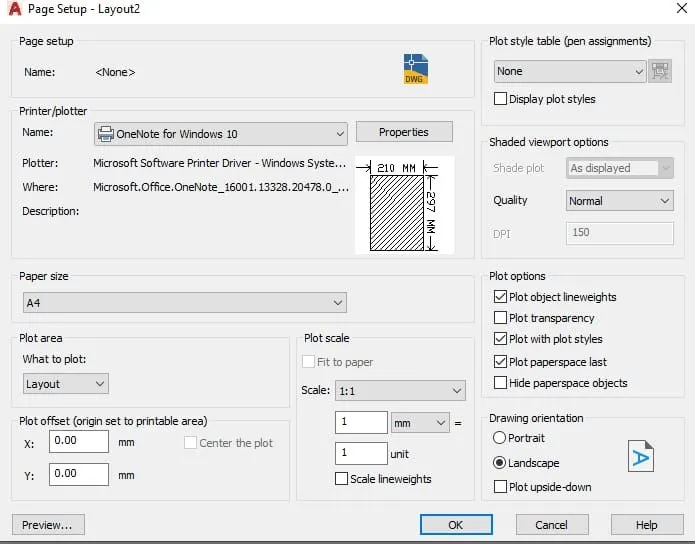

* in the command prompt type pagesetup to make the size to A4 change
* click on the arrow mark to change the view
RESULT:
3)

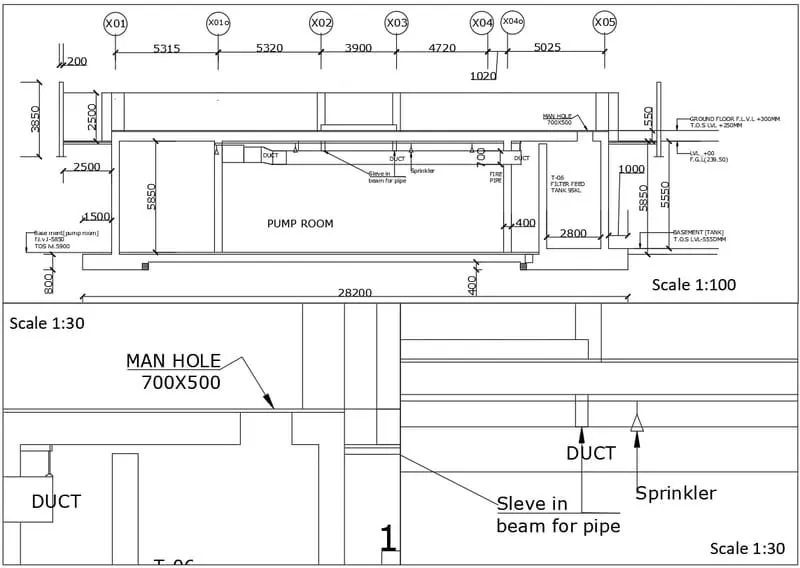

AIM: To create layout of the section created in challenges 9
PROCEDURE:
* open the file in which 9 is created
* go to layout in the command prompt type MV

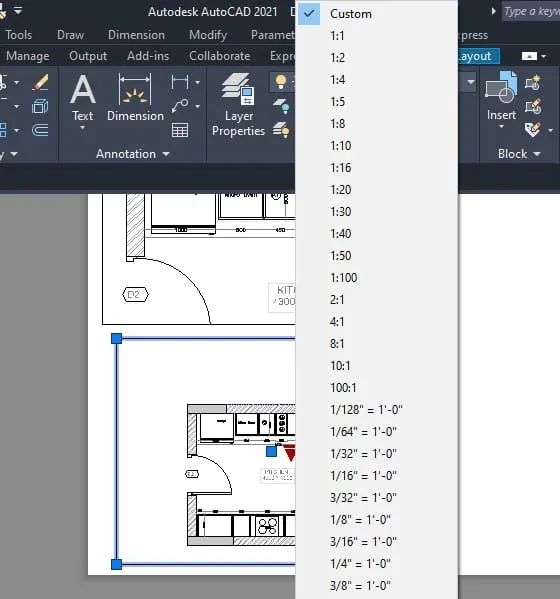

* change the scale accordingly scale
* in the command prompt using Ms and Ps adjust the view accordingly
RESULT:
