Challenge

Creation of Multiple viewports, Scaling the drawing and setting in Template in AutoCad

VVenkatesh S9 Oct 2022

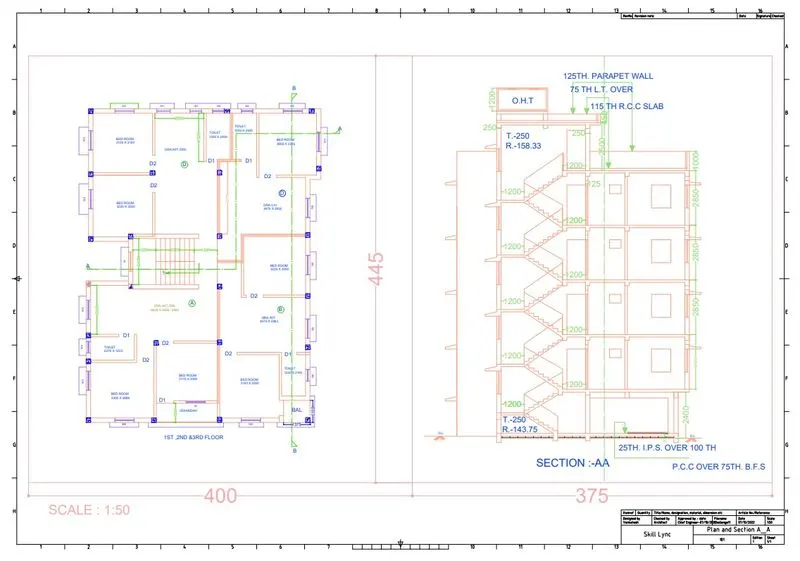

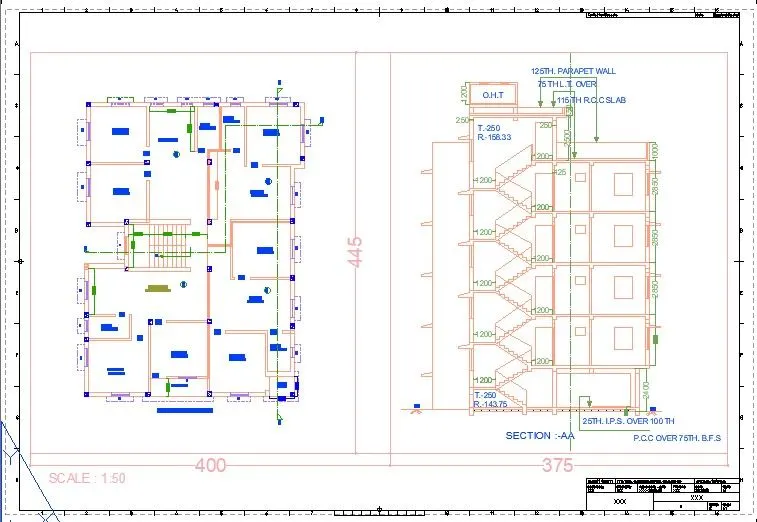

1. Create a layout of the Plan and Section A of the project in Challenges 7, using the template Tutorial-mArch.dwt in a scale as given in the Figure. Use the MV command to create the viewport of the size as shown in Figure. Also, use ATTEDIT command to edit the information in the title block. Use A1 size for the layout. Take a plot.

AIM: To create layout of the plan and section A of the project in challenge7 as shown in the figure

INTRODUCTION: The layout is created in AutoCAD by using the template Tutorial-mArch.dwt in a given scale

PROCEDURE:

STEP 1) MODEL FOR DRAWING

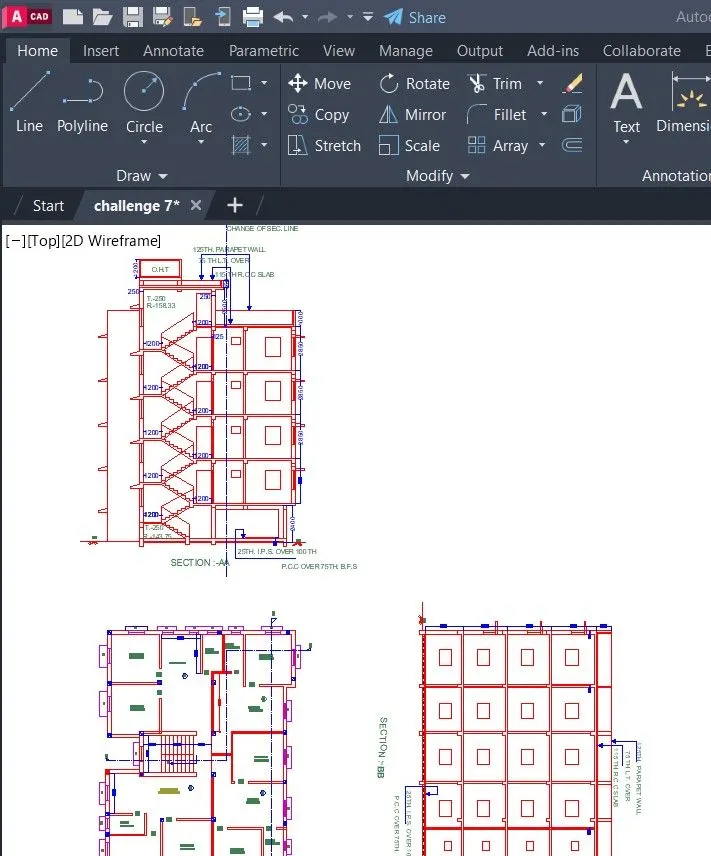

Open week 7 challenge in AutoCAD

STEP 2) CREATE NEW VIEW

Zoom the Plan which is cover entire screen
Click on the VIEW ribbon
In the NAMED VIEWS tool click on NEW VIEW

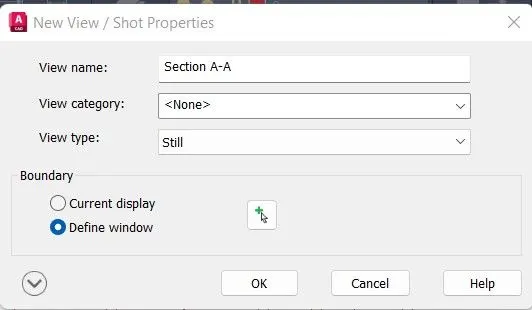

A dialog box is opened

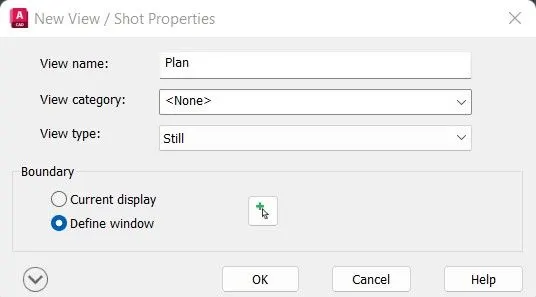

Specify View Name as Plan
Repeat for section A

STEP 3) CREATE VIEW PORT

In the Model Viewports Tool
Click to drop down Viewport Configuration and select TWO: VERTICAL

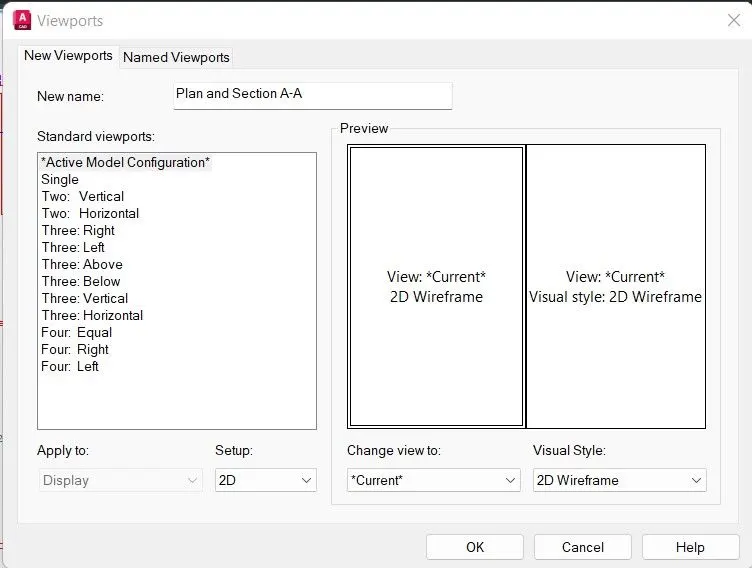

Click on the NAMED, a dialog box open as viewports
Go to new viewports tab and type new name as Plan and Section A-A

STEP 4) CREATE LAYOUT

Enter Layout command
Click on Template option

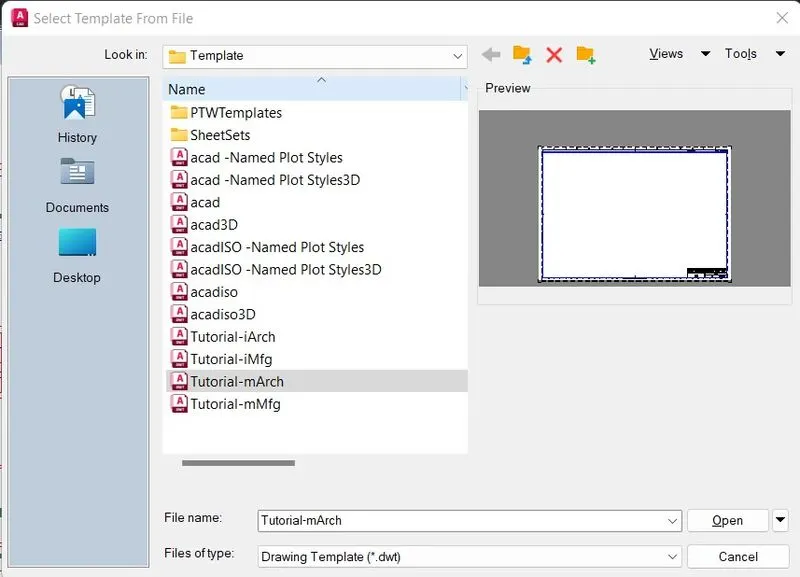

Select Tutorial mArch and open

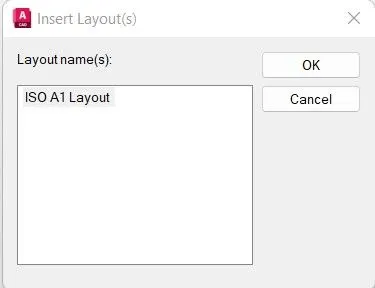

Click OK in Insert Layout dialog box

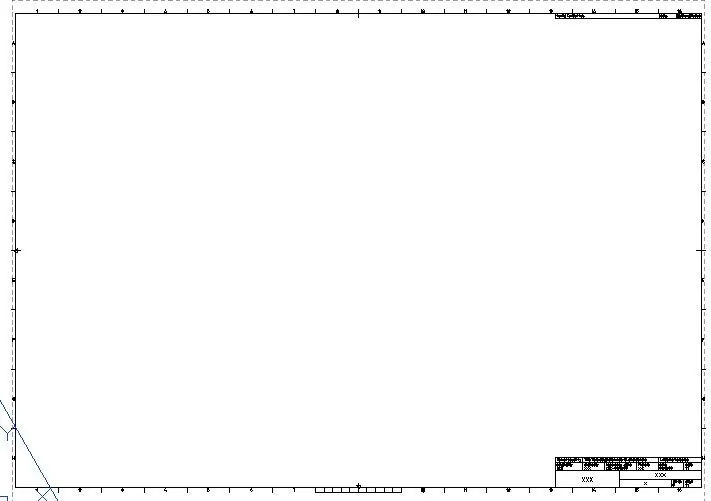

A model tab is added as ISO A1 Layout
Right click on the ISO A1 tab to rename as Plan and Section A-A

STEP 5) PAGE SETTING

Enter PAGESETUP command

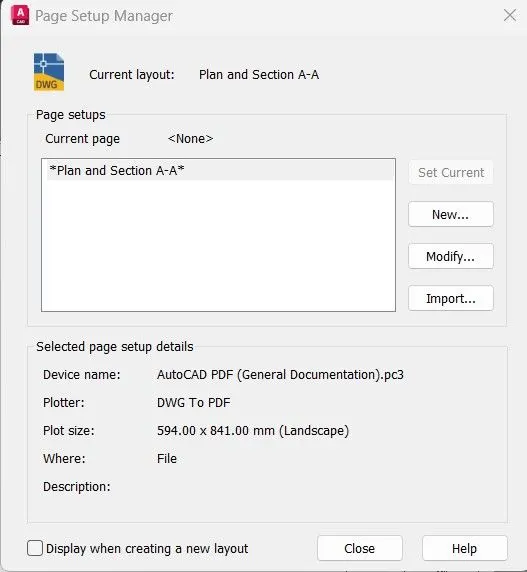

A dialog box shows of Page Setup Manager
Click on Modify
New dialog box shows of Page Setup

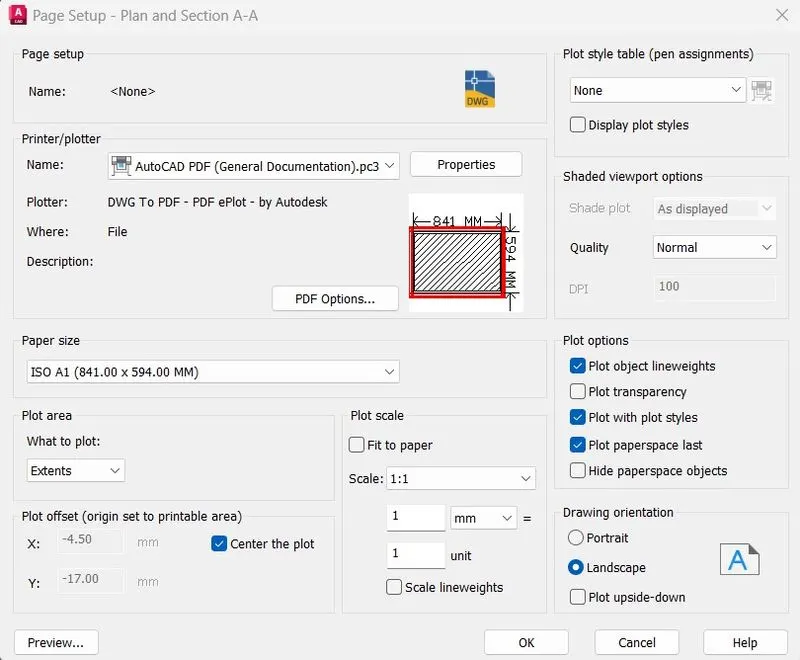

Change Printer/Plotter name as AUTOCAD PDF (General Documentation).pc3
Change page size as ISO A1 (841.00 X 594.00 MM)

STEP 6) INSERT DRAWING

Select to delete existing drawing in current page
Set current layer as Title Block from layer property
Enter REC command for rectangle
Create two rectangles of size 400x445 and 375x445

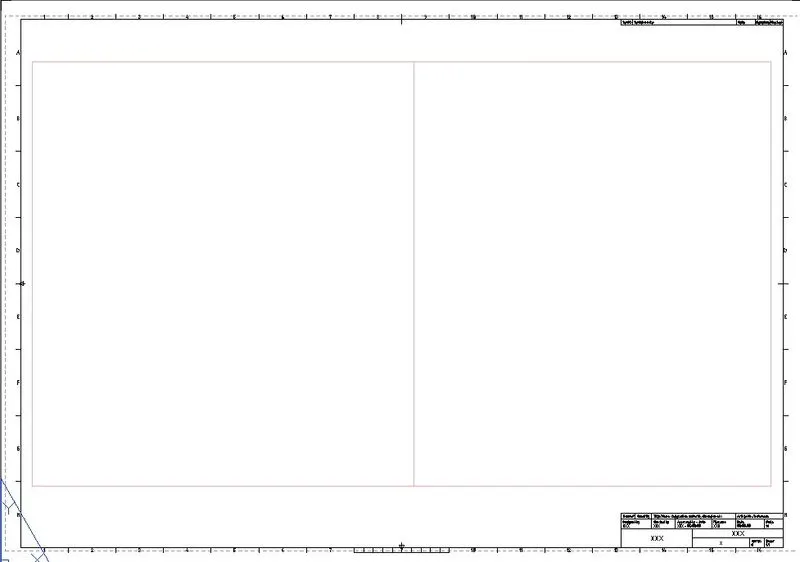

From the Layout ribbon go to Layout Viewports Tool and click on the INSERT VIEW icon
Click on the Plan and place in the 1^st rectangle
Similarly click on the Section and place in the 2^nd rectangle

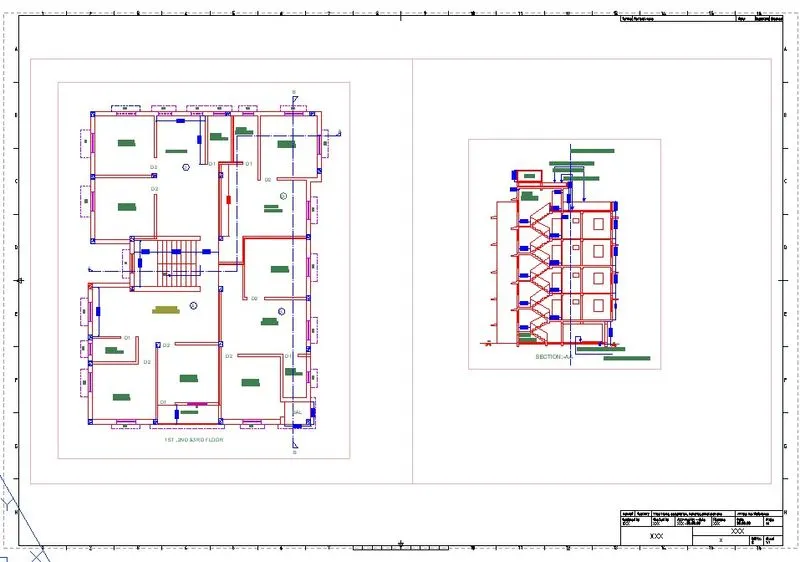

Click on Plan view port Unlock the viewport from status bar and change scale as 1:50
After changing scale, plan viewport boundry streched to match rectangle corners Esc
Simlarly for the Section Viewport
Enter MS for Model Space or click model form the status bar
Click the Plan and pan to adjust the center of the rectangle
Simlarly for the Section Viewport
After that Lock the view for Plan And Section from status bar

STEP 7) LAYER COLOUR, TEXT AND DIMENSION

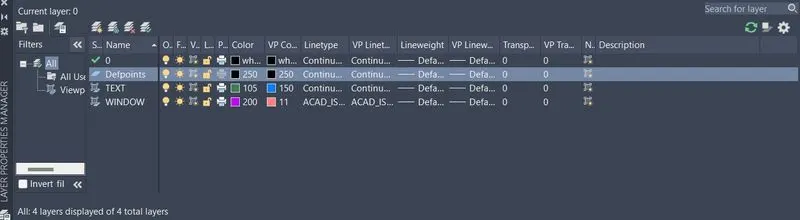

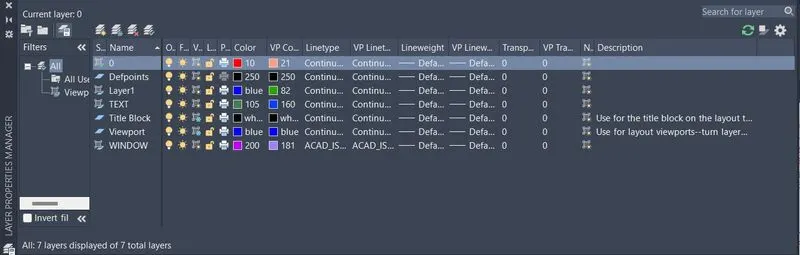

Click the Plan view port and go to layer property change the VP (View Port) colours for different member
Similarly for the Section Viewport
Enter PS command for Page Layout
Select layer as Text and Dimension
Enter MT command for Multiline Text change text height then specify name
Enter D for Dimension Style Manager click NEW to create Copy of Standard
Open FIT tab change overall scale as 100 click OK then set current and close
Enter DIMLIN command

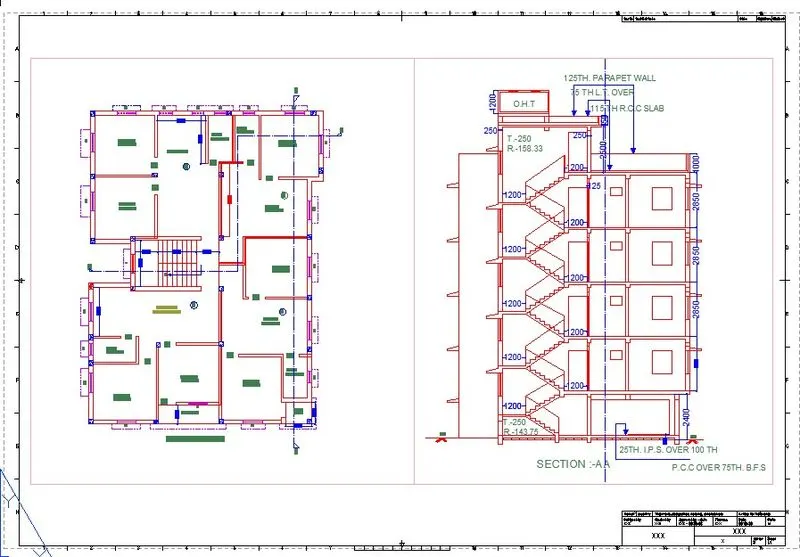

Specify 1^st point and 2^nd point to measure the distance as shown in figure

STEP 8) ATTRIBUTES

Enter ATTEDIT command for edit attributes
Click on the Title Block

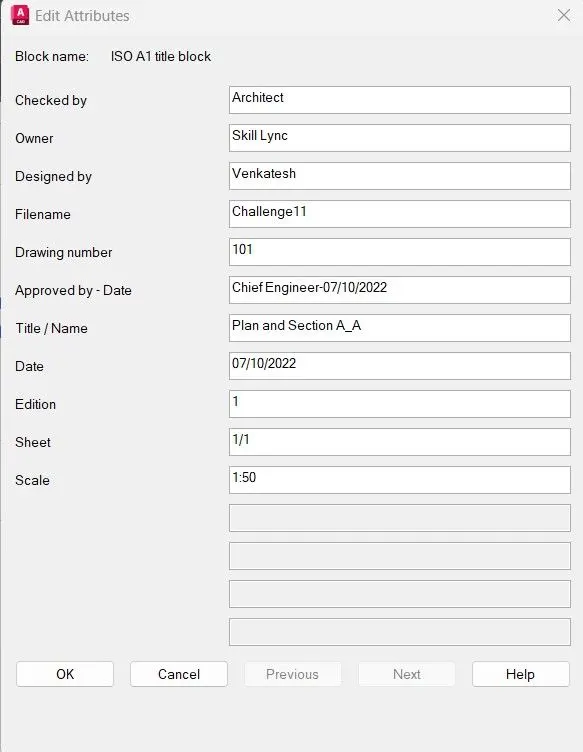

A dialog box of Edit Attributes shows
Fill the required details which is necessary click OK

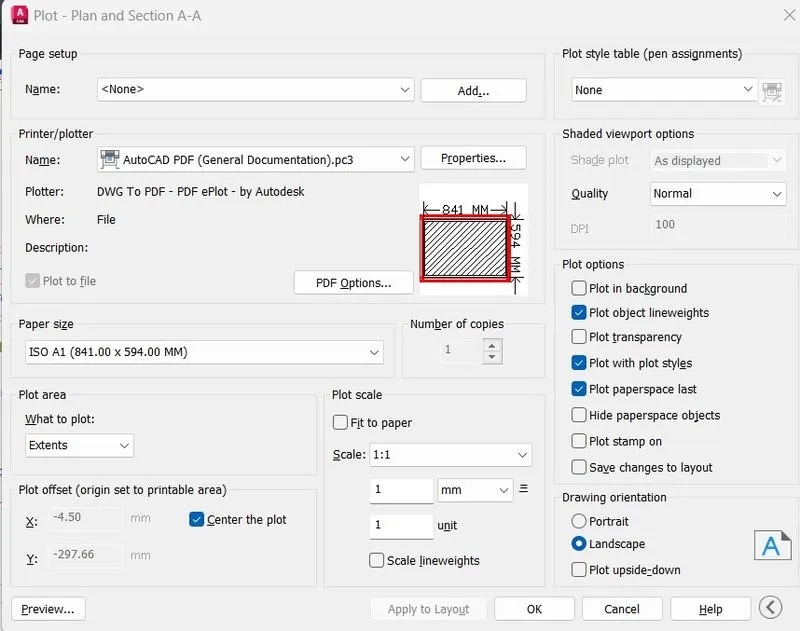

Click on Plot icon or enter command Plot
Ensure printer/plotter set as AUTOCAD PDF (General Documentation).pc3 click on OK

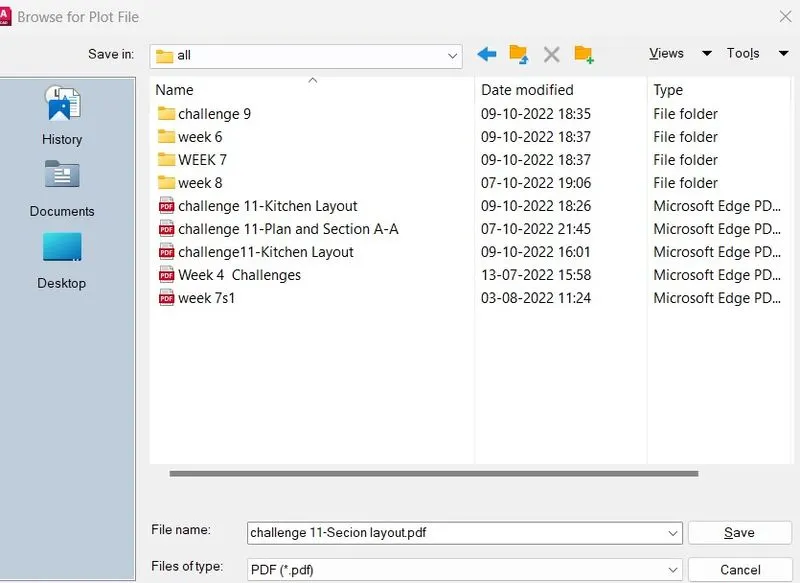

Browse to file destination and save the PDF file

RESULT:

To follow the above procedure and obtained the final result

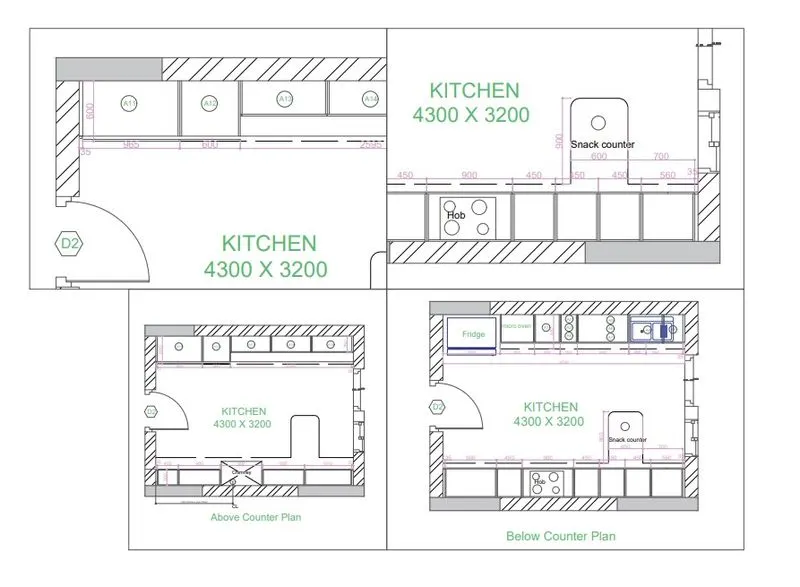

2. Create a layout of the Kitchen drawn in Challenge 9 as shown in Figure. Use the scale as shown in the Figure. Use A4 Size page for the layout. Take a plot.

AIM: To create Kitchen layout of the challenge 9 as shown in the figure

INTRODUCTION: The Kitchen layout is created in AutoCAD. The paper size taken A4 and plot to save the PDF. Procedures explained with the diagram and the final result is given

PROCEDURE:

STEP 1) MODEL FOR DRAWING

Open week 10 challenge in AutoCAD

STEP 2) CREATE NEW VIEW

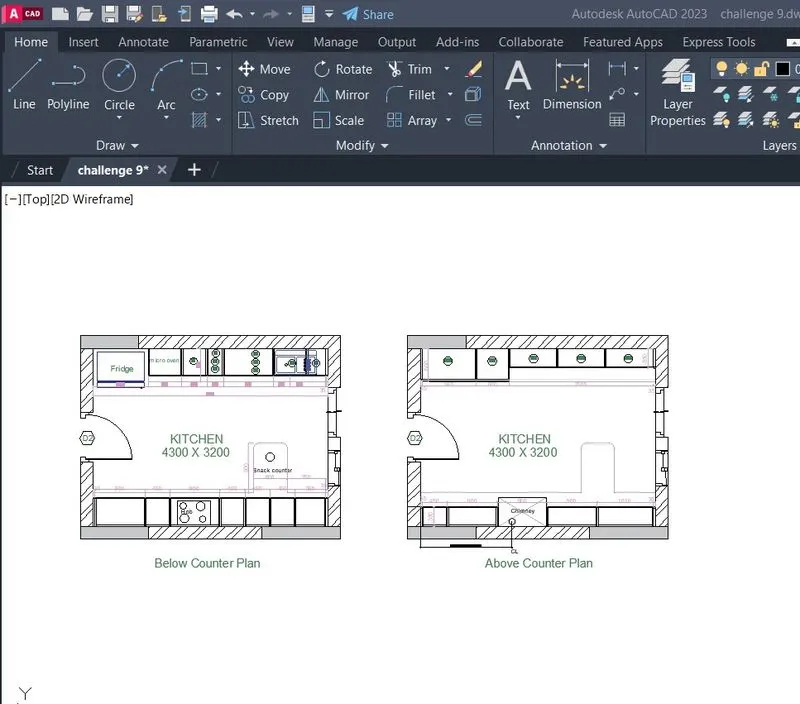

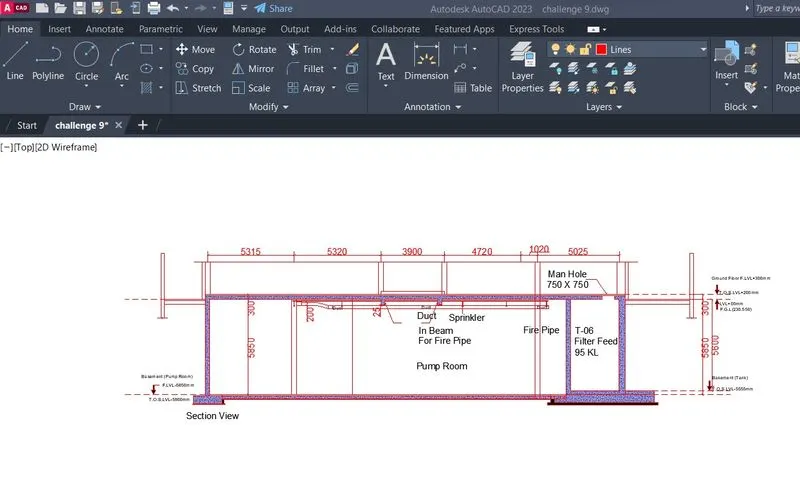

Zoom the 1^st part of the kitchen which is cover entire screen
From VIEW ribbon
In the NAMED VIEWS tool

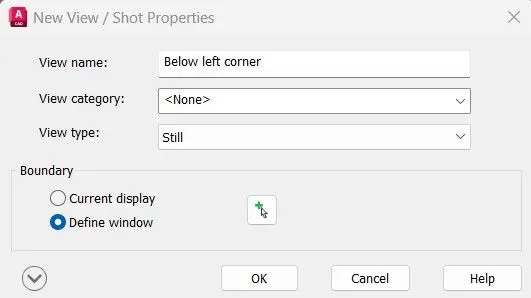

Click on NEW VIEW

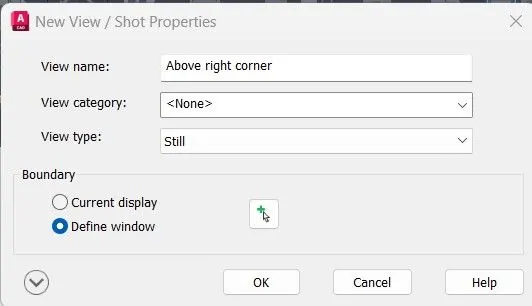

A dialog box is opened

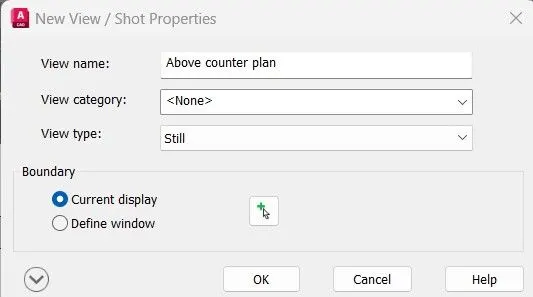

Specify View Name as Above Right Counter
Repeat similarly for other part of the drawing

STEP 3) CREATE VIEW PORT

In the Model Viewports Tool

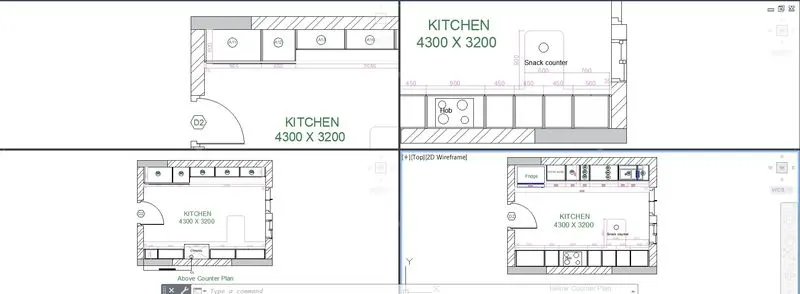

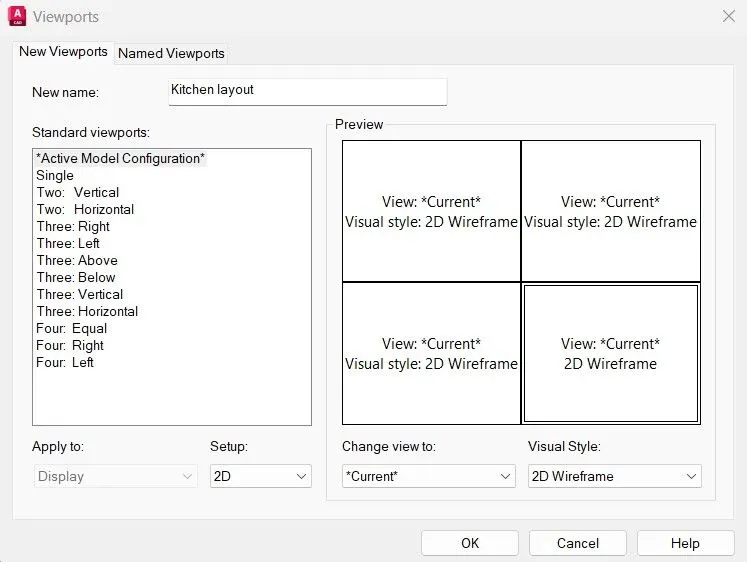

Click to drop down Viewport Configuration and select FOUR: EQUAL
Click on the NAMED, a dialog box open as VIEWPORTS
Go to New Viewports Tab and type new name as Kitchen Layout 1

STEP 5) PAGE SETTING

Enter PAGESETUP command
A dialog box shows of Page Setup Manager
Click on Modify

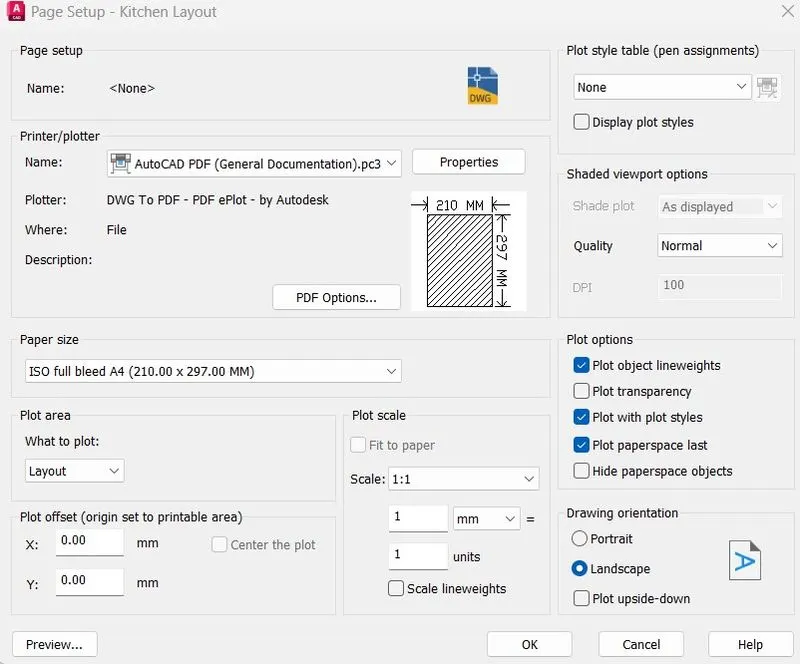

New dialog box shows of Page Setup
Change Printer/Plotter name as AUTOCAD PDF (General Documentation).pc3
Change page size as ISO A4 (297.00 X 210.00 MM)
Click OK and click CLOSE

STEP 6) INSERT DRAWING

Select to delete existing drawing in current page
Set current layer as 0 from layer property

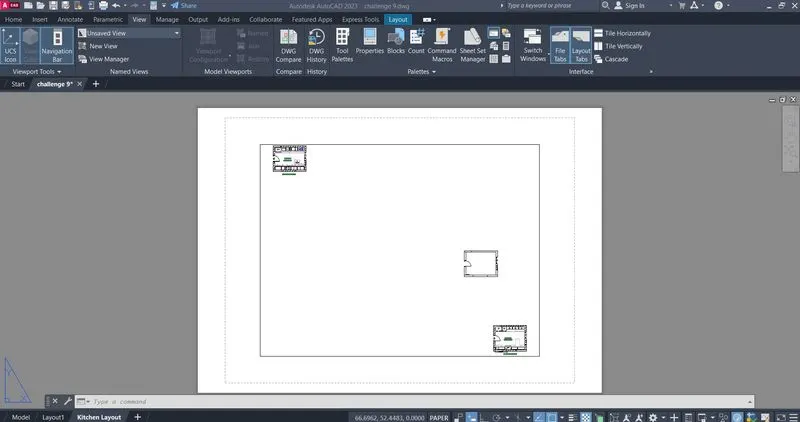

From the Layout ribbon go to Layout Viewports Tool and click on the INSERT VIEW icon

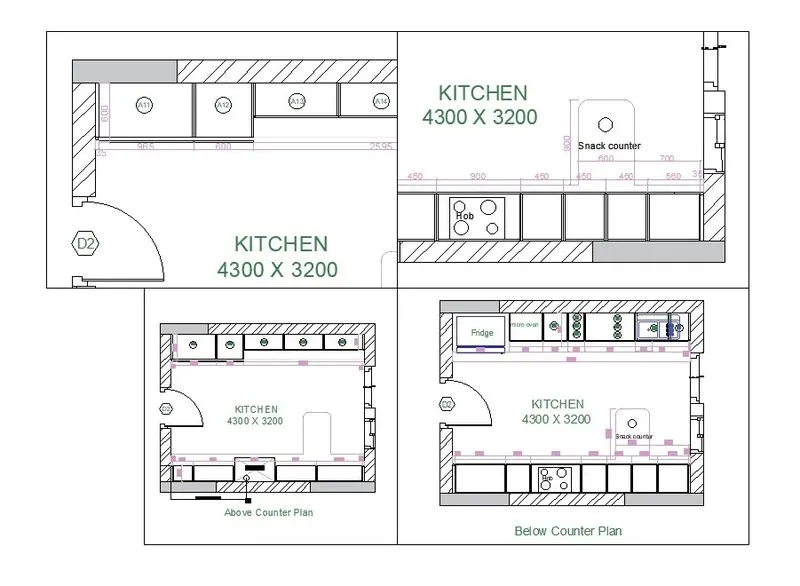

Click on the Above Right Counter and place in the sheet
Similarly click on the other plan and place in sheet
Resize the viewports as required
Enter MS for Model Space or click model form the status bar
Click the Plan and pan to adjust the viewport
Simlarly for the other viewport
After that Lock the viewports

STEP 7) LAYER COLOUR and TEXT

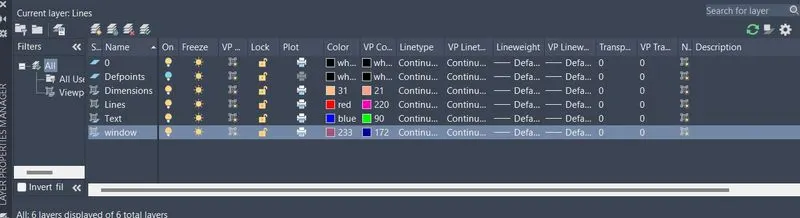

Click the Above Right Counter view port and go to layer property change the VP (View Port) colours for different member
Similarly for the other Viewport
Enter PS command for Page Layout
Enter MT command for Multiline Text change text height then specify name

STEP 8) PLOT

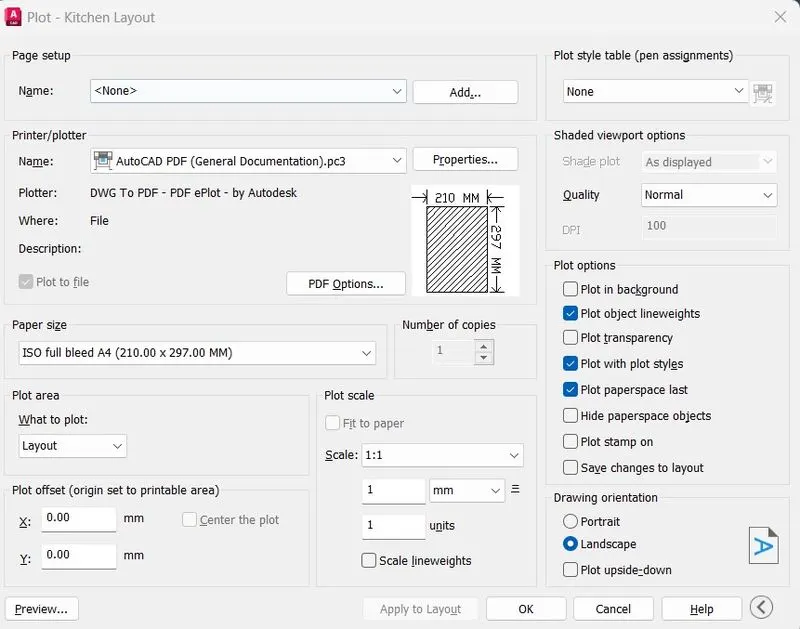

Click on Plot icon or enter command Plot
Ensure printer/plotter set as AUTOCAD PDF (General Documentation).pc3 click on OK
Browse to file destination and save the PDF file

RESULT:

To follow the above procedure and obtained the final result

3. Create a layout of the section created in Challenges 9. Use scale as mentioned in the Figure. Use MV command create multiple viewports. Take a plot.

AIM: To create Kitchen layout of the challenge 9 as shown in the figure

INTRODUCTION: The Kitchen layout is created in AutoCAD. The paper size taken A4 and plot to save the PDF. Procedures explained with the diagram and the final result is given

PROCEDURE:

STEP 1) MODEL FOR DRAWING

Open week 10 challenge in AutoCAD

STEP 2) CREATE NEW VIEW

Zoom the Section which is cover entire screen
From VIEW ribbon
In the NAMED VIEWS tool
Click on NEW VIEW
A dialog box is opened

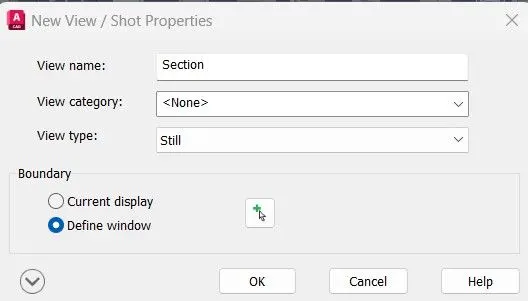

Specify View Name as section
Repeat similarly for other part of the drawing

STEP 3) CREATE VIEW PORT

In the Model Viewports Tool

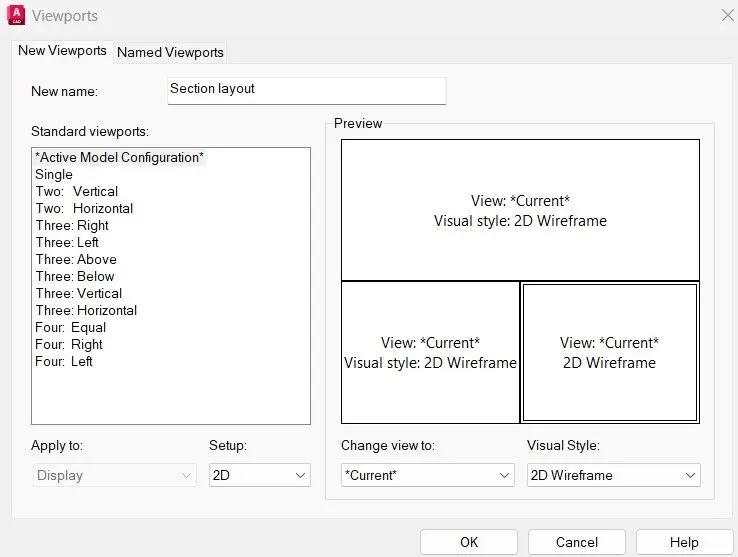

Click to drop down Viewport Configuration and select THREE: ABOVE
Click on the NAMED, a dialog box open as VIEWPORTS
Go to New Viewports Tab and type new name as Section Layout

STEP 4) CREATE LAYOUT

Enter Layout command
Click on New option
A model tab is added
Right click on the new model tab to rename as Section Layout

STEP 5) PAGE SETTING

Enter PAGESETUP command
A dialog box shows of Page Setup Manager
Click on Modify
New dialog box shows of Page Setup
Change Printer/Plotter name as AUTOCAD PDF (General Documentation).pc3

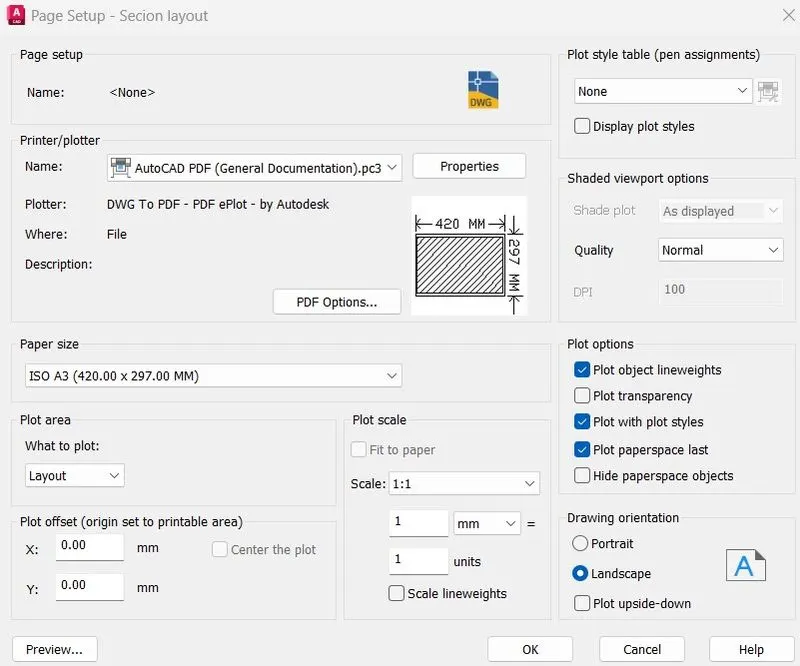

Change page size as ISO A3 (420.00 X 297.00 MM)
Click OK and click CLOSE

STEP 6) INSERT DRAWING

Select to delete existing drawing in current page
Set current layer as 0 from layer property
From the Layout ribbon go to Layout Viewports Tool and click on the INSERT VIEW icon

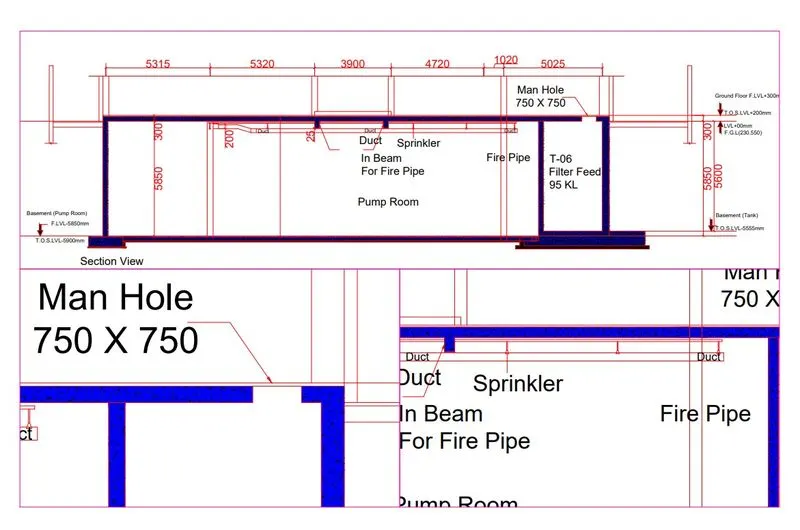

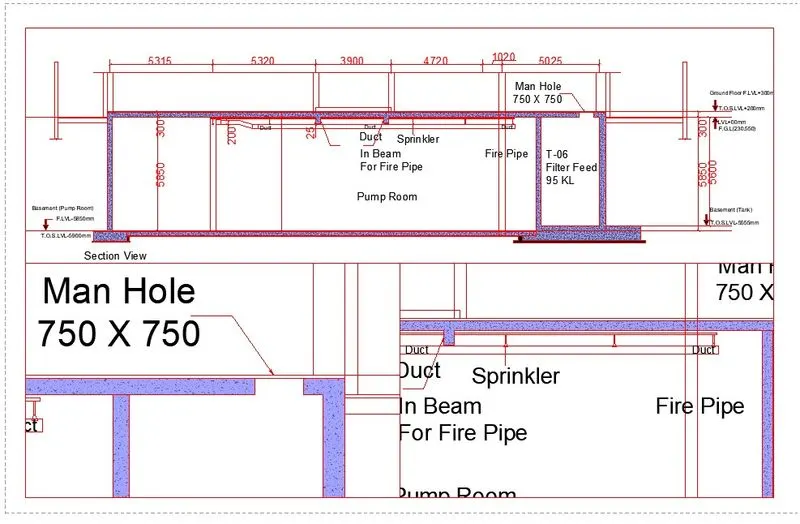

Click on the Section and place in the sheet

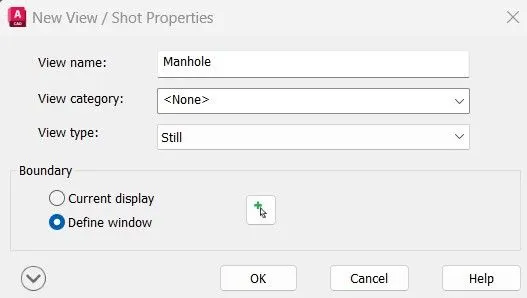

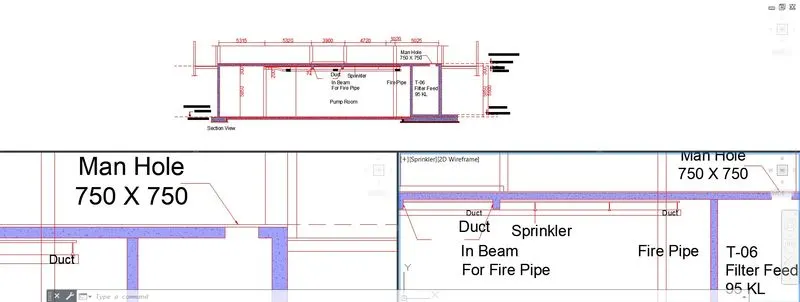

Similarly click on the Manhole and Sprinkle and place in sheet
Click on section viewport, Unlock the viewport from status bar and change scale as 1:100
Click on Manhole viewport, Unlock the viewport from status bar and change scale as 1:30
Similarly for the Sprinkler viewport change the scale as 1:30
Enter MS for Model Space or click model form the status bar
Click the section and pan to adjust the viewport
Simlarly for the other viewport
After that Lock the viewports

STEP 7) LAYER COLOUR and TEXT

Click the Section view port and go to layer property change the VP (View Port) colours for different member
Similarly for the other Viewport
Enter PS command for Page Layout
Enter MT command for Multiline Text change text height then specify name

STEP 8) PLOT

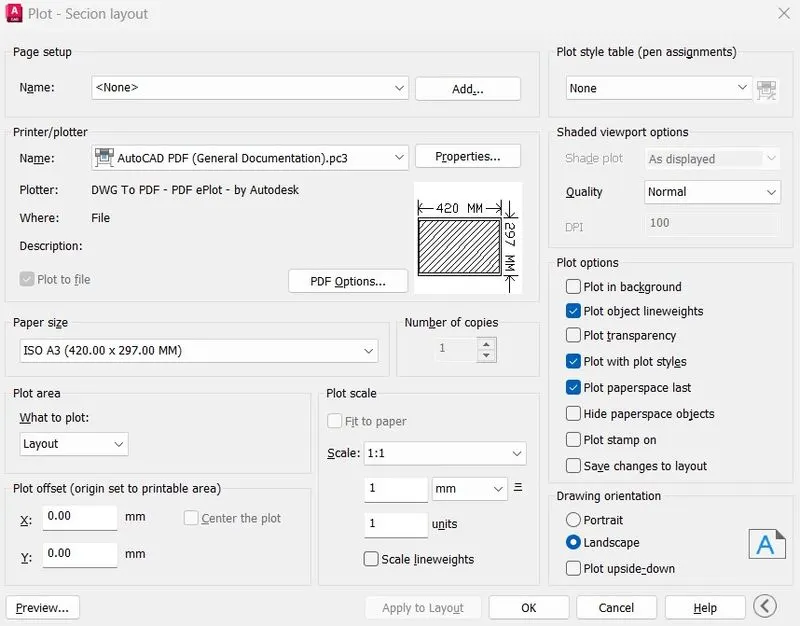

Click on Plot icon or enter command Plot
Ensure printer/plotter set as AUTOCAD PDF (General Documentation).pc3 click on OK

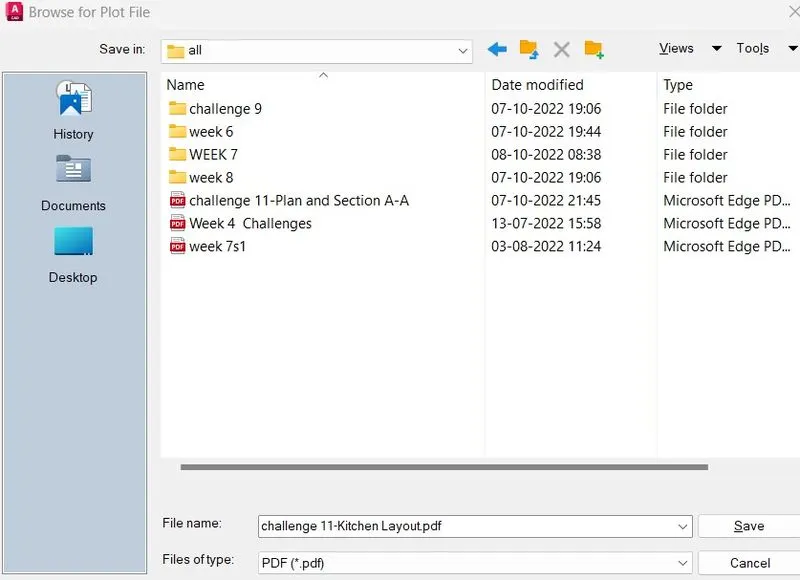

Browse to file destination and save the PDF file

RESULT:

To follow the above procedure and obtained the final result
