Creation of Multiple viewports, Scaling the drawing and setting in Template in AutoCad

1.

AIM

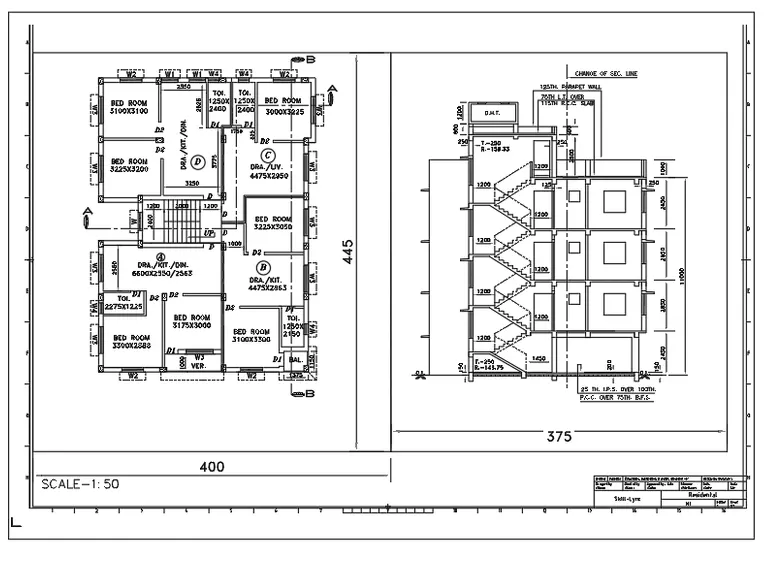

TO CRETAE LAYOUT OF PLAN AND SECTION OF THE PROJECT IN CHALLENGE 7 AND CREATE THE LAYOUT USING THE M-Arch TEMPLATE USING THE GIVEN DIMENSIONS AND PROPER SCALE.

STEPS-

Open the drawing of plan and section which is already drawn in the challenge no 7.
In the left corner of the auto cad there is the tab named model. In the right side of the model tab there is a tab named layout
Left click on the layout and create new layout from the option FROM TEMPLATE.. and select M arch template select ISO A1 layout.
Then open the new layout created.
Rename the layout as plan and section.
Now enter command page setup manager.
A new window of page setup will be opened.
Modify the layout.
Select printer as DWG to PDF.
Elect paper size as A1. And click OK.
Now enter the command as MS in the command box and draw rectangles of 440 X 445 and another of 375 X 445.
Now enter the command MV and select both the rectangles.
Set the scale as 1:50 for the drawing.

RESULT:

PROBLEM-2

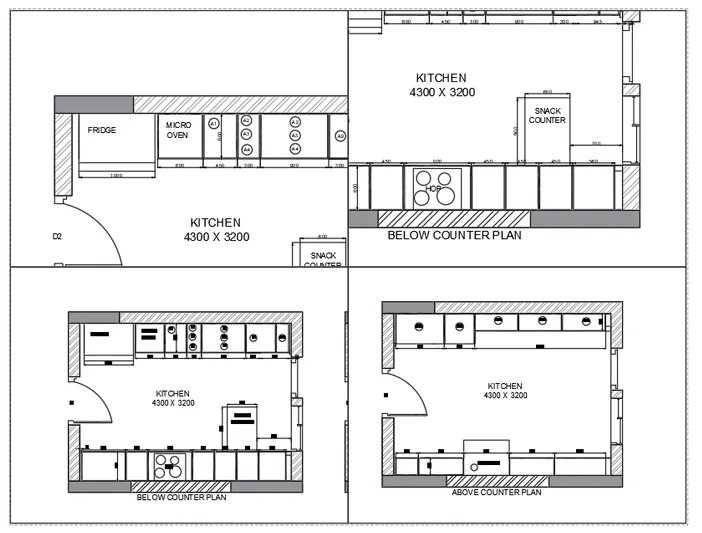

AIM- TO CREATE A KITCHEN LAYOUT DRAWN IN CHALLENGE 9.

PROCEDURE:

Open the drawing of Kitchen which is already drawn in the challenge 9.
In the left corner of the auto cad there is the tab named model. In the right side of the model tab there is a tab named layout.
Left click on the layout and create new layout.
Then open the new layout created.
Rename the layout as kitchen layout.
Now enter command page setup manager.
A new window of page setup will be opened.
Modify the layout.
Select printer as DWG to PDF.
Elect paper size as A4. And click OK.
Enter the command as VIEWPORTS.
A window of view ports will be appearing on the screen.
Select the viewport type as four equal and enter ok.
Then specify the first corner point at the left top of the page and drag to another corner point in the right bottom of the page.
Using the MS command zoom the views as desired of below and above counter plan.

RESULT:

PROBLEM-3.

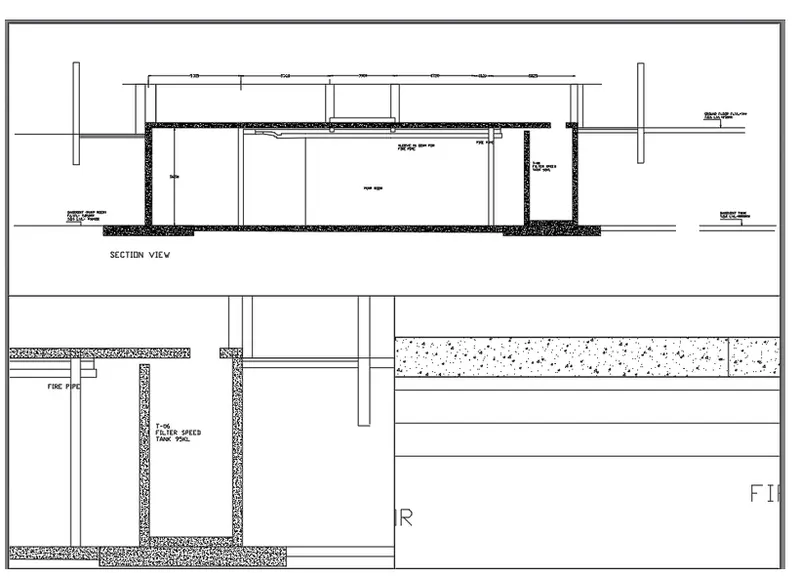

AIM- TO CREATE LAYOUT OF SECTION CREATED IN CHALLENGE 9 AND CREATING MULTIPLE VIEWPORTS.

PROCEDURE:

Open the drawing of INDUSTRIAL SECTION which is already drawn in the challenge 9.
In the left corner of the auto cad there is the tab named model. In the right side of the model tab there is a tab named layout.
Left click on the layout and create new layout.
Then open the new layout created.
Rename the layout as section layout.
Now enter command page setup manager.
A new window of page setup will be opened.
Modify the layout.
Select printer as DWG to PDF.
Elect paper size as A4. And click OK.
Enter the command as VIEWPORTS.
A window of view ports will be appearing on the screen.
Select the viewport type as THREE; ABOVE and enter ok.
Then specify the first corner point at the left top of the page and drag to another corner point in the right bottom of the page.
Using the MS command zoom the views as desired of the section.

RESULT:
