Creation of geometries by Coordinate system methods using AutoCad

AIM

TO CREATE THE GEOMETRIES FROM P1 TO P2 USING ALL THE COORDINATES SYSTEM METHODS

INTRODUCTION

THERE ARE FOUR TYPES OF CO0ORDINATES SYSTEMS.

# ABSOLUTE COORDINATE SYSTEM

# RELATIVE RECTANGULAR CO-ORDINATE SYSYTEM

# RELATIVE POLAR COORDINATE SYSTEM

# DIRECT ENTRY METHOD SYSTEM

ABSOLUTE COORDINATE SYSTEM

ABSOLUTE COORDINATES USES THE CARTESIAN SYSTEM TO SPECIFY A POSITION IN THE X, Y, AND (IF NEEDED) Z AXES TO LOCATE A POINT FROM THE 0-X, 0-Y, AND 0-Z (0,0,0) POINT. TO LOCATE A POINT USING THE ABSOLUTE COORDINATE SYSTEM, TYPE THE X-VALUE, Y-VALUE, AND, IF NEEDED, THE Z-VALUE SEPARATED BY COMMAS WITH NO SPACES

RELATIVE RECTANGULAR CO-ORDINATE SYSYTEM

AFTER FIRST POINTS ENTERED, YOUR NEXT POINTS CAN BE ENTERED BY SPECIFYING THE NEXT COORDINATE COMPARE/RELATIVE FROM THE FIRST POINTS. THE RELATIVE COORDINATE STARTED WITH SYMBOL “@” TELL AUTOCAD IT WAS A RELATIVE COORDINATES. USING RELATIVE COORDINATE, POINTS ENTERED BY TYPING @X, Y [ENTER].

RELATIVE POLAR COORDINATE SYSTEM

POLAR COORDINATES USED WHEN YOU NEED TO DRAW THE NEXT POINTS AT SPECIFY ANGLE. POLAR COORDINATES SYSTEM IN AUTOCAD SPECIFIES DISTANCE LENGTH AT WHICH ANGLE. USING POLAR COORDINATE, POINTS ENTERED BY TYPING @DISTANCE

DIRECT ENTRY METHOD SYSTEM

THIS IS THE MOST COMMON AND EASIEST SYSTEM USED FOR DRAFTING IN AUTOCAD. VALUES ARE PROVIDED THROUGH KEYBOARD AND DIRECTION IS GUIDED THROUGH THE MOUSE.

AIM

TO CREATE GEOMETRY OF GIVEN PICTURE IN AUTOCAD USING THE ALL COORDINATES SYSTEM METHODS

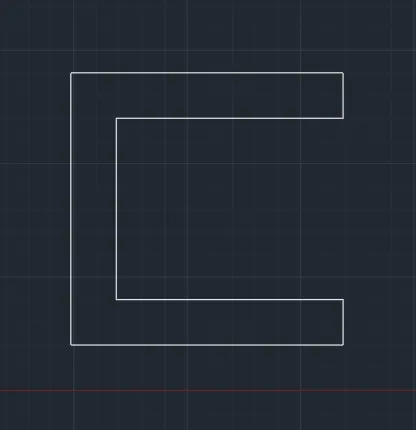

P-1

USING ABSOLUTE COORDINATE SYSTEM

• ENTER LINE IN COMMAND BAR
• SPECIFY FIRST POINT AS 2,1
• SPECIFY NEXT POINT AS 8,1
• SPECIFY NEXT POINT AS 8,2
• SPECIFY NEXT POINT AS 3,2
• SPECIFY NEXT POINT AS 3,6
• SPECIFY NEXT POINT AS 8,6
• SPECIFY NEXT POINT AS 8,7
• SPECIFY NEXT POINT AS 2,7
• SPECIFY LAST POINT AS 2,1 OR PRESS CLOSE

USING RELATIVE COORDINATE SYSTEM

• ENTER LINE IN COMMAND BAR
• SPECIFY FIRST POINT AS 2,1
• SPECIFY NEXT POINT AS @6,0
• SPECIFY NEXT POINT AS @0,1
• SPECIFY NEXT POINT AS @-5,0
• SPECIFY NEXT POINT AS @0,4
• SPECIFY NEXT POINT AS @5,0
• SPECIFY NEXT POINT AS @0,1
• SPECIFY NEXT POINT AS @-6,0
• SPECIFY LAST POINT AS @0,-6 OR PRESS CLOSE

USING POLAR COORDINATE SYSTEM

• ENTER LINE IN COMMAND BAR
• SPECIFY FIRST POINT AS 2,1
• SPECIFY NEXT POINT AS @6<0
• SPECIFY NEXT POINT AS @1<90
• SPECIFY NEXT POINT AS @5<180
• SPECIFY NEXT POINT AS @4<90
• SPECIFY NEXT POINT AS @5<0
• SPECIFY NEXT POINT AS @1<90
• SPECIFY NEXT POINT AS @6<180
• SPECIFY LAST POINT AS @6< 270 OR PRESS CLOSE

USING DIRECT DISTANCE ENTRY

• ENTER LINE IN COMMAND BAR
• SPECIFY FIRST POINT AS 2,1
• SPECIFY NEXT POINT AS 6 BY MOVING CURSOR IN EAST DIRECTION
• SPECIFY NEXT POINT AS 1 BY MOVING CURSOR IN NORTH DIRECTION
• SPECIFY NEXT POINT AS 5 BY MOVING CURSOR IN WEST DIRECTION
• SPECIFY NEXT POINT AS 4 BY MOVING CURSOR IN NORTH DIRECTION
• SPECIFY NEXT POINT AS 5 BY MOVING CURSOR IN EAST DIRECTION
• SPECIFY NEXT POINT AS 1 BY MOVING CURSOR IN NORTH DIRECTION
• SPECIFY NEXT POINT AS 6 BY MOVING CURSOR IN WEST DIRECTION
• SPECIFY NEXT POINT AS 6 BY MOVING CURSOR IN SOUTH DIRECTION OR PRESS CLOSE.

  RESULT



P-2

USING ABSOLUTE COORDINATE SYSTEM

• ENTER LINE IN COMMAND BAR
• SPECIFY FIRST POINT AS 2,1
• SPECIFY NEXT POINT AS 5,1
• SPECIFY NEXT POINT AS 5,5
• SPECIFY NEXT POINT AS 6,5
• SPECIFY NEXT POINT AS 6,1
• SPECIFY NEXT POINT AS 9,1
• SPECIFY NEXT POINT AS 7,8
• SPECIFY NEXT POINT AS 4,8
• SPECIFY LAST POINT AS 2,1 OR PRESS CLOSE

USING RELATIVE COORDINATE SYSTEM

• ENTER LINE IN COMMAND BAR
• SPECIFY FIRST POINT AS 2,1
• SPECIFY NEXT POINT AS @3,0
• SPECIFY NEXT POINT AS @0,4
• SPECIFY NEXT POINT AS @1,0
• SPECIFY NEXT POINT AS @0,-4
• SPECIFY NEXT POINT AS @3,0
• SPECIFY NEXT POINT AS @-2,7
• SPECIFY NEXT POINT AS @-3,0
• SPECIFY LAST POINT AS @-2,-7 OR PRESS CLOSE

USING POLAR COORDINATE SYSTEM

• ENTER LINE IN COMMAND BAR
• SPECIFY FIRST POINT AS 2,1
• SPECIFY NEXT POINT AS @3<0
• SPECIFY NEXT POINT AS @4<90
• SPECIFY NEXT POINT AS @1<0
• SPECIFY NEXT POINT AS @4<270
• SPECIFY NEXT POINT AS @3<0 (ASSUME POINT A)
• SPECIFY NEXT POINT AS @7<90 ( ASSUME POINT B)
• SPECIFY NEXT POINT AS @2<180 ( ASSUME POINT C)
• JOIN POINT A AND C USING LINE COMMAND
• ERASE LINE AB AND BC
• SPECIFY NEXT POINT @3<180 FROM POINT C
• CLOSE THE DIAGRAM USING LINE COMMAND

USING DIRECT DISTANCE ENTRY

• ENTER LINE IN COMMAND BAR
• SPECIFY FIRST POINT AS 2,1
• SPECIFY NEXT POINT AS 3 BY MOVING CURSOR IN EAST DIRECTION
• SPECIFY NEXT POINT AS 4 BY MOVING CURSOR IN NORTH DIRECTION
• SPECIFY NEXT POINT AS 1 BY MOVING CURSOR IN EAST DIRECTION
• SPECIFY NEXT POINT AS 4 BY MOVING CURSOR IN SOUTH DIRECTION
• SPECIFY NEXT POINT AS 3 BY MOVING CURSOR IN EAST DIRECTION (ASSUME POINT A)
• SPECIFY NEXT POINT AS 7 BY MOVING CURSOR IN NORTH DIRECTION (ASSUME POINT B)
• SPECIFY NEXT POINT AS 2 BY MOVING CURSOR IN WEST DIRECTION (ASSUME POINT C)
• JOIN POINT A AND C USING LINE COMMAND
• ERASE LINE AB AND BC
• SPECIFY NEXT POINT AS 3 BY MOVING CURSOR IN WEST DIRECTION
• CLOSE THE DIAGRAM USING LINE COMAND

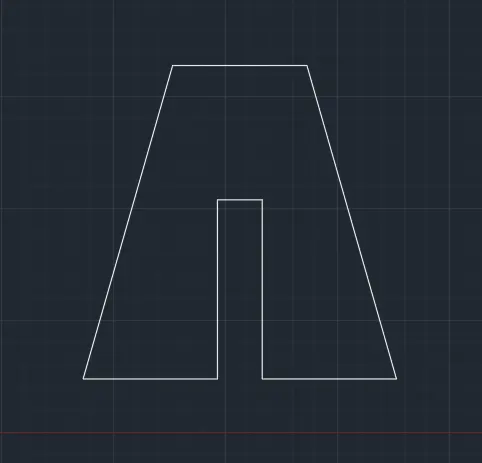

RESULT

P-4

USING ABSOLUTE POINT SYSTEM

• SPECIFY THE COMMAND "L'' FOR THE LINE AND SPECIFY THE POINT FOR STARTING POINT 1 (2,1).
• SPECIFY THE NEXT POINT 2 (3,1)
• SPECIFY THE NEXT POINT 3 (3,5)
• SPECIFY THE NEXT POINT 4 (5,3)
• SPECIFY THE NEXT POINT 5 (7,5)
• SPECIFY THE NEXT POINT 6 (7,1)
• SPECIFY THE NEXT POINT 7 (8,1)
• SPECIFY THE NEXT POINT 8 (8,8)
• SPECIFY THE NEXT POINT 9 (7,8)
• SPECIFY THE NEXT POINT 10 (5,5)
• SPECIFY THE NEXT POINT 11 (3,8)
• SPECIFY THE NEXT POINT 12 (2,8)
• CLICK CLOSE

RELATIVE RECTANGULAR POINT SYSTEM

• SPECIFY THE COMMAND "L'' FOR THE LINE AND SPECIFY THE POINT FOR STARTING POINT 1 (2,1).
• SPECIFY THE NEXT POINT 2 @1,0 .
• SPECIFY THE NEXT POINT 3 @0,4 .
• SPECIFY THE NEXT POINT 4 @2,-2 .
• SPECIFY THE NEXT POINT 5 @2,2 .
• SPECIFY THE NEXT POINT 6 @0,-4 .
• SPECIFY THE NEXT POINT 7 @1,0 .
• SPECIFY THE NEXT POINT 8 @0,7 .
• SPECIFY THE NEXT POINT 9 @-1,0 .
• SPECIFY THE NEXT POINT 10 @-2, -3 .
• SPECIFY THE NEXT POINT 11 @-2,3 .
• SPECIFY THE NEXT POINT 12 @-1,0 .
• CLICK CLOSE

RELATIVE POLAR POINT

• SPECIFY THE COMMAND "L'' FOR THE LINE AND SPECIFY THE POINT FOR STARTING POINT 1 (2,1).
• SPECIFY THE NEXT POINT 2 @1<0 .
• SPECIFY THE NEXT POINT 3 @4<90 .
• SPECIFY THE NEXT POINT 10 @2<0 .
• SPECIFY THE NEXT POINT 4 @2<270 .
• CANCEL THE LINE COMMAND BY PRESSING ENTER.
• NOW USE LINE COMMAND "L" AND JOIN POINT 3 AND POINT 4 AND CANCEL THE LINE COMMAND BY PRESSING ENTER. AND THEN DELETE LINES JOINING FROM POINT 3 TO 10 AND POINT 10 TO 4.
• SPECIFY THE COMMAND "L'' AND SPECIFY THE START POINT 4(5,3) AND SPECIFY THE NEXT POINT 10 @2<90 .
• SPECIFY THE NEXT POINT 5 @2<0 .
• CANCEL THE LINE COMMAND BY PRESSING ENTER.
• NOW USE LINE COMMAND "L" AND JOIN POINT 4 AND POINT 5 AND CANCEL THE LINE COMMAND BY PRESSING ENTER. AND DELETE LINES JOINING FROM POINT 4 TO 10 AND POINT 10 TO 5.
• SPECIFY THE COMMAND "L" AND SPECIFY THE START POINT 5(7,5) AND SPECIFY THE NEXT POINT 6 @4<270 .
• SPECIFY THE NEXT POINT 7 @1<0 .
• SPECIFY THE NEXT POINT 8 @7<90 .
• SPECIFY THE NEXT POINT 9 @1<180 .
• SPECIFY THE NEXT POINT 5 @3<270 .
• SPECIFY THE NEXT POINT 10 @2<180 .
• CANCEL THE LINE COMMAND BY PRESSING ENTER.
• NOW USE LINE COMMAND "L" AND JOIN POINT 9 AND POINT 10 AND CANCEL THE LINE COMMAND BY PRESSING ENTER. AND DELETE LINES JOINING FROM POINT 9 TO 5 AND POINT 5 TO 10.
• SPECIFY THE COMMAND "L" AND SPECIFY THE START POINT 10(5,5) AND SPECIFY THE NEXT POINT 3 @2<180 .
• SPECIFY THE NEXT POINT 11 @3<90 .
• CANCEL THE LINE COMMAND BY PRESSING ENTER.
• NOW USE LINE COMMAND "L" AND JOIN POINT 10 AND POINT 11 AND CANCEL THE LINE COMMAND BY PRESSING ENTER. AND DELETE LINES JOINING FROM POINT 10 TO 3 AND POINT 3 TO 11.
• SPECIFY THE COMMAND "L" SPECIFY THE START POINT 11(3,8) AND SPECIFY THE NEXT POINT 12 @1<180 .
• SPECIFY THE NEXT POINT 1 @7<270 AND CANCEL THE LINE COMMAND BY PRESSING ENTER.

DIRECT DISTANCE ENTRY

• SPECIFY THE COMMAND "L'' FOR THE LINE AND SPECIFY THE COORDINATE FOR STARTING POINT 1 (2,1).
• SPECIFY THE LENGTH 1 IN COMMAND BOX TO +VE X-AXIS FOR POINT 2.
• SPECIFY THE LENGTH 4 IN COMMAND BOX TO +VE Y-AXIS FOR POINT 3.
• SPECIFY THE LENGTH 2 IN COMMAND BOX TO +VE X-AXIS FOR POINT 10 AND THEN SPECIFY THE LENGTH 2 IN COMMAND BOX TO -VE Y-AXIS FOR POINT 4.
• CANCEL THE COMMAND BY PRESSING ENTER AND THEN SPECIFY THE COMMAND "L" AND JOIN POINT 3 AND POINT 4.
• CANCEL THE COMMAND BY PRESSING ENTER AND DELETE THE OTHER LINES JOINING FROM POINT 3 TO 10 AND POINT 10 TO 4.
• SPECIFY THE COMMAND "L'' SPECIFY THE START POINT 4(5,3) AND SPECIFY THE LENGTH 2 IN COMMAND BOX TO +VE Y-AXIS FOR POINT 10 AND SPECIFY THE LENGTH 2 IN COMMAND BOX TO +VE X-AXIS FOR POINT 5.
• CANCEL THE COMMAND BY PRESSING ENTER AND THEN SPECIFY THE COMMAND "L" AND JOIN POINT 4 AND POINT 5.
• CANCEL THE LINE COMMAND BY PRESSING ENTER. AND DELETE LINES JOINING FROM POINT 4 TO 10 AND POINT 10 TO 5.
• SPECIFY THE COMMAND "L'' SPECIFY THE START POINT 5(7,5) AND SPECIFY THE LENGTH 4 IN COMMAND BOX TO -VE Y-AXIS FOR POINT 6.
• SPECIFY THE LENGTH 1 IN COMMAND BOX TO +VE X-AXIS FOR POINT 7.
• SPECIFY THE LENGTH 7 IN COMMAND BOX TO +VE Y-AXIS FOR POINT 8.
• SPECIFY THE LENGTH 1 IN COMMAND BOX TO -VE X-AXIS FOR POINT 9.
• SPECIFY THE LENGTH 3 IN COMMAND BOX TO -VE Y-AXIS FOR POINT 5 AND SPECIFY THE LENGTH 2 IN COMMAND BOX TO -VE X-AXIS FOR POINT 10.
• CANCEL THE LINE COMMAND BY PRESSING ENTER.
• NOW USE LINE COMMAND "L" AND JOIN POINT 9 AND POINT 10 AND CANCEL THE LINE COMMAND BY PRESSING ENTER. AND DELETE LINES JOINING FROM POINT 9 TO 5 AND POINT 5 TO 10.
• SPECIFY THE COMMAND "L'' SPECIFY THE START POINT 10(5,5) AND SPECIFY THE LENGTH 2 IN COMMAND BOX TO -VE X-AXIS FOR POINT 3 AND SPECIFY THE LENGTH 3 IN COMMAND BOX TO +VE Y-AXIS FOR POINT 11.
• CANCEL THE LINE COMMAND BY PRESSING ENTER.
• NOW USE LINE COMMAND "L" AND JOIN POINT 10 AND POINT 11 AND CANCEL THE LINE COMMAND BY PRESSING ENTER. AND DELETE LINES JOINING FROM POINT 10 TO 3 AND POINT 3 TO 11.
• SPECIFY THE COMMAND "L" SPECIFY THE START POINT 11(3,8) AND SPECIFY THE LENGTH 1 IN COMMAND BOX TO -VE X-AXIS FOR POINT 12.
• SPECIFY THE LENGTH 7 IN COMMAND BOX TO -VE Y-AXIS FOR POINT 1 AND CANCEL THE LINE COMMAND BY PRESSING ENTER.

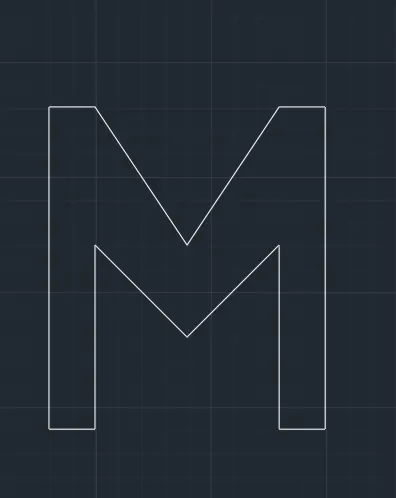

RESULT

P-5

USING ABSOLUTE COORDINATE SYSTEM

• ENTER LINE IN COMMAND BAR
• SPECIFY FIRST POINT AS 2,1
• SPECIFY NEXT POINT AS 10,1
• SPECIFY NEXT POINT AS 10,7
• SPECIFY NEXT POINT AS 2,7
• SPECIFY NEXT POINT AS 2,1 OR PRESS CLOSE
• SPECIFY NEXT POINT AS 3,2
• SPECIFY NEXT POINT AS 3,5
• SPECIFY NEXT POINT AS 5,5
• SPECIFY NEXT POINT AS 5,2
• SPECIFY NEXT POINT AS 3,2 OR PRESS CLOSE
• SPECIFY NEXT POINT AS 6,2
• SPECIFY NEXT POINT AS 6,5
• SPECIFY NEXT POINT AS 8,5
• SPECIFY NEXT POINT AS 8,2
• SPECIFY NEXT POINT AS 6,2 OR CLOSE

RELATIVE RECTANGULAR POINT SYSTEM

• SPECIFY THE COMMAND "L'' FOR THE LINE AND SPECIFY THE POINT FOR STARTING POINT 1 (2,1).
• SPECIFY THE NEXT POINT 2 @1,0 .
• SPECIFY THE NEXT POINT 3 @0,7 .
• SPECIFY THE NEXT POINT 4 @5,0 .
• SPECIFY THE NEXT POINT 5 @0,-6 .
• SPECIFY THE NEXT POINT 6 @-3,0 .
• SPECIFY THE NEXT POINT 7 @0,-1 .
• SPECIFY THE NEXT POINT 8 @4,0 .
• SPECIFY THE NEXT POINT 9 @0,8 .
• SPECIFY THE NEXT POINT 10 @-7,0 .
• CLICK CLOSE

RELATIVE POLAR POINT

• SPECIFY THE COMMAND "L'' FOR THE LINE AND SPECIFY THE POINT FOR STARTING POINT 1 (2,1).
• SPECIFY THE NEXT POINT 2 @1<0 .
• SPECIFY THE NEXT POINT 3 @7<90 .
• SPECIFY THE NEXT POINT 4 @5<0 .
• SPECIFY THE NEXT POINT 5 @6<270 .
• SPECIFY THE NEXT POINT 6 @3<180 .
• SPECIFY THE NEXT POINT 7 @1<270 .
• SPECIFY THE NEXT POINT 8 @4<0 .
• SPECIFY THE NEXT POINT 9 @8<90 .
• SPECIFY THE NEXT POINT 10 @7<180 .
• CLICK CLOSE

DIRECT DISTANCE ENTRY

• SPECIFY THE COMMAND "L'' FOR THE LINE AND SPECIFY THE COORDINATE FOR STARTING POINT 1 (2,1).
• SPECIFY THE LENGTH 1 TO +VE X-AXIS FOR POINT 2.
• SPECIFY THE LENGTH 7 TO +VE Y-AXIS FOR POINT 3.
• SPECIFY THE LENGTH 5 TO +VE X-AXIS FOR POINT 4.
• SPECIFY THE LENGTH 6 TO -VE Y-AXIS FOR POINT 5.
• SPECIFY THE LENGTH 3 TO -VE X-AXIS FOR POINT 6.
• SPECIFY THE LENGTH 1 TO -VE Y-AXIS FOR POINT 7.
• SPECIFY THE LENGTH 4 TO +VE X-AXIS FOR POINT 8.
• SPECIFY THE LENGTH 8 TO +VE Y-AXIS FOR POINT 9.
• SPECIFY THE LENGTH 7 TO -VE X-AXIS FOR POINT 10.
• CLICK CLOSE

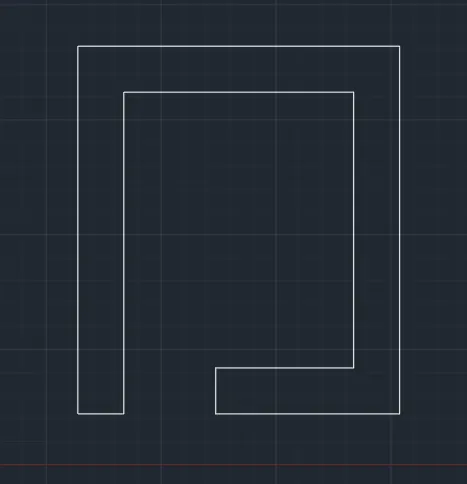

RESULT

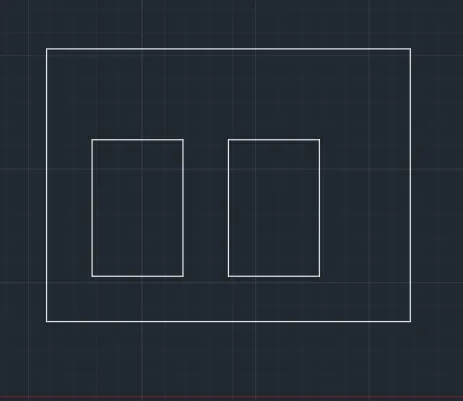

P-7

ABSOLUTE POINT SYSTEM

• SPECIFY THE COMMAND "L'' FOR THE LINE AND SPECIFY THE POINT FOR STARTING POINT 1 (2,1).
• SPECIFY THE NEXT POINT 2 (10,1) .
• SPECIFY THE NEXT POINT 3 (10,7) .
• SPECIFY THE NEXT POINT 4 (2,7) .
• CLICK CLOSE
• SPECIFY THE COMMAND "L'' FOR THE LINE AND SPECIFY THE POINT 5 (3,2).
• SPECIFY THE NEXT POINT 6 (5,2) .
• SPECIFY THE NEXT POINT 7 (5,5) .
• SPECIFY THE NEXT POINT 8 (3,5) .
• CLICK "CLOSE" ON THE COMMAND BOX.
• SPECIFY THE COMMAND "L'' FOR THE LINE AND SPECIFY THE POINT 9 (6,2).
• SPECIFY THE NEXT POINT 10 (8,2) .
• SPECIFY THE NEXT POINT 11 (8,5) .
• SPECIFY THE NEXT POINT 12 (6,5) .
• CLICK CLOSE

RELATIVE RECTANGULAR POINT SYSTEM

• SPECIFY THE COMMAND "L'' FOR THE LINE AND SPECIFY THE POINT 1 (2,1).
• SPECIFY THE NEXT POINT 2 @8,0 .
• SPECIFY THE NEXT POINT 3 @0,6 .
• SPECIFY THE NEXT POINT 4 @-8,0 .
• CLICK CLOSE
• SPECIFY THE COMMAND "L'' FOR THE LINE AND SPECIFY THE POINT 5 (3,2).
• SPECIFY THE NEXT POINT 6 @2,0 .
• SPECIFY THE NEXT POINT 7 @0,3 .
• SPECIFY THE NEXT POINT 8 @-2,0 .
• CLICK CLOSE
• SPECIFY THE COMMAND "L'' FOR THE LINE AND SPECIFY THE POINT 9 (6,2).
• SPECIFY THE NEXT POINT 10 @2,0 .
• SPECIFY THE NEXT POINT 11 @0,3 .
• SPECIFY THE NEXT POINT 12 @-2,0 .
• CLICK CLOSE

RELATIVE POLAR POINT

• SPECIFY THE COMMAND "L'' FOR THE LINE AND SPECIFY THE POINT 1 (2,1).
• SPECIFY THE NEXT POINT 2 @8<0 .
• SPECIFY THE NEXT POINT 3 @6<90 .
• SPECIFY THE NEXT POINT 4 @8<180 .
• CLICK "CLOSE" ON THE COMMAND BOX.
• SPECIFY THE COMMAND "L'' FOR THE LINE AND SPECIFY THE POINT 5 (3,2).
• SPECIFY THE NEXT POINT 6 @2<0 .
• SPECIFY THE NEXT POINT 7 @3<90 .
• SPECIFY THE NEXT POINT 8 @2<180 .
• CLICK "CLOSE" ON THE COMMAND BOX.
• SPECIFY THE COMMAND "L'' FOR THE LINE AND SPECIFY THE POINT 9 (6,2).
• SPECIFY THE NEXT POINT 10 @2<0 .
• SPECIFY THE NEXT POINT 11 @3<90 .
• SPECIFY THE NEXT POINT 12 @2<180 .
• CLICK CLOSE

DIRECT DISTANCE ENTRY

• SPECIFY THE POINT "L'' FOR THE LINE AND SPECIFY THE COORDINATE FOR STARTING POINT 1 (2,1).
• SPECIFY THE LENGTH 8 TO +VE X-AXIS FOR POINT 2.
• SPECIFY THE LENGTH 6 TO +VE Y-AXIS FOR POINT 3.
• SPECIFY THE LENGTH 8 TO -VE X-AXIS FOR POINT 4.
• CLICK "CLOSE" ON THEPOINT BOX.
• SPECIFY THE POINT "L'' FOR THE LINE AND SPECIFY THE COORDINATE FOR POINT 5 (3,2).
• SPECIFY THE LENGTH 2 TO +VE X-AXIS FOR POINT 6.
• SPECIFY THE LENGTH 3 TO +VE Y-AXIS FOR POINT 7.
• SPECIFY THE LENGTH 2 TO -VE X-AXIS FOR POINT 8.
• CLICK "CLOSE" ON THEPOINT BOX.
• SPECIFY THEPOINT "L'' FOR THE LINE AND SPECIFY THE COORDINATE FOR POINT 9 (6,2).
• SPECIFY THE LENGTH 2 TO +VE X-AXIS FOR POINT 10.
• SPECIFY THE LENGTH 3 TO +VE Y-AXIS FOR POINT 11.
• SPECIFY THE LENGTH 2 TO -VE X-AXIS FOR POINT 12.
• CLICK CLOSE

RESULT

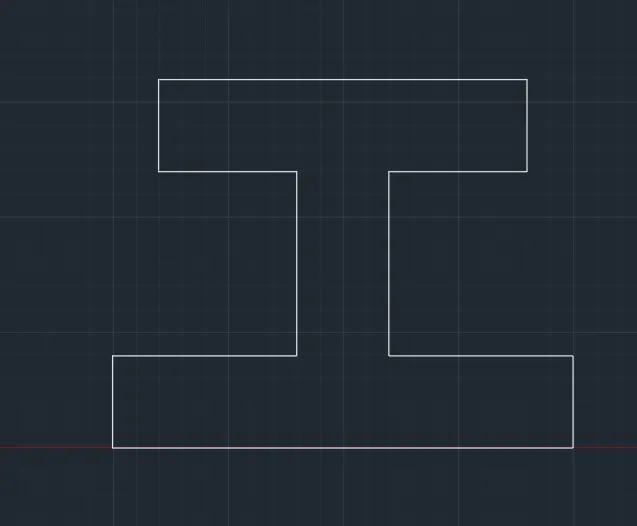

P-8

ABSOLUTE POINT SYSTEM

• SPECIFY THE COMMAND "L'' FOR THE LINE AND SPECIFY THE STARTING POINT 1 (0,0).
• SPECIFY THE NEXT POINT 2 (10,0) .
• SPECIFY THE NEXT POINT 3 (10,2) .
• SPECIFY THE NEXT POINT 4 (6,2) .
• SPECIFY THE NEXT POINT 5 (6,6) .
• SPECIFY THE NEXT POINT 6 (9,6) .
• SPECIFY THE NEXT POINT 7 (9,8) .
• SPECIFY THE NEXT POINT 8 (1,8) .
• SPECIFY THE NEXT POINT 9 (1,6) .
• SPECIFY THE NEXT POINT 10 (4,6) .
• SPECIFY THE NEXT POINT 11 (4,2) .
• SPECIFY THE NEXT POINT 12 (0,2) .
• CLICK CLOSE

RELATIVE RECTANGULAR POINT SYSTEM

• SPECIFY THE COMMAND "L'' FOR THE LINE AND SPECIFY THE STARTING POINT 1 (0,0).
• SPECIFY THE NEXT POINT 2 @10,0 .
• SPECIFY THE NEXT POINT 3 @0,2 .
• SPECIFY THE NEXT POINT 4 @-4,0 .
• SPECIFY THE NEXT POINT 5 @0,4 .
• SPECIFY THE NEXT POINT 6 @3,0 .
• SPECIFY THE NEXT POINT 7 @0,2 .
• SPECIFY THE NEXT POINT 8 @-8,0 .
• SPECIFY THE NEXT POINT 9 @0,-2 .
• SPECIFY THE NEXT POINT 10 @3,0 .
• SPECIFY THE NEXT POINT 11 @0,-4 .
• SPECIFY THE NEXT POINT 12 @-4,0 .
• CLICK CLOSE

RELATIVE POLAR POINT

• SPECIFY THE COMMAND "L'' FOR THE LINE AND SPECIFY THE STARTING POINT 1 (0,0).
• SPECIFY THE NEXT POINT 2 @10<0 .
• SPECIFY THE NEXT POINT 3 @2<90 .
• SPECIFY THE NEXT POINT 4 @4<180 .
• SPECIFY THE NEXT POINT 5 @4<90 .
• SPECIFY THE NEXT POINT 6 @3<0 .
• SPECIFY THE NEXT POINT 7 @2<90 .
• SPECIFY THE NEXT POINT 8 @8<180 .
• SPECIFY THE NEXT POINT 9 @2<270 .
• SPECIFY THE NEXT POINT 10 @3<0 .
• SPECIFY THE NEXT POINT 11 @4<270 .
• SPECIFY THE NEXT POINT 12 @4<180 .
• CLICK CLOSE

DIRECT DISTANCE ENTRY

• SPECIFY THE COMMAND "L'' FOR THE LINE AND SPECIFY THE STARTING POINT 1 (0,0).
• SPECIFY THE LENGTH 10 TO +VE X-AXIS FOR POINT 2.
• SPECIFY THE LENGTH 2 TO +VE Y-AXIS FOR POINT 3.
• SPECIFY THE LENGTH 4 TO -VE X-AXIS FOR POINT 4.
• SPECIFY THE LENGTH 4 TO +VE Y-AXIS FOR POINT 5.
• SPECIFY THE LENGTH 3 TO +VE X-AXIS FOR POINT 6.
• SPECIFY THE LENGTH 2 TO +VE Y-AXIS FOR POINT 7.
• SPECIFY THE LENGTH 8 TO -VE X-AXIS FOR POINT 8.
• SPECIFY THE LENGTH 2 TO -VE Y-AXIS FOR POINT 9.
• SPECIFY THE LENGTH 3 TO +VE X-AXIS FOR POINT 10.
• SPECIFY THE LENGTH 4 TO -VE Y-AXIS FOR POINT 11.
• SPECIFY THE LENGTH 4 TO -VE X-AXIS FOR POINT 12.
• CLICK CLOSE

RESULT

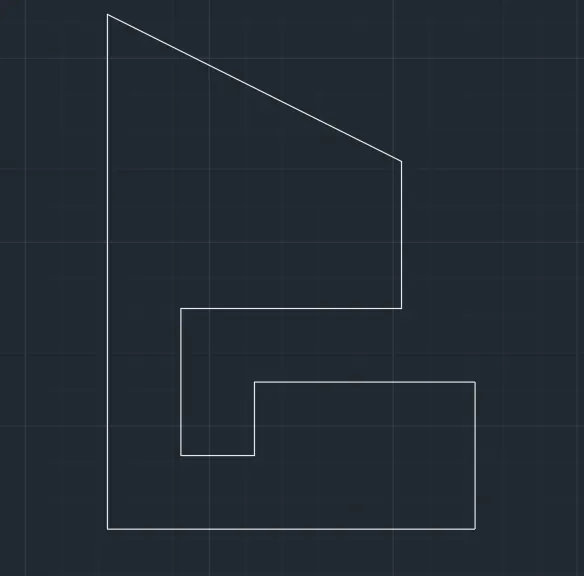

P-9

ABSOLUTE POINT SYSTEM

• SPECIFY THE COMMAND "L'' FOR THE LINE AND SPECIFY THE STARTING POINT 1 (1,1).
• SPECIFY THE NEXT POINT 2 (6,1) .
• SPECIFY THE NEXT POINT 3 (6,3) .
• SPECIFY THE NEXT POINT 4 (3,3) .
• SPECIFY THE NEXT POINT 5 (3,2) .
• SPECIFY THE NEXT POINT 6 (2,2) .
• SPECIFY THE NEXT POINT 7 (2,4) .
• SPECIFY THE NEXT POINT 8 (5,4) .
• SPECIFY THE NEXT POINT 9 (5,6) .
• SPECIFY THE NEXT POINT 10 (1,8) .
• CLICK CLOSE

RELATIVE RECTANGULAR POINT SYSTEM

• SPECIFY THE COMMAND "L'' FOR THE LINE AND SPECIFY THE STARTING POINT 1 (1,1).
• SPECIFY THE NEXT POINT 2 @5,0 .
• SPECIFY THE NEXT POINT 3 @0,2 .
• SPECIFY THE NEXT POINT 4 @-3,0 .
• SPECIFY THE NEXT POINT 5 @0,-1 .
• SPECIFY THE NEXT POINT 6 @-1,0 .
• SPECIFY THE NEXT POINT 7 @0,2 .
• SPECIFY THE NEXT POINT 8 @3,0 .
• SPECIFY THE NEXT POINT 9 @0,2 .
• SPECIFY THE NEXT POINT 10 @-4,2 .
• CLICK CLOSE

RELATIVE POLAR POINT

• SPECIFY THE COMMAND "L'' FOR THE LINE AND SPECIFY THE STARTING POINT 1 (1,1).
• SPECIFY THE NEXT POINT 2 @5<0 .
• SPECIFY THE NEXT POINT 3 @2<90 .
• SPECIFY THE NEXT POINT 4 @3<180 .
• SPECIFY THE NEXT POINT 5 @1<270 .
• SPECIFY THE NEXT POINT 6 @1<180 .
• SPECIFY THE NEXT POINT 7 @2<90 .
• SPECIFY THE NEXT POINT 8 @3<0 .
• SPECIFY THE NEXT POINT 9 @2<90 .
• SPECIFY THE NEXT POINT 11 @2<90 .
• SPECIFY THE NEXT POINT 10 @4<180 .
• CANCEL THE LINE COMMAND BY PRESSING ENTER.
• NOW USE LINE COMMAND "L" AND JOIN POINT 9 AND POINT 10 AND CANCEL THE LINE COMMAND BY PRESSING ENTER. AND DELETE LINES JOINING FROM POINT 9 TO 11 AND POINT 11 TO 10.
• SPECIFY THE COMMAND "L'' AND SPECIFY THE START POINT 10(1,8) AND SPECIFY THE NEXT POINT 1 @7<270 .
• CANCEL THE LINE COMMAND BY PRESSING ENTER.

DIRECT DISTANCE ENTRY

• SPECIFY THE COMMAND "L'' FOR THE LINE AND SPECIFY THE COORDINATE FOR STARTING POINT 1 (1,1).
• SPECIFY THE LENGTH 5 TO +VE X-AXIS FOR POINT 2.
• SPECIFY THE LENGTH 2 TO +VE Y-AXIS FOR POINT 3.
• SPECIFY THE LENGTH 3 TO -VE X-AXIS FOR POINT 4.
• SPECIFY THE LENGTH 1 TO -VE Y-AXIS FOR POINT 5.
• SPECIFY THE LENGTH 1 TO -VE X-AXIS FOR POINT 6.
• SPECIFY THE LENGTH 2 TO +VE Y-AXIS FOR POINT 7.
• SPECIFY THE LENGTH 3 TO +VE X-AXIS FOR POINT 8.
• SPECIFY THE LENGTH 2 TO +VE Y-AXIS FOR POINT 9.
• SPECIFY THE LENGTH 2 TO +VE Y-AXIS FOR POINT 11 AND THEN SPECIFY THE LENGTH 4 TO -VE X-AXIS FOR POINT 10.
• CANCEL THE LINE COMMAND BY PRESSING ENTER AND AGAIN THEN SPECIFY LINE COMMAND "L" AND JOIN POINT 9 AND POINT 10 AND THEN CANCEL THE LINE COMMAND BY PRESSING ENTER.
• DELETE THE LINES JOINING FROM POINT 9 TO 11 AND POINT 11 TO 10.
• SPECIFY THE COMMAND "L'' AND SPECIFY THE START POINT 10(1,8) AND SPECIFY THE LENGTH 7 TO -VE Y-AXIS FOR POINT 1.
• CANCEL THE LINE COMMAND BY PRESSING ENTER.

RESULT

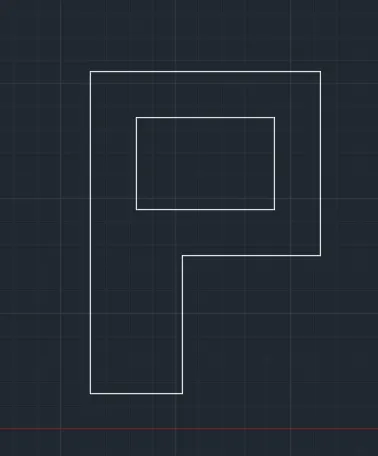

P-10

ABSOLUTE POINT SYSTEM

• SPECIFY THE COMMAND "L'' FOR THE LINE AND SPECIFY THE STARTING POINT 1 (1,1).
• SPECIFY THE NEXT POINT 2 (3,1) .
• SPECIFY THE NEXT POINT 3 (3,4) .
• SPECIFY THE NEXT POINT 4 (6,4) .
• SPECIFY THE NEXT POINT 5 (6,8) .
• SPECIFY THE NEXT POINT 6 (1,8) .
• CLICK CLOSE
• SPECIFY THE COMMAND "L'' FOR THE LINE AND SPECIFY THE POINT 7 (2,5).
• SPECIFY THE NEXT POINT 8 (5,5) .
• SPECIFY THE NEXT POINT 9 (5,7) .
• SPECIFY THE NEXT POINT 10 (2,7) .
• CLICK CLOSE

RELATIVE RECTANGULAR POINT SYSTEM

• SPECIFY THE COMMAND "L'' FOR THE LINE AND SPECIFY THE STARTING POINT 1 (1,1).
• SPECIFY THE NEXT POINT 2 @2,0 .
• SPECIFY THE NEXT POINT 3 @0,3 .
• SPECIFY THE NEXT POINT 4 @3,0 .
• SPECIFY THE NEXT POINT 5 @0,4 .
• SPECIFY THE NEXT POINT 6 @-5,0 .
• CLICK "CLOSE" ON THE COMMAND BOX.
• SPECIFY THE COMMAND "L'' FOR THE LINE AND SPECIFY THE POINT 7 (2,5).
• SPECIFY THE NEXT POINT 8 @3,0 .
• SPECIFY THE NEXT POINT 9 @0,2 .
• SPECIFY THE NEXT POINT 10 @-3,0 .
• CLICK CLOSE

RELATIVE POLAR POINT

• SPECIFY THE COMMAND "L'' FOR THE LINE AND SPECIFY THE STARTING POINT 1 (1,1).
• SPECIFY THE NEXT POINT 2 @2<0 .
• SPECIFY THE NEXT POINT 3 @3<90 .
• SPECIFY THE NEXT POINT 4 @3<0 .
• SPECIFY THE NEXT POINT 5 @4<90 .
• SPECIFY THE NEXT POINT 6 @5<180 .
• CLICK CLOSE
• SPECIFY THE COMMAND "L'' FOR THE LINE AND SPECIFY THE POINT 7 (2,5).
• SPECIFY THE NEXT POINT 8 @3<0 .
• SPECIFY THE NEXT POINT 9 @2<90 .
• SPECIFY THE NEXT POINT 10 @3<180 .
• CLICK CLOSE

DIRECT DISTANCE ENTRY

• SPECIFY THE COMMAND "L'' FOR THE LINE AND SPECIFY THE COORDINATE FOR STARTING POINT 1 (1,1).
• SPECIFY THE LENGTH 2 TO +VE X-AXIS FOR POINT 2.
• SPECIFY THE LENGTH 3 TO +VE Y-AXIS FOR POINT 3.
• SPECIFY THE LENGTH 3 TO +VE X-AXIS FOR POINT 4.
• SPECIFY THE LENGTH 4 TO +VE Y-AXIS FOR POINT 5.
• SPECIFY THE LENGTH 5 TO -VE X-AXIS FOR POINT 6.
• CLICK "CLOSE" ON THE COMMAND BOX.
• SPECIFY THE COMMAND "L'' FOR THE LINE AND SPECIFY THE COORDINATE FOR POINT 7 (2,5).
• SPECIFY THE LENGTH 3 TO +VE X-AXIS FOR POINT 8.
• SPECIFY THE LENGTH 2 TO +VE Y-AXIS FOR POINT 9.
• SPECIFY THE LENGTH 3 TO -VE X-AXIS FOR POINT 10.
• CLICK CLOSE

RESULT

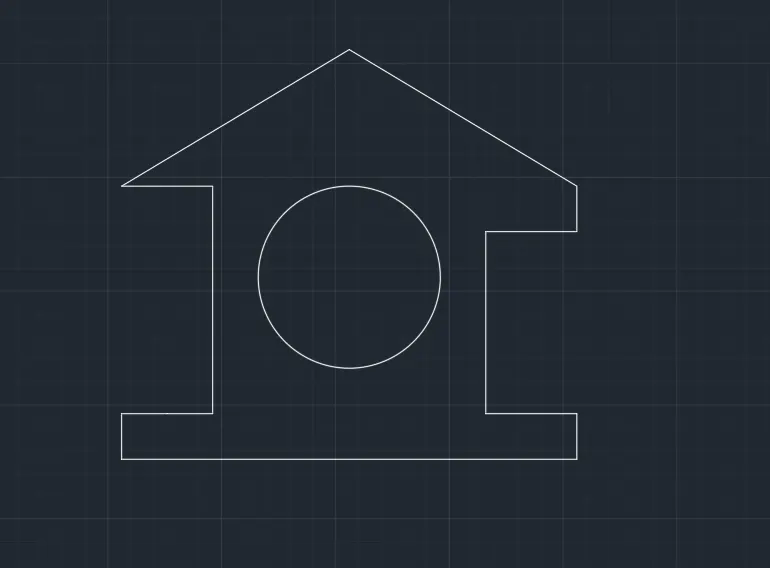

PROFILE - WOOD

USING ABSOLUTE COORDINATE SYSTEM

• ENTER LINE IN COMMAND BAR
• SPECIFY FIRST POINT AS 0,0
• SPECIFY NEXT POINT AS 10,0
• SPECIFY NEXT POINT AS 10,1
• SPECIFY NEXT POINT AS 8,1
• SPECIFY NEXT POINT AS 8,5
• SPECIFY NEXT POINT AS 10,5
• SPECIFY NEXT POINT AS 10,6
• SPECIFY NEXT POINT AS 5,9
• SPECIFY NEXT POINT AS 0,6
• SPECIFY NEXT POINT AS 2,6
• SPECIFY NEXT POINT AS 2,1
• SPECIFY NEXT POINT AS 0,1
• PRESS CLOSE
• PRESS CIRCLE (TWO POINT) IN HOME TAB AND ENTER COORDINATE (3,4) AND (7,4)

RESULT

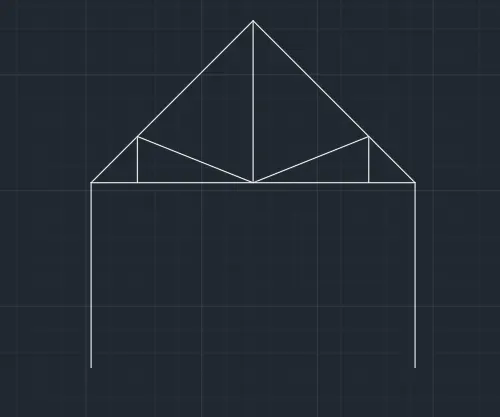

QUEEN POST TRUSS

USING ABSOLUTE COORDINATE SYSTEM

• ENTER LINE IN COMMAND BAR
• SPECIFY FIRST POINT AS 1,1
• SPECIFY NEXT POINT AS 1,5
• SPECIFY NEXT POINT AS 5.5,8.5
• SPECIFY NEXT POINT AS 8,5
• SPECIFY NEXT POINT AS 8,1
• PRESS ENTER AND AGAIN ENTER COMMAND LINE
• SPECIFY NEXT POINT AS 5,1
• SPECIFY NEXT POINT AS 8,5
• PRESS ENTER AND AGAIN ENTER COMMAND LINE
• SPECIFY NEXT POINT AS 2,5
• SPECIFY NEXT POINT AS 2,6
• SPECIFY NEXT POINT AS 4.5,5
• SPECIFY NEXT POINT AS 7,6
• SPECIFY NEXT POINT AS 7,5

RESULT

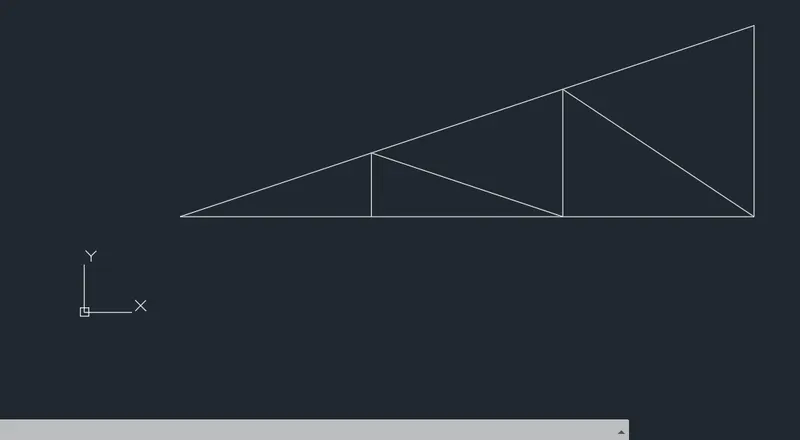

MONO PITCH

USING ABSOLUTE COORDINATE SYSTEM

• ENTER LINE IN COMMAND BAR
• SPECIFY FIRST POINT AS 1,1
• SPECIFY NEXT POINT AS 3,1
• SPECIFY NEXT POINT AS 5,1
• SPECIFY NEXT POINT AS 7,1
• SPECIFY NEXT POINT AS 7,3
• PRESS CLOSE AND AGAIN ENTER COMMAND LINE
• SPECIFY NEXT POINT AS 3,0.667
• SPECIFY NEXT POINT AS 5,1
• SPECIFY NEXT POINT AS 5,1.333
• SPECIFY NEXT POINT AS 7,1

RESULT
