Creation of geometries by Coordinate system methods using AutoCad

Aim-

• To create the geometries using all the coordinates system methods.
• To use the line tool to create the geometries and to use circle tool where it is required.

The types of coordinate systems-

• Absolute coordinates
• Relative Rectangular coordinates
• Relative polar coordinates
• Direct distance entry

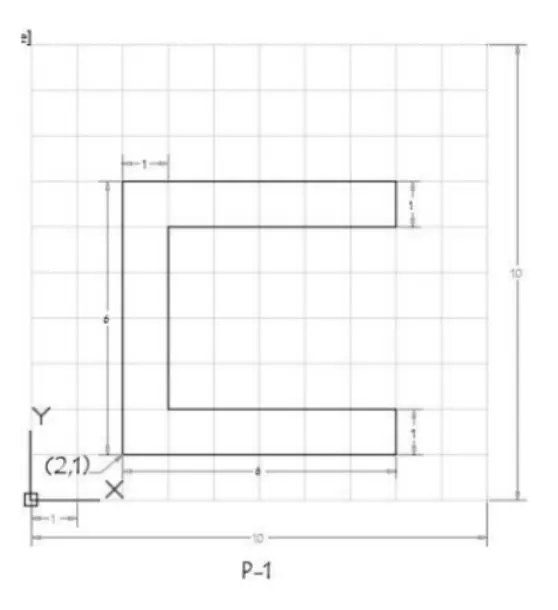

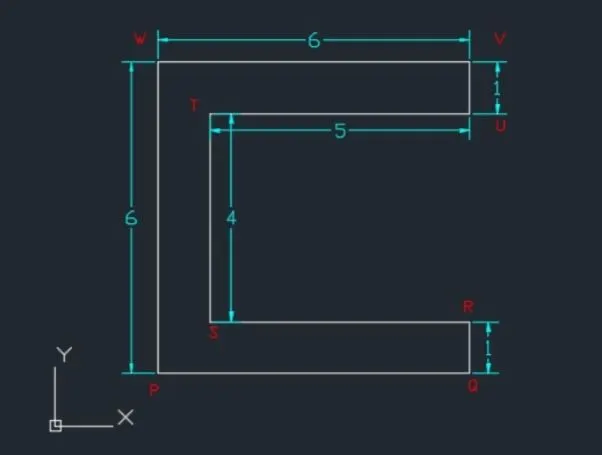

1. P-1

Procedure-

• Absolute coordinate system:

• Click on AutoCAD application and open this application
• Type QNEW in command bar and enter
• Select default setting as imperial ( feet and inches )
• In default setting click on use a wizard and in that advance setting and set unit as decimal and precision as 0 and press NEXT
• Set angle as decimal degree and precision as 0 and click NEXT
• Set angle measure as EAST and press NEXT
• Set angle direction as counter-clockwise and press NEXT
• Set Area by providing length as 10 and width as 10
• Press finish
• From home Tab click on line
• Then command bar ask us to specify first point
• In front of specify first point press 2,1 ( point P )
• In front of specify next or [undo] point press 8,1 ( Point Q )
• In front of specify next or [undo] point press 8,2 ( Point R )
• In front of specify next or [undo] point press 3,2 ( Point S )
• In front of specify next or [undo] point press 3,6 ( Point T )
• In front of specify next or [undo] point press 8,6 ( Point U )
• In front of specify next or [undo] point press 8,7 ( Point V )
• In front of specify next or [undo] point press 2,7 ( Point W )
• In front of specify next or [close undo] point close or press 2,1 ( Point P )
• The Geometry is done.

• Relative Rectangular Coordinates:

• Click on AutoCAD application and open this application
• Type QNEW in command bar and enter
• Select default setting as imperial ( feet and inches )
• In default setting click on use a wizard and in that advance setting and set unit as decimal and precision as 0 and press NEXT
• Set angle as decimal degree and precision as 0 and click next
• Set angle measure as EAST and press NEXT
• Set angle direction as counter-clockwise and press NEXT
• Set Area by providing length as 10 and width as 10
• Press finish
• From Home tab click on line
• Then command bar ask us to specify first point
• In front of specify first point press 2,1 ( point P )
• In front of specify next or [undo] point press @6,0 ( point Q ) (Dx=6,Dy=0)
• In front of specify next or [undo] point press @0,1 ( point R ) ( Dx=0, D=1 )
• In front of specify next or [undo] point press @-5,0 (Point S) ( Dx=5,Dy=0)
• In front of specify next or [undo] point press @0,4 (Point T) ( Dx=0,Dy=4)
• In front of specify next or [undo] point press @5,0 (Point U) ( Dx=5,Dy=0)
• In front of specify next or [undo] point press @0,1 (Point V) ( Dx=0,Dy=1)
• In front of specify next or [undo] point press @-6,0 (Point W) ( Dx=6,Dy=0)
• In front of specify next or [Close undo] point press close or press @0,-6 (Point P ) ( Dx=0,Dy=6)
• The Geometry is done.

• Relative polar coordinates-

• Click on AutoCAD application and open this application
• Type QNEW in command bar and enter
• Select default setting as imperial ( feet and inches )
• In default setting click on use a wizard and in that advance setting and set unit as decimal and precision as 0 and click next
• Set angle as decimal degree and precision as 0 and click next
• Set angle measure as EAST and press NEXT
• Set angle direction as counter clockwise and press NEXT
• Set area by providing length as 10 and width as 10
• Press finish
• From Home tab click on line
• Then command bar ask us to specify first point
• In front of specify first point press 2,1 (point P)
• In front of specify next or [undo] point press @6<0 (Point Q) (Towards East)
• In front of specify next or [undo] point press @1<90 (Point R) (Towards North)
• In front of specify next or [undo] point press @5<180 (Point S) (Towards West)
• In front of specify next or [undo] point press @4<90 (Point T) (Towards North)
• In front of specify next or [undo] point press @5<0 (Point U) (Towards East)
• In front of specify next or [undo] point press @1<90 (Point V) (Towards North)
• In front of specify next or [undo] point press @6<180 (Point W) (Towards West)
• In front of specify next or [close undo] point press close or press @6<270 (Point P) (Towards South)
• The Geometry is done.

• Direct distance entry:

• Click on AutoCAD application and open this application
• Type QNEW in command bar and enter
• Select default setting as imperial ( feet and inches )
• In default setting click on use a wizard and in that advance setting and set unit as decimal and precision as 0 and click next
• Set angle as decimal degree and precision as 0 and click next
• Set angle measure as EAST and press NEXT
• Set angle direction as counter clockwise and press NEXT
• Set area by providing length as 10 and width as 10
• Press finish
• From Home tab click on line
• Then command bar ask us to specify first point
• In front of specify first point press 2,1 (point P)
• In front of specify next or [undo] point press 6 (Point Q) (Keep curser towards East)
• In front of specify next or [undo] point press 1 (Point R) (Keep curser towards North)
• In front of specify next or [undo] point press 5 (Point S) (Keep curser towards West)
• In front of specify next or [undo] point press 4 (Point T) (Keep curser towards North)
• In front of specify next or [undo] point press 5 (Point U) (Keep curser towards East)
• In front of specify next or [undo] point press 1 (Point V) (Keep curser towards North)
• In front of specify next or [undo] point press 6 (Point W) (Keep curser towards West)
• In front of specify next or [close undo] point press close or press 6 (Point P) (Keep curser towards South)
• The Geometry is done.

• Result-

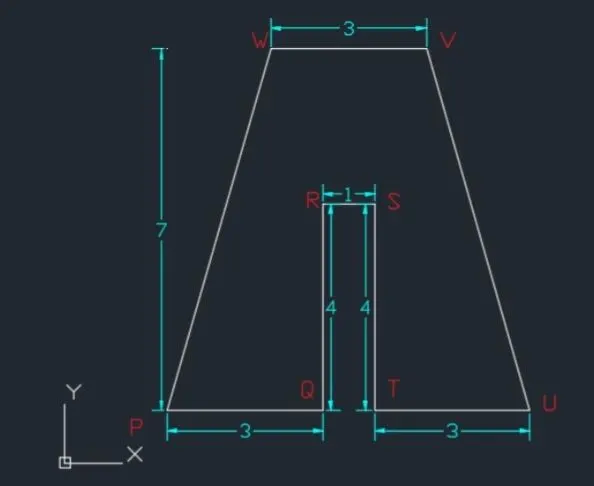

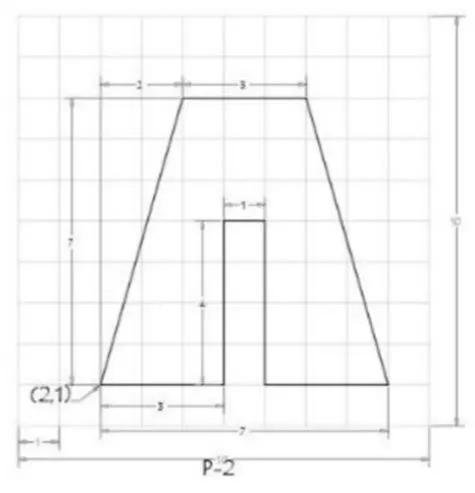

2. P-2

Procedure:

• Procedure-

  • Absolute coordinate system:
  • Click on AutoCAD application and open this application
  • Type QNEW in command bar and enter
  • Select default setting as imperial ( feet and inches )
  • In default setting click on use a wizard and in that advance setting and set unit as decimal and precision as 0 and press NEXT
  • Set angle as decimal degree and precision as 0 and click NEXT
  • Set angle measure as EAST and press NEXT
  • Set angle direction as counter-clockwise and press NEXT
  • Set Area by providing length as 10 and width as 10
  • Press finish
  • From home Tab click on line
  • Then command bar ask us to specify first point
  • In front of specify first point press 2,1 ( point P )
  • In front of specify next or [undo] point press 5,1 ( Point Q )
  • In front of specify next or [undo] point press 5,5 ( Point R )
  • In front of specify next or [undo] point press 6,5 ( Point S )
  • In front of specify next or [undo] point press 6,1 ( Point T )
  • In front of specify next or [undo] point press 9,1 ( Point U )
  • In front of specify next or [undo] point press 7,8 ( Point V )
  • In front of specify next or [undo] point press 4,8 ( Point W )
  • In front of specify next or [close undo] point close or press 2,1 ( Point P )
  • The Geometry is done.

• Relative Rectangular Coordinates:
  • Click on AutoCAD application and open this application
  • Type QNEW in command bar and enter
  • Select default setting as imperial ( feet and inches )
  • In default setting click on use a wizard and in that advance setting and set unit as decimal and precision as 0 and press NEXT
  • Set angle as decimal degree and precision as 0 and click next
  • Set angle measure as EAST and press NEXT
  • Set angle direction as counter-clockwise and press NEXT
  • Set Area by providing length as 10 and width as 10
  • Press finish
  • From Home tab click on line
  • Then command bar ask us to specify first point
  • In front of specify first point press 2,1 ( point P )
  • In front of specify next or [undo] point press @3,0 ( point Q ) (Dx=3,Dy=0)
  • In front of specify next or [undo] point press @0,4 ( point R ) ( Dx=0, D=4 )
  • In front of specify next or [undo] point press @1,0 (Point S) ( Dx=1,Dy=0)
  • In front of specify next or [undo] point press @0,-4 (Point T) ( Dx=0,Dy=4)
  • In front of specify next or [undo] point press @3,0 (Point U) ( Dx=3,Dy=0)
  • In front of specify next or [undo] point press @-2,7 (Point V) ( Dx=2,Dy=7)
  • In front of specify next or [undo] point press @-3,0 (Point W) ( Dx=3,Dy=0)
  • In front of specify next or [Close undo] point press close or press @-2,-7 (Point P ) ( Dx=2,Dy=7)
  • The Geometry is done.

• Relative polar coordinates-
  • Click on AutoCAD application and open this application
  • Type QNEW in command bar and enter
  • Select default setting as imperial ( feet and inches )
  • In default setting click on use a wizard and in that advance setting and set unit as decimal and precision as 0 and click next
  • Set angle as decimal degree and precision as 0 and click next
  • Set angle measure as EAST and press NEXT
  • Set angle direction as counter clockwise and press NEXT
  • Set area by providing length as 10 and width as 10
  • Press finish
  • From Home tab click on line
  • Then command bar ask us to specify first point
  • In front of specify first point press 2,1 (point P)
  • In front of specify next or [undo] point press @3<0 (Point Q) (Towards East)
  • In front of specify next or [undo] point press @4<90 (Point R) (Towards North)
  • In front of specify next or [undo] point press @1<0 (Point S) (Towards East)
  • In front of specify next or [undo] point press @4<270 (Point T) (Towards South)
  • In front of specify next or [undo] point press @3<0 (Point U) (Towards East)
  • In front of specify next or [undo] point press @7<90 (Point A) (Towards North)
  • In front of specify next or [undo] point press @2<180 (Point V) (Join point U and point V through line and erase line UA and line AV)
  • After erasing, again take line command and take start point as V.
  • In front of specify next or [undo] point press @3<180 (Point W) (Towards West)
  • And from W to P close the geometry through line
  • The Geometry is done.

• Direct distance entry:
  • Click on AutoCAD application and open this application
  • Type QNEW in command bar and enter
  • Select default setting as imperial ( feet and inches )
  • In default setting click on use a wizard and in that advance setting and set unit as decimal and precision as 0 and click next
  • Set angle as decimal degree and precision as 0 and click next
  • Set angle measure as EAST and press NEXT
  • Set angle direction as counter clockwise and press NEXT
  • Set area by providing length as 10 and width as 10
  • Press finish
  • From Home tab click on line
  • Then command bar ask us to specify first point
  • In front of specify first point press 2,1 (point P)
  • In front of specify next or [undo] point press 3 (Point Q) (Keep curser towards East)
  • In front of specify next or [undo] point press 4 (Point R) (Keep curser towards North)
  • In front of specify next or [undo] point press 1 (Point S) (Keep curser towards East)
  • In front of specify next or [undo] point press 4 (Point T) (Keep curser towards North)
  • In front of specify next or [undo] point press 3 (Point U) (Keep curser towards East)
  • In front of specify next or [undo] point press 7 (Point A) (Keep curser towards North)
  • In front of specify next or [undo] point press 2 (Point V) (Keep curser towards West)
  • Join Point U and point V through line and erase line UA and line VA
  • Again take line command and start through point V
  • In front of specify next or [undo] point press 3 (Point W) (Keep curser towards West)
  • And from W to P Close the geometry through line
  • The Geometry is done.

• Result-

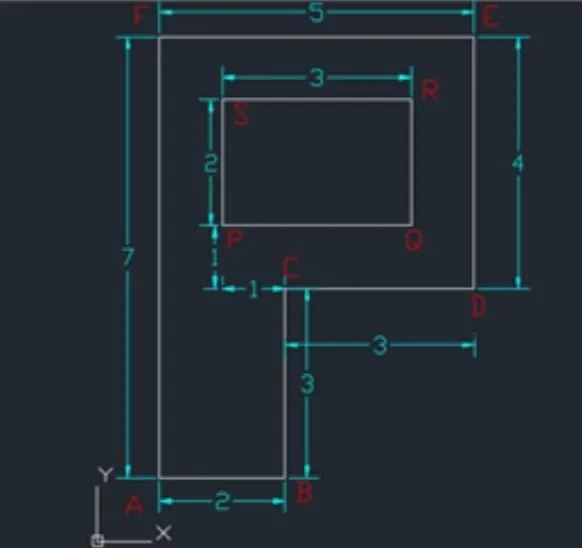

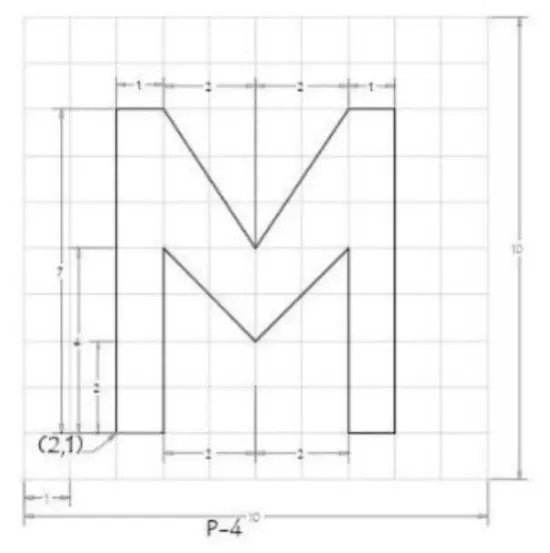

3.P-4

Procedure:

I will choose Absolute coordinate system to create above geometry

• Click on AutoCAD application and open this application
• Type QNEW in command bar and enter
• Select default setting as imperial ( feet and inches )
• In default setting click on use a wizard and in that advance setting and set unit as decimal and precision as 0 and press NEXT
• Set angle as decimal degree and precision as 0 and click NEXT
• Set angle measure as EAST and press NEXT
• Set angle direction as counter-clockwise and press NEXT
• Set Area by providing length as 10 and width as 10
• Press finish
• From home Tab click on line
• Then command bar ask us to specify first point
• In front of specify first point press 2,1 ( point A )
• In front of specify next or [undo] point press 3,1 ( Point B )
• In front of specify next or [undo] point press 3,5 ( Point C )
• In front of specify next or [undo] point press 5,3 ( Point D )
• In front of specify next or [undo] point press 7,5 ( Point E )

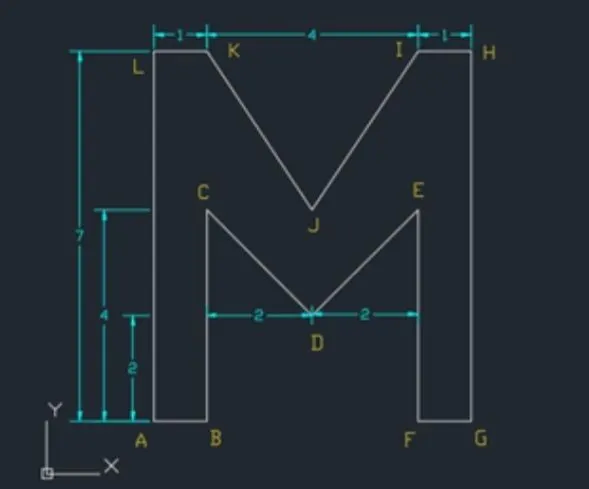

• In front of specify next or [undo] point press 7,1 ( Point F )
• In front of specify next or [undo] point press 8,1 ( Point G )
• In front of specify next or [undo] point press 8,8 ( Point H )
• In front of specify next or [undo] point press 7,8 ( Point I )
• In front of specify next or [undo] point press 5,5 ( Point J )
• In front of specify next or [undo] point press 3,8 ( Point K )
• In front of specify next or [undo] point press 2,8 ( Point L )
• In front of specify next or [close undo] point close or press 2,1 ( Point A )
• The Geometry is done.

• Result-

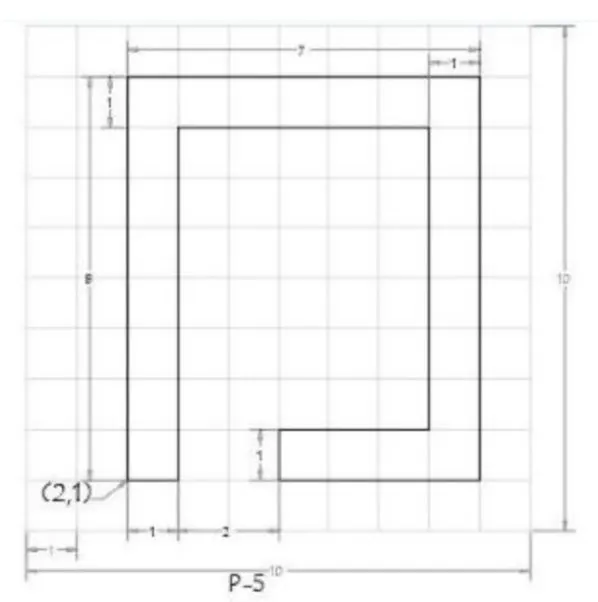

4.P-5

Procedure:

I will choose Relative rectangular coordinate system to create above geometry

• Click on AutoCAD application and open this application
• Type QNEW in command bar and enter
• Select default setting as imperial ( feet and inches )
• In default setting click on use a wizard and in that advance setting and set unit as decimal and precision as 0 and press NEXT
• Set angle as decimal degree and precision as 0 and click next
• Set angle measure as EAST and press NEXT
• Set angle direction as counter-clockwise and press NEXT
• Set Area by providing length as 10 and width as 10
• Press finish
• From Home tab click on line
• Then command bar ask us to specify first point
• In front of specify first point press 2,1 ( point A )
• In front of specify next or [undo] point press @1,0 ( point B ) (Dx=1,Dy=0)
• In front of specify next or [undo] point press @0,7 ( point C ) ( Dx=0, D=7 )
• In front of specify next or [undo] point press @5,0 (Point D ( Dx=5,Dy=0)
• In front of specify next or [undo] point press @0,-6 (Point E) ( Dx=0,Dy=6)
• In front of specify next or [undo] point press @-3,0 (Point F) ( Dx=3,Dy=0)
• In front of specify next or [undo] point press @0,-1 (Point G) ( Dx=0,Dy=1)
• In front of specify next or [undo] point press @4,0 (Point H) ( Dx=4,Dy=0)
• In front of specify next or [undo] point press @0,8 (Point I) ( Dx=0,Dy=8)
• In front of specify next or [undo] point press @-7,0 (Point J) ( Dx=7,Dy=0)
• In front of specify next or [Close undo] point press close or press @0,-8 (Point A ) ( Dx=0,Dy=8)
• The Geometry is done.

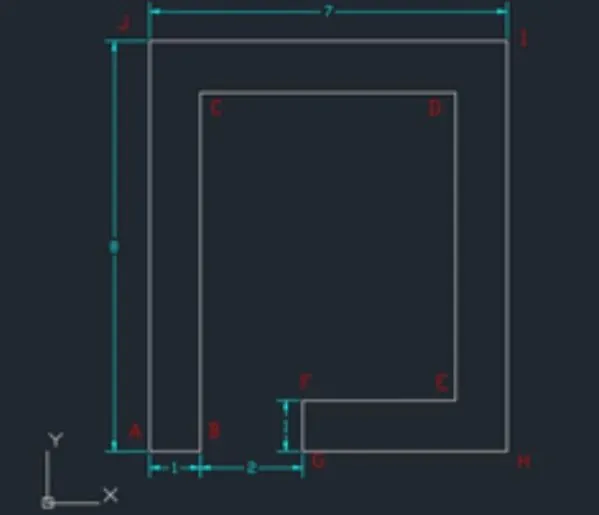

Result-

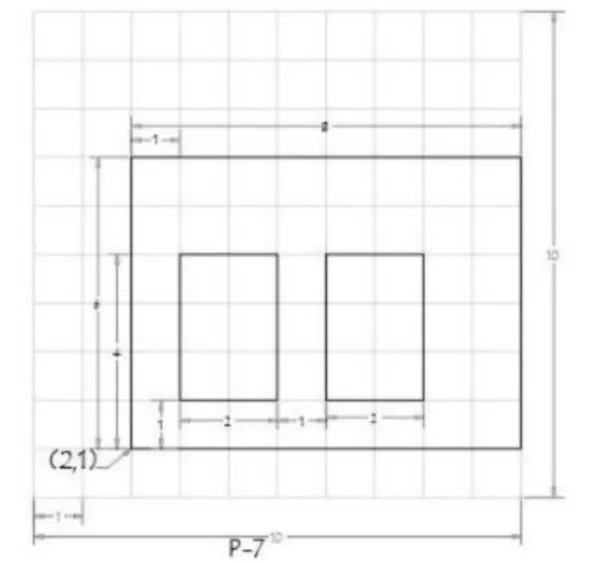

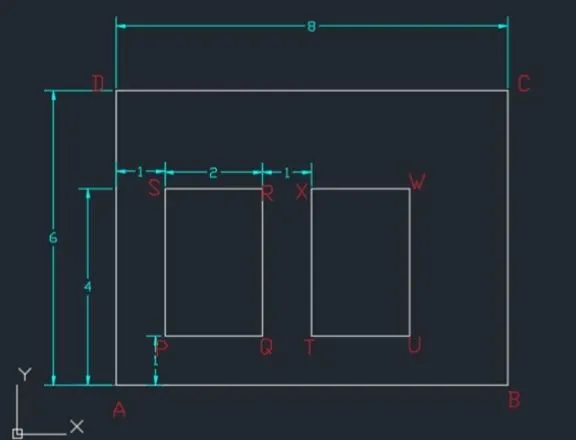

5. P-7

Procedure:

I will choose Relative polar coordinate system to create above geometry

• Click on AutoCAD application and open this application
• Type QNEW in command bar and enter
• Select default setting as imperial ( feet and inches )
• In default setting click on use a wizard and in that advance setting and set unit as decimal and precision as 0 and click next
• Set angle as decimal degree and precision as 0 and click next
• Set angle measure as EAST and press NEXT
• Set angle direction as counter clockwise and press NEXT
• Set area by providing length as 10 and width as 10
• Press finish
• From Home tab click on line
• Then command bar ask us to specify first point
• In front of specify first point press 2,1 (point A)
• In front of specify next or [undo] point press @8<0 (Point B) (Towards East)
• In front of specify next or [undo] point press @6<90 (Point C) (Towards North)
• In front of specify next or [undo] point press @8<180 (Point D) (Towards West)
• In front of specify next or [close undo] point press close
• From Home tab click on line
• Then command bar ask us to specify first point
• In front of specify first point press 3,2 (point P)
• In front of specify next or [undo] point press @2<0 (Point Q) (Towards East)
• In front of specify next or [undo] point press @3<90 (Point R) (Towards North)
• In front of specify next or [undo] point press @2<180 (Point S) (Towards West)
• In front of specify next or [close undo] point press close
• From Home tab click on line
• Then command bar ask us to specify first point
• In front of specify first point press 6,2 (point T)
• In front of specify next or [undo] point press @2<0 (Point U) (Towards East)
• In front of specify next or [undo] point press @3<90 (Point V) (Towards North)
• In front of specify next or [undo] point press @2<180 (Point W) (Towards West)
• In front of specify next or [Close undo] point press close
• The Geometry is done.

Result-

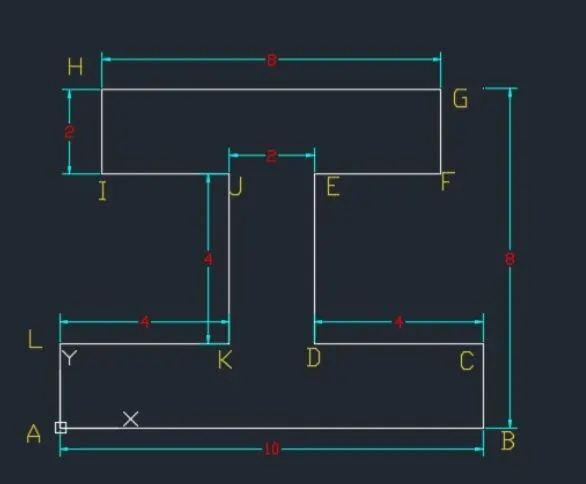

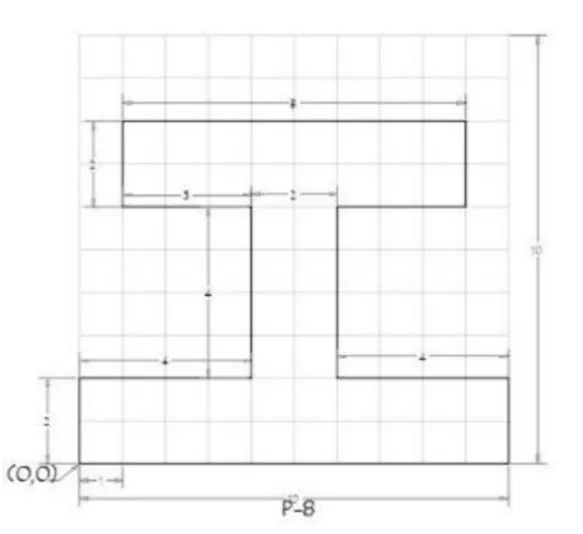

6. P-8

Procedure:

I will choose Direct distance entry system to create above geometry

• • • Click on AutoCAD application and open this application
    • Type QNEW in command bar and enter
    • Select default setting as imperial ( feet and inches )
    • In default setting click on use a wizard and in that advance setting and set unit as decimal and precision as 0 and click next
    • Set angle as decimal degree and precision as 0 and click next
    • Set angle measure as EAST and press NEXT
    • Set angle direction as counter clockwise and press NEXT
    • Set area by providing length as 10 and width as 10
    • Press finish
    • From Home tab click on line
    • Then command bar ask us to specify first point
    • In front of specify first point press 0,0 (point A)
    • In front of specify next or [undo] point press 10 (Point B) (Keep curser towards East)
    • In front of specify next or [undo] point press 2 (Point C) (Keep curser towards North)
    • In front of specify next or [undo] point press 4 (Point D) (Keep curser towards West)
    • In front of specify next or [undo] point press 4 (Point E) (Keep curser towards North)
    • In front of specify next or [undo] point press 3 (Point F) (Keep curser towards East)
    • In front of specify next or [undo] point press 2 (Point G) (Keep curser towards North)
    • In front of specify next or [undo] point press 8 (Point H) (Keep curser towards West)
    • In front of specify next or [undo] point press 2 (Point I) (Keep curser towards South)
    • In front of specify next or [undo] point press 3 (Point J) (Keep curser towards East)
    • In front of specify next or [undo] point press 4 (Point K) (Keep curser towards South)
    • In front of specify next or [undo] point press 4 (Point L) (Keep curser towards West)
    • In front of specify next or [Close undo] point press close (Keep curser towards South)
    • The Geometry is done.

Result-

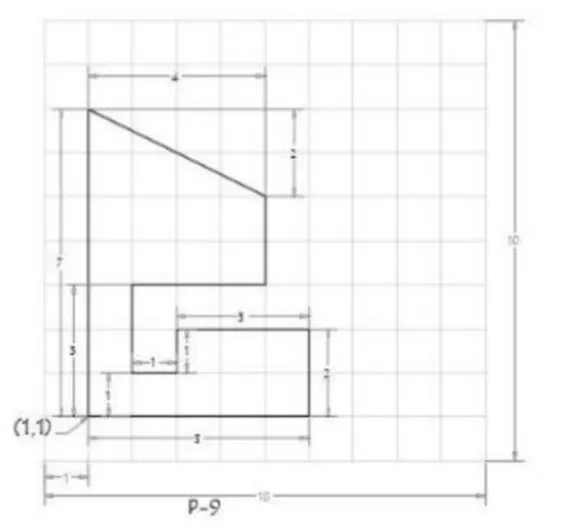

7. P-9

Procedure:

I will choose Absolute coordinate system to create above geometry

• Click on AutoCAD application and open this application
• Type QNEW in command bar and enter
• Select default setting as imperial ( feet and inches )
• In default setting click on use a wizard and in that advance setting and set unit as decimal and precision as 0 and press NEXT
• Set angle as decimal degree and precision as 0 and click NEXT
• Set angle measure as EAST and press NEXT
• Set angle direction as counter-clockwise and press NEXT
• Set Area by providing length as 10 and width as 10
• Press finish
• From home Tab click on line
• Then command bar ask us to specify first point
• In front of specify first point press 1,1 ( point A )
• In front of specify next or [undo] point press 6,1 ( Point B )
• In front of specify next or [undo] point press 6,3 ( Point C )
• In front of specify next or [undo] point press 3,3 ( Point D )
• In front of specify next or [undo] point press 3,2 ( Point E )
• In front of specify next or [undo] point press 2,2 ( Point F )
• In front of specify next or [undo] point press 2,4 ( Point G )
• In front of specify next or [undo] point press 5,4 ( Point H )
• In front of specify next or [undo] point press 5,6 ( Point I )
• In front of specify next or [undo] point press 1,8 ( Point J )
• In front of specify next or [close undo] point close or press 1,1 ( Point A )
• The Geometry is done.

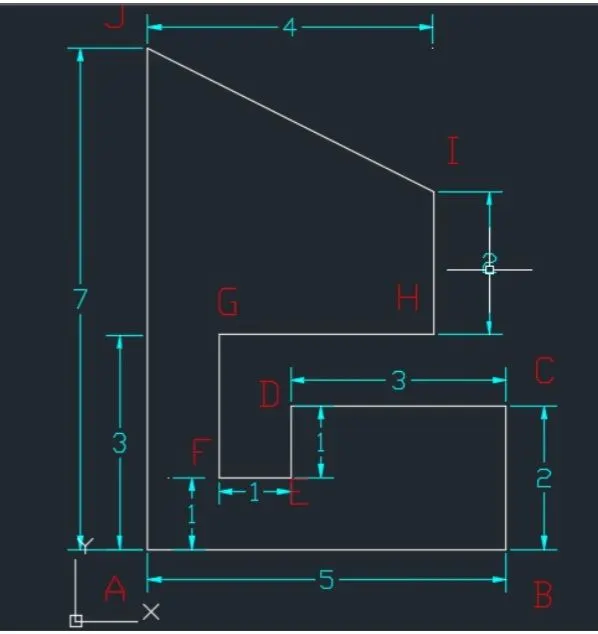

Result-

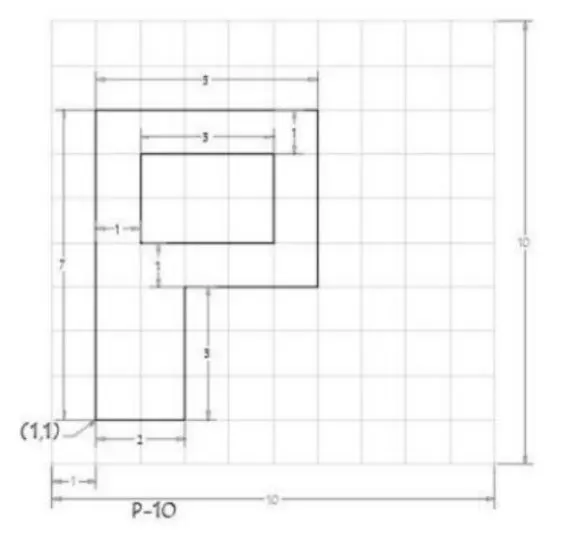

8. P-10

Procedure:

I will choose Relative rectangular coordinate system to create above geometry

• Click on AutoCAD application and open this application
• Type QNEW in command bar and enter
• Select default setting as imperial ( feet and inches )
• In default setting click on use a wizard and in that advance setting and set unit as decimal and precision as 0 and press NEXT
• Set angle as decimal degree and precision as 0 and click next
• Set angle measure as EAST and press NEXT
• Set angle direction as counter-clockwise and press NEXT
• Set Area by providing length as 10 and width as 10
• Press finish
• From Home tab click on line
• Then command bar ask us to specify first point
• In front of specify first point press 1,1 ( point A )
• In front of specify next or [undo] point press @2,0 ( point B ) (Dx=2,Dy=0)
• In front of specify next or [undo] point press @0,3 ( point C ) ( Dx=0, D=3 )
• In front of specify next or [undo] point press @3,0 (Point D ( Dx=3,Dy=0)
• In front of specify next or [undo] point press @0,4 (Point E) ( Dx=0,Dy=4)
• In front of specify next or [undo] point press @-5,0 (Point F) ( Dx=5,Dy=0)
• In front of specify next or [Close undo] point press close
• From Home tab click on line
• Then command bar ask us to specify first point
• In front of specify first point press 2,5 ( point P )
• In front of specify next or [undo] point press @3,0 ( point Q ) (Dx=3,Dy=0)
• In front of specify next or [undo] point press @0,2 ( point R ) ( Dx=0, D=2 )
• In front of specify next or [undo] point press @-3,0 (Point S) ( Dx=3,Dy=0)
• In front of specify next or [Close undo] point press close
• The Geometry is done.

Result-

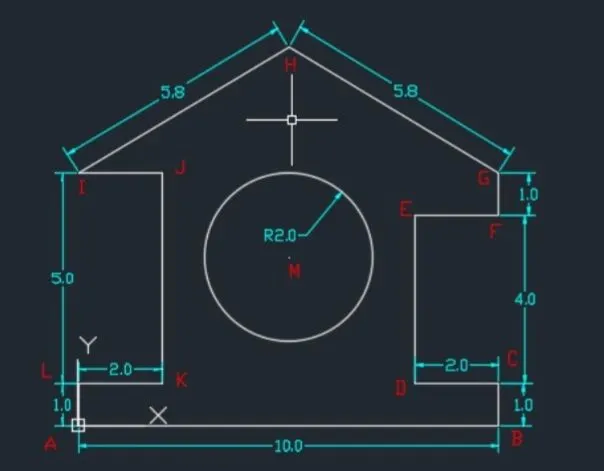

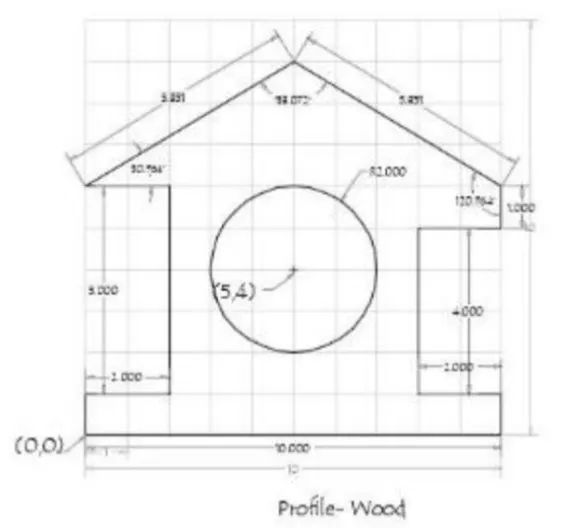

9. Profile-Wood

Procedure:

I will choose Absolute coordinate system to create above geometry

• Click on AutoCAD application and open this application
• Type QNEW in command bar and enter
• Select default setting as imperial ( feet and inches )
• In default setting click on use a wizard and in that advance setting and set unit as decimal and precision as 0.0 and press NEXT
• Set angle as decimal degree and precision as 0 and click NEXT
• Set angle measure as EAST and press NEXT
• Set angle direction as counter-clockwise and press NEXT
• Set Area by providing length as 10 and width as 10
• Press finish
• From home Tab click on line
• Then command bar ask us to specify first point
• In front of specify first point press 0,0 ( point A )
• In front of specify next or [undo] point press 10,0 ( Point B )
• In front of specify next or [undo] point press 10,1 ( Point C )
• In front of specify next or [undo] point press 8,1 ( Point D )
• In front of specify next or [undo] point press 8,5 ( Point E )
• In front of specify next or [undo] point press 10,5 ( Point F )
• In front of specify next or [undo] point press 10,6 ( Point G )
• In front of specify next or [undo] point press 5,9 ( Point H )
• In front of specify next or [undo] point press 0,6 ( Point I )
• In front of specify next or [undo] point press 2,6 ( Point J )
• In front of specify next or [undo] point press 2,1 ( Point J )
• In front of specify next or [undo] point press 0,1 ( Point J )
• In front of specify next or [close undo] point close or press
• From Home tab click on circle ( centre and radius )
• Then command bar ask us to specify centre point of the circle
• In front of specify centre point of circle press 5,4 ( Point A )
• Now command bar ask us to specify radius of circle
• So in command bar type 2 and enter
• The Geometry is done.

Result-

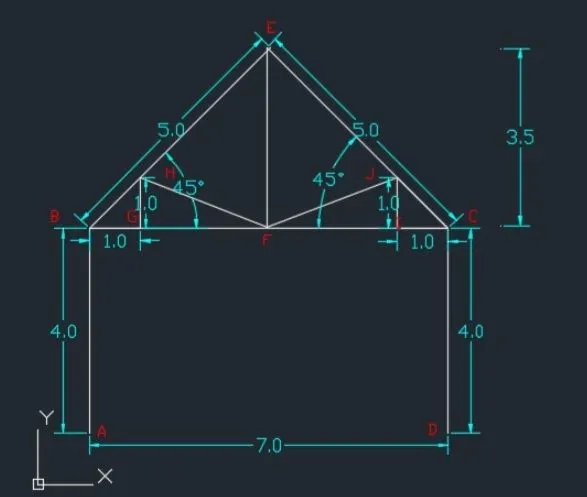

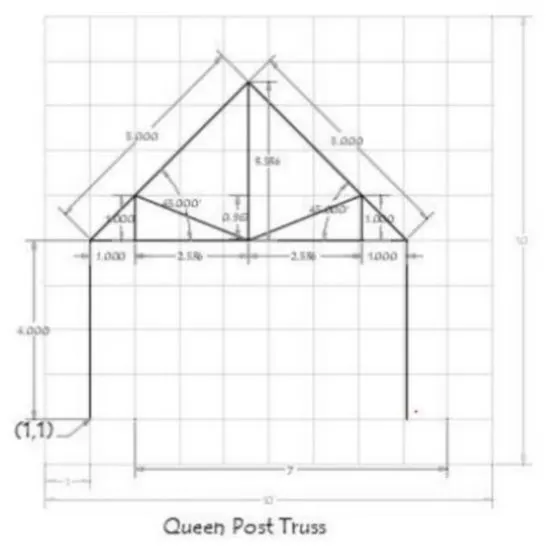

10. Queen post truss:

Procedure:

I will choose Relative polar coordinate system to create above geometry

• Click on AutoCAD application and open this application
• Type QNEW in command bar and enter
• Select default setting as imperial ( feet and inches )
• In default setting click on use a wizard and in that advance setting and set unit as decimal and precision as 0 and click next
• Set angle as decimal degree and precision as 0 and click next
• Set angle measure as EAST and press NEXT
• Set angle direction as counter clockwise and press NEXT
• Set area by providing length as 10 and width as 10
• Press finish
• From Home tab click on line
• Then command bar ask us to specify first point
• In front of specify first point press 1,1 (point A)
• In front of specify next or [undo] point press @4<90 (Point B)
• In front of specify next or [undo] point press @7<0 (Point C)
• In front of specify next or [undo] point press @4<270 (Point D)
• Press enter
• Again take line command
• Specify first point as 8,5
• In front of specify next or [undo] point press @5<135 (Point E)
• In front of specify next or [undo] point press @3.5<270 (Point F)
• Press enter
• Again take line command
• Specify first point as 1,5
• In front of specify next or [undo] point press @1<0 (Point G)
• In front of specify next or [undo] point press @1<90 (Point H)
• Join line HF
• Press enter
• Again take line command
• Specify first point as 8,5
• In front of specify next or [undo] point press @1<180 (Point I)
• In front of specify next or [undo] point press @1<90 (Point J)
• Join line JF
• The Geometry is done.

Result-

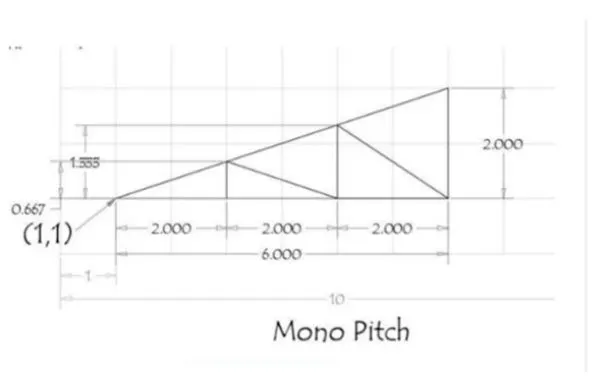

11. Mono Pitch

Procedure:

I will choose Absolute coordinate system to create above geometry

• Click on AutoCAD application and open this application
• Type QNEW in command bar and enter
• Select default setting as imperial ( feet and inches )
• In default setting click on use a wizard and in that advance setting and set unit as decimal and precision as 0.00 and press NEXT
• Set angle as decimal degree and precision as 0 and click NEXT
• Set angle measure as EAST and press NEXT
• Set angle direction as counter-clockwise and press NEXT
• Set Area by providing length as 10 and width as 10
• Press finish
• From home Tab click on line
• Then command bar ask us to specify first point
• In front of specify first point press 1,1 ( point A )
• In front of specify next or [undo] point press 3,1 ( Point B )
• In front of specify next or [undo] point press 5,1 ( Point C )
• In front of specify next or [undo] point press 7,1 ( Point D )
• In front of specify next or [undo] point press 7,3 ( Point E )
• In front of specify next or [close undo] point press close
• From home Tab click on line
• Then command bar ask us to specify first point
• In front of specify first point press 3,1
• In front of specify next or [undo] point press 3,1.667 ( Point F )
• In front of specify next or [undo] point press 5,1
• In front of specify next or [undo] point press 5,2.333 ( Point G )
• In front of specify next or [undo] point press 7,1
• Press enter
• The Geometry is done.

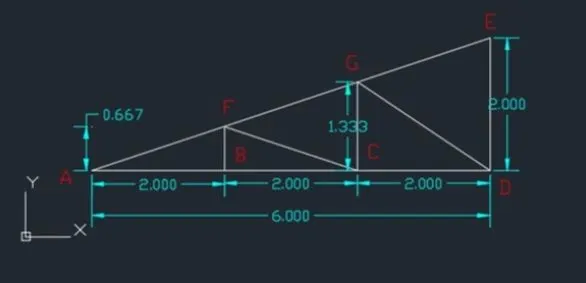

Result-
