Creation of geometries by Coordinate system methods using AutoCad

• AIM :
• Create the geometries from P1 to P2 using all the coordinates system methods. By using the Line tool to create the geometries. use the circle tool in some cases .
• SOFTWARE USED :
• Autodesk autocad 2021
• PROCEDURE :
• first open the autocad software
• give command the software QNEW or go to the application menu and click the NEW option
• then click on ADVANCE SEETING
• select matric seeting
• unit in decimal having precision 0.0
• template :Acad.dwg
• angle
• decimal degree
• angle measure
• east (clockwise direction)
• select the area 10*10
• click on finished option

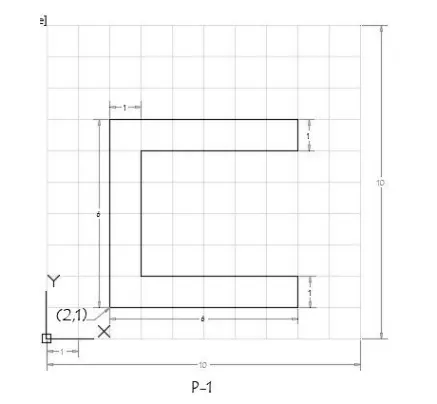

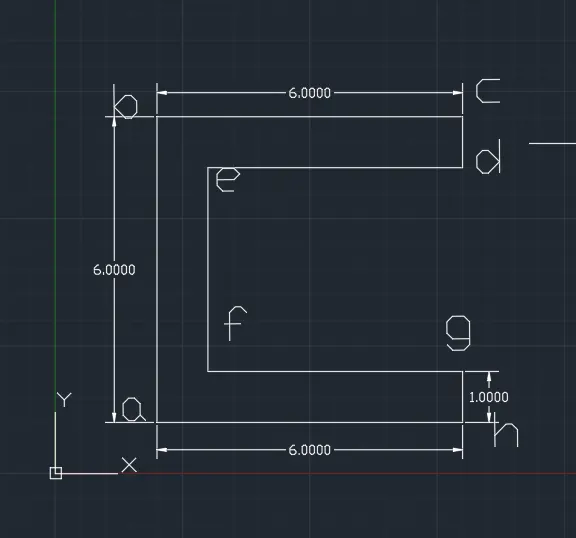

• EXAMPLE : 1
•
• Types of coordinate system is given below :
• absolute coordinate system
• relative rectangular system
• relative polar coordinate system
• direct distence entry method
• ABSOLUTE COORDINATE SYSTEM :
• give the line command to the autocad software
• 2,1 starting point a
• b=2,7
• c=8,7
• d=8,6
• e=3,6
• f=3,2
• g=8,2
• h=8,1
• then closed.
• RELATIVE RECTANGULAR COORDINATES :
• line command
• a=@2,1 that is starting point
• b=@0,6 i.e dx:0 units dy: 6 units
• c=@6,0 i.e dx: 6 units dy: 0 units
• d=@0,-1 i.e dx:0 units dy:-1 units
• e=@-5,0 i.e dx:-5 units dy:0 units
• f=@ 0,-4 i.e dx :0 units dy : -4 units
• g=@5,0 i.e dx: 5 units dy : 0 units
• h =@0,-1 i.e dx: 0 units dy :-1 units
• closed .
• RELATIVE POLAR COORDINATES :
• line command
• a=@2,1 starting point
• b=@6<90
• c=@6<0
• d=@1<270
• e=@5<180
• f=@4<270
• g=@5<0
• h=@1<270
• then closed
• DIRECT DISTANCE ENTRY :
• line command
• 6 cursor facing to north direction
• 6 cursor facing to east direction
• 1 cursor facing to south direction
• 5 cursor facing to west direction
• 4 cursor facing to south direction
• 5 cursor facing to east directon
• 1 cursor facing to south direction
• closed .
• RESULT :
•

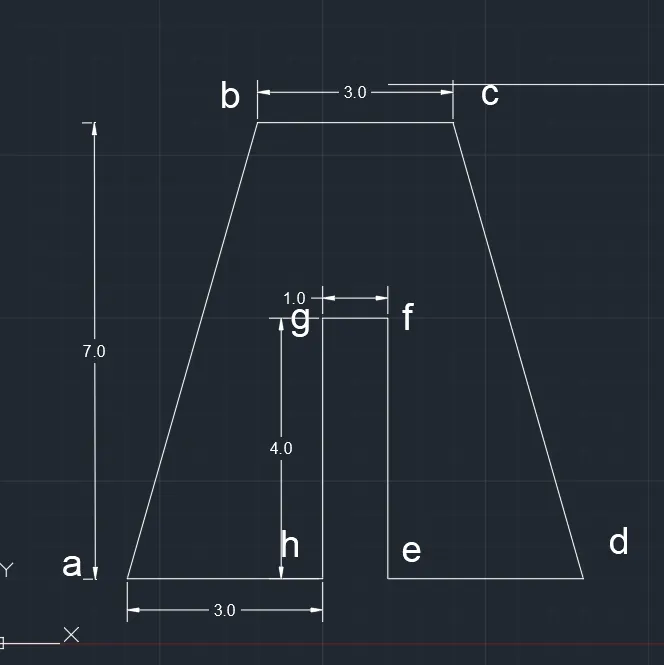

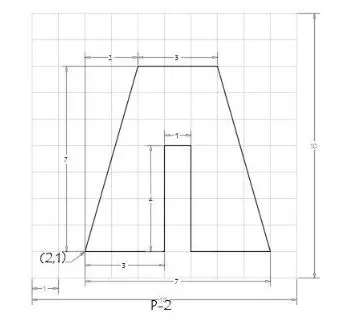

• EXAMPLE :2
•
• PROCEDURE :
• ABSOLUTE COORDINATE SYSTEM :
• give line command
• a= 2,1 starting point
• b=2,8
• c=7,8
• d=9,1
• e=6,1
• f=6,5
• g=5,5
• h=5,1
• closed.
• RELATIVE RECTANGULAR COORDINATE :
• line command
• a=2,1 starting point
• b=@2,7 i.e dx:2 units dy :7 units
• c=@3,0 i.e dx: 3 units dy :0 units
• d=@2,-7 i.e dx:2 units dy:-7 units
• e=@-3,0 i.e dx:-3 units dy:0 units
• f=@0,4 i.e dx:0 units dy:4 units
• g=@-1,0 i.e dx:-1 units dy:0 units
• h=@ 0,-4 i.e dx:0 units dy:-4 units
• closed
• RELATIVE POLAR COORDINATES :
• line command
• a=2,1 starting points
• @7<90 (line one )
• @2<0 (line two )
• then joined the points and get b point
• delete line one and line two
• c=@3<0
• @7<270 (line three)
• @2<0 (line four)
• joint the endpoint of line c and line four and get point d
• delete line three and four
• e=@3<180
• f=@4<90
• g=@1<180
• h=@4<270
• closed.
• DIRECT DISTENCE ENTRY :
• line command
• 7 upward (line a to#)
• 2 right direction (line # to b )
• joint point c and b
• delete line a to # and # to b
• 3 right direction (b to c)
• 7 downward direction (line c to #)
• 2 right directon (line # to d)
• join the point c and d
• delete the line c to # and # to d
• 3 left direction (line d to e)
• 4 upward direction ( line e to f )
• 1 left direction (line f to g)
• 4 downward direction (g to h)
• then closed .
• RESULTS :
•

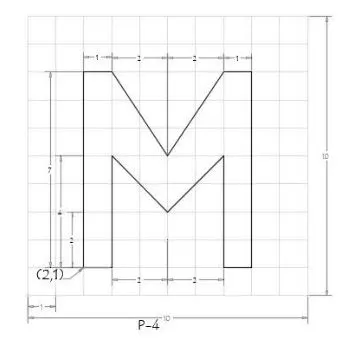

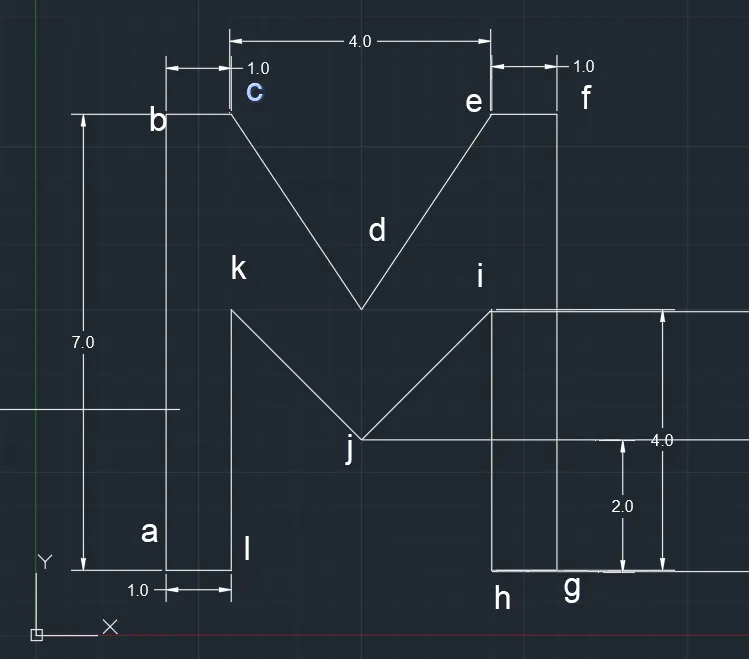

• EXAMPLE :3
•
• PROCEDURE :
• ABSOLUTE COORDINATE SYSTEM :
• a= 2,1 starting points
• b=2,8
• c=3,8
• d=5,5
• e=7,8
• f=8,8
• g=8,1
• h=7,1
• i=7,5
• j=5,3
• k=3,5
• l=3,1
• closed
• RELATIVE RECTANGULAR COORDINATE :
• line command
• a=2,1 statting points
• b=0,7 i.e dx:0 units and dy:7 units
• c=1,0 i.e dx:1 units and dy: 0 units
• d=2,-3 i.e dx:2 units and dy:-3 units
• e=2,3 i.e dx:2 units and dy: 3 units
• f=1,0 i.e dx:1 units and dy:0 units
• g=0,-7 i.e dx:0 units and dy:-7 units
• h=-1,0 i.e dx:-1 units and dy:0 units
• i=0,4 i.e dx:0 units and dy:4 units
• j=-2,-2 i,e dx:-2 units and dy :-2 units
• k=-2,2 i.e dx:-2 units and dy :2 units
• l=0,-4 i.e dx:o units and dy :-4 units
• then closed.
• RESULTS :
•

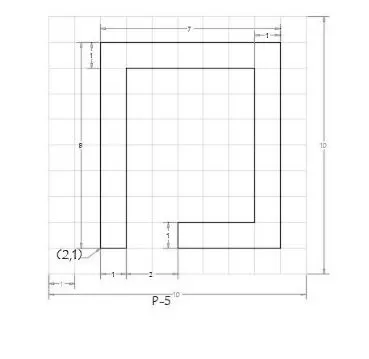

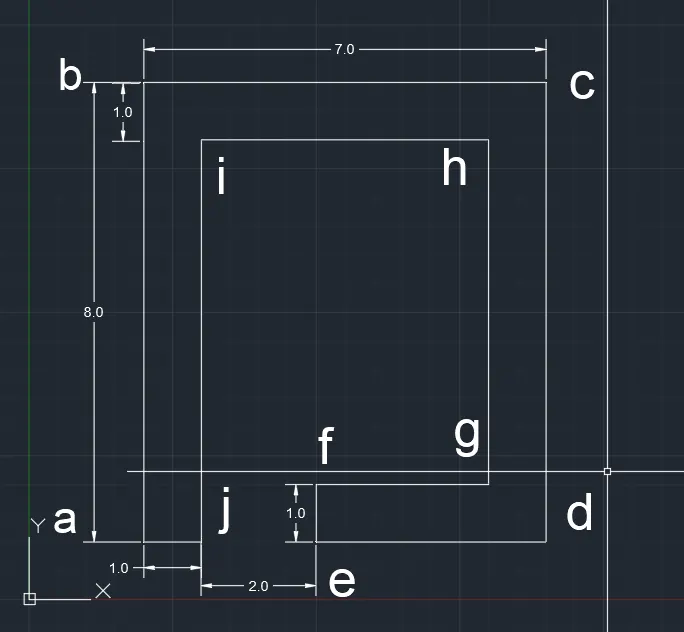

• EXAMPLE :4
• PROCEDURE :
•
• ABSOLUTE COORDINATE METHOD :
• Line command
• a=2,1 starting points
• b=2,9
• c=9,9
• d=9,1
• e=5,1
• f=5,2
• g=8,2
• h=8,8
• i=3,8
• j=3,1
• then closed
• RELATIVE RECTANGULAR COORDINATE :
• give line command
• a=2,1 starting points
• b=@0,8 i.e dx:0 units and dy:8 units
• c=@7,0 i.e dx;7 units and dy:0 units
• d=@0,-8 i.e dx:0 units and dy:-8 units
• e=@-4,0 i.e dx:-4 units and dy:0 units
• f =@0,1 i.e dx:0 units and dy:1 units
• g=@4,0 i.e dx: 4 units and dy:0 units
• h =@0,6 i.e dx:0 units and dy:6 units
• i=@-5,0 i.e dx:-5 units and dy:0 units
• j=@0,-7 i.e dx:0 units and dy:-7 units
• then closed .
• RESULTS :
•

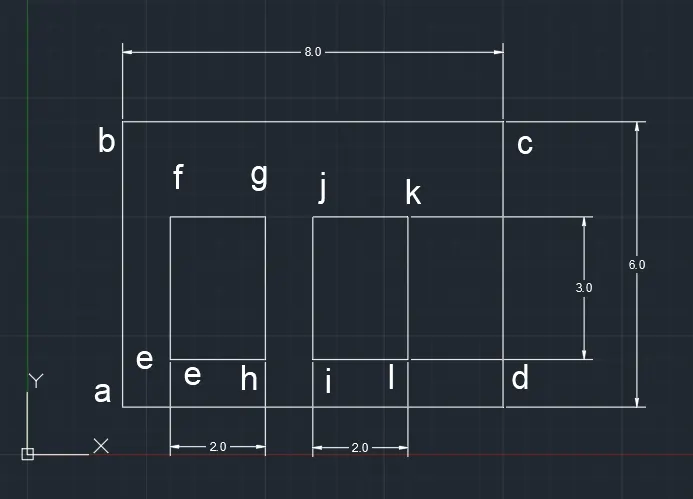

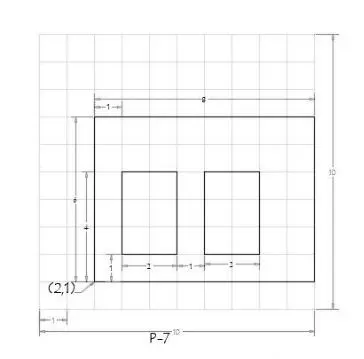

• EXAMPLE : 5
•
• PROCEDURE :
• ABSOLUTE COORDINATE SYSTEM:
• give the line command to autocad
• a=2,1 that is starting point
• b=2,7
• c=10,7
• d=10,1
• closed
• line command
• e=3,2
• f=3,5
• g=5,5
• h=5,2
• closed
• line command
• i=6,2
• j=6,5
• k=8,5
• l=8,2
• closed
• RELATIVE RECTANGULAR COORDINATE :
• Line command
• a=2,1 starting point
• b=0,6
• c=8,0
• d=0,-6
• closed
• line command
• e=3,2
• f=0,3
• g=2,0
• h=0,-3
• closed
• line command
• i=6,2
• j=0,3
• k=2,0
• l=0,-3
• closed
• RESULTS :
•

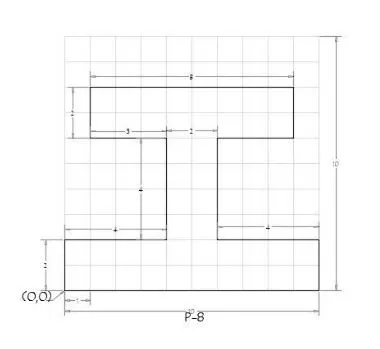

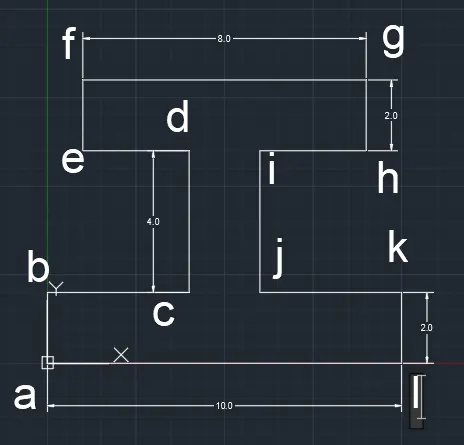

• EXAMPLE :6
•
• PROCEDURE:
• ABSOLUTE COORDINATE SYSTEM:
• give the line command
• a=0,0
• b=0,2
• c=4,2
• d=4,6
• e=1,6
• f=1,8
• g=9,8
• h=9,6
• i=6,6
• j=6,2
• k=10,2
• l=10,0
• then closed.
• RELATIVE POLAR COORDINATE METHOD :
• a=0,0 starting points
• b=@2<90
• c=@4<0
• d=@4<90
• e=@3<180
• f=@2<90
• g=@8<0
• h=@2<270
• i=@3<180
• j=@4<270
• k=@4<0
• l=@2<270
• then closed
• RESULTS :
•

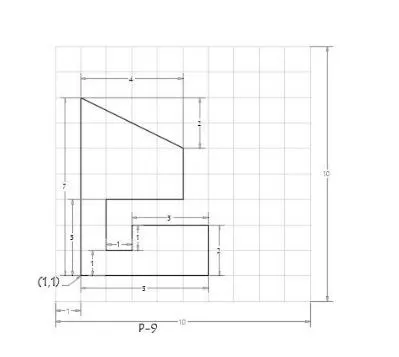

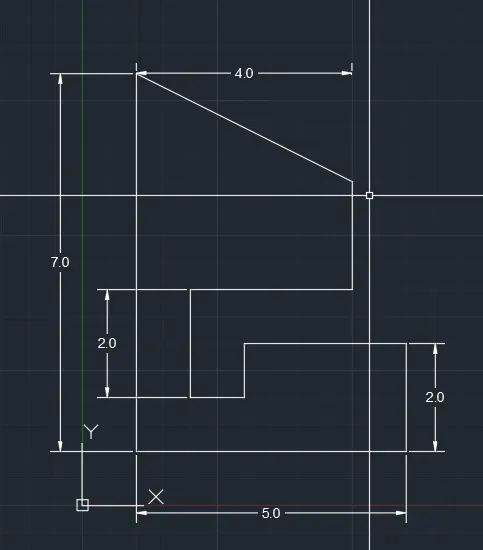

• EXAMPLE: 7
•
• PROCEDURE
• ABSOLUTE COORDINATE SYSTEM :
• Line command
• a=1,1
• b=1,8
• c=5,6
• d=5,4
• e=2,4
• f=2,2
• g=3,2
• h=3,3
• i=6,3
• j=6,1
• then closed
• RESULTS :
•

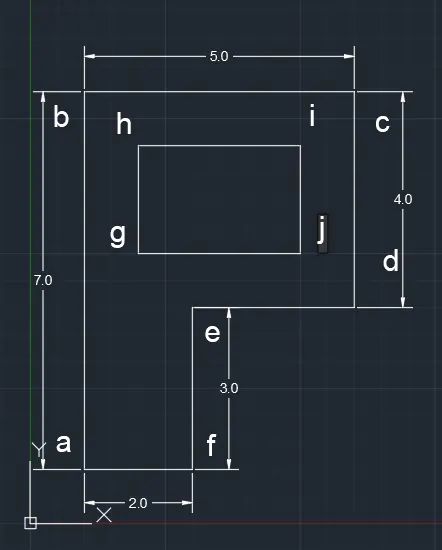

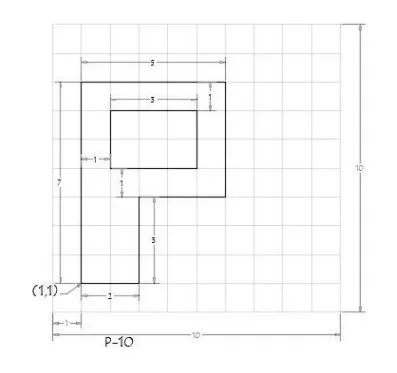

• EXAMPLE: 8

• PROCEDURE:
• ABSOLUTE COORDINATE SYSTEM :
• line command
• a=1,1 starting point
• b=1,8
• c=6,8
• d=6,4
• e=3,4
• f=3,1
• closed
• g=2,5
• h=2,7
• i=5,7
• j=5,5
• closed
• RELATIVE POLAR COORDINATE SYSTEM:
• Line command
• a=1,1
• b=@7<90
• c=@5<0
• d=@4<270
• e=@3<180
• f=@3<270
• closed
• g=2,5 starting point
• h=2<90
• i=3<0
• j=2<270
• closed
• RESULTS:
•

• Draw the profile and the trusses using any coordinate system methods. The dimensions are there for references.

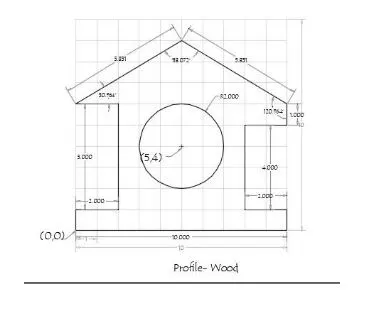

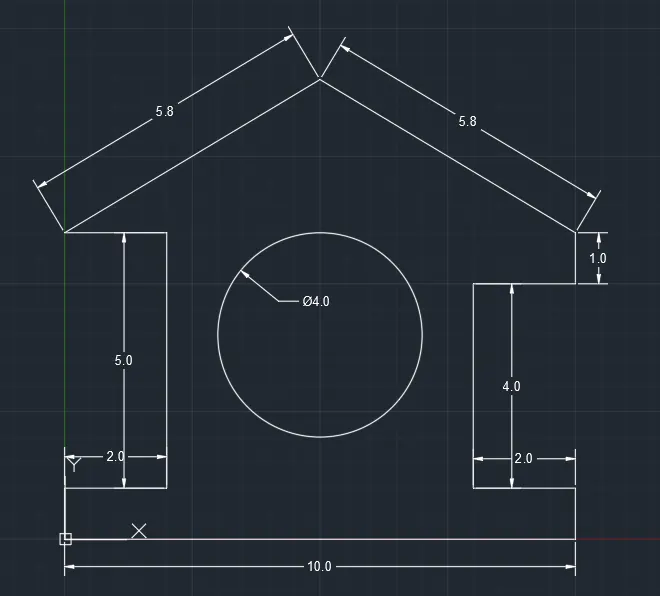

• EXAMPLE : WOOD
•
• PROCEDURE :
• ABSOLUTE COORDINATE METHOD:
• line command
• 0,0 starting point
• 0,1
• 2,1
• 2,6
• 0,6
• 5,9
• 10,6
• 8,5
• 8,1
• 10,1
• 10,0
• closed
• RESULTS :
•

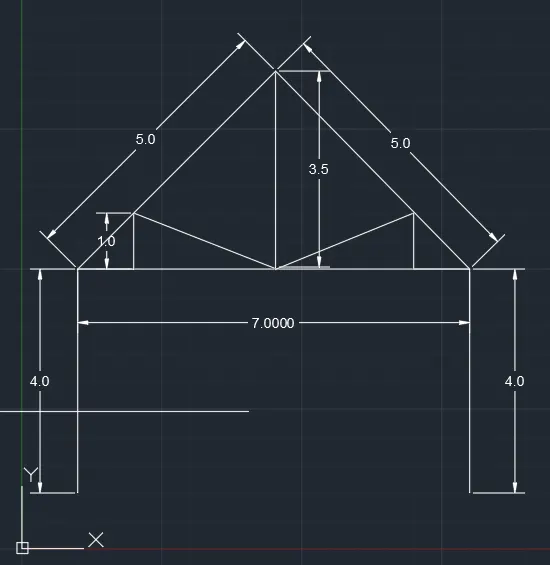

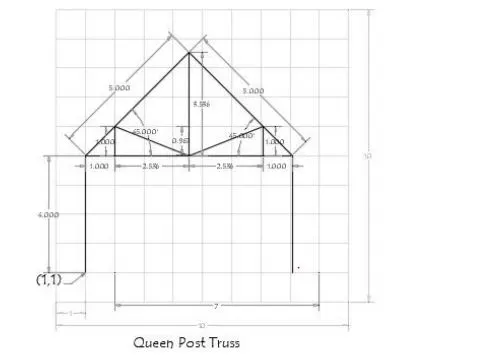

• EXAMPLE :QUEEN POST TRUSS
•
• PROCEDURE :
• RELATIVE POLAR COORDINATE SYSTEM :
• Line command
• 1,1
• @4<90
• @7<0
• @4<270
• enter
• then give the line command
• 1,5 starting point
• @5<45 point f
• enter
• line command
• 8,5
• @5<45
• @3.5<270
• enter
• line command
• 1,5
• @1<0
• @1<90
• joint both point
• and enter
• line commnd
• 8,5
• @1<180
• @1<90
• using line join point
• and prase enter
• RESULTS :
•

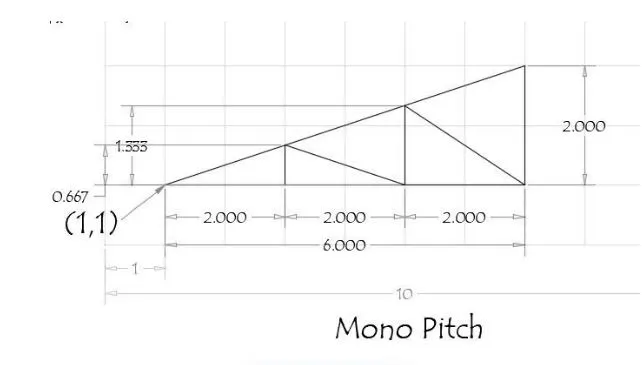

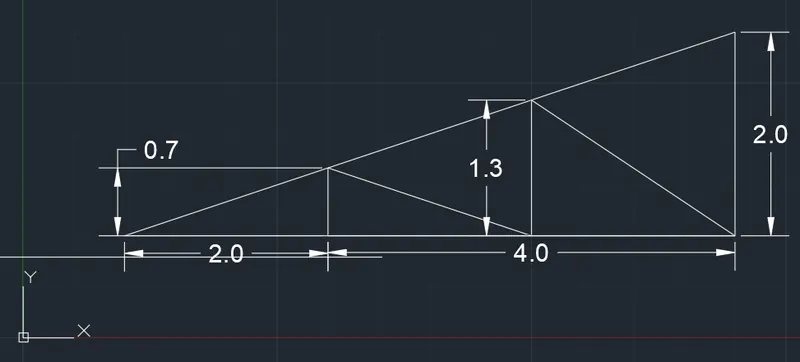

• EXAMPLE :MONO PITCH
•
• PROCEDURE:

• ABSOLUTE COORDINATE SYSTEM :
• line command
• 1,1
• 3,1
• 5,1
• 7,3
• then closed
• give the line command
• 3,1
• 3,1.66
• 5,1
• 5,2.33
• 7,1
• closed
• RESULTS :
•

IN THIS WAY THIS ALL EXAMPLES ARE SOLVED BY FOUR TYPES OF COORDINATE SYSTEM NAME GIVEN BELOW :

• ABSOLUTE COORDINATE SYSTEM
• RELATIVE RECTANGULAR COORDINATE SYSTEM
• RELATIVE POLAR COORDINATE METHOD
• DIRECT DISTANCE ENTRY METHOD
• BY USING AUTODESK AUTOCAD 2021 VERSION
