Creating Walls, Partition walls and Floors for a residential layout using REVIT

Qustion 1) Use the project file created from Week 2. Use it for this assignment. Based on your layout from week 2, using floor tool under architecture tab and select the floor with appropriate material and thickness using the property browser create a layout in the Ground floor Level. Align the floor plan with grids created from week 2

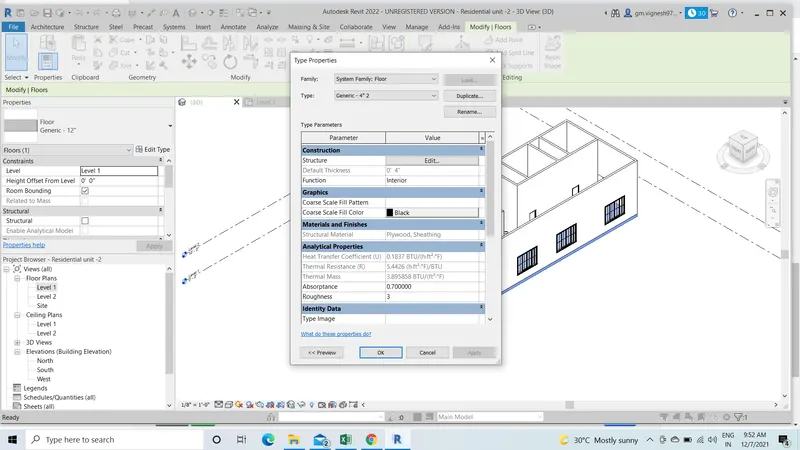

AIM : Crete the floor @ week2 layout, SELECT MATERIAL & THICKNESS

Procedure:

1. Open revit

2. Open 2nd Week assignment

3.Select floor option in architecture tab

4.select the boundary line and click tick

5.select floor in 3D viwe layout

6.click properties select type of floor

7.cilck edit type

8.Click duplicate and create new one and click edit

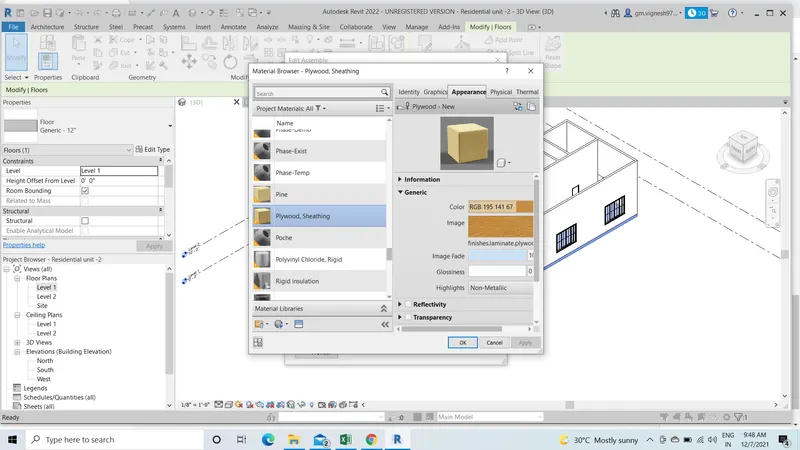

9. select materials and given thickness of floor

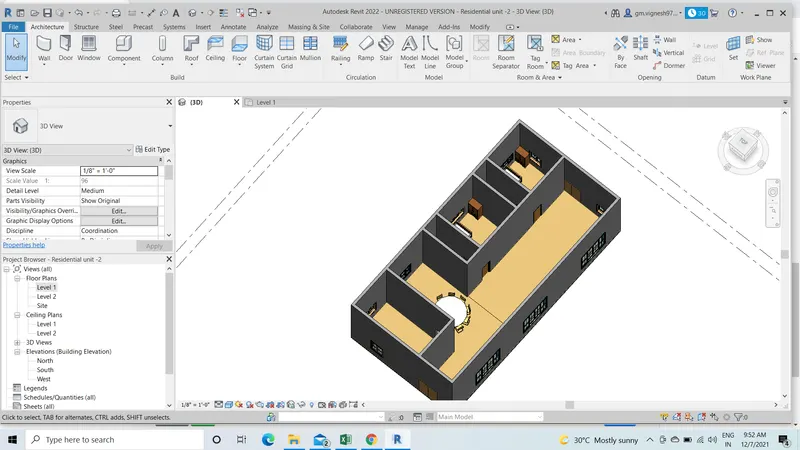

10.Now crete the floor using wooden material 4" thicknees

Qusition:2) Add walls based on the floor layout. Pick lines or use the draw tool to modify the boundary of walls. Use the property browser to select appropriate material and thickness for walls. After creating the walls verify using the property browser to see if the top and bottom of the walls are constrained.

a. Based on your observation, what is beneficial for connecting walls with associated levels rather than being Unconnected
b. Which option is convenient for modeling walls, By Height or By Depth?

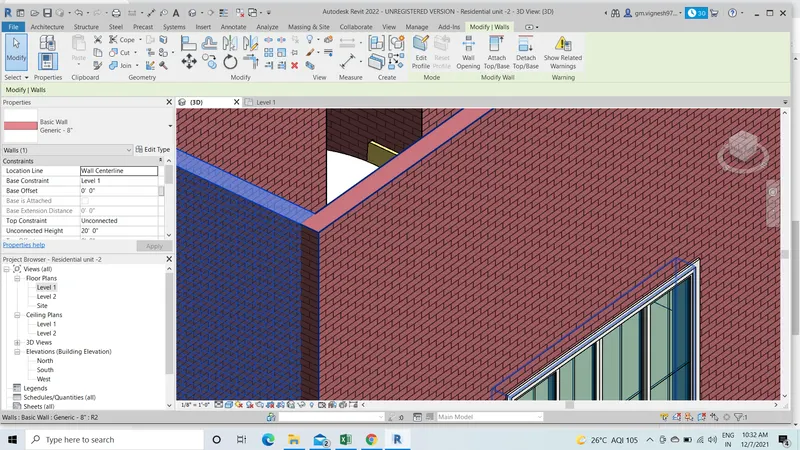

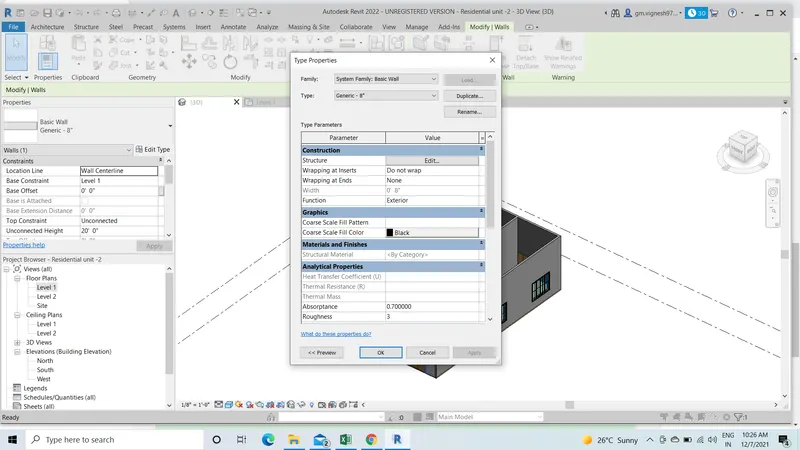

Aim: Add walls based on the floor layout and select appropriate material and thickness for walls

Procedure:

1.Select the wall

2 click edit type

3.Go edti and selecy by category

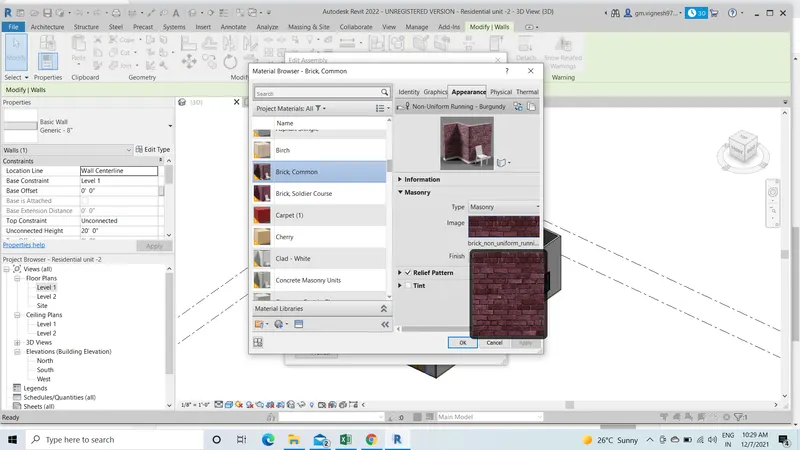

4.Select and apply the material

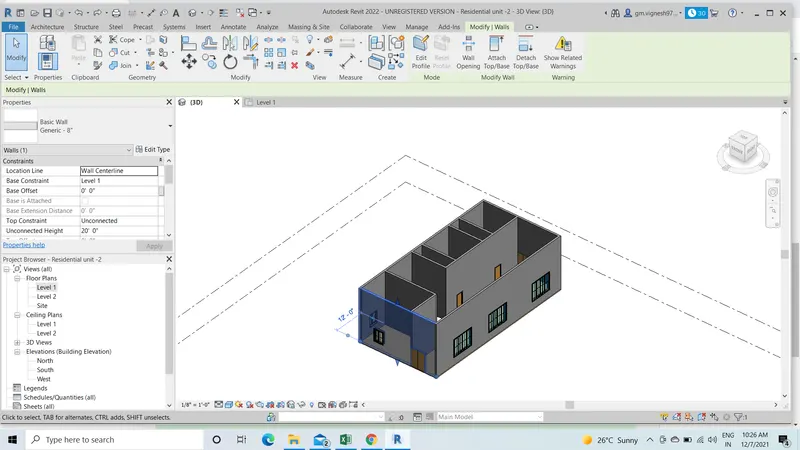

5.Now crete the wall using brick materials

a) The connecting wall are incase change one wall hight connecting all wall are change the height.

b) I using by height option can adjust the wall height very easy.

Question:3) Copy the model elements ( wall, floor ) modelled to Ground Floor Level and paste it aligned to First Floor Level . Use modify tab to utilize copy and paste options to align
elements to a different level

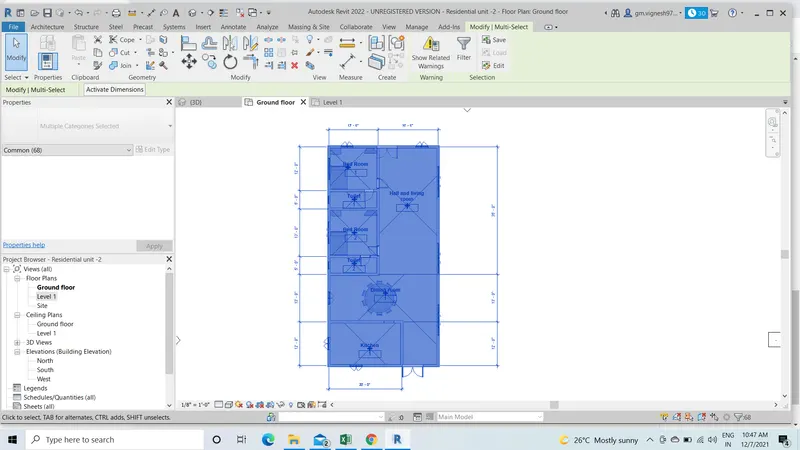

Aim: Create the first floor using copy paste @Ground floor

Procedure:

1.Open Ground floor Layout @2D

2.Select over all lay out

3.Goto clipboard and select copy option

4.And open First floor

5.click clipboard option select paste

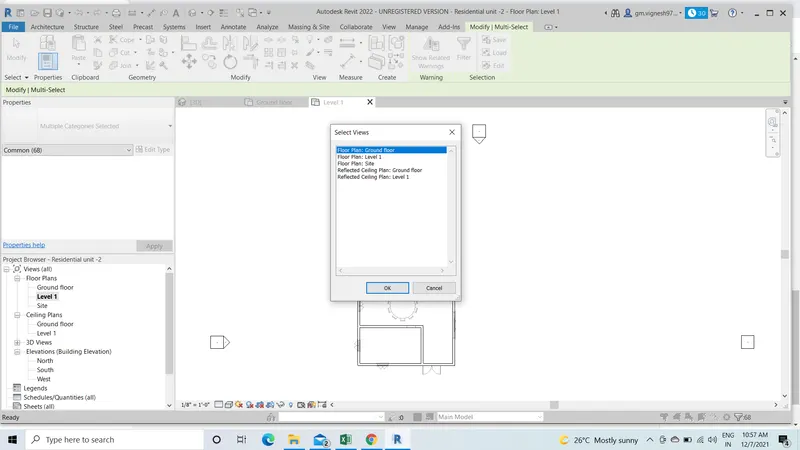

6.click on aligned to slected levels

7.and select level and cilck ok

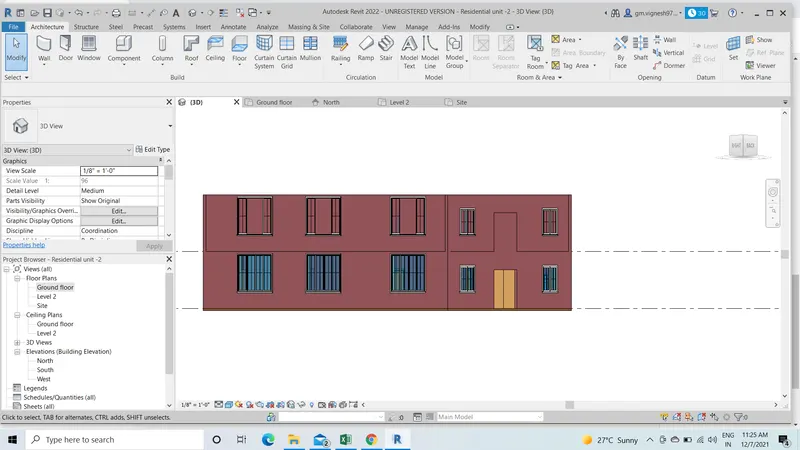

8.Now see the viwe on 3D

Question:

4) Use interior partition walls to create separate rooms within your residential unit. The model must include the following rooms

a. Living Room/ Drawing Room ( 15’ X 18’)
b. Dining Room (9’ X 11’)
c. Bed Room ( 9’ X 12’ and 15’ X 11’)
d. Rest Room ( 10’ X 12’ )
e. Kitchen (8’ X 10’)

The above are for examples. You can use them or use your measured entities to create your model based on your layout. You may include entry walkway, Patios or Guest
rooms based on your creativity and purpose of modeling. Convert units if you are using metric system

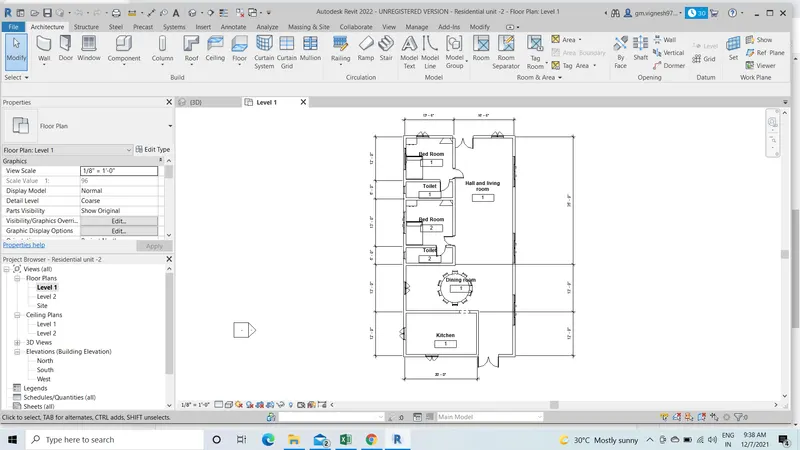

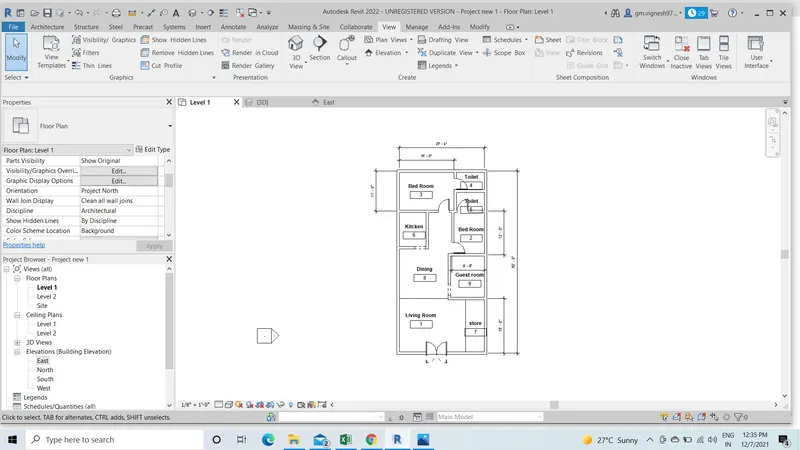

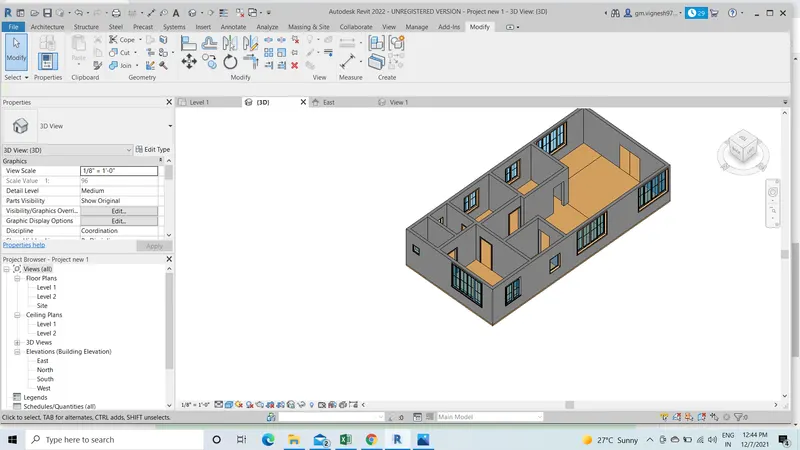

AIM: Create new layout @ Given dimension

Procedure:

1.Open revit new file

2.open architecture template

3.Select wall tab

4.Create the wall

5.using room tag

6.using load family for doors and window

Question:

5) Based on week 2 assignment, the components to be included in a residential unit were inserted to the Revit file. Place these components in appropriate locations to add details to your residential model

a. Place Doors and windows in the wall at appropriate locations
b. The Living Room must include furniture set, couch table and TV desk and shelf cabinets
c. The Dining Room must include a table and chairs serving the purpose of eating
d. Bed Room must include a bed set, shelf, lighting and individual study desk and chair
e. Rest room should include bath tub and plumbing fixtures discussed in class
f. Kitchen should include countertops, gas stove cabinet and shelves to store food items
g. The wash/storage room can include washing machines and shelves to store clothes

All the components are available in Revit Library. Use them to place at appropriate locations to add details to your model. Use 3D navigation to check the model and its authenticity on a real time basis to verify the model

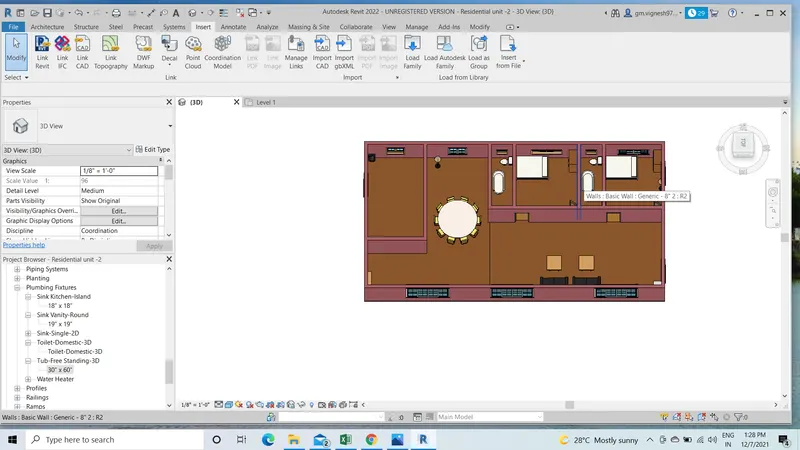

Aim: Place these components in appropriate locations to add details to your residential model

Procedure:

1.Open 2nd week layout

2.create floor and select type of floor

3.selected type of wall

4.select load families

5.loaded components

6.and fix the place the lay out

7.select viwe tab

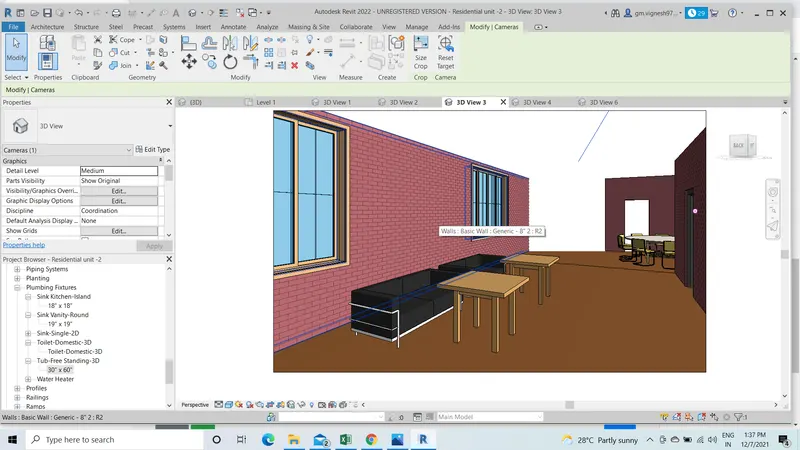

8.click 3D option and select camera option

9.fix the camera

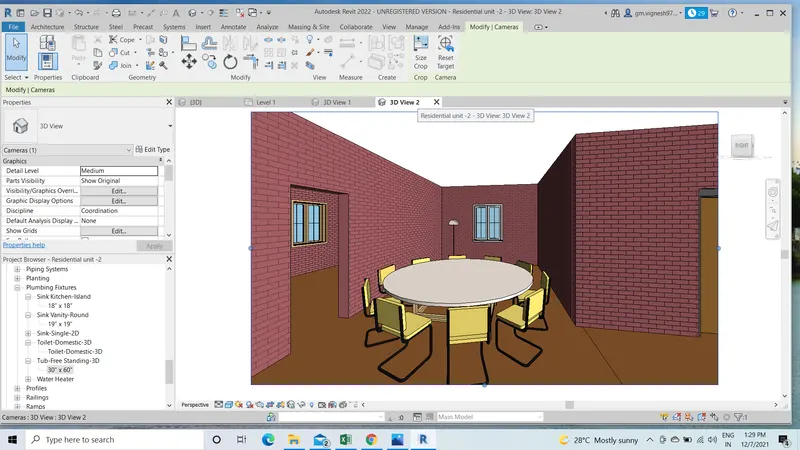

Dining HALL

HALL

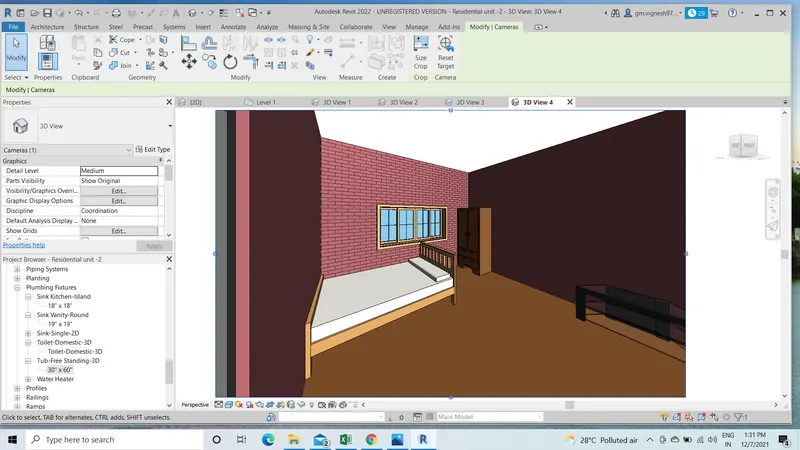

BED ROOM

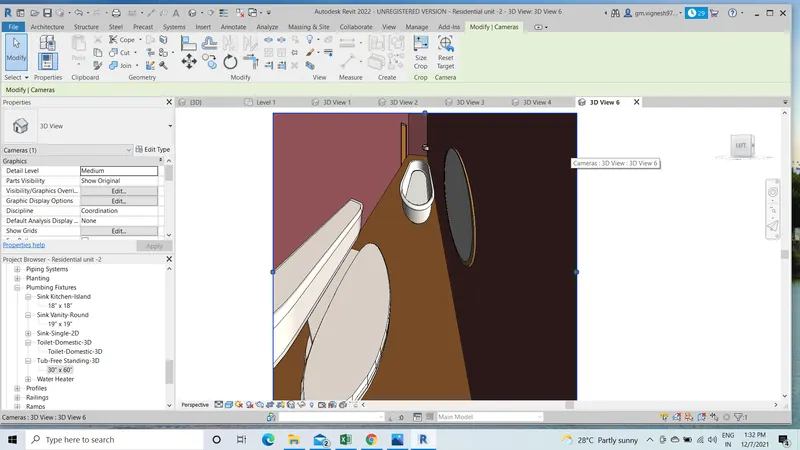

TOILET

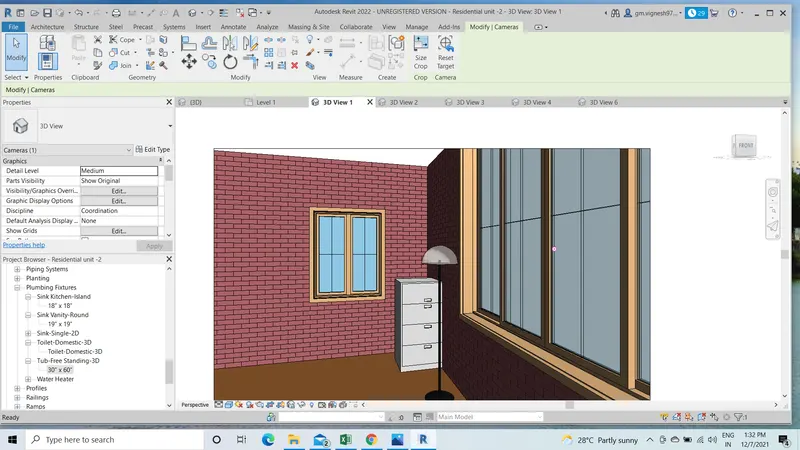

WINDOW

TOP VIWE
