Creating various 3D Models like Furniture, Footing, Girder, Column drop with panel and Gable Wall in AutoCad

1.AIM

To create a 3D furniture elements using the various commands in auto CAD.

INTROUDUTION BY 3D VIEW

The process of creating a mathematical representation of any surface of an object in three dimensions by using special software.
A 3D model can even be represented as a two dimension image by using the 3D rendering process.
It enables the profession crreation and edition of 2D geometry and 3D models with solid,surface and objects.

PROCEDURE

To create a new sheet from application of AUTO CAD.
Go to the setting and to change the view of the page from Drafting to 3D modeling.
Type,,UN ' to set the maximum dimension limit on the particular page.
First we take the top view of the page.
Type ,, LIMITS to set the maximum dimension limits on the particular page.
First we talk the top view of the page.
Type ,, 3D ORBIT to view a 3D orbit viewport in the current viewport
Then ,we take a all box dimension to create it from the origin points is (0,0,0).
Next point we take to x direction to create it from the origin point is (0,0,0).
Next point we take to x direction of (@ 2'6",0,0)
Type extrude to create a surface or solid of a 2D surface.
Then ,we have to change the view of 2D wire,shaded ,conceptional etc.
Type 3DFace for allows to generate 3D face by identifying.
To save the diagram to particular file.

RESULTS:

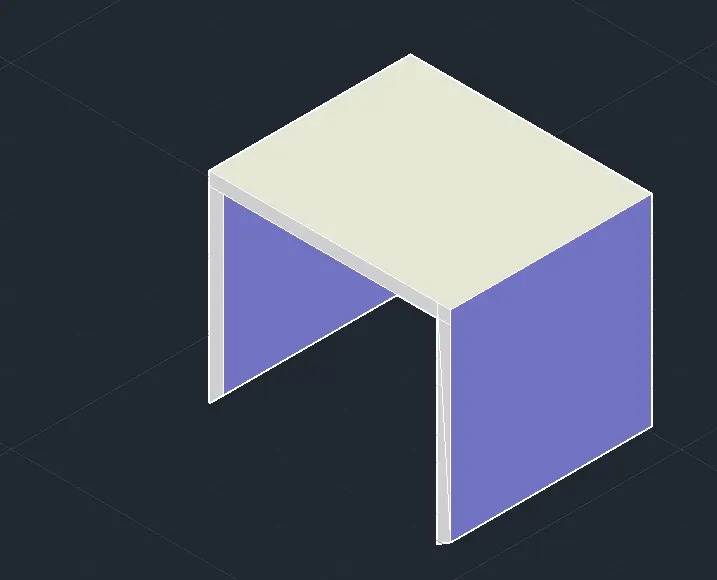

The diagram of 3D furniture elements is drawn as per dimensions using the software of Auto.

DIAGRAM

2.AIM

To create a 3D Model of an isolated footings using the various commands in Auto CAD.

PROCEDURE

To create a new sheet from application of Auto CAD.
Go to the setting and to change the view of the page from Drafting to 3D modeling.
Type ,,UN ' to set the units of current format of measure .(feet and inches).
Type ,, Limits to set maximum dimension limits on the particular page.
First we take the top view of the page.
Type ,, REC' to create a rectangle with a given dimensions.
And then we take to a 3D custom view.
The footing dimension is 4'0" x 4'0".
The depth of footing is 6" and reduced to the depth of 2" and width is 1'0"
Copy - this commands is used to selected objects from the source place.
And then to join the all lines.

RESULTS

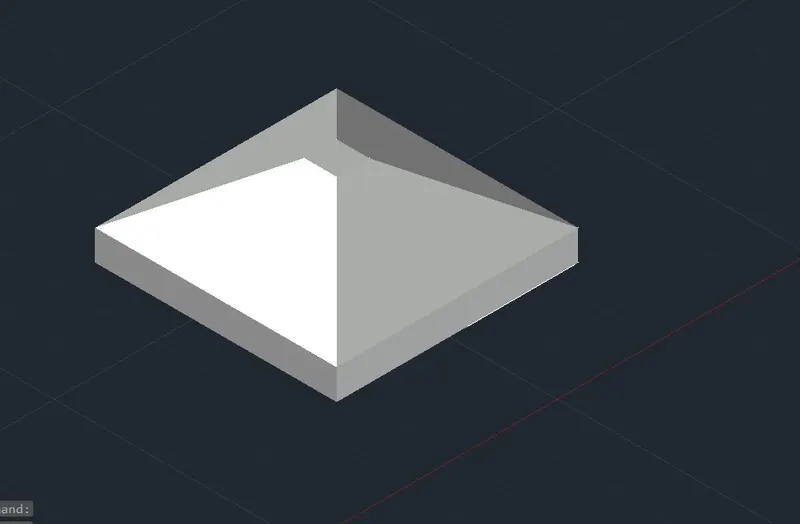

The Diagram of 3D model of an isolated footing is drawn as per dimensions using the software of Auto.

3.AIM

To create a 3D view of the AASTHO type girder using the various commands Auto CAD.

PROCEDURE

To create a new sheet from application of AUTO CAD.
Go to the setting and to change the view of the page from Drafting to 3D model .
Type ,, UN' to set the units of current format of measure.
Type ,, LIMITS to set the maximum dimenion limits on the particular page.
First we take the top view of the page.
To take ,,L' to create a line to draw the I section AASTHO Girder.
The origin points is (0,0,00)
The next point is (@1'6",0,0)
The next point is (@0,0,6")
The next point is (@6"<0<135) and Follow the all given dimension to draw the section.
Type,,3D ORBIT' to view a 3Dorbit viewport in the current viewport
Type,,3D FACE for allows to generate 3D faces by identitfing.
Type ,,REGION' to converts object that encloses an area in to a 2 region objects.
The extruded length of the section grinder is 10 feet.
Then ,we have to change the view of 2D wire ,shaded ,conceptional,,etc.
To save the diagram to particular file.

RESULTS

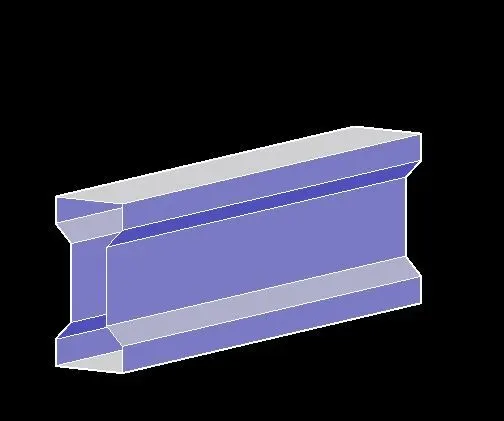

The diagram of 3D type of AASTHO girder type is draw as per dimensions using the software of AUTOCAD

4.AIM

To create a 3D model of a drop column with panel using the various commands in AUTO CAD.

To create a new sheet from application of AUTO CAD.
Go to the setting and to change the view of the page from Drafting to 3D modeling.
Type ,,Limits to set the maximum dimension limits on the particular page.
First we take to a 3D custom view.
To choose the top view of page.
The rectangle size is 4'6".
Type ,, C to create a circle options.
The column cap height id 1 feet.
The height of the column is 10 feet.
COPY- this commands is used to selected objects from a given square to destination ,learning a copy at the originally selected location.
MOVE - move the objects to the destination place from the source place.
After complete the copy of rectangle to make the box like structure of column head.
After we take to draw a circle of diameter of 1'6".
Type ,, EXTRUDE' to create a surface or solid of a 2D surface or a 3D curve.
The extruded length of the circle column with a negtive direction of Z is 10 feet.
Type ,, 3D ORBIT' to view a 3D orbit viewport in the current viewport
Type 3Dface ' for allows to generate 3D faces by identifiying.
Type ,,REGION ' to converts objects that encloses an area into a 2D region objects.
To save the diagram to particular file

RESULTS

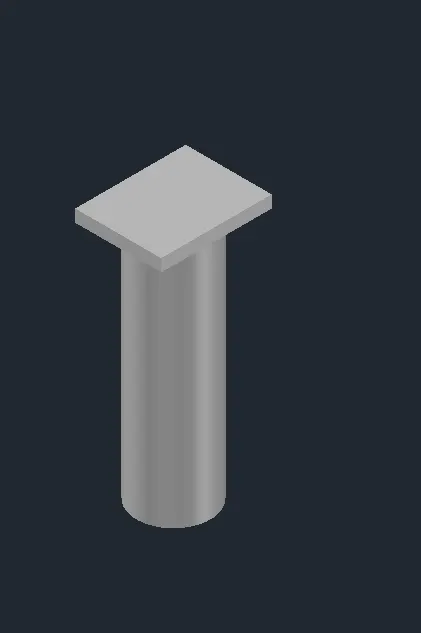

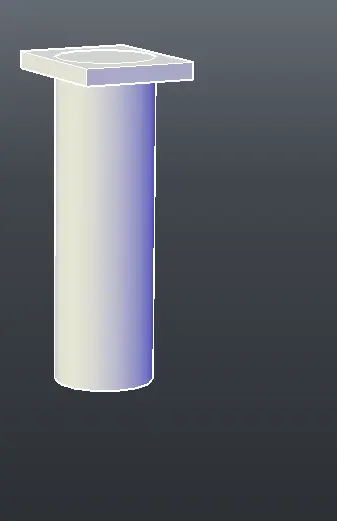

The diagram of 3D model of a column with drop panel is drawn as per dimension using the software of AUTO CAD.

DIAGRAM:

5.AIM

To create a 3D model of a wall using the various commands in AUTO CAD.

PROCEDURE

To create a new sheet from application of AUTO CAD.
Go to the setting and to change the view of the page from Drafting to 3Dmodeling.
Type ,,UN' to set the maximum dimension limits on the particular page.
First we take the top view of the page.
Before we start 3D work to create a plan of wall at 2D.
To make the wall thickness of 250mm.
To fix the door and wall opening from wherever we need.
Type ,, REGION' to converts objects that enclose an area into a 2D region objects.
After creating prefect plan to do next work of 3D solid works.
Type ,,EXTRUDE' to create a surface or solid of a 2D surface or a 3D curve.
The extruded of wall height id 10 feet from the base.
And then to draw the rectangle of wherever having the doors and windows.
This comes after to follow the extruded of door opening height of 7 feet.
Type ,, 3D ORBIT' view a 3D orbit viewport in the current viewport
Type,, 3D FACE' for allows to generate 3D faces by identifying.
Type,, REGION' to converts objects that encloses.
Type ,, SUBTRCT' to remove the opening required places of door and windows.
To save the diagram to particular file.

RESULTS

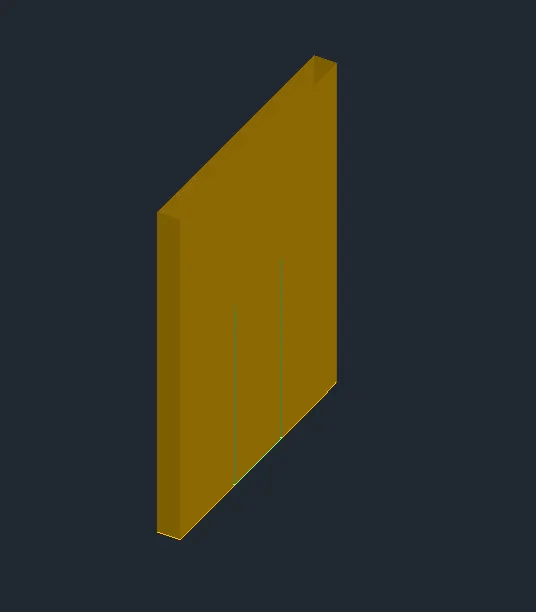

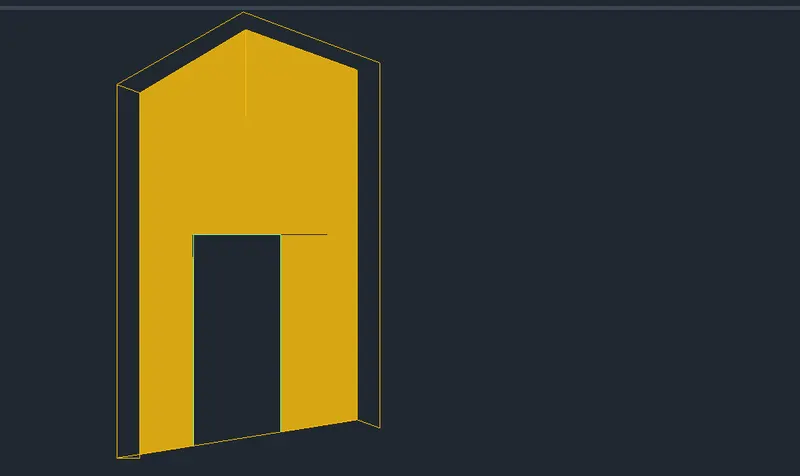

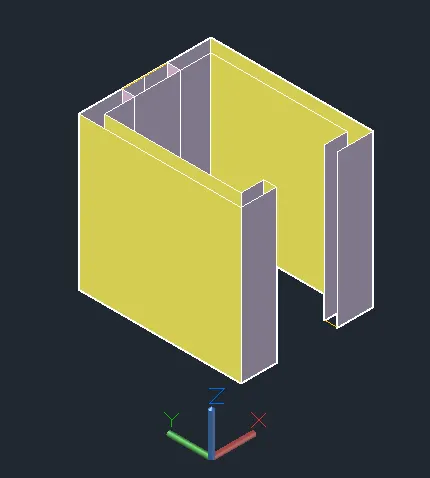

The diagram of 3D model of wall is draw as per dimension using the software of AUTO CAD.
