Creating various 3D Models like Furniture, Footing, Girder, Column drop with panel and Gable Wall in AutoCad

1.AIM:

To Create a 3D furniture elements using AutoCAD software

PROCEDURE:

RESULT:

2.AIM:

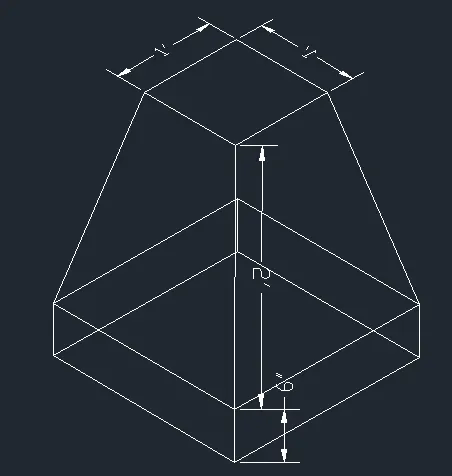

To Create the 3D model of an Isolated footing

PROCEDURE:

open autocad>3d Modelling
In the command prompt type units >Engineering >0'-0"
In the command prompt type limmax >100',100'
In the coomand prompt type limits >0',0'
In the command prompt type zoom >a
In the command prompt type line to draw the desired lines of dimensions 6",3',2'
In the command prompt type rec to draw the rectangle of size 1' x 1'
In the command prompt type Dim to give the dimensions
In the command prompt type 3Dface to get the surface

RESULT:

3.AIM:

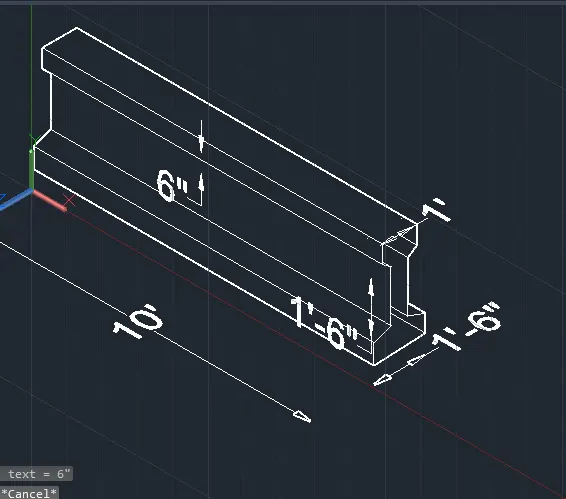

To Create the 3D view of the AASTHO type girder using AutoCAD

PROCEDURE:

In the command prompt type units> engineering >inches>0'-0'
In the command promt type limax>100',100'
In the command prompt type limits >0,0
In the command prompt type l to draw the desired lines at the sw view
In the command prompt type l and draw the line of distance 1'-6" , 6", 1-6" , 6" and 1"
In the Ribbon bar select extrude to extrude the object
In the command prompt type dim to give the dimensions

RESULT:

4.AIM:

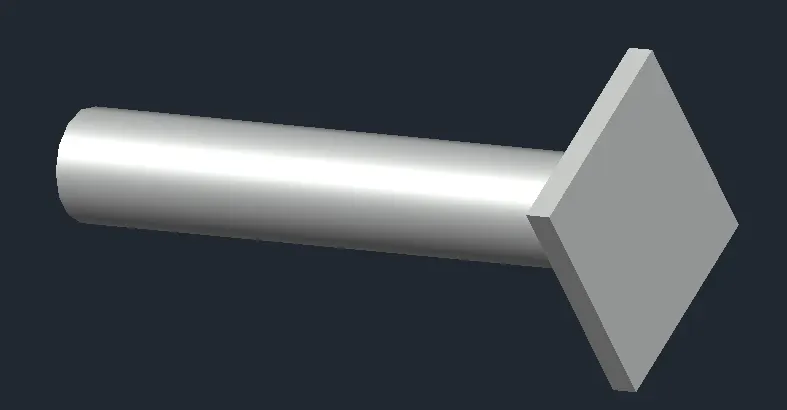

To Create 3d model of a drop column with panel

PROCEDURE:

In the command prompt type units >0'-0"
In the command prompt type limmax>100',100'
In the command prompt type limits >0'.0'

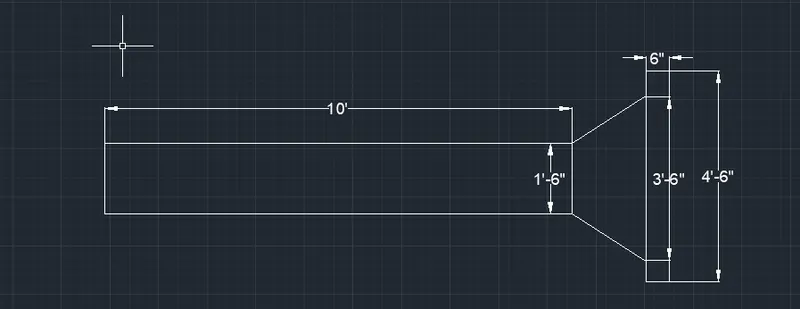

In the command prompt type l to draw the desired lines of distance 10' , 1'-6" , 6" , 3'-6" ,4'-6"
In ribbon bar >Extrude > to extrude the object
In the command prompt type c to draw the circle
With the 3dorbit the 3D view is obtained
In the command prompt type dim to get the dimensions

RESULT:

5.AIM:

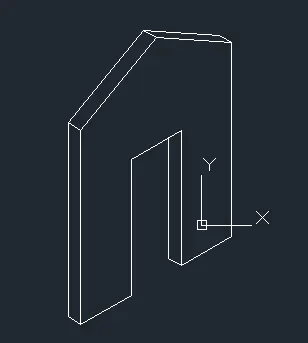

To Create the 3d model of a wall using Autocad

PROCEDURE:

Open AutoCAD
In the command prompt type QNEW
click on imperical template , advaced setup , decimal
In the command prompt type units
Type= decimal, precision = 0.00 , angle = decimal degree
In the command prompt type ds
In drafting settings (ds) off "snap on" and off "grid on"
select on isometric snap
keep ortho (f8) on
In the command prompt type line
Specify the point or select a point
press f5 (isodraft) to get the line in desired directon
keeping the isodraft in left direction one side of the wall is drawn
changing the isodraft in the other direction the next side of the wall is drawn .
In the command prompt type the required distance

RESULT:
