Creating various 3D Models like Furniture, Footing, Girder, Column drop with panel and Gable Wall in AutoCad

1.

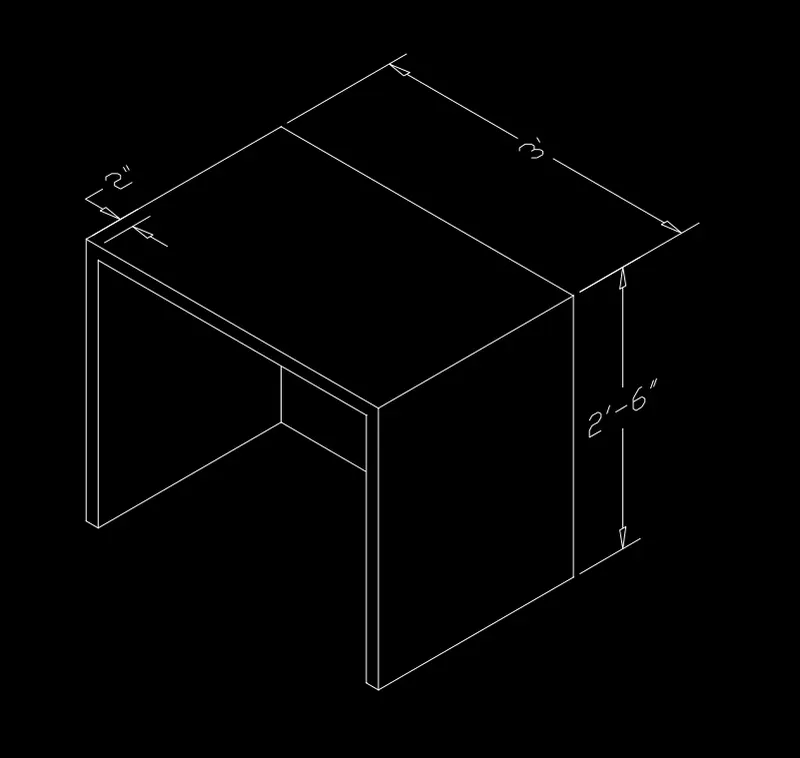

AIM: TO DRAW THE GIVENN DRAWING AS 3D FURNITURE ELEMENT

PROCEDURE

1.DRAW THE LINE COMMAND AND SPECIFY THE LENGTH OF THE OBJECT GIVEN

2.OFFSET 2" TO GIVE THE OFFSET DIMENSION OF THE LINE

3.EXTRUDE THE LIN E OF GIVEN HEIGHT WITH THA ETRUDE COMMAND

4.PROVIDE THE DIMENSION OF THE OBJECT

RESULT:

2.

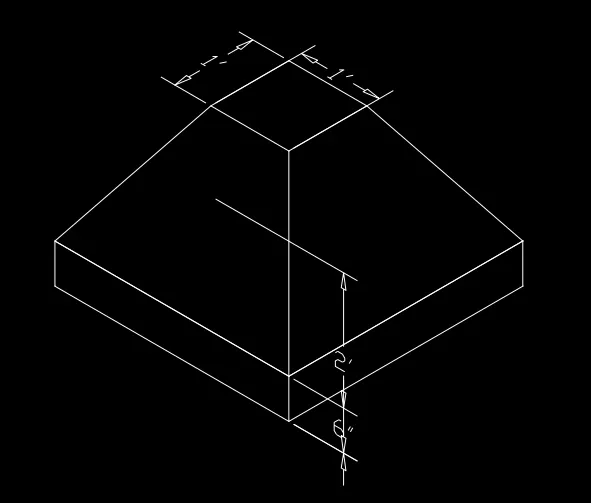

AIM: TO DRAW THE GIVENN DRAWING AS ISOLATED FOOTING

PROCEDURE

1.DRAW THE LINE COMMAND AND SPECIFY THE LENGTH OF THE OBJECT GIVEN

2.OFFSET TO GIVE THE OFFSET DIMENSION OF THE LINE

3.EXTRUDE THE LIN E OF GIVEN HEIGHT WITH THA ETRUDE COMMAND

4.PROVIDE THE DIMENSION OF THE OBJECT

5.DRAW THE LINE IN A TRAPEZOIDAL MANNER TO OBTAIN THE FOOTING OF STRUCTURE IN A 3D MANNER

6.JOIN THE LINES USING UNION COMMAND

7.FINALLY INTERSECT THE LINES FULLY TO CREATE A TRAPEZOIDAL FOOTING.

RESULT:

3.

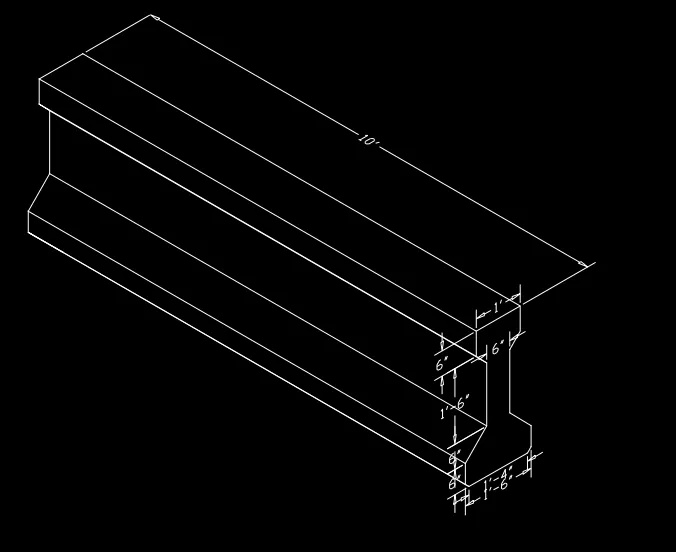

AIM: TO DRAW THE GIVENN DRAWING ASTHO TYPE GRIDER

PROCEDURE

1.DRAW THE LINE COMMAND AND SPECIFY THE LENGTH OF THE OBJECT GIVEN

2.OFFSET TO GIVE THE OFFSET DIMENSION OF THE LINE

3.EXTRUDE THE LIN E OF GIVEN HEIGHT WITH THA ETRUDE COMMAND

4.PROVIDE THE DIMENSION OF THE OBJECT

5.USE THE TRIM COMMAND TO FINISH THE PERFECT DRAWING

6.JOIN THE LINES USING UNION COMMAND

RESULT:

4.

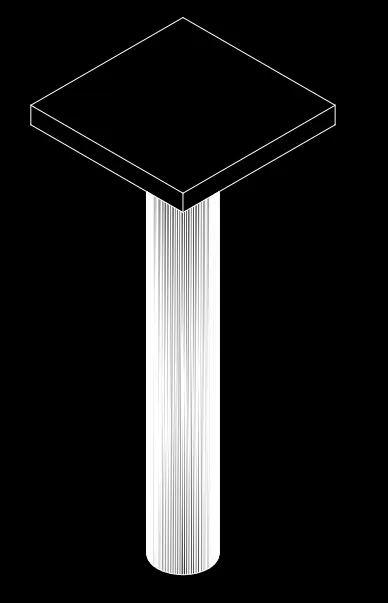

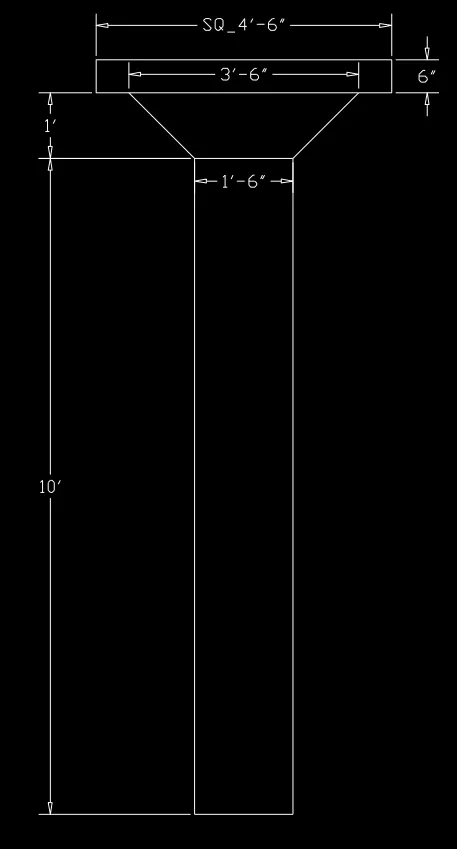

AIM: TO DRAW THE GIVENN DRAWING DROP COLUMN

PROCEDURE

1.DRAW THE LINE COMMAND AND SPECIFY THE LENGTH OF THE OBJECT GIVEN

2.EXTRUDE THE LIN E OF GIVEN HEIGHT WITH THA ETRUDE COMMAND

3.PROVIDE THE DIMENSION OF THE OBJECT

4.USE THE TRIM COMMAND TO FINISH THE PERFECT DRAWING

5.JOIN THE LINES USING UNION COMMAND

6.USING HATCH TO FILL THE OBJECT.

RESULT:

5.

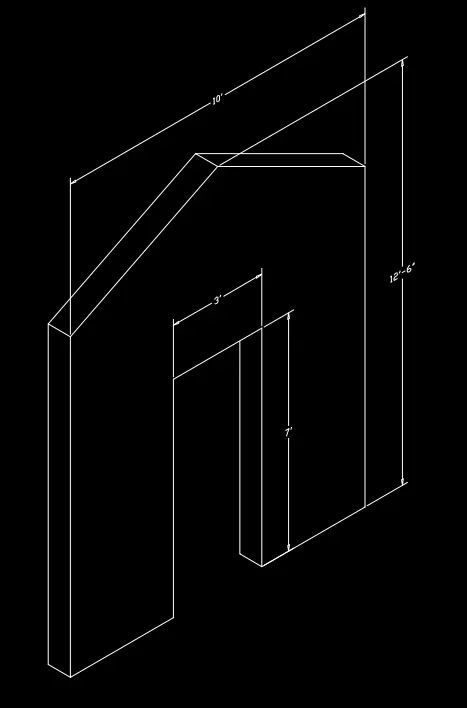

AIM: TO DRAW THE GIVENN DRAWING 3D WALL MODEL

PROCEDURE

1.DRAW THE LINE COMMAND AND SPECIFY THE LENGTH OF THE OBJECT GIVEN

2.EXTRUDE THE LIN E OF GIVEN HEIGHT WITH THA ETRUDE COMMAND

3.PROVIDE THE DIMENSION OF THE OBJECT

4.USE THE TRIM COMMAND TO FINISH THE PERFECT DRAWING

5.JOIN THE LINES USING UNION COMMAND

RESULT:
