Creating Kitchen layout, Hatching of Architectural elements and sectional view of an Industrial Building in AutoCad

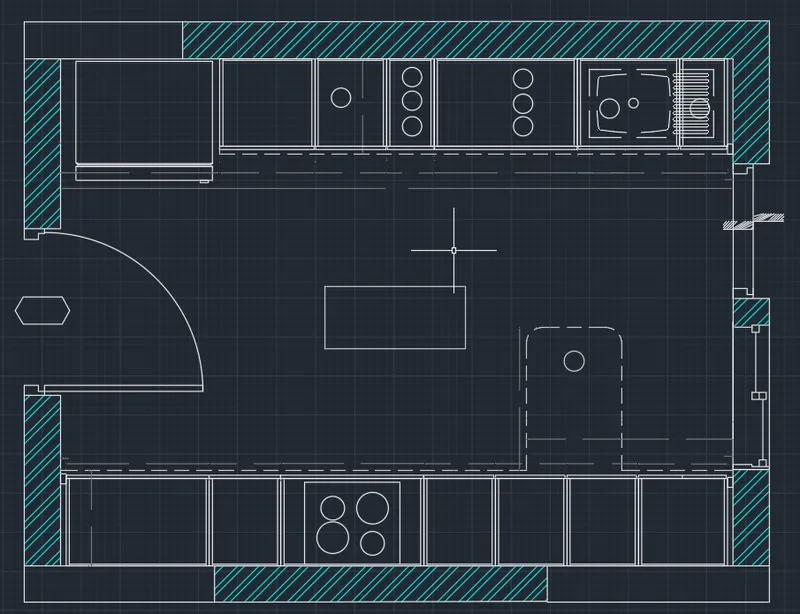

Aim:

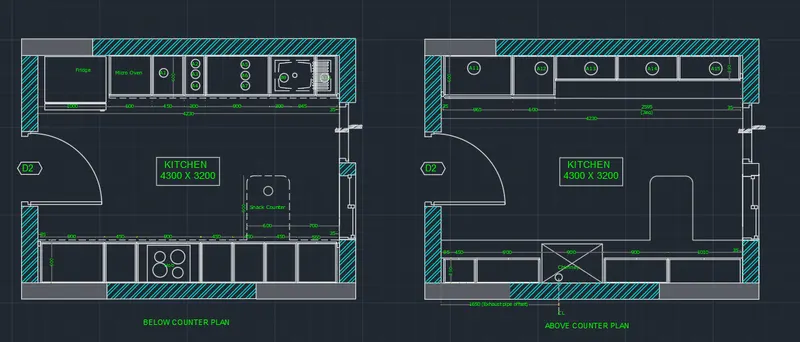

To Create the Kitchen Layout and to Also, use proper dimension techniques to dimension the kitchen layout. Also, insert text wherever required. All dimensions are in mm.

Procedure:

step 1:

• units are set to mm
• limits and limax are also set
• zoom comand is also used

Step 2:

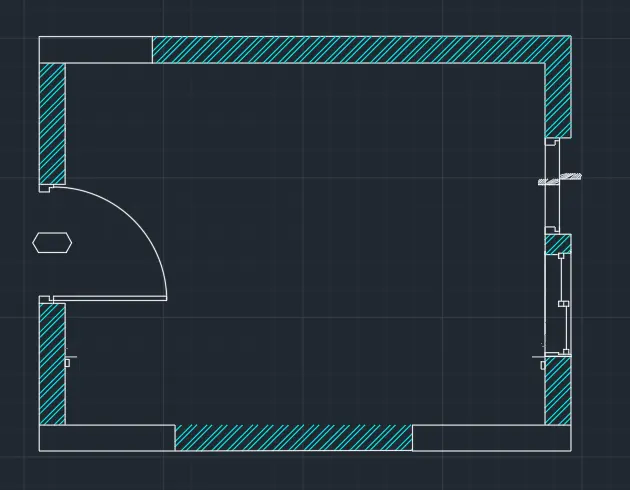

• In the command prompt type rec and the dimensions are 4734 x 3688 mm
• In the command prompt type offset and offset it to the distance of 230mm
• Using arc and lines the door is drawn
• In the command prompt type hatch to hatch the model
• In the command prompt type rec > dimensions , to do the fridge
• In the command prompt type offset and offset it to the desired distace to get the Micro Oven
• In the command prompt type trim to trim the extras
• In the command prompt type offset and offset it to the horizontal distance of 350,450,900,450,450 and 560
• In the command prompt type offset and offset it to the vertical distance of 600
• In the command prompt type trim to trim the extras
• In the command prompt type line type and load the dotted lines
• In the command prompt type text to text the given annotations

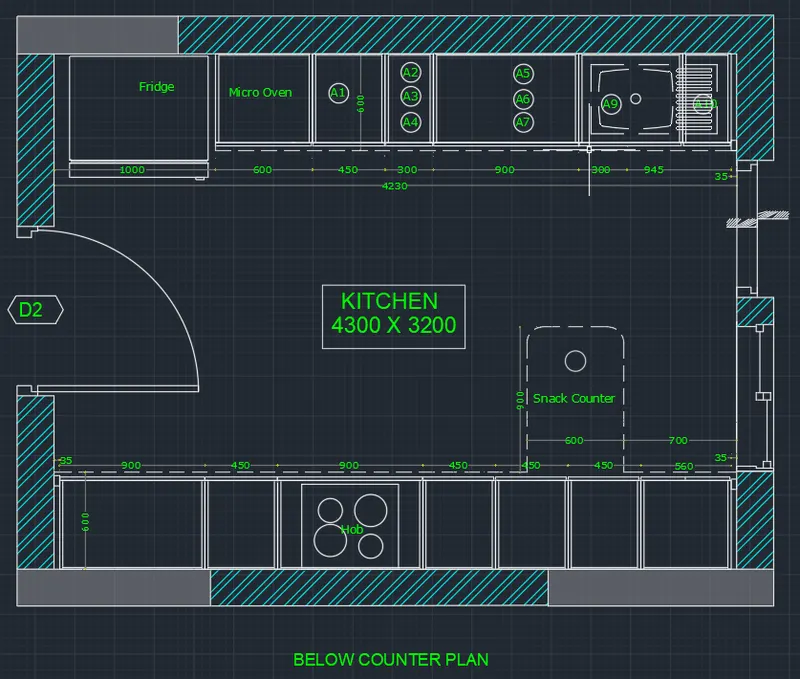

• In the command prompt type dimensions to given the dimensions to your plan
• In the command prompt even the leader command is used to name the dimensions.

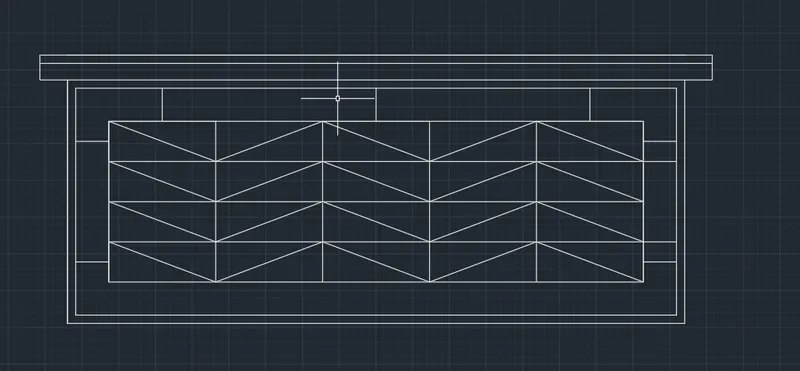

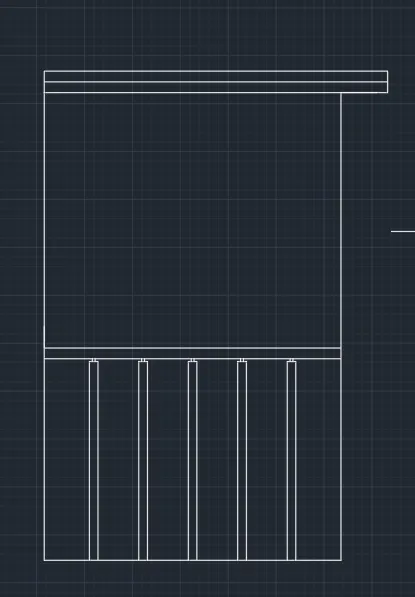

2. AIM:

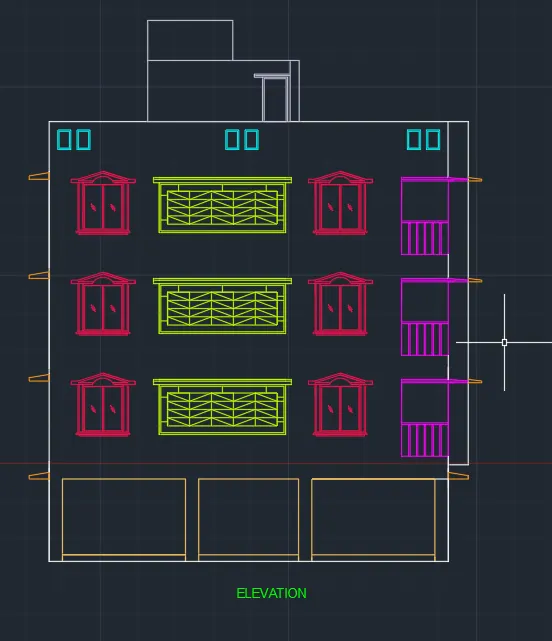

To create the elevation of the plan with hatch

PROCEDURE:

• In the command prompt type l to draw the lines

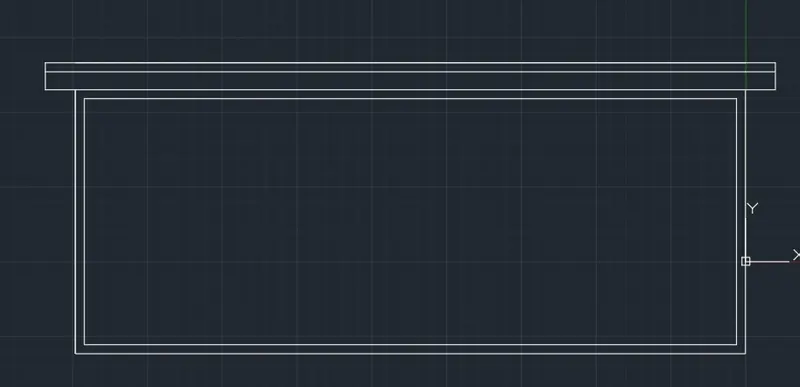

• In the command prompt type rec to draw the rectangle
• In the command prompt type arc to draw the arc

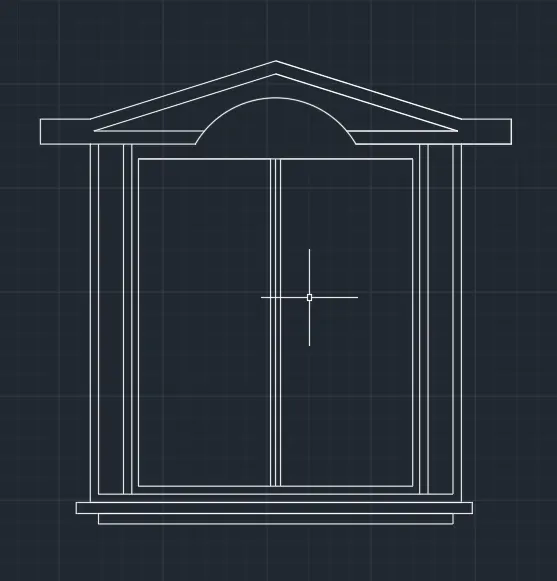

• Therefore, the window is created
• n the command prompt type l to draw the lines
• In the command prompt type rec to draw the rectangle
• In the command prompt type l to draw the lines
• In Created block cmt and mention it

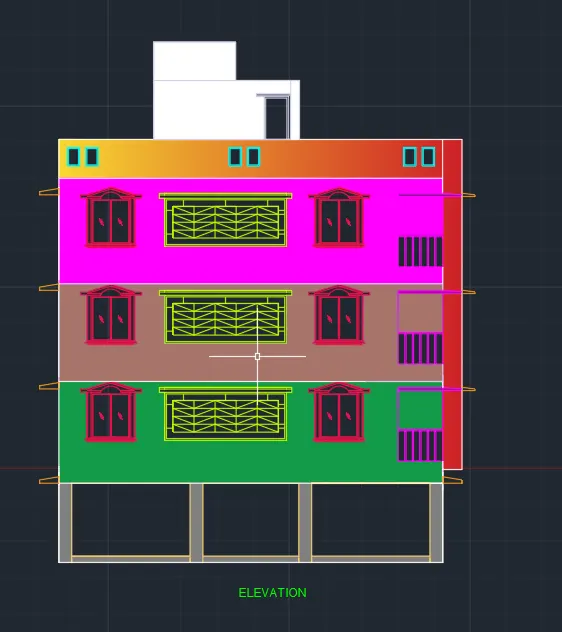

• finally aligned all object like elevation view.

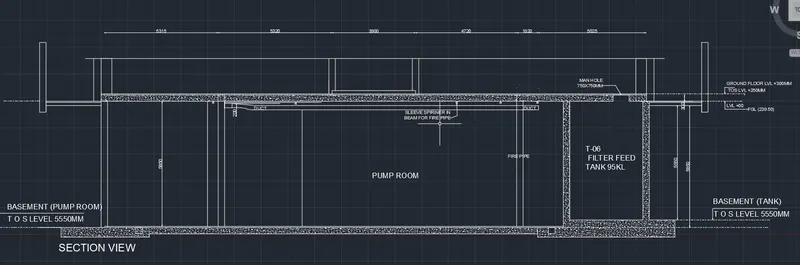

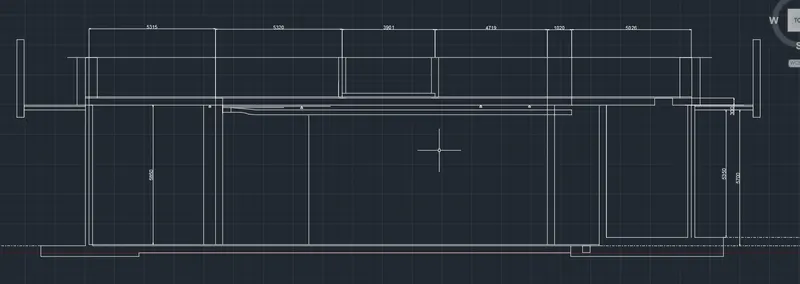

AIM:

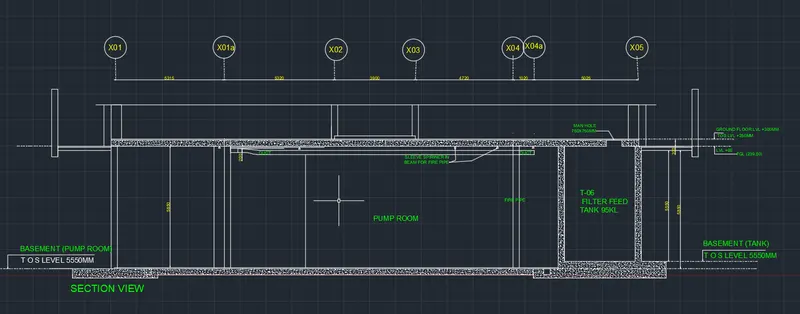

To create the section view of an industrial building .

PROCEDURE:

• In the command prompt type l to draw the lines .
• In the Ribbon bar > Hatch > AR.CONC.
• In the command prompt type rec to draw the rectangle
• In the Ribbon bar > hatch > AR-Conc
• In the command prompt type LT to get the dotted lines
• In the command prompt type c to draw the circle
• In the command prompt type Mt to draft the text
• In the command prompt type dim to draft the dimensions
• finally given to be colour in layer.
