Creating Bar Bending schedule, Different Door types, and Creation of standard drawing templates using AutoCad

1)Aim:

Creating templates, inserting text and attributes

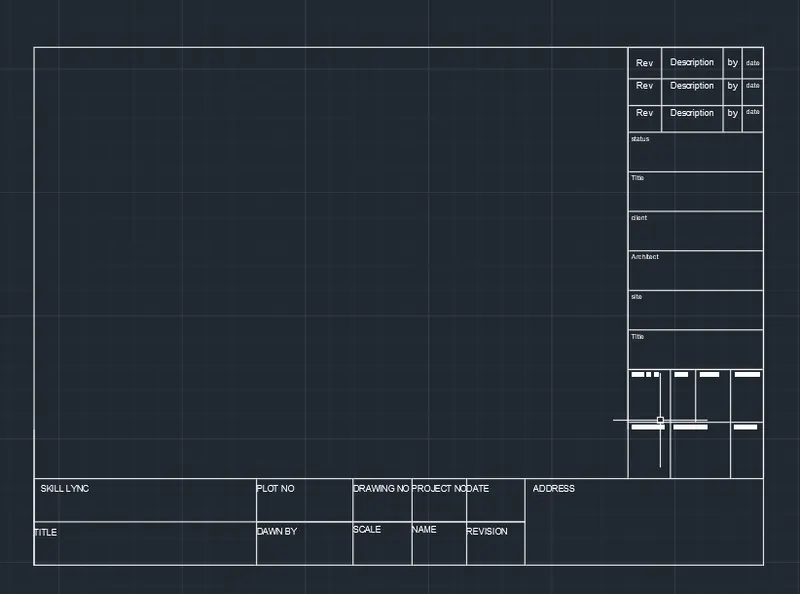

• Custom 1_ title block
• Custom 2_ title block

Procedure:

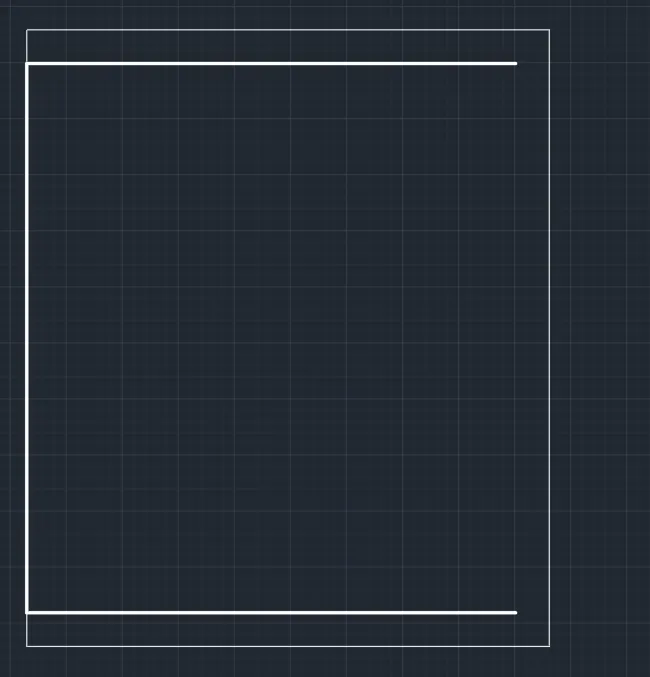

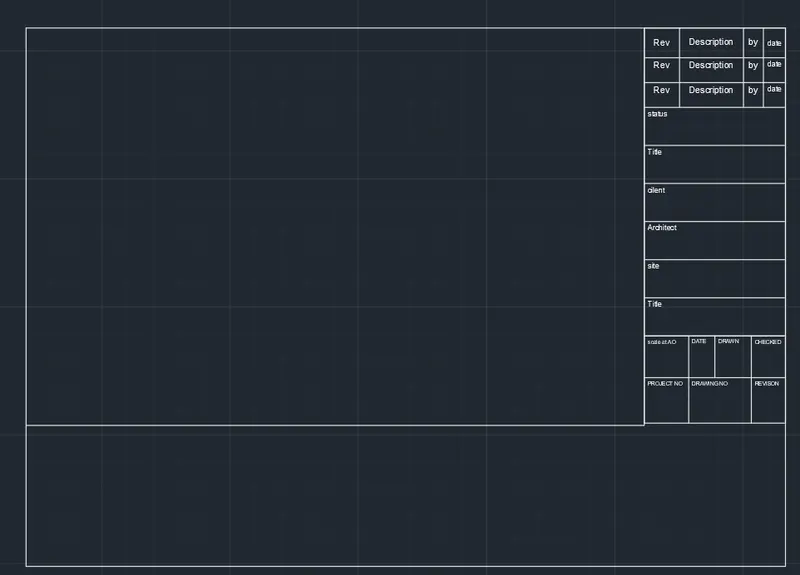

• create rectangular box size of A4 sheet.its 210mm x296mm
• draw the rectangular of inner portion separate to 60mm.
• To make the table 4columns and 12rows in template box.
• Aligned to the table for input text clearly.
• next i used to attributes comment
• i make to the some tags create to the table.
• i select the attributes text and copy paste to needed place.
• finally i aligned all attributes
• it make up read for blocks.
• i open block comment and select a pick points set to the blocks
• after double click open the attributes i given the text to template
• i save the drawing to dwt format for template.

2)Aim:

Creating doors for warehouse and placing it in blocks:

1. Door 1 - 2330 x 2750 mm
2. Door 2 - 2330 x2750 mm

Procedure:

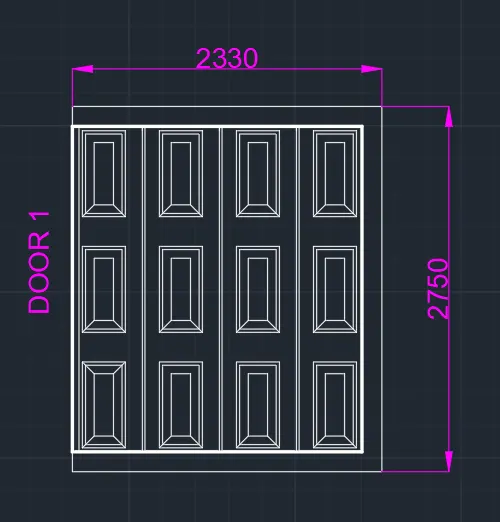

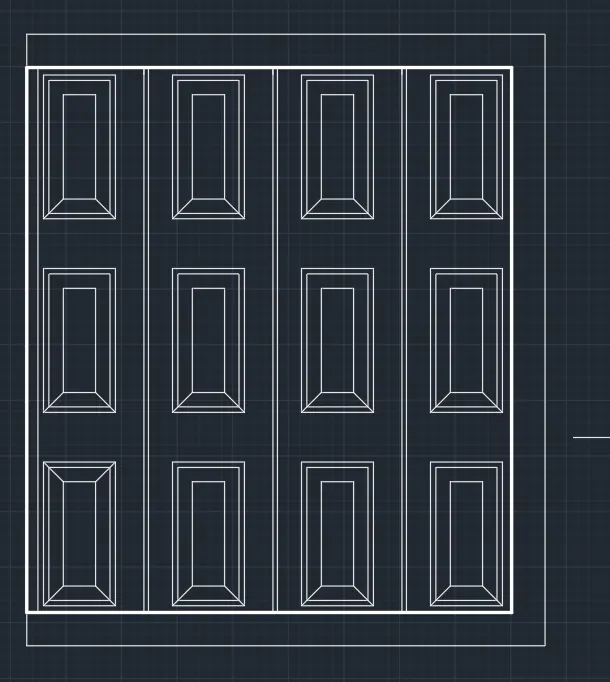

Door 1 -2330x2750mm:

Create a rectangle of size 2330x2750mm.

Offset 50mm as a frame. 90mm for the left side.Explode the rectangle.

By divide "DIV" divide the top line into 4 segments.From the division point, draw lines vertically to divide it into shutters.

Offset 25mm on both sides for the thickness, delete the centre line.

Create a rectangle to show the panels.Offset 20mm from the 1st rectangle and offset 100mm from the 2nd rectangle.Draw lines joining the corners of the outside and inside rectangle.

Creating block:

Command "B" - give name as door 1 - pick point- select corner point- select object - select the full object - ok.Select scale uniformly and allow exploding.

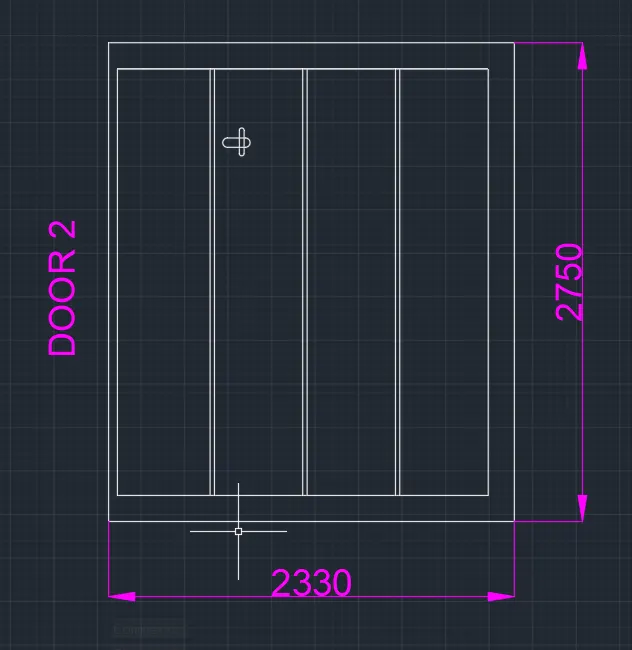

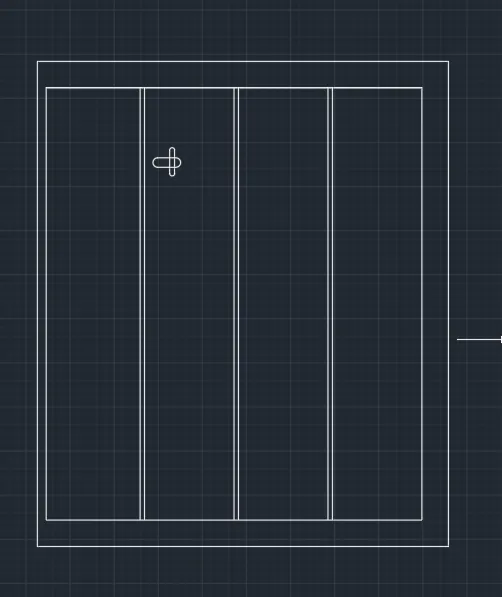

Door 2 -2330 x2750mm:

Create a rectangle of size 2330x2750mm.Offset 50mm as a frame. 90mm for the left side.Explode the rectangle.

By divide "DIV" divide the top line into 4 segments.From the division point, draw lines vertically to divide it into shutters.To make the points visible, Command "DDPTYPE" select the style of point

Offset 25mm on both sides for the thickness, delete the centre line.Create lock by rectangle drawn on opposite sides and fillet the corners with radius 5mm.

Make layers and insert lock, frame in different layers

Create it as a block "B" - pick a corner point - select the whole door -tick the box of scale uniformly- explode

3)Aim:

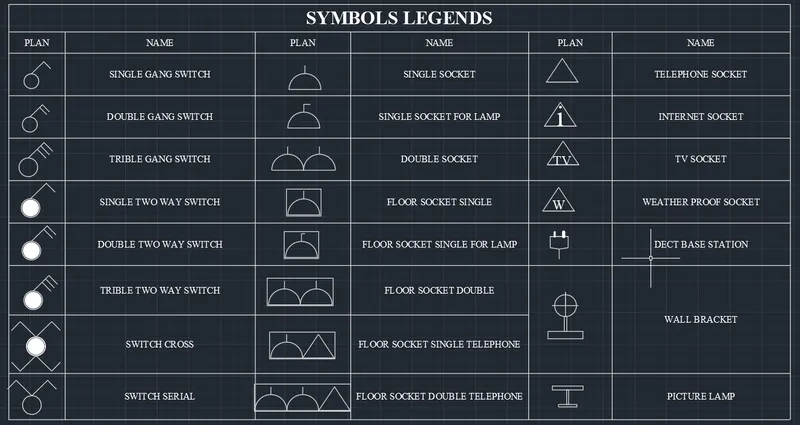

To create electrical legend

1. Create each electrical symbol
2. Creating them as block
3. Arranging them in legends

Procedure:

Creating electrical symbols

Single gang switch: Draw a circle of radius 64mm and with line draw an inclined line vertical and horizontal line perpendicular to the inclined as required.

Double gang switch: Draw circle and draw two horizontal lines and a vertical incline line.

Triple gang switch: Draw circle, 1 vertical incline line and three horizontal lines.

Single two-way switch: Draw same as single gang switch and with donout command give internal dia as zero and for external diameter select it in the circle.

Double two way switch: Draw same as double gang switch and create donout .

Triple two-way switch: Draw same as triple gang switch and create donout.

Switch cross: Create a circle and donout inside and with line command draw an inclined vertical and perpendicular horizontal. Mirror the line in both directions.

Switch serial: Copy the switch cross and delete two bottom lines, remove the donout also.

Single socket: Create a circle, divide it into half and draw a line at the top.

Single socket for lamp: From the single socket, draw a horizontal line perpendicular to vertical.

Double socket: Draw the single socket and copy it to create same and place it using snap on.

Floor socket single: Draw a rectangle surrounding single socket.

Floor single socket for lamp: Draw a rectangle surrounding single socket for lamp

Floor socket double: Create two single socket and place a rectangle surrounding it.

Floor socket single telephone: Draw a single socket, a triangle and surrounded by a rectangle.

Floor socket double, telephone: draw 2 single socket and a triangle surrounded by a rectangle.

Telephone socket: Draw a triangle

Internet socket: Insert text "i" in the triangle.

Tv socket: Insert text “TV' in the triangle.

Weatherproof socket: Insert text "w" in the triangle.

Duct base section: Draw a rectangle - select the bottom grip point - select add vertex - then pull the vertex to create a bend, with line draw the lines.

Wall bracket: With rectangle draw the base, create a circle, draw a line connecting the rectangle and circle, draw a cross line inside the circle.

Picture lamp: draw two rectangles connected by a line.

Creating them as block:

Command "B" give name as single gang switch - pick a point - select object (created single gang switch) - tick scale uniformly and allow exploding options.

4)Aim:

To draw the doors of residential project and create it as block.

1. D1
2. D2
3. D3
4. D4
5. D5
6. D6

Procedure:

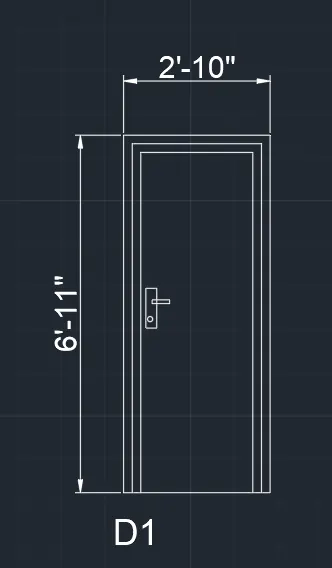

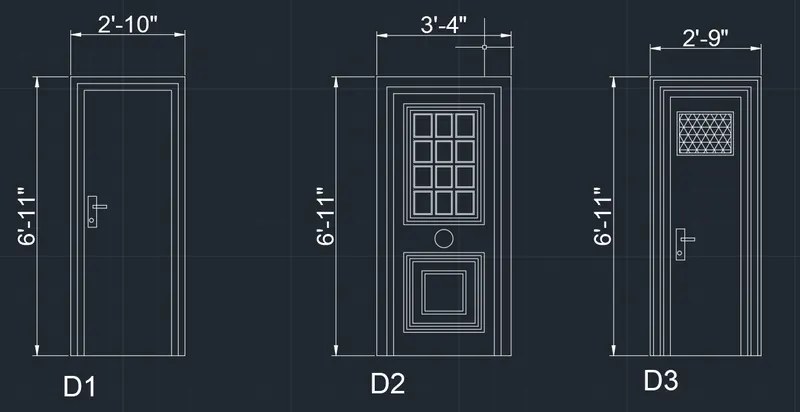

1). D1 - 2'10" x 6'11" :

Draw rectangle with dimension 2'10" and 6'11".Draw offset 1.5" for frame.Draw offset 1" for shutter.

Draw lock by two rectangles perpendicular to each other and fillet the corners with radius 0.1"and circle.Write text by multiline text "D1".

Create it as block "B"- give name as "type-D1" -pick a corner point- select the object. then block is created.

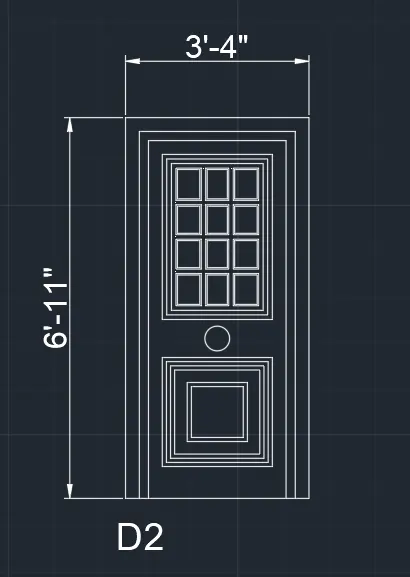

2). D2 - 3'4" x 6'11" :

Draw rectangle with dimension 3'4" and 6'11".Draw offset 1.5" for frame.Draw offset 1" for shutter.

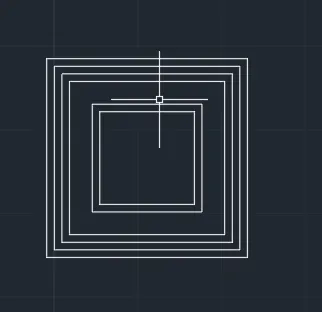

Draw rectangle for panel 1'11" and 2'9.1", then offset 1" two times.Draw a rectangle 5.4" x 5.7", offset 0.3".

Copy it with copy command "co" - select mode - select the rectangle- select array-enter no: of array as 3 -place it as required.Copy the 3 rectangles to 4 rows.

For the second panel draw a rectangle of 1'11" x 2'0.6". Offset 1" 3 timesDraw another rectangle inside this of 1'0.8" x 1' 1.2" and offset 1".

Draw lock by circle in between the two panels.Write text by multiline text "D2".

Create it as block "B"- give name as "type-D2" -pick a corner point- select the object, then block is created.

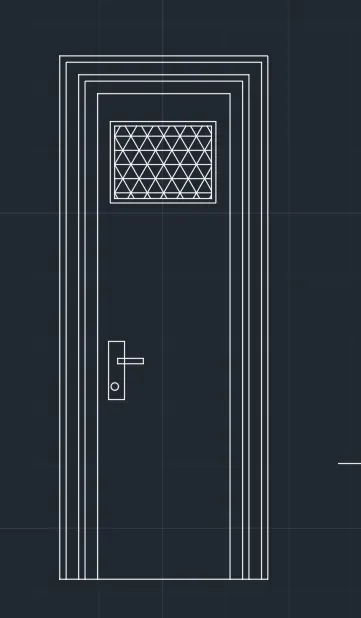

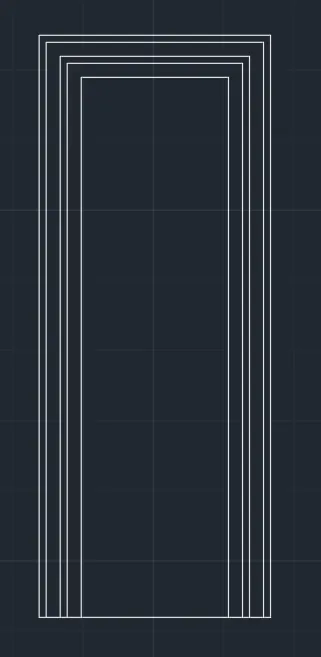

3). D3 -2'9" x 6'11" :

Draw a rectangle of 2'9" x 6'11".

Offset 1" for thickness ,2"offset for frame, 1" thickness. Offset 1.5" as shutter thickness.

Draw a rectangle at the top for ventilation 1'3" x 9.3", give offset 1" for thickness.Hatch inside the rectangle.

Create lock by rectangle two of them, perpendicular to each other and a circle.

Create it as a block Command "B" - give name as type d3 -pick point- select object -tick scale uniformly and explode all.

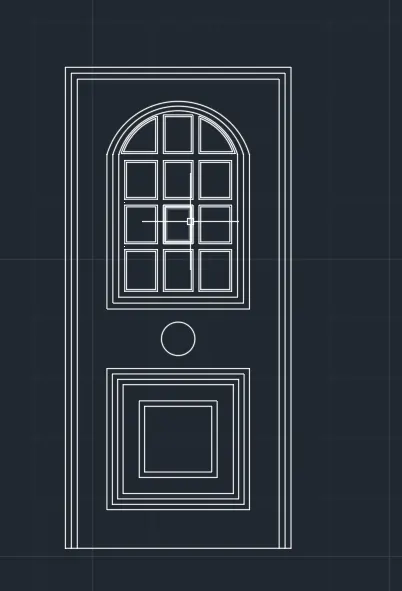

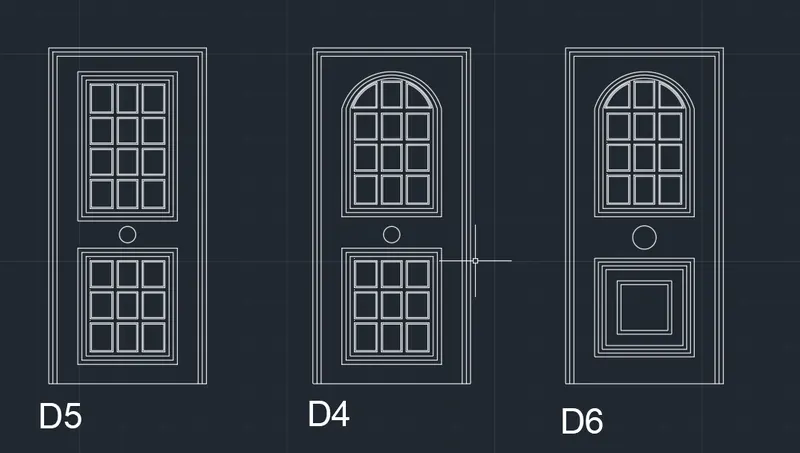

4). D4 - 3'9" x 6'11" :

Draw rectangle "REC" of dimension 3'9" x 6'11".Explode it and create an arc with 2-point method with both point as the endpoints.Offset the arc and the line with 1.5" and then 1".

Offset 8" from arc and rectangle for panel and divide it into two .Take 1" offset 2 times to show the thickness on top figure and bottom rectangle.Create rectangles inside the panel.

For lock, create a circle.

Make it a block, name as type D4 - pick a point and select the object tick the dialogue box of uniform scale and explode all.

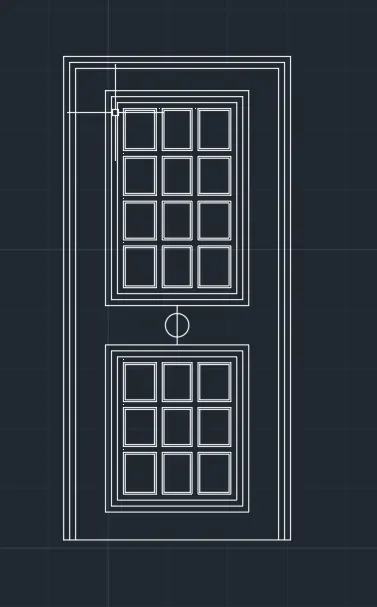

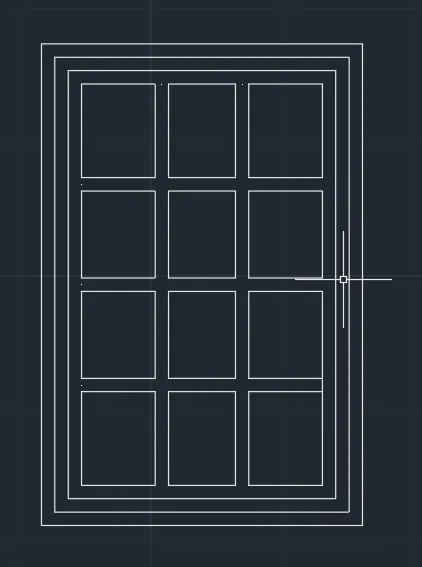

5). D5 - 3'9" x 6'11" :

Draw a rectangle of 3'9" x 6'11".Offset 1.5" for frame.Offset 1" as shutter thickness.Create another rectangle inside with offset 4.4".

Create another rectangle on the bottom 2'2.9" x 2'2.6".Offset 1" two times for both rectangles.

Create rectangle inside for panels with offset 0.5".Copy it for 3 columns and 4 rows.Similarly copy it in bottom rectangle for 3 rows and 3 columns.

Create it as a block Command "B" - give name as type D5 -pick point- select object -tick scale uniformly and explode all.

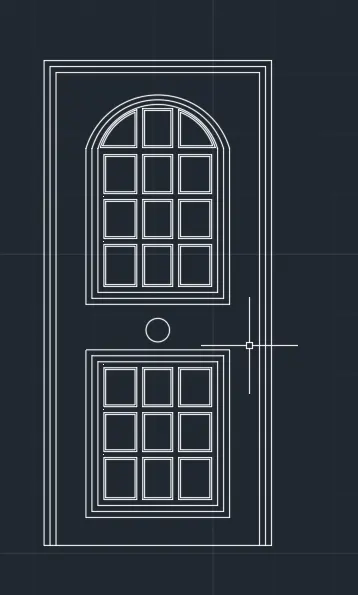

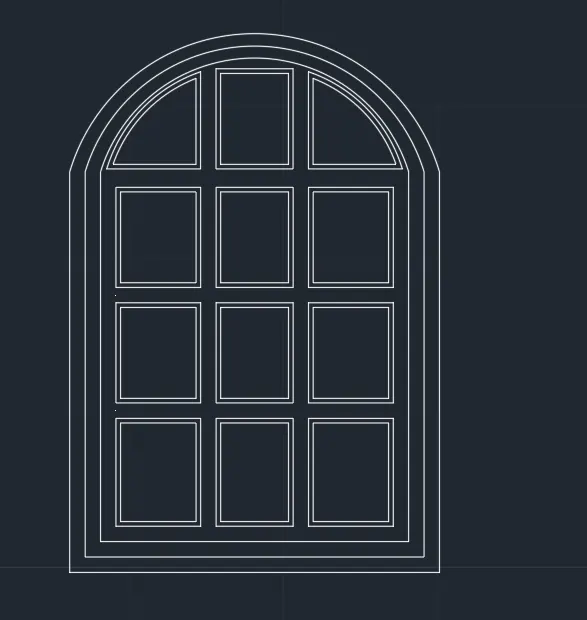

6). D6 - 3'9" x 6' 11" :

Draw rectangle "REC" of dimension 3'9" x 6'11".Explode it and create an arc with 2-point method with both point as the endpoints.Offset the arc and the line with 1.5" and then 1" for frame.

Offset 8" from arc and rectangle for panel and divide it into two.Take 1" offset 2 times to show the thickness on top figure and bottom rectangle.Create rectangles inside the top panel, 3 row and 4 columns.

For bottom panel, offset the rectangles by 1" 3 time as and 3.3" and again 1".For lock, create a circle.

Make it a block ,name as type D6 - pick a point and select the object tick the dialgue box of uniform scale and explode all.

RESULT:

5)Aim:

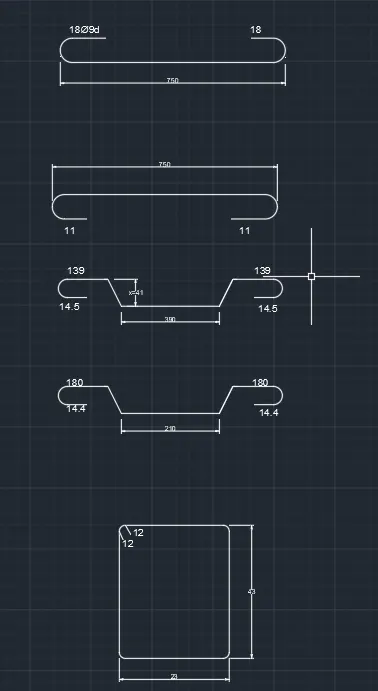

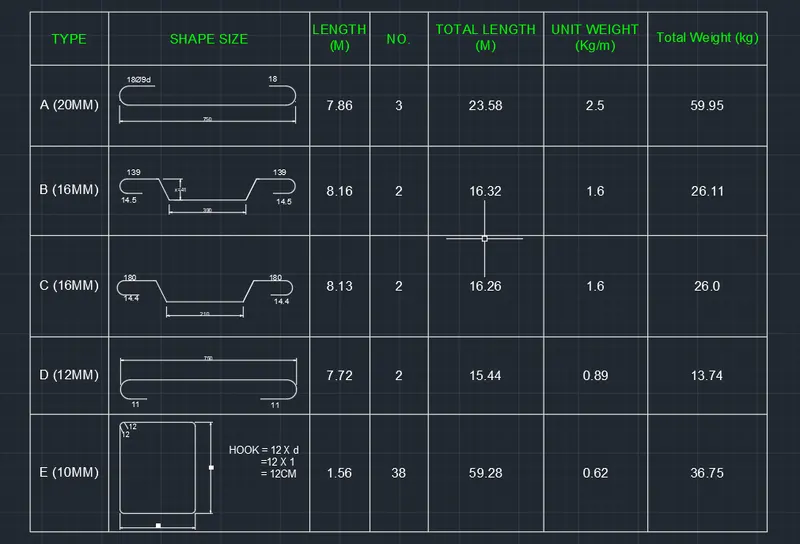

To create bar bending schedule and insert it as block.

1. Drawing each shape.
2. Creating it as block.
3. Inserting it in table as Bar bending schedule.

RESULT:

RESULT:

Template is drawn and text and attributes are inserted.

Doors of warehouse are drawn and placed it in blocks.

Electrical legend are created and it is made into blocks

Different types of door for residential project are drawn and are placed in blocks

Bars are drawn and made it as blocks and inserted it in table as bar bending schedule.
