Creating Conceptual mass in REVIT and Creation of Sinusoidal curve and a Parametric stadium using Dynamo
1 ANSWER:
AIM:The purpose is to create a set of sinusoidal points and create a curve and create a surface out of the curve using Dynamo.
PROCEDURE:
- Open a new architecture file and and select dynamo under manage tab
- Click on new project in dynamo

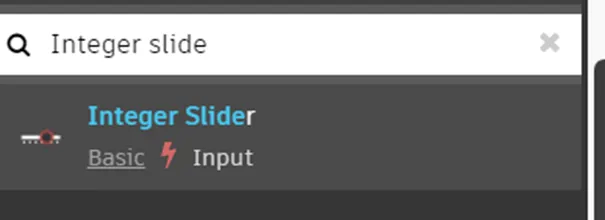

- Then in dynamo ,search interger slider in the search bar to the left of screen

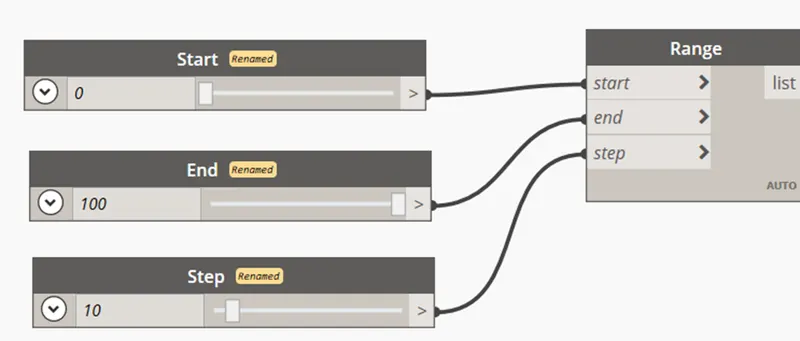

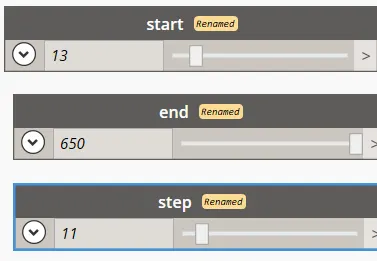

- Insert 3 integer sliders as done before and rename them as start,end ,step.

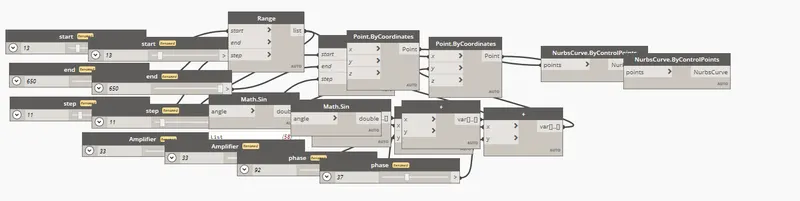

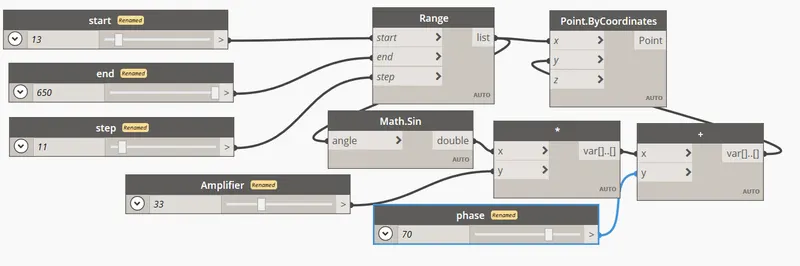

- Now search for Range in the search bar and insert it and connect the integer sliders to the range as shown
- Search for point by coordinates and connect range to it

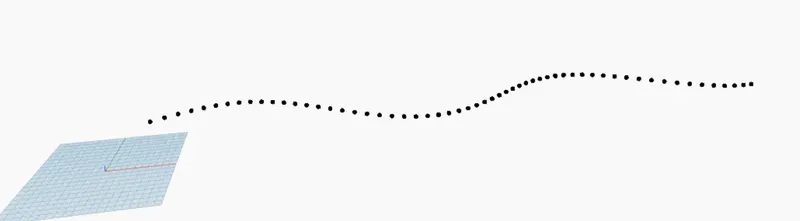

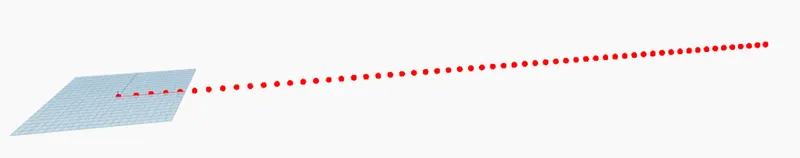

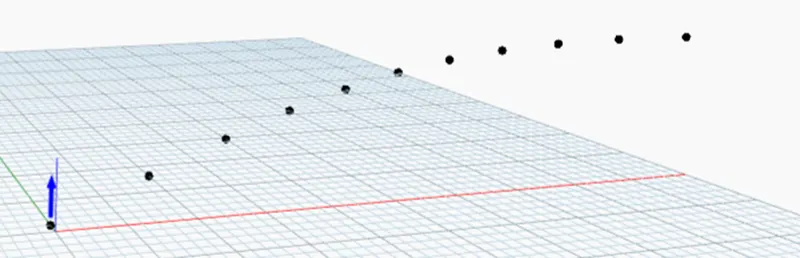

- See points in x axis as shown
- Search for math.sin to insert sin function
- To amplify it ,add another integer slider and rename it as amplifier

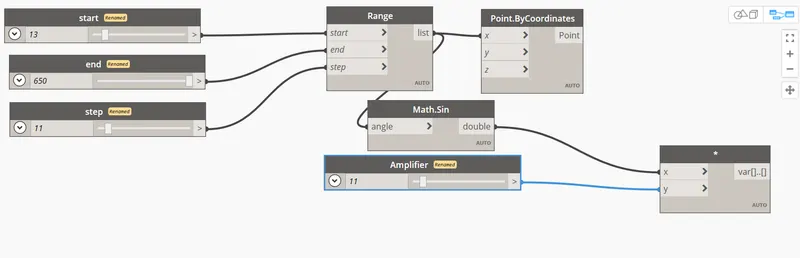

- Search for product and connect math sin to x and amplifier to y as shown
- Add another integer slider and name it as phase and to set the phase to sin curve ,
- Search add operator and connect the previous product to x and phase to y as shown
- Then connect + to y in coordinate points
- We created sin points ,we need to create curve

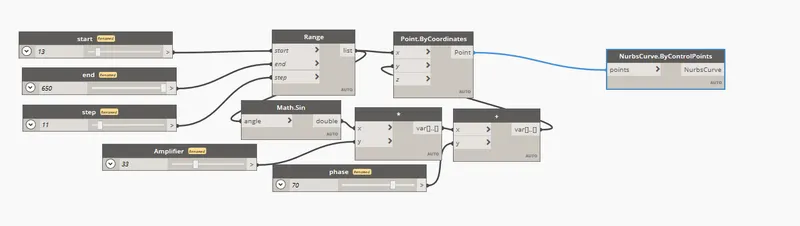

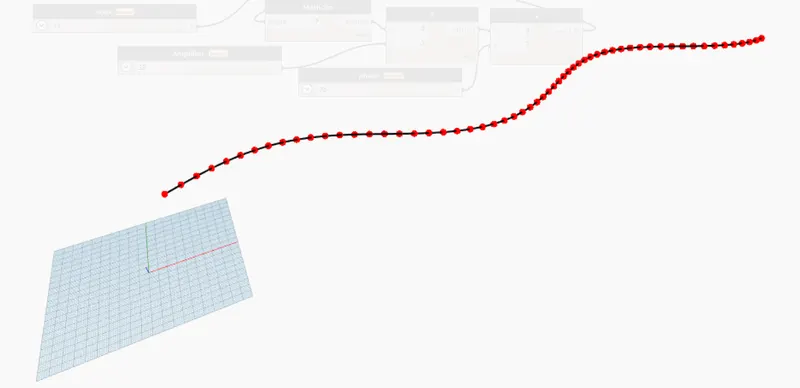

- Search Nurbs curve by control points and connect point by co ordinates to it
- Then copy the entire code and paste them 2 times to get 2 more curves

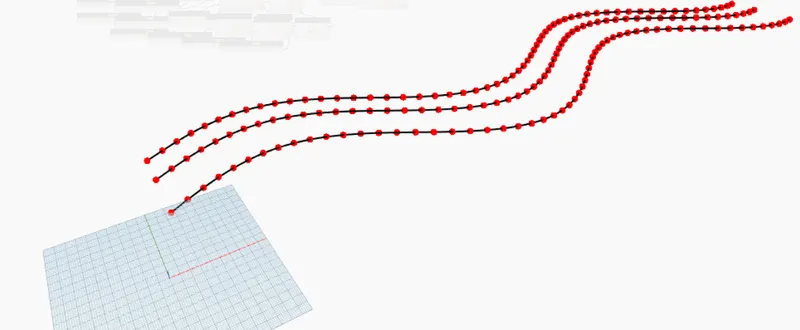

- Change the phase to 2 see the other curves
- Now select list from search bar and connect the 3 curves to the list as shown

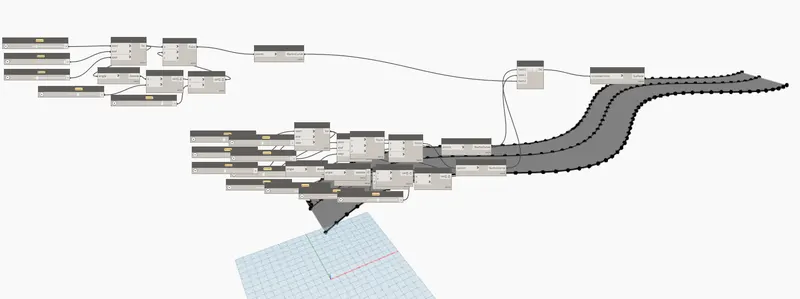

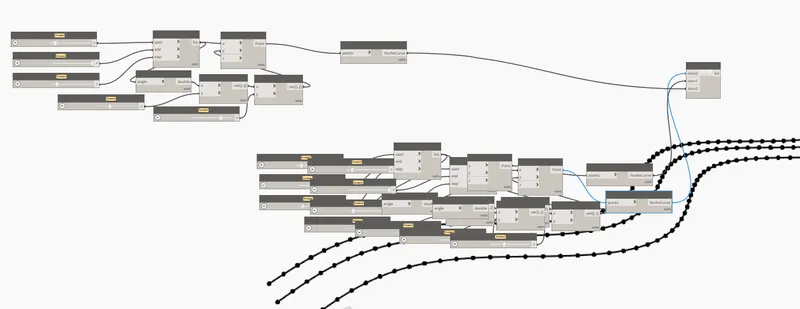

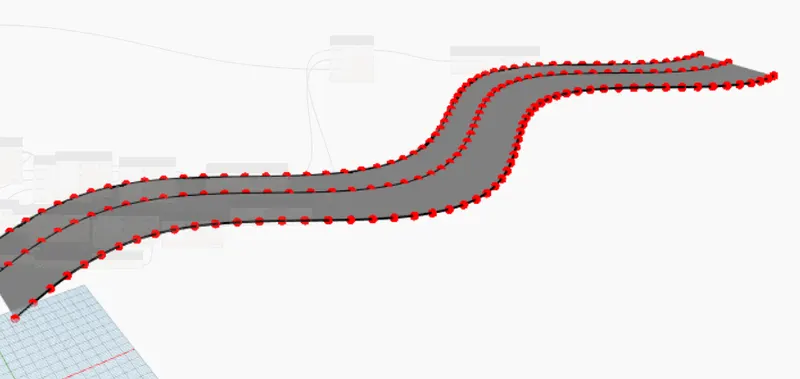

- Finally to get the surface click Loft by surface and connect the list to it
RESULT:Hence a set of sin points ,a sin curve and a surface using dynamo was created
2 ANSWER :
AIM:The purpose is to make a conceptual floor plan layout in dynamo
PROCEDURE:

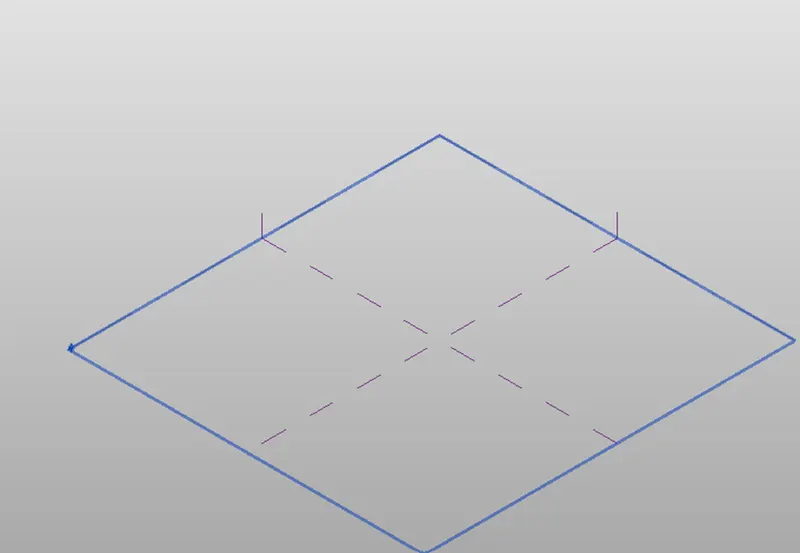

- Open dynamo and open a new project
- Now insert 2 integer sliders and 4 point by co ordinates

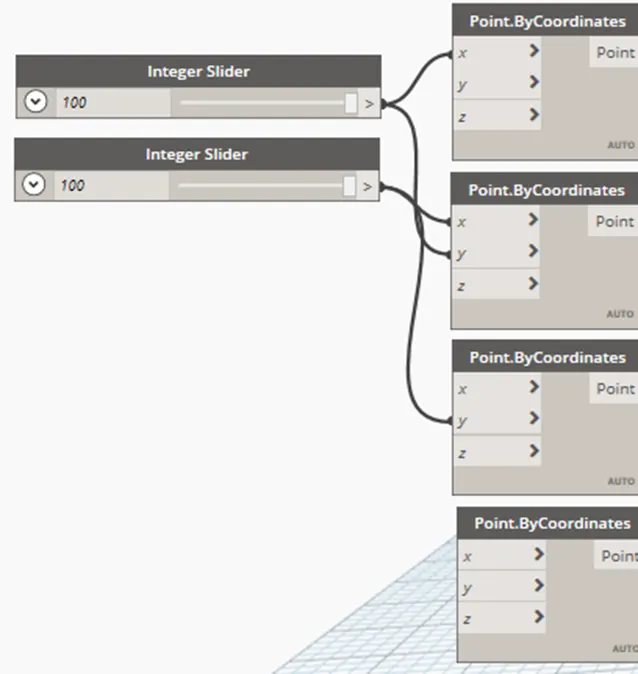

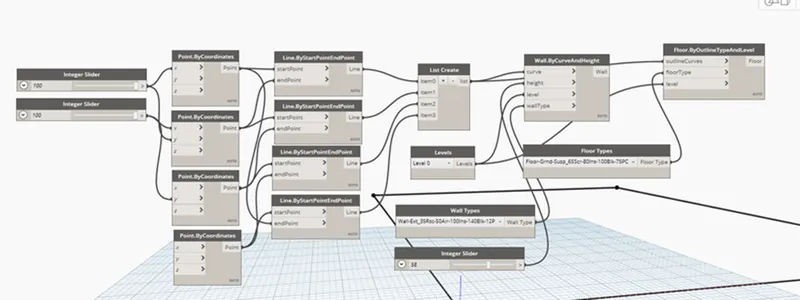

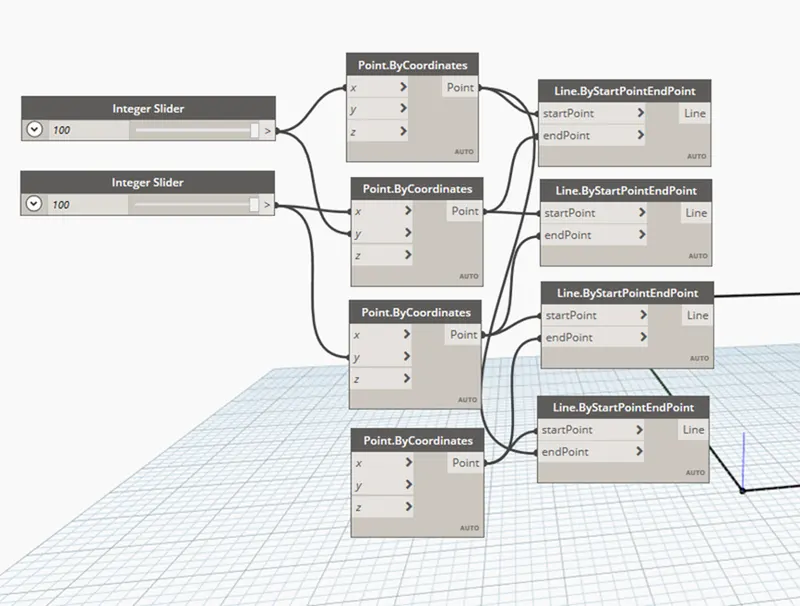

- Then connect them as shown in fig
- connect the four points using lines by using line by start point and end point option
- Now make a list of the 4 lines
- Search for wall by curve and height ,also insert levels ,wall types, and another integer slider to change the height of wall

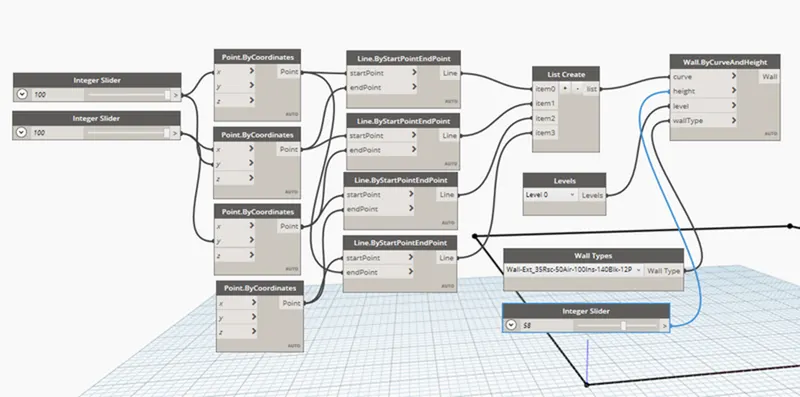

- Connect them as shown in fig
- Now set the level,wall type ,wall height from there

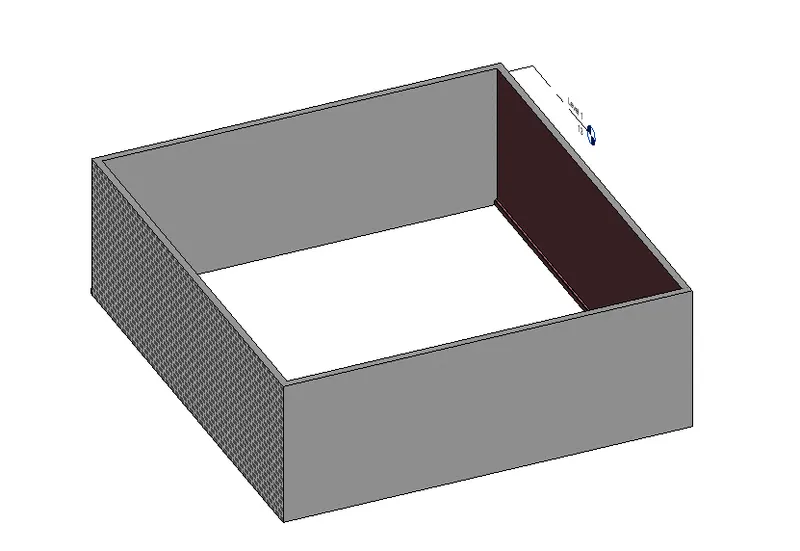

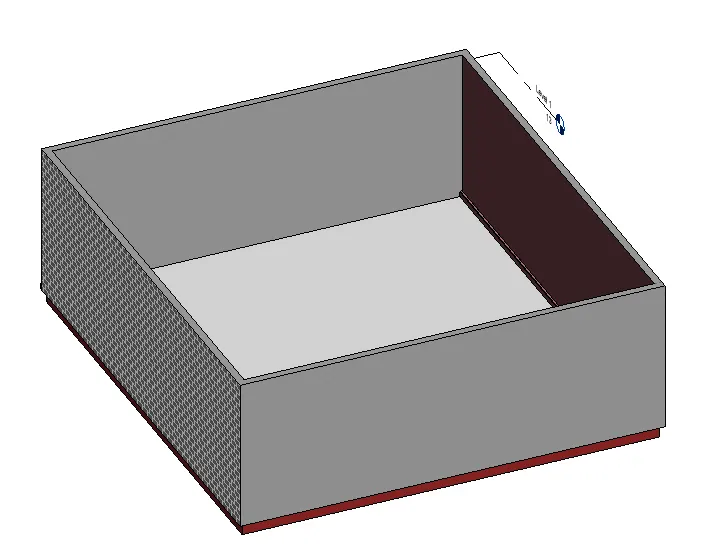

- Then check tyhe wall by cliking on 3D view
- Now to create a floor search for floor by outline type and level
- Insert floor types and connect it to floor outline type and level
RESULT:Hence walls and floor using dynamo are created
3 ANSWER
AIM:The purpose is to create an array of model elements in Revit and use dynamo to vary the properties
PROCEDURE:

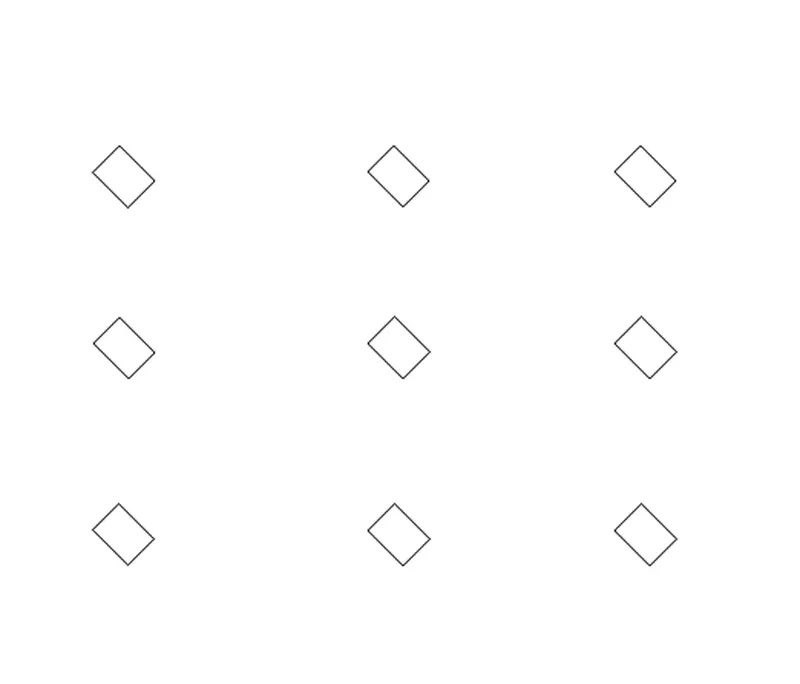

- Open a new architectural revit tab and click on column

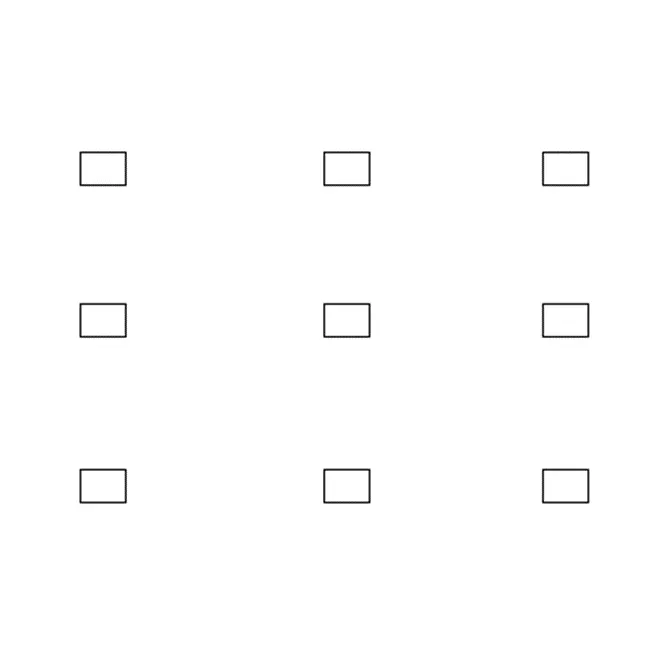

- Place a set of columns like as shown in the figure
- Now open dynamo and search for select model elements (multiple one )
- Select the columns from revit tab
- Now search for set rotation and insert family instance set rotation

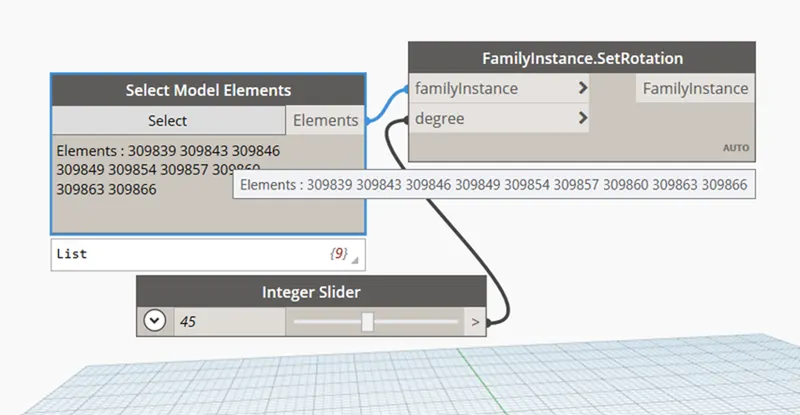

- Also insert another integer slider to set the angle and connect them as shown in the fig
- Now change the angle by integer slider
- After selecting the elements in revit ,they will automatically rotate by 45 degree (as set by the integer slider)
RESULT:Hence an array of model elements are created in Revit and used dynamo to vary the properties
4 ANSWER

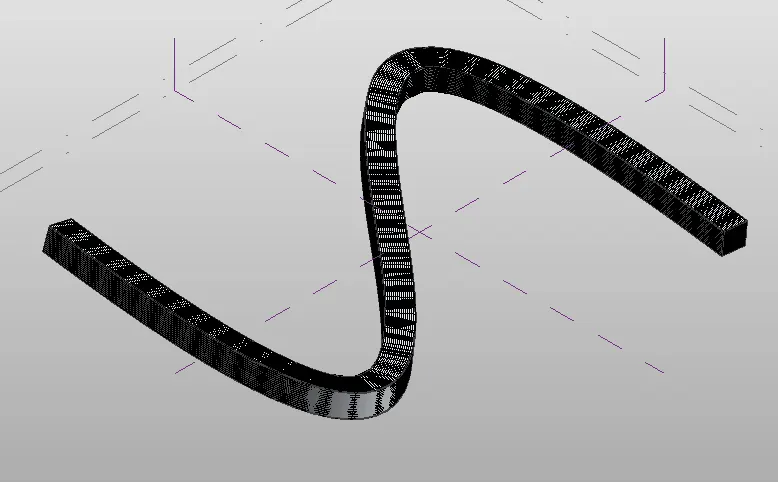

AIM:To create a conceptual mass in Revit and develop a parametric column by developing the surfaces
PROCEDURE:

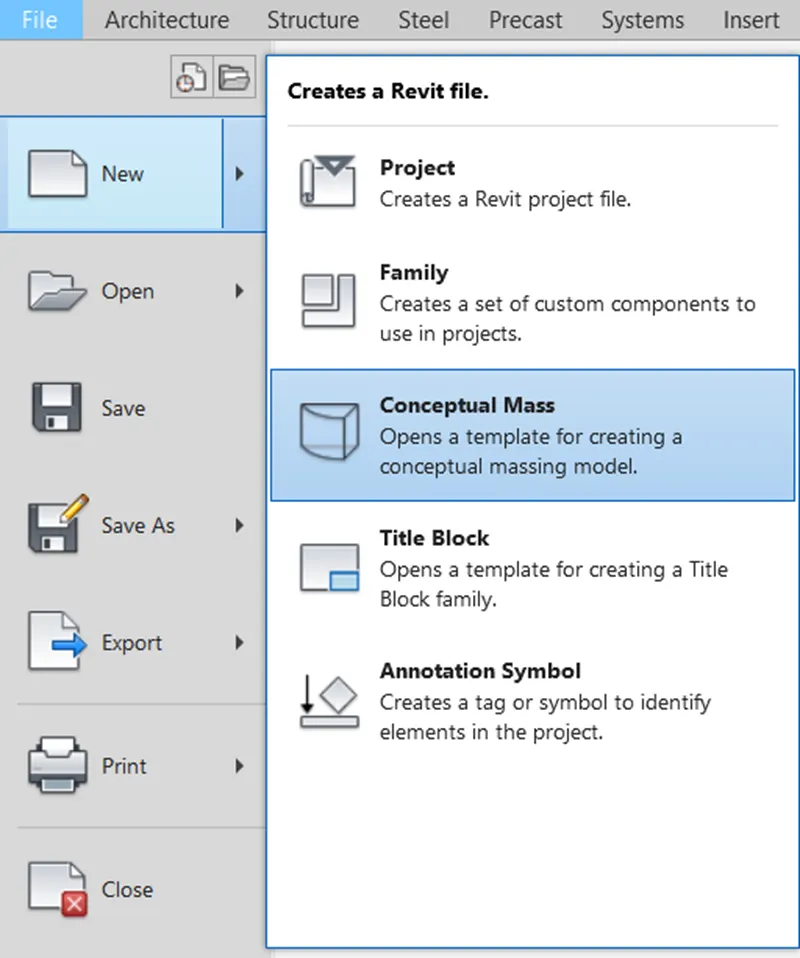

- Open a new architecture tab and then select new conceptual mass

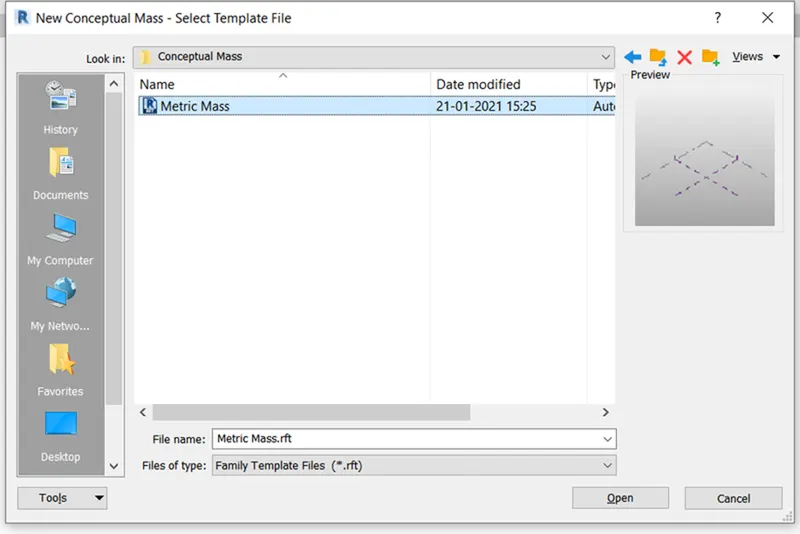

- click on metric mass
- Select elevation view and create a new level at a heidgt of 12 feet

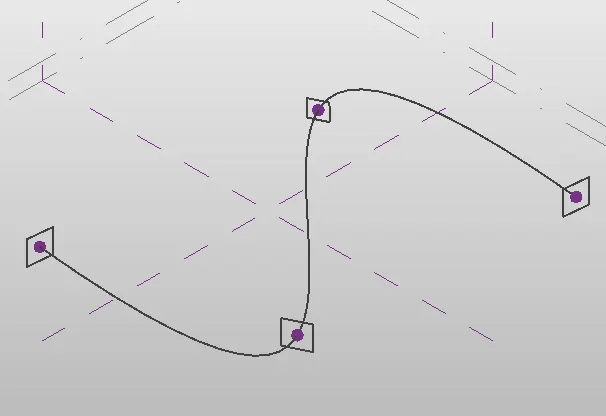

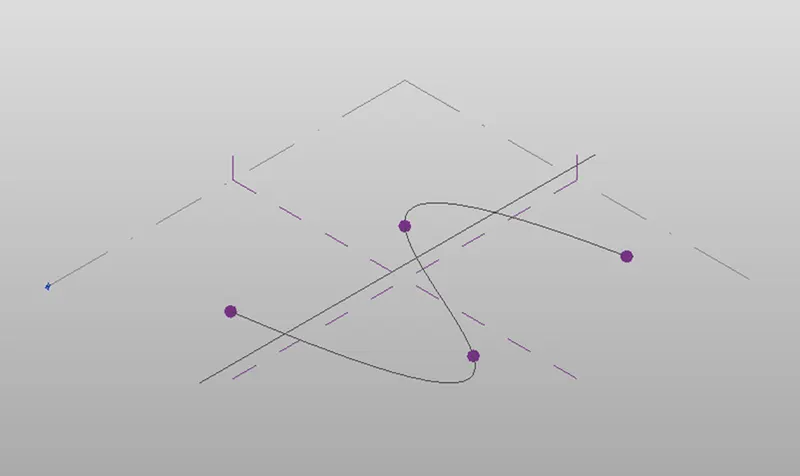

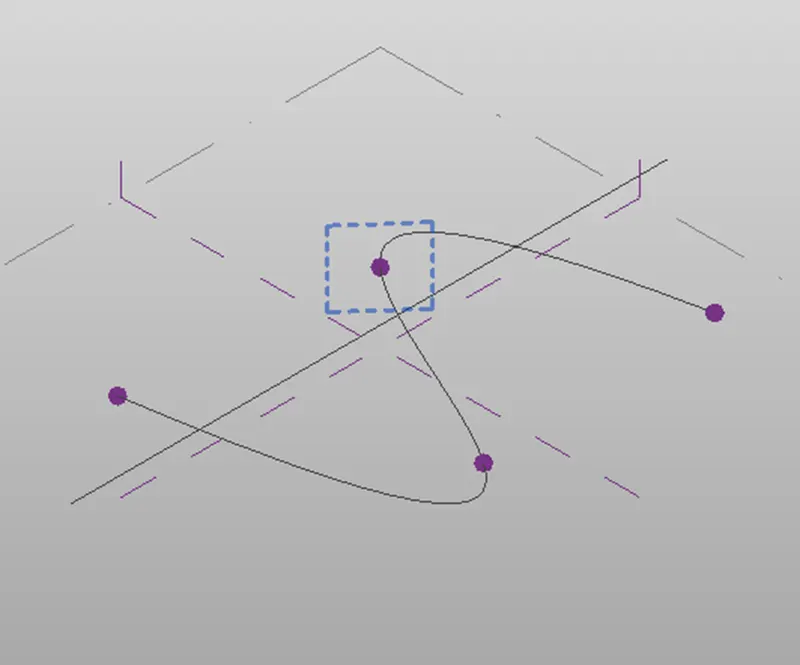

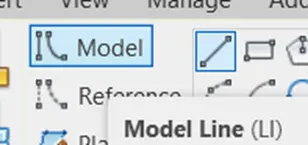

- Select floor plan view and Click on model and select the S shape shown below

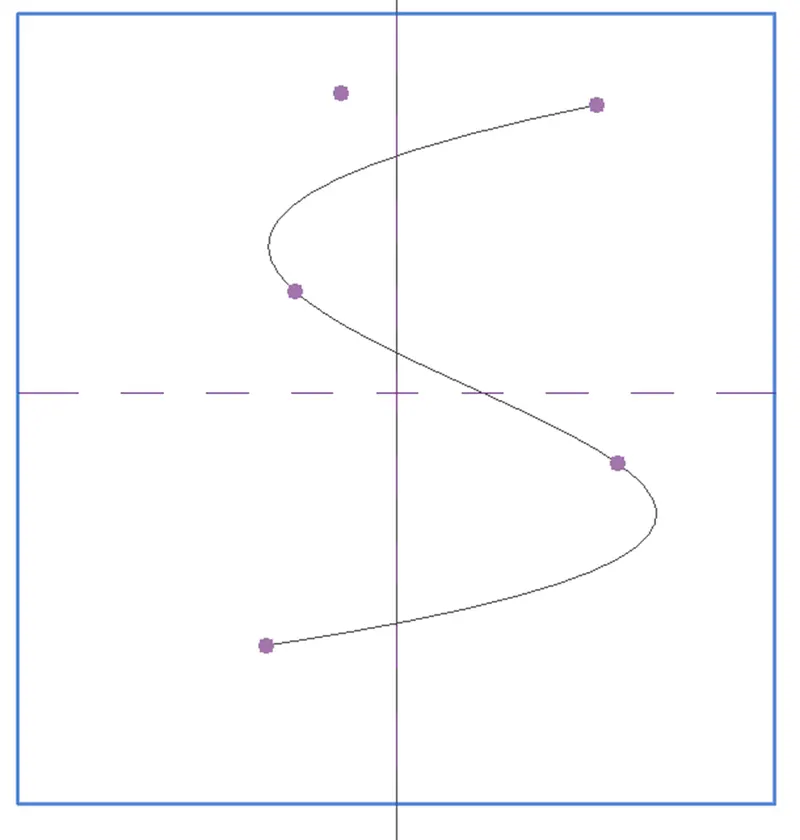

- Draw a S Shaped figure as shown in the fig
- Open 3 d view and click on set plane option
- Now set the planes at 4 points by clicking on set again as shown
- After setting the planes click on circumsribed polygon and set them in planes with 12 feet as radius

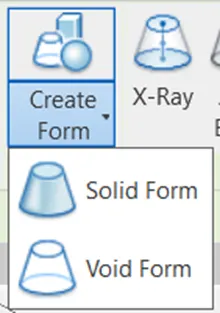

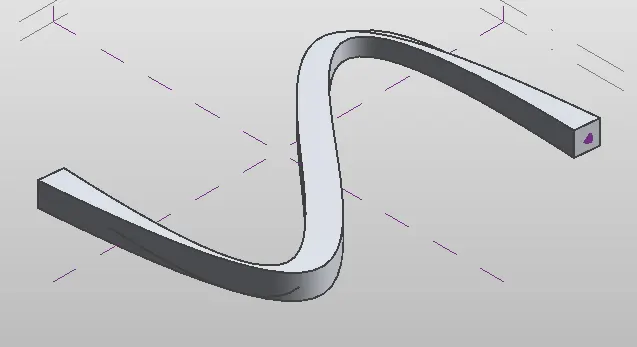

- Now select the 4 polygons and the curve and click on create form (solid form)
- After creating the solid form click on the form and then click on divide surface

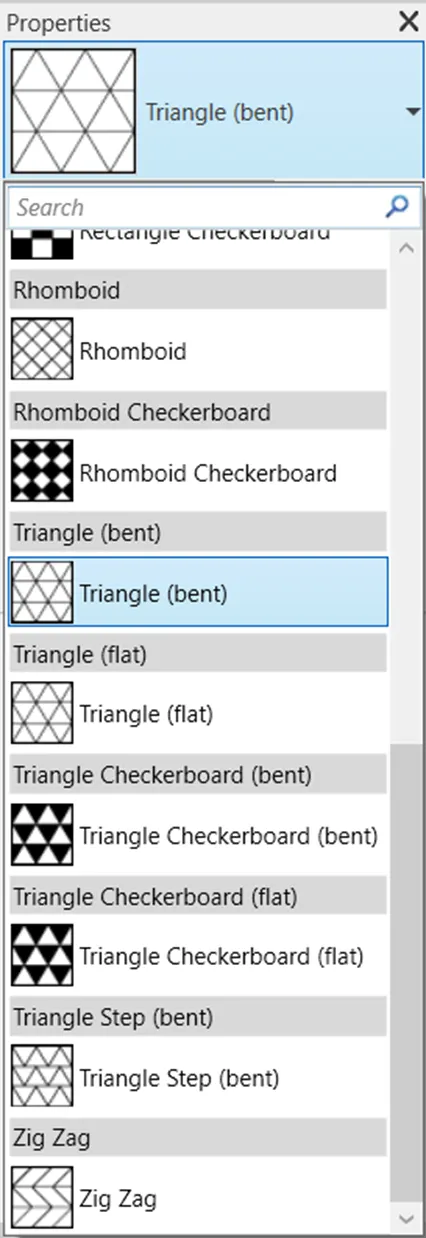

- Now click properties browser and select triangle bent from it
RESULT:Hence a conceptual mass was created and divided to surface of it and to add a perfect finish traingular bent shape panel is set to it
5 ANSWER

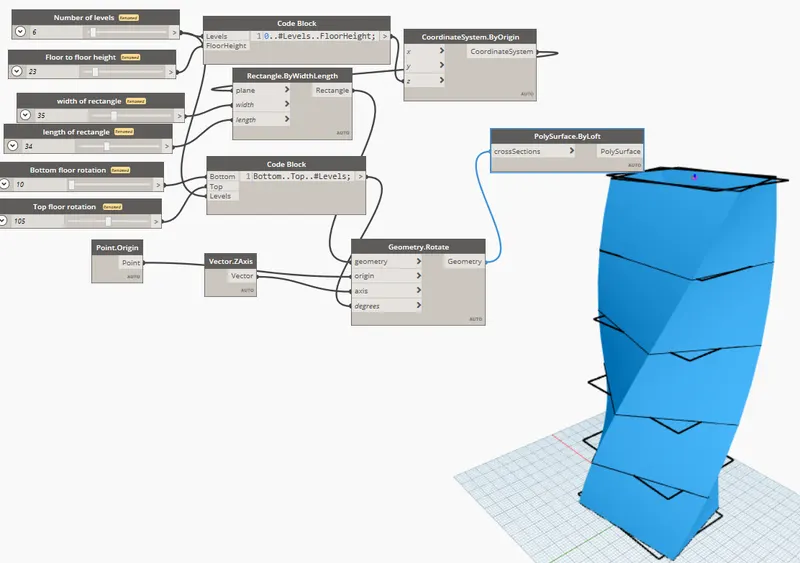

AIM:The purpose is to create parametric stadium using dynamo
PROCEDURE:
- Open a New revit architecture tab and open dynamo

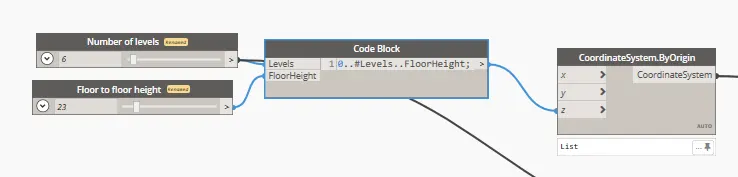

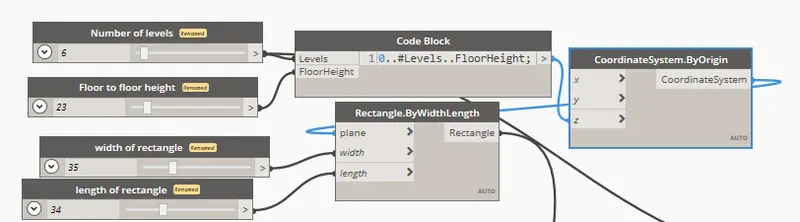

- Add 2 integer sliders and rename them as number of levels and floor to floor height
- Now connect this code block to z axis of coordinate system by origin
- Now insert rectangle by width and length

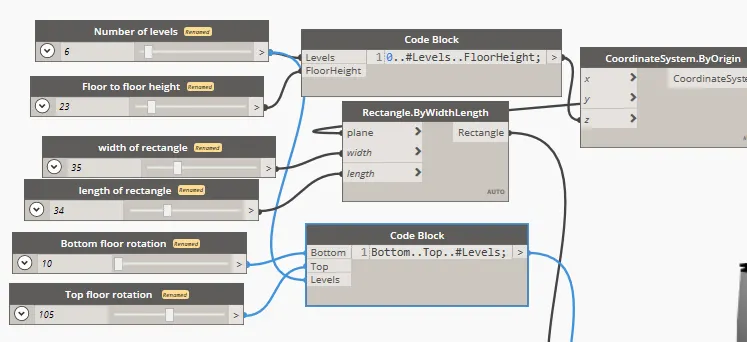

- Set the length and width for this add 2 more integer sliders and rename them and connect them to it as shown

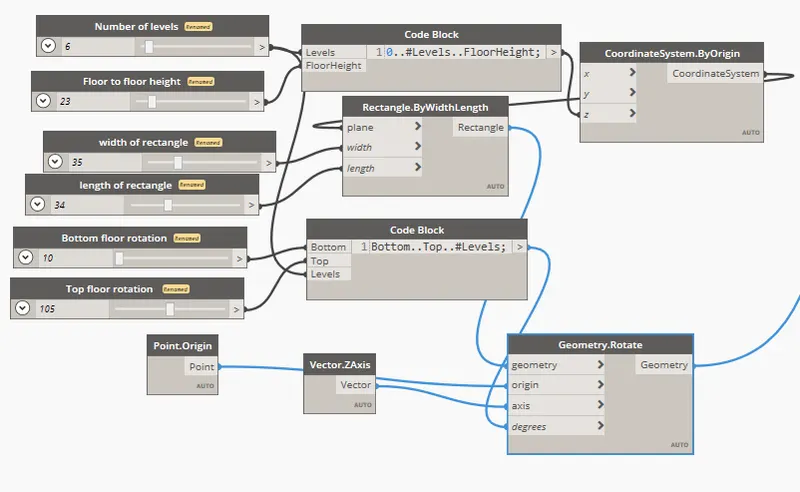

- Now add 2 more integer sliders to as the rotations as top floor and bottom floor rotation and connect them to another code block as shown below

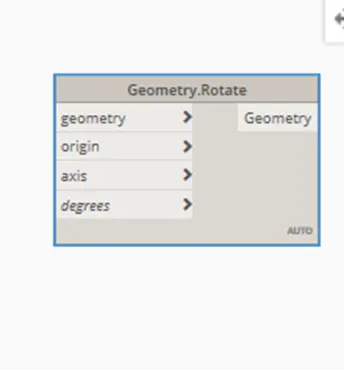

- Now to search for geometry rotate by axis degree
- Add point origin,Vector z axis and connect them as shown below

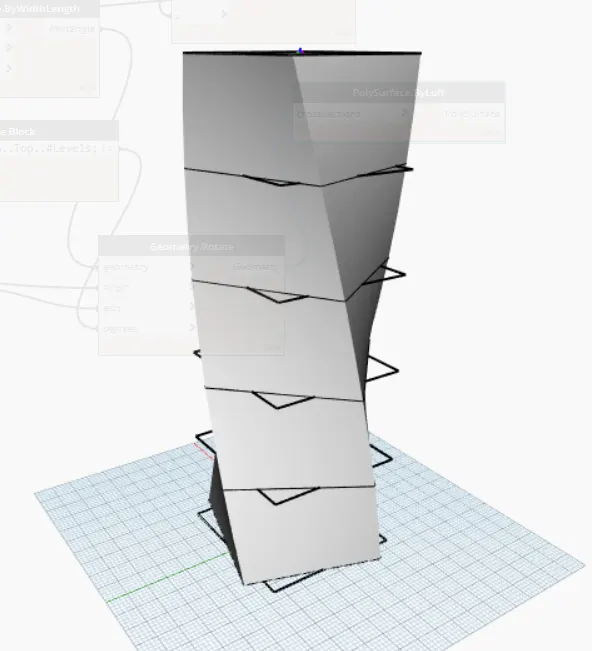

- Now finally to get the surface search for loft by surface and connect the geometry to it
RESULT:Hence,a parametric stadium was created using Dynamo
