Creating Bar Bending schedule, Different Door types, and Creation of standard drawing templates using AutoCad

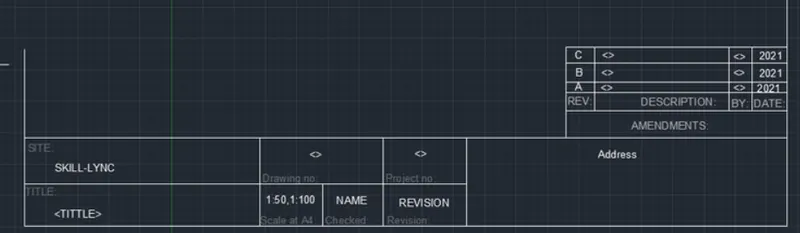

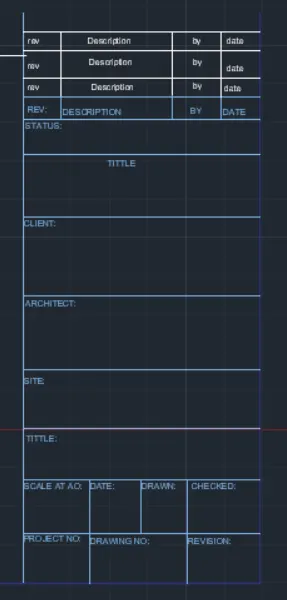

Q1. AIM: To Create Custom_titleblock and Custom2_titleblock using Attributes and block command from Autocad software.
PROCEDURE:

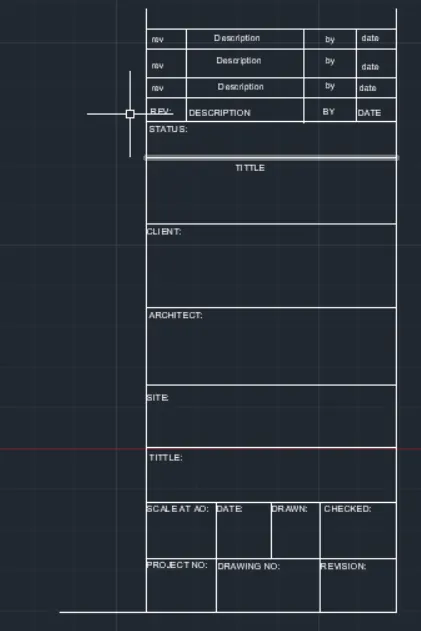

Step 1(custom1_tittleblock).
- In the command prompt type L to draw the lines
- In ribbon tab> Annotate> Mtline (to draft the text)
- Go to properties tab to change the colour

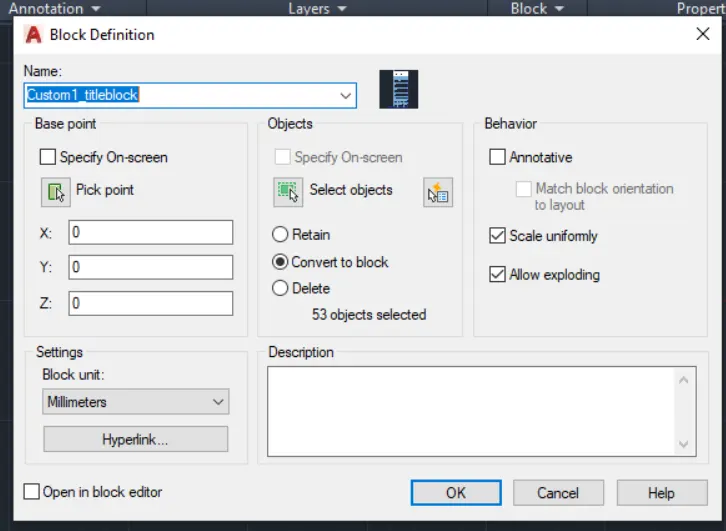

- In the riibon bar >block> create block and name it Custom_titleblock. Therefore the block is created

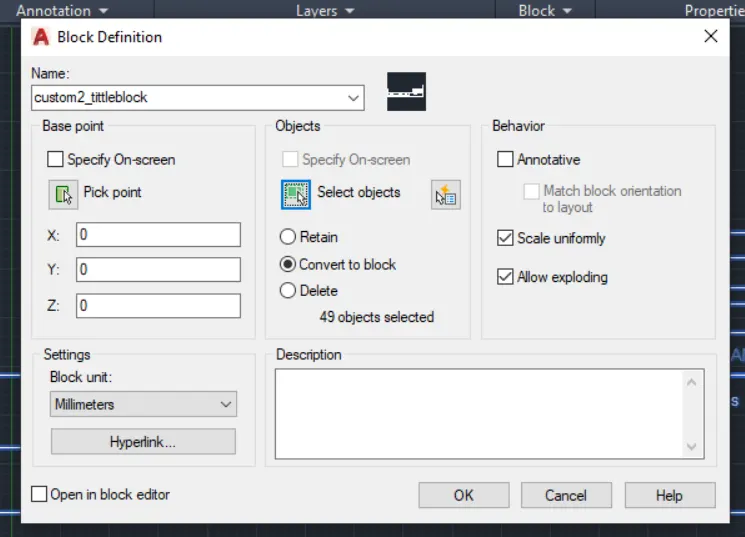

STEP 2 (custom2_tittleblock)
- In the command prompt type L to draw the lines
- In ribbon tab > Annotate> Mtline ( to draft the text)
- go to properties tab to change the colour
- In the ribon bar >block> create block and name it Custom2 titleblock. Therefore the block is created.
RESULT :

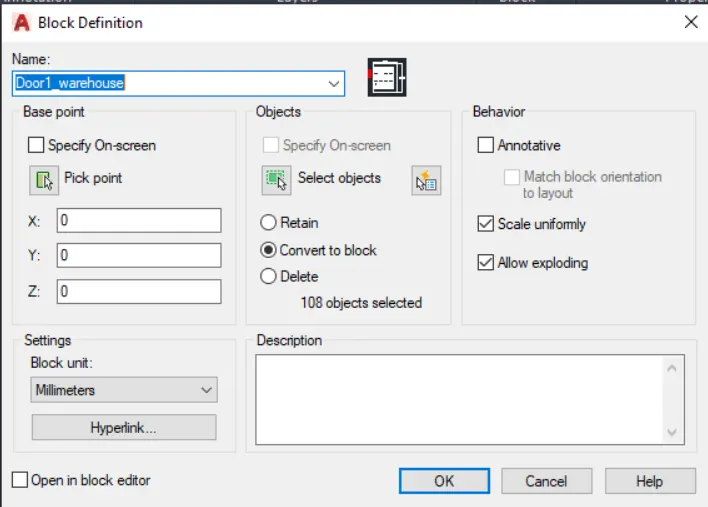

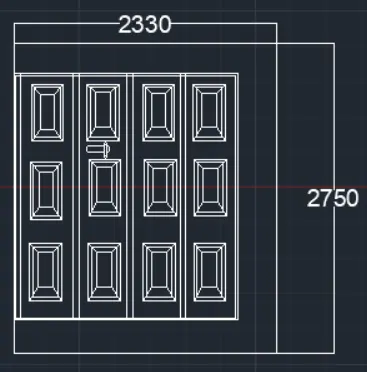

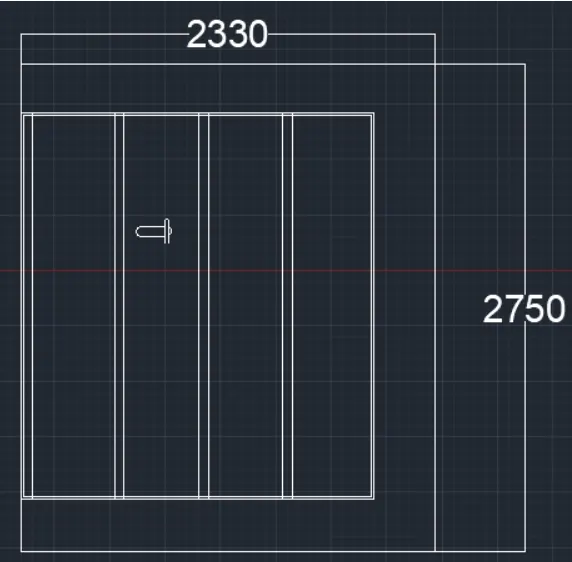

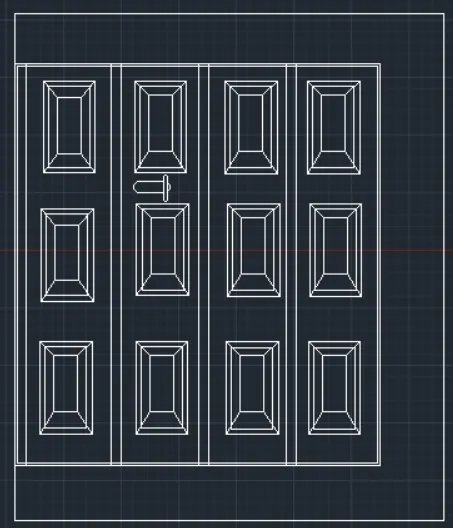

Q2. AIM: To create the doors type for warehouse and to also create the block of this door type after creating them using AutoCAD
PROCEDURE:
step 1:
- In the command prompt type the units >mm
- In the command prompt type the limax>100.100
- In the command prompt type the limits >0,0
step 2:
- In the command prompt typel to draft the lines
- in the command promt type rec to draft the boxes or rectangle
- In the command prompt type fillet to get the curve edges
RESULT :
- In the ribbon bar >dimensions (to give the dimensions of the door)
- In the ribbon bar >annotation text (to give the text for the door)
RESULT
- In the ribon bar >block> create block and name it Custom2 titleblock. Therefore the block is created.
step 3:
In the command prompt type l to draft the lines
In the command promt type rec to draft the boxes or rectangle
In the command prompt type fillet to get the curve edges
In the ribbon bar> dimensions ( to give the dimensions of the door)
In the ribbon bar> annotation > text (to give the text for the door)
RESULT
- In the ribon bar >block> create block. Therefore the block is created.

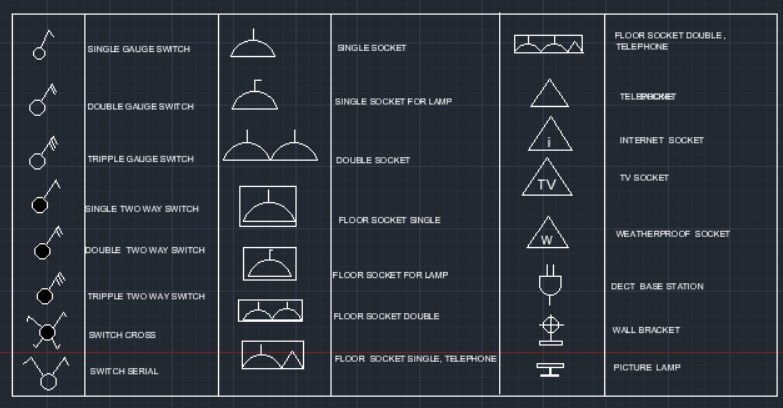

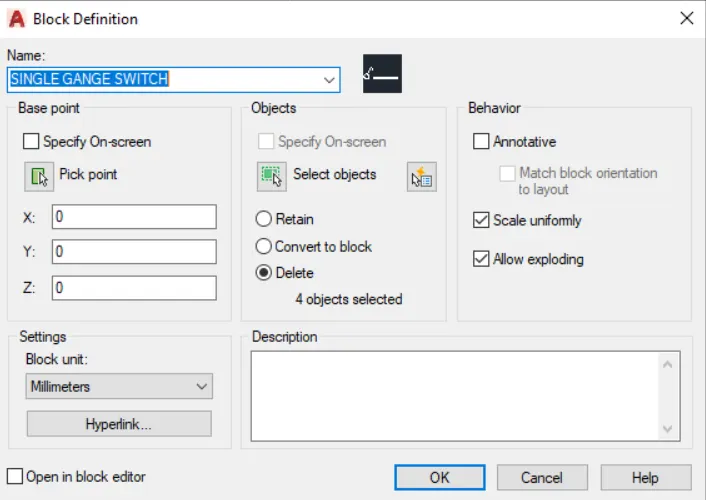

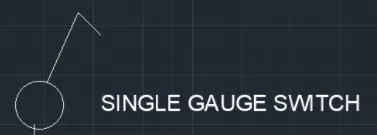

Q3.AIM:To create each symbol as a block with the name and then arrange them in the legend
PROCEDURE:
In the command prompt type C to get the circle
In the command prompt type L to get the lines
In the ribbon bar annotation Multiline text
In the ribbon bar> block > block edit
- In the command prompt typel to draw the lines In the command prompt type arc to draw the are in the command prompt type text
- In the ribbon bar> block > create block
- In the command prompt type I to draw the line
- In the command prompt type Mtext
- In the ribbon bar block-create block
- In the command prompt type to draw the lines In the command prompt type fillet to get the curves
- In the command prompt type Mtext
- In the ribbon bars blockscreate block
RESULT:

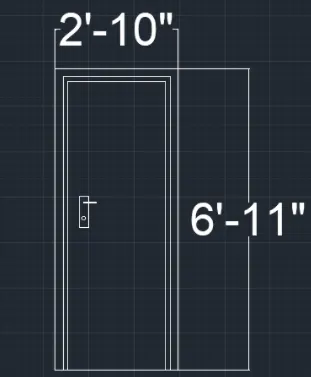

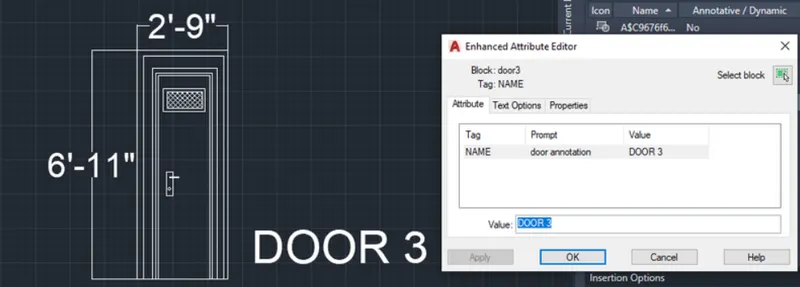

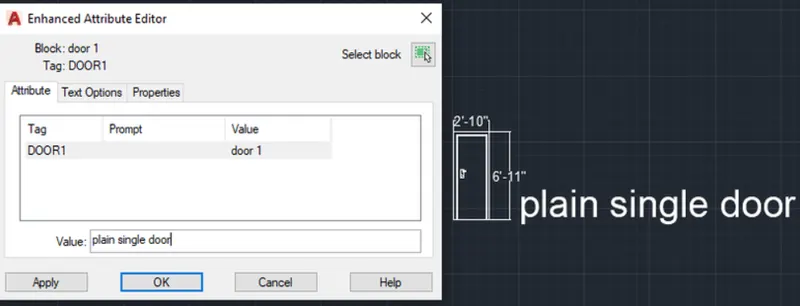

Q4. AIM: To Create the door type for residential building as a block.
PROCEDURE:
step 1:
- In the command prompt type units engineering inches
- In the command prompt type limits-0,0. limax >100,100
- In the command prompt type-zoom-a
step 2:
- In the command prompt type I to draw the lines

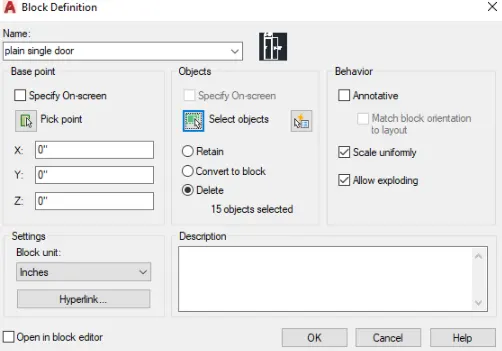

- In the command prompt type B to create a block

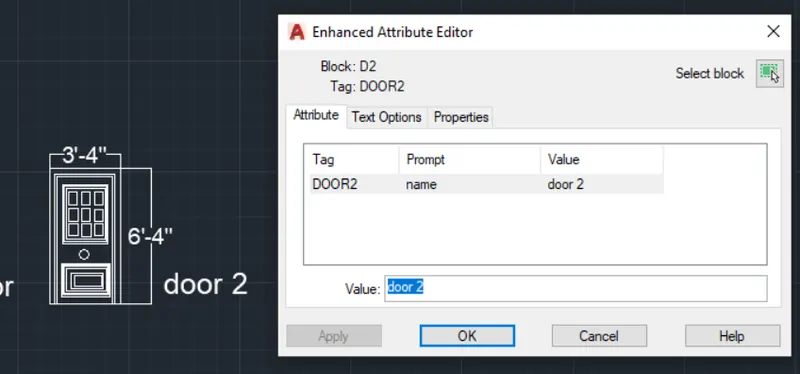

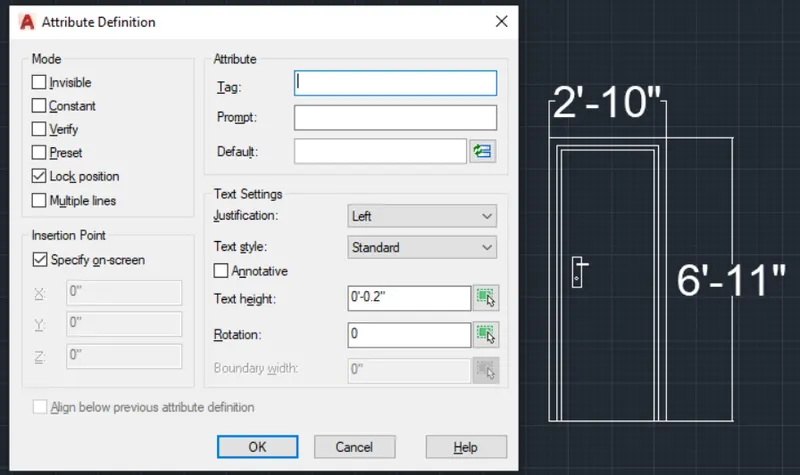

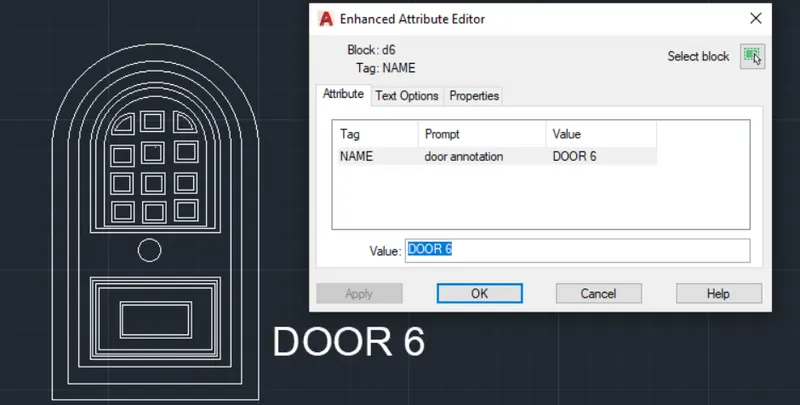

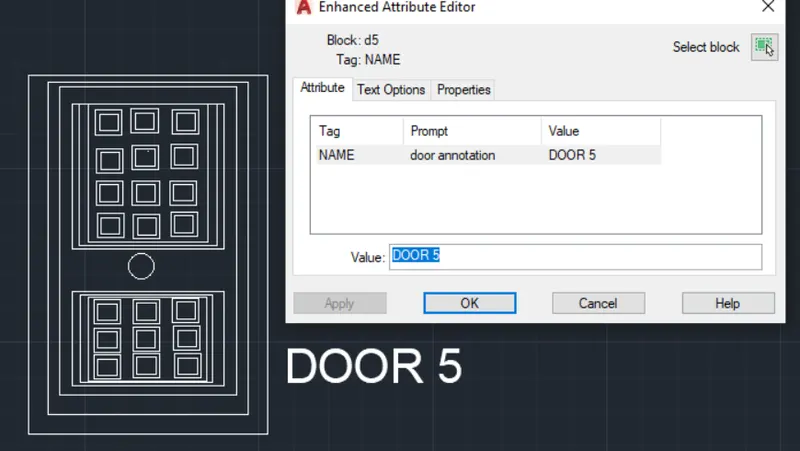

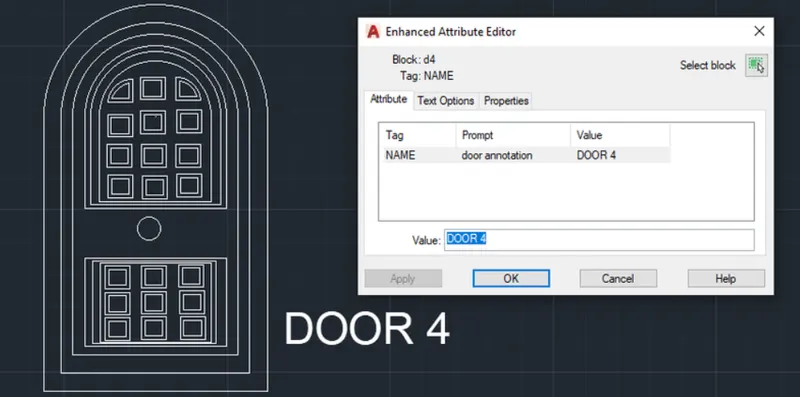

- In the command prompt type ATT > name of the block is save as type
RESULT
same command for rest of doors
command prompt type arc to do arc

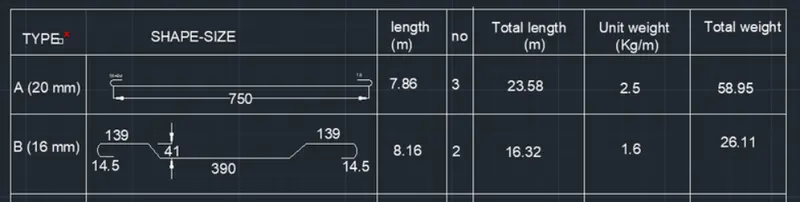

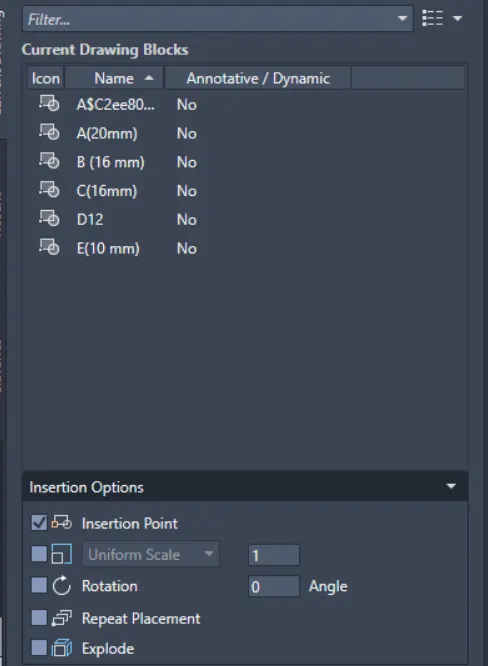

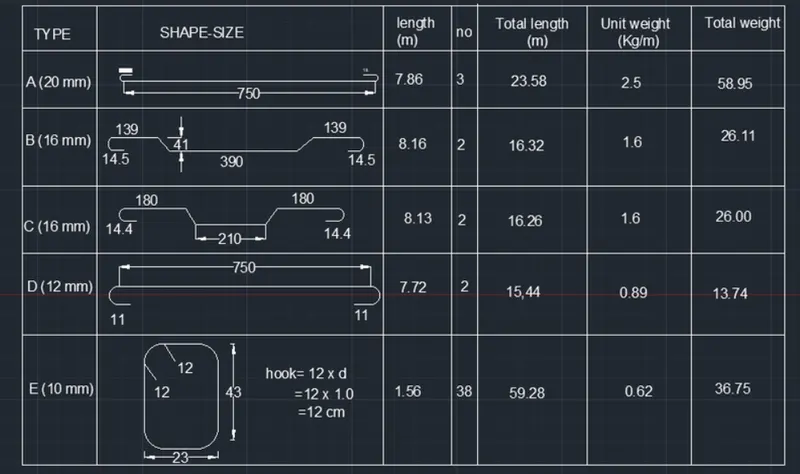

Q5. AIM: To Create each shape as ablock and insert them on the table as given in the picture
PROCEDURE:
step 1:
- In the command prompt type Unit-decimal-meters
- In the command prompt type limits 0,0
- In the command prompt type limax >100,100
step 2:
- In the command prompt type I to draw the desired lines
- In the command prompt type pl to draw the desired arc poly lines
- In the command prompt type mt to give annotation and text
- In the command promt type B to create the block
- In the command prorat type I to insert the created in the block
- In the command prompt type table to inset the table
RESULT
