Creating Bar Bending schedule, Different Door types, and Creation of standard drawing templates using AutoCad
- Create the templates as shown in Figures. Take the size of the title block as per industry standards or
you can assume it as per the size of the paper. Use text and attributes wherever required. After creating
the title block you need to save it as a block with names: Custom1_titleblock and Custom2_titleblock,
respectively.
AIM:
To Create Custom1_titleblock and Custom2_titleblock using Attributes and block command from Autocad software .
PROCEDURE:
Step 1 ( custom1_tittleblock)
In the command prompt type L to draw the lines
In ribbon tab > Annotate > Mtline ( to draft the text )
go to properties tab to change the colour

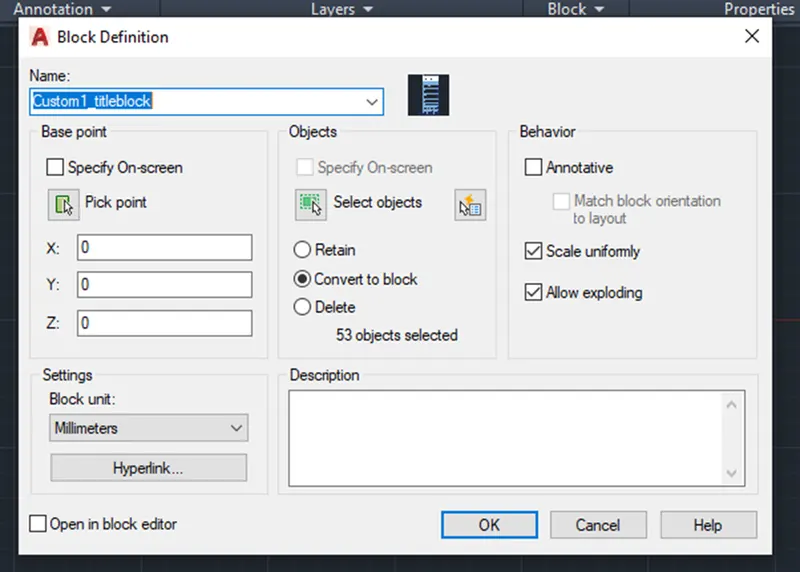

In the riibon bar >block > create block and name it Custom1_titleblock.Therefore the block is created

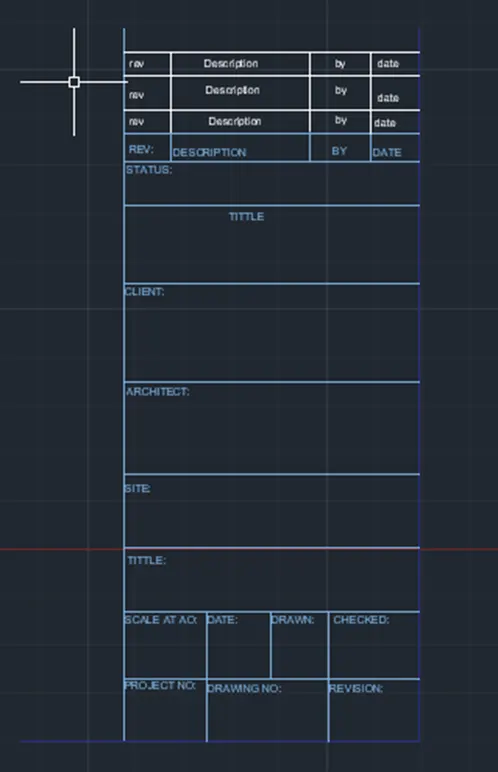

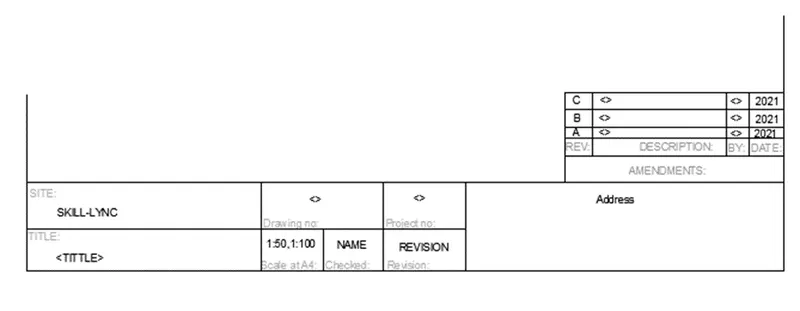

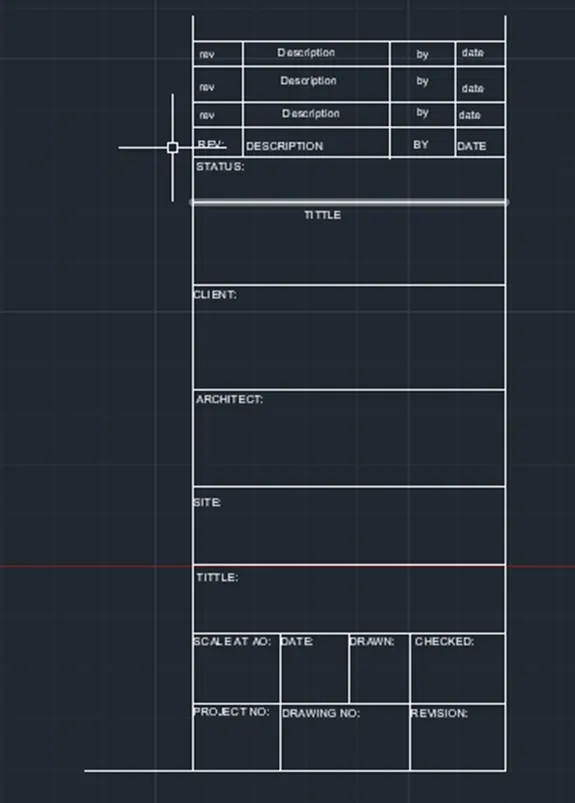

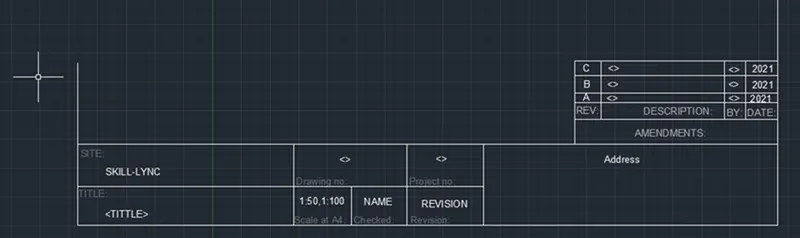

custom1_tittlebox result:
STEP 2 (custom2_tittleblock)
In the command prompt type L to draw the lines
In ribbon tab > Annotate > Mtline ( to draft the text )
go to properties tab to change the colour

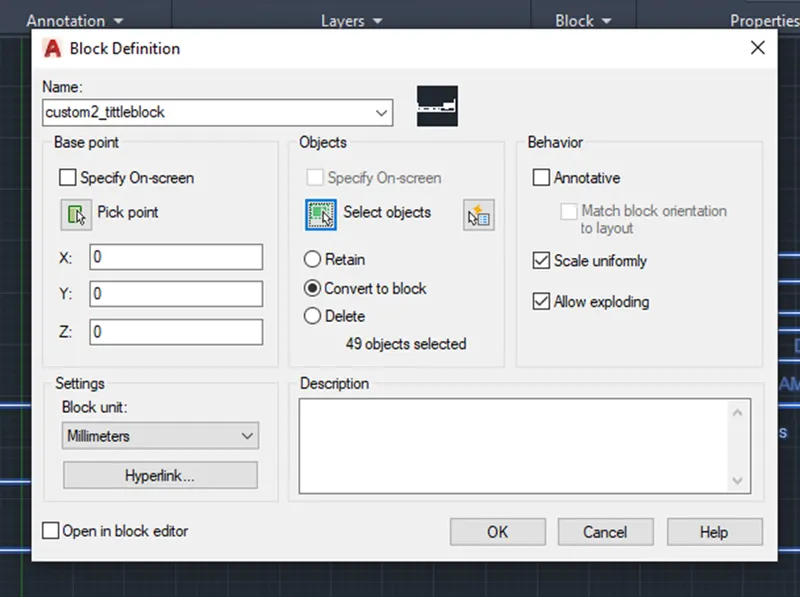

In the riibon bar >block > create block and name it Custom2_titleblock.Therefore the block is created .

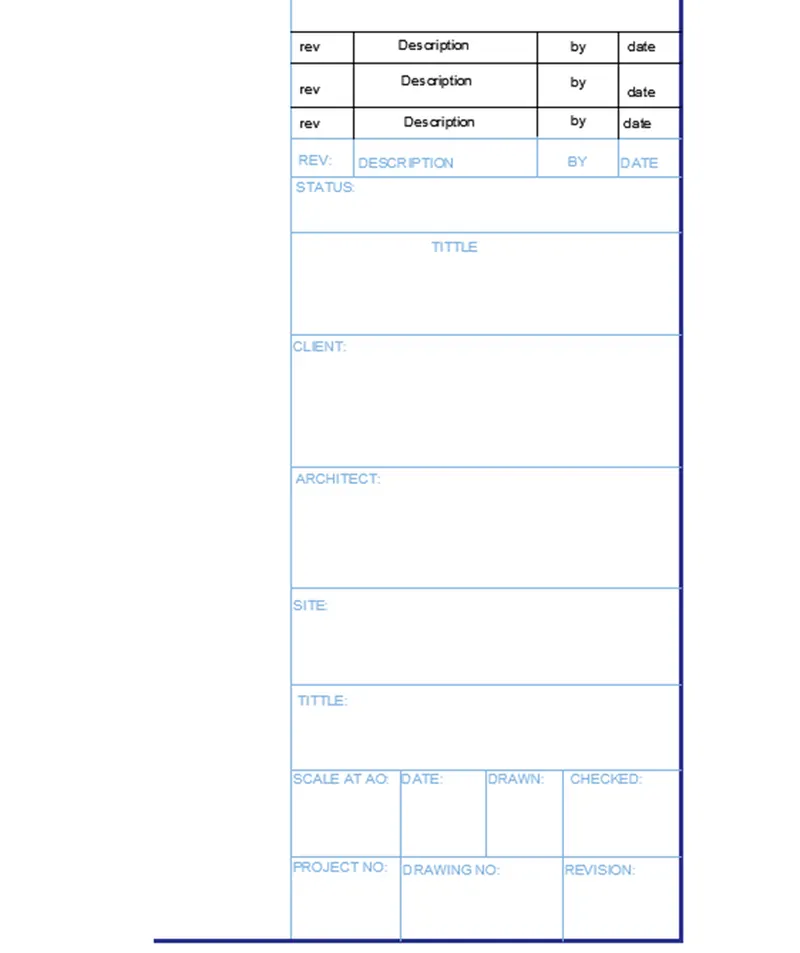

custom2_tittlebox result:
- Create the doors type for warehouse as shown in the Figure. You need to create each door type as per
standard size or given dimensions. Create the blocks of this door type after creating them.
AIM:
To create the doors type for warehouse and to also create the block of this door type after creating them using AutoCAD
PROCEDURE:
step 1:
In the command prompt type the units > mm
In the command prompt type the limax > 100,100
In the command prompt type the limits >0,0
step 2 :
In the command prompt type l to draft the lines
In the command promt type rec to draft the boxes or rectangle
In the command prompt type fillet to get the curve edges
In the ribbon bar > dimensions ( to give the dimensions of the door )
In the ribbon bar > annotation > text ( to give the text for the door )

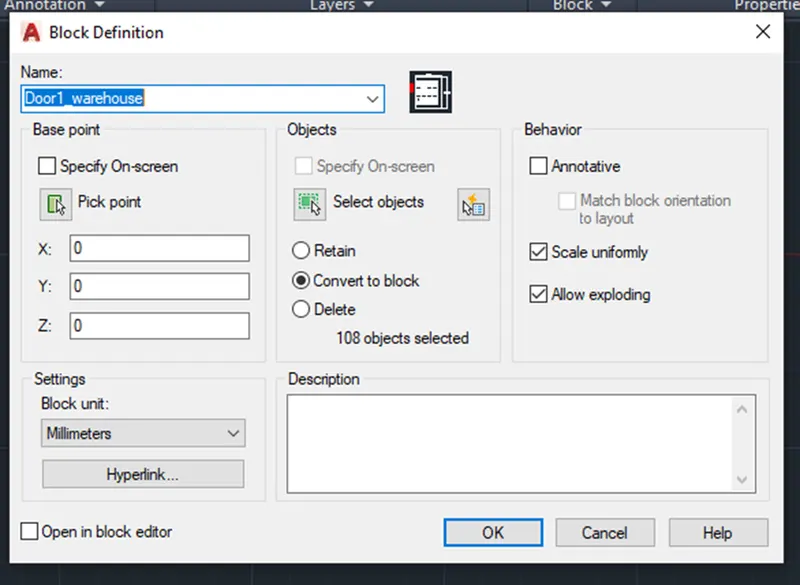

In the ribbon bar >block >create block ( to create the door block )

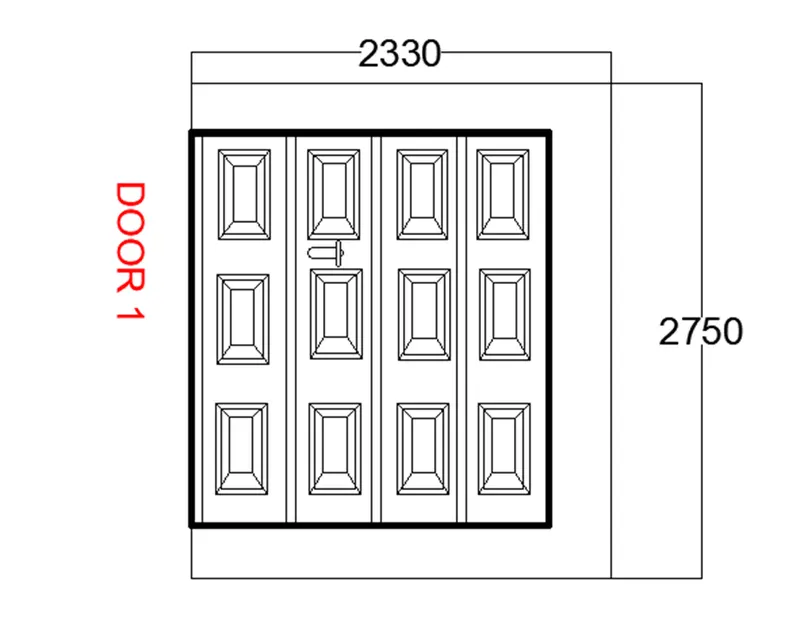

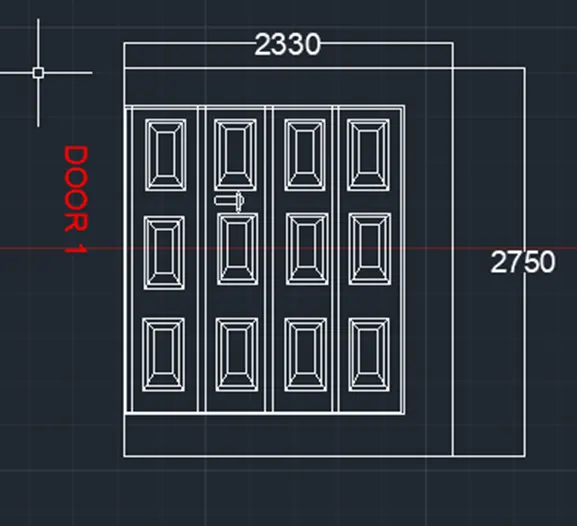

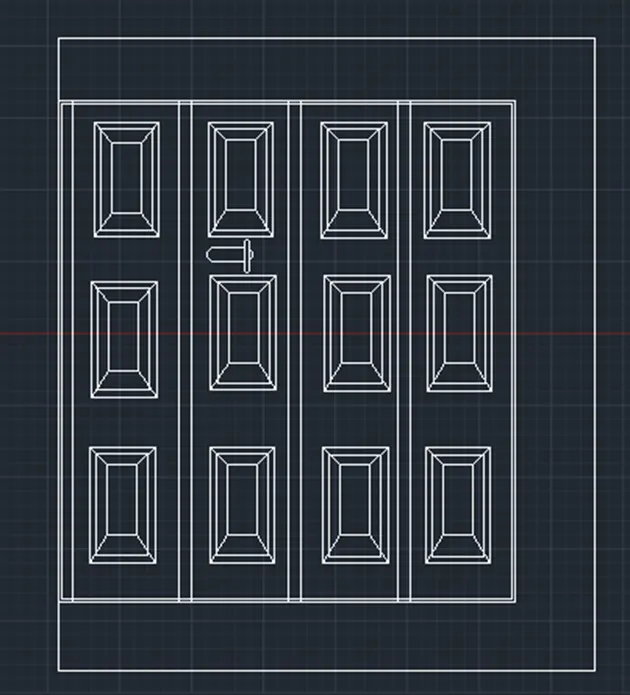

DOOR1_WAREHOUSE RESULT:
step 3 :
In the command prompt type l to draft the lines
In the command promt type rec to draft the boxes or rectangle

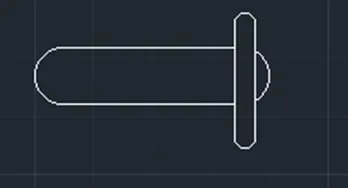

In the command prompt type fillet to get the curve edges
In the ribbon bar > dimensions ( to give the dimensions of the door )
In the ribbon bar > annotation > text ( to give the text for the door

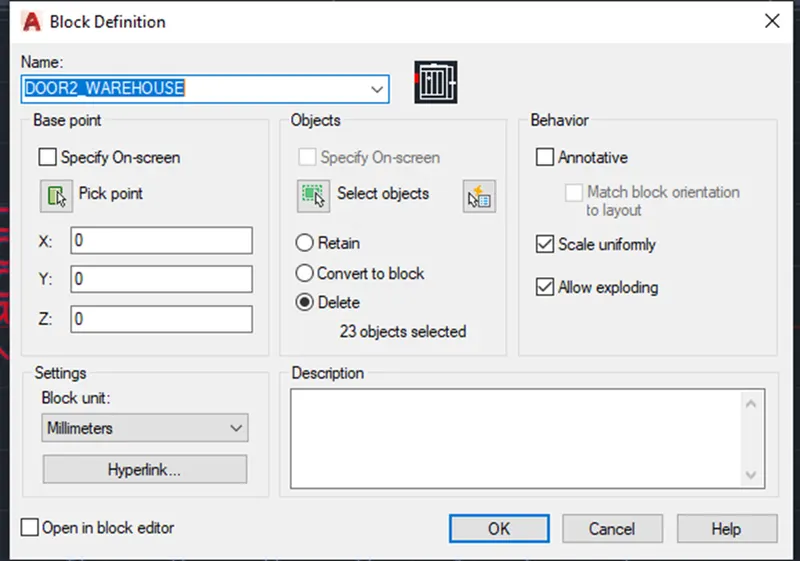

In the ribbon bar >block >create block ( to create the door block )

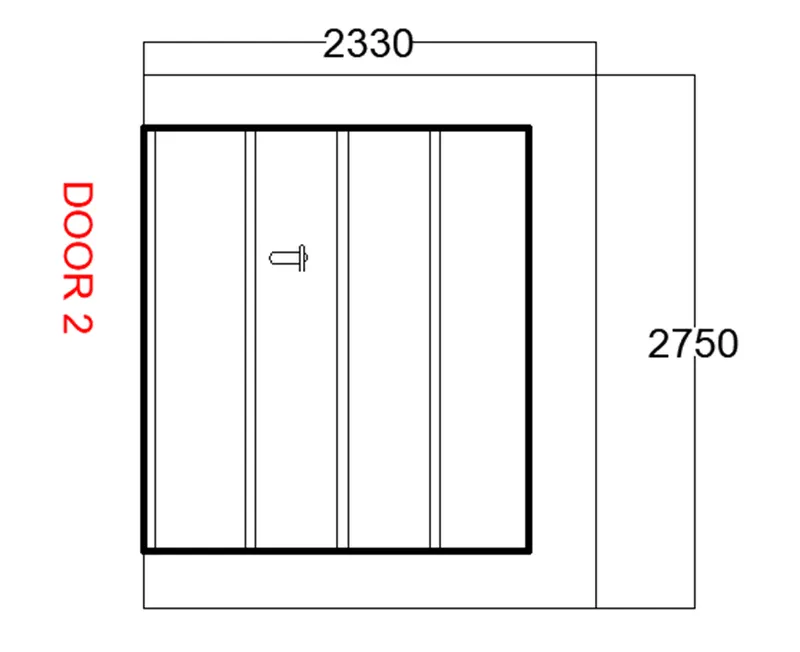

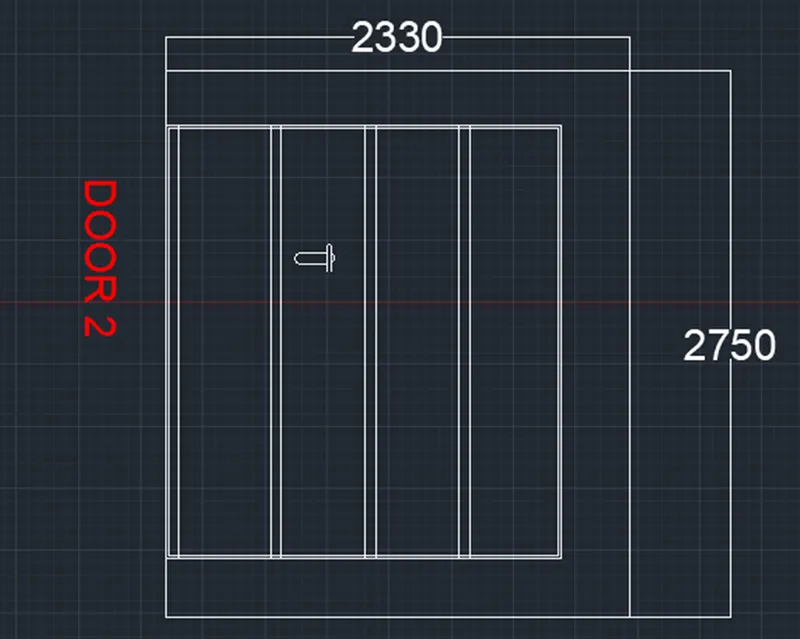

DOOR2_WAREHOUSE BLOCK RESULT:

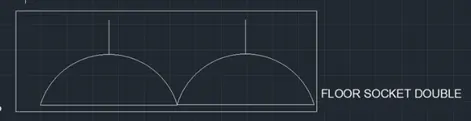

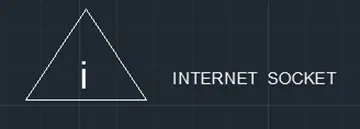

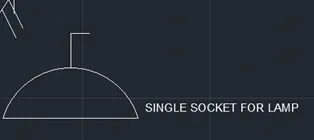

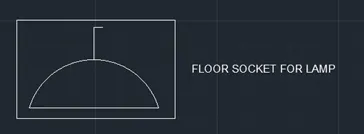

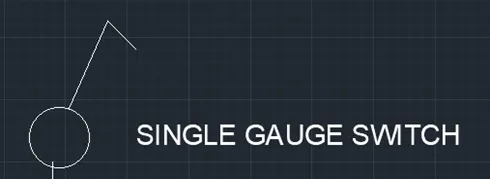

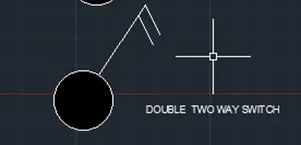

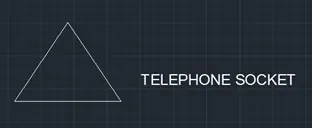

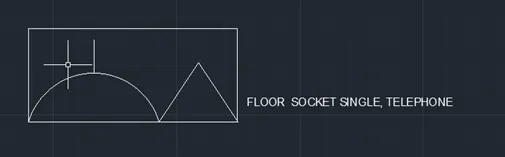

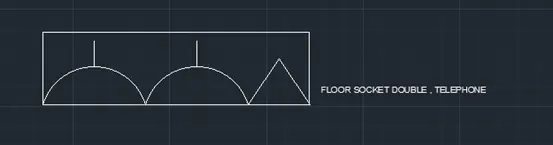

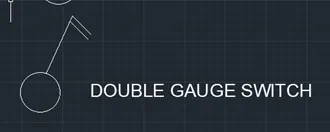

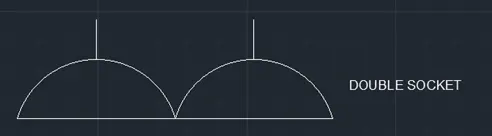

- Create each symbol as a block with the name given in the legend. After creating the blocks arrange
them in the legend as shown in the Figure.
AIM:
To create each symbol as a block with the name and then arrange them in the legend
PROCUDER:

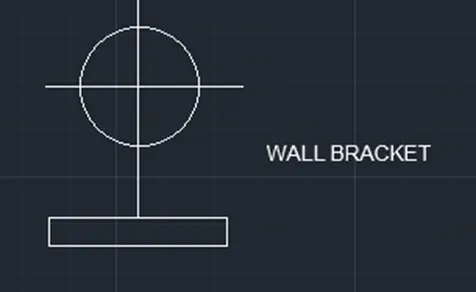

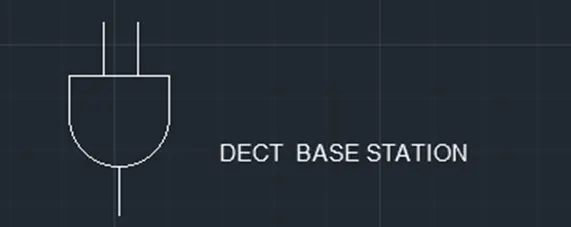

In the command prompt type C to get the circle
In the command prompt type L to get the lines
In the ribbon bar > annotation> Multiline text
In the ribbon bar >block >block edit

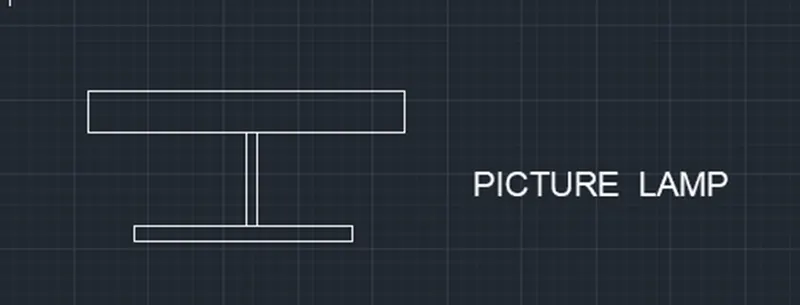

same commands and procedure are followed for all the symbols
In the command prompt type l to draw the lines
In the command prompt type arc to draw the arc
In the command prompt type Mtext

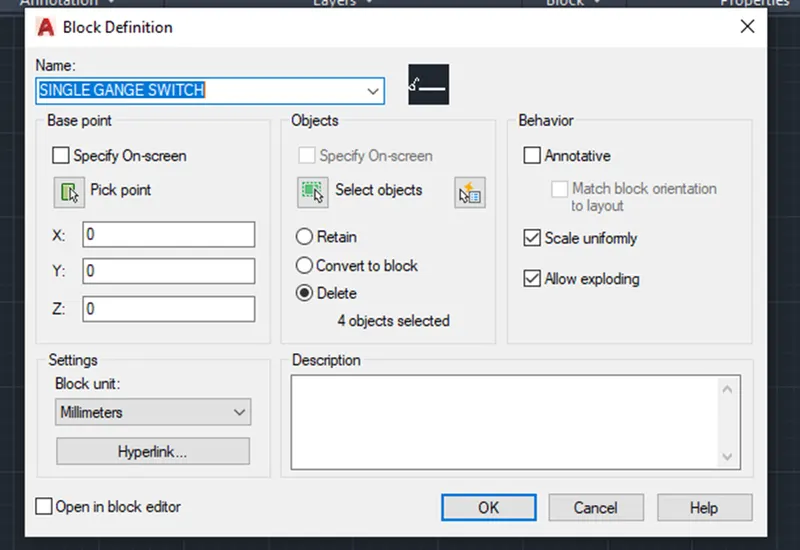

In the ribbon bar > block>create block
In the command prompt type l to draw the lines
In the command prompt type Mtext
In the ribbon bar > block>create block
In the command prompt type l to draw the lines
In the command prompt type fillet to get the curves
In the command prompt type Mtext
In the ribbon bar > block>create block
In the coomant prompt type I to insert the blocks

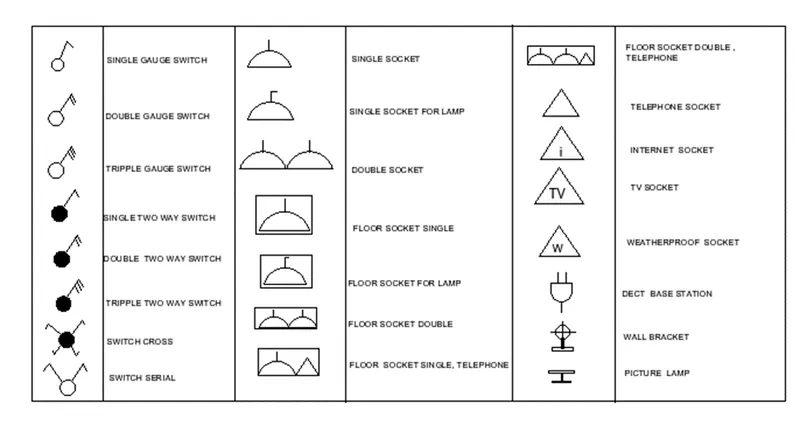

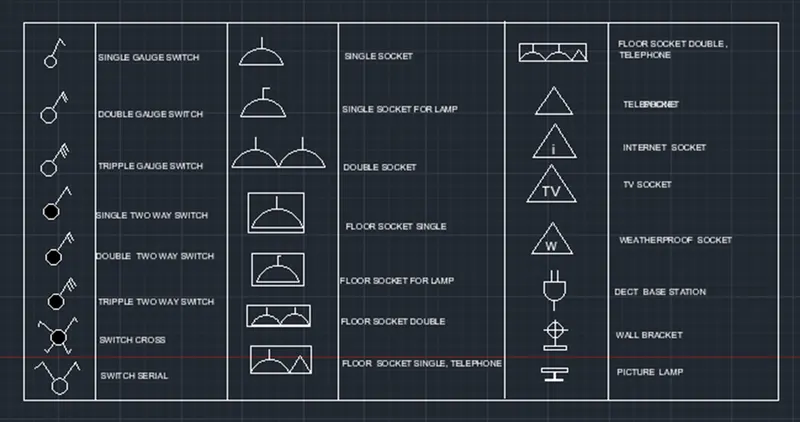

FINAL RESULT :

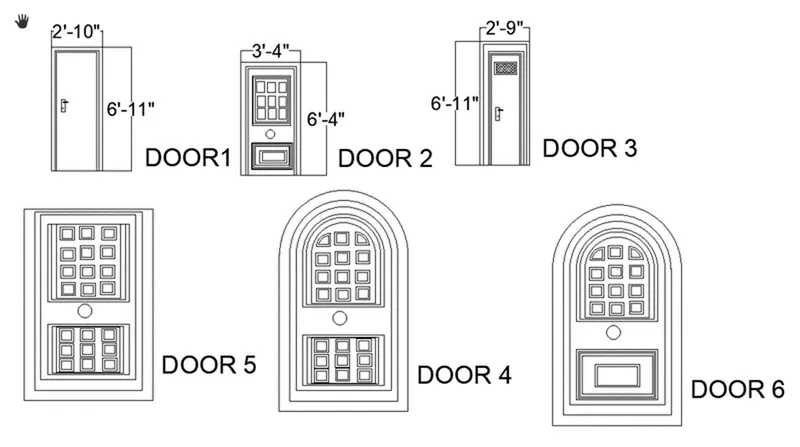

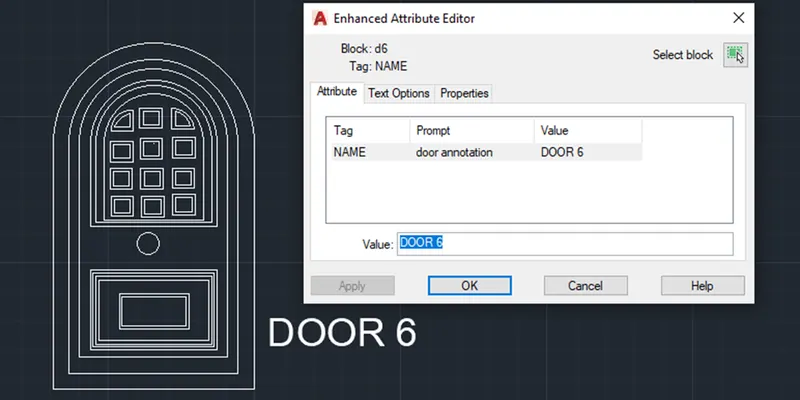

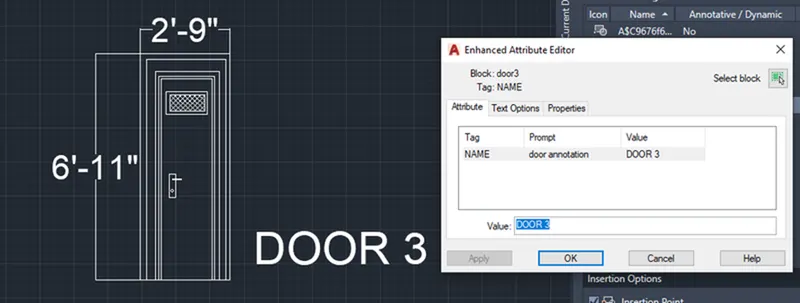

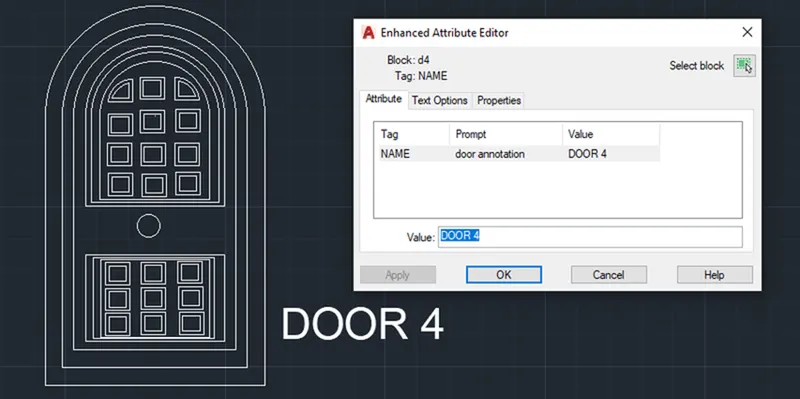

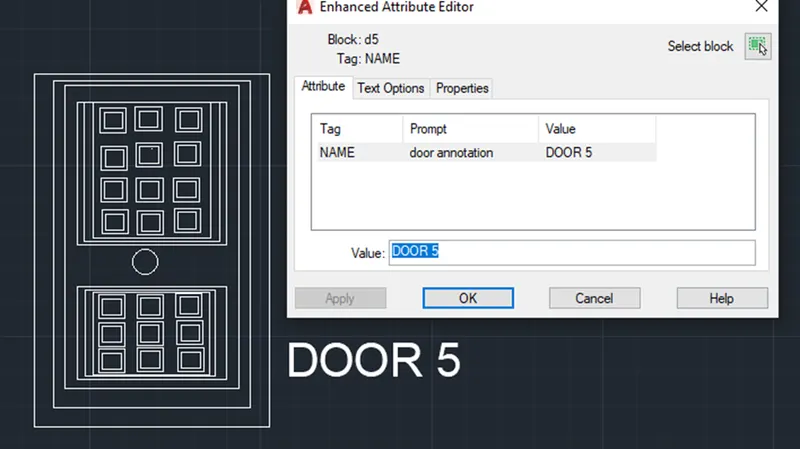

- Create the door type for residential building as a block. Save the name of the blocks as type. Use given
dimensions or assume dimensions as per industry standards.
AIM:
To Create the door type for residential building as a block .
PROCEDURE:
step 1:
In the command prompt type units > engineering >inches
In the command prompt type limits>0,0 , limax >100,100
In the command prompt type zoom > a
step 2:
In the command prompt type l to draw the lines
In the command prompt type B to create a block

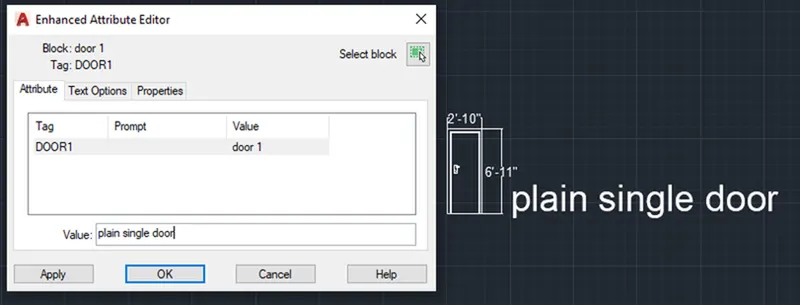

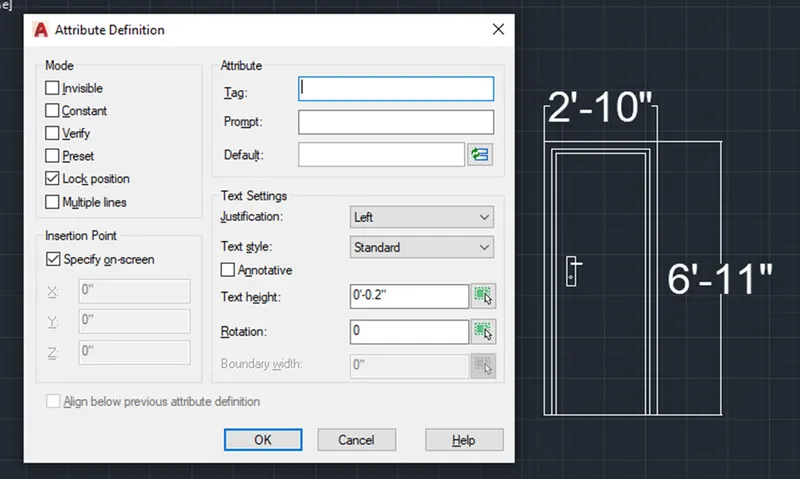

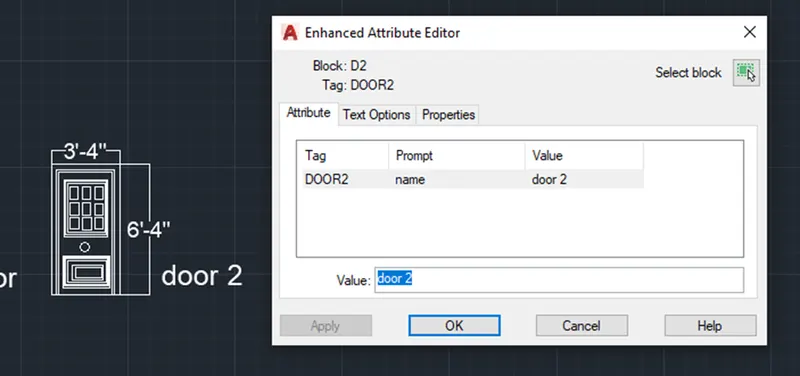

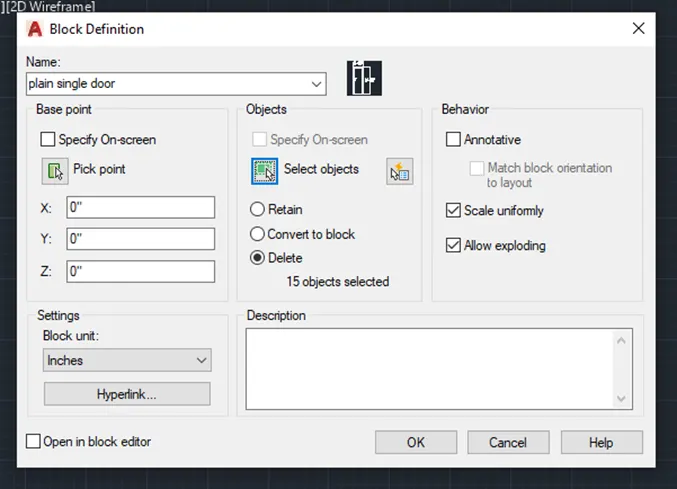

In the command prompt type ATT >name of the block is save as type ( PLAIN SINGLE DOOR )
The same command and procedures are used for the rest of the doors
In the command prompt type arc to draw the arc

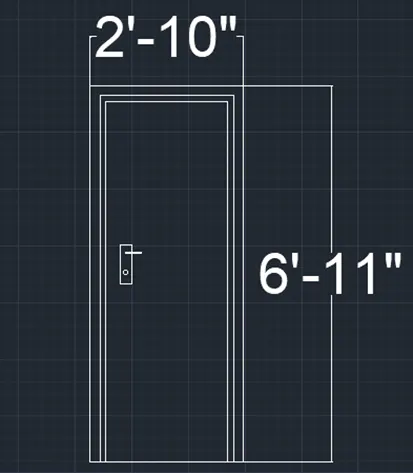

FINAL RESULT:

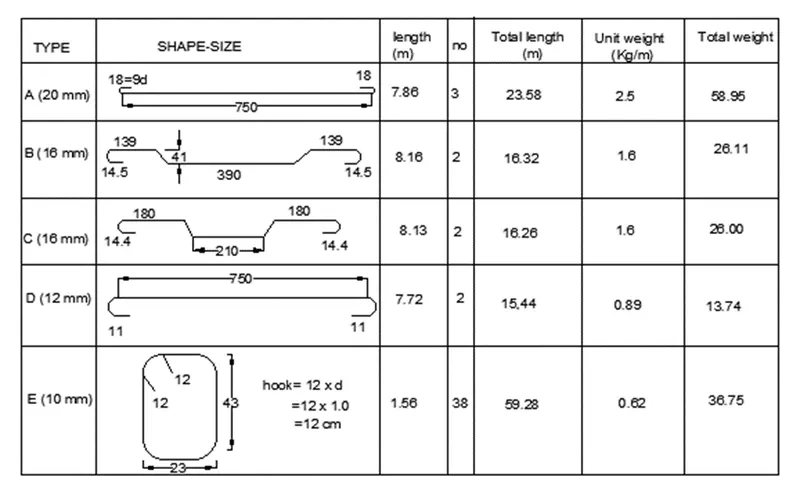

- Create each shape as a block as shown in the Figure. Save the block and insert them on the table as
shown in the Figure.
AIM:
To Create each shape as ablock and insert them on the table as given in the picture
PROCEDURE:
step 1:
In the command prompt type Unit>decimal>meters
In the command prompt type limits>0,0
In the command prompt type limax >100,100
step 2:
In the command prompt type l to draw the desired lines
In the command prompt type pl to draw the desired arc,poly lines
In the command prompt type mt to give annotation and text
In the command promt type B to create the block

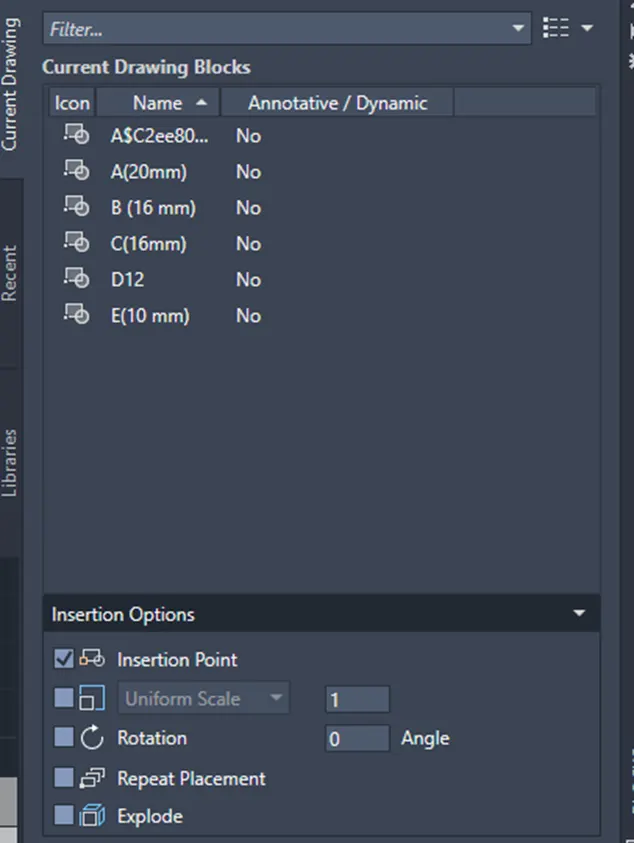

In the command promt type I to insert the created in the block

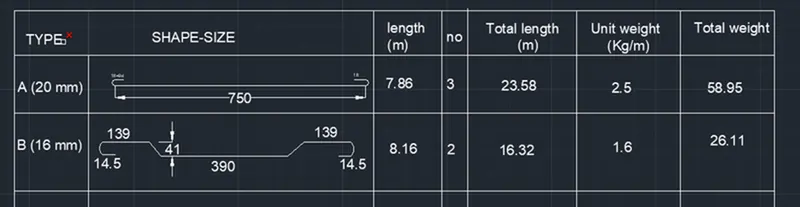

In the command prompt type table to inset the table

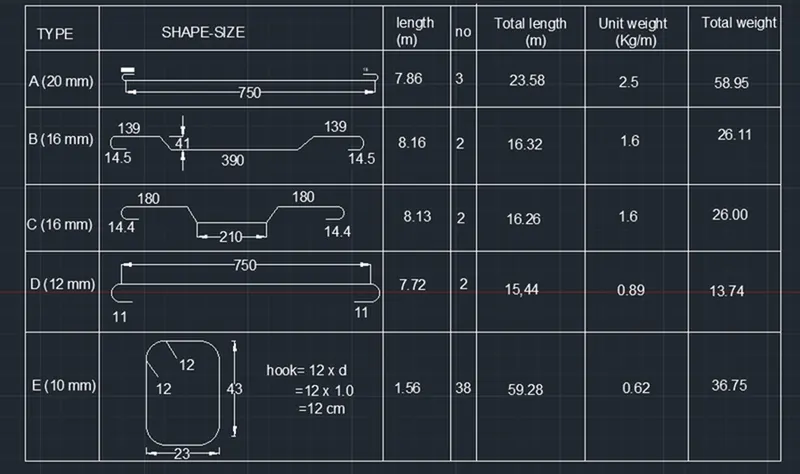

FINAL RESULT:
