Challenge

Creating Bar Bending schedule, Different Door types, and Creation of standard drawing templates using AutoCad

Drawing 1:

Aim: To create the templates as shown in fig.

Procedure:

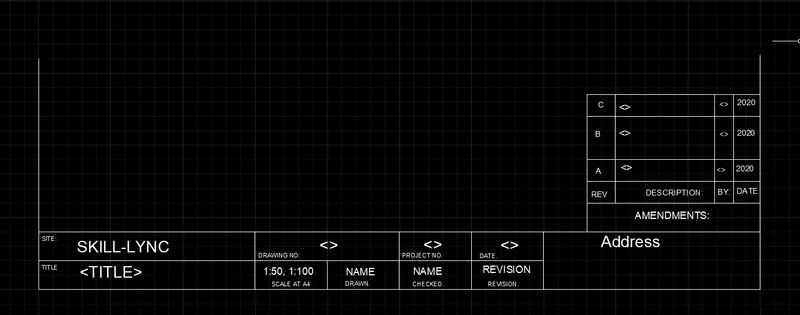

A: Custom1_titleblock.

In command prompt type UNITS and change it to mm.
In command prompt type LINE and draw the horozontal line and one one vertical line creating the corner.
In command prompt type OFFSET and take the offset of veritcal line of 150mm and also of the horizontall line.
With the help of offset command draft all the rows as per given drawings.
In command prompt type DTEXT and type the text of specific height I have taken 3mm height for the text and for title i have taken 6 mm height of text.
Change the colour of the line and the text from the toolbar.

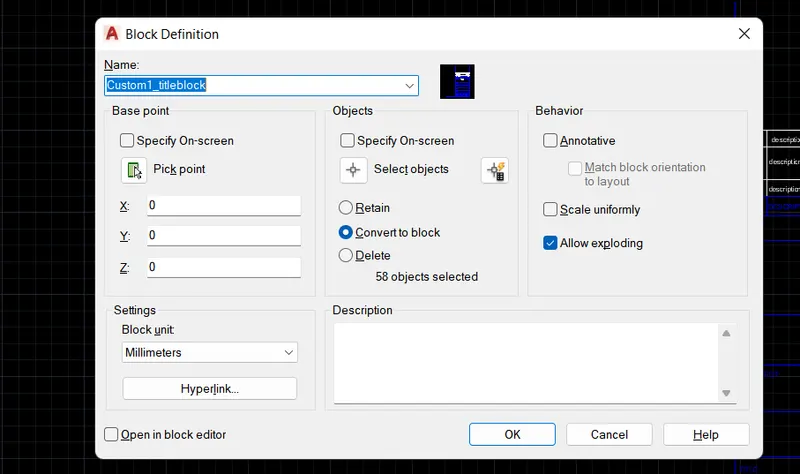

In command prompt type B for block and and name it Custom1_titleblock. Pick the base point and select the objects included in the block.

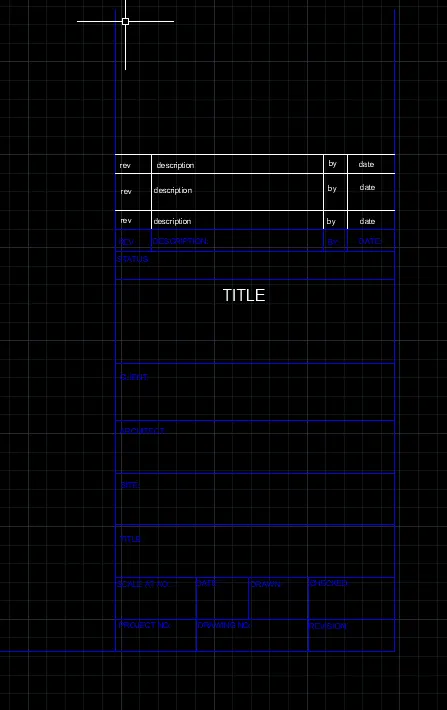

B: Custom2_titleblock.

In command prompt type LINE and using it draw the lines
With the offset command take the offset of suitable size and create the given table.
In command propmt type Dtext and type the text wherever required.

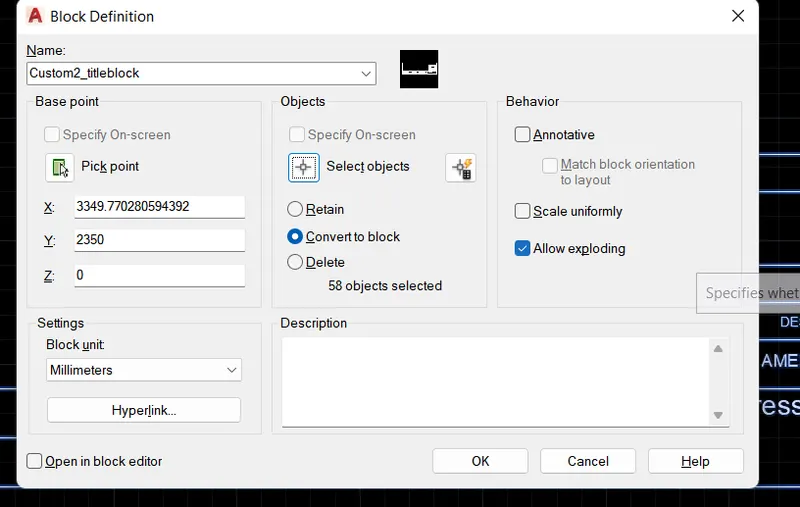

In command prompt type BLOCK and name it as Custom2_titleblock. and pick base point and select the objects of the block and create the block.

Drawing 2:

Aim: To draft the door types for the warehouse as shown in the fig.

Procedure:

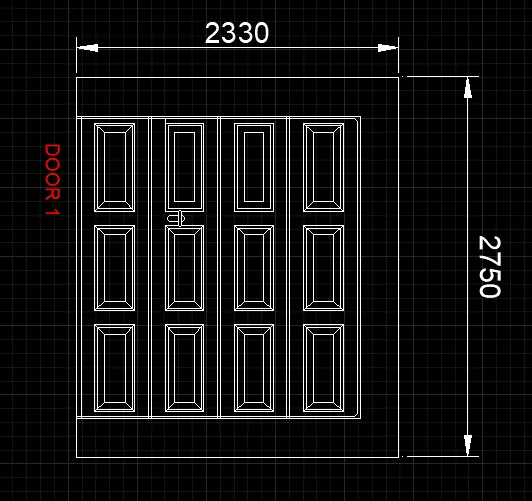

DOOR 1:

In command prompt type LINE and draw the outer line of the door that is 2750 and 2330.
In command prompt type OFFSET and take the offset of outer lines towards inner side, three sides offset distance must be equal.
In command prompt type TRIM and trim out the extra lines.
Divide the inner rectangle three equal rows and 4 columns.
Take the OFFSET of the lines for creating rows and columns.
For design part draw the rectangles with the help of command OFFSET, TRIM and LINE.
In command prompt type DTEXT and type text with rotation and change the colour from too bar.
In command prompt type DIMLIN and give the linear dimensions.

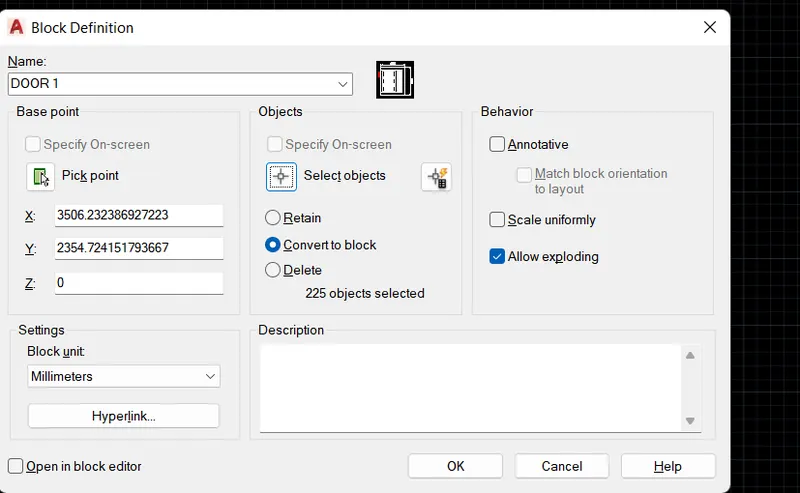

In command prompt type BLOCK and create the block for door 1.

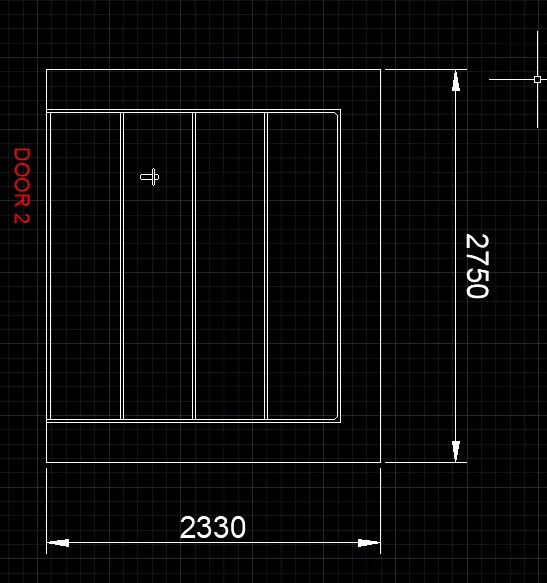

DOOR 2:

In command prompt type LINE and draw the outer circle of given measurements.
In command prompt type OFFSET and Take the offset according to given drawing of suitable measurements.
To draw the latch of the door use command LINE , CIRCLE, and TRIM.
In command prompt type DTEXT to type the text and change the colour form the tool bar.
In command prompt type DIMLIN to show the linear dimensions.
In command prompt type DIMSTY to modify the dimension elements.

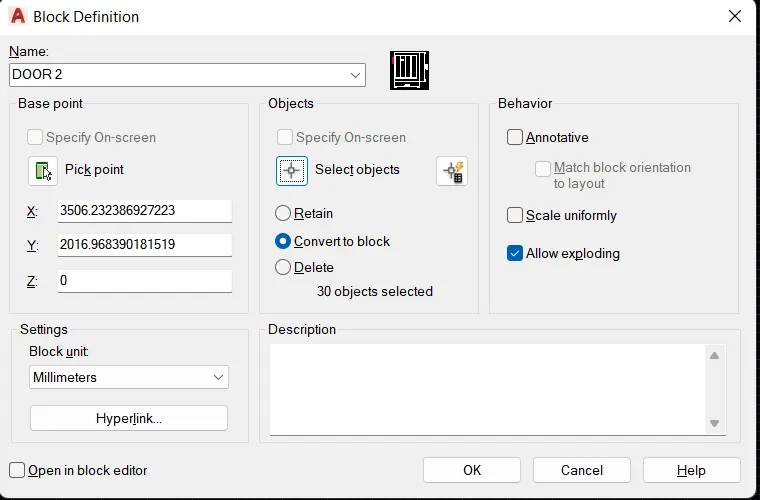

In commad prompt type BLOCK and create the block of the DOOR 2 by picking base point and selecting the objects.

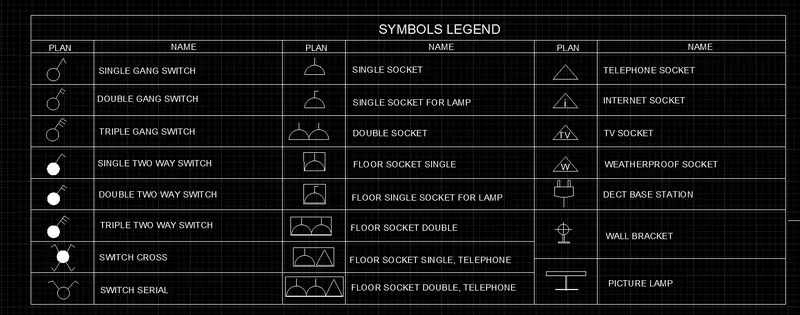

Drawing 3:

Aim: To create a symbol as a block with the name given in the legend. After creating the blocks arrange them in the legend as shown on the fig.

Procedure:

All the symbols are drafted using commands CIRCLE, LINE , RECTANGLE.
In command prompt type Line and draw the table, by taking suitable measurements.
Use DTEXT command to type the text .

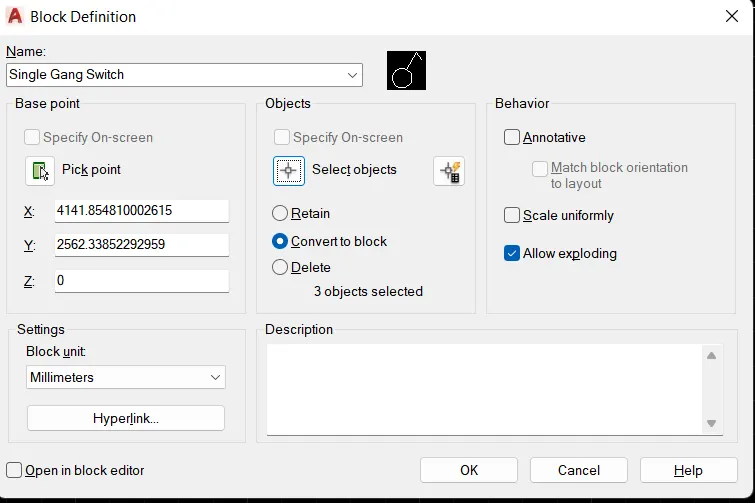

In command prompt type BLOCK and create the blocks for each symbol.
Follow block process for every symbol.

Drawing 4:

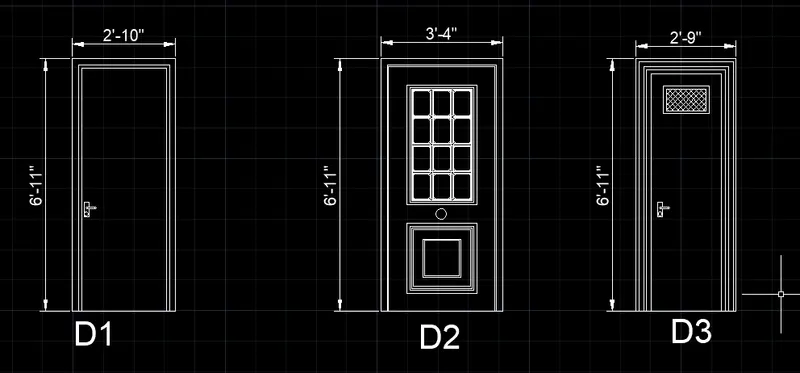

Aim: To create the door type for residential building and create the block.

Procedure:

In command prompt type Line and draw the door outline of specific door.
Take the offset of door towards inner side as shpwn in fig.
Draft the lock of the door by using line, TRIM command .
For elevation part of D2 draft the innner rectangle using OFFSSET, LINE and TRIM command.
In command prompt type DIMSTYLE and modify the text elements.
In command prompt type HATCH and show the specific hatch pattern in D3.
In command prompt type DIMLIN to show the linear dimensions.

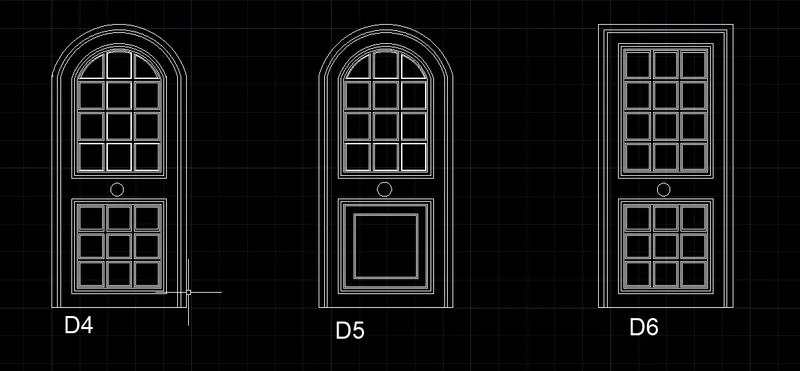

For D4 draft the door using LINE, CIRCLe and TRIM commmand.
Take the offset for the innner design of the door,.
For innner design use LINE, OFFSET and TRIM command.

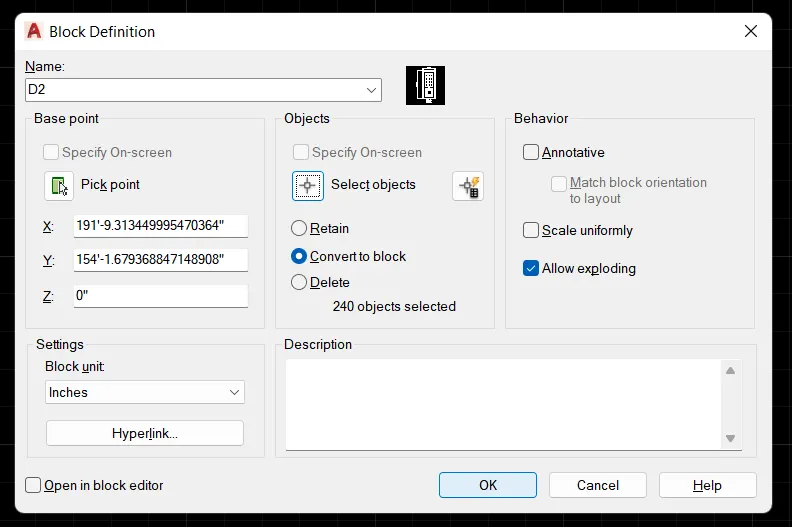

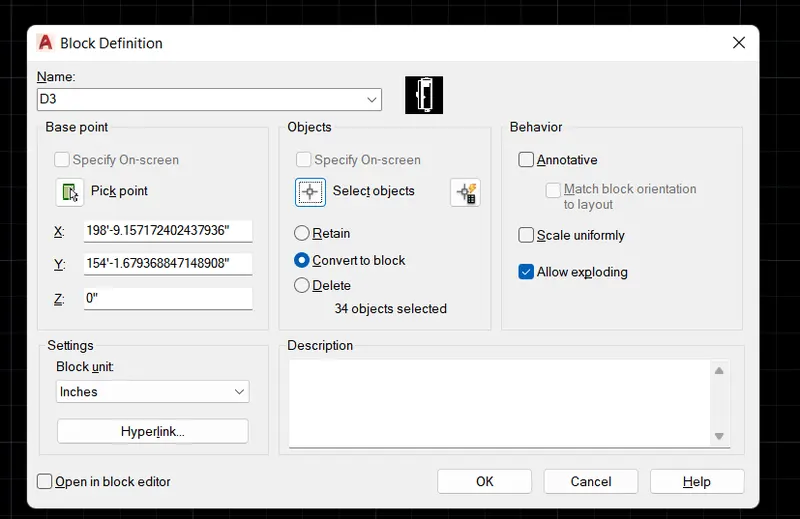

in command prompt type BLOCK and make the block by picking base point and selecting object.

Follow similar block creating process for each type of door.

Drawing 5:

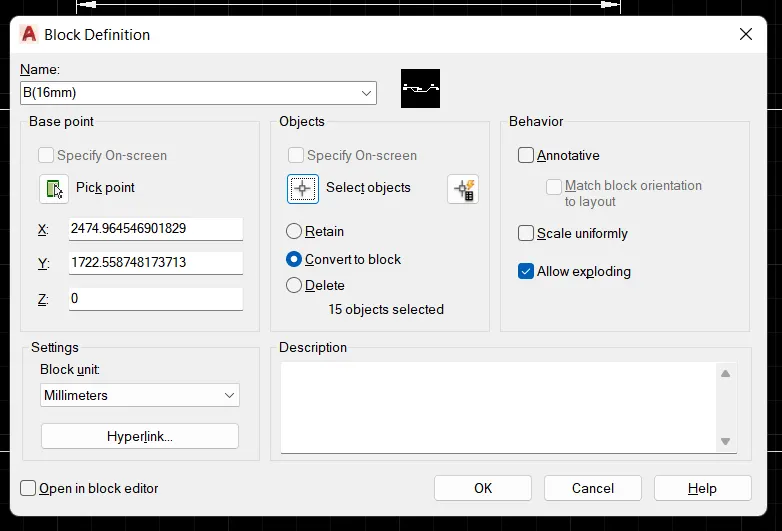

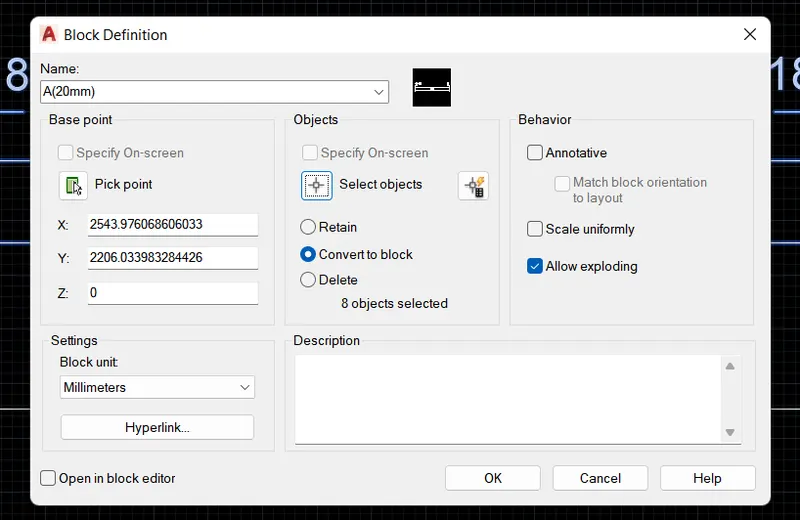

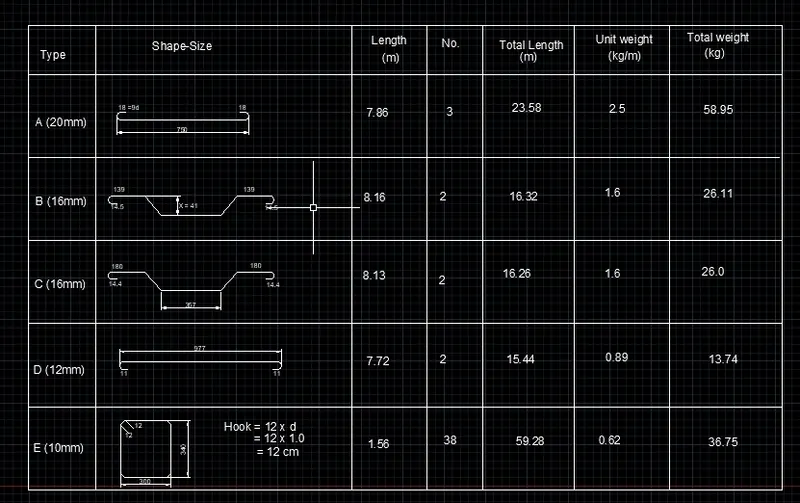

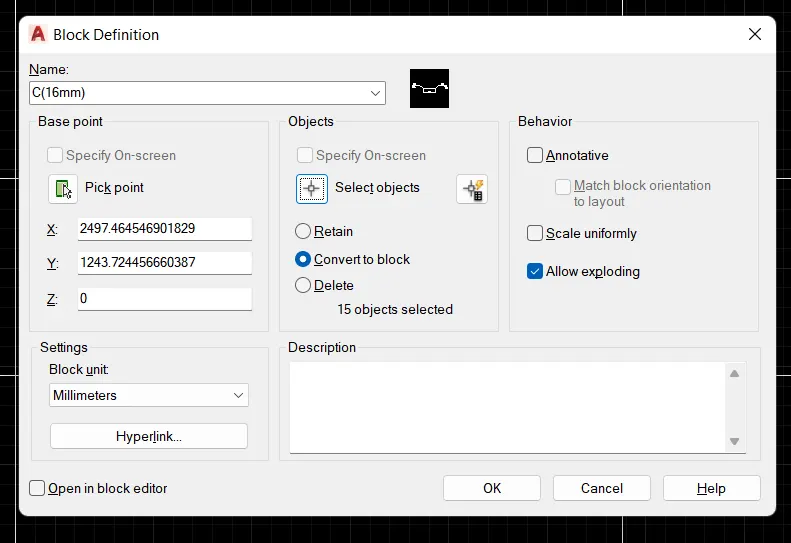

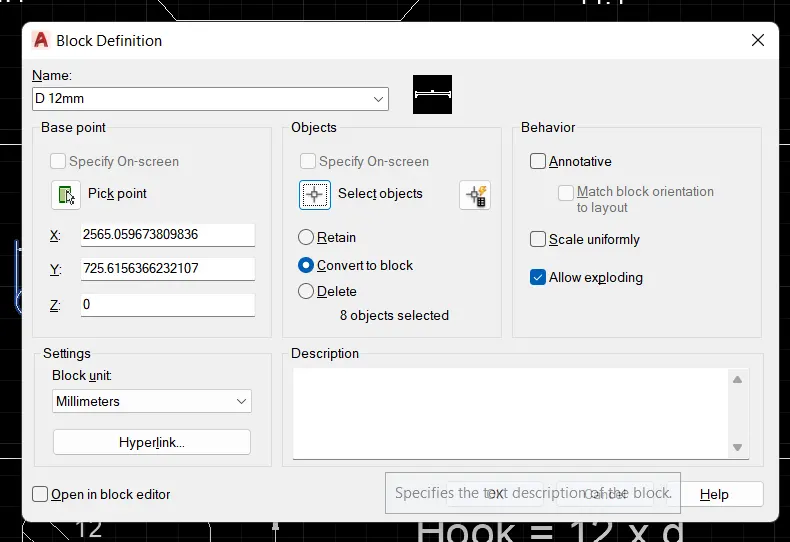

Aim: To Draft the BBS as shown in the fig and create a block of each type.
Procedure:
