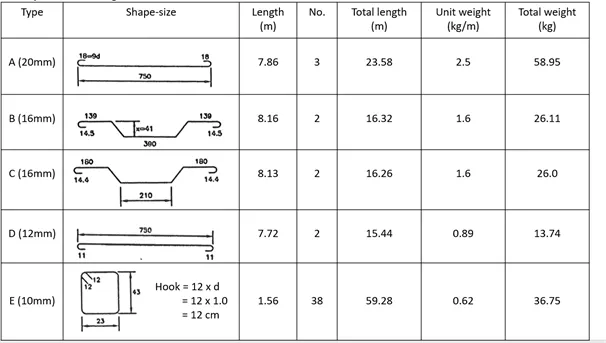

Creating Bar Bending schedule, Different Door types, and Creation of standard drawing templates using AutoCad

• AIM:

  To Create Custom1_titleblock and Custom2_titleblock using Attributes and block command from Autocad software .

  PROCEDURE:

  Step 1 ( custom1_tittleblock)

  In the command prompt type L to draw the lines
  In ribbon tab > Annotate > Mtline ( to draft the text )
  go to properties tab to change the colour

In the riibon bar >block > create block and name it Custom1_titleblock.Therefore the block is created

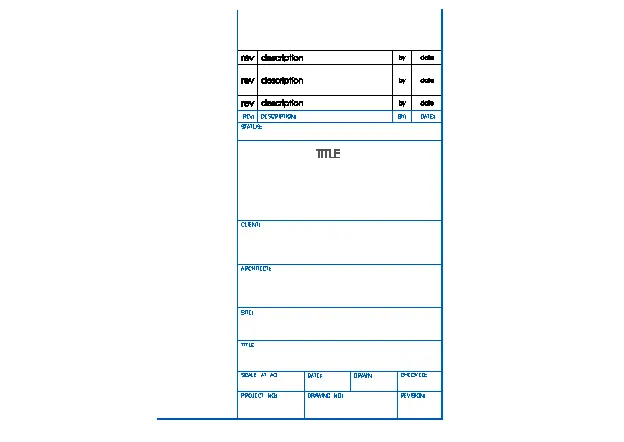

custom1_tittlebox result:

STEP 2 (custom2_tittleblock)

In the command prompt type L to draw the lines
In ribbon tab > Annotate > Mtline ( to draft the text )
go to properties tab to change the colour


In the riibon bar >block > create block and name it Custom2_titleblock.Therefore the block is created .

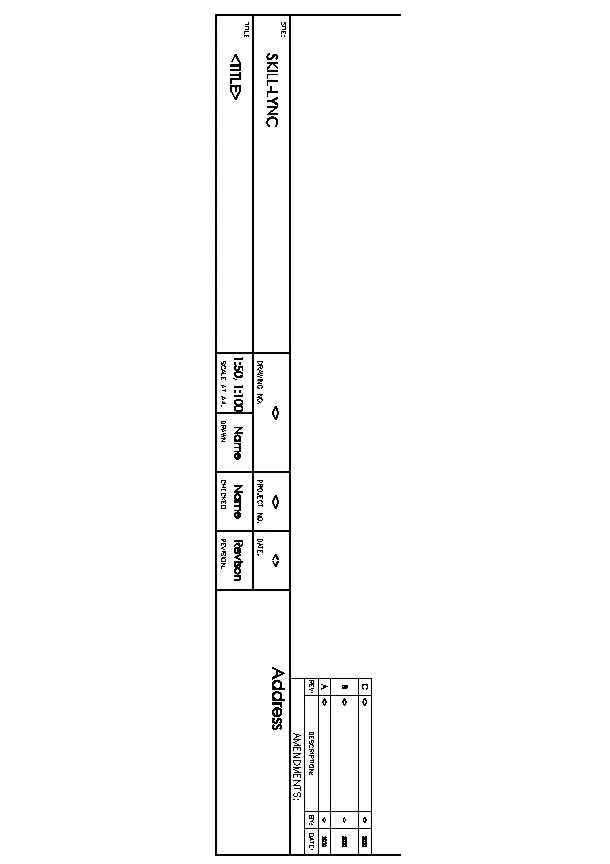

custom2_tittlebox result

•
   2. Create the doors type for warehouse as shown in the Figure. You need to create each door type as per
  standard size or given dimensions. Create the blocks of this door type after creating them.

  AIM:

  To create the doors type for warehouse and to also create the block of this door type after creating them using AutoCAD

  PROCEDURE:

  step 1:

  In the command prompt type the units > mm
  In the command prompt type the limax > 100,100
  In the command prompt type the limits >0,0
  step 2 :

  In the command prompt type l to draft the lines
  In the command promt type rec to draft the boxes or rectangle
  In the command prompt type fillet  to get the curve edges

•

  In the ribbon bar > dimensions ( to give the dimensions of the door )
  In the ribbon bar > annotation > text ( to give the text for the door )

  In the ribbon bar >block >create block ( to create the door block )

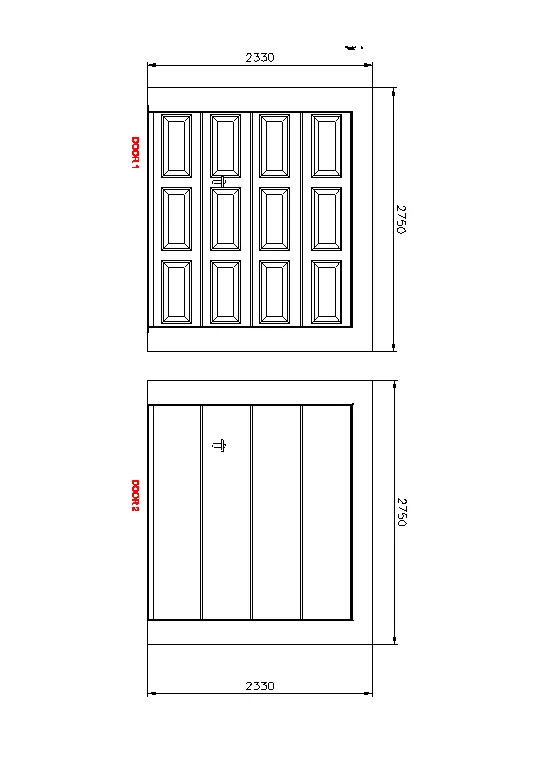

  DOOR1_WAREHOUSE RESULT:

  step 3 :

  In the command prompt type l to draft the lines
  In the command promt type rec to draft the boxes or rectangle
  In the command prompt type fillet  to get the curve edges
  In the ribbon bar > dimensions ( to give the dimensions of the door )
  In the ribbon bar > annotation > text ( to give the text for the door


  In the ribbon bar >block >create block ( to create the door block )

  DOOR2_WAREHOUSE BLOCK RESULT:

   3. Create each symbol as a block with the name given in the legend. After creating the blocks arrange
  them in the legend as shown in the Figure.

  AIM:

  To create each symbol as a block with the name and then arrange them in the legend

  PROCUDER:

  In the command prompt type C to get the circle
  In the command prompt type L to get the lines
  In the ribbon bar > annotation> Multiline text

  In the ribbon bar >block >block edit

  same commands and procedure  are followed for all the symbols

  In the command prompt type l to draw the lines
  In the command prompt type arc to draw the arc
  In the command prompt type Mtext
  In the ribbon bar > block>create block

  In the command prompt type l to draw the lines
  In the command prompt type Mtext
  In the ribbon bar > block>create block

  In the command prompt type l to draw the lines
  In the command prompt type fillet to get the curves
  In the command prompt type Mtext
  In the ribbon bar > block>create block


  In the coomant prompt type I to insert the blocks
  FINAL RESULT :

•


  4. Create the door type for residential building as a block. Save the name of the blocks as type. Use given
  dimensions or assume dimensions as per industry standards.

  AIM:

  To Create the door type for residential building as a block .

  PROCEDURE:

  step 1:

  In the command prompt type units > engineering >inches
  In the command prompt type limits>0,0 , limax >100,100
  In the command prompt type zoom > a
  step 2:

  In the command prompt type l to draw the lines
  In the command prompt type B to create a block


  In the command prompt type ATT >name of the block is save as type ( PLAIN SINGLE DOOR )

  The same command and procedures are used for the rest of the doors

 In the command prompt type arc to draw the arc

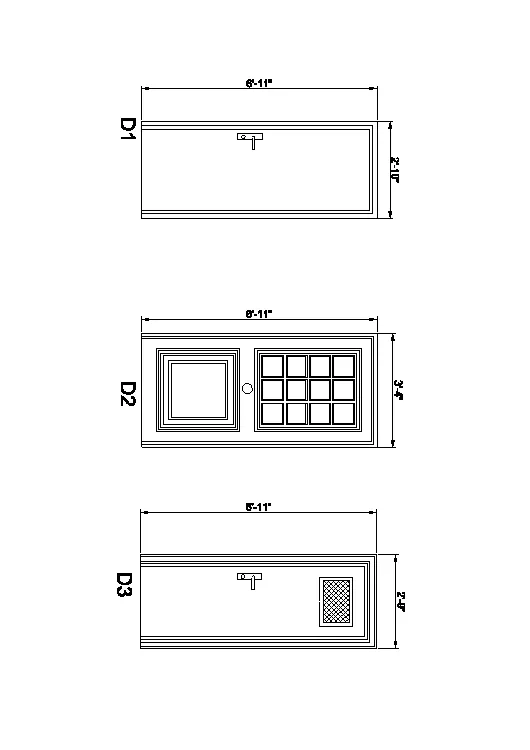

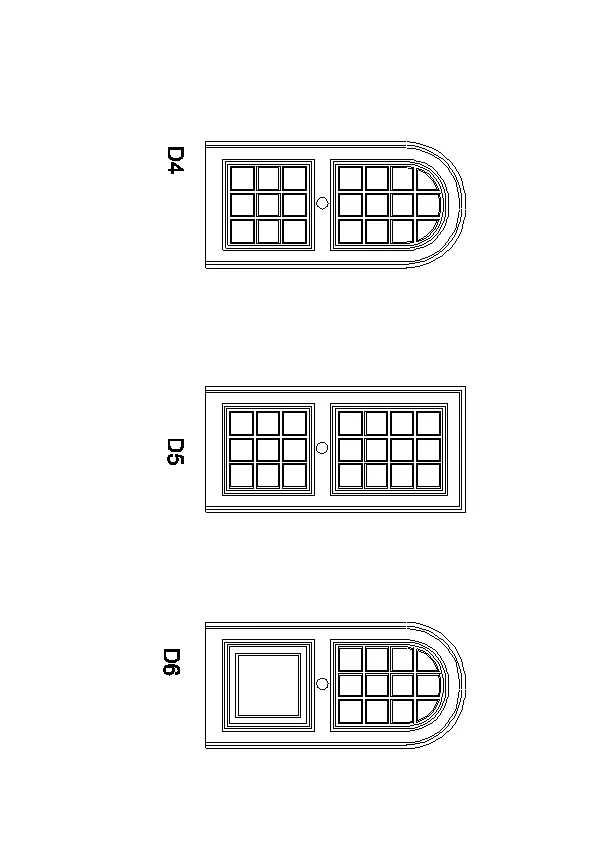

 FINAL RESULT:

•



   5. Create each shape as a block as shown in the Figure. Save the block and insert them on the table as
  shown in the Figure.

  AIM:

  To Create each shape as ablock and insert them on the table as given in the picture

  PROCEDURE:

  step 1:

  In the command prompt type Unit>decimal>meters
  In the command prompt type limits>0,0
  In the command prompt type limax >100,100
  step 2:

  In the command prompt type l to draw the desired lines
  In the command prompt type pl to draw the desired arc,poly lines
  In the command prompt type mt to give annotation and text
  In the command promt type B to create the block
  In the command promt type I to insert the created in the block
  In the command prompt type table to inset the table

   FINAL RESULT:
