Creating Architectural and Structural model with 3D rendering using REVIT
1) Select the type of structure you want to build from one of the three beloW:
ANS:
A) Multi-Unit Residential Apartment
2) Assume reasonable assumptions for geographic and location details for your project modeling. Based on assumptions and type of structure selected identify the modeling requirements from NBC
ANS:
- My assumed location details are Latur maharashtra,413522.
- my modeling gives the model requirements from NBC
3) Using the structural model, include the following components based on the type of structure selected

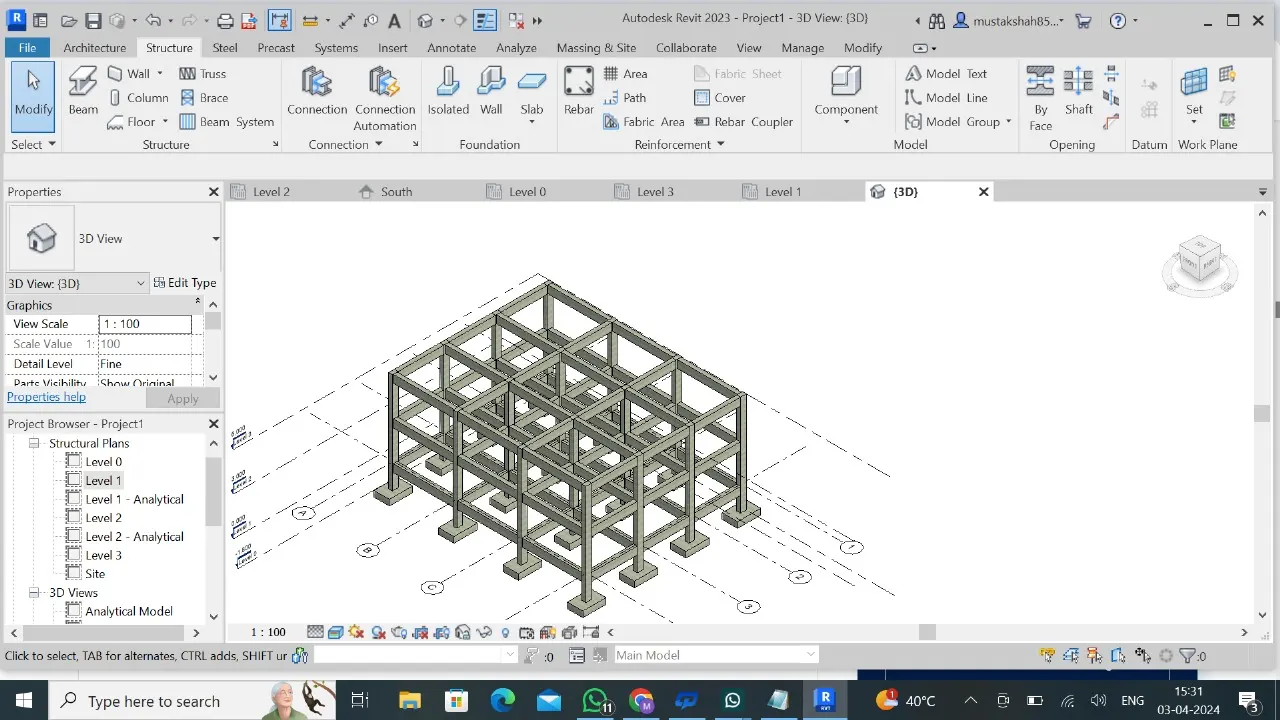

a. Foundation – Isolated / Wall/Matt Foundation
b. Columns
c. Beams Connected to Columns

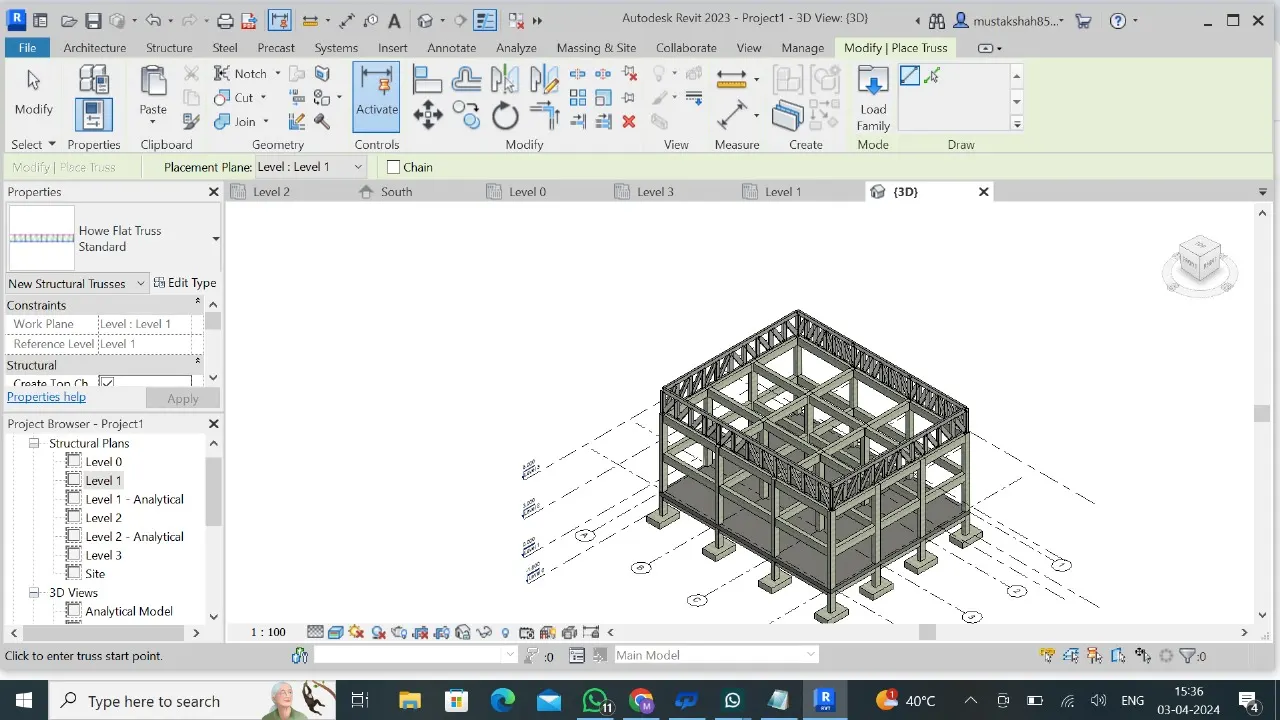

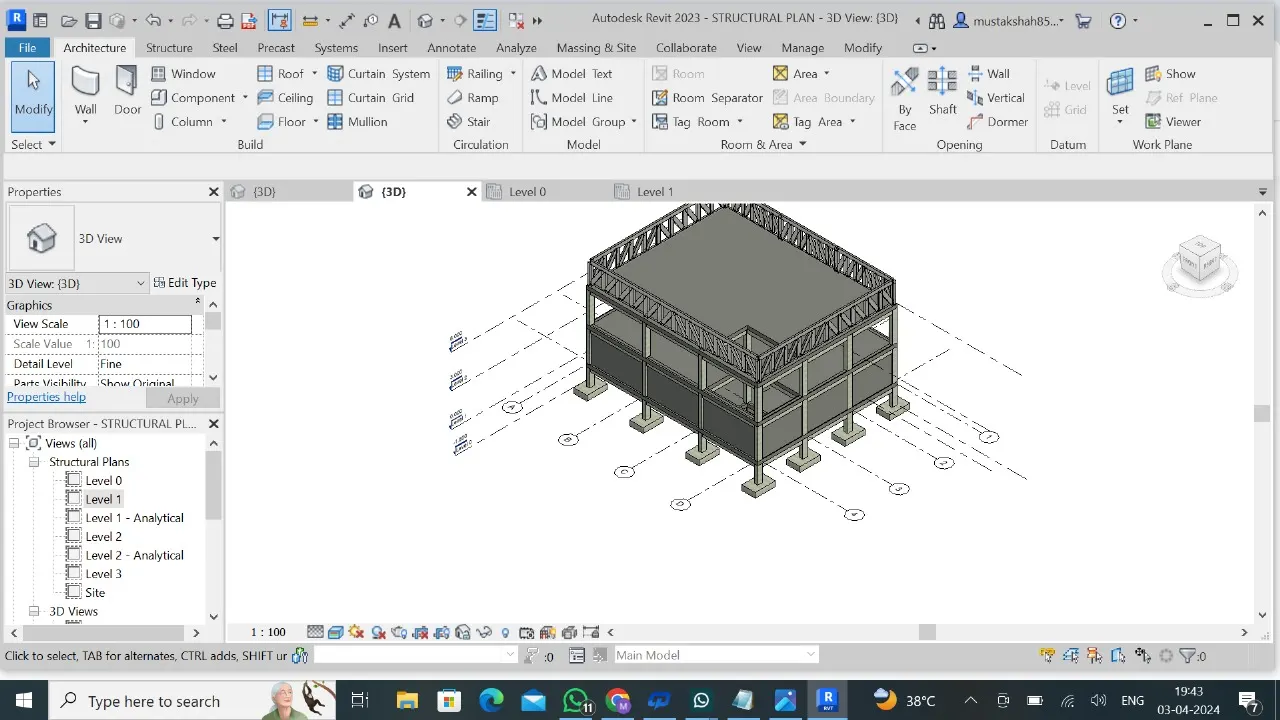

d. Roof Framing/ Truss
e. Floor / Decks
f. Floor Openings for Elevators and Stairs
Ans:

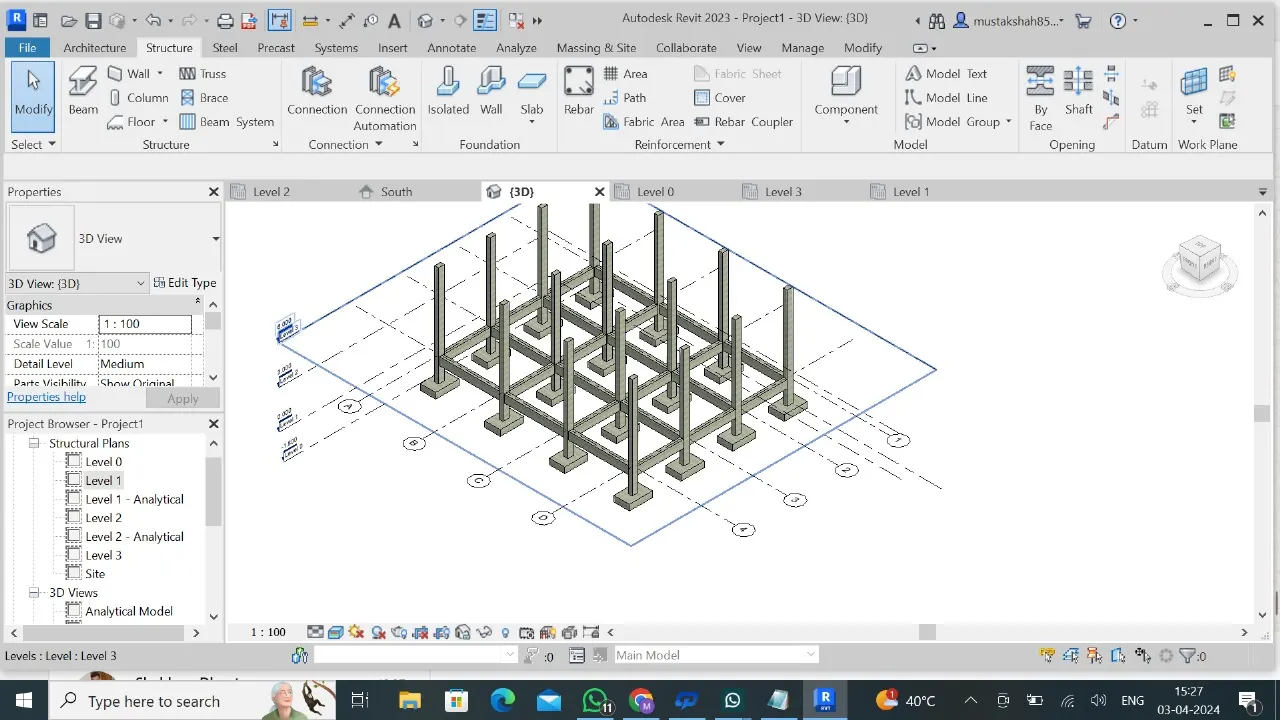

a. Foundation – Isolated / Wall/Matt Foundation

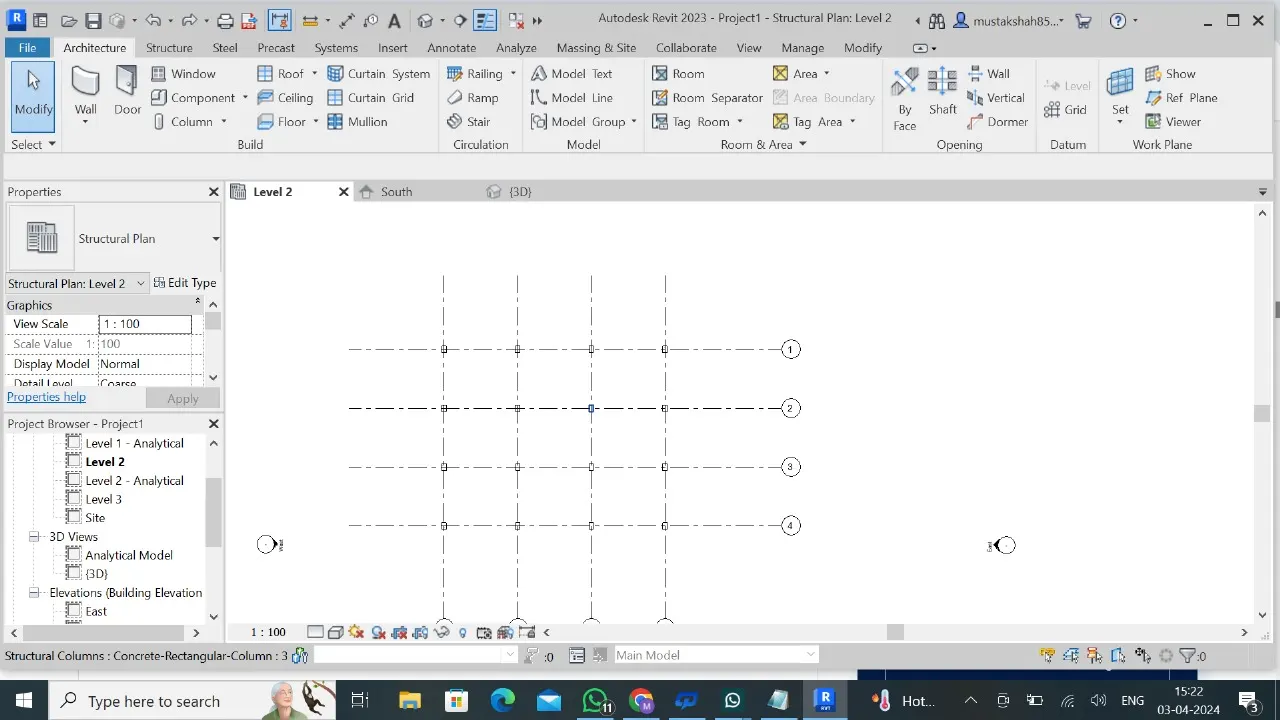

b. Columns
c. Beams Connected to Columns
d. Roof Framing/ Truss
e. Floor / Decks
4) Using the architectural model, include the following components based on the type of structure selected
a. Wall Layout with appropriate material and finishing
b. Exterior façade with fancy finish
c. Interior partition walls to size rooms
d. Components to add details to a room ( Desk, Chair, Lighting, Plumbing fixtures)
e. Add components such as stairs Elevators
f. Have at-least one side of the building with curtain walls and glass panels
g. Include interior and exterior lighting fixtures
h. Place proper topographic components from outside ( Trees, Parking, Plants) to add details to the model
AIM:
To the architectural model , include the components based on the type of structure selected .
PROCEDURE :
- Open architectural model which we created amodel
- go to architectural tab
- click on place components
- load families .
- load the reaquired familes and wall and floor designs
RESULTS :
- In this picture plants , exterior lights , staircase , railings , flag pole are added .
- 5) Provide a set of drawings in an architectural and structural model to list the following details with categories and appropriate sheet templates included
a. Floor Plans with Annotations
b. Elevations
c. Sections - ans:

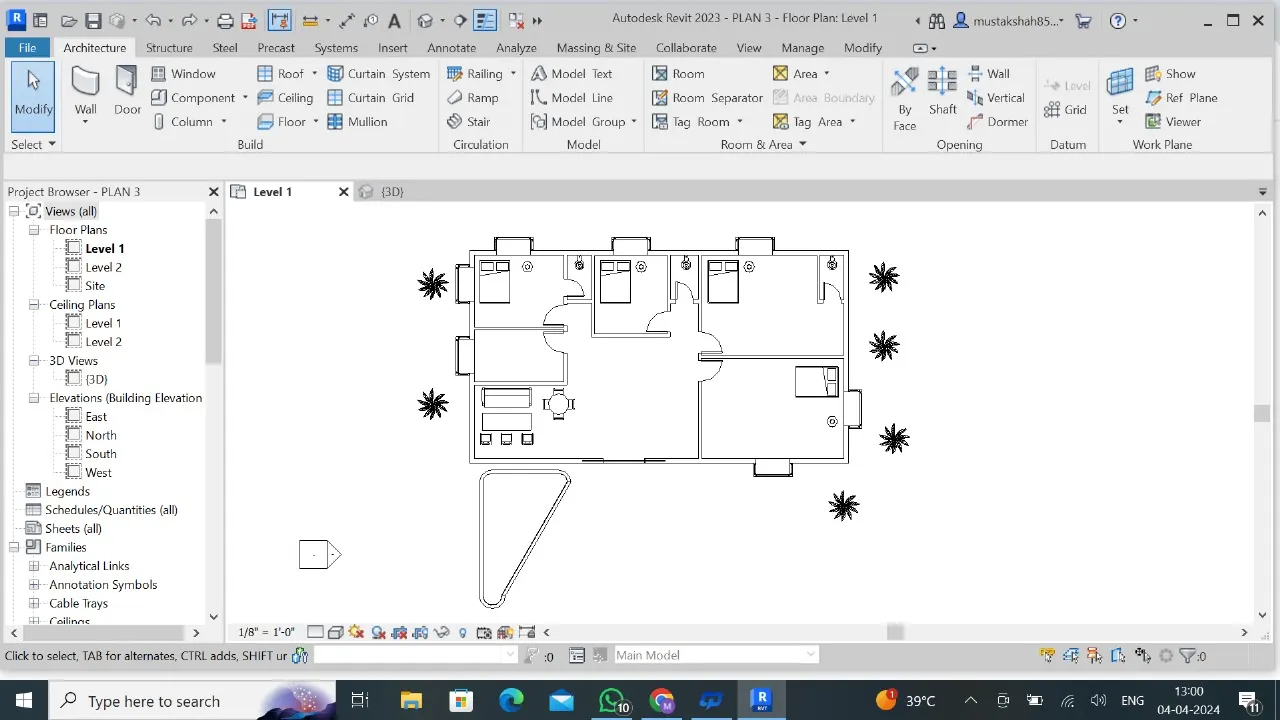

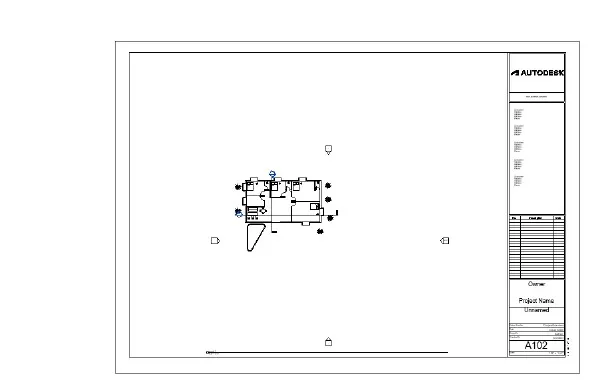

- A) FLOOR PLAN WITH ANNOTATIONS

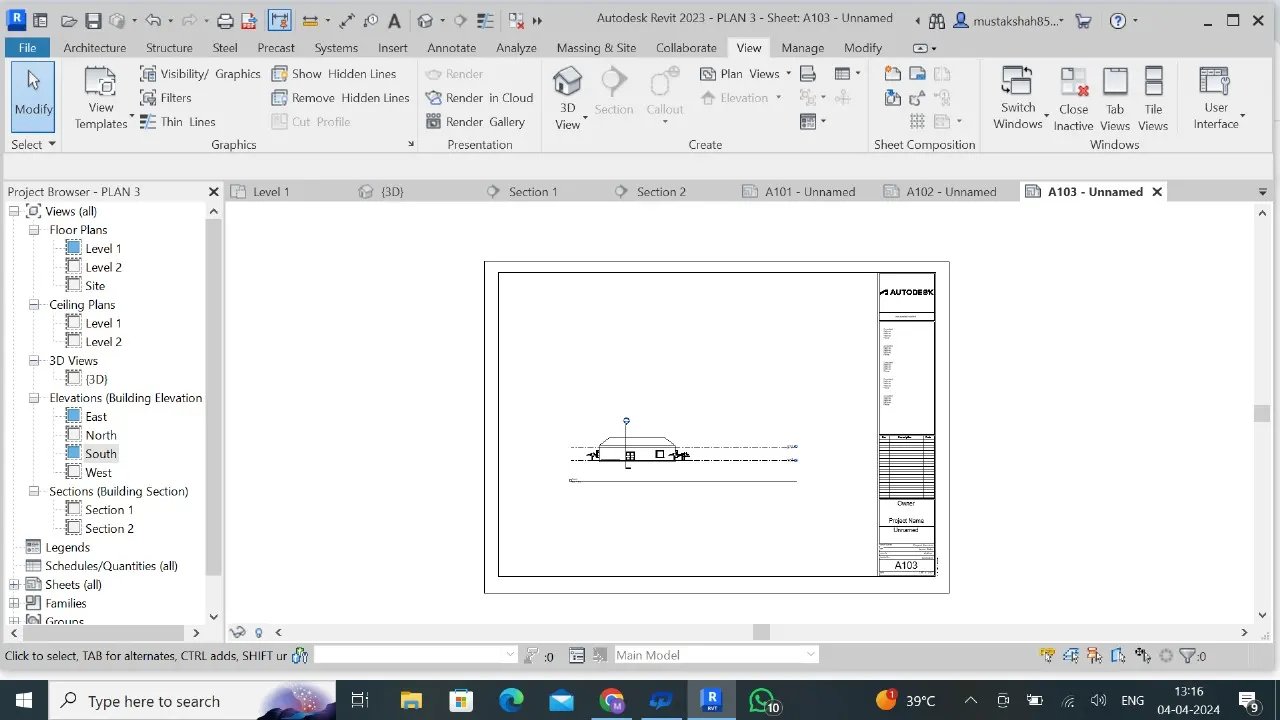

- B) ELEVATION

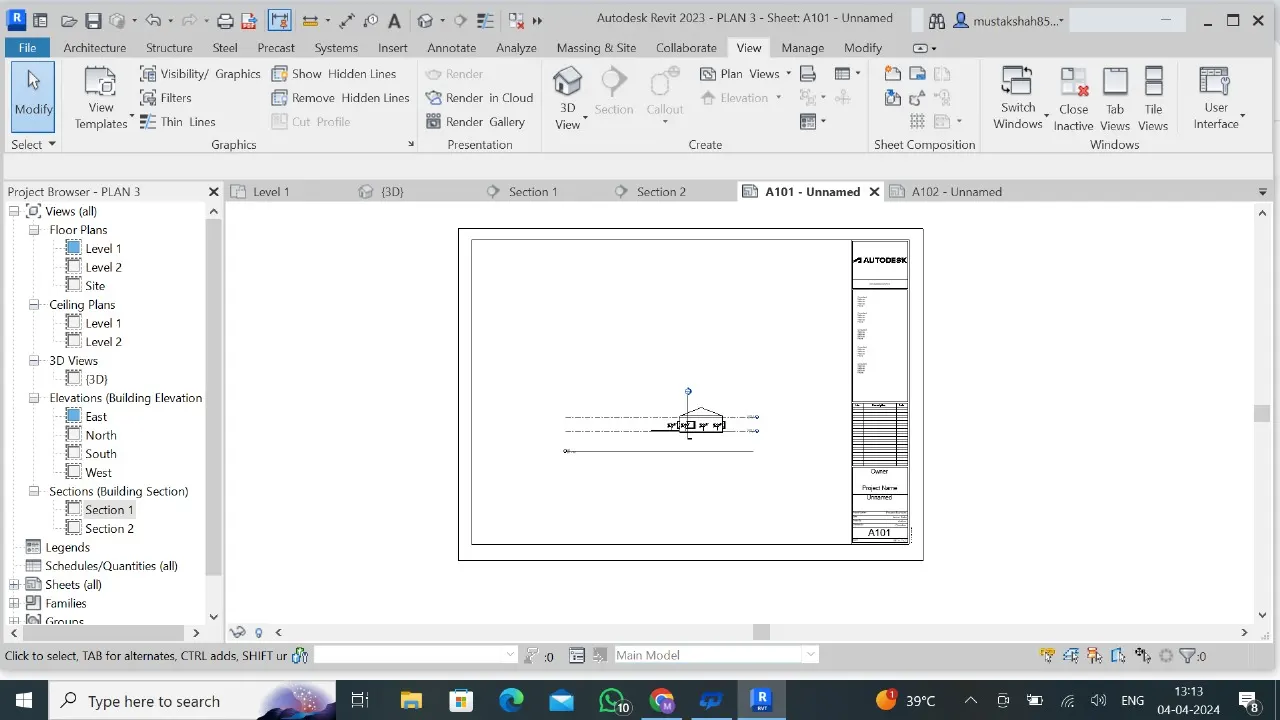

C) SECTION:
- 6) Using the Rendering settings, Render images of the 3D model produced and include the rendered images to the drawing sheets
a. Rendering from interior rooms
b. Rendering from out showing topographic features
c. Rendering through structural framing - ANS:
7) Print the set of drawing sheets created and submit the drawings from the architecture and structure model
ANS
OPEN FILE
Use print option and select and convert to pdf as shown in fig
