Creating Architectural and Structural model with 3D rendering using REVIT
1) Select the type of structure you want to build from one of the three below:
a. Multi-Unit Residential Apartment
b. Office Buildings
C. School
Answer:
School
2) Assume reasonable assumptions for geographic and location details for your project modeling. Based on assumptions and type of structure selected identify the modeling requirements from NBC
Answer:
From the National Building the assumptions taken are:
PART 3 DEVELOPMENT CONTROL RULES AND GENERAL BUILDING REQUIRMENTS page 25
Assume Primary schooll(class 1 to 51) for every 5000 population
Strength of the school 500 students
Area per school 0.40 ha
School building area 0.30 ha 3000m2
Play field area 0.10 ha-1000m2 (with a minimum of 18 m 36 m to be ensured for effective play)(which is inclusive of the limited parking requirement for functional uses)
NOTE: The schools should be inclusive providing education to all children including those with disabilities. However it may be required to have exclusive schools in case of certain disabilities, such is speech hearing, sight and multiple disabilities.
PART 3 DEVELOPMENT CONTROL RULES AND GENERAL BUILDING REQUIRMENTS page 46
12 REQUIREMENTS OF PARTS OF BUILDINGS
A
Plinth:
Main Buildings:
The plinth or any part of a building or outhouse shall be so located with respect to the surrounding ground level that adequate drainage of the site is assured. The height of the plinth shall be not less than 450 mm from the surrounding ground level.
Interior Courtyards and Covered Parking Every interior courtyard shall be raised at least 150 mm above the determining ground level and shall be satisfactorily drained.
Habitable Rooms:
Height:
The height of all rooms for human habitation shall not be less than 2.75 m measure the surface of the floor to the lowest point of the ceiling (bottom of slab). In the case of pitched roof, the average height of rooms shall not be less than 2.75 m. The minimum clear head room under a beam, folded plates or eaves shall be 2.4 m. In the case of air conditioned rooms, a height of not less than 2.4 m measured from the surface of the floor to the lowest point of air conditioning duct or the false ceiling shall be provided.
Size:
The area of habitable room shall not be less than 9.5 m2,where there is only one room with a minimum width of 2.4 m.
B.
Kitchen:
Height:
The height of a kitchen measured from the surface of the floor to the lowest point in the ceiling (bottom slab) shall not be less than 2.75 m. except for the portion to accommodate floor trap of the upper floor.
Size:
The area of a kitchen where separate dining area is provided, shall be not less than 5.0 m2 with a minimum width of 1.8 m. Where there is a separate store, the area of the kitchen may be reduced to 4.5 m2
A kitchen which is intended for use as a dining area also, shall have a floor area of not less than 75 m2 with a minimumn width of 2.1 m
Other Requirements:
Every room to be used as kitchen shall have
unless separately provided in a pantry means for the washing of kitchen utensils which shall fead directly or through a sink to a grated and
trapped connection to the waste pipe
an impermeable floor:
a flue, if found necessary
a window or ventilator or opening
C
Bathrooms and Water-Closets:
Height:
The height of a bathroom or water-closet measured from the surface of the floor to the lowest point in the ceiling (bottom of slab) shall not be less than 2.1 m.
Size:
The area of a bathroom shall not be less than 1.8 m2 with a minimum width of 1.2 m. The floor area of watercloset shall be 1.1 m2 with a
minimum width of 0.9 m.
If bath and water-closet are combined, its floor area shall not be less than 2.8 m2 with a minimum width of 1,2 m
Other Requirements:
Every bathroom or water-closet shall be so situated that at least one of its walls shall open to external air
not be directly over or under any room otherthan another water-closet, washing place, bath or terrace, unless it has a water-tight floor.
have the platform or seat made of water-tight
non-absorbent material,
be enclosed by walls or partitions and the surface of every such wall or partition shall be finished with a smooth impervious material to a height of not less than 1 m above the floor of such a room:
be provided with an impervious floor covering sloping towards the drain with a suitable grade and not towards Verandah or any other room. have a window or ventilator, opening to a shaftor open space of area not less than 0.3 m2 with side not less than 0.3 m
No room containing water-closets shall be used for any purpose except as a lavatory and no such toom shall open directly into any kitchen or cooking space by a door, window or other opening Every room containing water-closet shall have a door completely closing the entrance to it
For educational the followingminimum requirements suply Educational Ceiling height 3.6 m for buildings all regions
D.
Boundary Wall
Educational buildings like schools, colleges, including hostels, and other uses of public utility undertakings and strategically sensitive buildings, a height up to 2.4m may be permitted by the Authority
PART 3 DEVELOPMENT CONTROL RULES AND GENERAL BUILDING REQUIRMENTS page 56
Table 8 Minimum Accessibility Provisions in Different Building Occupancies (Clause 13.5)
Educational buildings
Schools, colleges, classrooms, libraries, assembly points, halls, staff rooms, laboratories, play grounds
All teaching/administrative and common areas frequented by staff/students.
In libraries all open book stacks. Few enclosed rooms in library for those with hearing and vision impairments who may need assistance while reading
PART 4 FIRE AND LIFE SAFETY page 59
Life Safety:
A building, which will have only the first floor and is accessible to not more than 20 pupils at any time, may be used for school purposes with the following exceptions:
Exterior walls or parts of walls which are less than 900 mm from adjacent property lines shall have no openings therein.
Classrooms may have only one exit not less than 900 mm wide.
PART 6 STRUCTURAL DESIGN SECTION 8 GLASS AND GLAZING page 53
SAFETY RELATED TO HUMAN IMPACT:
Critical Location
Where any glazing is within 1.5 m above the floor level of a building, it is considered likely to be subjected to hurnan impact and hence, shall comply with the human impact safety requirements of this Section Safety glazing should also be used
where there is danger of falling infill glass material(s) from overhead glazing the danger of falling due to a change in floor level and in case of balustrades, stairs and floors

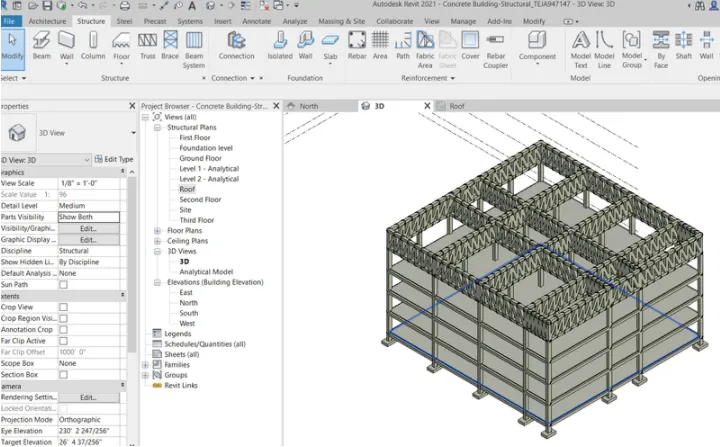

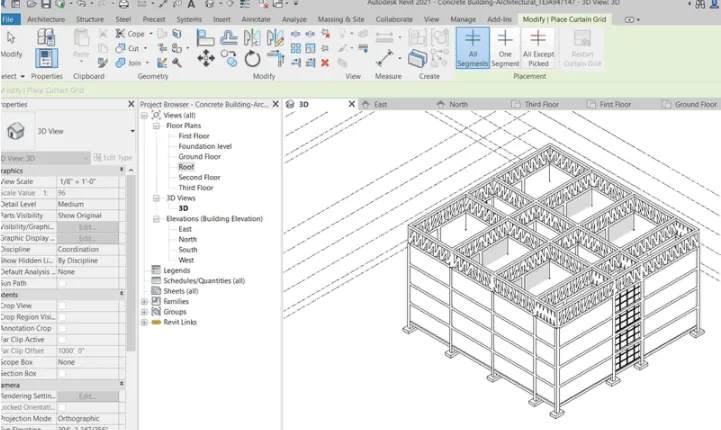

3) Using the structural model, include the following components based on the type of structure selected
a Foundation Isolated/Wall/Matt Foundation
b. Columns
c. Beams Connected to Columns
d. Roof Framing/Truss

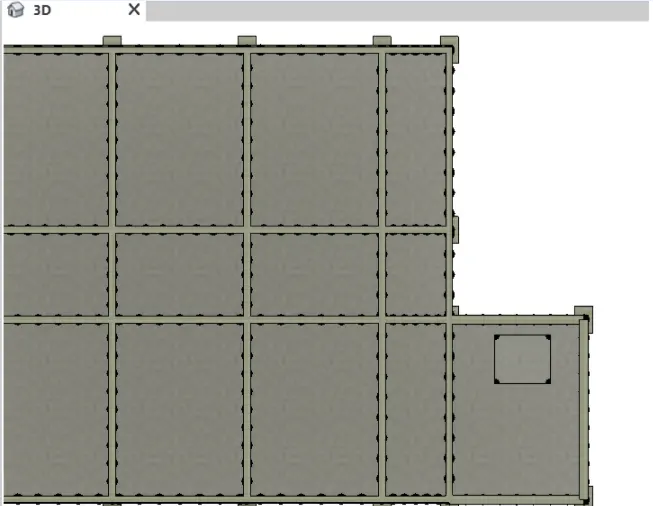

e. Floor/Decks
f. Floor Openings for Elevators and Stairs
Answer:

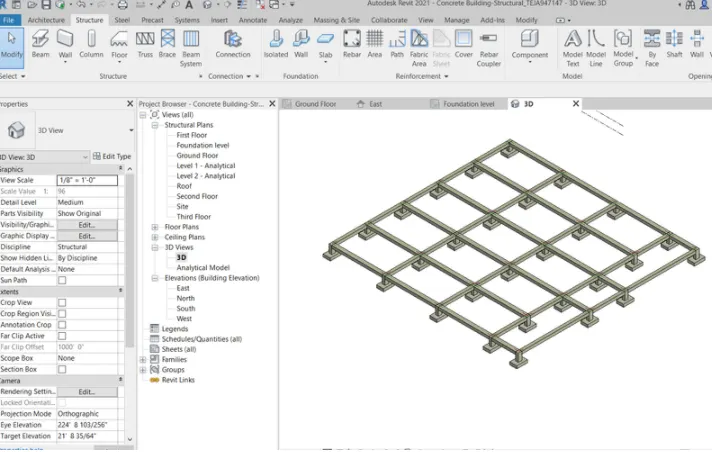

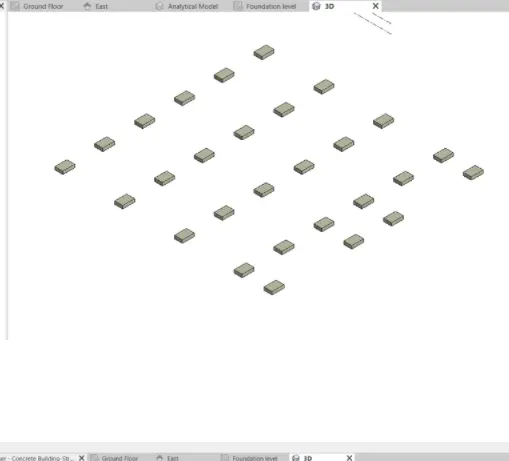

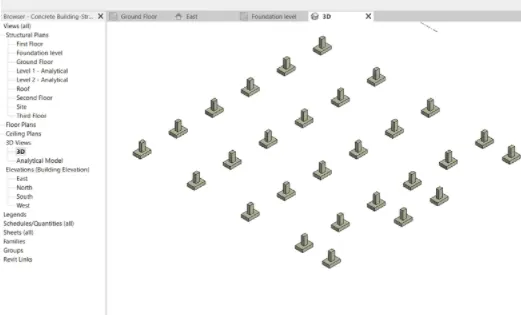

a Foundation-Isolated/Wall/Matt Foundation.
b. Columns
c. Beams Connected to Columns

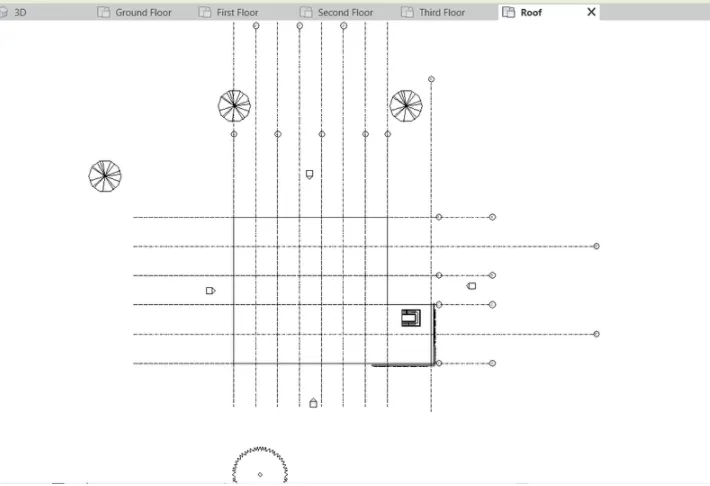

d. Roof Framing/Truss
e. Floor / Decks
f. Floor Openings for Elevators and Stairs
4) Using the architectural model, include the following components based on the type of structure selected

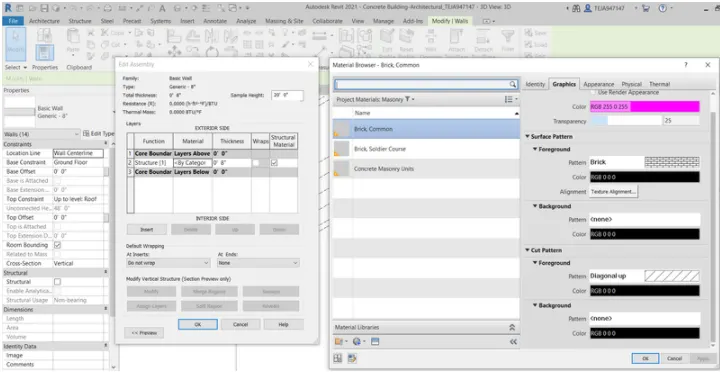

a. Wall Layout with appropriate material and finishing
b. Exterior façade with fancy finish
c. Intenor partition walls to size rooms
d. Components to add details to a room (Desk Chair. Lighting. Plumbing fixtures)
e. Add components such as stairs Elevators Have at least one side of the building with curtain walls and glass panels
g. Include interior and exterior lighting fixtures
h. Place proper topographic components from outside ( Trees, Parking Plants) add details to the model
Answer

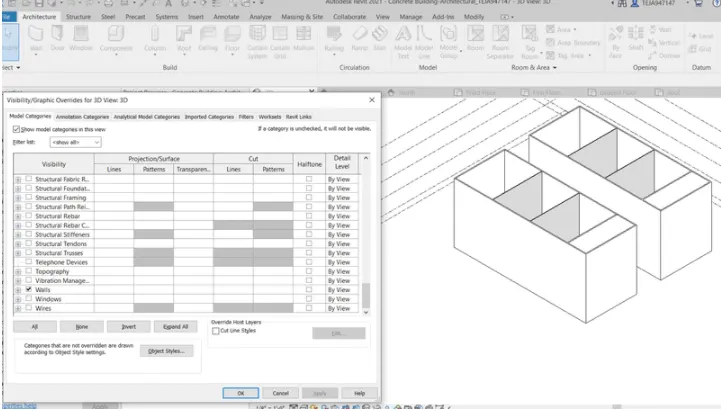

a Wall Layout with appropriate material and linisting
b. Exterior façade with fancy finish
c. Interior partition walls to size rooms
d. Components to add details to a room ( Desk, Chair. Lighting. Plumbing fixtures)
e. Add components such as stairs Elevators
f. Have at least one side of the building with curtain walls and glass panels
g. Include interior and exterior lighting fixtures
h. Place proper topographic components from outside ( Trees, Parking. Plants) to add details to the model
5) Provide a set of drawings in an architectural and structural model to list the following details with categories and appropriate sheet templates included

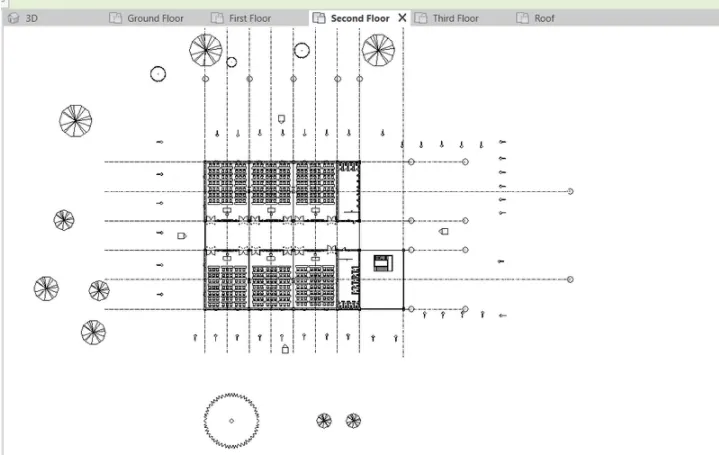

a. Floor Plans with Annotations
b. Elevations
c. Sections
Answer

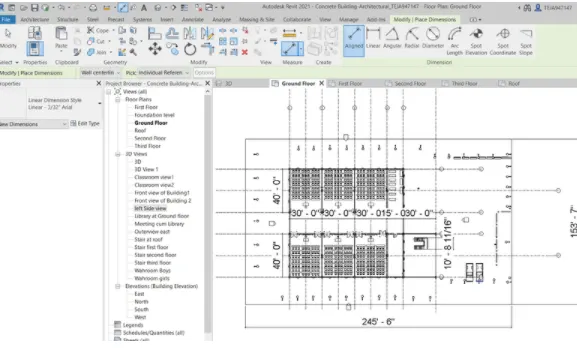

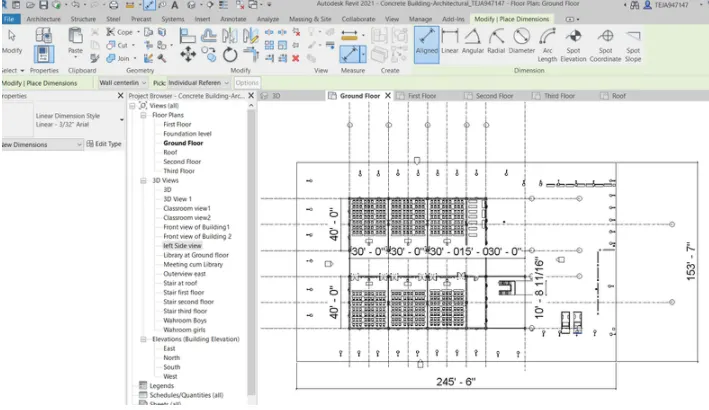

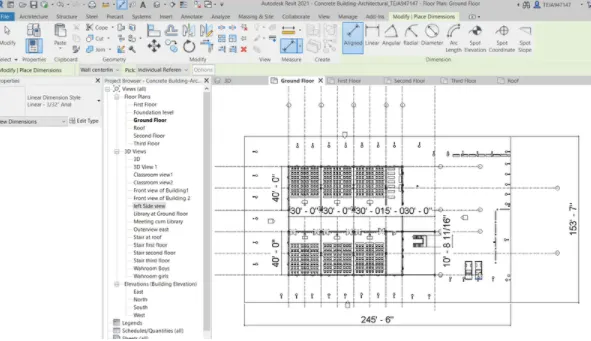

a. Floor Plans with Annotations

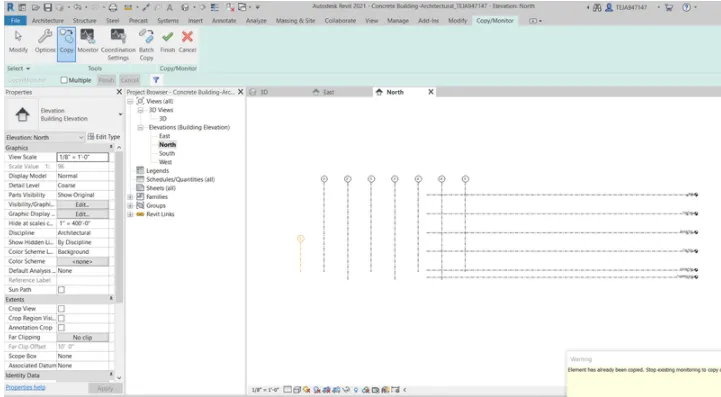

b. Elevations

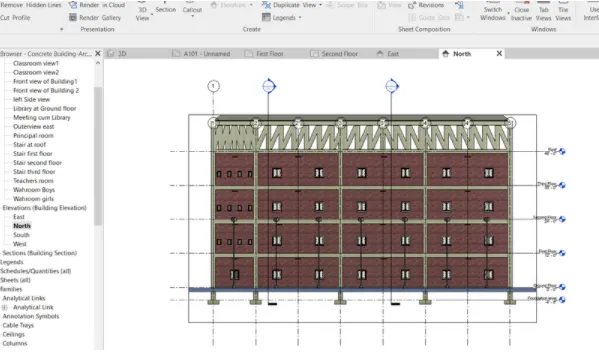

North

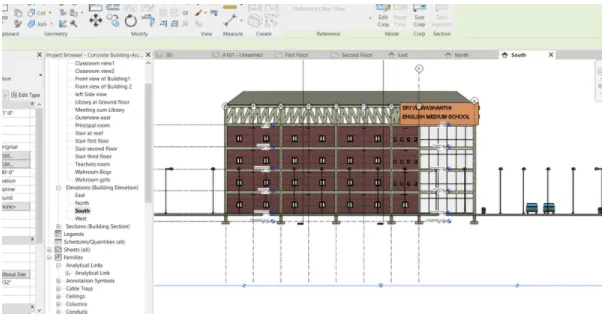

South

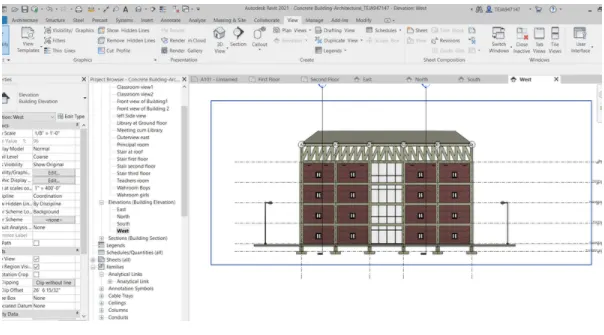

West

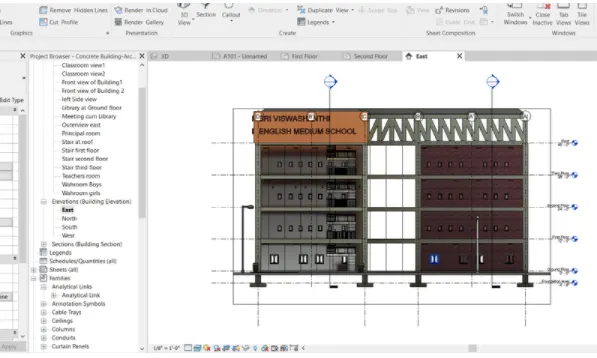

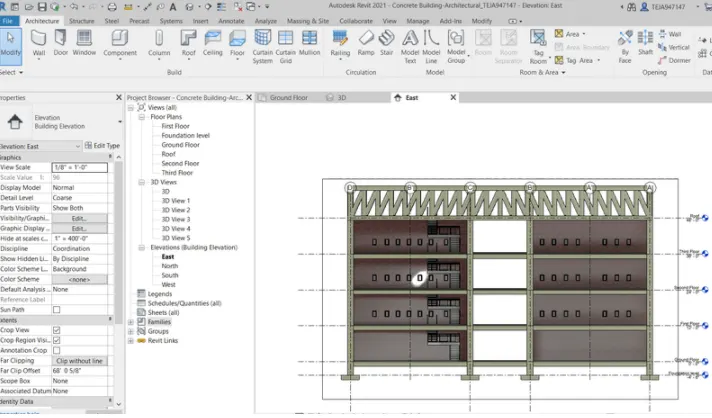

East

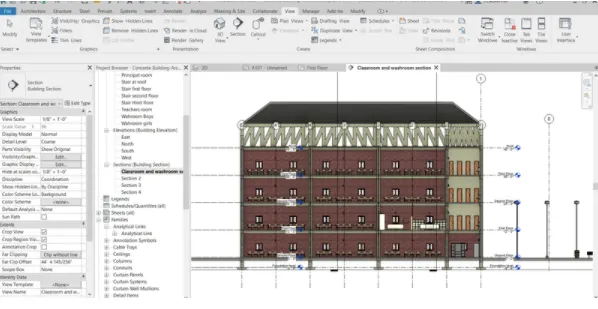

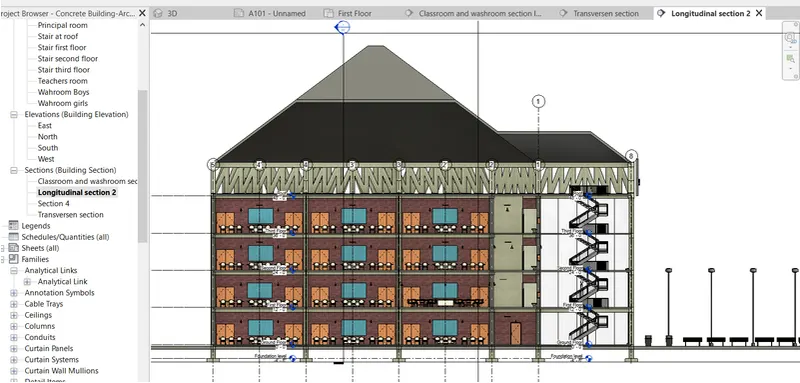

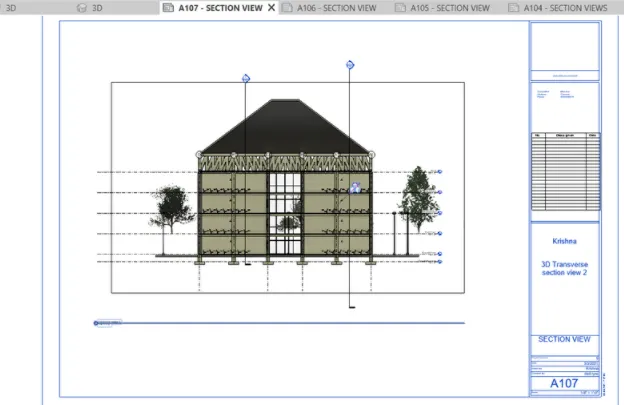

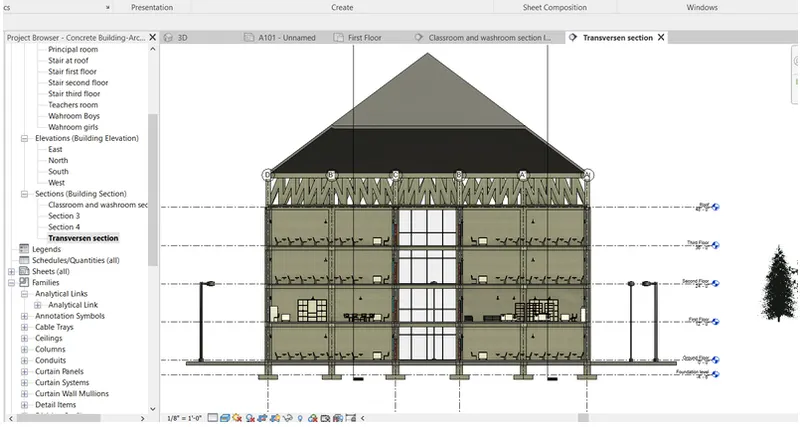

c. Sections
Section Longitudinal 1

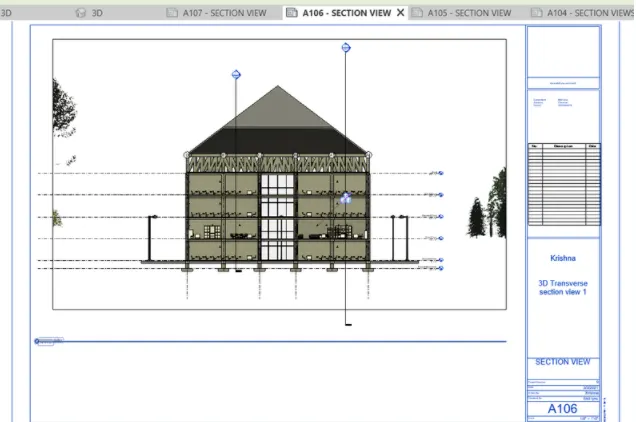

Section Transverse 1
Section Longitudinal 2

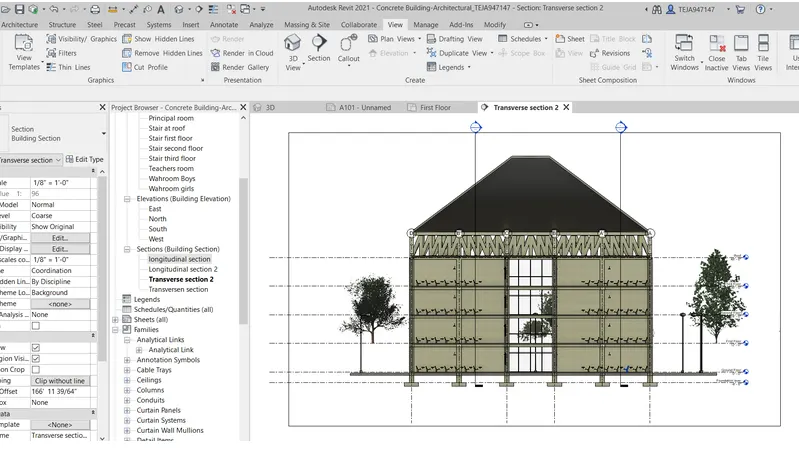

Section Transverse 2

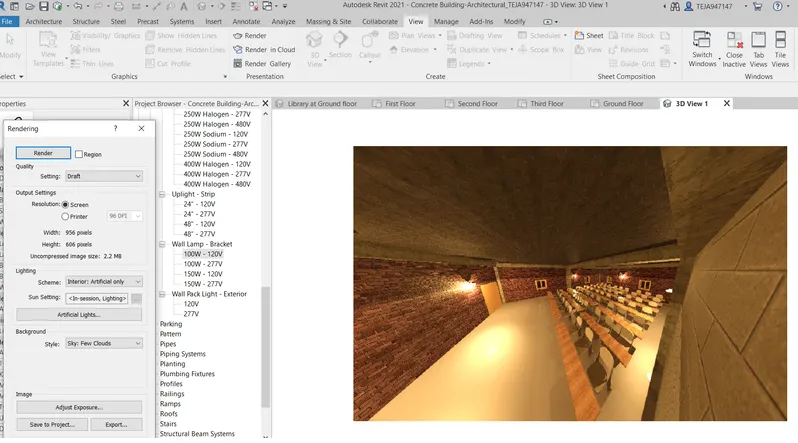

6) Using the Rendering settings, Render images of the 3D model produced and include the rendered images to the drawing sheets
a. Rendering from interior rooms
b. Rendering from out showing topographic features
c. Rendering through structural framing
Answers

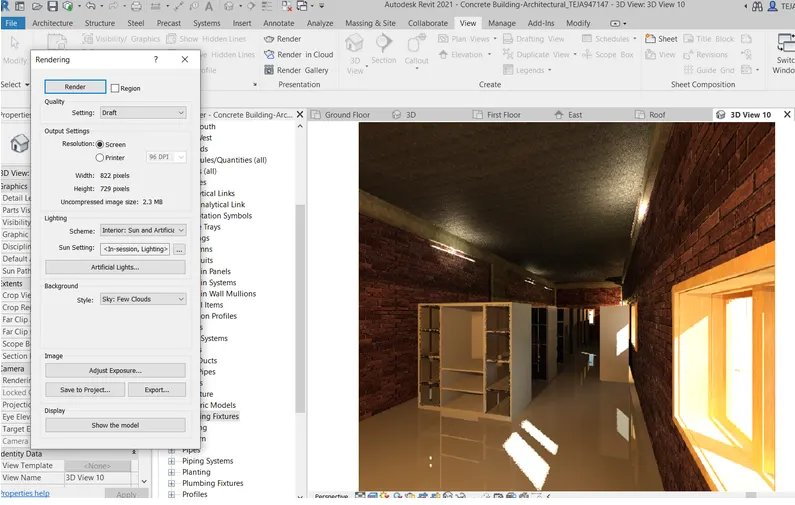

a. Rendering from interior rooms

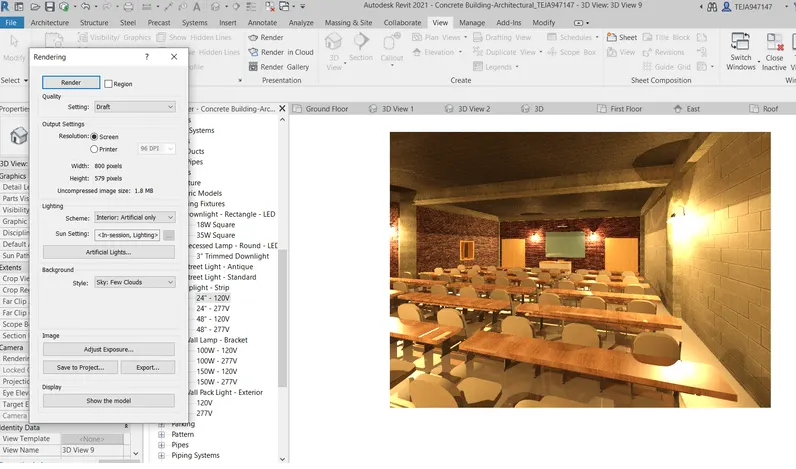

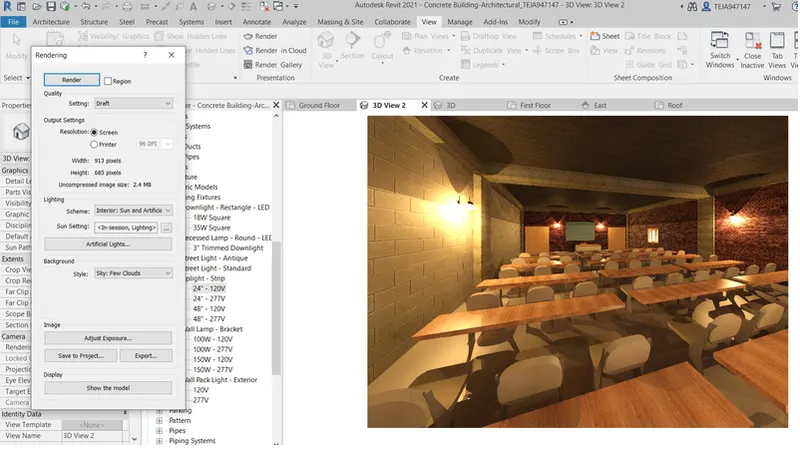

Classroom 1
Classroom 2
Classroom 3
Library room

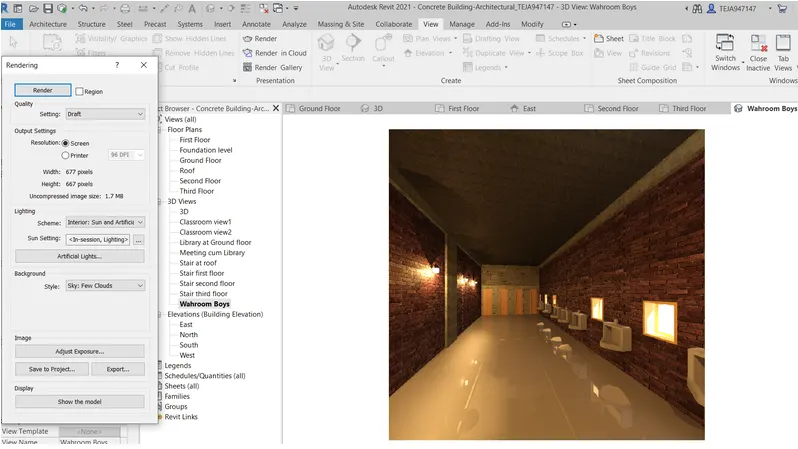

Wash room Boys

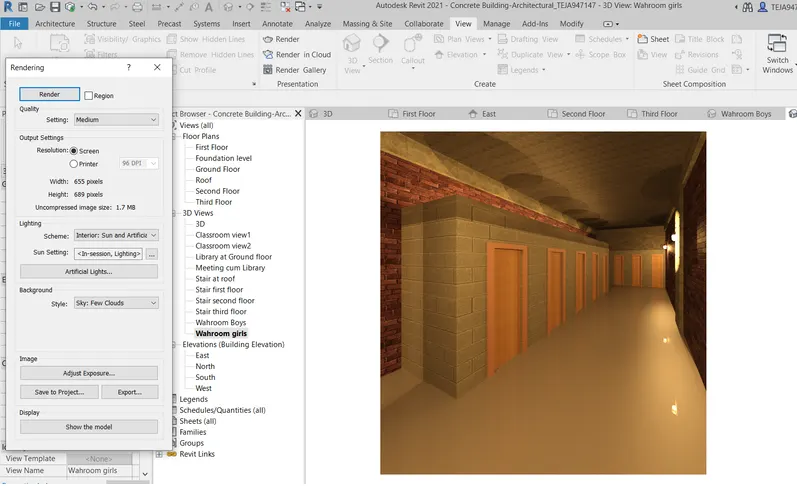

Washroom girls

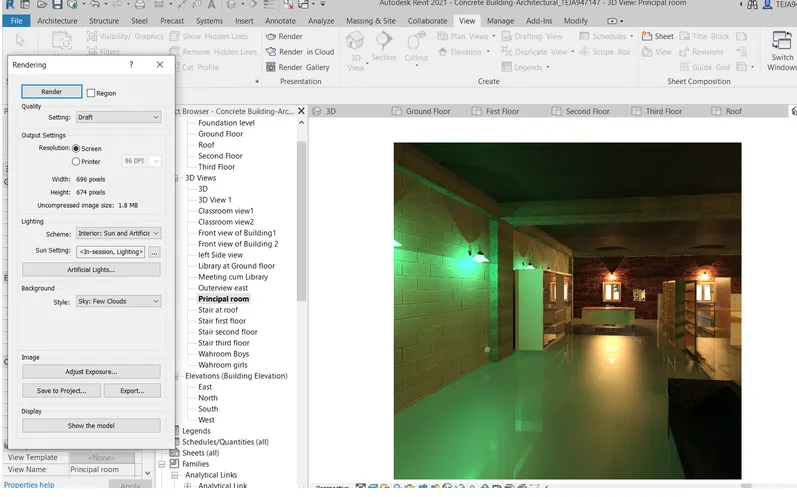

Principal room

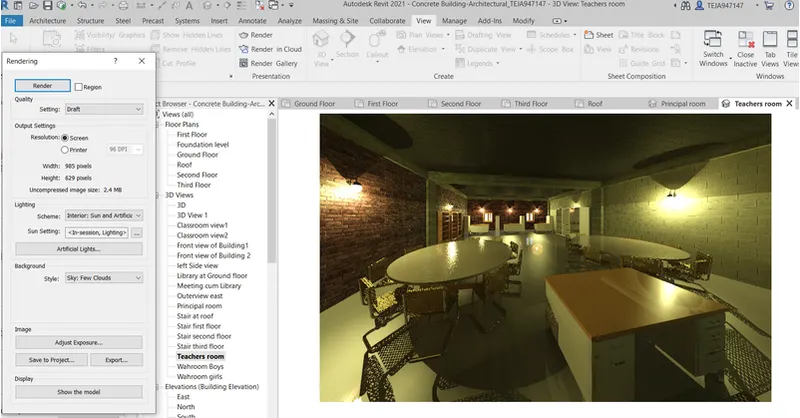

Staff room

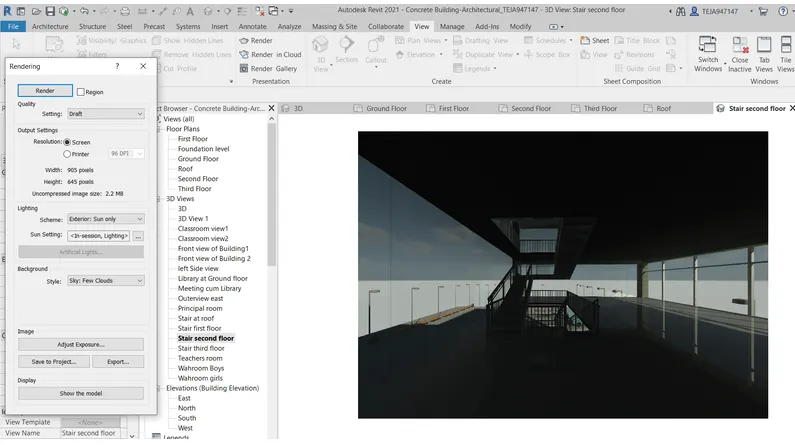

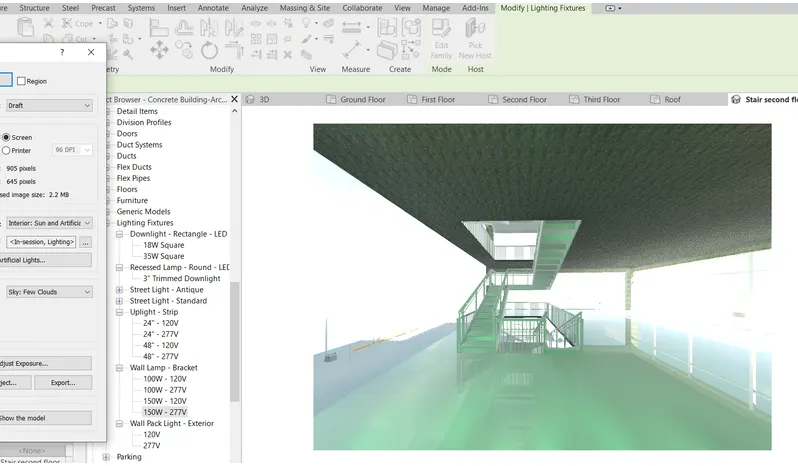

At stairs
At stairs with light

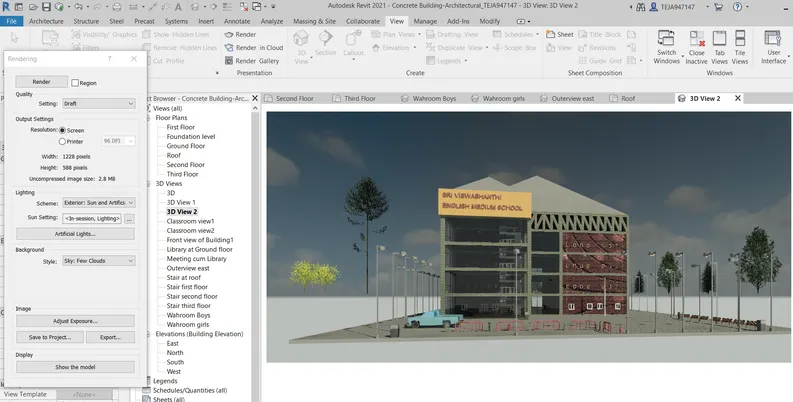

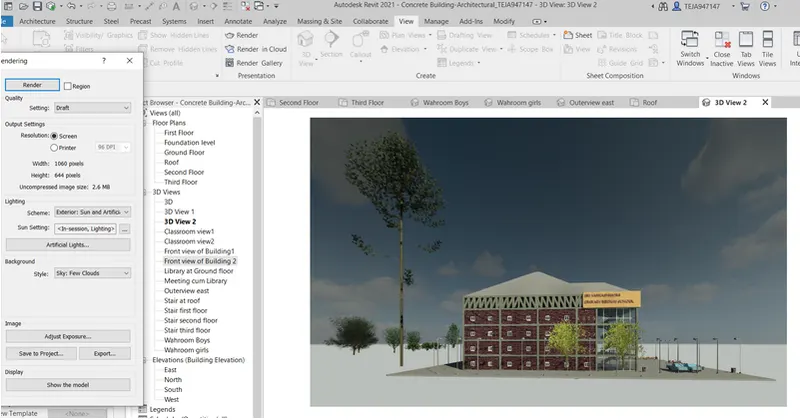

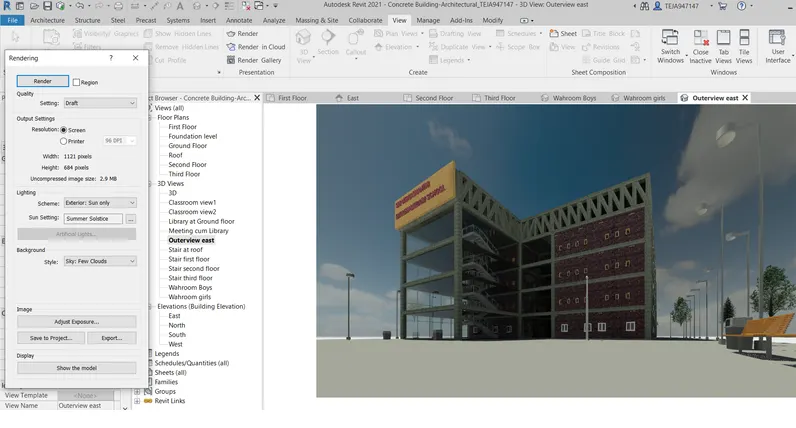

b. Rendering from out showing topographic features
Rendering Front view 1
Rendering Front view 2

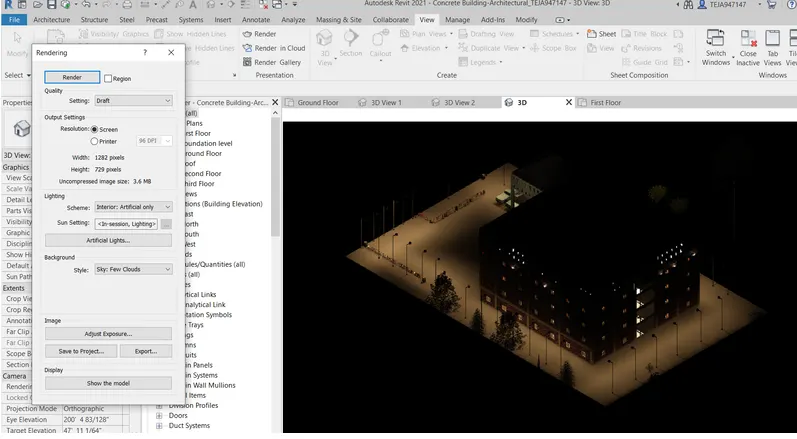

Rendering Back view at Night with artificial lighting
Rendering Front view 3

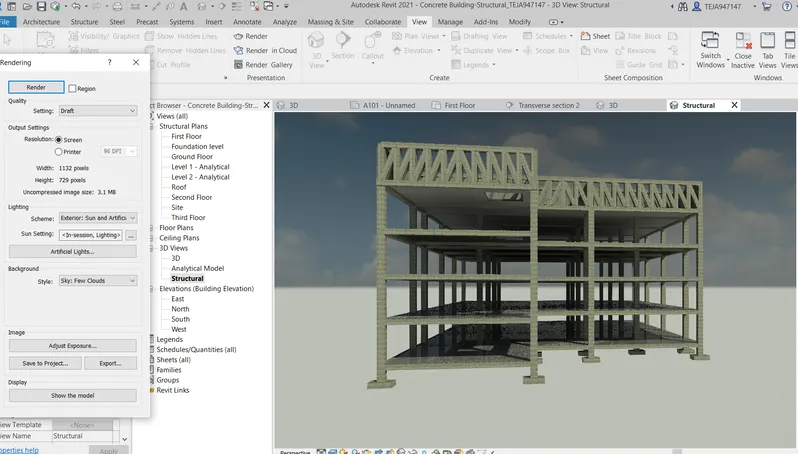

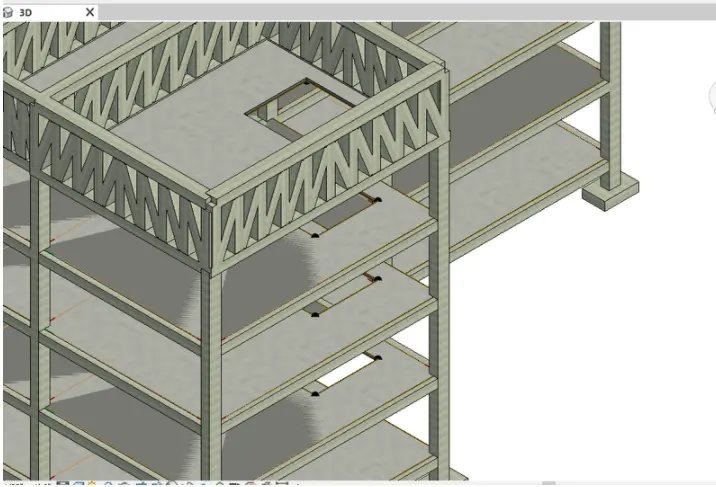

c. Rendering through structural framing
7) Print the set of drawing sheets created and submit the drawings from the architecture and structure model
Answer:

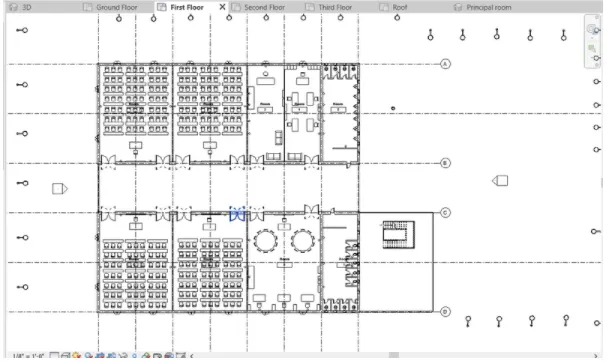

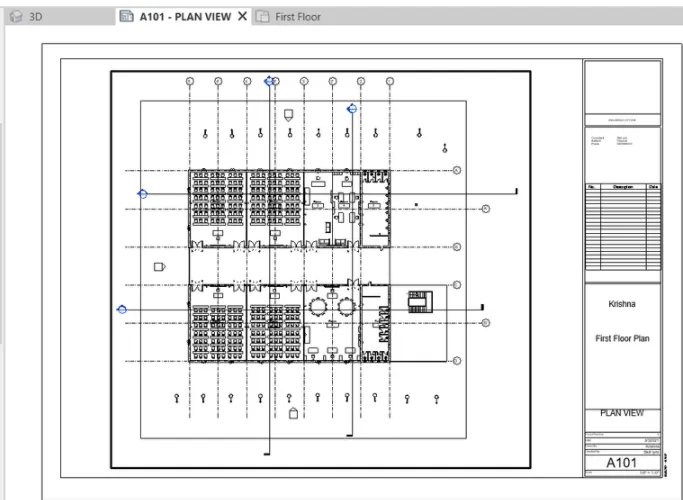

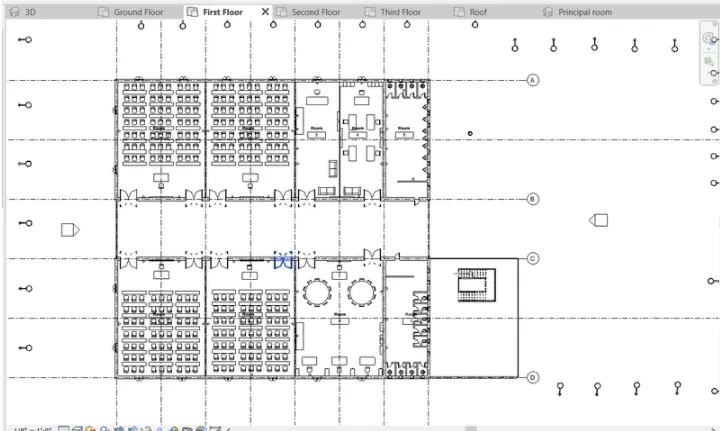

First floor Plan

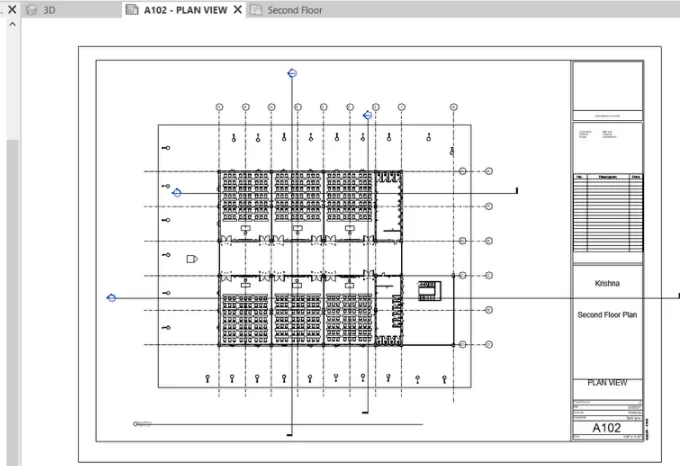

Second Floor plan

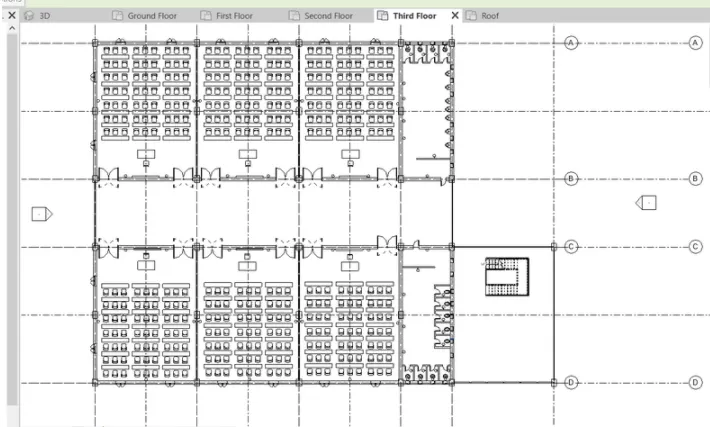

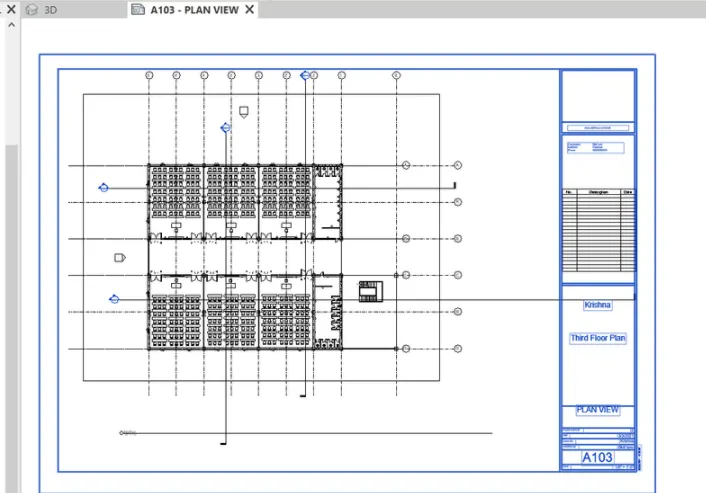

Third floor plan

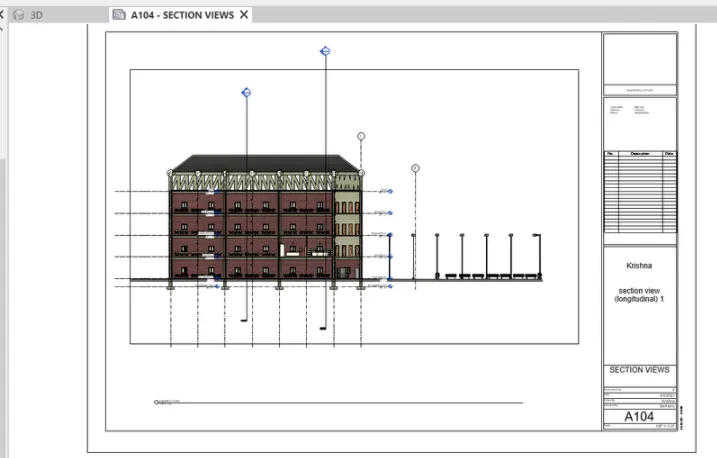

Longitudinal section 1

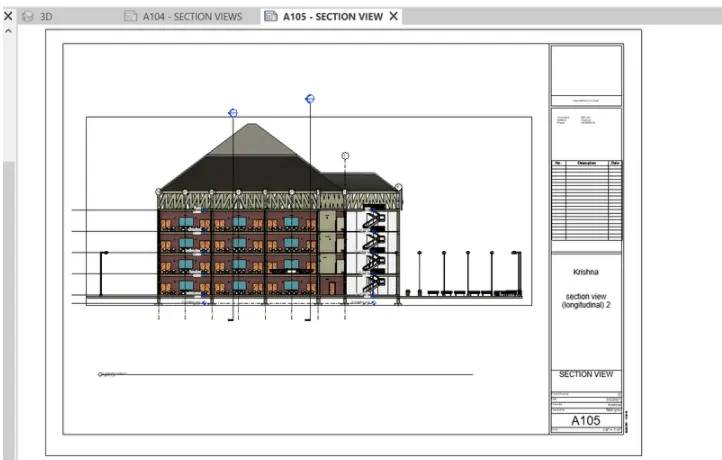

Longitudinal section 2
Transverse section 1
Transverse section 2

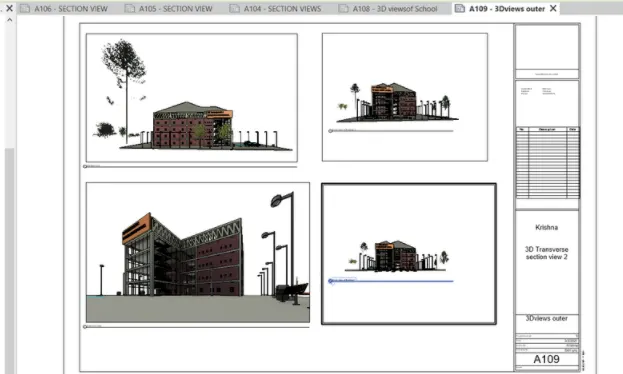

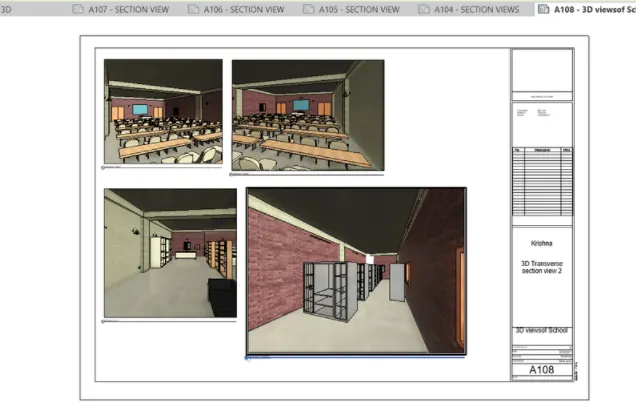

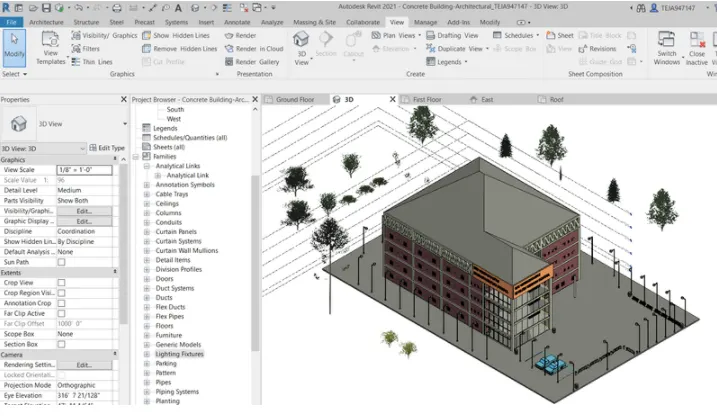

3D views
3D views outer faces

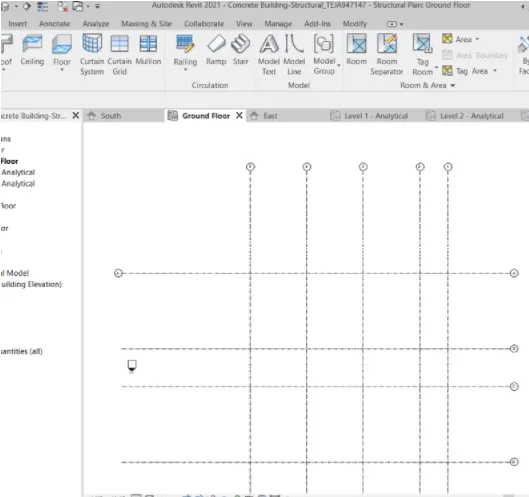

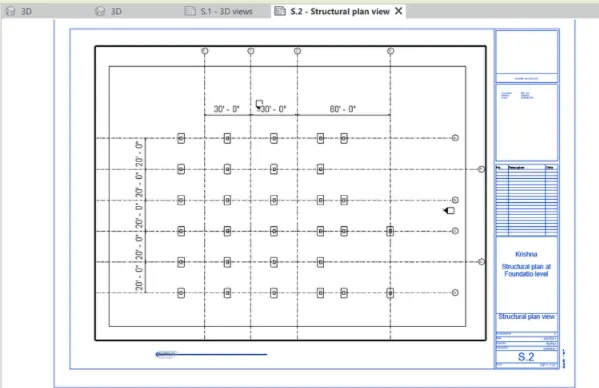

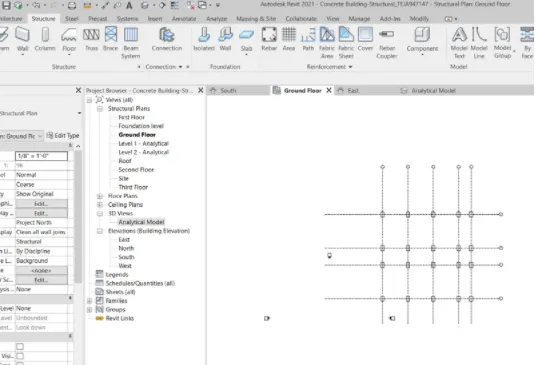

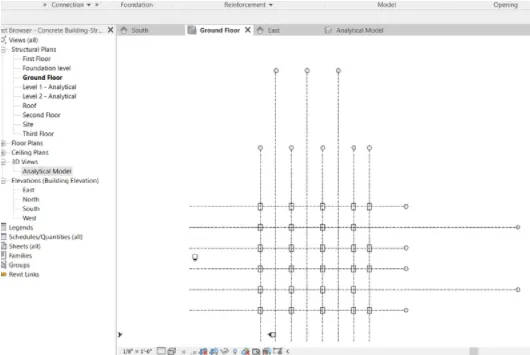

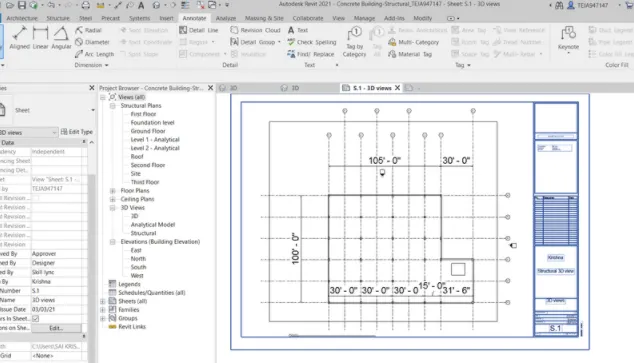

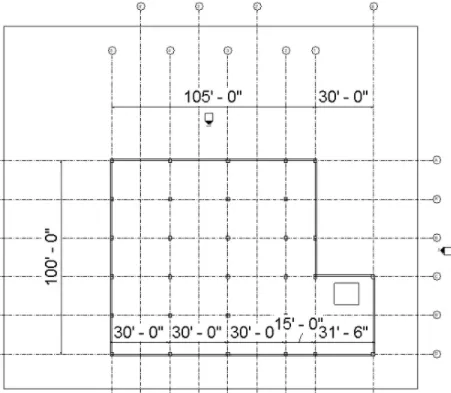

Plans in Structural with annotations
Plan 1

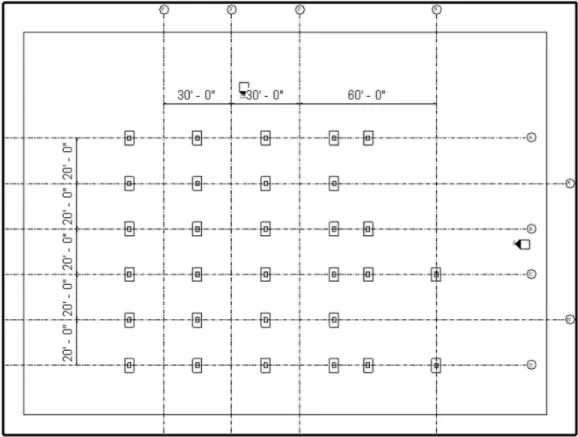

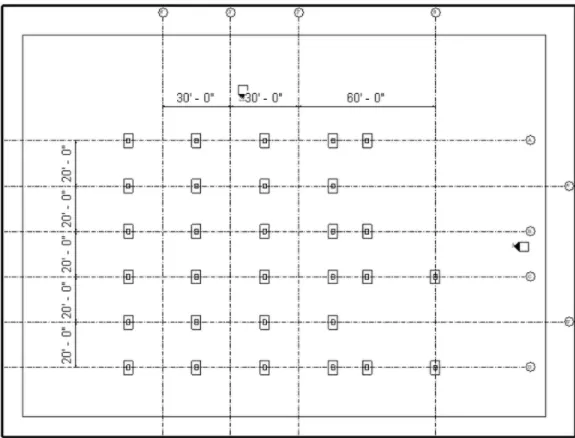

Plan 2 (Footings with annotations)

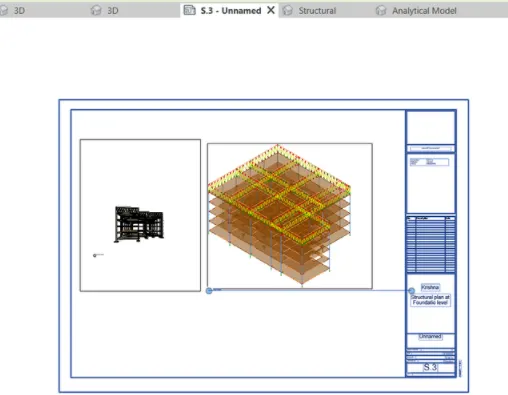

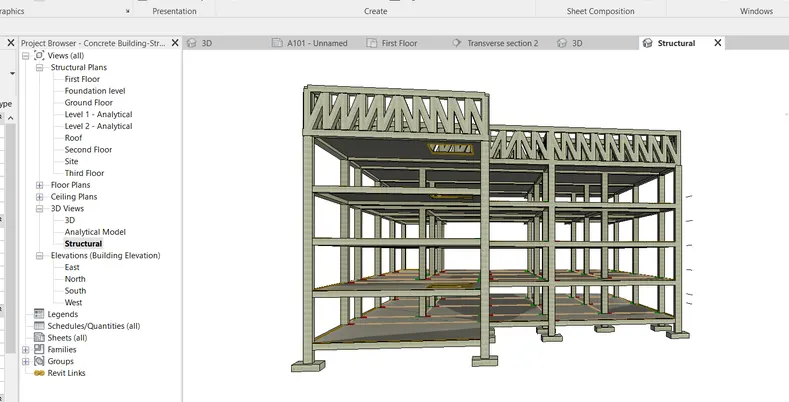

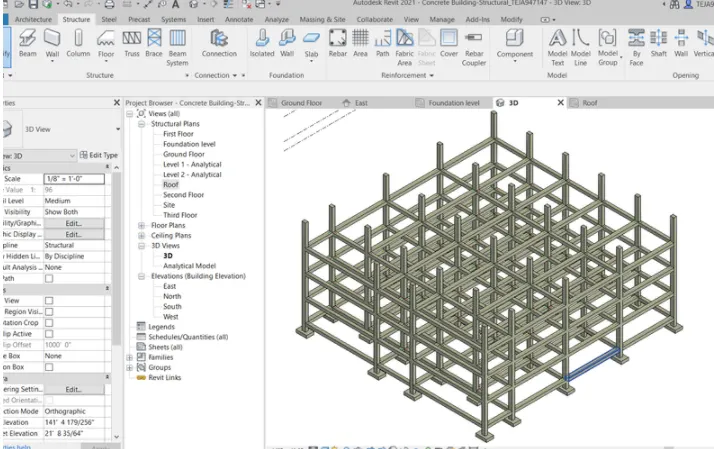

3D Structural views
