Creating Architectural and Structural model with 3D rendering using REVIT

1). Select the type of structure you want to build from one of the three below:
a. Multi-Unit Residential Apartment

b. Office Buildings

C. School.

ANSWER: From the above the options of type of structure to build a building, i need to pick a multi-unit residential Apartment.

2). Assume reasonable assumptions for geographic and location details for your project modeling. Based on assumptions and type of structure selected identify the modeling requirements from NBC.

ANSWER:

The geographical and location details for my project modelling, based on assumptions of multi-unit residential Apartment. selected identify the modelling requirements from NBC.

1. As above mentioned by the building comes under the residential category and it can be suituated in center of the city

2. The project is located in the centre of the city

3. The road width of this project is 30 Feet.

4. The height, area limitation and safety measure are followed by the NBC.2005.

5. The height of project is 50'.

6. This project height in meter is 15.24 m and the road width is 9.144.

3) Using the structural model, include the following components based on the type of structure selected
a. Foundation - Isolated / Wall/ Matt Foundation

b. Columns

c. Beams Connected to Columns

d. Roof Framing/ Truss

e. Floor Decks

f. Floor Openings for Elevators and Stairs.

ANSWER

AIM: To using the structural model, include the following components based on the type of structure like wall, windows doors foundations, beams etc.
commands used:

• Architectural template.
• Structural template.
• Grids
• Columns
• Beams.
• Foundations.
• Stairs.
• Shafts.
• floors.

PROCEDURE:
1). Open a architectural template in revit software and save it as residential building-archool.

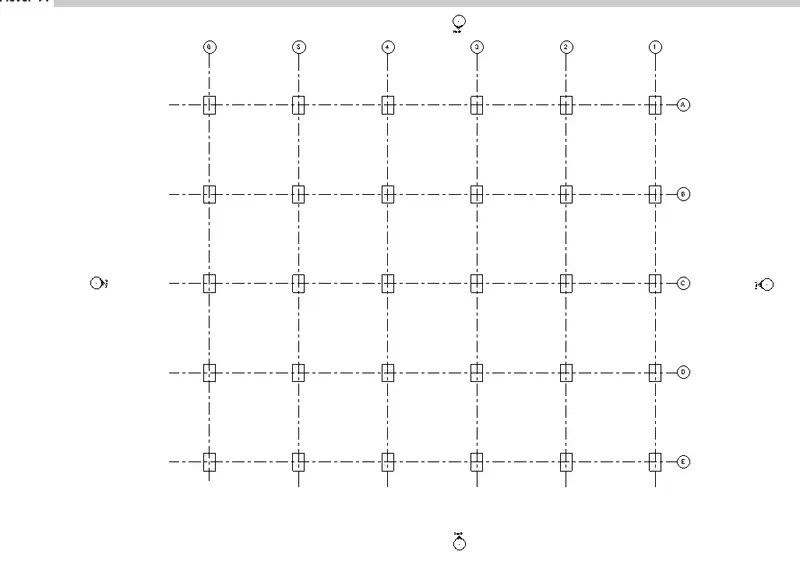

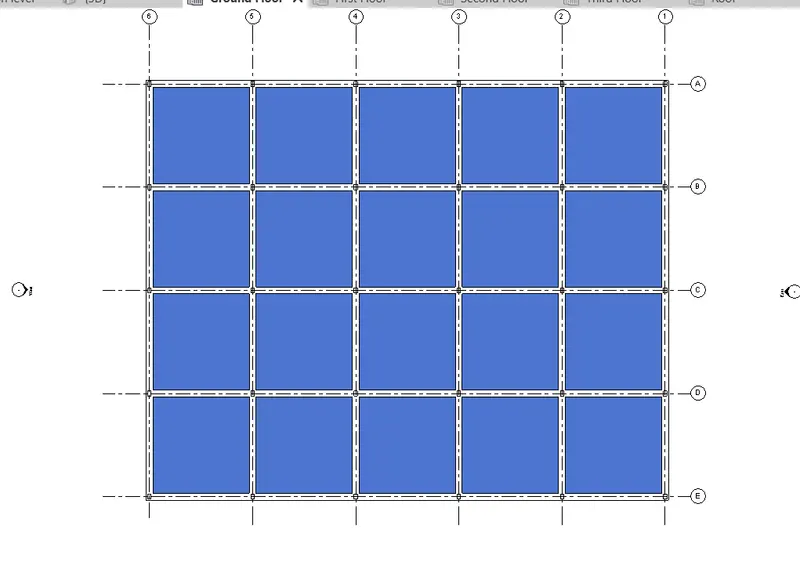

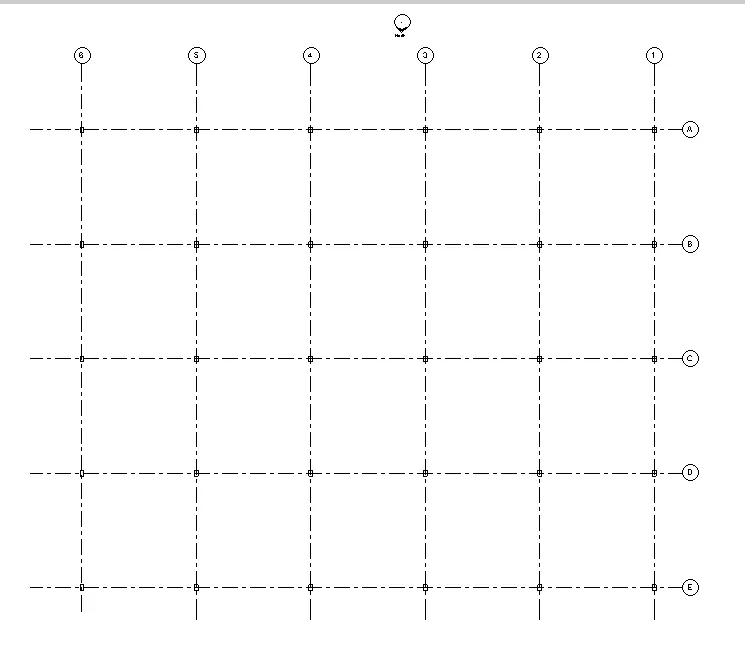

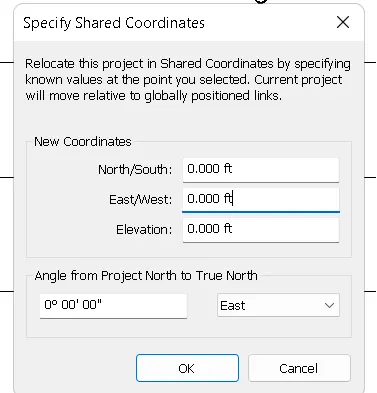

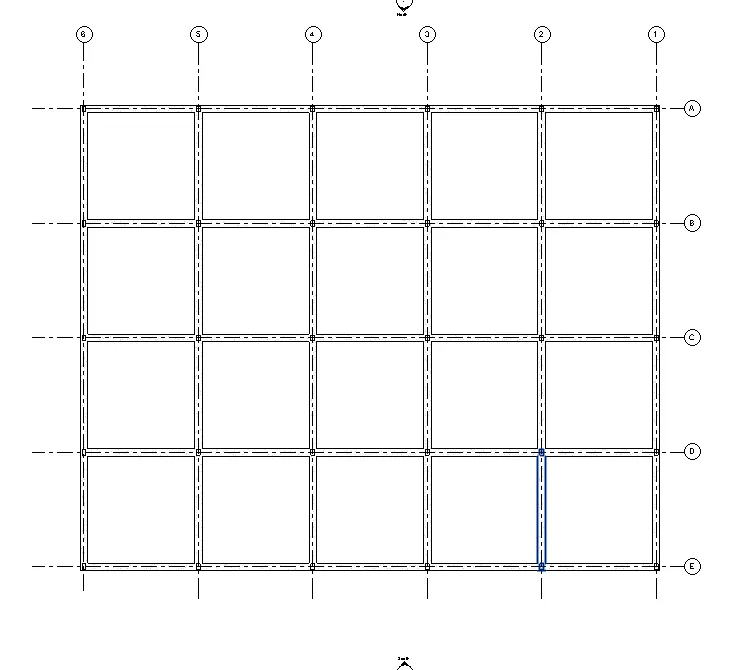

2). Then draw the grid lines and specity coordinates as O'O' for both horizontal and verital grids lines.

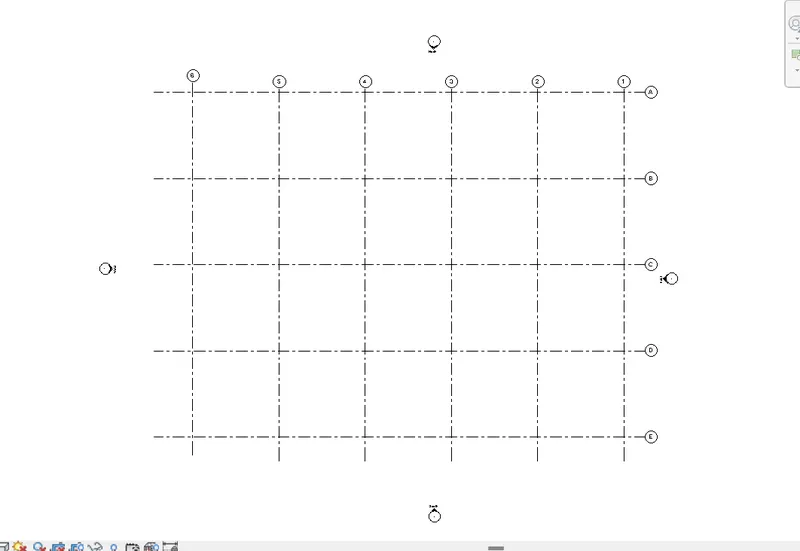

3). Open revit make horizontal and vertical grids as spacing 30' as per NBI.

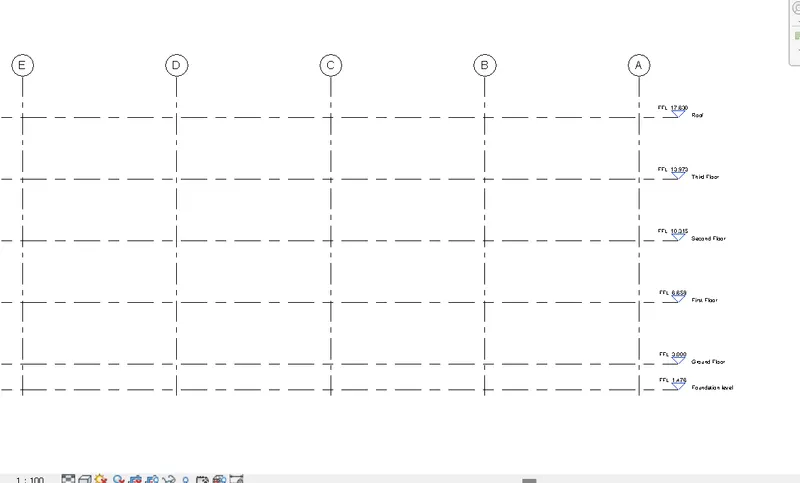

4). Go to tje elevation and Increase the number of levels upto roof and change their name.

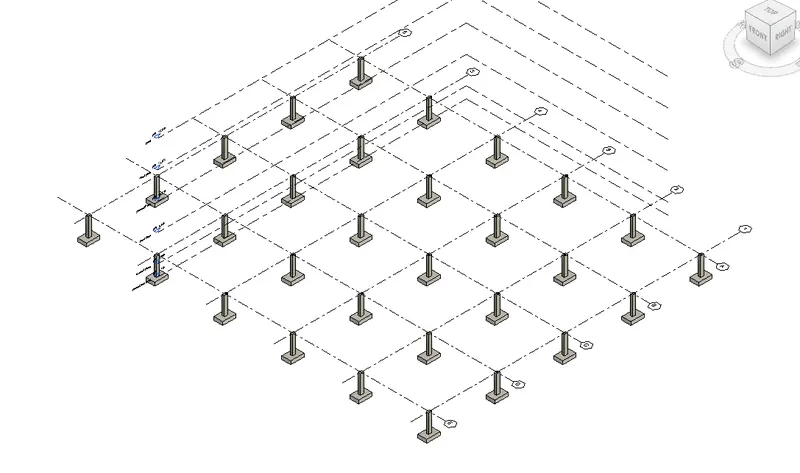

5).Select the isolated footing from the Structure ribbon at grid.

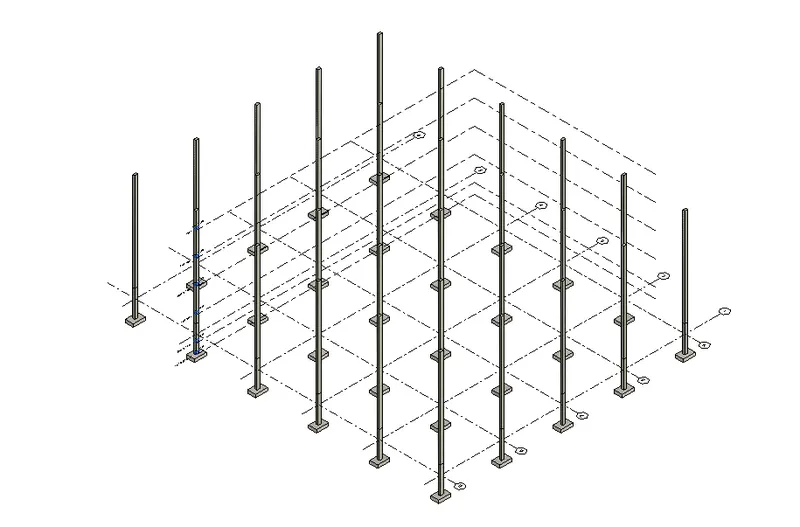

6).Now Select column from the Structure ribbon  at grid

7).Now change the view to 3D

8).Now Place another column on grid intersection from  ground to top floor

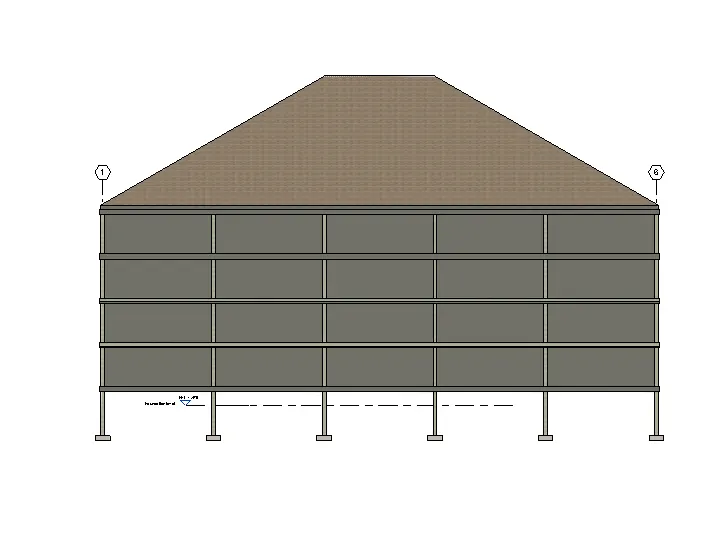

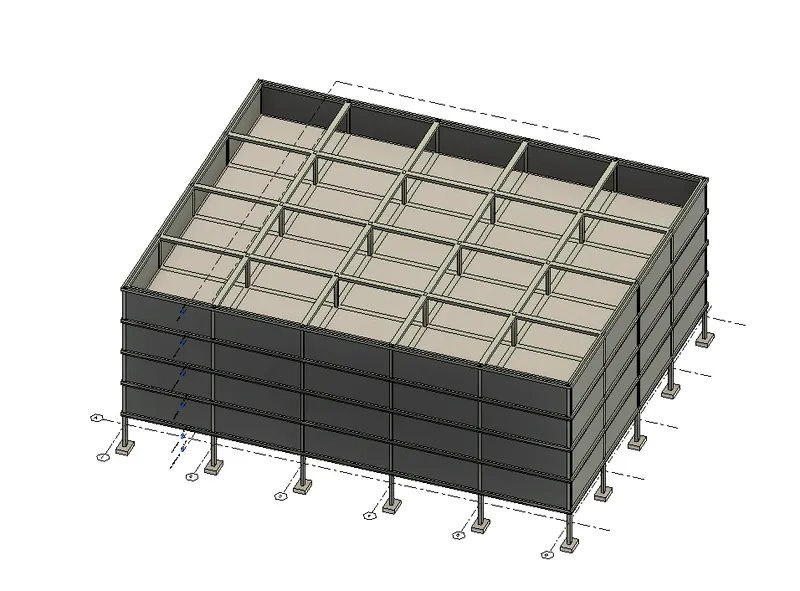

9).Now select beam fron the structural ribbon and connect this beam to the different column..

10). Change the view to the 3D.

11).now go the Architecture ribbon and Select the floor ..

 12). Now go to the wall option and select the floor you want to assign the wall,copy it and assign it to the different levels.

13).Now go to the architecture ribbon and select the roof and assign it.

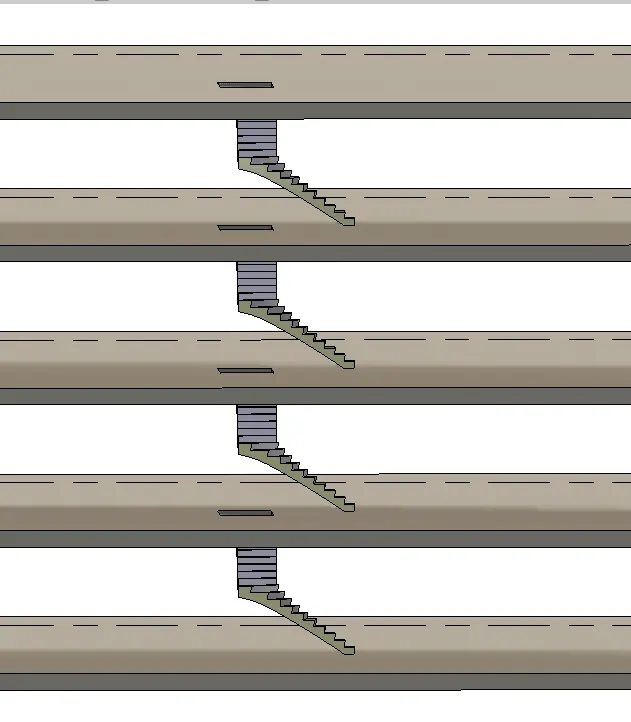

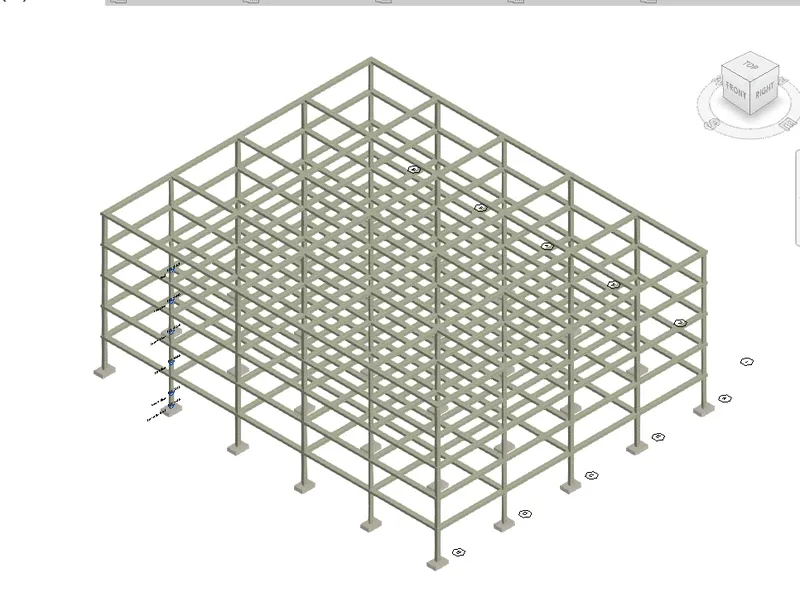

14).now draw a shaft and place the stair as shown in figure.





4).Using the architectural model, include the following components based on the type of structure selected

        a. Wall Layout with appropriate material and finishing
        b. Exterior façade with fancy finish
        c. Interior partition walls to size rooms
        d. Components to add details to a room ( Desk, Chair, Lighting, Plumbing fixtures)
        e. Add components such as stairs Elevators
        f. Have at-least one side of the building with curtain walls and glass panels
        g. Include interior and exterior lighting fixtures
        h. Place proper topographic components from outside ( Trees, Parking, Plants) to add details to the model

ANSWER:

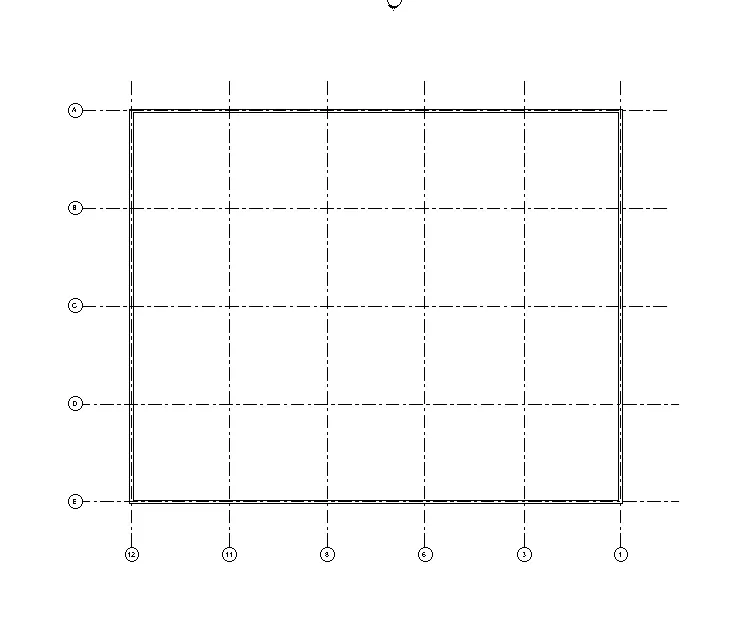

With the Same Grid Drawn in the previous paln draw a wall along the biundary.

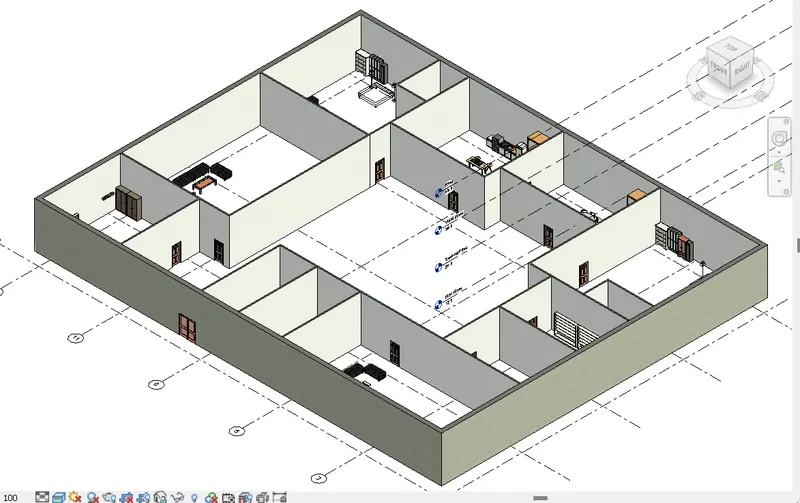

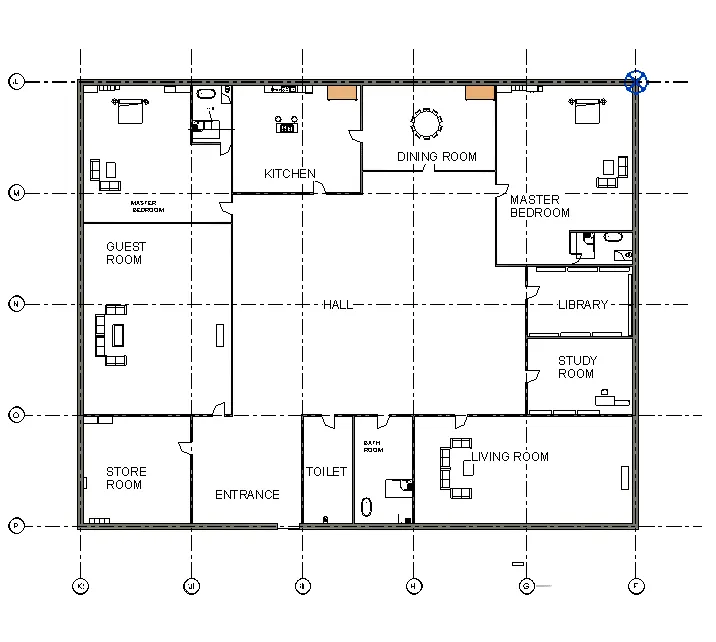

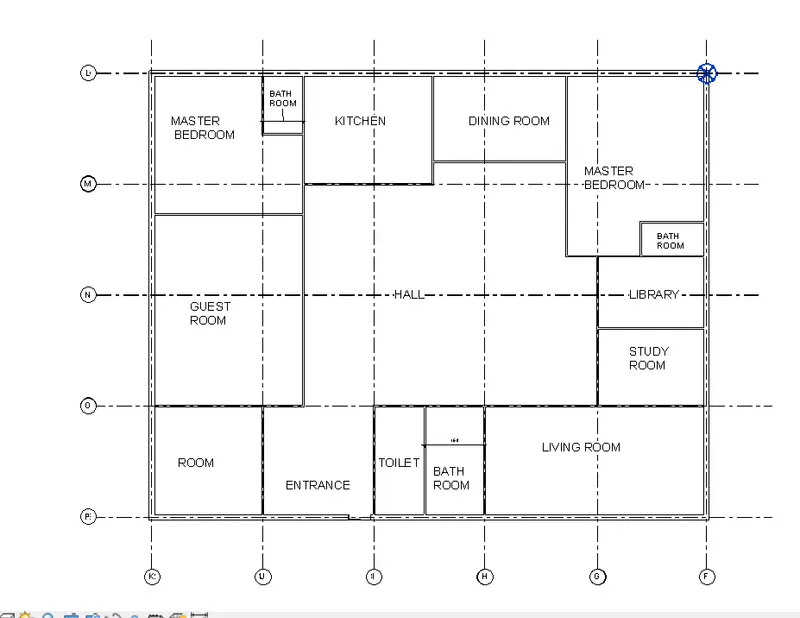

Draw the interior Partition wall and place the required  furniture and component in the plan and change the view to 3D.

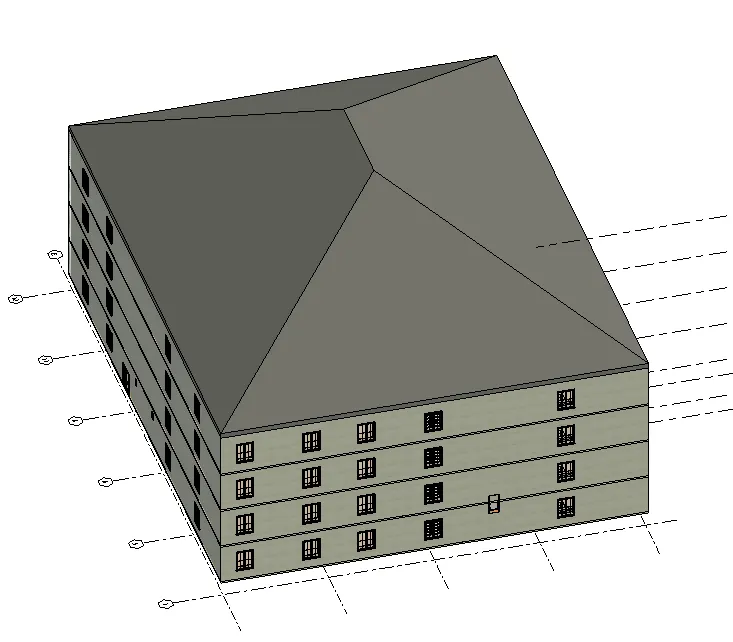

Draw a roof by making a rectangle along all side of top floor .

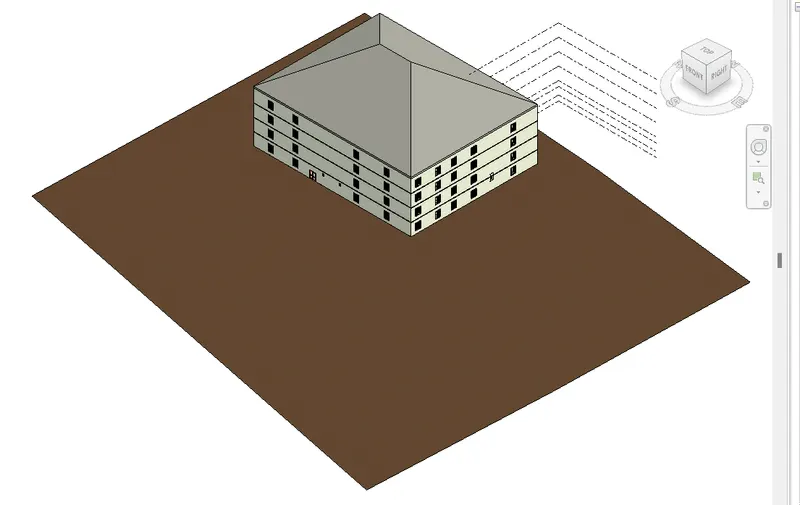

Now go to the plan and draw a rectangular floor and view it in 3d as shown.

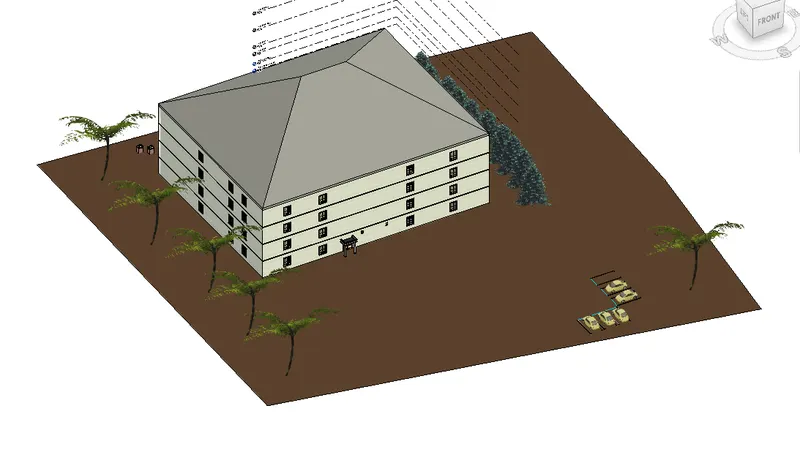

Now go to place a companent and add the required components from the library and place it on the figure

5) Provide a set of drawings in an architectural and structural model to list the following details with categories and appropriate sheet templates included
        a. Floor Plans with Annotations
        b. Elevations
        c. Sections

(Answer)

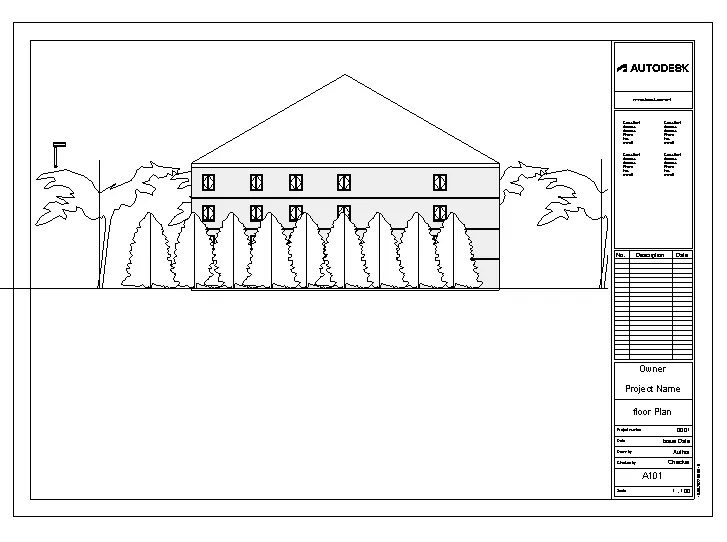

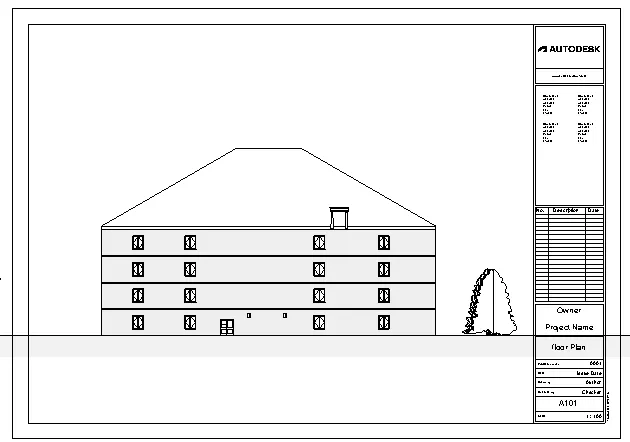

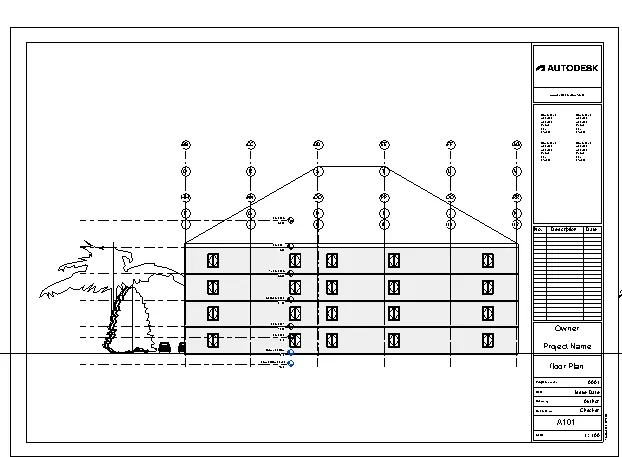

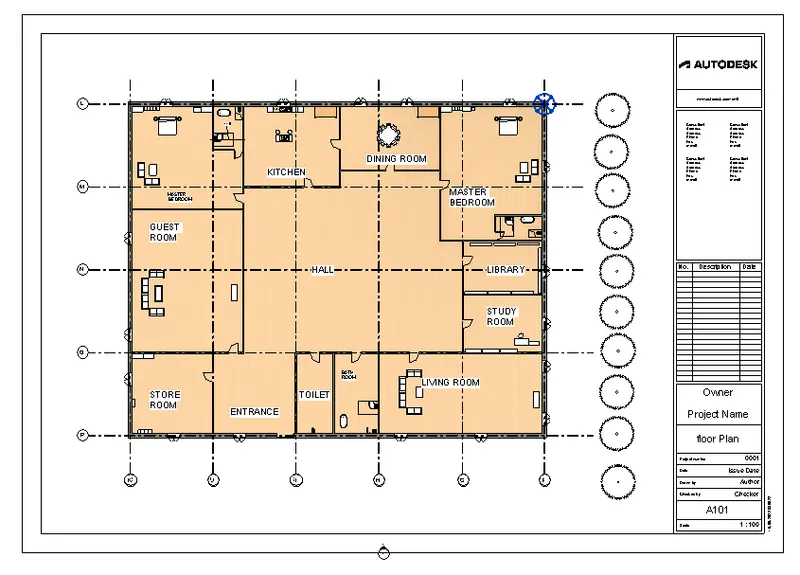

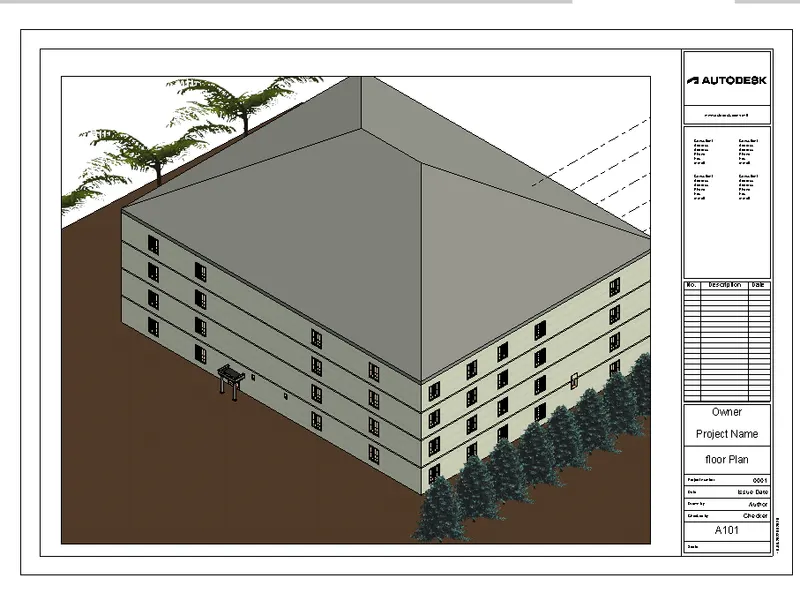

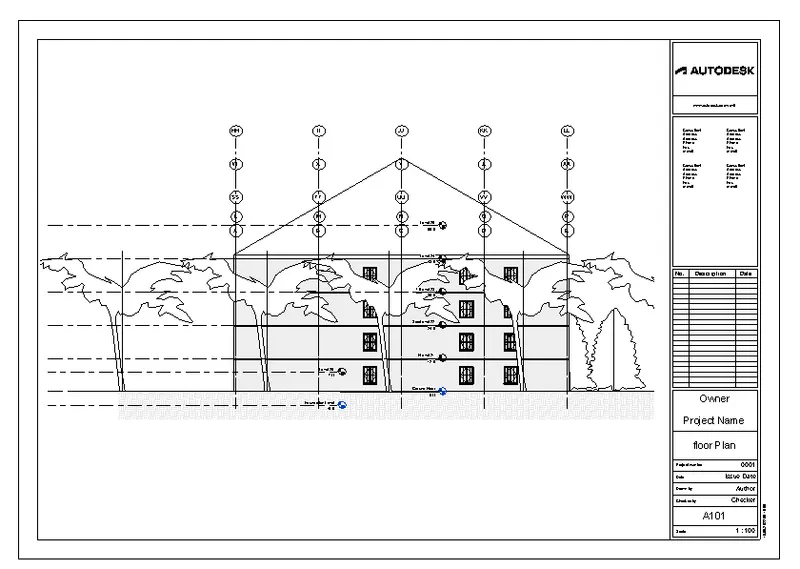

GO to the View ribbon and select the Sheet option ,below it called view and select the required view you want to place it on sheet.

6) Using the Rendering settings, Render images of the 3D model produced and include the rendered images to the drawing sheets
        a. Rendering from interior rooms
        b. Rendering from out showing topographic features
        c. Rendering through structural framing

(Answer)

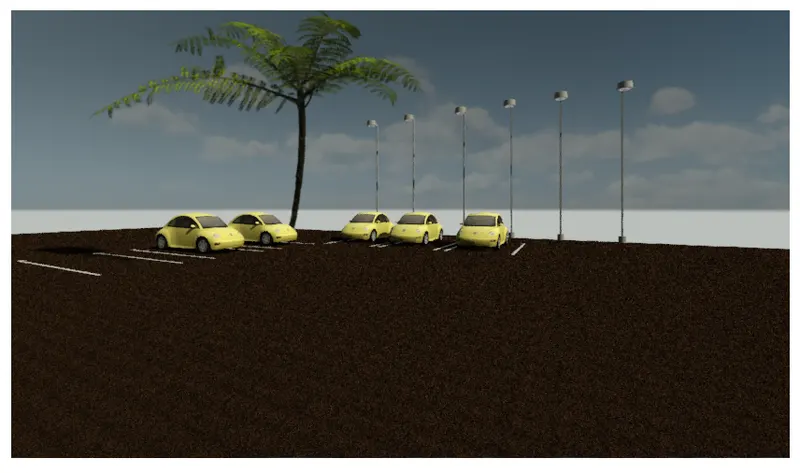

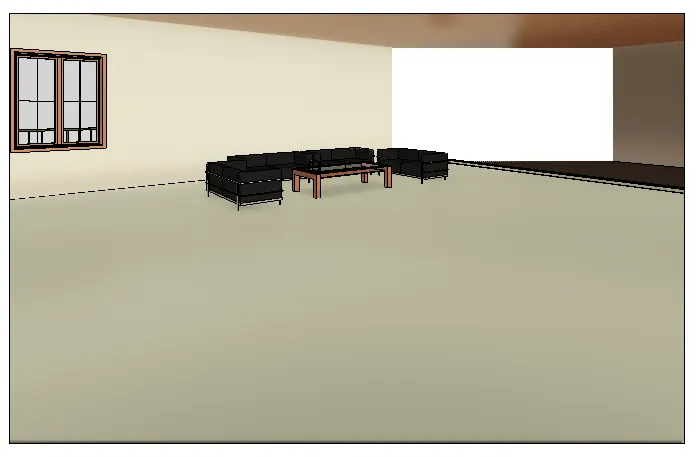

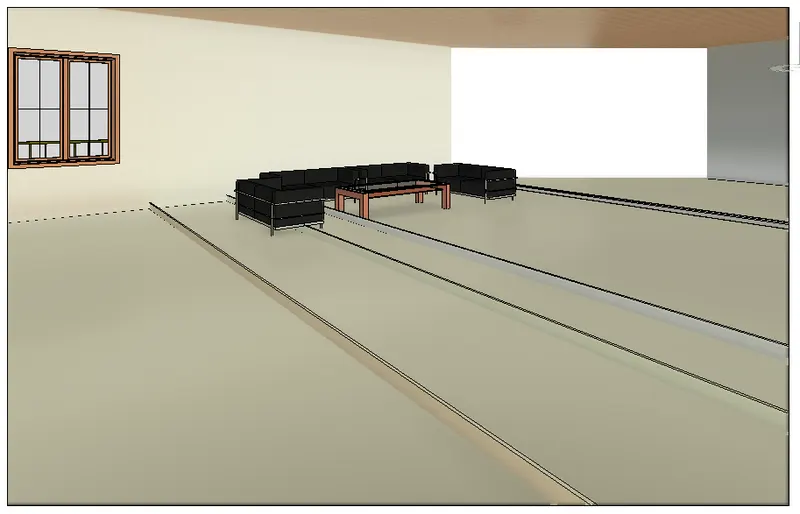

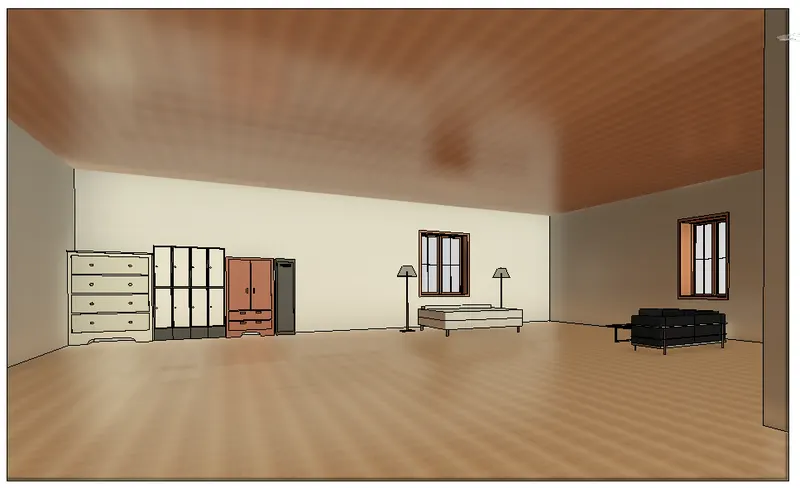

in order to render any figure go to the render from the view ribbon and chasnge the setting you want and click render and figure will turn to relastics as shown in figure.



7) Print the set of drawing sheets created and submit the drawings from the architecture and structure model

Answer)

PROCEDURE:

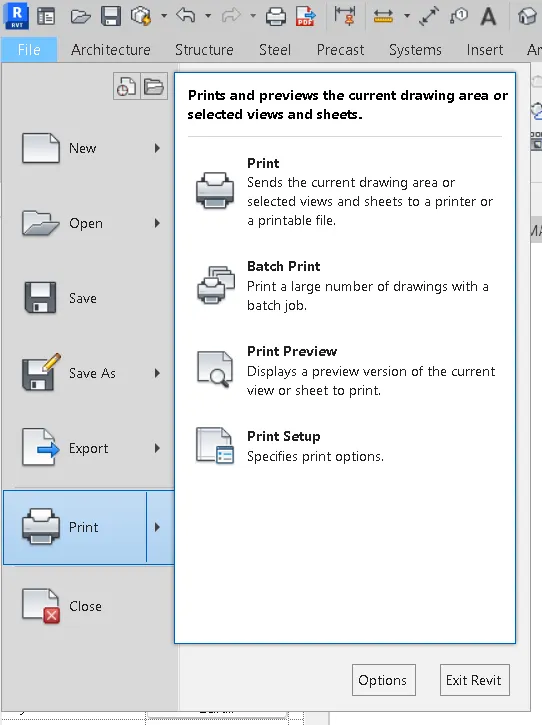

1. Click the views and open file menu and click the print.

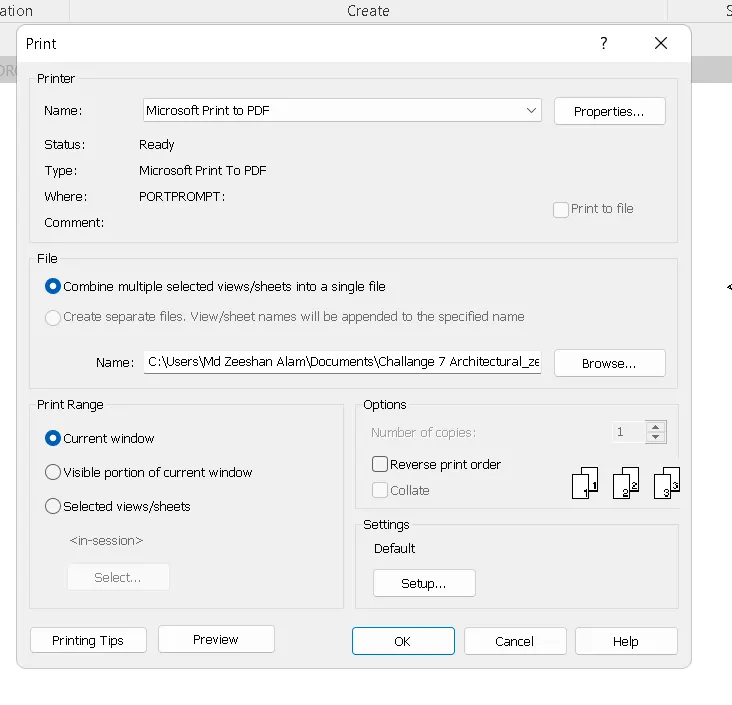

2. Print dialog box is appear.

3. Then, change the settings of sheets size,texts styles page setup everything.

4. Then click print and press ok.

RESULT:
Finally, set of drawing sheets created and submit the drawings from the architecture and structure model.
