Creating a Wardrobe detailed drawing, Floor Plan, Kitchen Layout and Column Detail using AutoCad

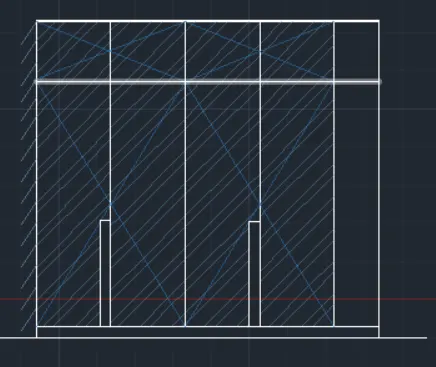

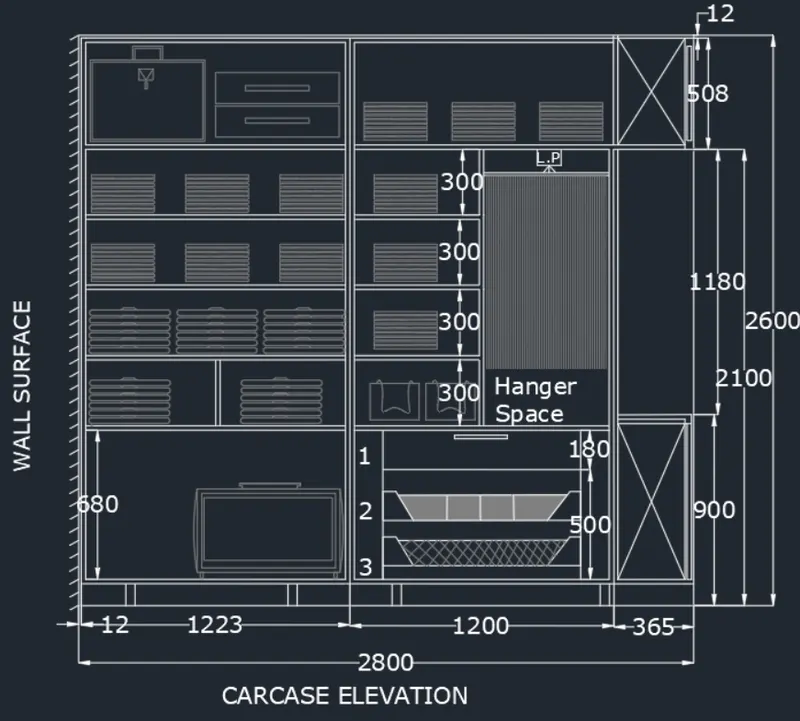

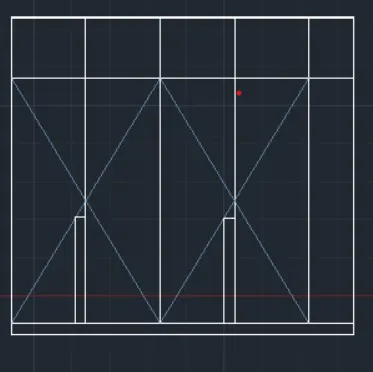

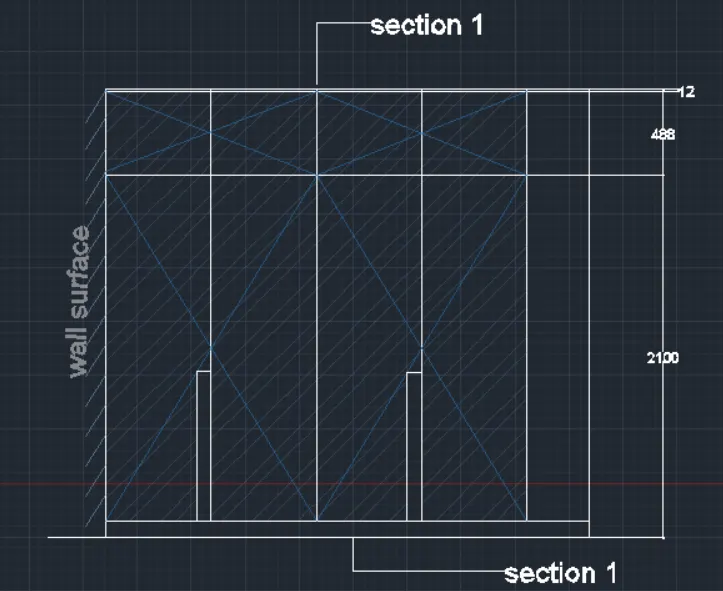

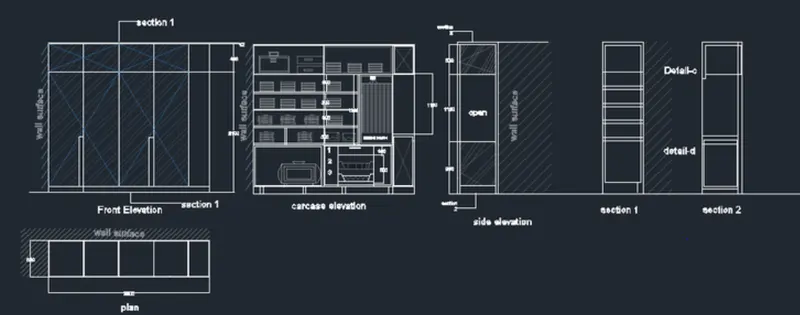

Q1. Draw the elevation and details of a wardrobe as shown in the Figure below. After sketching, you need to provide the dimensions and text with the use of layers. Use proper text styles and dimension methods to document it. Also, assume dimensions, wherever needed.

Note: All dimensions are in mm.

AIM: To Draw the elevation and details of a wardrobe as shown in the given Figure.

PROCEDURE:

STEP 1:

• Set Unit to mm
• Set limits and limax
• zoom comand is also used

STEP 2:

• In the command line type rec>2800.2600
• In the command line type offset
• Offset from the top of dimensions 12 and 488 mm

STEP 3:

• In the command line type offset
• create the offset from the side at the distance of 608.75 and 365

STEP 4:

• In the command line type L and by increasing the transparency to create wall surface.

• In the command line type qleader to mention the annotations.

STEP 4:

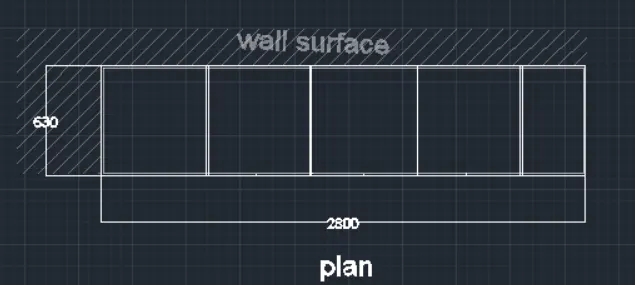

• In the command prompt type rectangle> 630 x2800
• In the command prompt type qleader to give the annotations

STEP 5:

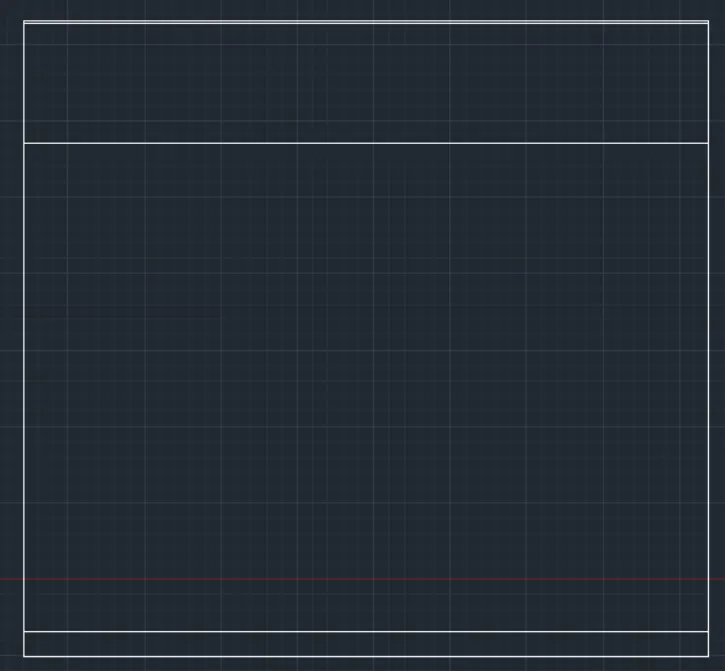

• In the command prompt type rectangle 2800 X 2600
• With the help of line command drawers and cabinets are created.

STEP 6:

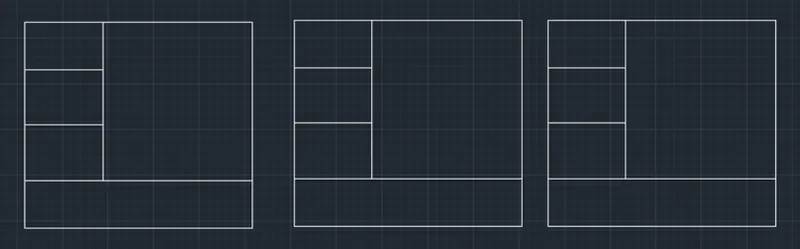

• In the command prompt type rectangle and dimensions of 520 x 630.1180 x 630,900x630 This is repeated 2 times.
• using line commands the next of the lines are drawn

RESULT:

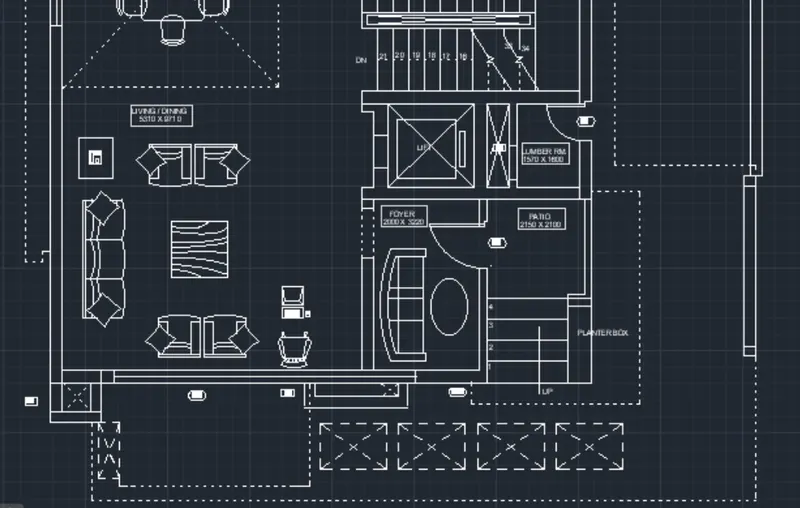

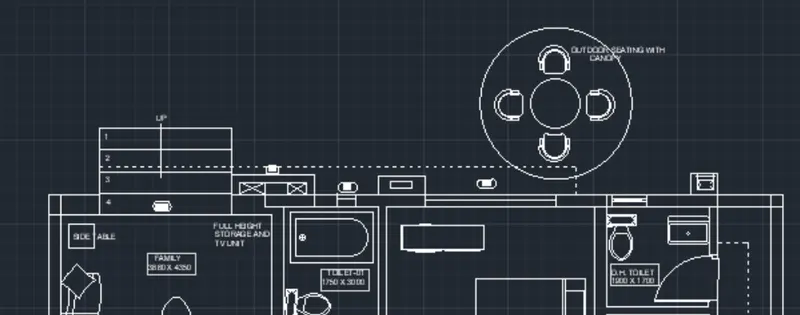

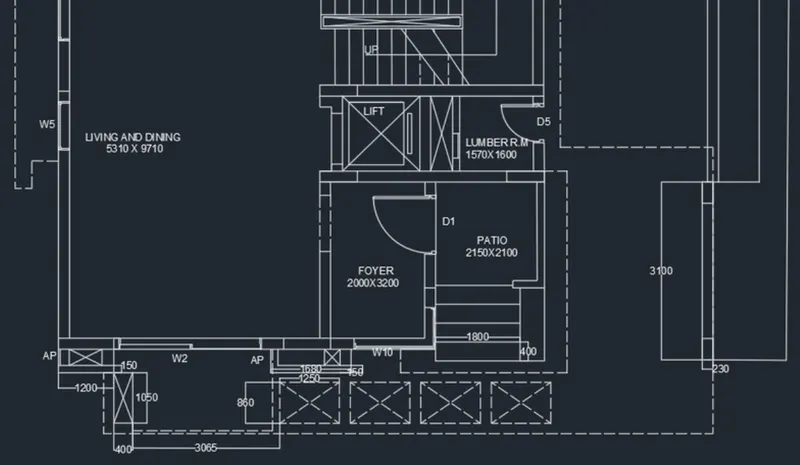

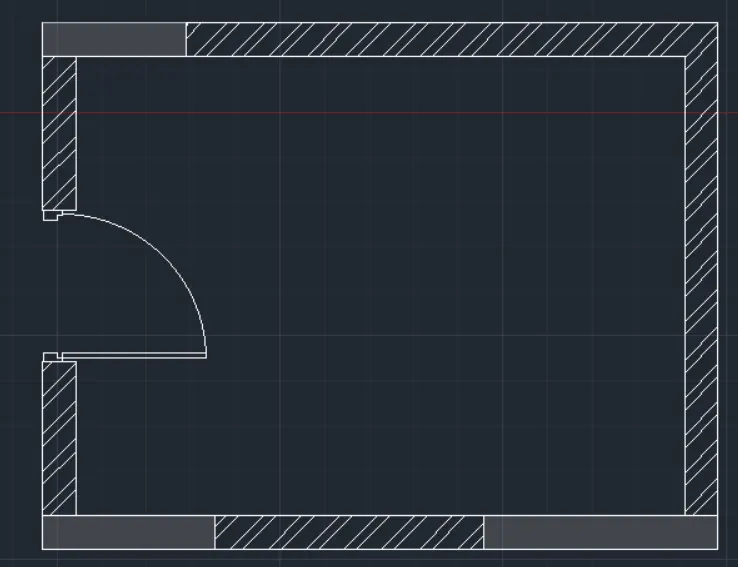

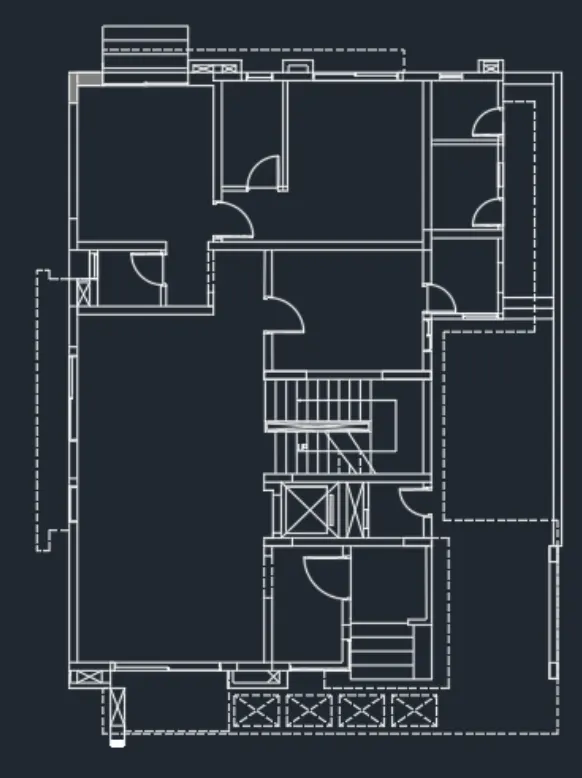

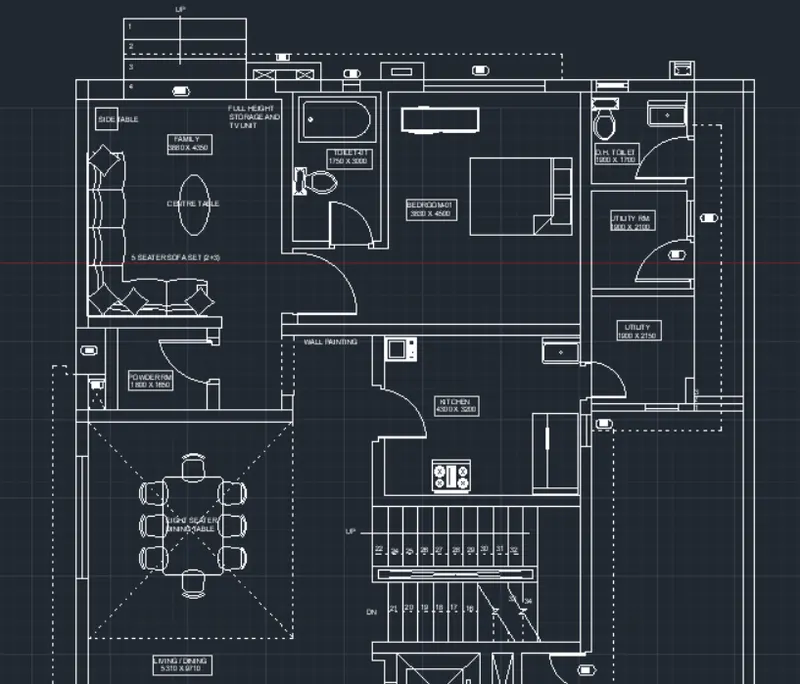

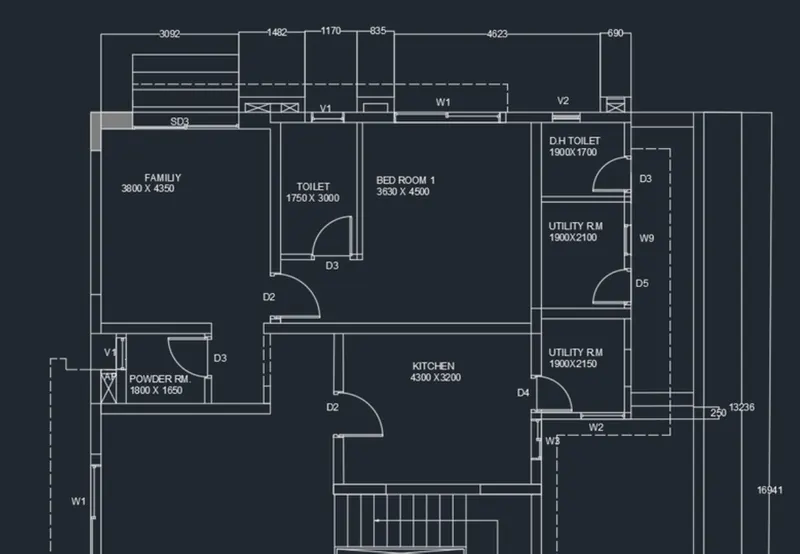

Q2. Draw the floor plan as shown in the Figure. Use the proper drafting tools to sketch the plan. Do not hatch or draw the furniture. You need to draw the floor plan with the following:

Note: You can also import the Floor_Plan.pdf into your current drawing and start working on the project. You need to scale the imported pdf file using reference option. All dimensions are in mm.

1. Walls (Exterior and Interior)

               Wall Thickness: Exterior Wall- 230mm, Interior Wall: 150 mm (Wherever Required)

2. Doors and Windows: Assume the size of the doors and window.

    2.1 Stairs: Tread-300mm, Riser-150mm

3. Insert Text wherever required
4. Insert the dimensions using proper dimension techniques

Aim: To draw the given floor plan

Procedure:

step 1:

• units are set to mm
• limits and limax are also set
• zoom comand is also used

step 2:

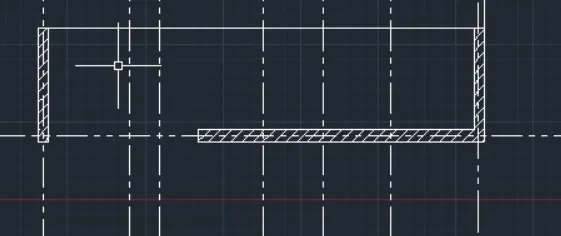

• In the command prompt type Xl to draw the infinite lines
• In the command prompt type offset to offset the line for a particular distance
• Using arc command doors are also created

step 3:

• In the command line "adc" (design centre) is typed to get the components of the plan

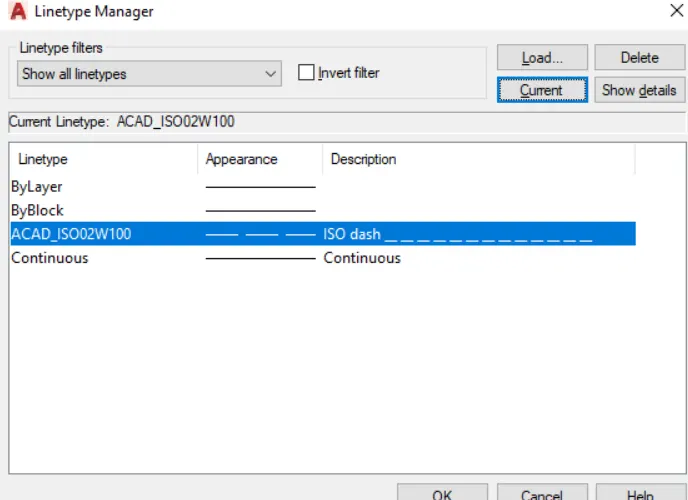

• In the command line "Linetype " is typed to get the dotted lines
• In the command line "Text" is typed to get the dimensions and annotations of the plan.

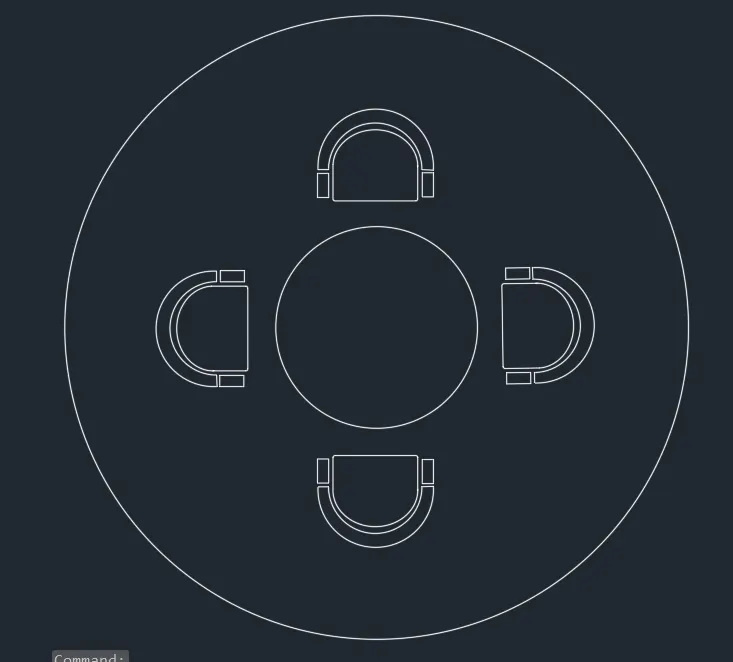

• To draw cannopy

circle:

• In the menu bar click on circle > centre, radius
• specify the centre point as 10,10 and radius 452
• In the meu bar click on circle> centre, radius
• specify the centre point same as the previous circle (10,10) and radius 1398

SEATS:

• In the menu bar click on rectangular or In the command prompt type rec
• specify the length of the rectangle as 662.3
• specify the width of the rectangle as 298.0
• In the command prompt type FILLET > RADIUS > 100.00 (to get curve egdes in the corner)
• In the menu bar> circle > 2-point (2 points ar the end points of the top line)
• In the men bar> circle > centre diameter
• centre is the mid point of the line, diameter is 719.0
• In the menu bar> circle > centre.diameter
• centre is the midpoint of the line, diameter is 777.2
• now, extend the centre line and trim the extra's
• In the menu bar click fillet> blend curves > and select the arc
• In the menu bar click fillet> blend curves and select the arc
• In the menu bar click fillet> blend curves > and select the arc

RESULT:

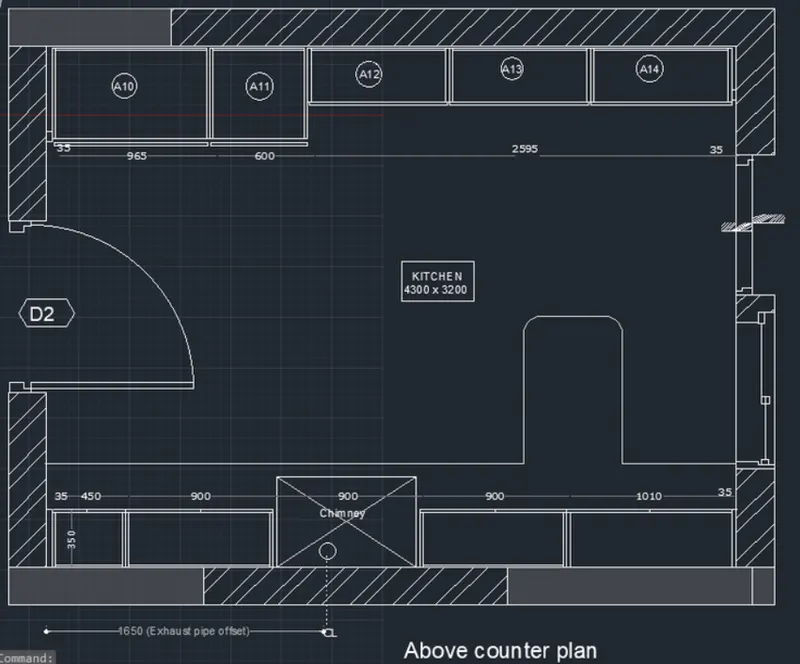

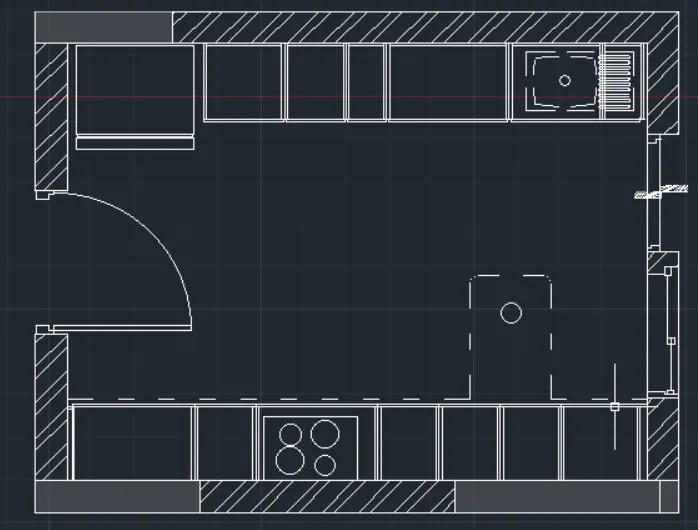

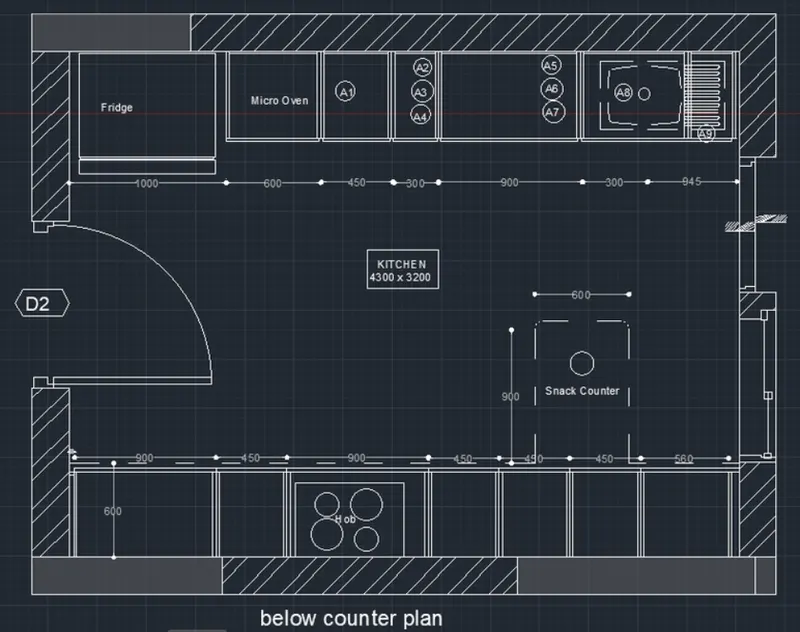

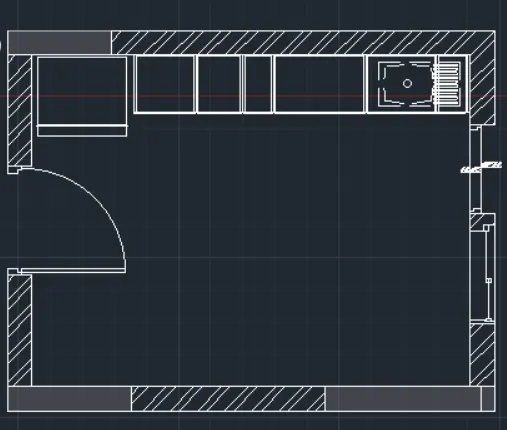

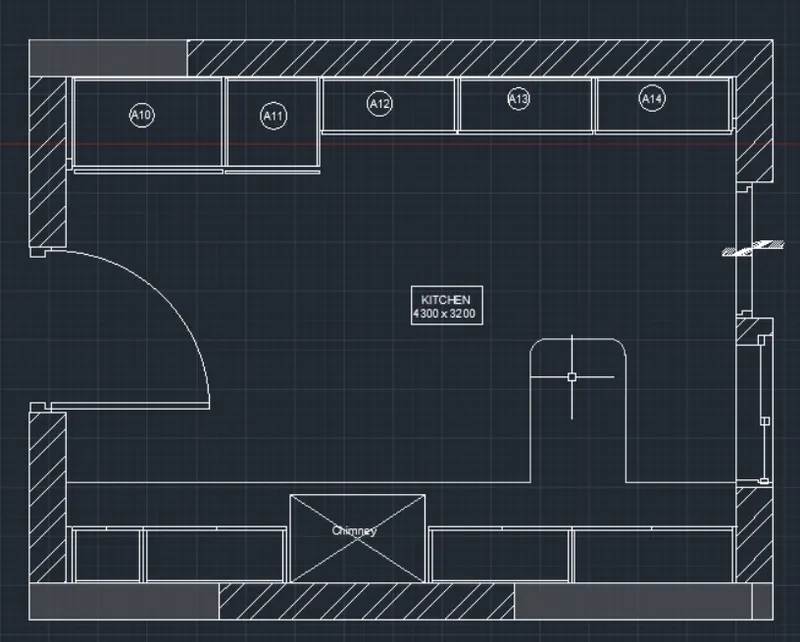

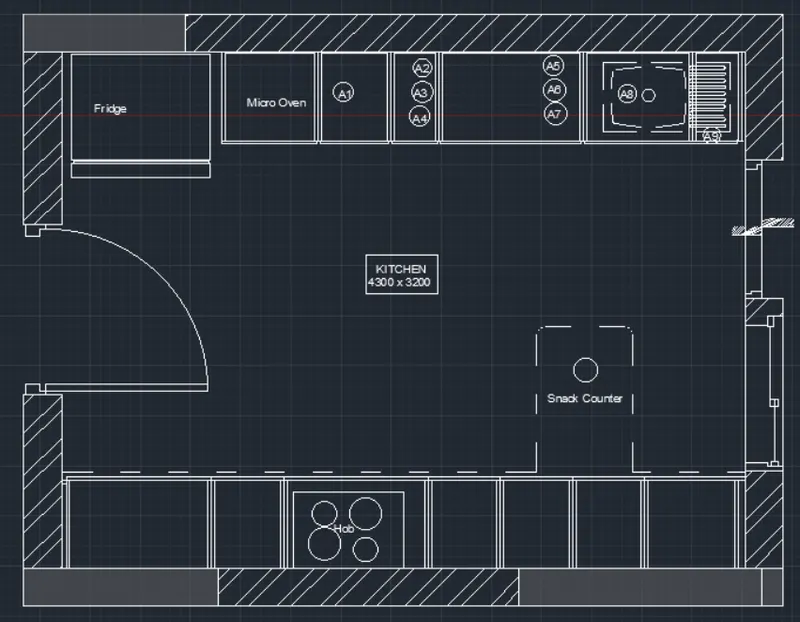

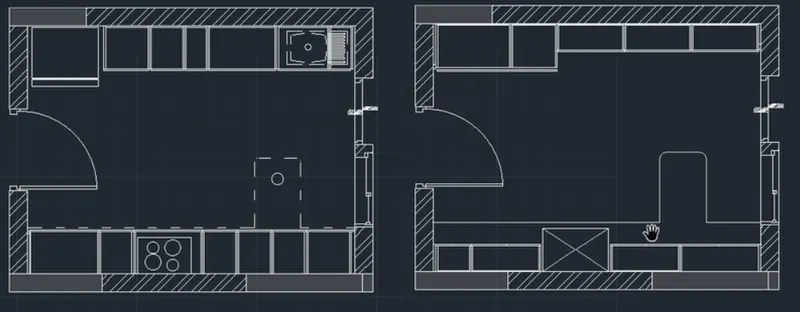

Q3. Create the Kitchen Layout as shown in the Figure below. Also, use proper dimension techniques to dimension the kitchen layout. Also, insert text wherever required. All dimensions are in mm.



Aim: To Create the Kitchen Layout and to Also, use proper dimension techniques to dimension the kitchen layout.

Procedure:

step 1:

• units are set to mm
• limits and limax are also set
• zoom comand is also used

Step 2:

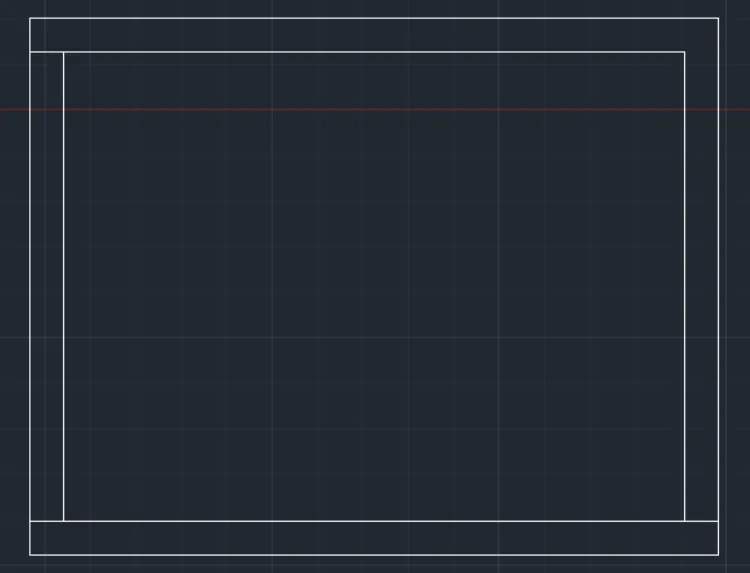

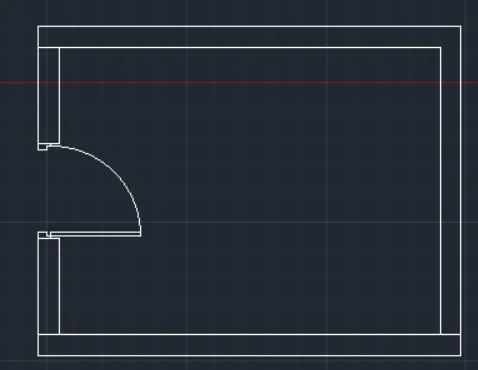

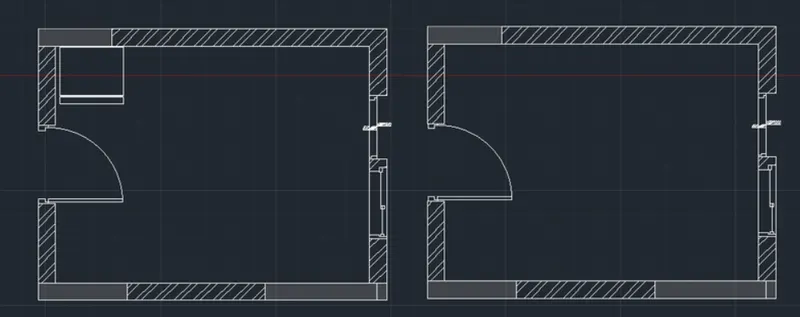

• In the command prompt type rec and the dimensions are 4734 x 3688 mm
• In the command prompt type offset and offset it to the distance of 230mm

• Using arc and lines the door is drawn.

• In the command prompt type hatch to hatch the model.

• In the command prompt type rec> dimensions, to do the fridge.

• In the command prompt type offset and offset it to the desired distance to get the microwave.
• In the command prompt type trim to trim the extra.

• In the command prompt type offset and offset it to the horizontal distance of 350,450,900,450,450 and 560
• In the command prompt type offset and offset it to the vertical distance of 600
• In the command prompt type trim to trim the extras
• In the command prompt type line type and load the dotted lines.

• In the command prompt type text to text the given annotations.
• In the command prompt type dimensions to given the dimensions to your plan.
• In the command prompt even the leader command is used to name the dimensions.

RESULT:

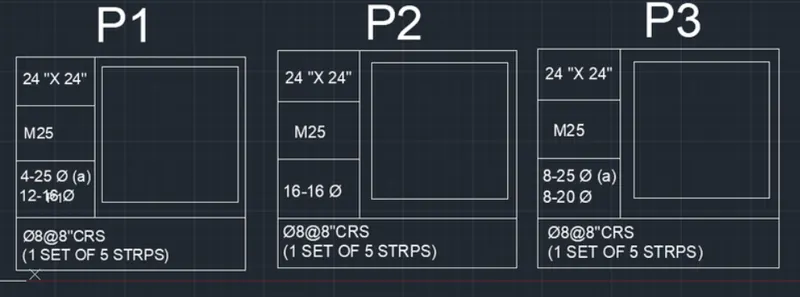

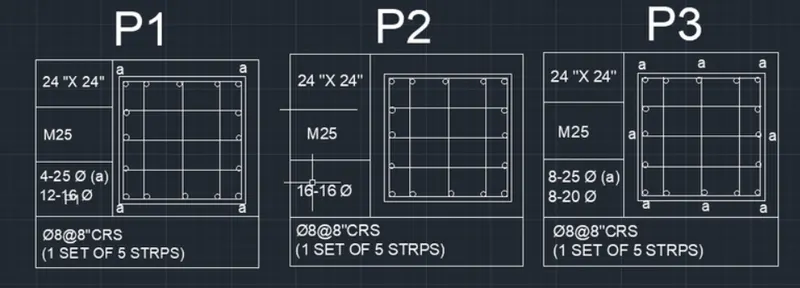

Q4. Sketch the column details as shown in Figure. Insert dimensions and text in the figure. Refer to the bar sizes from the schedule.

8mm ---- 0.31 Inches

25mm--- 1 inches

16mm—0.62 inches

AIM: To sketch the column details

PROCEDURE:

step 1:

• units are set to mm
• limits and limax are also set
• zoom comand is also used

step 2:

• Using rectangle and line command the tables are drawn.

Step 3:

• Using text command for giving text

Step 4:

• In the command prompt type line to draw the reinforcement.
• In the command prompt type circle to draw the reinforcement.

RESULT:

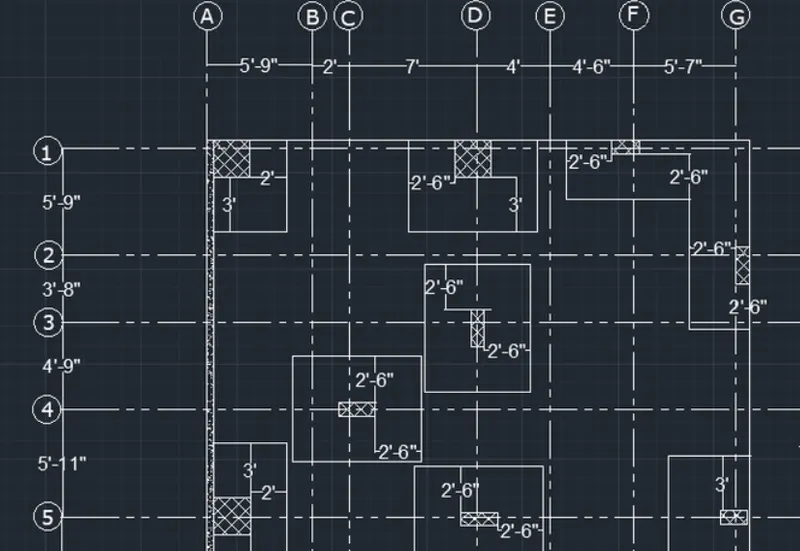

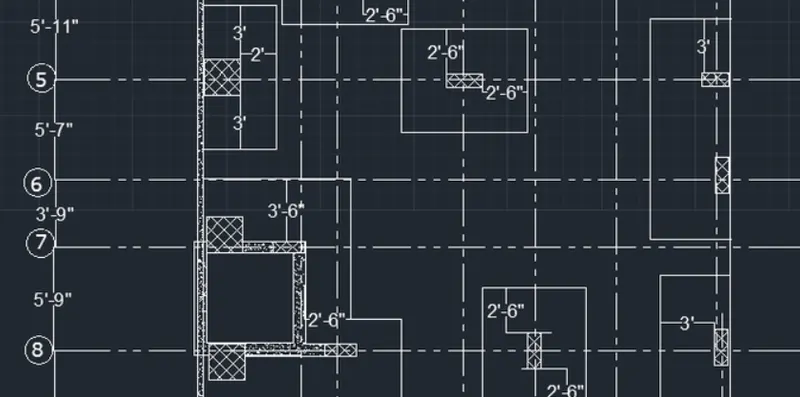

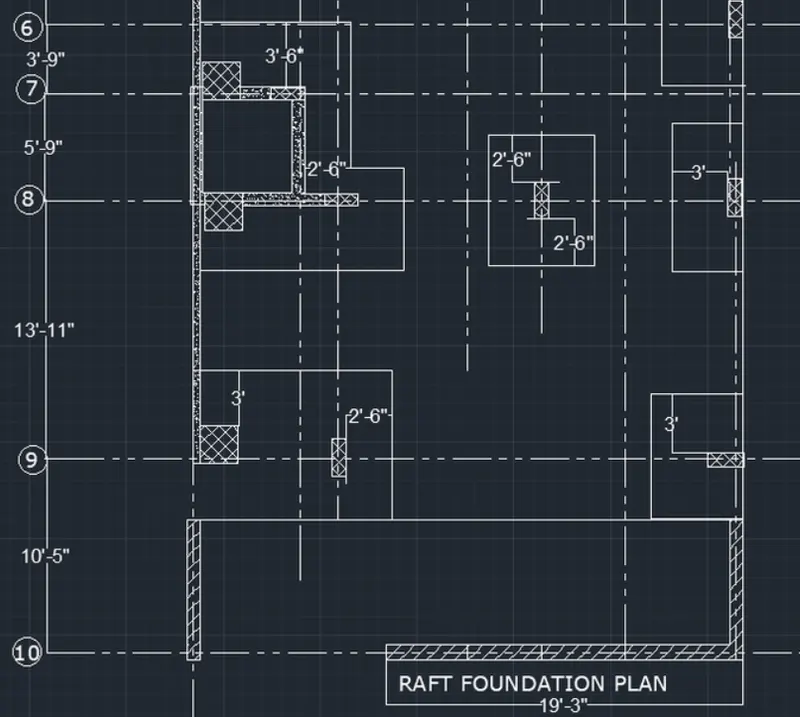

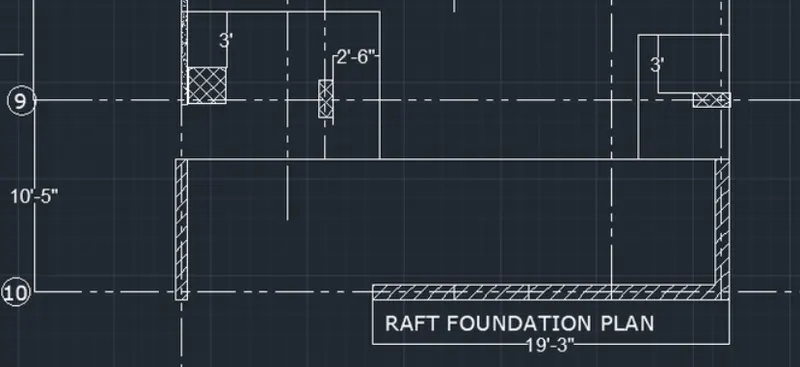

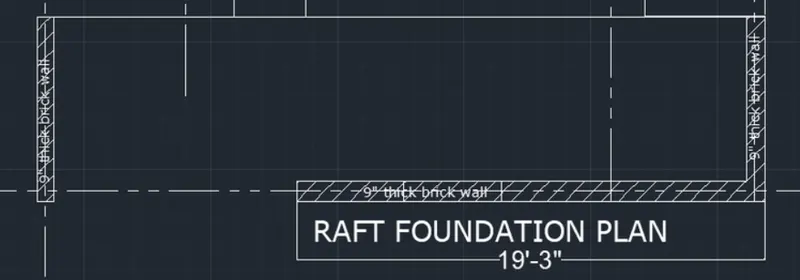

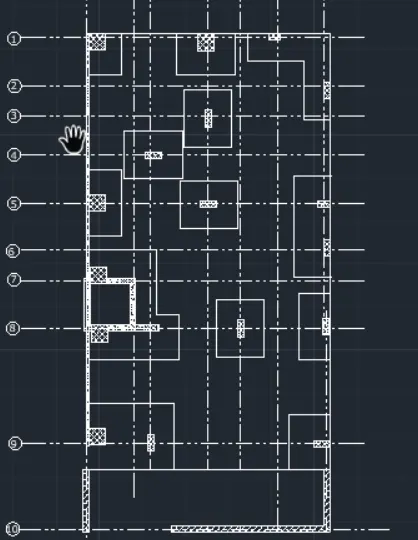

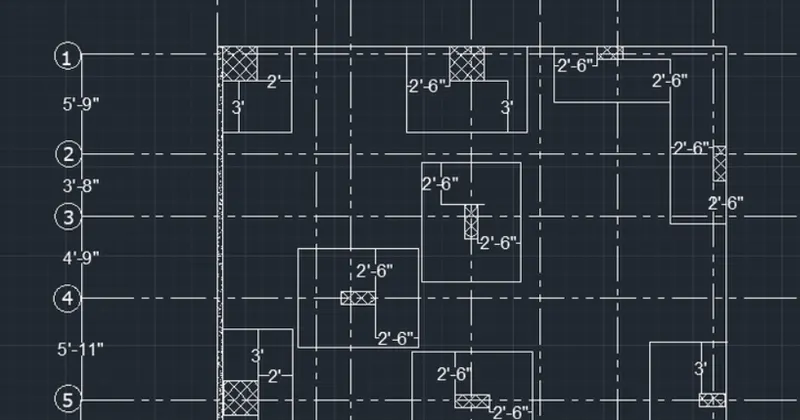

Q 5. Draw the Raft Layout as shown in the Figure. Assume the column size as per your knowledge. You can take the sizes as: 24”x24”, 9” x 24”, 9” x 18”, and 9’ x 24”. You can import the raft_foundation.pdf to ensure the missing dimensions.

Aim: To draw the raft layout

Procedure:

step 1:

• units are set to Engineering > inches
• limits and limax are also set
• zoom comand is also used

Step 2:

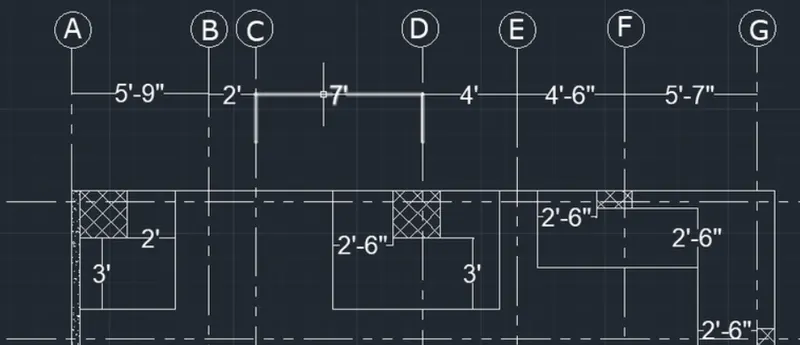

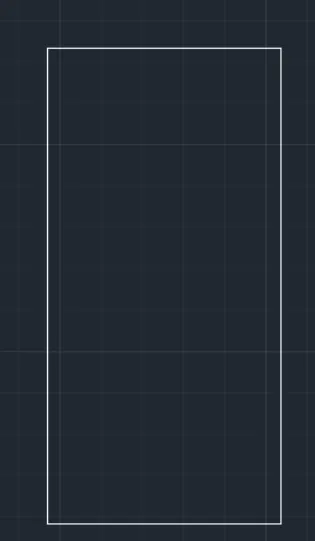

• In the command prompt type rectangle > dimensions are 29'-7" and 60'

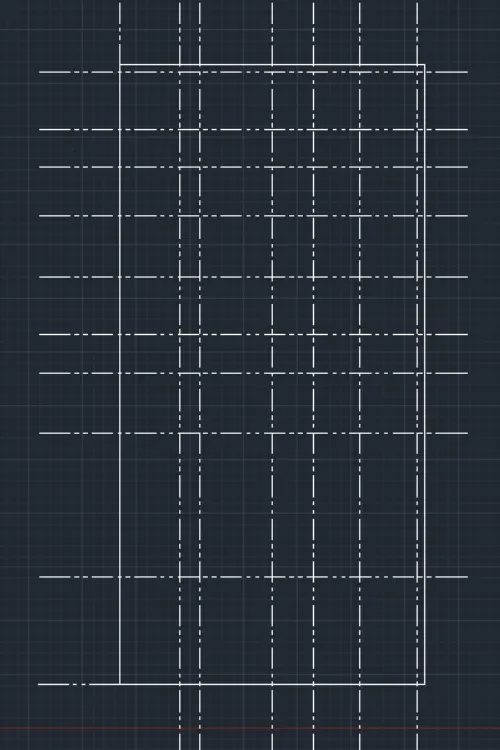

• To get dotted lines click on line type and load the dotted lines > current

• With the help of dotted lines and offset command the grids are drawn.

• In the command prompt offset the distance to 4"

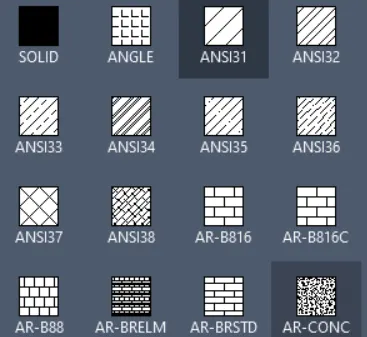

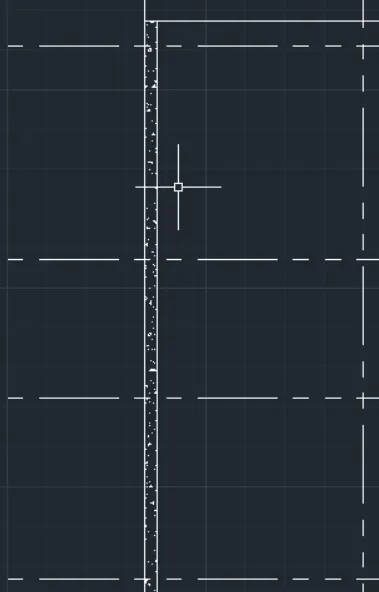

• In the ribbon > hatch > AR-CONC

• In the command prompt type rec > 2' × 2'.
• In the ribbon bar select hatch > ANSI37
• In the command prompt type "rec" to draft the columns.

• In the ribbon tab > annotate > text > Mtext to text the given annotations.
• In the ribbon tab > Dimensions > to give the dimensions.

RESULT:
