Creating a Wardrobe detailed drawing, Floor Plan, Kitchen Layout and Column Detail using AutoCad

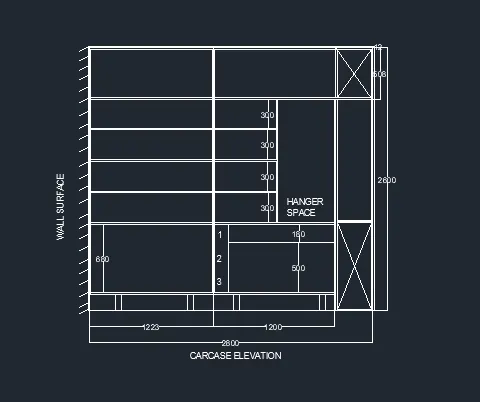

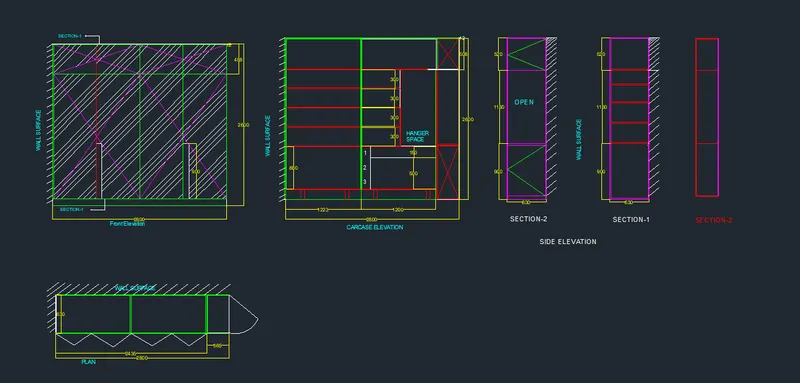

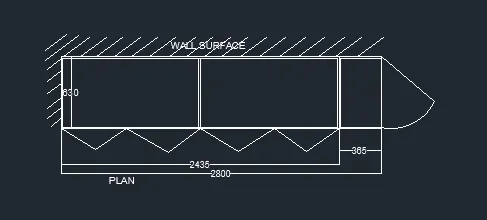

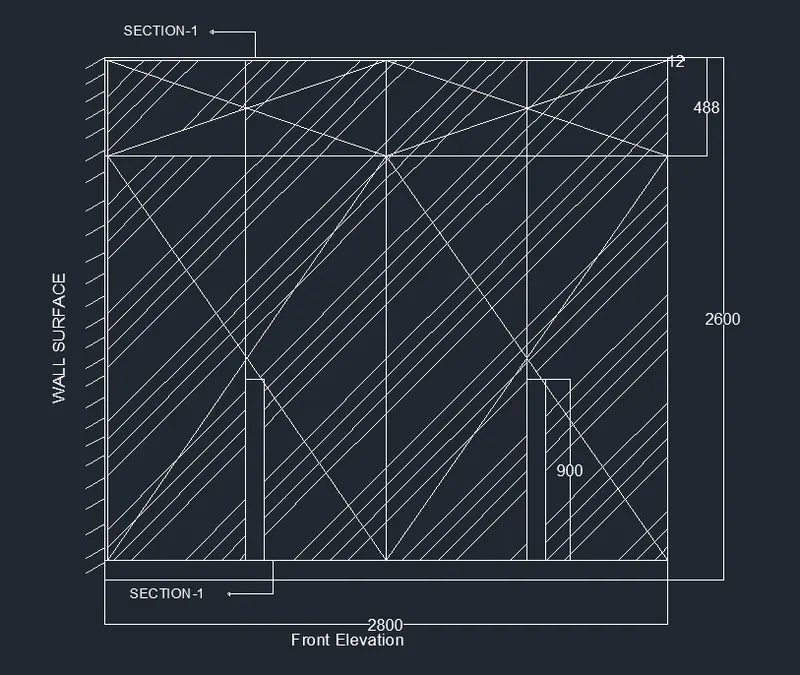

1) Draw the elevation and deatils of a wardrobe as shown in the figure below. After sketching, you need to provide the dimensions and text with the use of layers.

AIM:

Draw the elevation and deatils of a wardrobe as shown in the figure below. After sketching, you need to provide the dimensions and text with the use of layers.

PROCEDURE:

Step 1:

• Units are set to mm
• Limits and lim-max are also set
• Zoom command is also used.

Step 2:

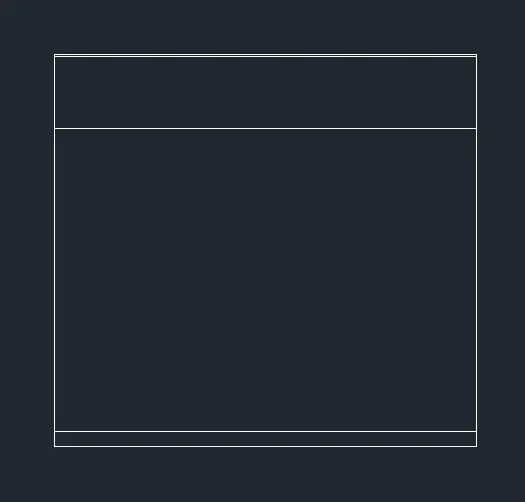

• In the command line type rect 2800, 2600
• In the command line type offset
• Offset from the top of dimensions 12 and 488 mm.

Step 3:

• In the command line type offset.
• Create the offset from the side at the distance of 608.75 and 365.

Step-4:

• In the command line type L and by increasing the transparency to create wall surface.
• By using hatch give the hatch and give scale 20.

Step-5:

• In the command prompt type rect >630x2800.
• In the command prompt type q leader to give the annotations.

Step-6:

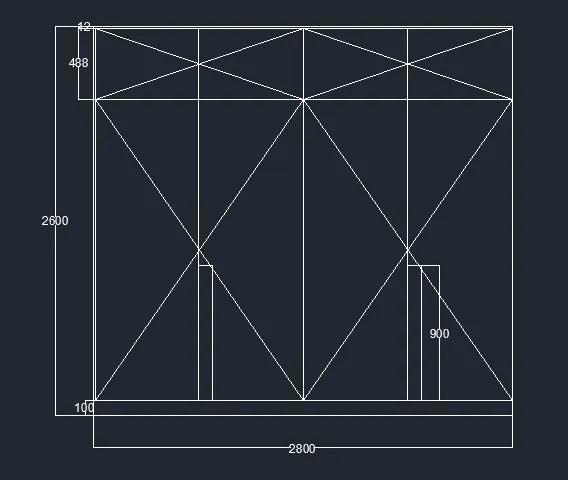

• In the command prompt type rect 2800x2600.
• With the help of line command drawers and cabinets are created.
• For the drawers and cabinets give the grey colour.
• Dimension the drawing.

Step-7:

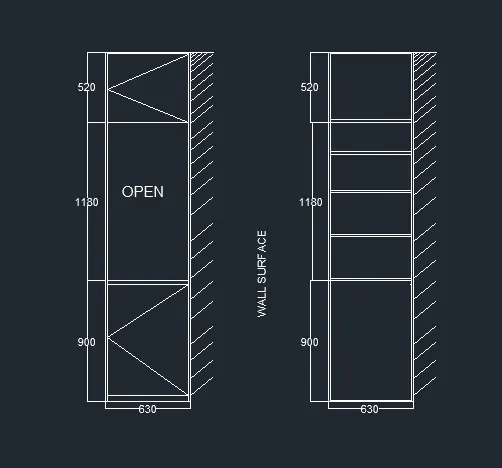

• In the command prompt type rect and dimension of 520x630, 1180x630, 900x630. This is repeated 2 times.
• Using line commands, the next of the lines are drawn.

Step-8:

• Place the entire drawing in the respective layers.

RESULT:

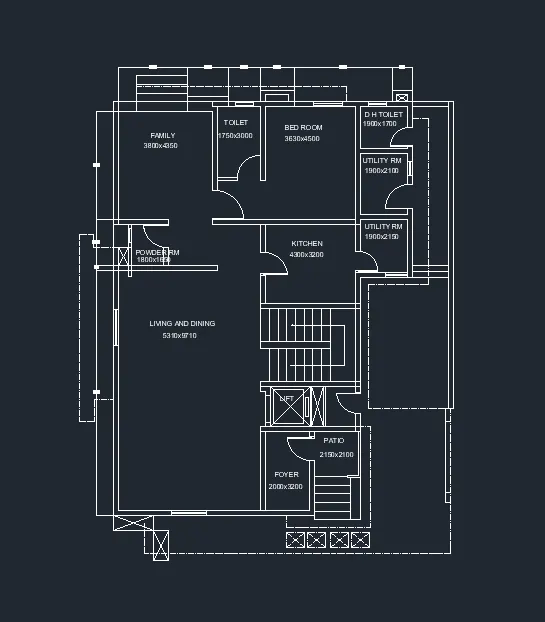

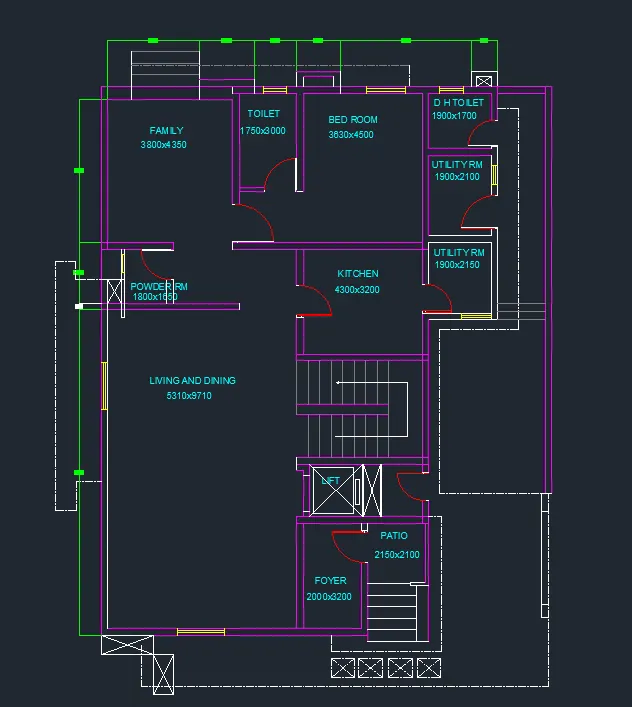

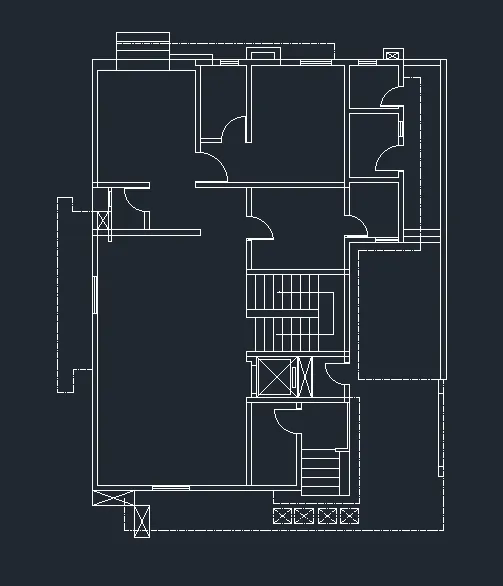

(2) AIM: To draw the given floor plan.

PROCEDURE:

• Units are set to mm.
• Limits and lim-max is also used.
• Zoom command is also used.

Step-2:

• In the command prompt type XL to draw the infinite lines.
• In the command prompt type offset to offset the line for a particular distance.
• Using arc command doors are also created.

Doors:

• D1 = 1000x2000 mm
• D2 = 900x2100 mm
• D3 = 800x2100 mm
• D4 = 750x2100 mm
• D5 = 700x2100 mm
• SD = 2256x2100 mm

Ventilators:

• V1 = 800x500 mm
• V2 = 750x500 mm

Windows:

• W1 = 2700x1500 mm
• W2 = 2500x1500 mm
• W3 = 900x1500 mm
• W5 = 1000x1500 mm
• W9 = 800x1500 mm.

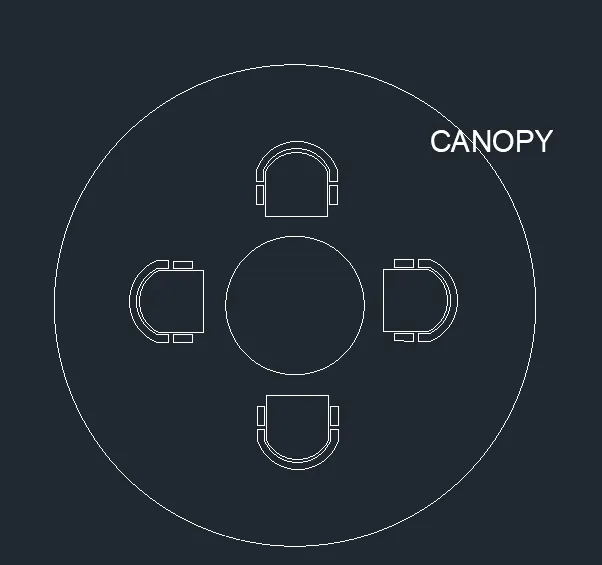

Step-3: To draw canopy.

Circle:

In the menu bar click circle > centre, radius Specify the centre point as 10,10 and radius 452. In the menu bar click on circle > centre, radius specify the centre point same as the previous circle (10,10) and radius 1398.

Seats:

• In the menu bar Click on rectangular or in the command prompt type rec.
• Specify the length of the rect as 662.3
• specify the width of the rect as 298.0
• In the command prompt type fillet > radius > 100 (to get curve edges in the corner)
• In the menu bar > circle > 2-point (2 points are the end points of the top line)
• In the menu bar > circle > centre, diameter
• Centre is the midpoint of the line, diameter is 777.2
• Now, extend the centre line and trim the extras
• In the command box click fillet > blend curves > and select the arc
• In the command box click fillet > blend curves > and select the arc

Step-4:

Give the dimensions and annotation the drawing with the text where ever required.

Step-5:

Place the all elements of the drawing in the respective layers.

RESULT:

(3) AIM:

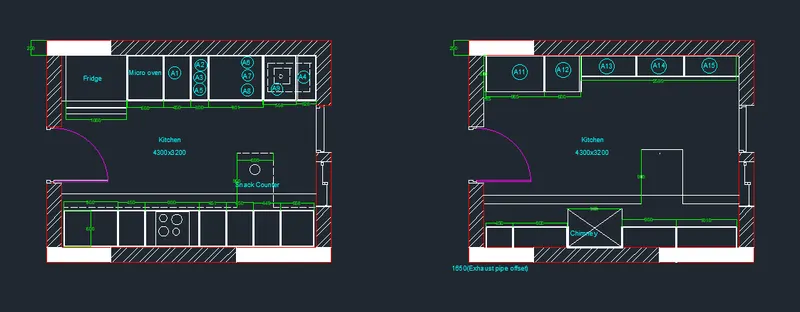

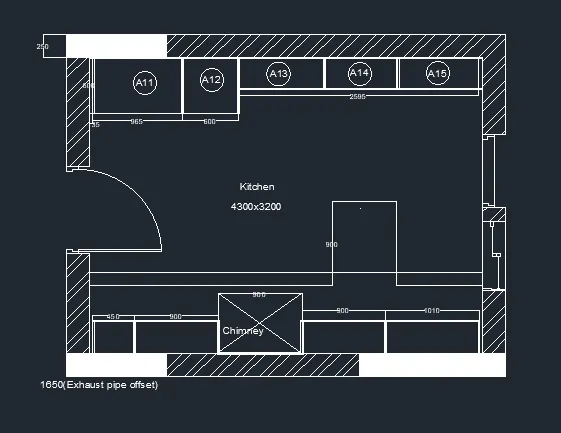

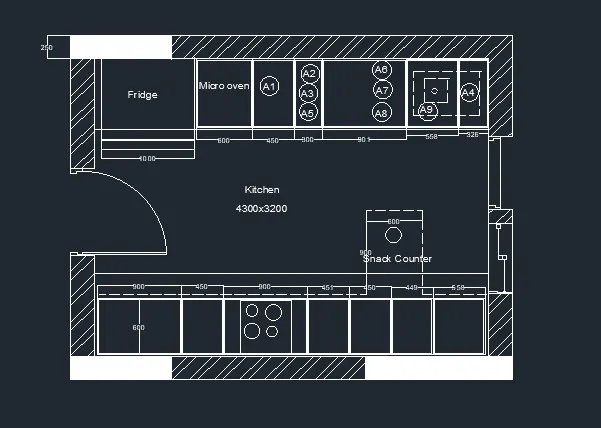

To create the kitchen Layout and to Also, use proper dimension techniques to dimension the kitchen layout. Also, insert text wherever required.

PROCEDURE:

Step-1:

• Units are set to mm.
• Limits and lim-max are also set.
• Zoom command is also used.

Step-2:

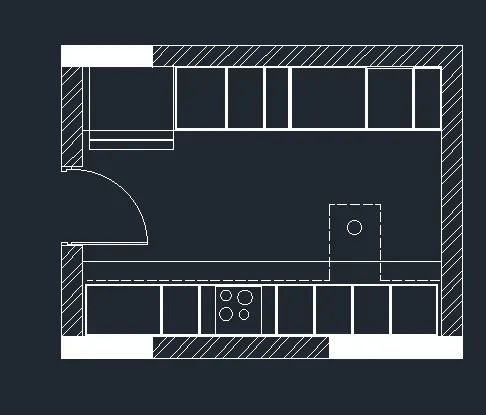

• In the command prompt type rec and the dimensions are 4734x3688 mm.
• In the command prompt type offset it to the distance of 250 mm.
• Using arc and lines the door is drawn.
• In the command prompt type hatch to hatch the model.

Step-3:

• In the command prompt type rec dimensions, to do the fridge.
• In the command prompt type offset and offset it to the desired distance to get the Micro Oven.
• In the command prompt type trim to trim the extras.
• In the command prompt type offset it to the horizontal distance of 350, 450, 900, 450, 450 and 560.
• In the command prompt type offset and offset it to the vertical distance 600.
• In the command prompt type trim to trim the extras.
• In the command prompt type line type and load the dotted lines.

Step-4:

• In the command prompt type text to text the given annotations.
• In the command prompt type dimensions to given the dimension to your plan.
• In the command prompt even the leader command is used to name the dimensions.

Step-5:

Place all the elements in the required layers.

RESULT:

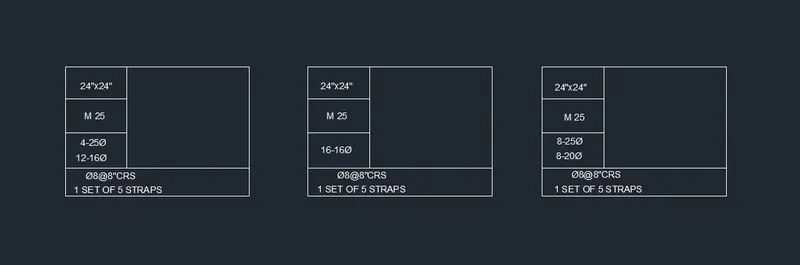

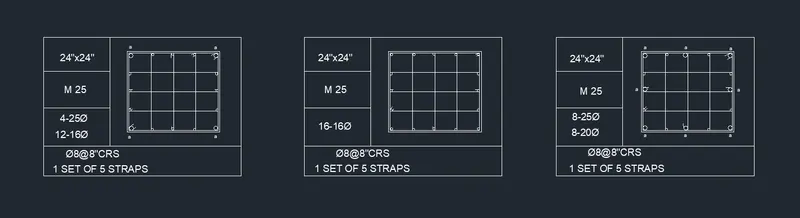

(4) AIM: To sketch the column details

PROCEDURE:

Step-1:

• Units are set to mm.
• Limits and lim-max are also set.
• Zoom command is also used.

Step-2:

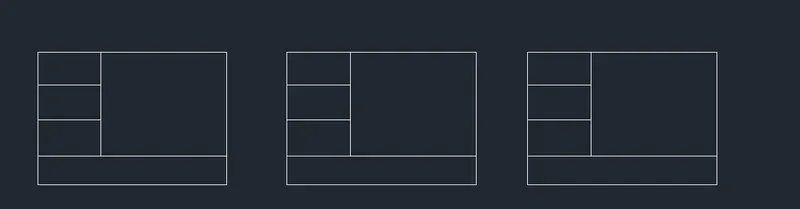

• Using rectangle and line command the tables are drawn.

Step-3:

• Using text command, the text is given.

Step-4:

• In the command prompt type lines to draw the reinforcement.
• In the command prompt type circles to draw the reinforcement.

RESULT:

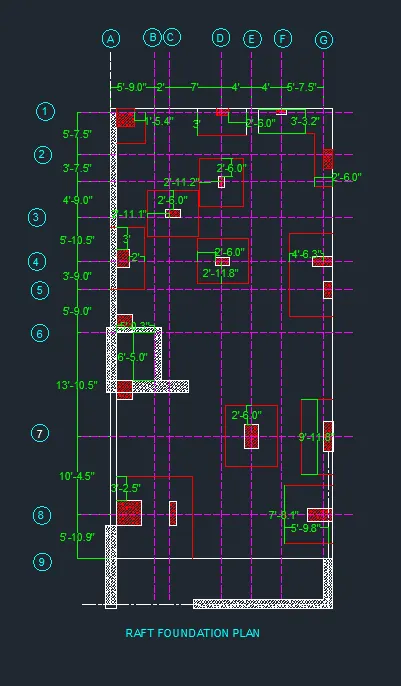

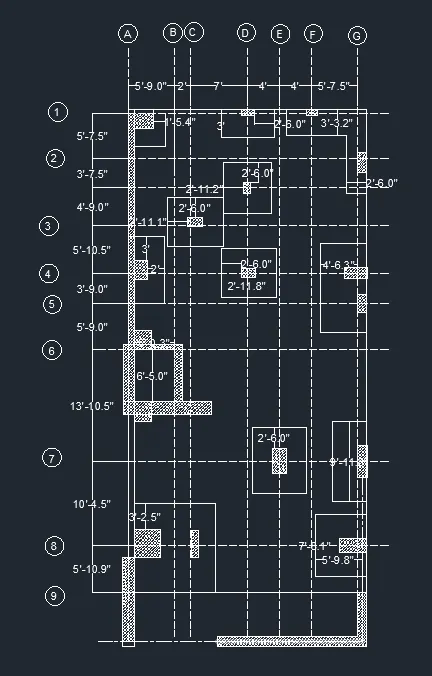

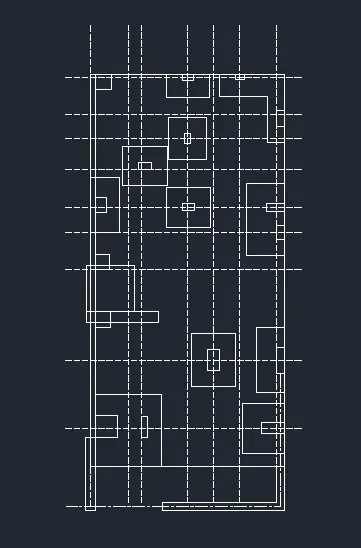

(5) AIM: To draw the raft layout.

PROCEDURE:

Step-1:

• Units are set to Engineering > inches.
• Limits and lim-max are also set.
• Zoom command is also used.

Step-2:

• In the command prompt type rect > dimensions are 29'-7" and 60'.

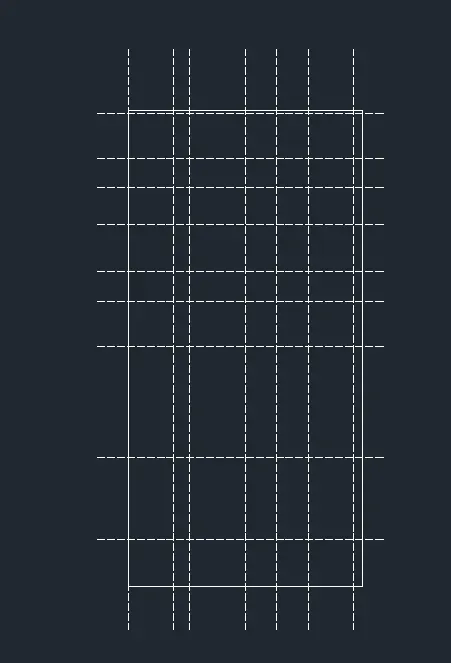

• With the help of dotted lines and offset command the grids are drawn.

Step-3:

• In the command prompt offset the distance to 4".
• In the ribbon > hatch > AR-CONC.
• In the command prompt type rec > 2'x2'.
• In the command prompt type rec to draft the columns.
• In the ribbon bar select hatch > ANSI37 hatch the columns.
• In the ribbon bar select hatch > ANSI33 to hatch the walls.

Step-4:

• In the ribbon tab > Annotate > text > text to text the given annotations.
• In the ribbon tab > dimensions > to give the dimensions.

Step-5:

• Place the all the elements of the drawings in the required layers.

RESULT:
