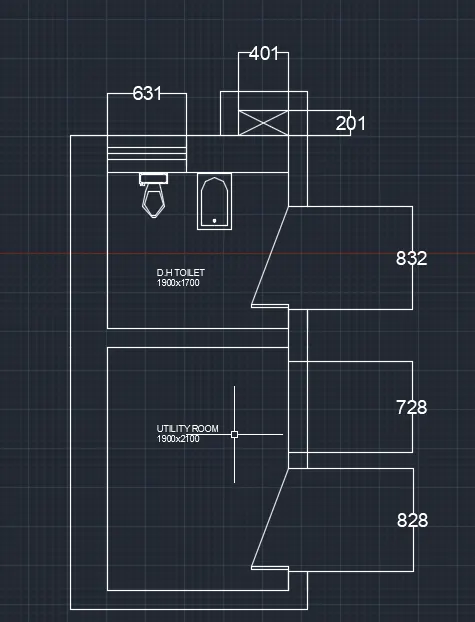

Creating a Residence Layout, Seating plan, Toilet and Utility room plan using AutoCad

1) The above figure represents the Flexural cracks developed at the bottom flange of the beam. This failure initiates by cracking and spalling of concrete and subsequent yielding of steel reinforcement and can also be formed as result of plastic hinge formation at undesirable location. This usually developes at the bottom…

1. AIM: To expert the revit architecture and structure model created in week 6 challenge to naviswork cache files following the export settings PROCEDURE: initally open the autodesk account and download thw naviswork manage software  now open the architectural mode created in week 6 challenge in the revit software …

1)  Using Dynamo create a set of sinusoidal points and create a curve and create a surface out of the curve. Aim: To create a set of sinusoidal points,curve and a surface out of the curve using dynamo. Procedure: • Initially,open the architecture template of rivet software and go to manage tab. • In…

1) What are HVAC systems? Why are they essential in the modeling of buildingsHVAC stands for heating, ventilation and air conditioning. It is technology of indoor environmental comfort. It's goals is to provide thermal comfort and acceptable indoor air quality.HVAC system design is a sub discipline of mechanical engineering…

1. 1.AIM: Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level a) using the model create a section box b) to create similar doors and windows in a floor plan layout c) to reduce the thickness of lines visible in plan…

1) What are HVAC systems? Why are they essential in the modeling of buildings HVAC stands for heating, ventilation and air conditioning. It is technology of indoor environmental comfort. It's goals is to provide thermal comfort and acceptable indoor air quality. HVAC system design is a sub discipline of mechanical engineering…

1. AIM: To set project base point and project shared coordinates for the project. PROCEDURE: 1) open the  revit software and open the architectural template. 2) now open the manage tab of the ribbon and go to the coordinates option in the project location. 3) now select project coodrinates and in the choose specify…

 1.Why are building codes or standards essential for the modeling/ efficiency of drawings in Revit ? The national codes (NBC) is a document that provides guidelines for construction of structures like residential,merchantile, institutional,eductiona,commerical,assembly,storage spaces or even hazardous buildings.it…

1.AIM: Use the project file created from Week 2. Use it for this assignment. Based on your layout from week 2, using floor tool under architecture tab and select the floor with appropriate material and thickness using the property browser create a layout in the Ground floor Level. Align the floor plan with grids created…

1.AIM:What is BIM? Summarize the features of BIM and benefits of using BIM over 2D CAD tools. Building information modelling(BIM) is the holstic process of creating and managing information for a built asset.Based on an intelligent model and enabled bya cloud platform,BIM integrates structured, multidisciplinary data to…

1.AIM:From the file menu, create a new project (Structural / Architectural / Construction template ) and name the project appropriately PROCEDURE: STEP1: open the revit software 2.AIM:Save the new project file. Close and open using icons from file toolbar PROCEDURE: STEP1: using of pointer click the save icon   STEP2:…

AIM:Create a 3 dimensional model of the residential building with a rendered view. PROCEDURE: 1. Open the autocad and go to 3d modeling 2.initially set the unit drawing as decimal 3.now set the limit of drawing 4.now create a 2d plan for residential building with the help of cmt like,line,offset,trim etc   5.now create…

AIM:Create a layout of the Plan and Section A of the project in Challenges 7, using the template Tutorial-mArch.dwt in a scale as given in the Figure. Use the MV command to create the viewport of the size as shown in Figure. Also, use ATTEDIT command to edit the information in the title block. Use A1 size for the layout.…

1.AIM: Create a 3D Isometric View of the building with plan and elevation given. PROCEDURE: 1)Draw the line for 3'5",3'2",4'2",4'3",3',3'6" 2) draw the window for 3'2" and other side 3' 3) take the offset for 9"   5) using of dli cmt mark the dimension 6) Insert the text using mtext cmt RESULT: 7)hide the dimension…

1. AIM:  Create a 3D Furniture element as shown in the Figure. Assume dimensions which are missing PROCEDURE: 1. Open the autocad and go to the 3d modeling in the settings and change the work space to 3d modeling 2.now the unit as the architectural feet and inches 3.set the limits step1 step2: RESULT: 2.AIM:…

1.AIM:Create the layouts of the Kitchen and provide hatches pattern as shown. Also, use blocks whereverrequired. Provide appropriate dimensions in the plan. Assume the size of doors, appliances and othersas per the standards. STEP1:  PROCEDURE: Draw the rectangle by using the rect cmt @ 4300x3200 STEP2: using the…

1.AIM: 1. Create the templates as shown in Figures. Take the size of the title block as per industry standards oryou can assume it as per the size of the paper. Use text and attributes wherever required. After creatingthe title block you need to save it as a block with names: Custom1_titleblock and Custom2_titleblock,respectively.…

 1. AIM: 2.AIM:FLOOR PLAN 3.AIM:

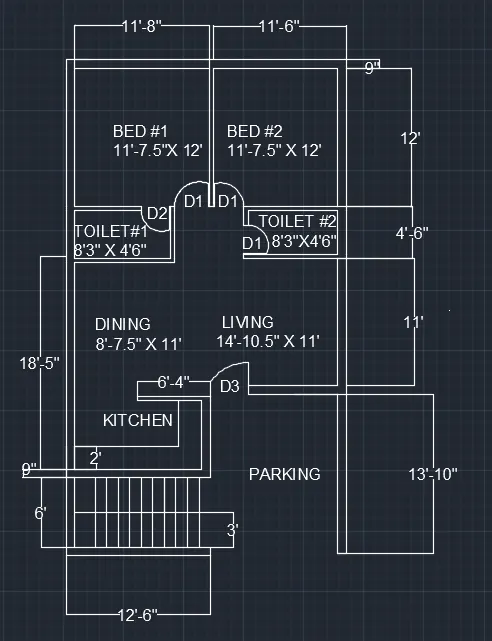

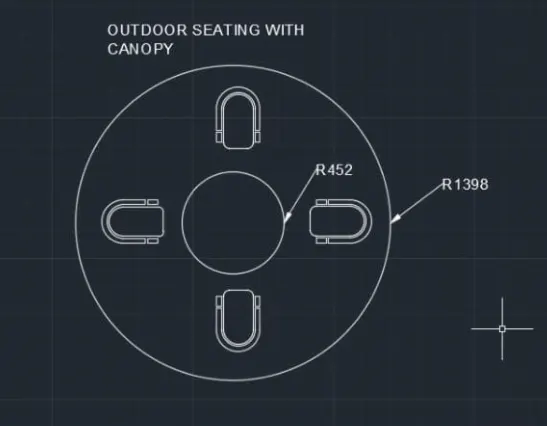

1. AIM: Residence Plan: Sketch the layout of a residence as shown in the Figure 1. Consider all dimensions asreference to sketch the unit plan. Also the text in the layout are only for reference. Assume the missingdimensions. Also, refer the schedule for size of the doors. 2. AIM: Sketch the seating plan for an outdoor…

1.AIM: DRAW A DIAGRAM USING DECIMAL 2. AIM: DRAW A DIAGRAM USING ARICHTECTURAL 3. AIM: DRAW A DIAGRAM USING ENGINEERING 4. AIM: DRAW A DIAGRAM USING DECIMAL 5. AIM: DRAW A DIAGRAM USING DECIMAL AND DIAMETER 6.AIM: DRAW A DIAGRAM USING DECIMAL 7. AIM: DRAW A DIAGRAM USING DECIMAL AND DIAMETER,CIRCLE, FILLET  8.AIM:…

1.AIM: C.S. OF LOAD BEARING WALL OVER SPREAD FOOTING 2.AIM: C.S.ISOLATED FOOTING 3.AIM: LINE DIAGRAM OF A TWO BEDROOM BUILDING 4.AIM: C.S. OF LOAD BEARING WALL SHOWING FOUNDATION DETAILS 5.AIM; ISOMETRIC VIEW OF STEPS 6.AIM: ISOMETRIC VIEW OF GABLE WALL
