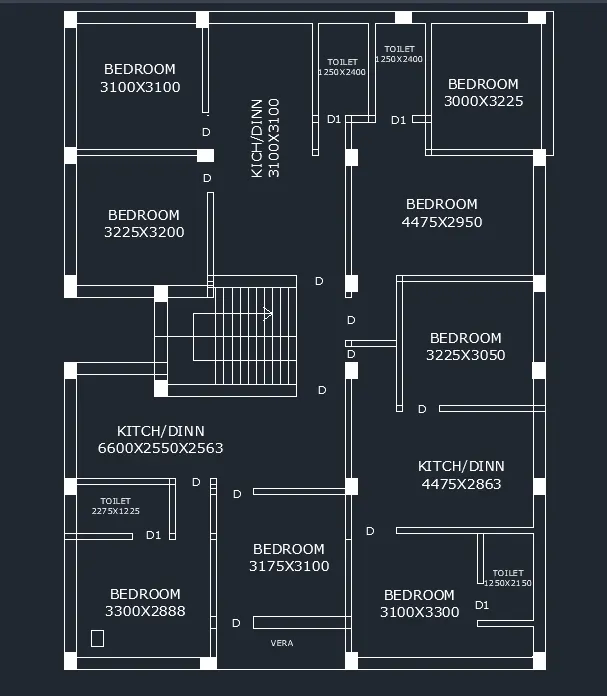

Creating a Layout, Section and Elevation with dimensions using AutoCad

AIM:

TO DRAW THE GIVEN DRAWING USING AUTOCAD.

PROCEDURE:

STEP 1:

IN THE COMMAND PROMPT TYPE UNITS AND SELECT DECIMAL UNITS.

STEP 2:

IN THE COMMAND PROMPT TYPE USING LINE .

IN THE COMMAND PROMPT TYPE USING OFFSET

IN THE COMMAND PROMPT TYPE USING CIRCLE

IN THE COMMAND PROMPT TYPE USING TEXT.

IN THE COMMAND PROMPT TYPE USING DIMENSION.

IN THE COMMAND PROMPT TYPE USING HATCH.

IN THE COMMAND PROMPT TYPE START POINT TO END POINT

IN THE COMMAND PROMPT TYPE BY LAYER COMMAND

IN THE COMMAND PROMPT TYPE USING BOLD

IN THE COMMAND PROMPT TYPE USING UNDERLINE

IN THE COMMAND PROMPT TYPE USING TRIM

IN THE COMMAND PROMPT TYPE USING EXTEND

IN THE COMMAND PROMPT TYPE USING DELETE

IN THE COMMAND PROMPT TYPE USING ELLIPSE

IN THE COMMAND PROMPT TYPE USING MOVE.

IN THE COMMAND PROMPT TYPE USING COPY.

IN THE COMMAND PROMPT TYPE USING MIRROR.

IN THE COMMAND PROMPT TYPE USING FILLET.

IN THE COMMAND PROMPT TYPE USING RECTANGLE.

RESULT:
