Creating a Layout, Section and Elevation with dimensions using AutoCad

Aim : To create plan and section of the given figures

Procedure :

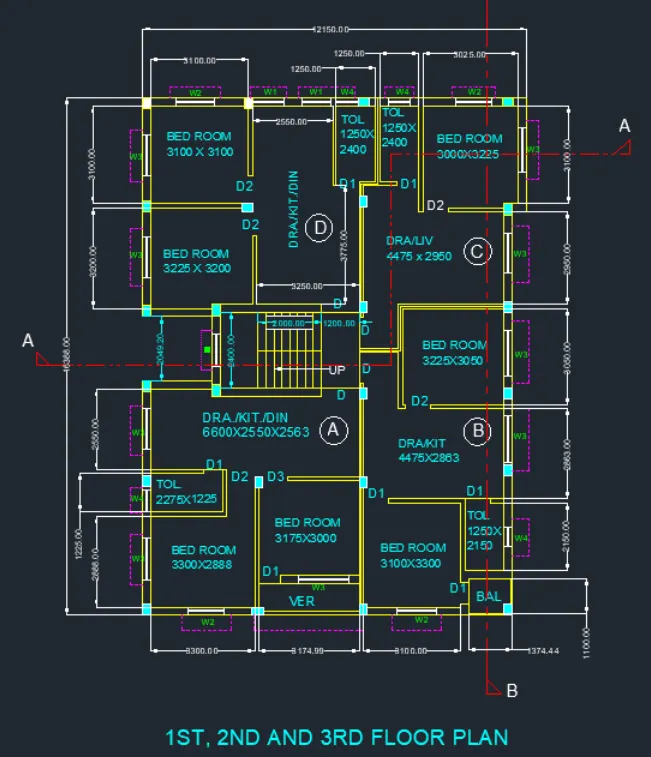

Step 1. :  set limits using limits command

draw  line of length 16388mm vertically and at the end of this line, draw 12150mm horizontally

complete the outline of the plan.

give offset distance of 230mm for the outer line

draw inner walls usiing polyline and then give offset distance of 150mm for inner wall thickness

trim the part of lines where there are door openings.

make windows w1 w2 w3 w4 and copy and move it to the correct position as given

make small rectangulars 250x350 for column and copy move it and plave it on the corners as shown

using multiline text give text details. show sunshade od windows using dotted lines

show dimensions .

Result :  step.1

Step.2 :

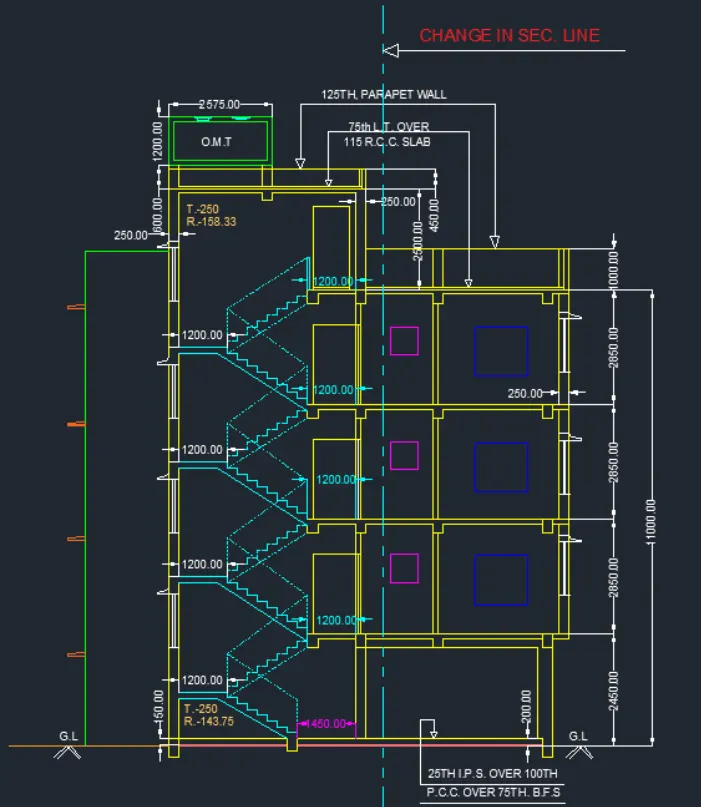

Using polyline draw the outline of the section of plan given.

draw ground level plate thickness of 150mm

thickness of the outer wall is 250 mm so give offset distance of 250mm to outer wall vertical lines

draw stairs in the bottom ground , copy and move it to the top layers , trim the extra stairs if any

draw windows and doors wherever necessary

draw parapet wall at the topmost and on top of that draw water tank omt with the given dimensions

show dimensions and details using multiline text

Result : step 2

Step 3.

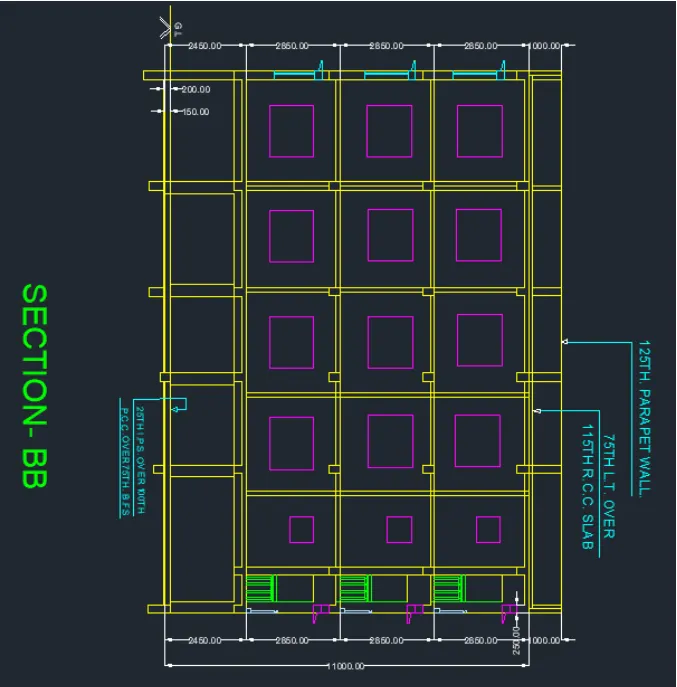

Procdure : Draw the outline of the builiding , vertical length 11000mm  , horizontal length of 16380mm

give floor thickness and slab thickness of 150mm

inner wall offsets are 125mm and 150mm

ground level thickness 200 and 150mm

draw windows on 1st 2nd and 3rd floor

put dimensions wherever necesary and give details

Result: step 3:
